Sunchonglic 12V 24V 20amp 20A pwm controllers manual pwm solar charger controller

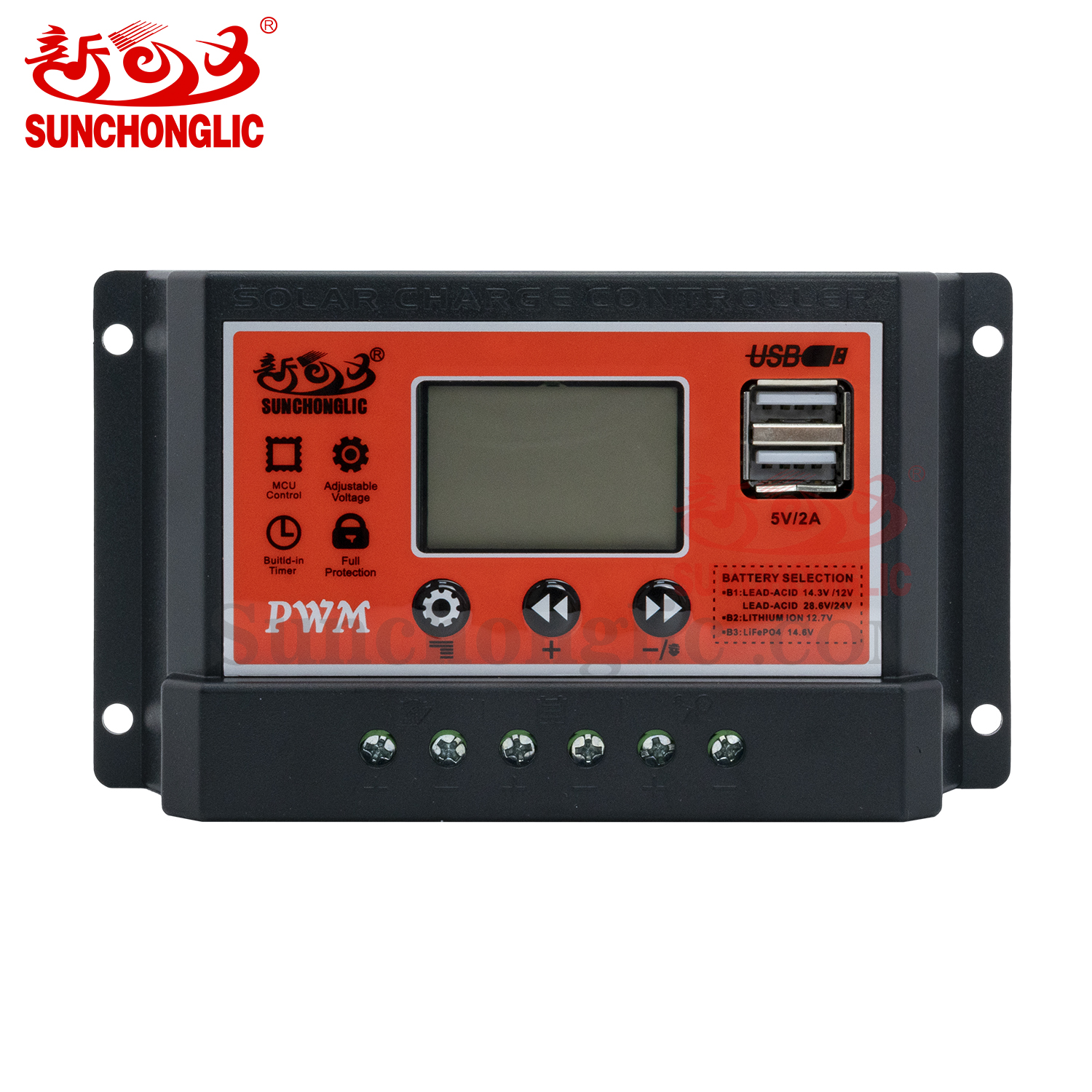

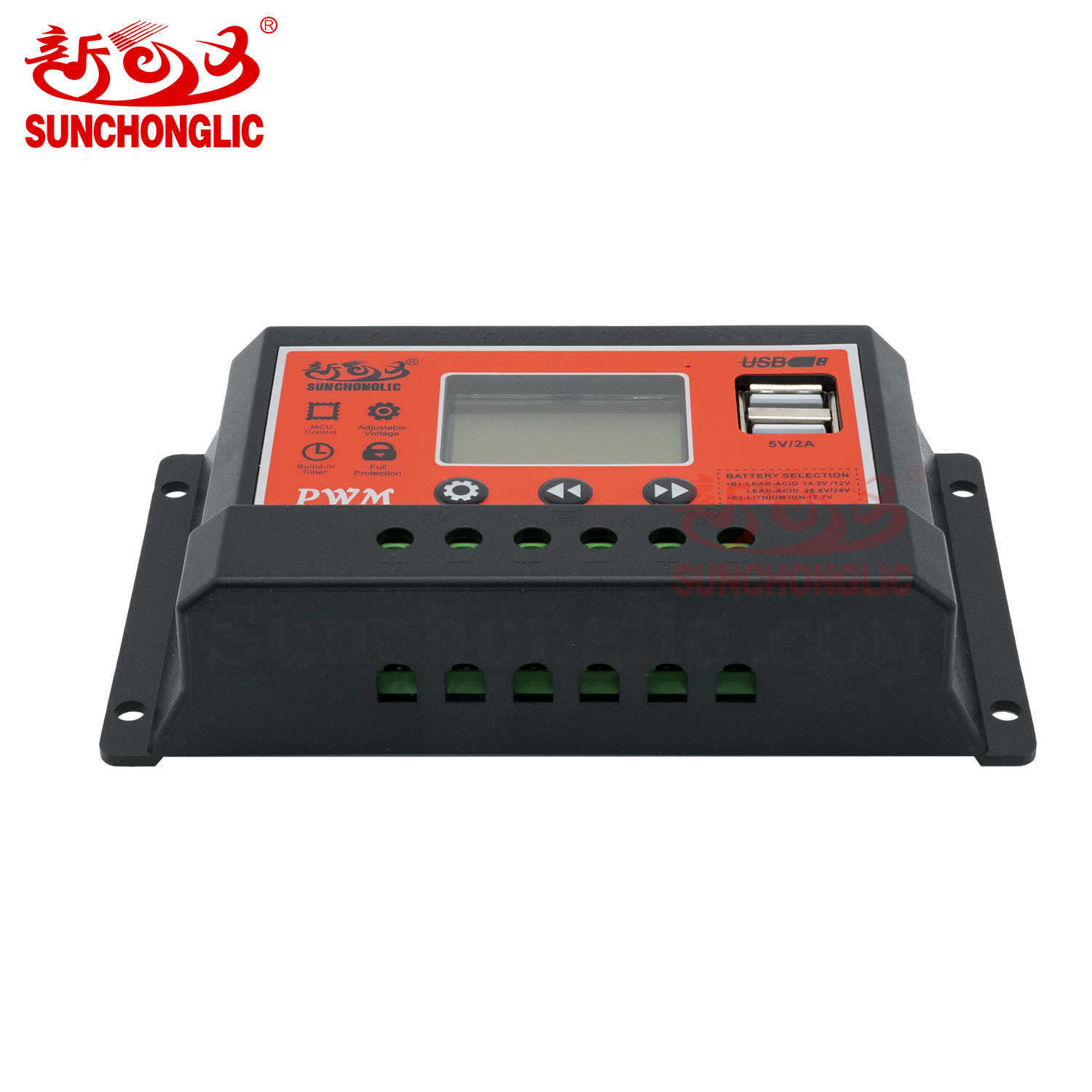

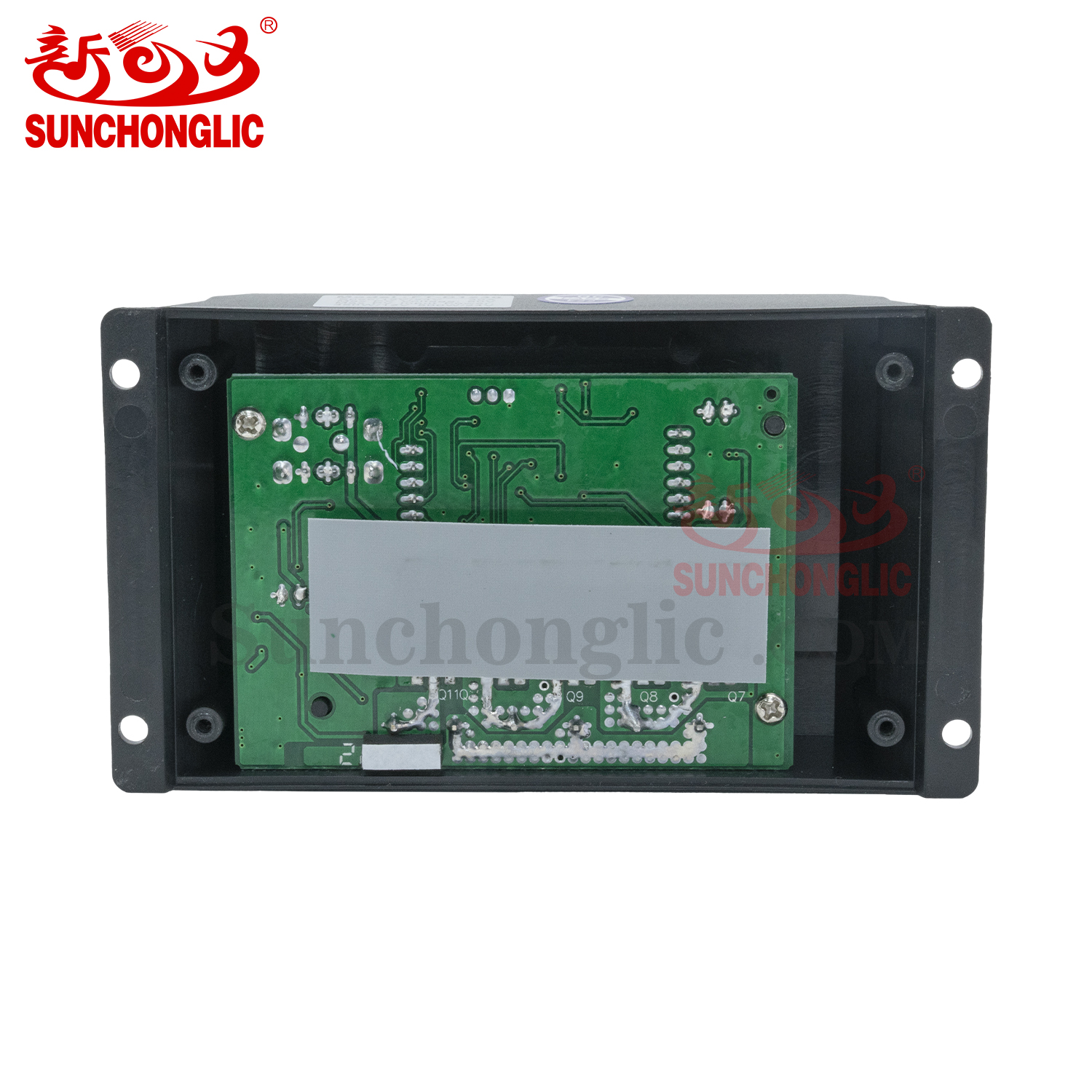

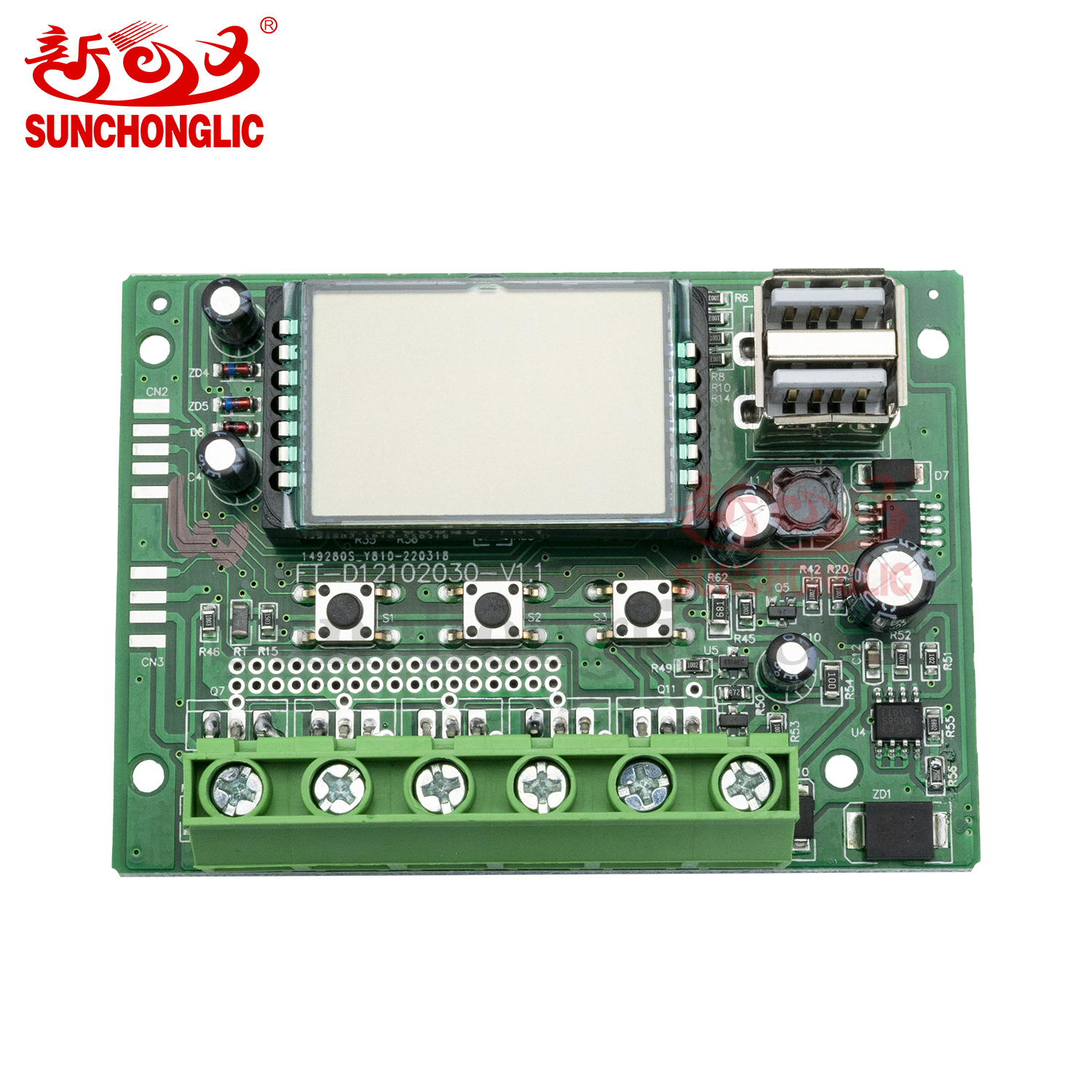

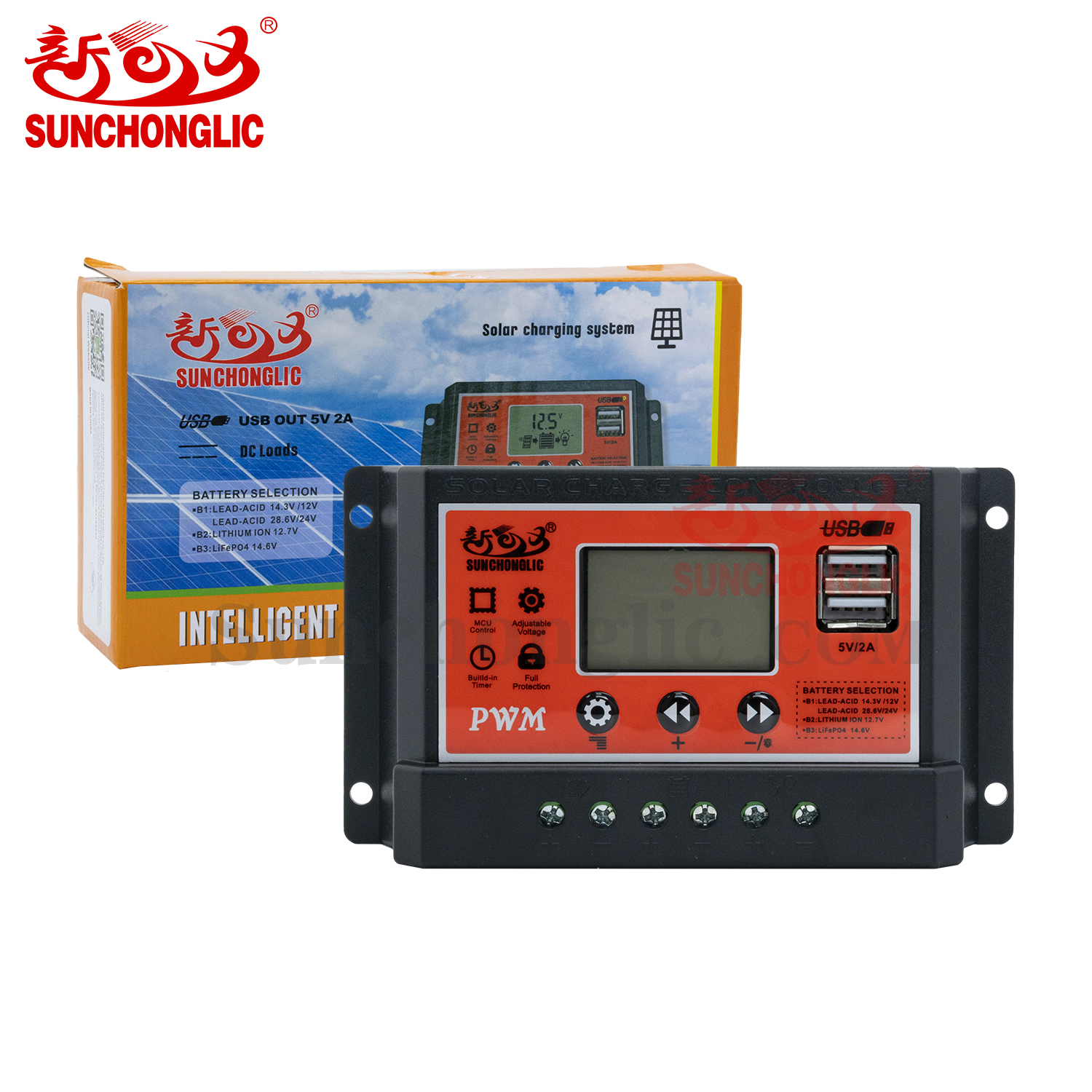

FT-D1220

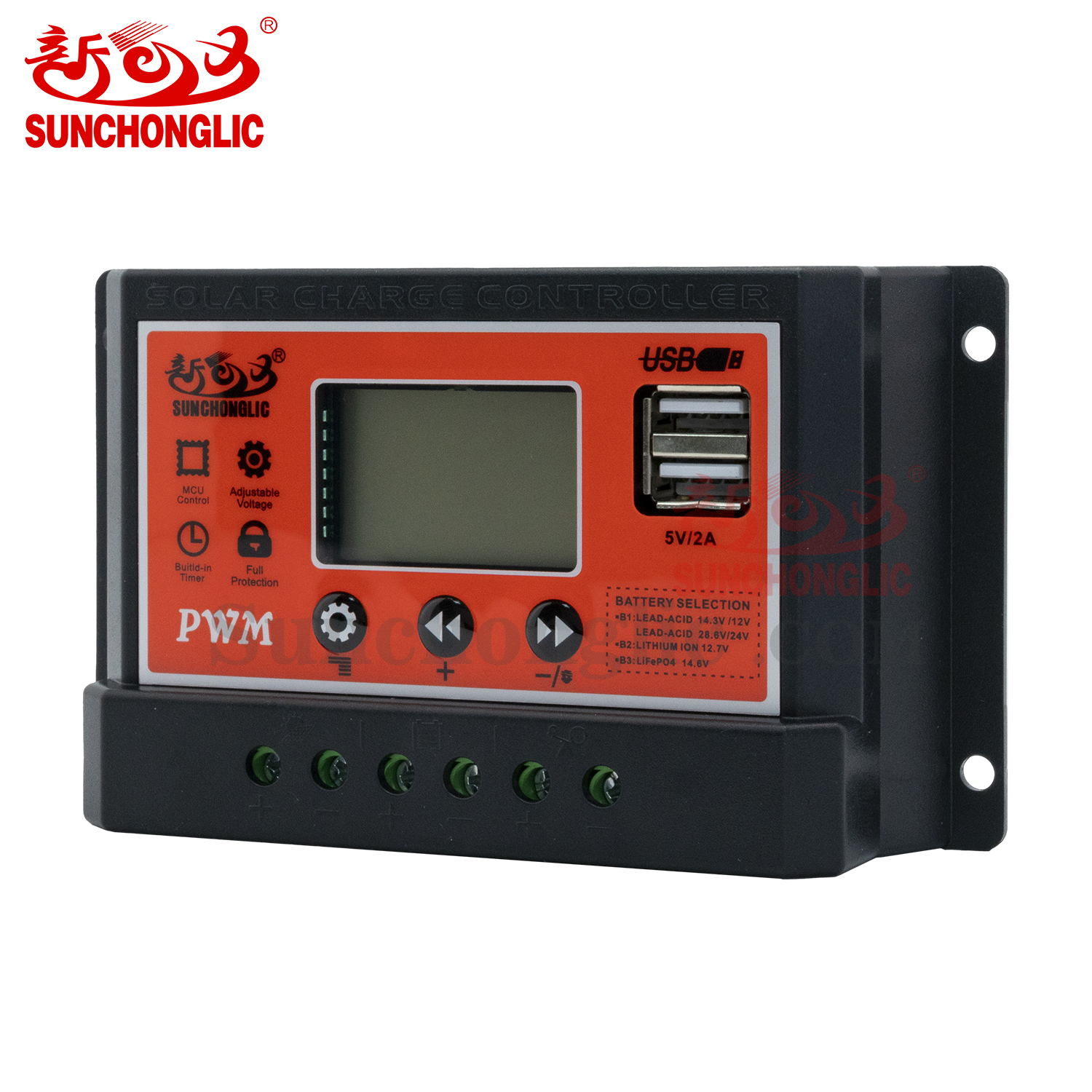

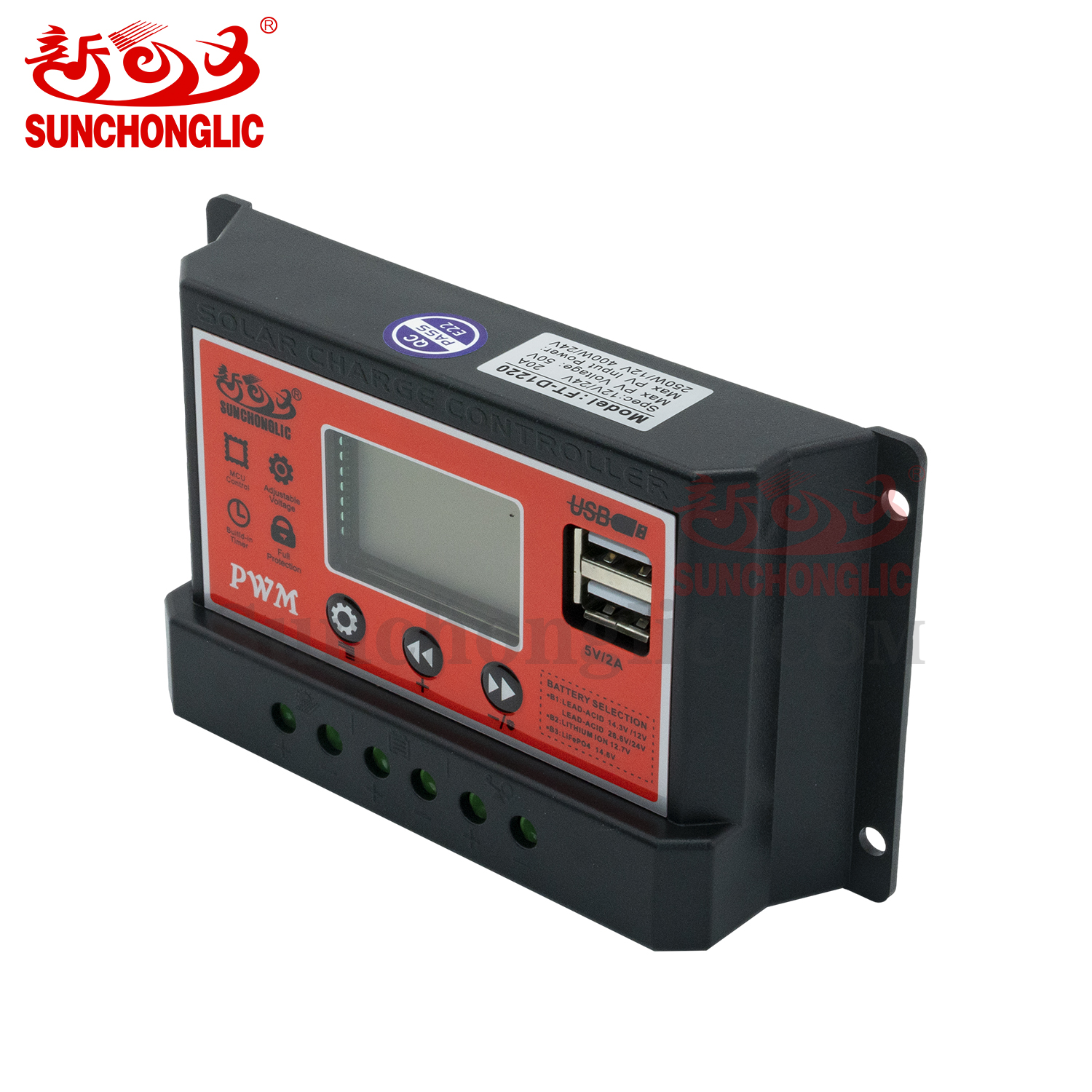

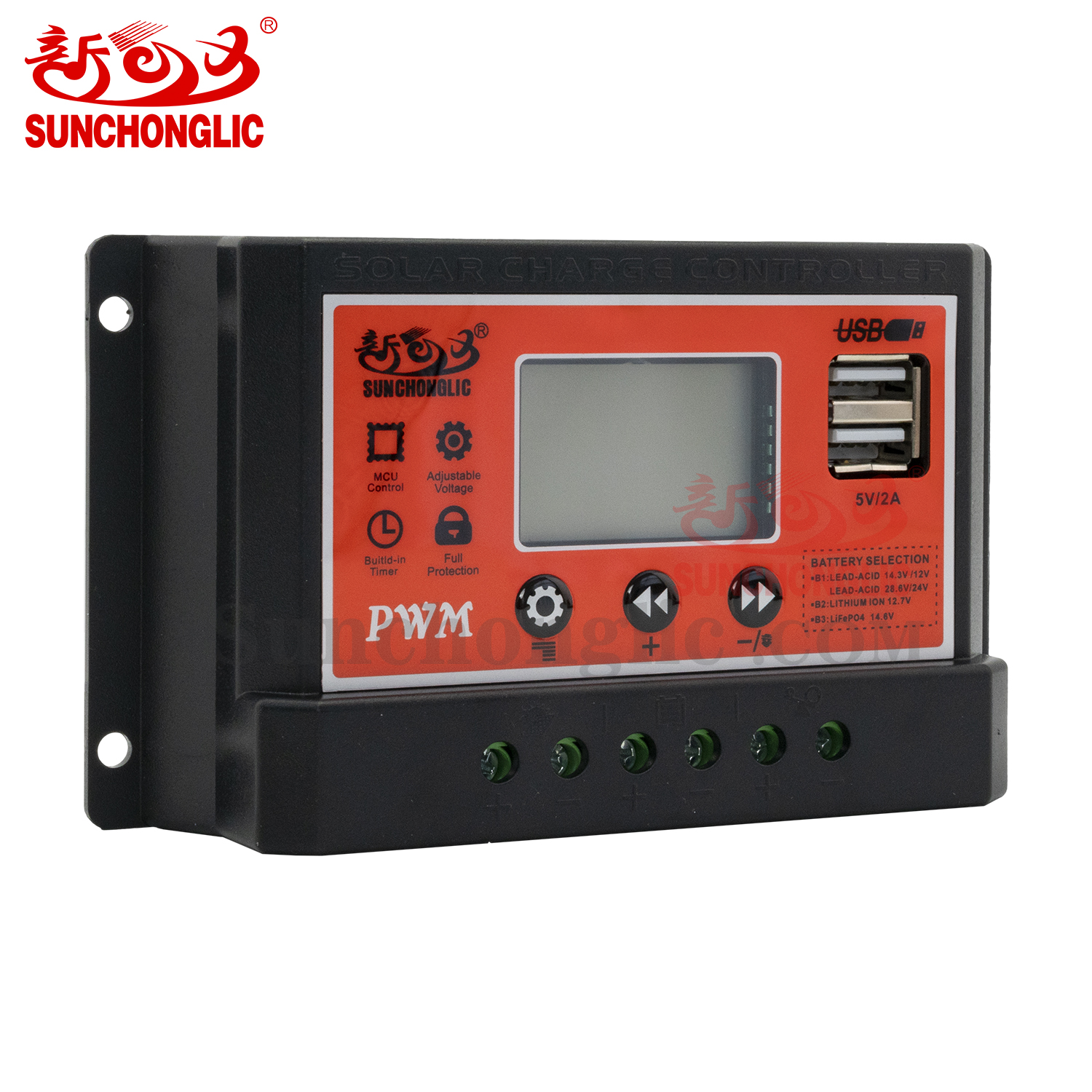

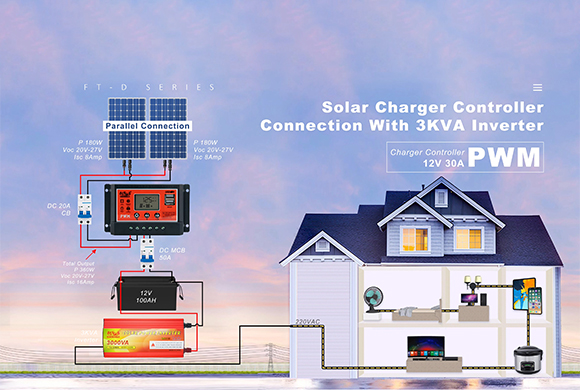

PWM Solar Charge Controller

Features:

Solar charge controller 12v/24v 20A,applicable for 3 types of batteries:B01 Lead acid batttery,B02 Lithium ion battery,B03 Lithium iron phosphate battery

Power-cut memory function.The power-cut memory function can automatically memory retention of users' last settings

Large-screen LCD display

Adopt complete three phase PWM charge management (Constant current mode,Constant voltage mode,Floating charge mode)

Multiple protections.Overcurrent protection, Short circuit protection, Open ciruit protection and Battery reverse protection

INQUIRE NOW

SEND ENQUIRY

Specifications

Product Specification
Model	FT-D1210	FT-D1220	FT-D1230
Rated current	10A	20A	30A
System Voltage	12V/24V system is only designed for lead-acid batteries with auto sense function
Solar PV input maximum voltage	12V system<25V; 24V system<50V
Battery Type	B01=Lead Acid Battery 12V/24V auto sense
	B02=Lithium-ion battery 3 series 3.7V=11.1V
	B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V
Charging voltage	Default*14.3V(B1) adjustable range 13.7-14.6V	Default12.6V(B2) adjustable range 11.5-12.6V	Default14.6V(B3) adjustable range 13.7-14.6V
Low-voltage cut off voltage	Default*10.7V(B1) adjustable range 8-11.5V	Default9V(B2) adjustable range 8-11.5V	Default10V(B3) adjustable range 8-11.5V
Low power recovery voltage	Default*12.6V(B1) adjustable range 11.5-12.6V	Default10.5V(B2) adjustable range 10-12V	Default12V(B3) adjustable range 11-13V
External 12V battery recommended solar panel specifications	100-150W/18V	150-250W/18V	200-350W/18V
External 24V battery recommended solar panel specifications	150-200W/36V	300-400W/36V	400-500W/36V
Battery capacity recommended	12V/24-80Ah	12V/60-150Ah	12V/100-200Ah
Battery capacity recommended	24V/24-80Ah	24V/60-150Ah	24V/100-200Ah
Rated current of DC load output	12A
USB Output	5V/2A
Standby current	<10mA
Working temperatue	-35℃~+60℃
Size / Weight	133x75x33mm/152g
Mark:* tagged voltage only corresponds to 12V solar system,if user use 24V system,please multiply by 2

Video Presentation

12V/24V 10A/20A/30A PWM Solar Charge Controller.

Applicable for 3 types of batteries:B01 Lead acid batttery,B02 Lithium ion battery,B03 Lithium iron phosphate battery.

Large-screen LCD display.
