FT-C1260

Sunchonglic 12V 24V solar charge controller PWM 60A solar charger controllers

FT-C1260

PWM Solar Charge Controller

Features:

Clock timing function.

Extreme Low Power Consumption.

Built-in IR self-learning infrared remote control to turn the DC loads on and off.

LCD Display with backlight.

Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V).

Light control mode,Time control mode.

Reverse protection,short circuit protection.

Designed for 12V/24V solar power system.

Hanging style design makes it convenient to install.

Simple options,automatic memory retention of users' settings.

Five protection to ensure the safe, including charging over voltage / charging flow / over-current / load load short circuit / under-voltageprotection.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Product Specification
Model FT-C1210  FT-C1220 FT-C1230 FT-C1240 FT-C1250 FT-C1260
to adapt to the battery 12V/24V,battery<16V:12V,Battery>18V:24V
Maximum charging voltage 12V:18-24V Standard specifications solar panels(24V battery*2)
Maximum charging current 10A 20A 30A 40A 50A 60A
Maximum output current 12A 24A 35A 45A 55A 65A

Maximum charging voltage

Opening time of DC

Convenient switch:(24V Battery *2,Parameters can adjust in the Setting menu)

Set 1:Low:14.2V(28.4V),Gel battery(Default Option)

Set 2:Default:14.5V(29V),Convenientional lead-acid batteries)

Set 3:High:15.2V(30.4V)(Liquid lead-acid battery)



Low voltage protection voltage 10.5V(24 battery*2),Parameters can adjust in the Setting menu
Low pressure recovery voltage 12.5V(24 battery*2),Parameters can adjust in the Setting menu
Load overload automatic recovery 30S
Double USB output 5V 2A/1A NO
Load relating to open time 0-24 hours can choose
Infrared remote control distance >5m
Pieces/CTN 40pcs 40pcs 40pcs  40pcs 20pcs 20pcs
Weight/CTN 14.05kg 14.3kg 21kg 21.2kg  14.3kg 20.89kg
Dimensions/CTN 52*27*40cm 52*27*40cm 54*27*44cm 54*27*44cm

52*27*40cm

48.5*36.3*33cm

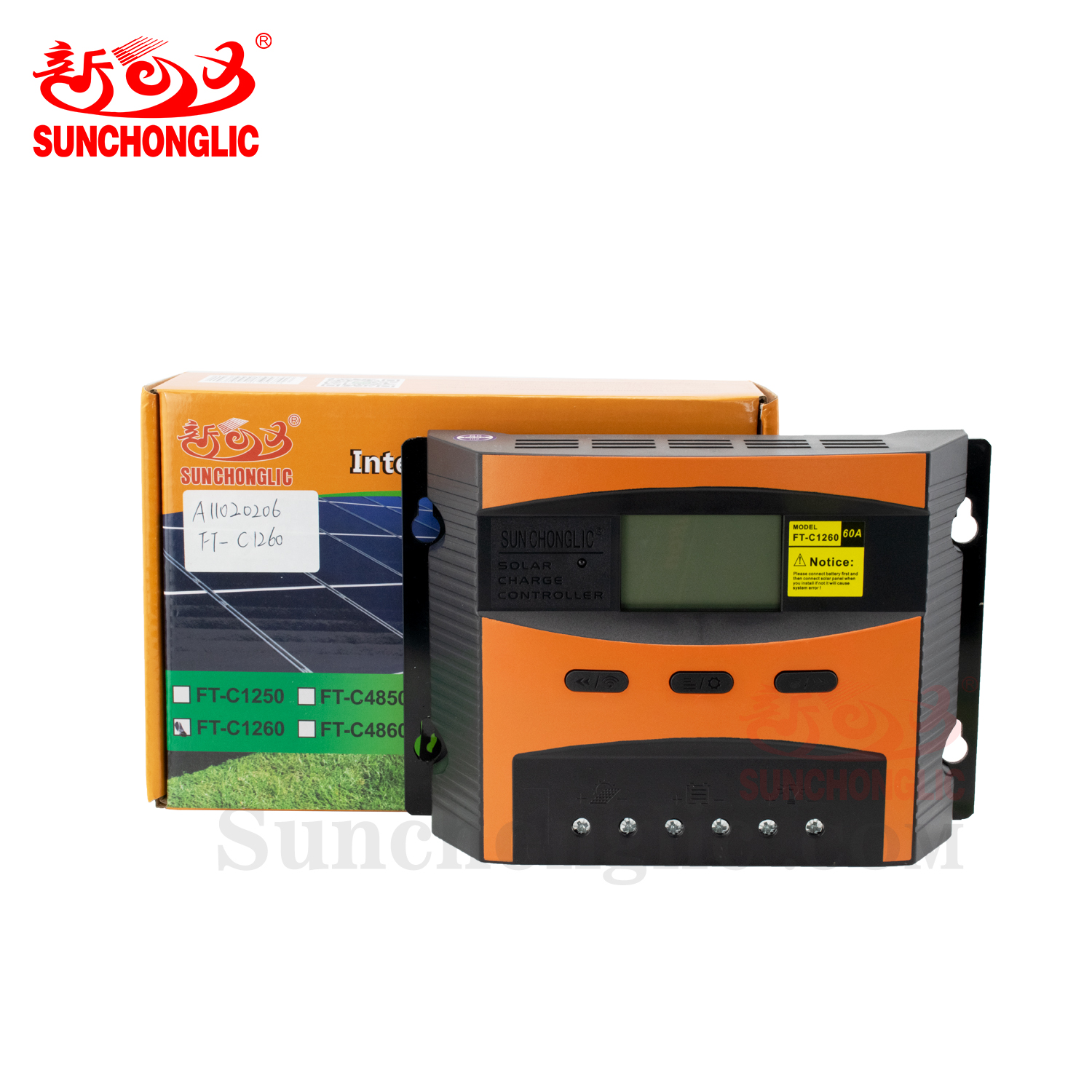

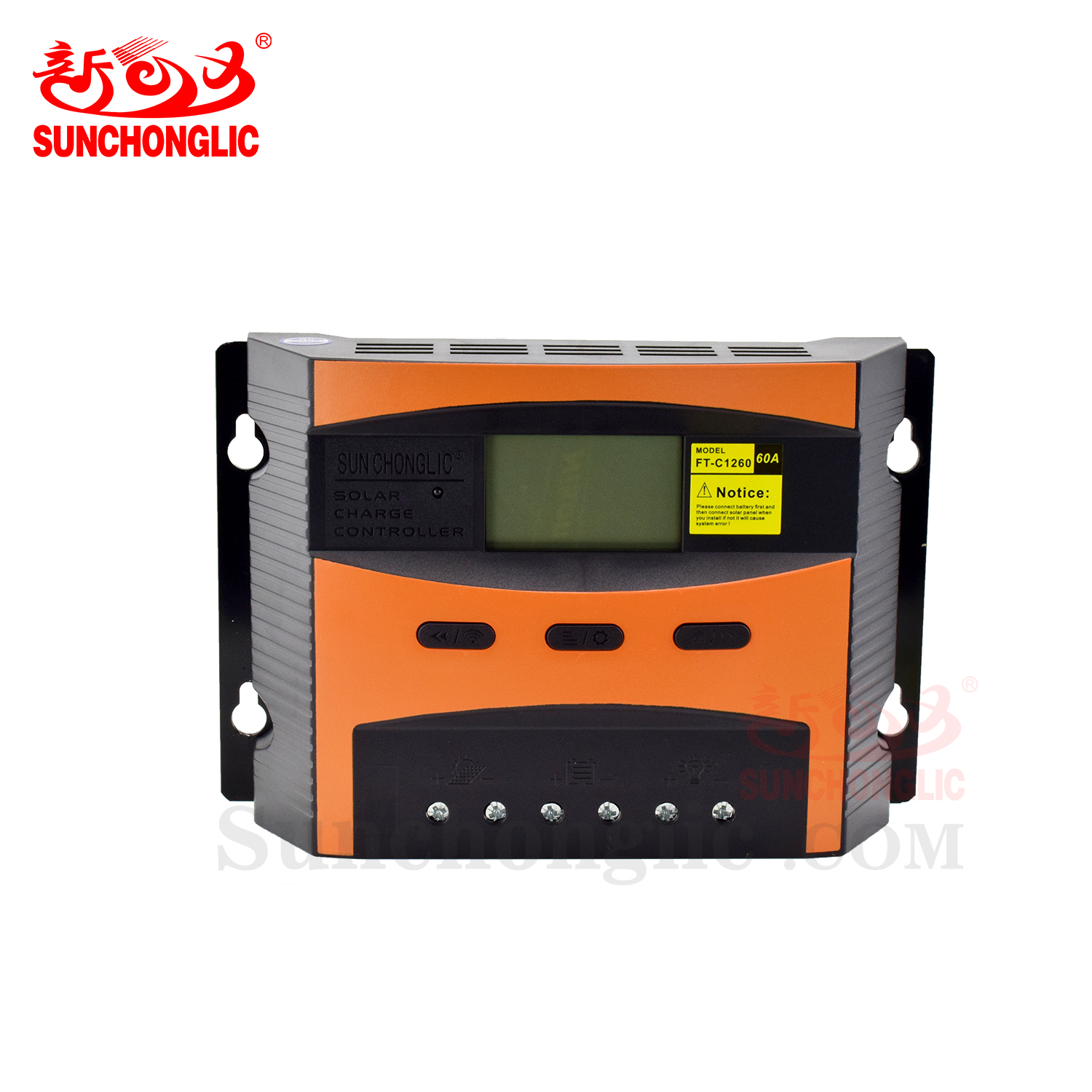

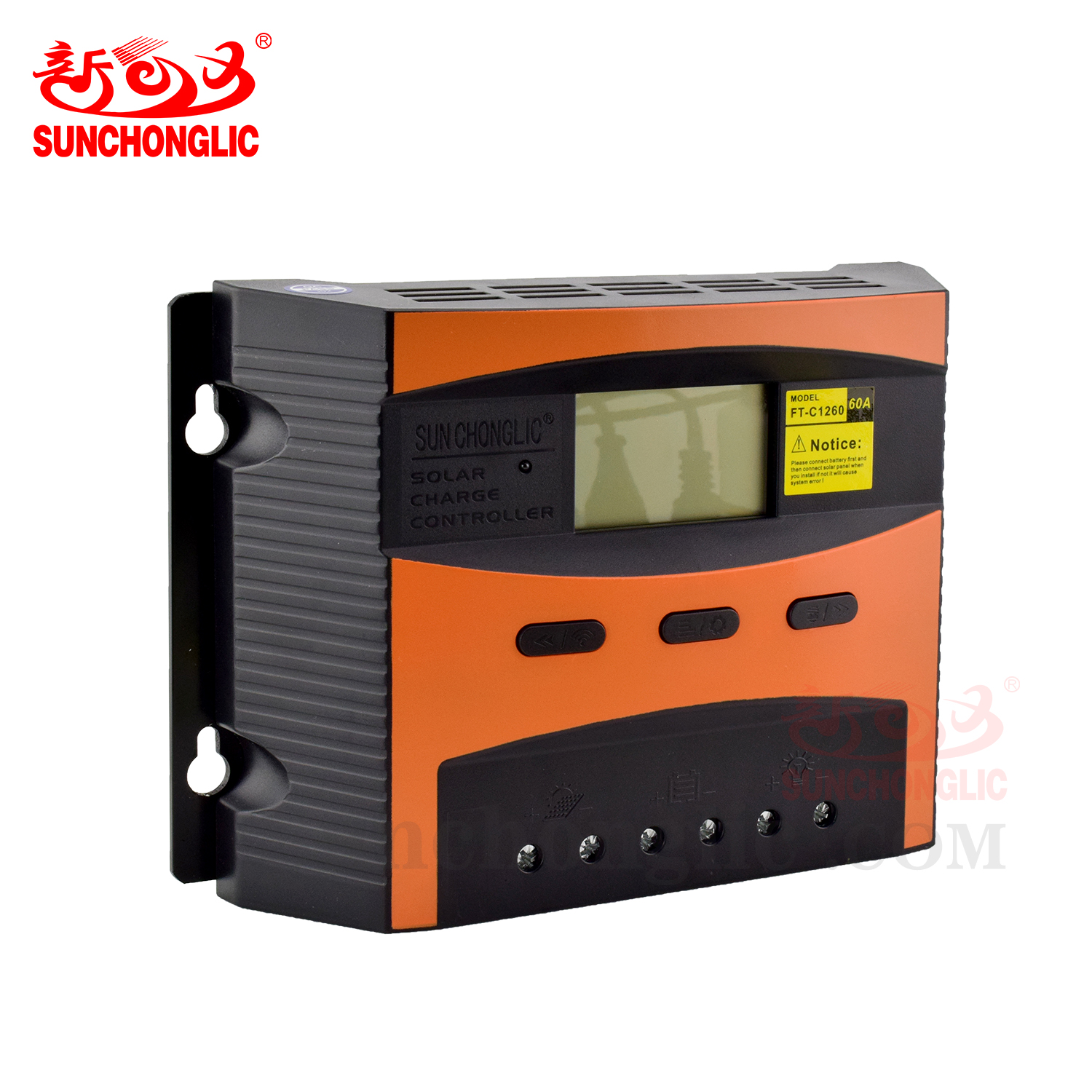

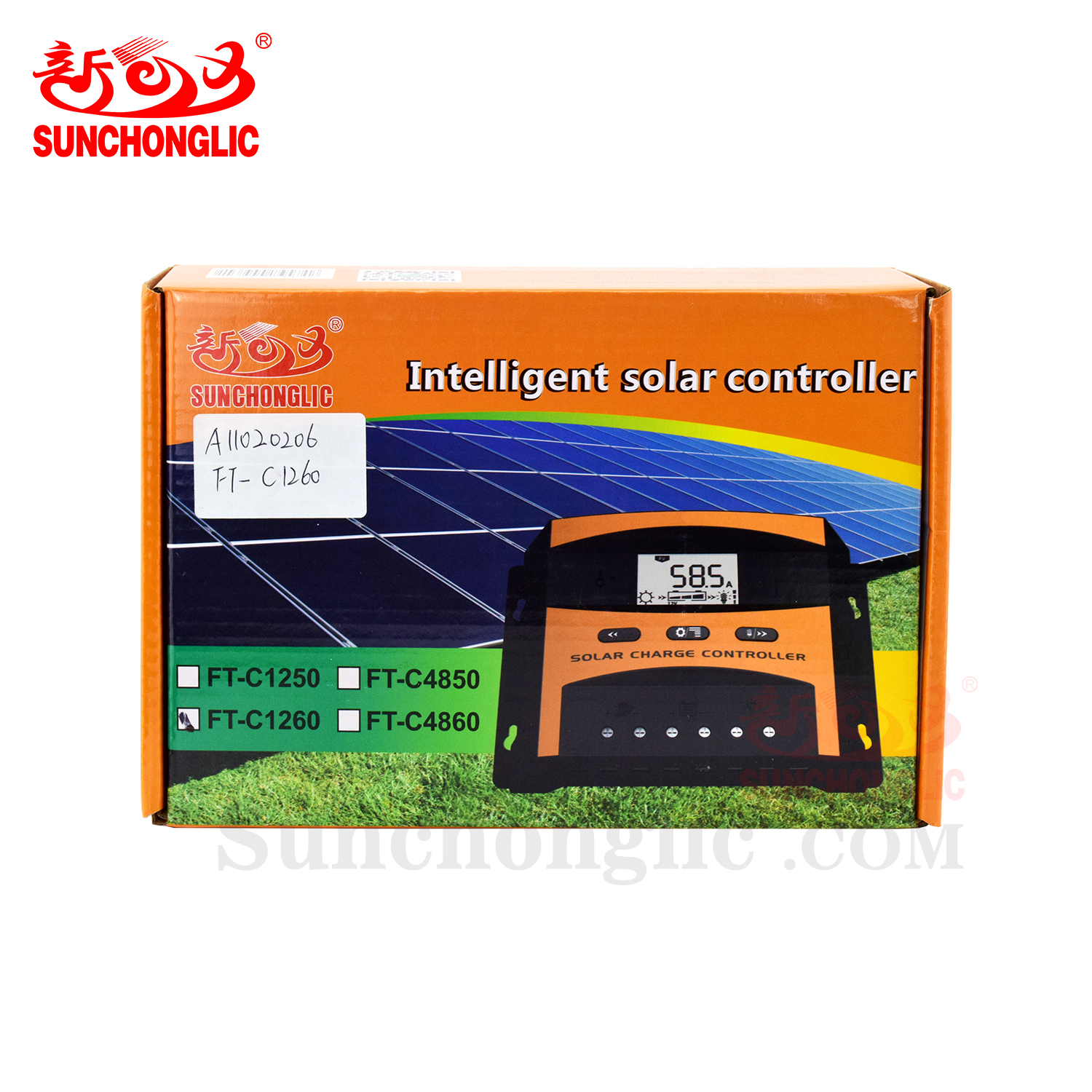

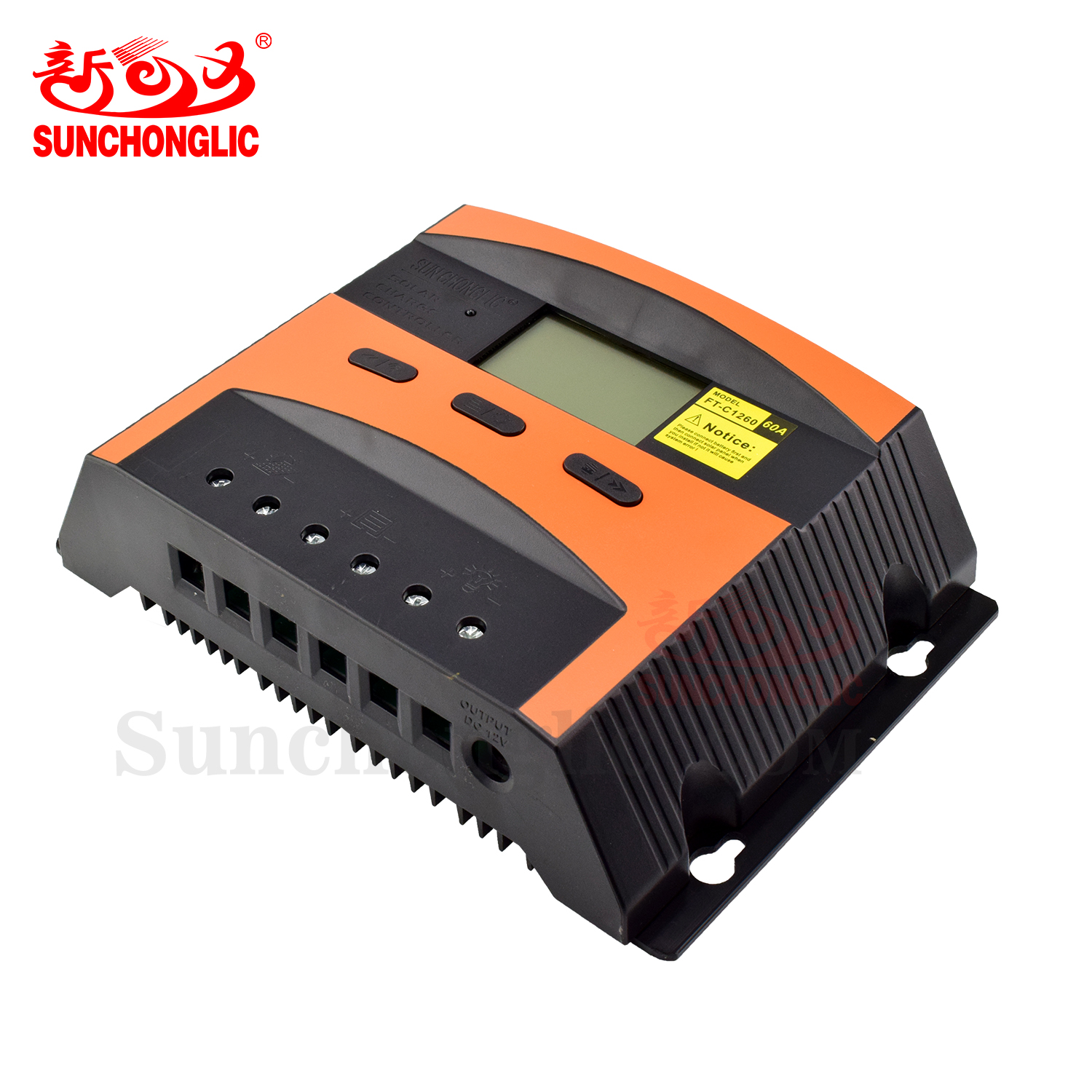

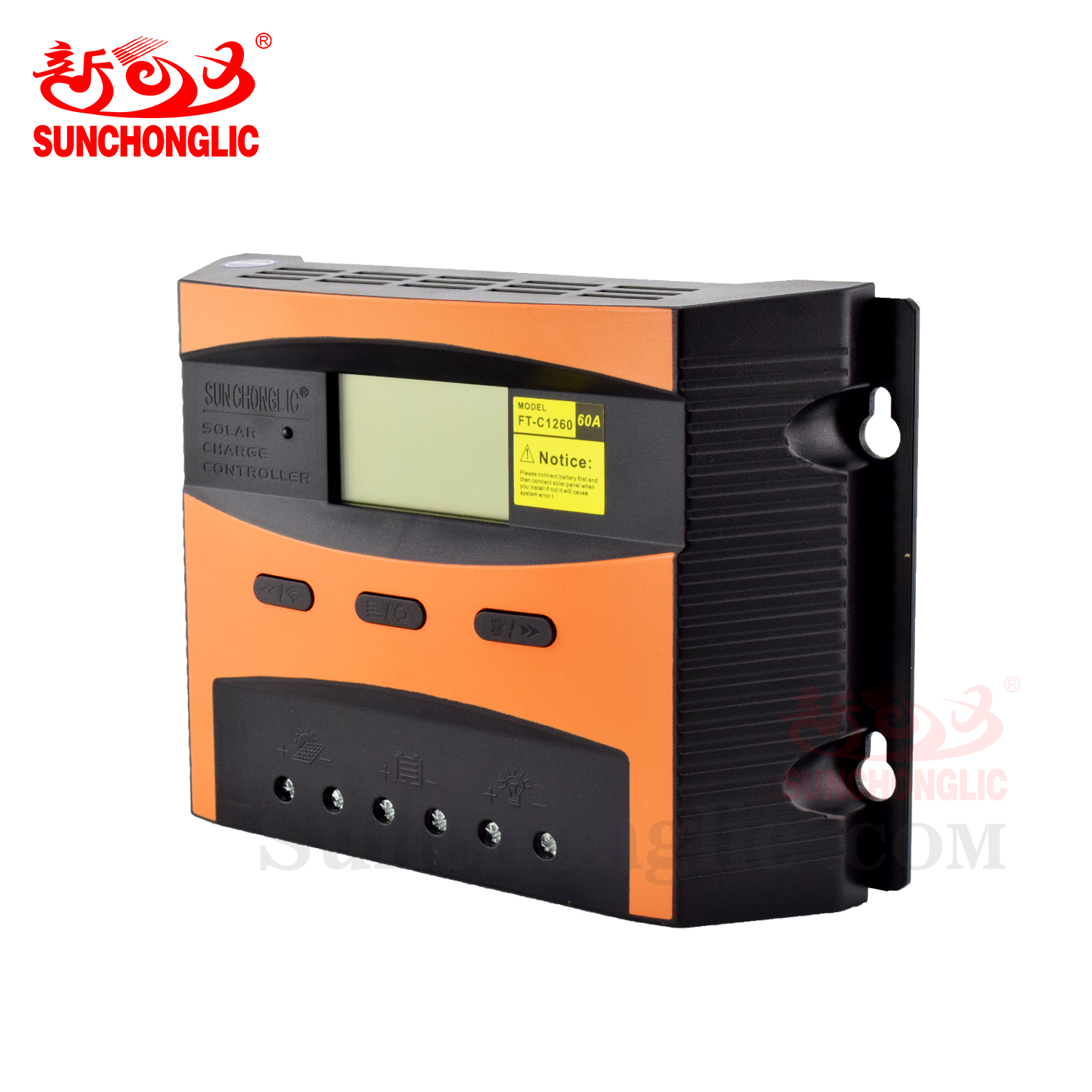

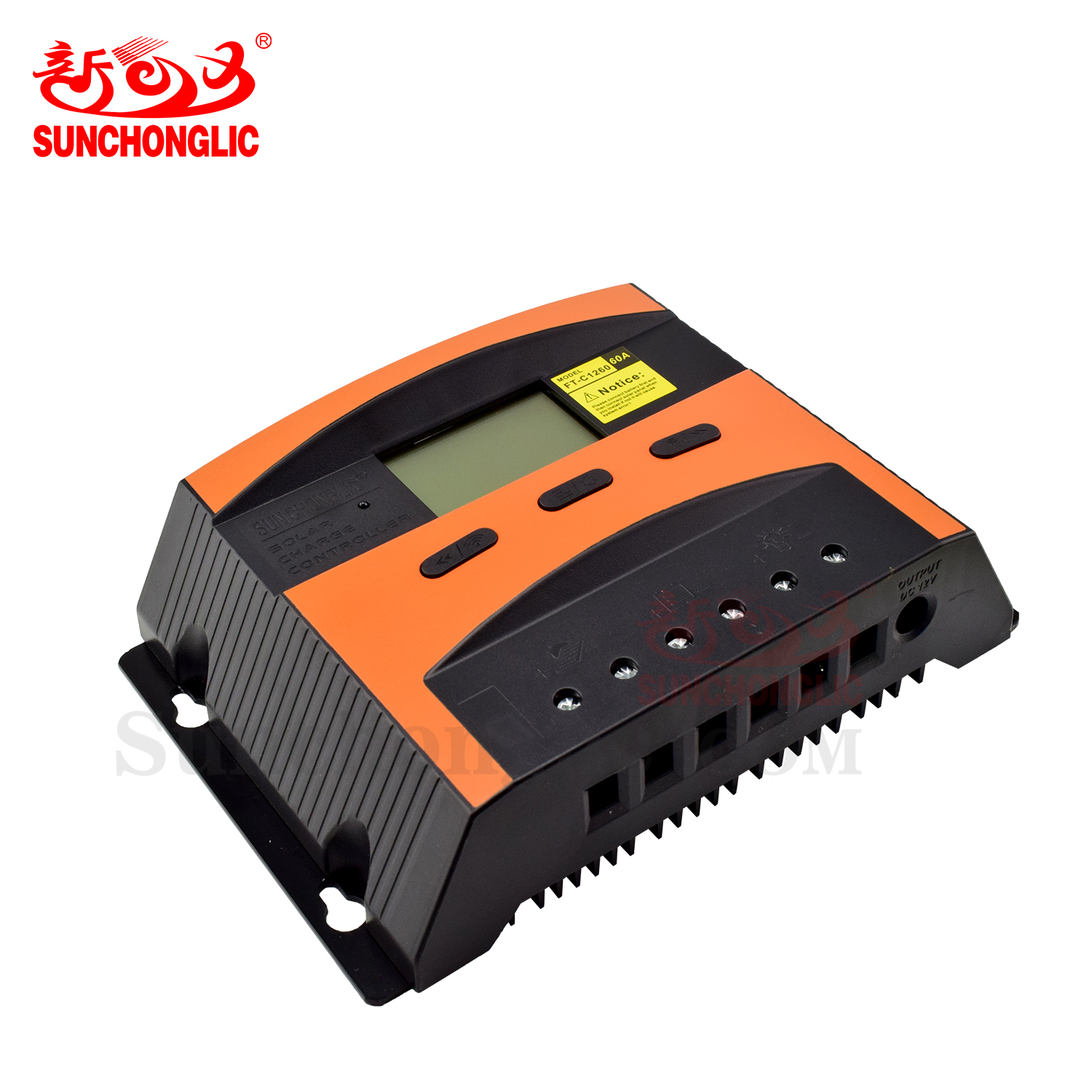

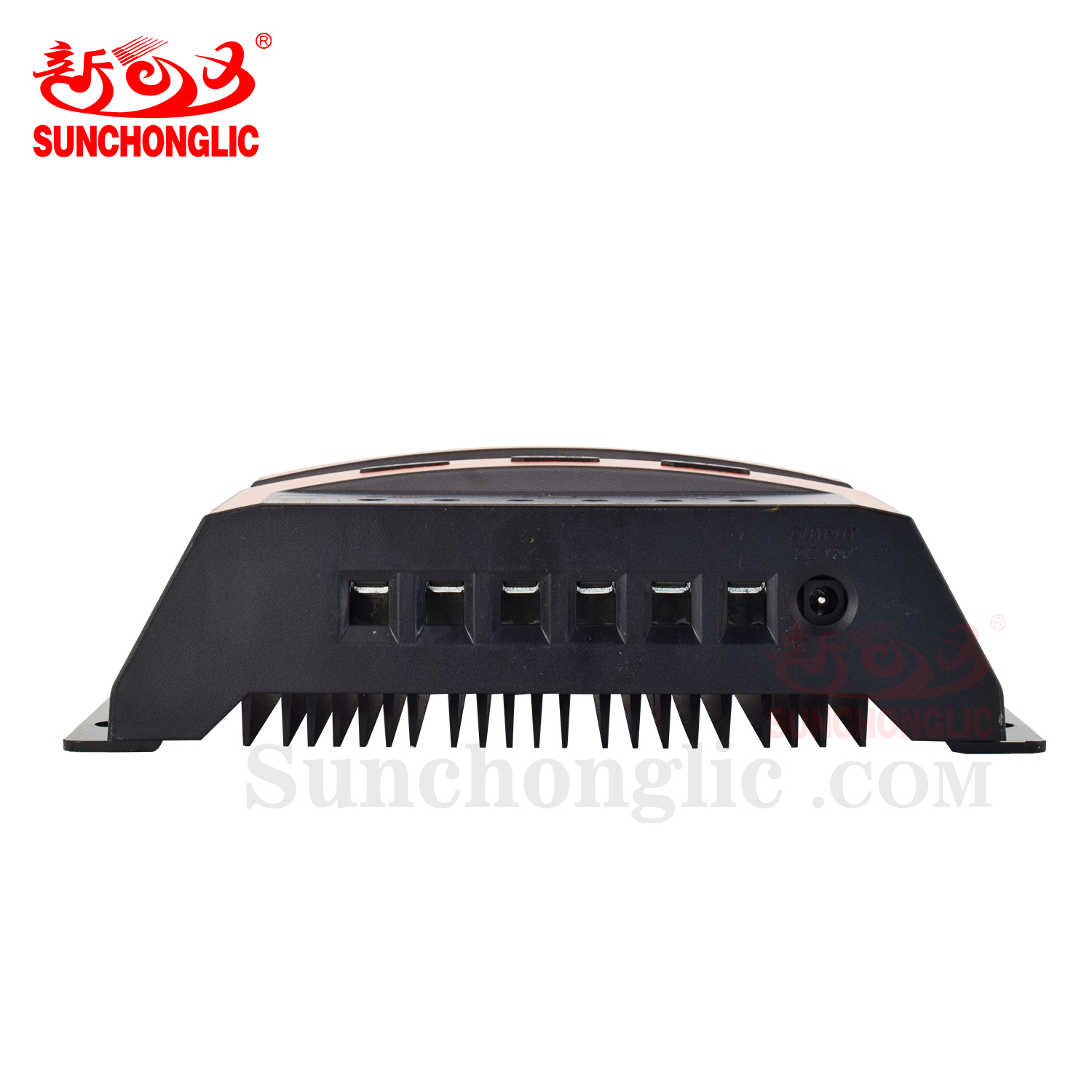

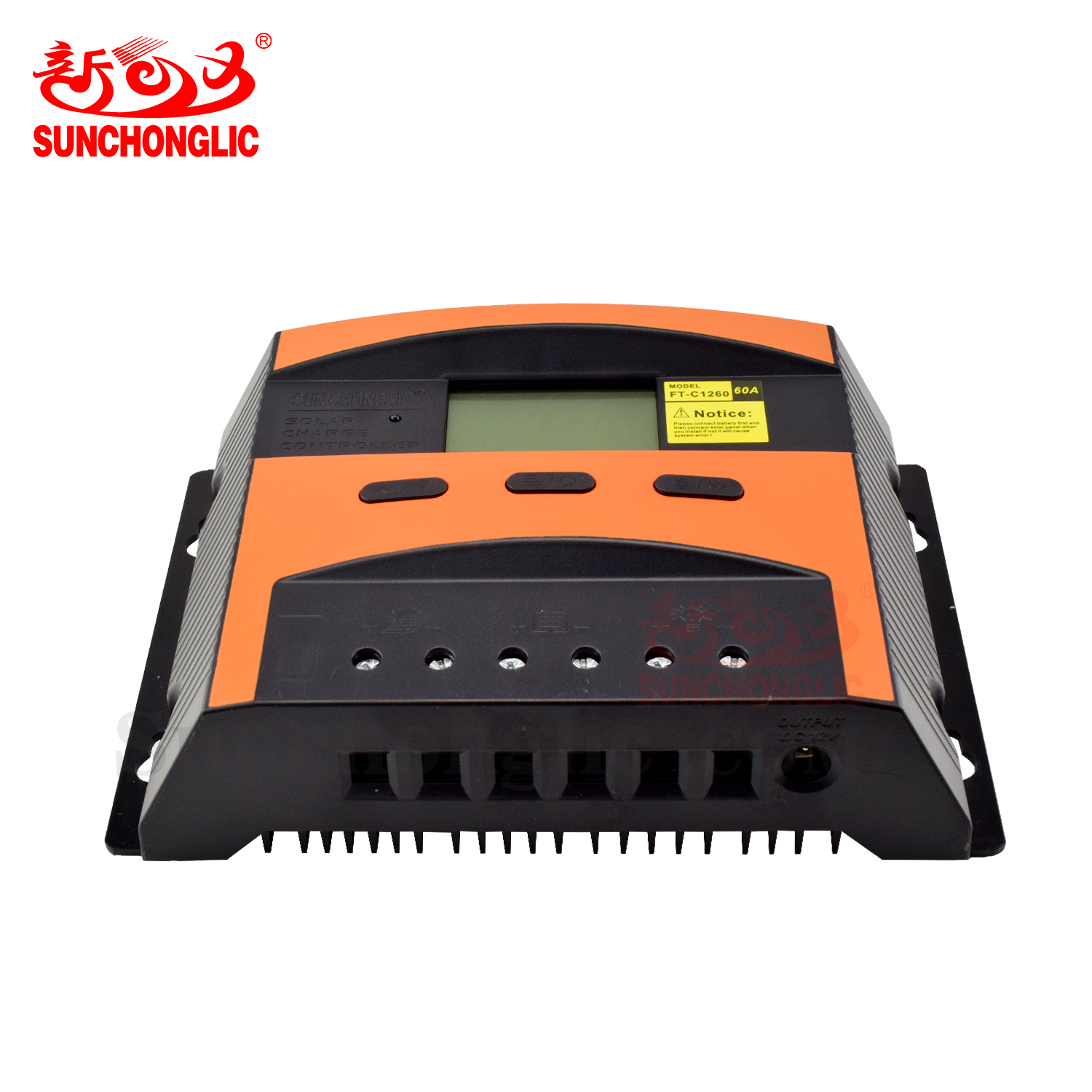

Product Photos
