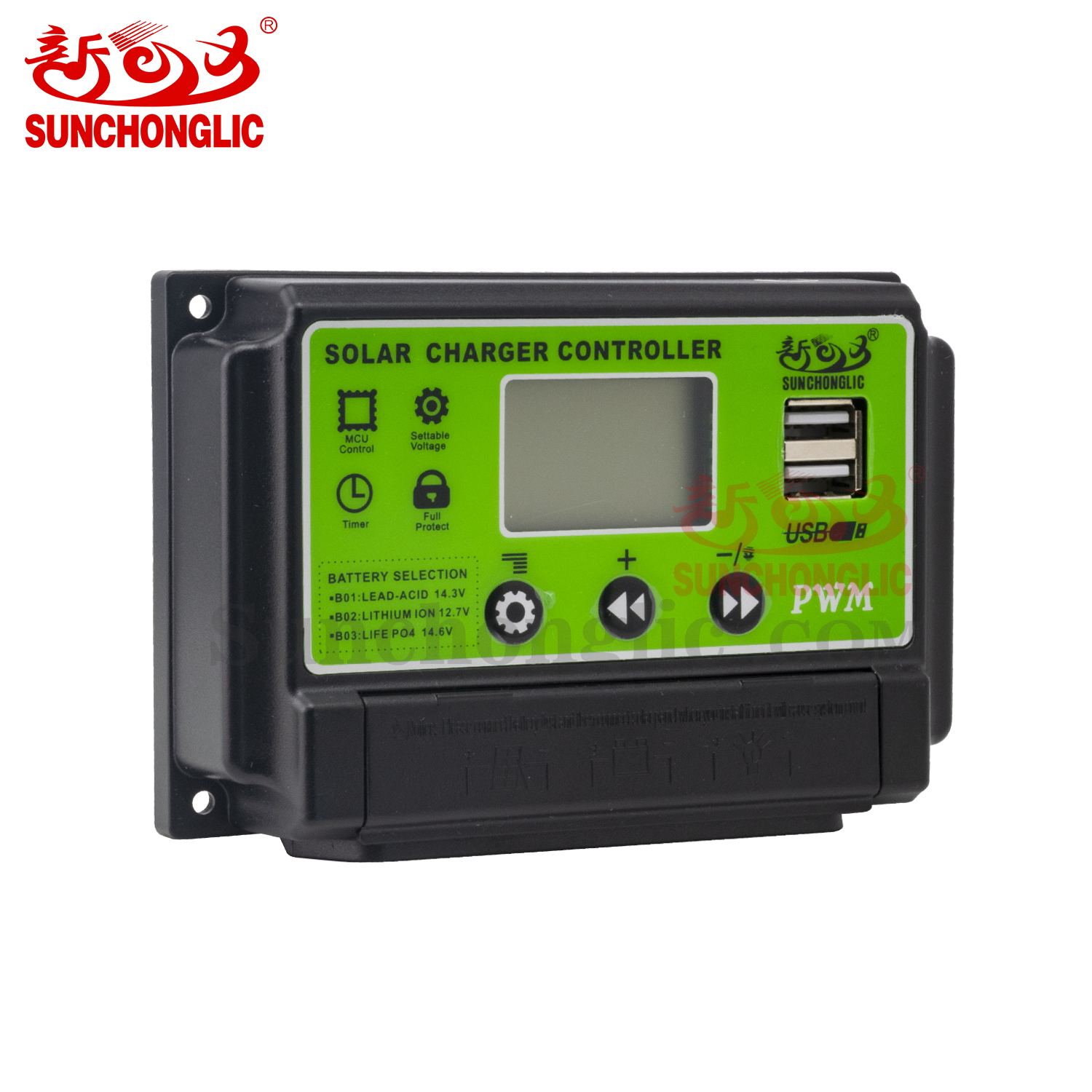

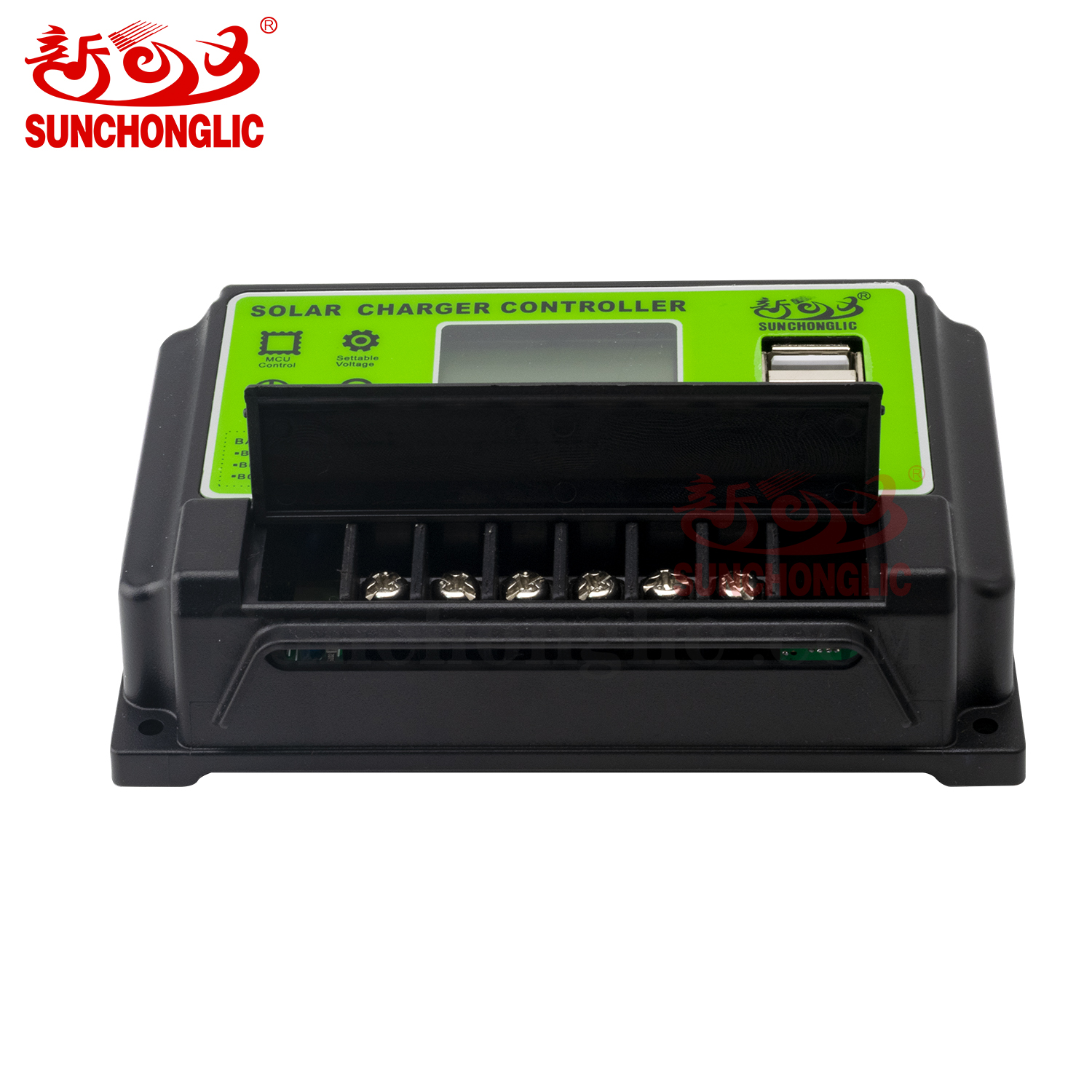

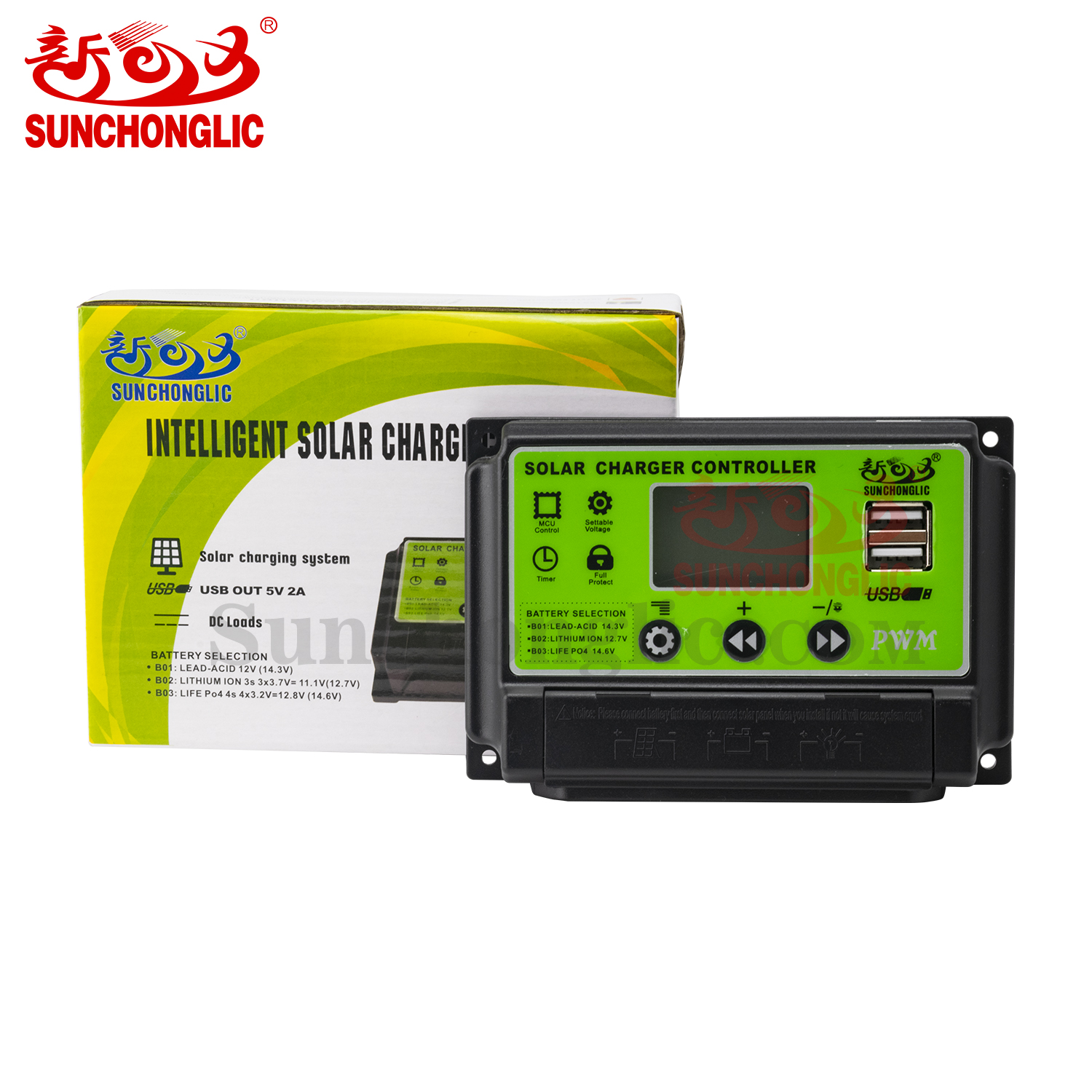

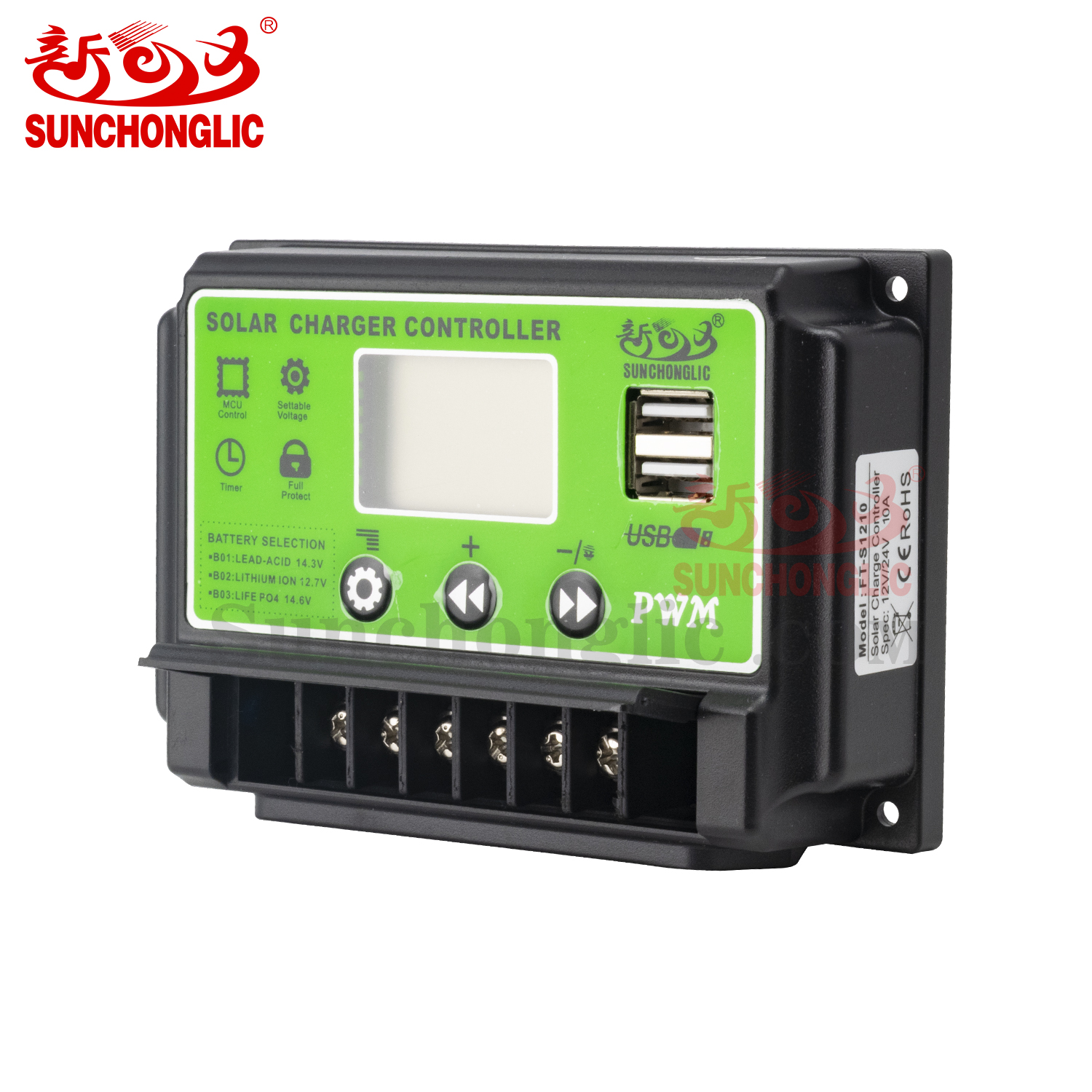

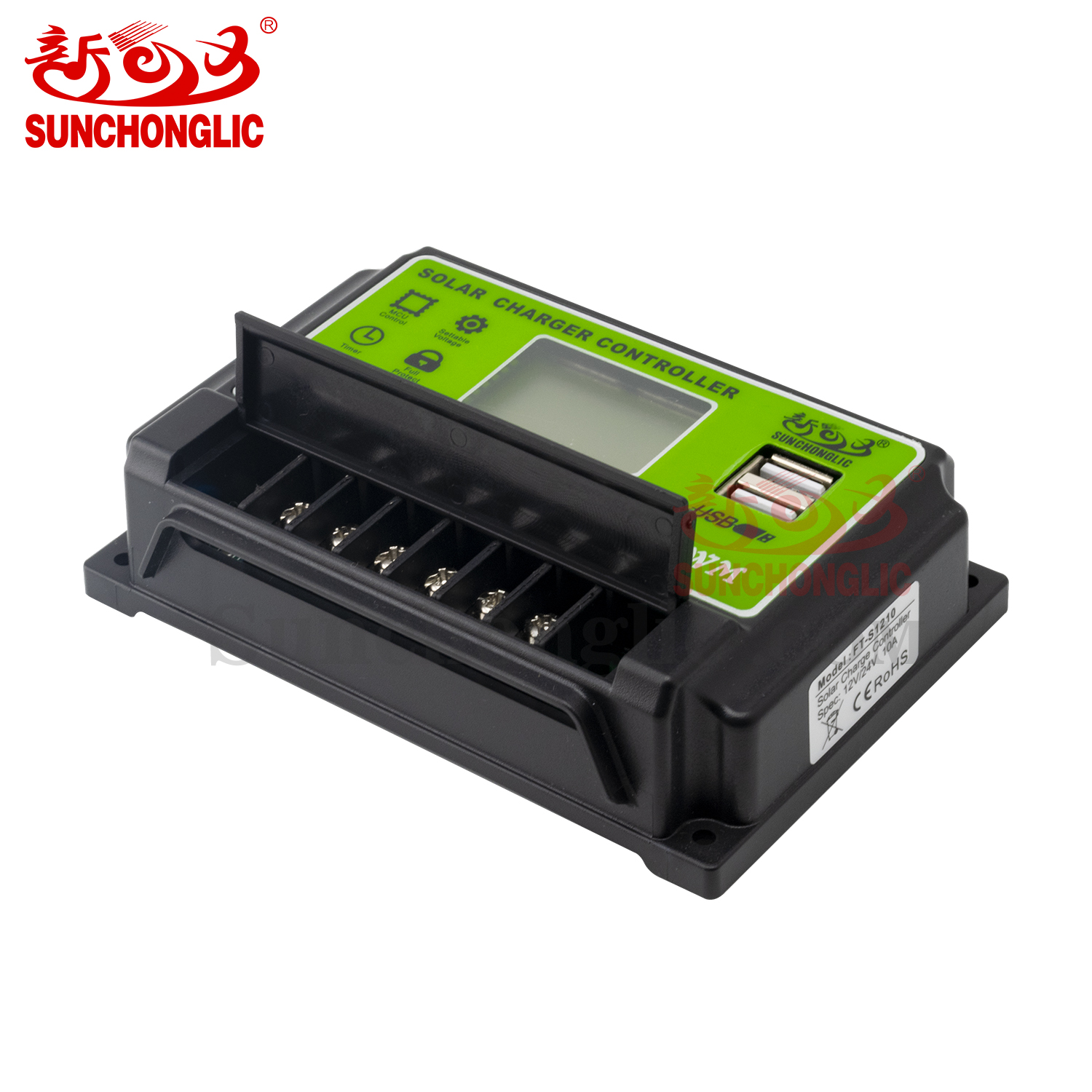

Sunchonglic 12V 24V 10A pwm solar controller

FT-S1210

PWM Solar Charge Controller

Applicable for 3 types of batteries:B01 Lead acid batttery,B02 Lithium ion battery,B03 Lithium iron phosphate battery

Power-cut memory function.The power-cut memory function can automatically memory retention of users' last settings

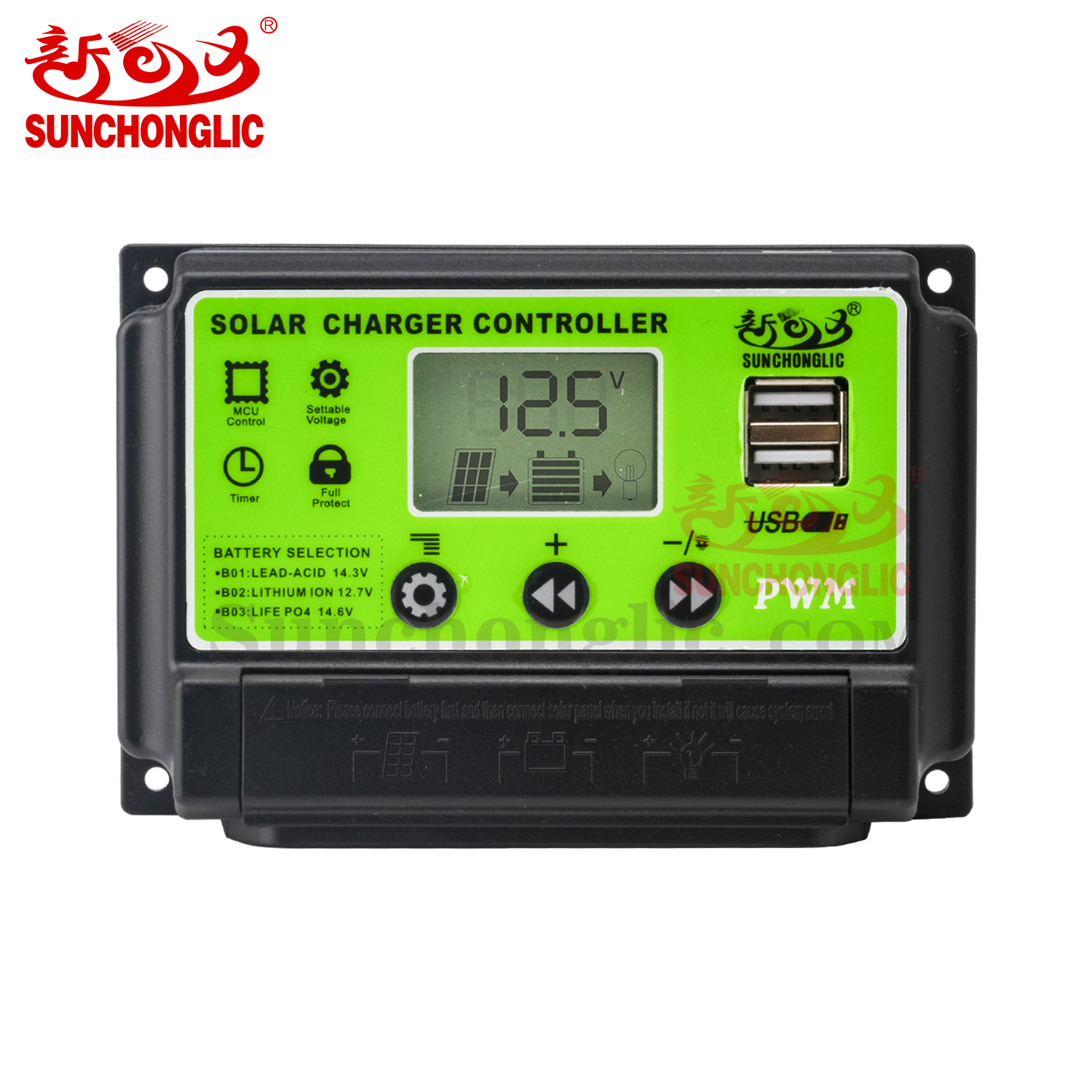

Large-screen LCD display.

Adopt complete three phase PWM charge management (Constant current mode,Constant voltage mode,Floating charge mode)

Multiple protections.Overcurrent protection, Short circuit protection, Open ciruit protection and Battery reverse protection

Double MOS tube anti-reverse circuit protection, which prevents battery current from flowing back to the solar cell at night to cause power loss.

INQUIRE NOW

Product Specification
Model	FT-S1210	FT-S1220	FT-S1230
System Voltage	12V/24V
Maximum input voltage	<50V
Rated current	10A	20A	30A
External 12V battery recommended solar panel specifications	100-150W/18V	200-300W/18V	300-450W/18V
External 24V battery recommended solar panel specifications	100-150W/36V	200-300W/36V	300-450W/36V
External battery	12V 100-150Ah
External battery	24V 100-150Ah
Battery Type	B01=Lead Acid Battery 12V
	B02=Lithium-ion battery 3 series 3.7V=11.1V
	B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V
Charging voltage	14.3V(B01)	12.6V(B02)	14.6V(B03)
Low-voltage cut off voltage	10.7V(B01)	9V(B02)	10V(B03)
Low power recovery voltage	12.6V(B01)	10.5V(B02)	12V(B03)
USB Output	5V/2A
Standby current	<10mA
Working temperatue	-35℃~+60℃
Size / Weight	1258634mm/200g
