FPC-500BL

Sunchonglic 24v dc to 220v ac 500W pure sine wave power inverters

FPC-500BL

Pure Sine Wave Inverter

Features:

Pure sine waveform output

Input and output are completely independent

Universal socket, suitable for all kinds of plugs

Efficiency is more than 91%

Low leakage current, less than 90 microamperes

Intelligent speed-regulating fan: The fan with output power greater than 100w or temperature in the machine over 50℃ rotates fast, otherwise it rotates slowly

Multiple protection: Input undervoltage protection/Input overvoltage protection/Overload protection/Overheat protection/Short circuit protection.

Applications: Vehicles and yachts; Home appliances, Office and portable equipments,etc.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Product Parameters
Model FPC-300AL FPC-300BL FPC-500AL FPC-500BL
DC Input Rated Battery Voltage 12VDC  24VDC 12VDC  24VDC
Rated Current 32A 16A 50A 25A
No-load current ≤600mA ≤300mA ≤600mA ≤300mA
Efficiency ≥91%
Battery Type Lead-acid Battery
AC Output Rated Power 300W 500W
AC Voltage 220VAC
Frequency 50Hz
Waveform Pure Sine Wave
Input Protection Low Voltage Alarm 10-10.5V 20-21V 10-10.5V 20-21V
Battery under-voltage shutdowm 9.5-10V 19-20V 9.5-10V 19-20V
Battery low voltage recovery
Battery overvoltage protection 15-15.5V  30-31V 15-15.5V  30-31V
Battery overvoltage recovery 14-14.5V 28-29V 14-14.5V 28-29V
Reverse connection protection Yes
Output Protection Output short protection Turn off output and resume after restart
Overload protection Turn off output and resume after restart
Overtemperature protection Turn off the output when the internal temperature is higher than 85℃, and automatically resume the output when it is lower than 70℃
Environment Working environment temperature -40~70℃
Working humidity 20%~95%RH
Storage temperature/humidity -40~85℃, 10~90%RH
Other Sizes 185*126*70mm

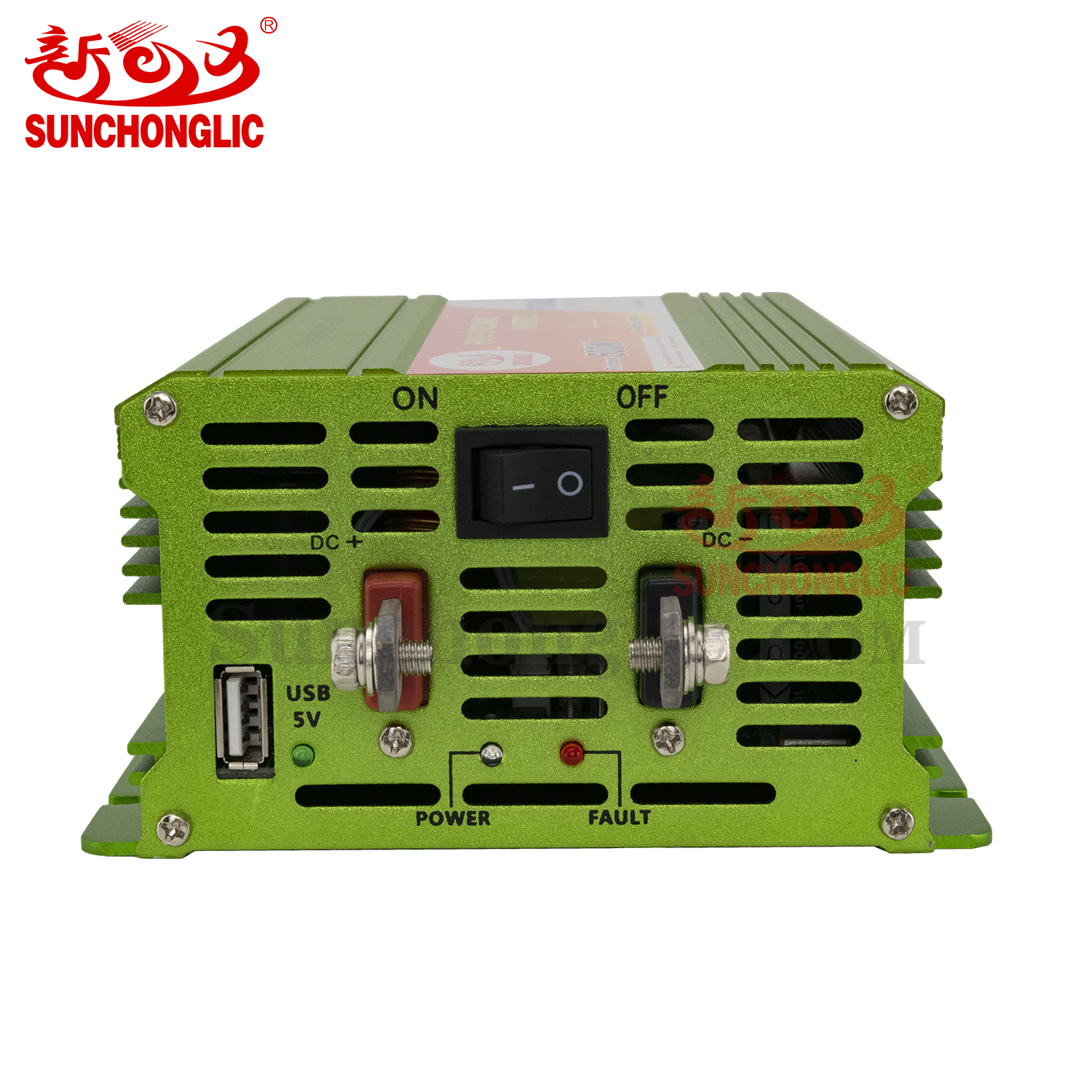

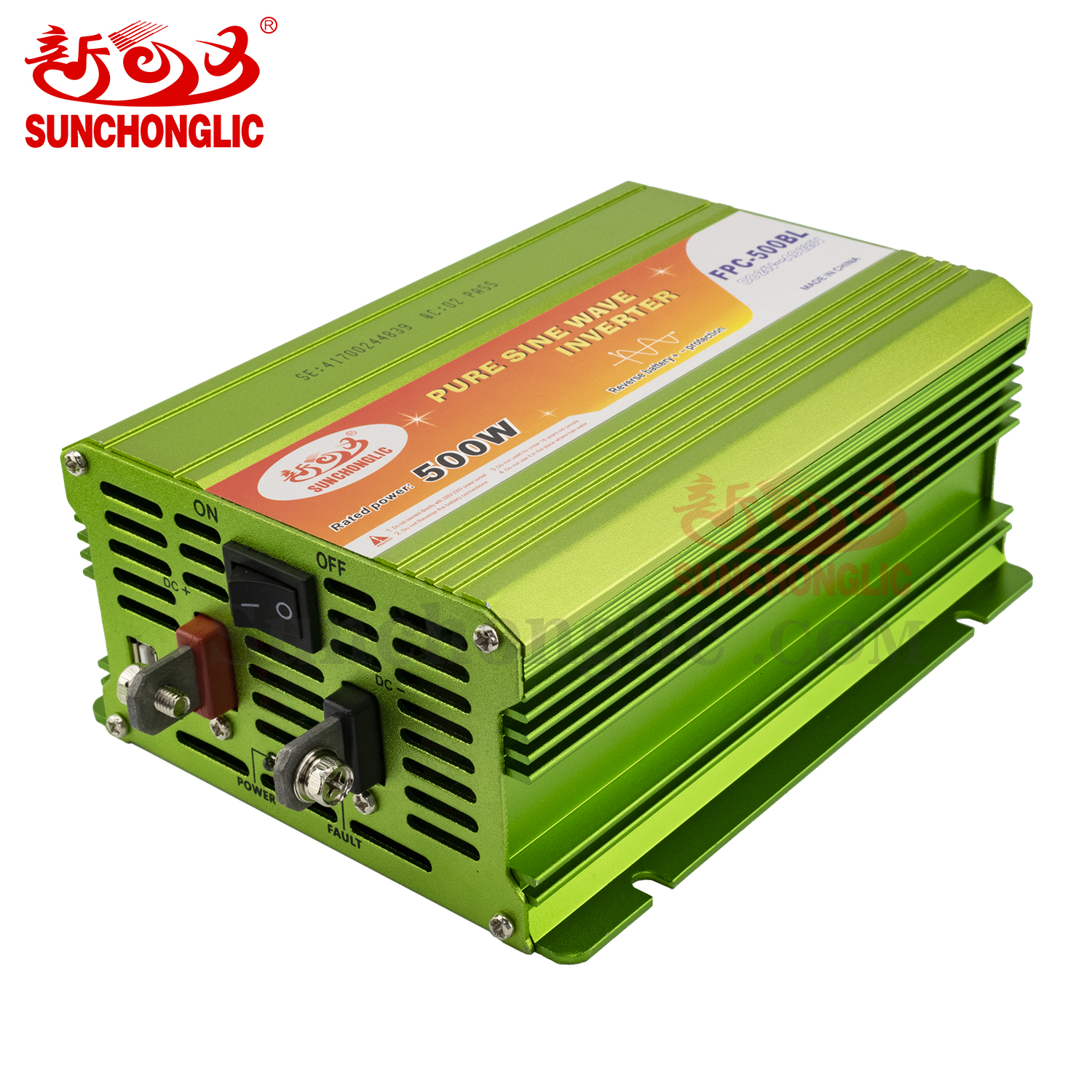

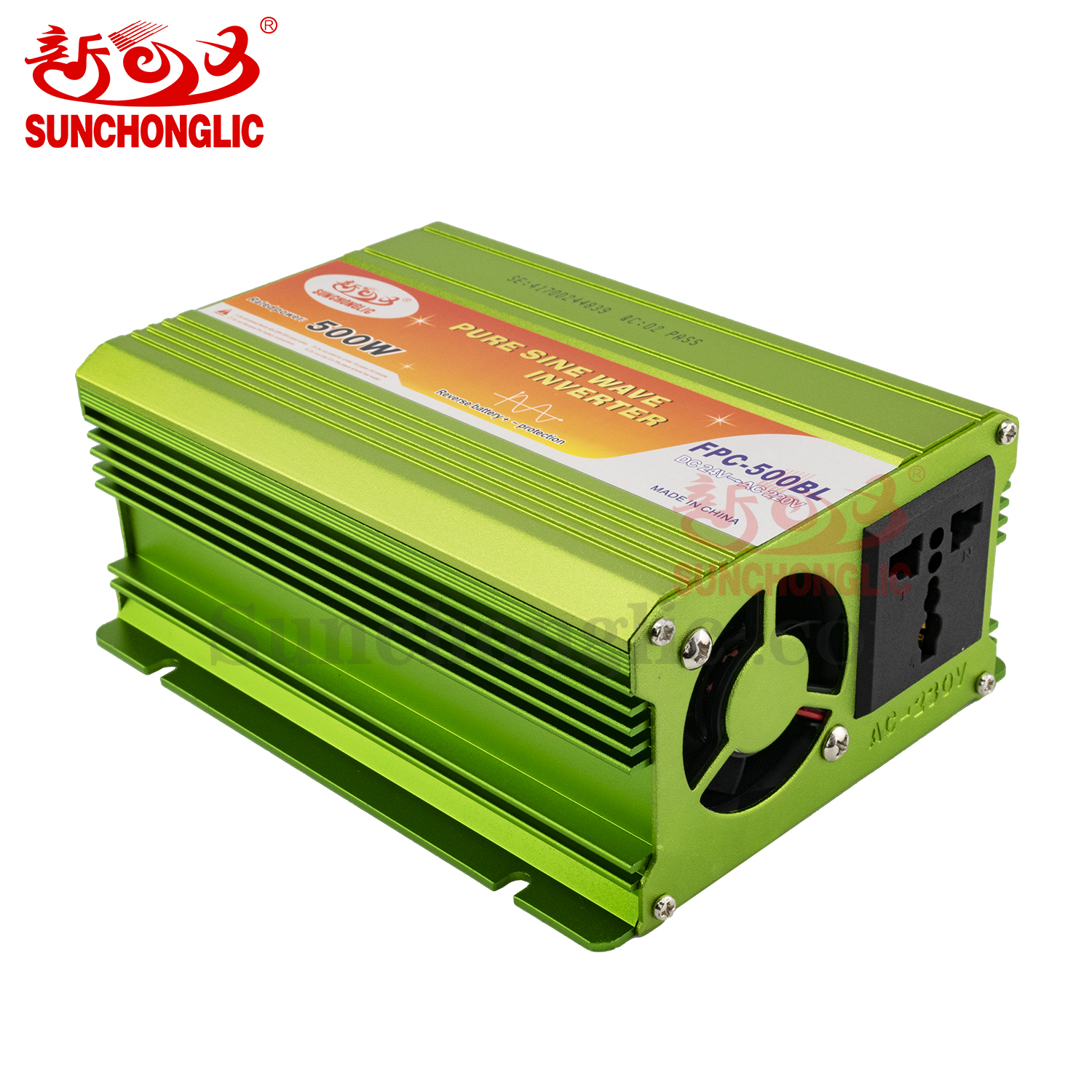

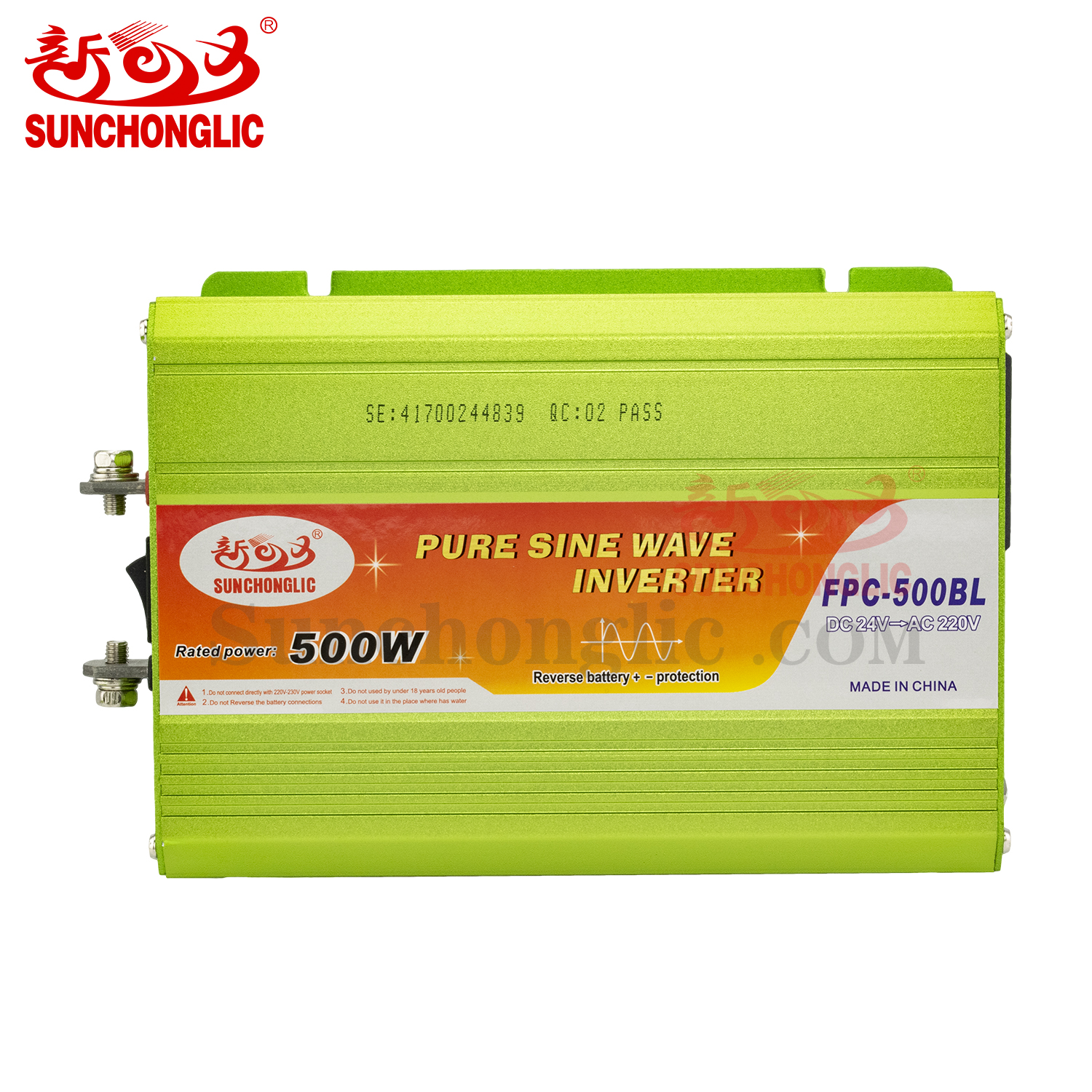

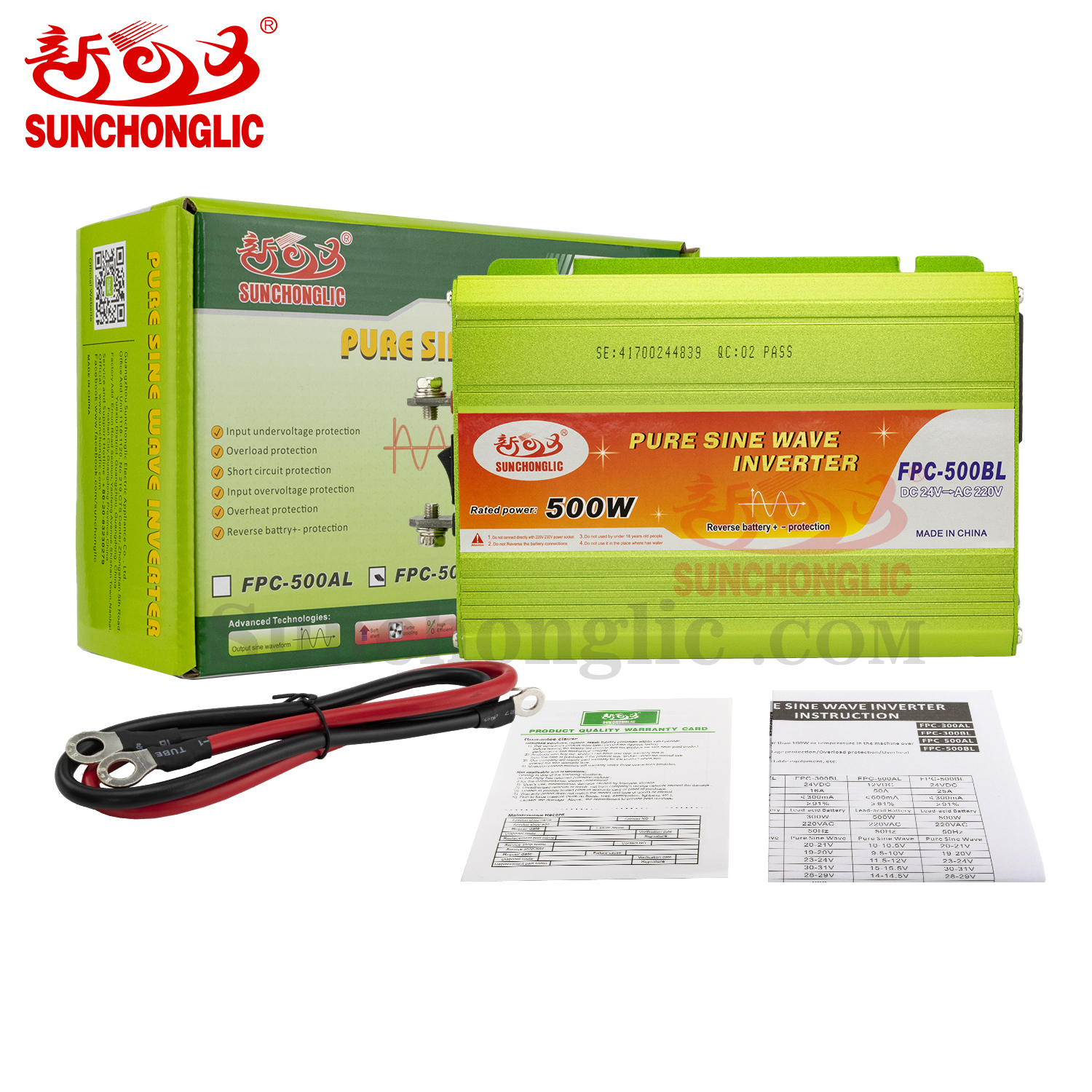

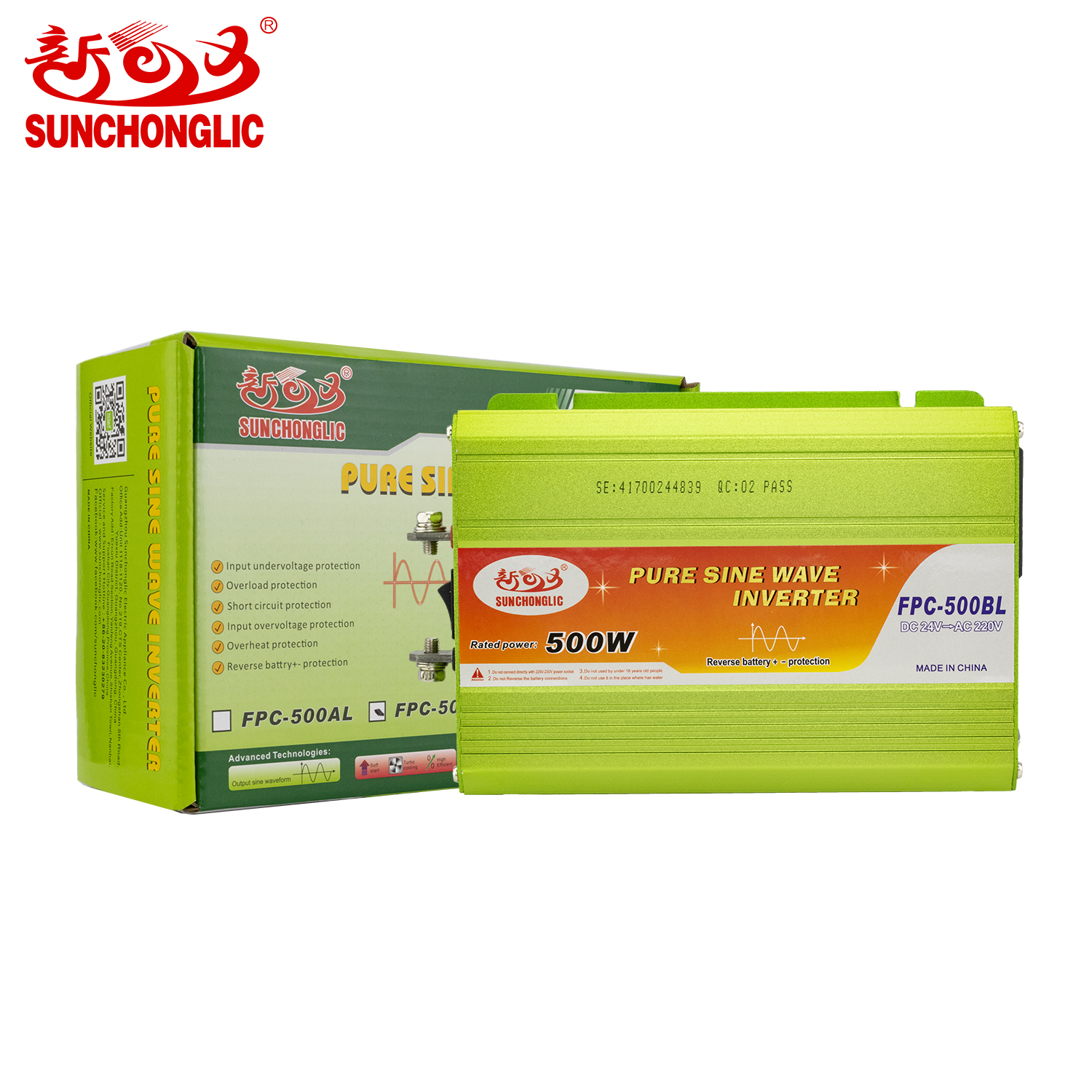

Product Photos
