FPC-2000CL

Sunchonglic 12v 220v 2000w 2kw pure sine wave invert ups solar power inverter with charger

FPC-2000CL

Pure Sine Wave Inverter

Features:

5V 2A USB charging interface.

Pure sine waveform output

Applicable for inductive loads(Applicable for Air conditioner)

Input and output are completely independent

Universal socket, suitable for all kinds of plugs

High-procision voltage stability technology

Built-in AC charger and UPS

100% pure sine wave output waveform: designed for sensitive loads(Total Harmonic Distortion(THD)<3%

Multiple safe protections,including overload/overvoltage/low voltage/high temperature and output short circuit protection

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Model   FPC-500CL FPC-1000CL FPC-2000CL FPC-3000CL
DC Input Rated Battery Voltage 12VDC (10-15VDC)
Rated current 50A 100A 200A 300A
No-load current ≤800mA ≤1000mA ≤1500mA
Efficiency ≥90% ≥88%
Battery type Lead-acid Battery
AC Output Rated Power 500W 1000W 2000W 3000W
AC Voltage 220VAC
Frequency 50Hz
Waveform Pure sine wave
Mains Power failure switching time 10ms
Charging Current  6A 10A 35A 60A
Input protection Low voltage alarm 10.5V-15V
Battery under-voltage shutdown 9.5V-10V
Battery low voltage recovery  11.5V-12V
Battery over voltage protection 15-15.5V
Battery over voltage recovery  14.5-15V
Reverse connection protection NO
Output protection Output short Turn off the output and resume after restart
Overload protection When the output power is bigger than the rated value:
FPC-1000CL over 1000W.
FPC-2000CL over 2000W.FPC-3000CL over than 3000W.inverter will automatically turn off the output,and recover after 2S.It will try to recover 3 times and after all failures,the output will be turned off.
Overload temperature Turn off the output when the internal temperature is higher than 85℃,and automatically resume the output when it is lower than 70℃
Environment Working environment temperature -40~70℃
Working humidity 20%~95%RH
Storage temperature/humidity -40~85℃,10~90%RH
Others Packing/CTN /

Video Presentation

DC 12V-AC 220V 2000W 3000W Pure Sine Wave UPS Charger Inverter.

Pure sine waveform output.

Built-in AC charger and UPS.

Digital display.

Multiple protection.

USB charging port 5V 2A.

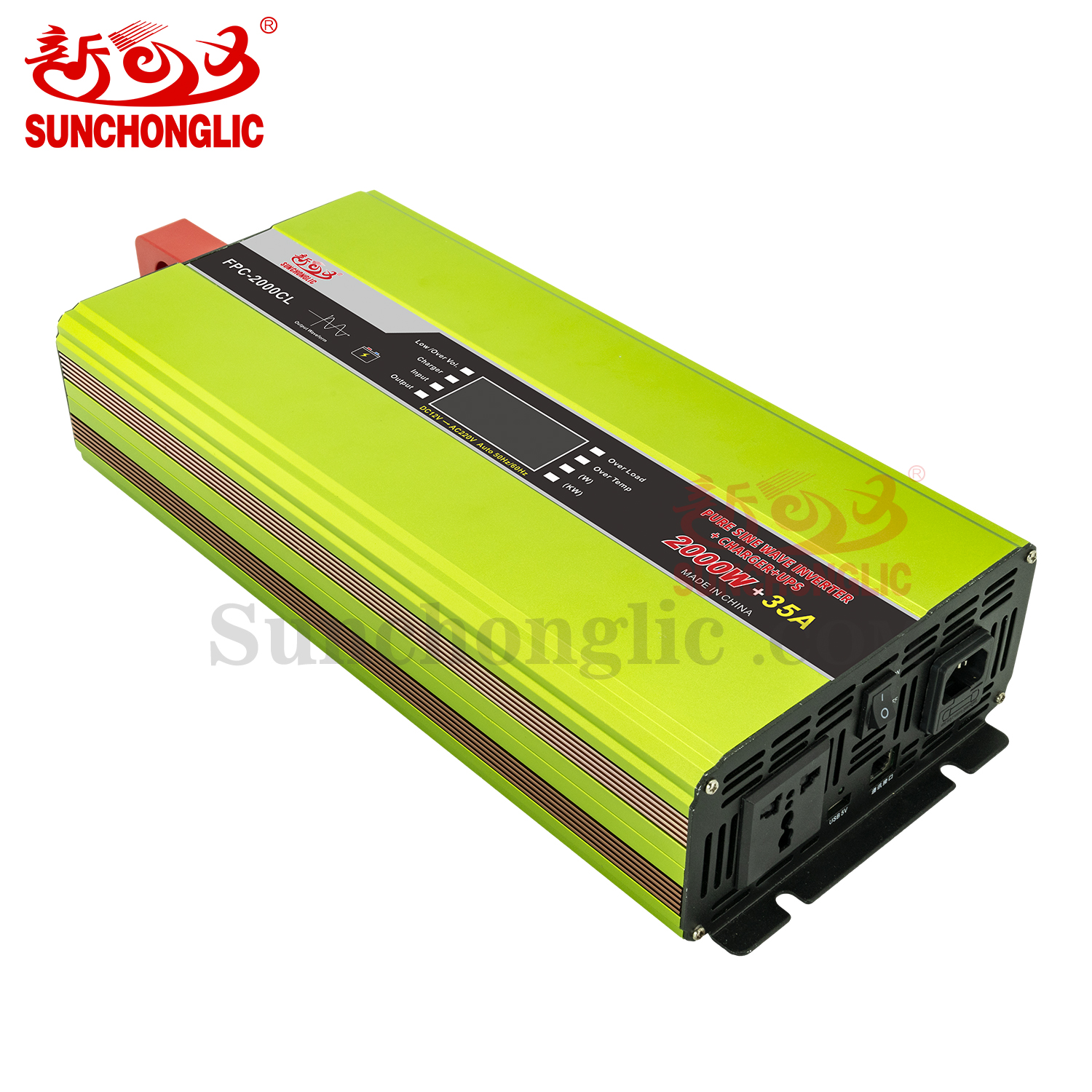

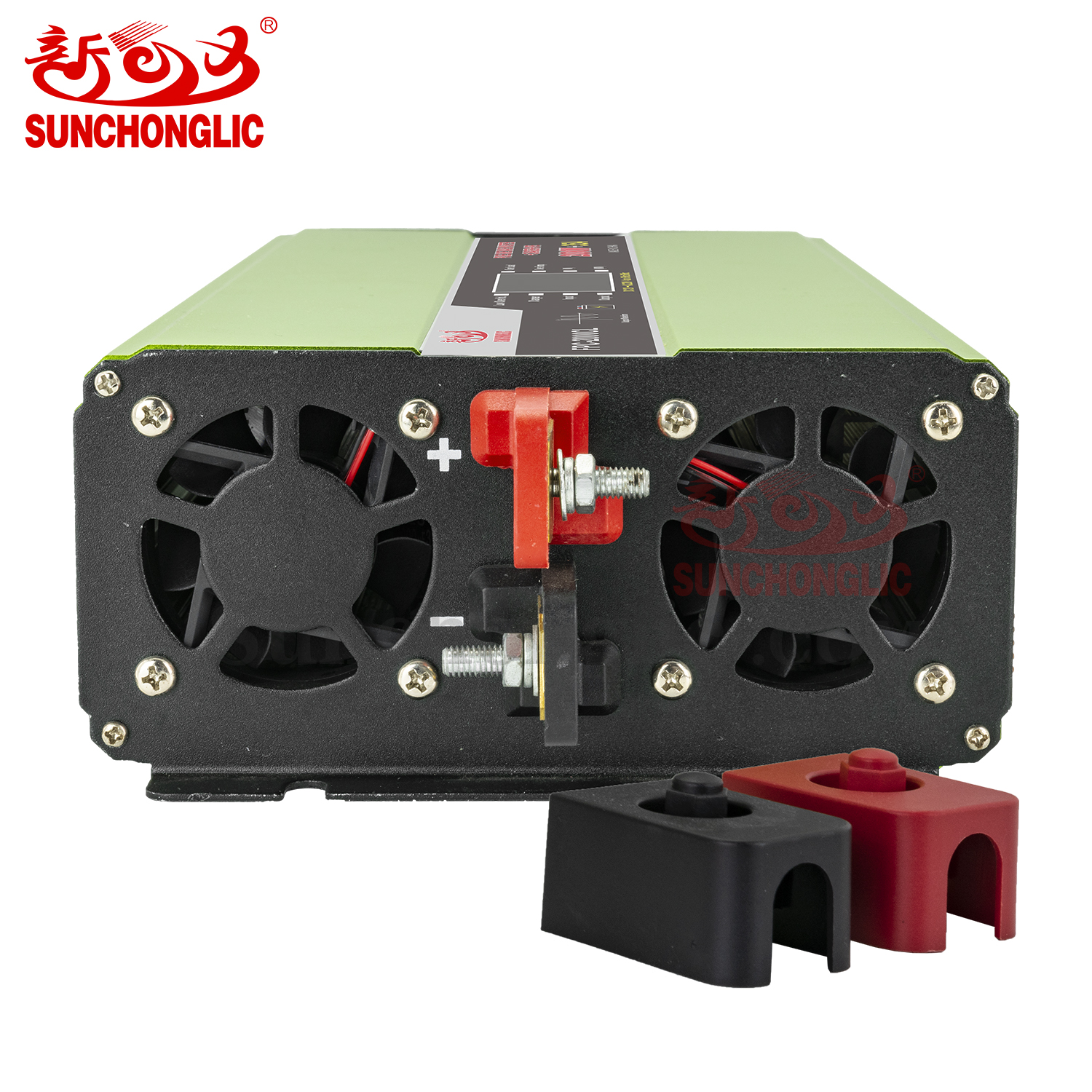

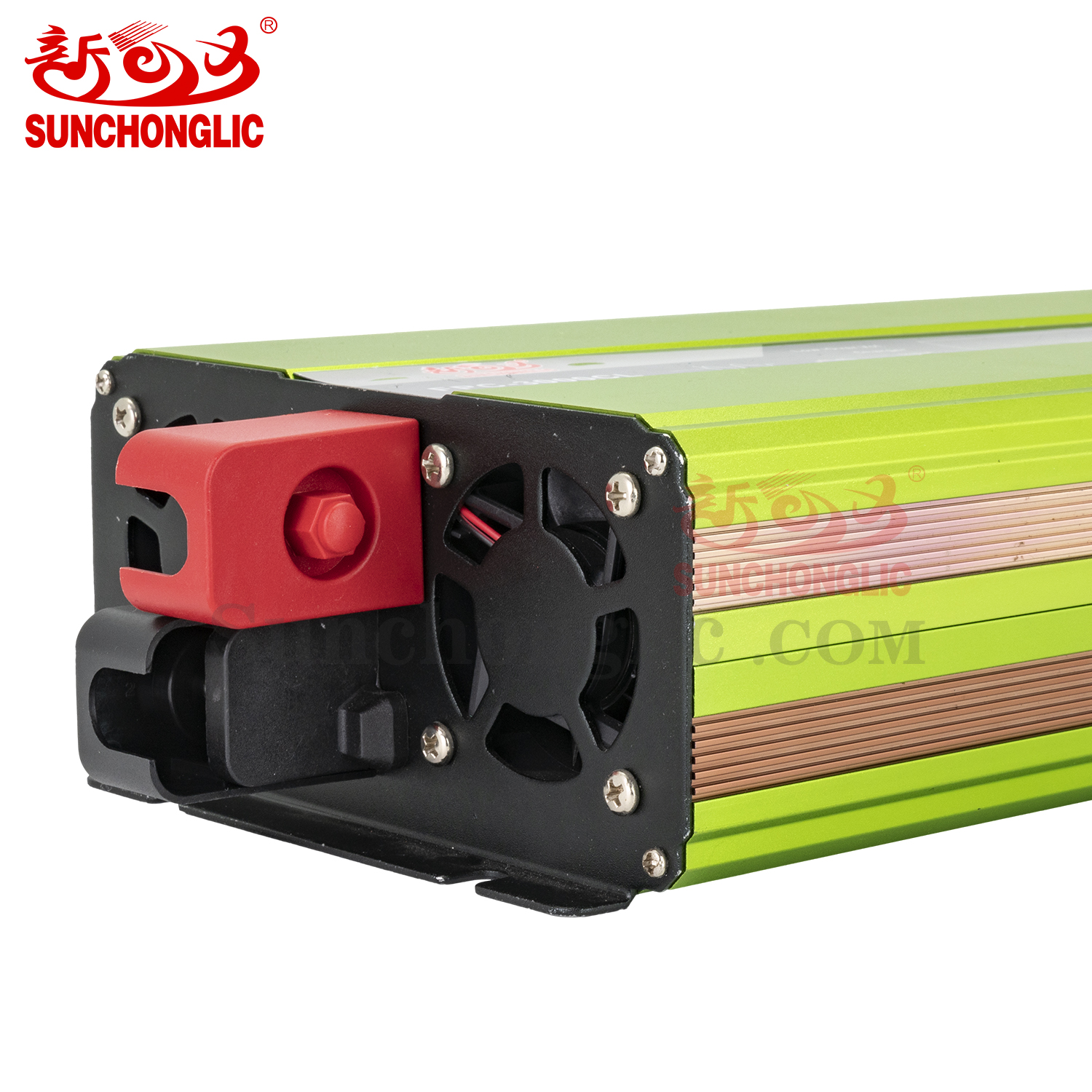

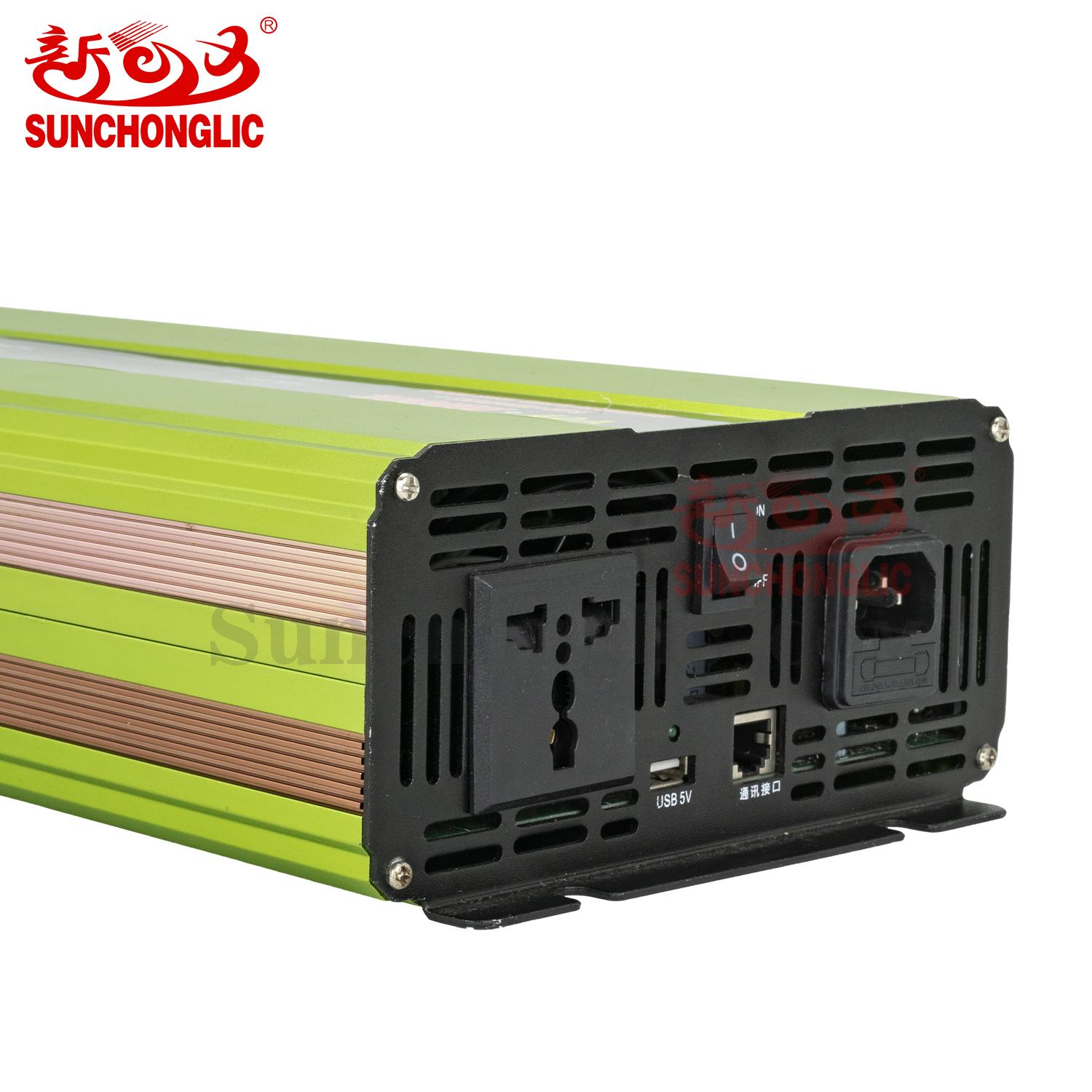

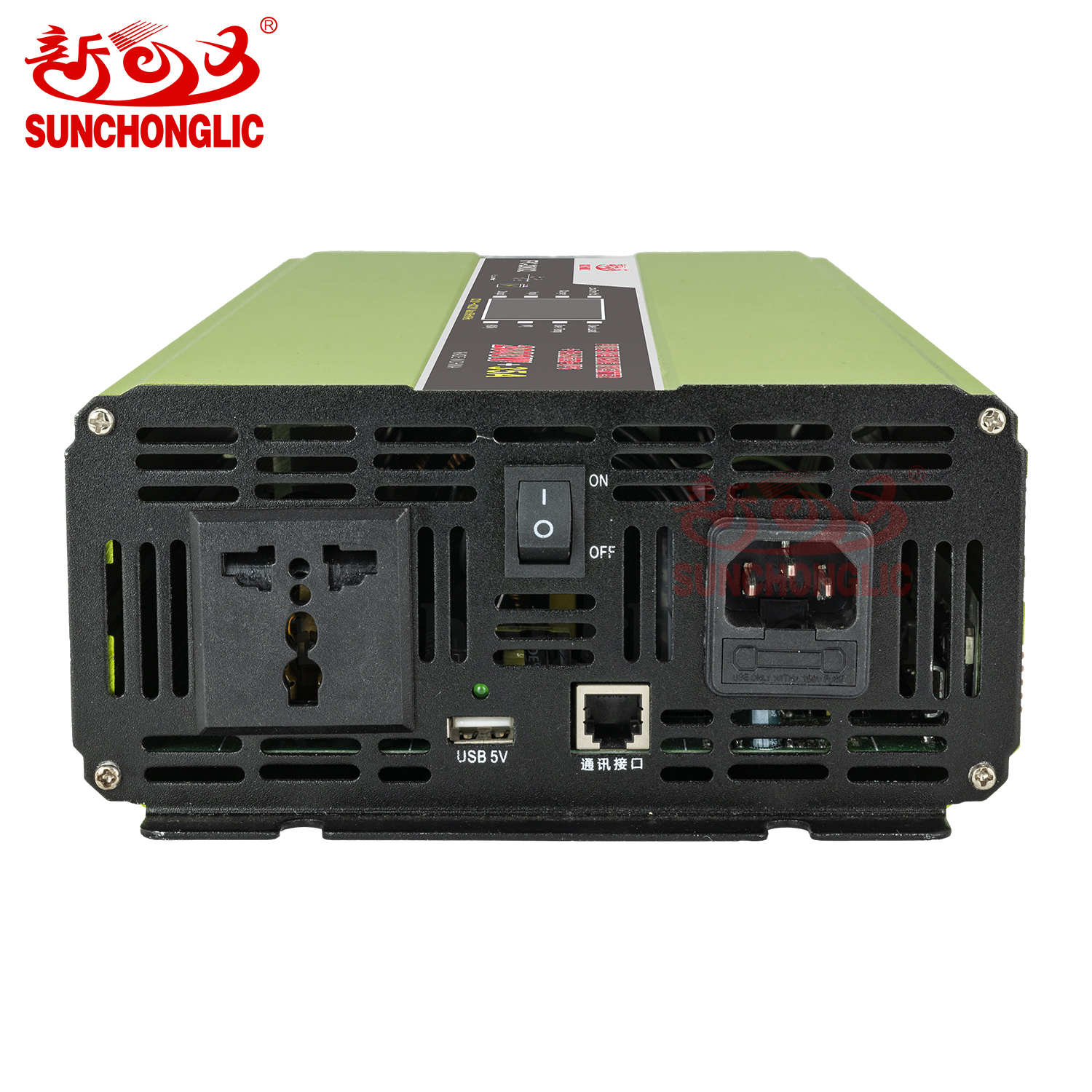

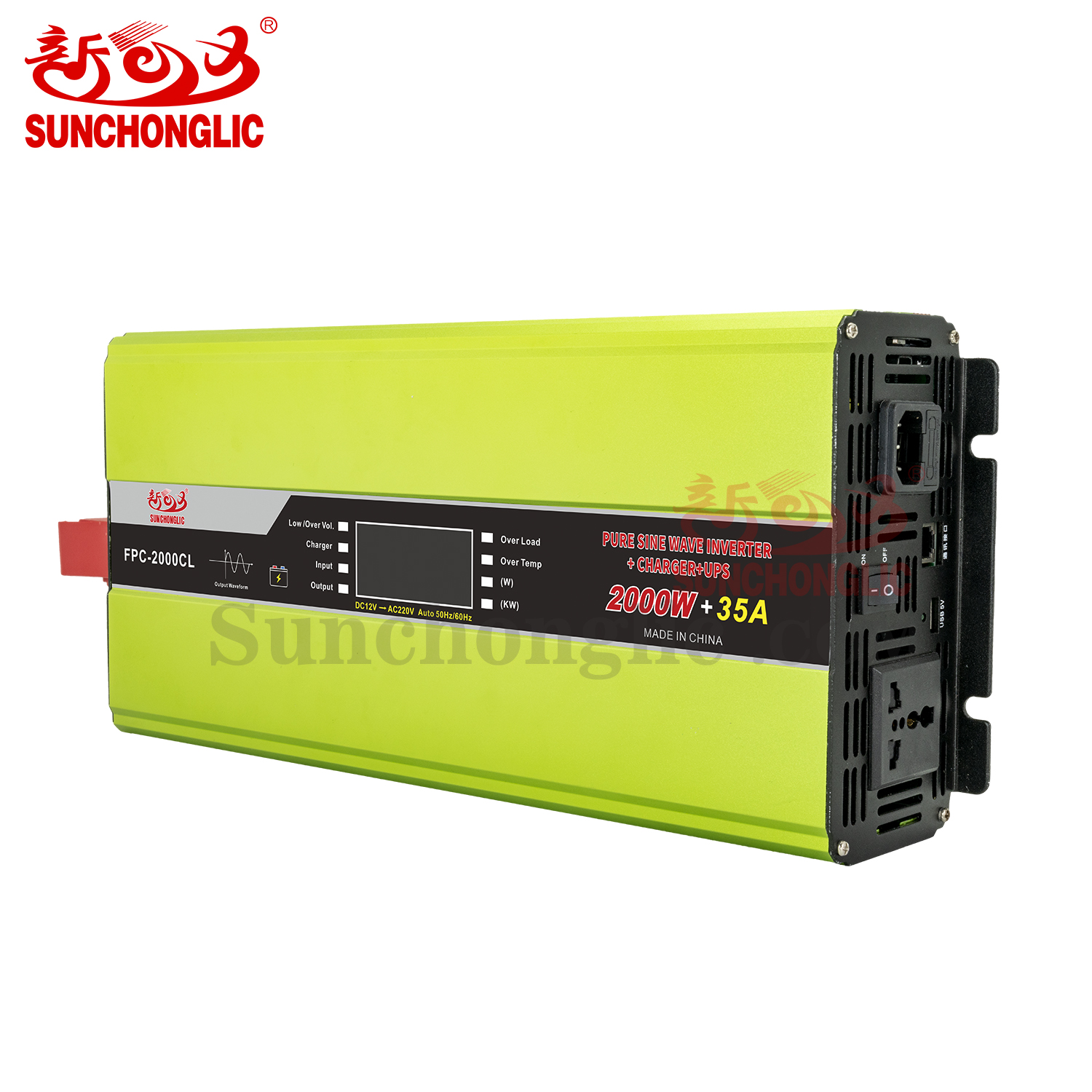

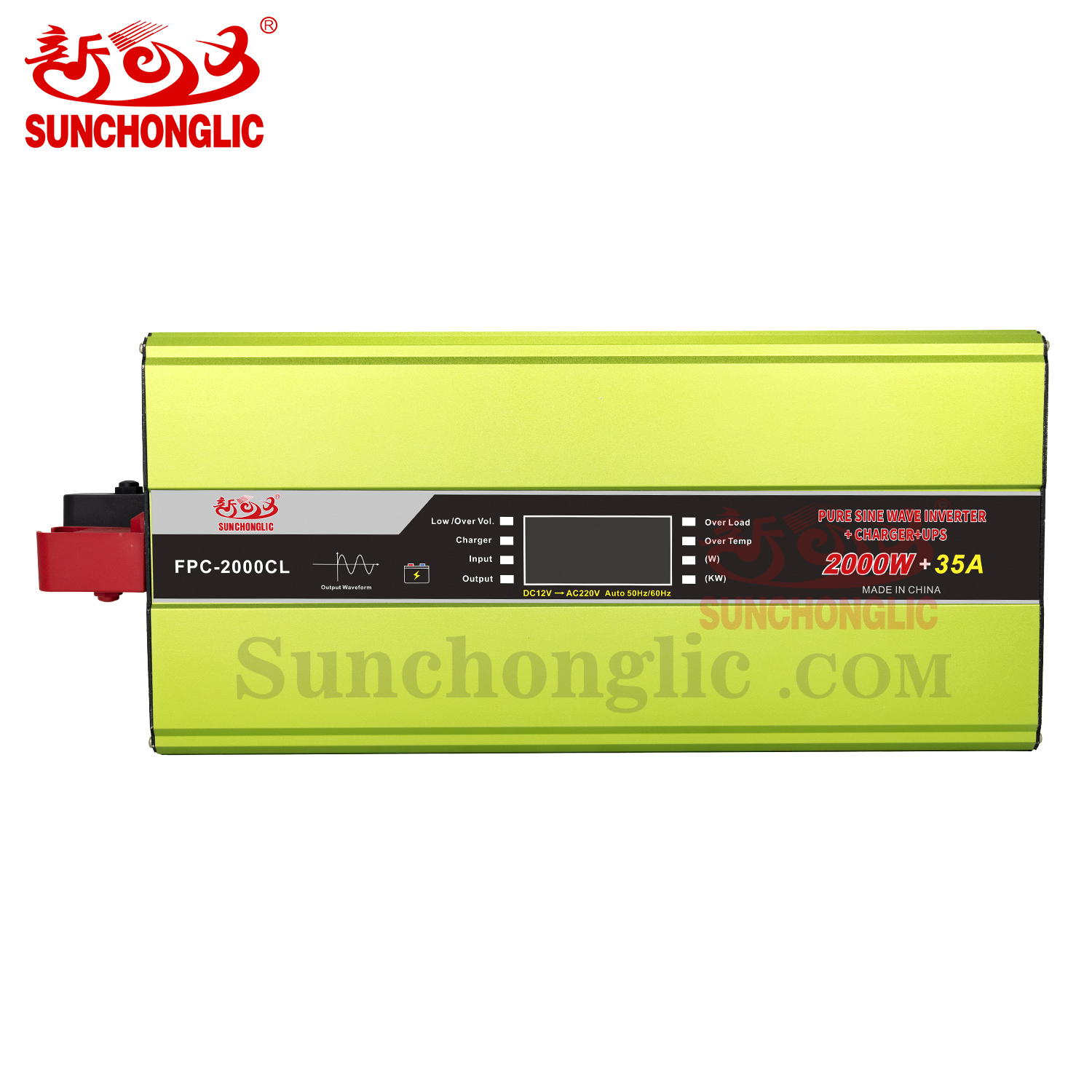

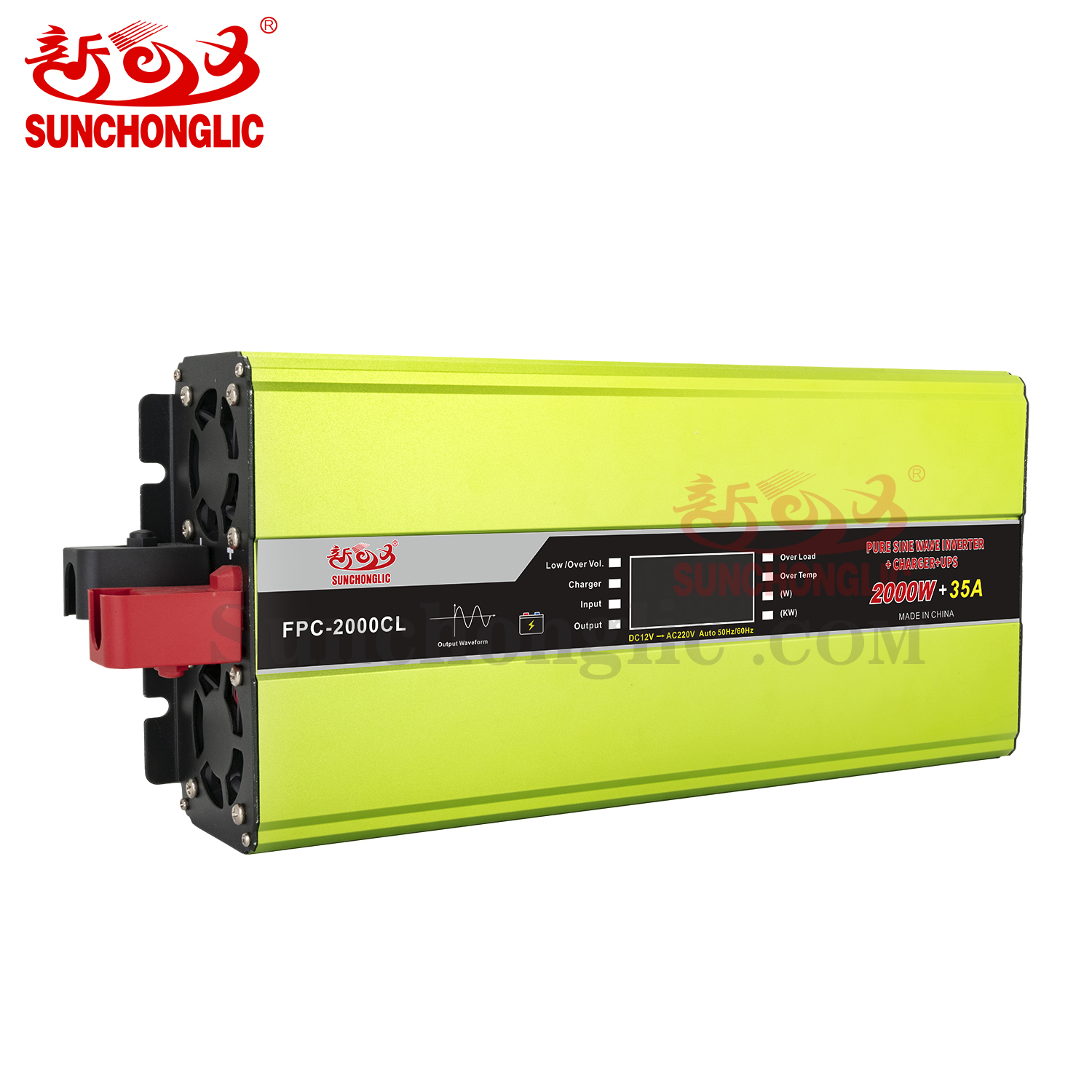

Product Photos
