FPC-1000AL

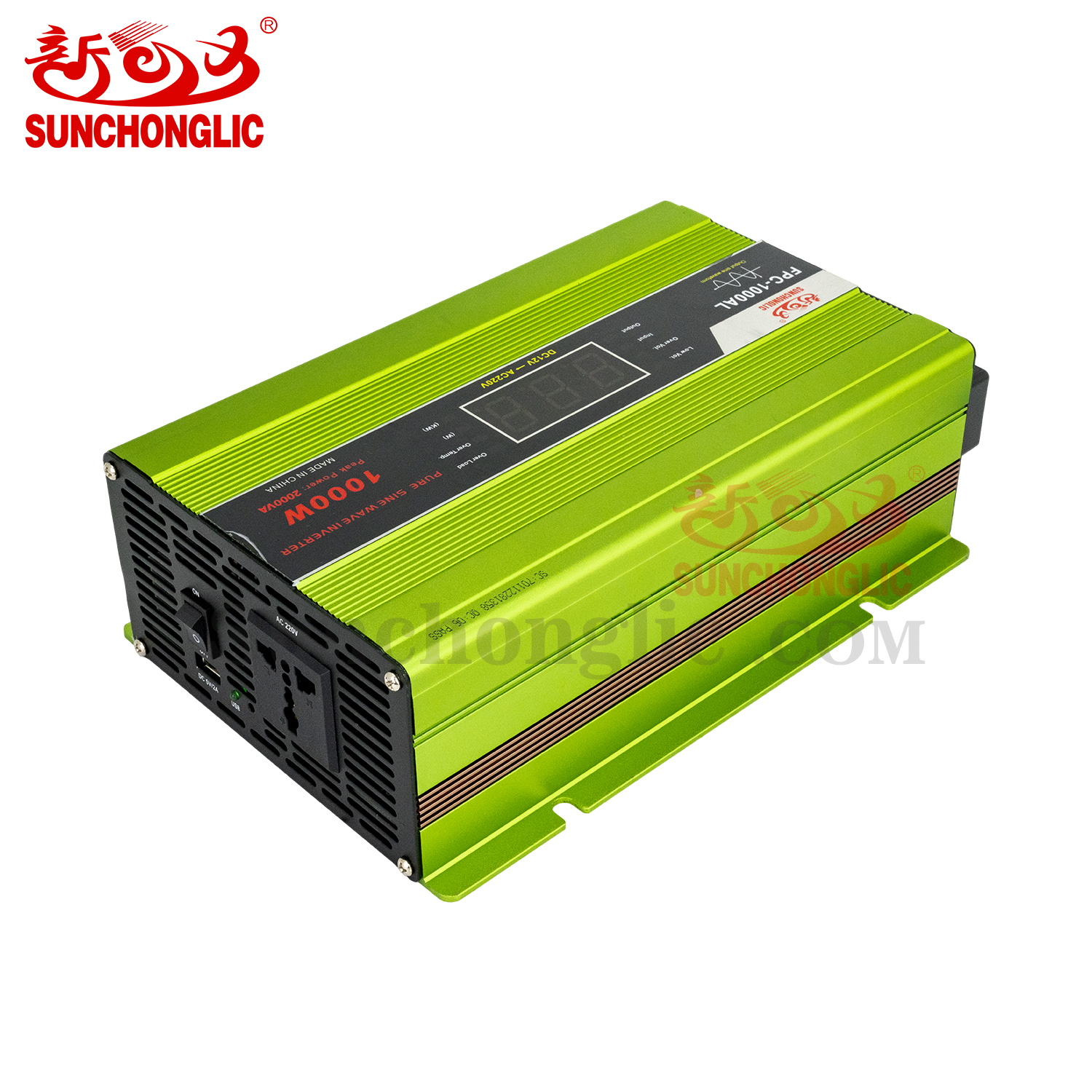

Sunchonglic 12v 220v dc to ac 1000w 1000 watt pure sine wave invert power inverter

FPC-1000AL

Pure Sine Wave Inverter

Features:

5V 2A USB charging interface

Pure sine waveform output

Applicable for inductive loads(Applicable for Air conditioner)

Input and output are completely independent

Universal socket, suitable for all kinds of plugs

High-procision voltage stability technology

Aerospace-grade quiet technology

100% pure sine wave output waveform: designed for sensitive loads(Total Harmonic Distortion(THD)<3%

Multiple safe protections,including overload/overvoltage/low voltage/high temperature and output short circuit protection

INQUIRE NOW

SEND ENQUIRY

  X
Submit

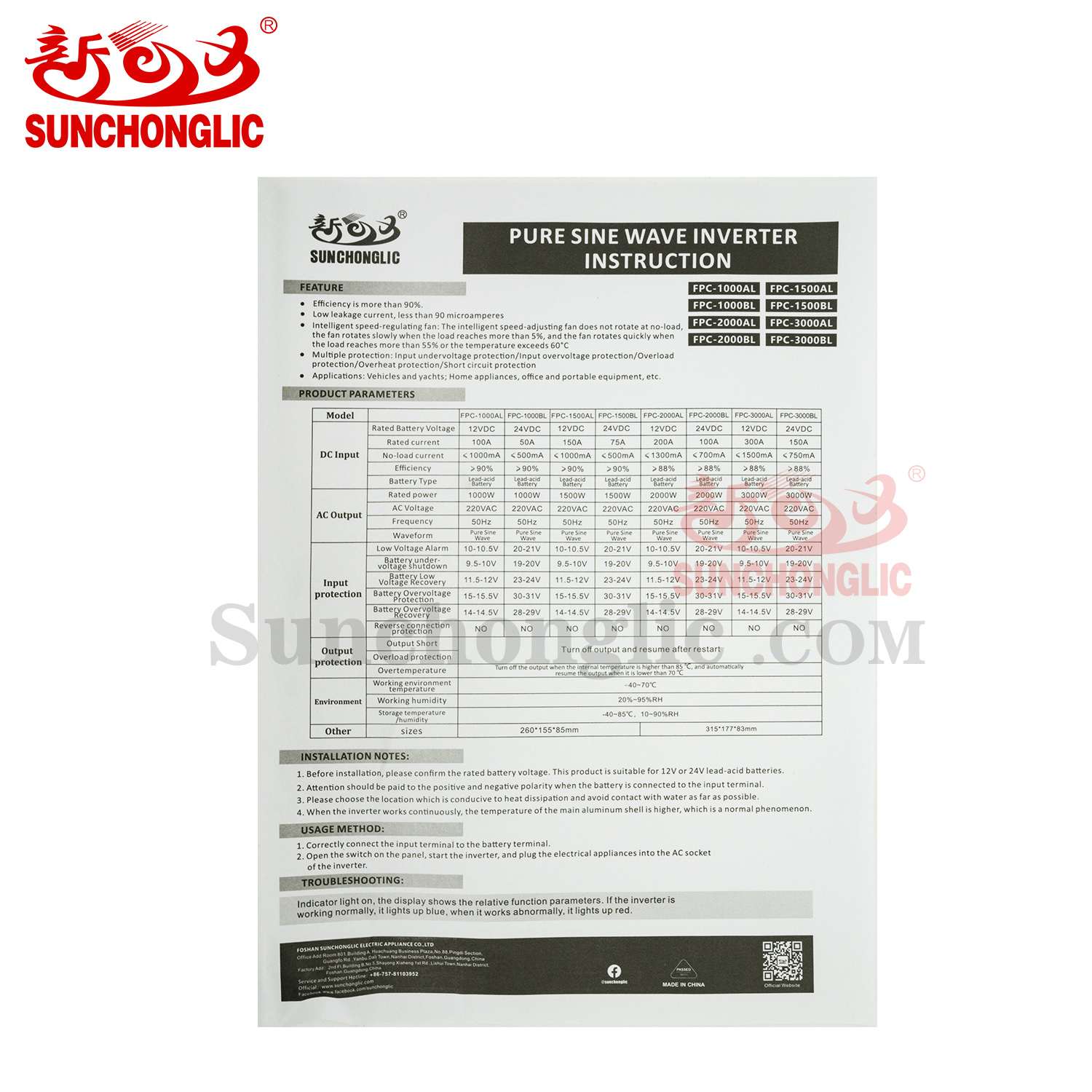

Specifications

Model FPC-1000AL FPC-1000BL FPC-1500AL FPC-1500BL FPC-2000AL FPC-2000BL FPC-3000AL FPC-3000BL
DC Input Rated Battery Voltage 12VDC  24VDC 12VDC  24VDC 12VDC  24VDC 12VDC  24VDC
Rated Current 100A 50A 150A 75A 200A 100A 300A 150A
No-load current <1000mA <500mA <1000mA <500mA <1300mA <700mA <1500mA <750mA
Efficiency >90% >88%
Battery Type Lead-acid Battery
AC Output Rated Power 1000W 1500W 2000W 3000W
AC Voltage 220VAC
Frequency 50Hz
Waveform Pure Sine Wave
Input Protection Low Voltage Alarm 10-10.5V 20-21V 10-10.5V 20-21V 10-10.5V 20-21V 10-10.5V 20-21V
Battery under-voltage shutdowm 9.5-10V 19-20V 9.5-10V 19-20V 9.5-10V 19-20V 9.5-10V 19-20V
Battery low voltage recovery 11.5-12V 23-24V 11.5-12V 23-24V 11.5-12V 23-24V 11.5-12V 23-24V
Battery overvoltage protection 15-15.5V  30-31V 15-15.5V  30-31V 15-15.5V  30-31V 15-15.5V  30-31V
Battery overvoltage recovery 14-14.5V 28-29V 14-14.5V 28-29V 14-14.5V 28-29V 14-14.5V 28-29V
Reverse connection protection NO
Output Protection Output short protection Turn off output and resume after restart
Overload protection Turn off output and resume after restart
Overtemperature protection Turn off the output when the internal temperature is higher than 85℃, and automatically resume the output when it is lower than 70℃
Environment Working environment temperature -40~70℃
Working humidity 20%~95%RH
Storage temperature/humidity -40~85℃, 10~90%RH
Other Sizes 260*155*85mm 315*177*83mm

Video Presentation

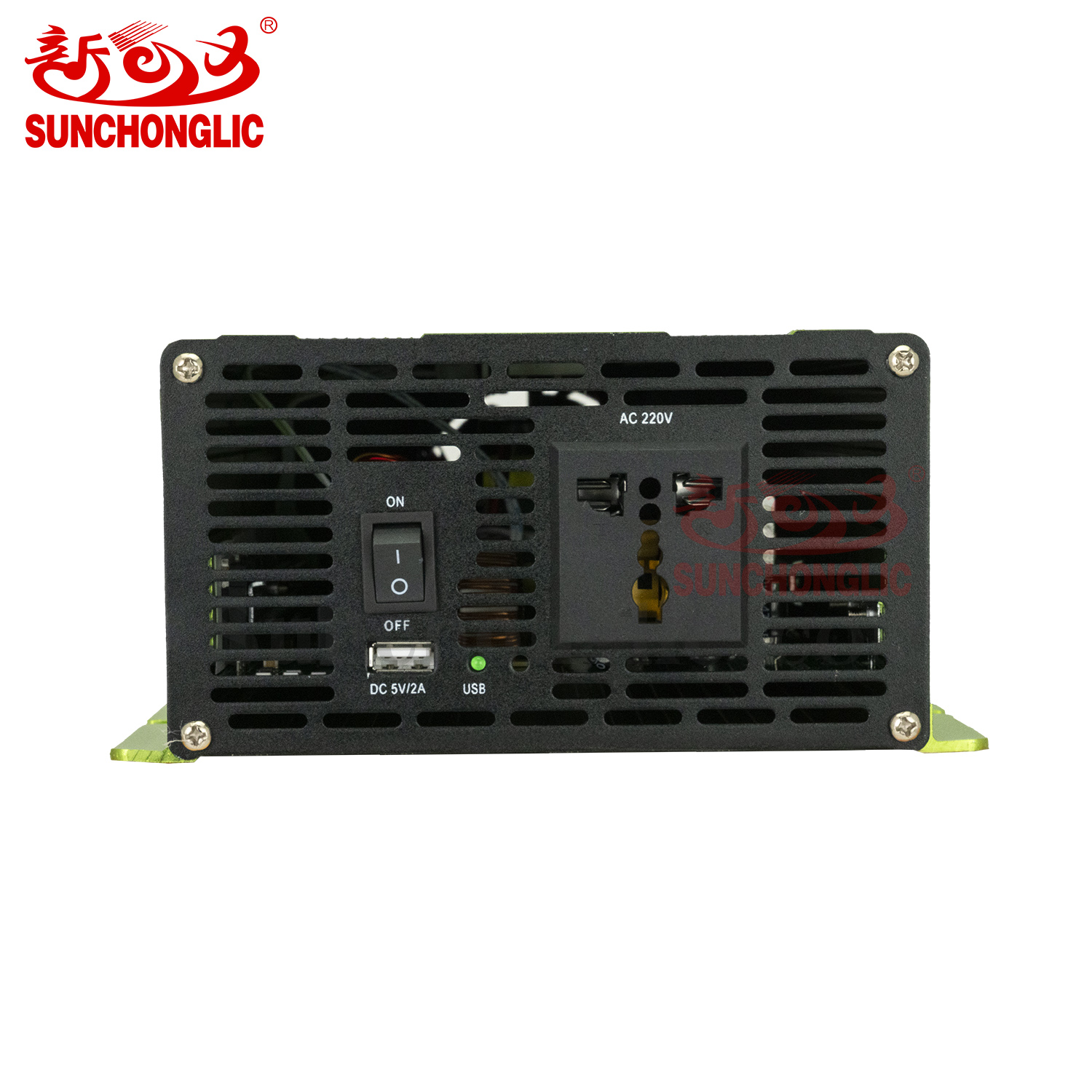

5V 2A USB charging interface

Pure sine waveform output

Digital display.

Multiple protection.

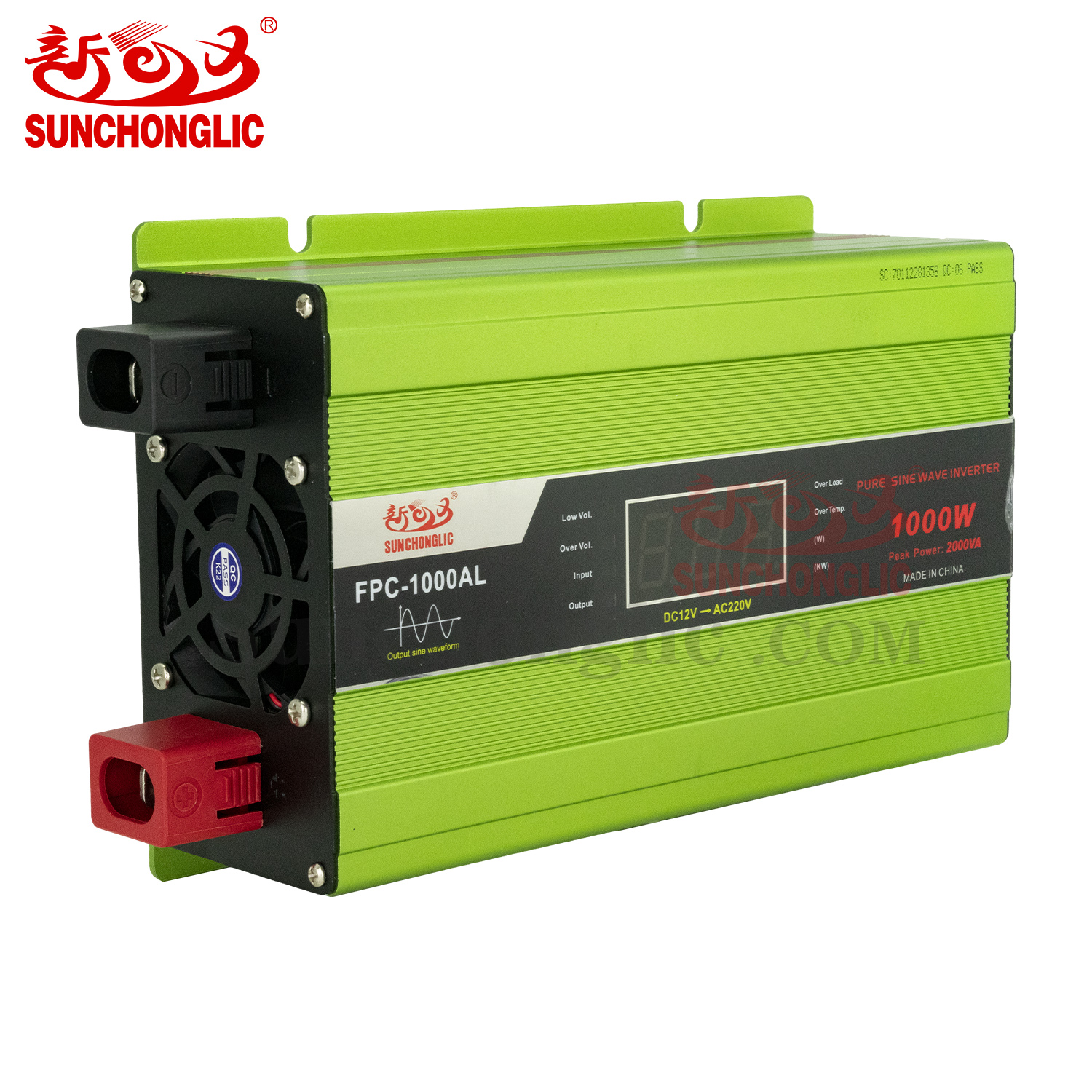

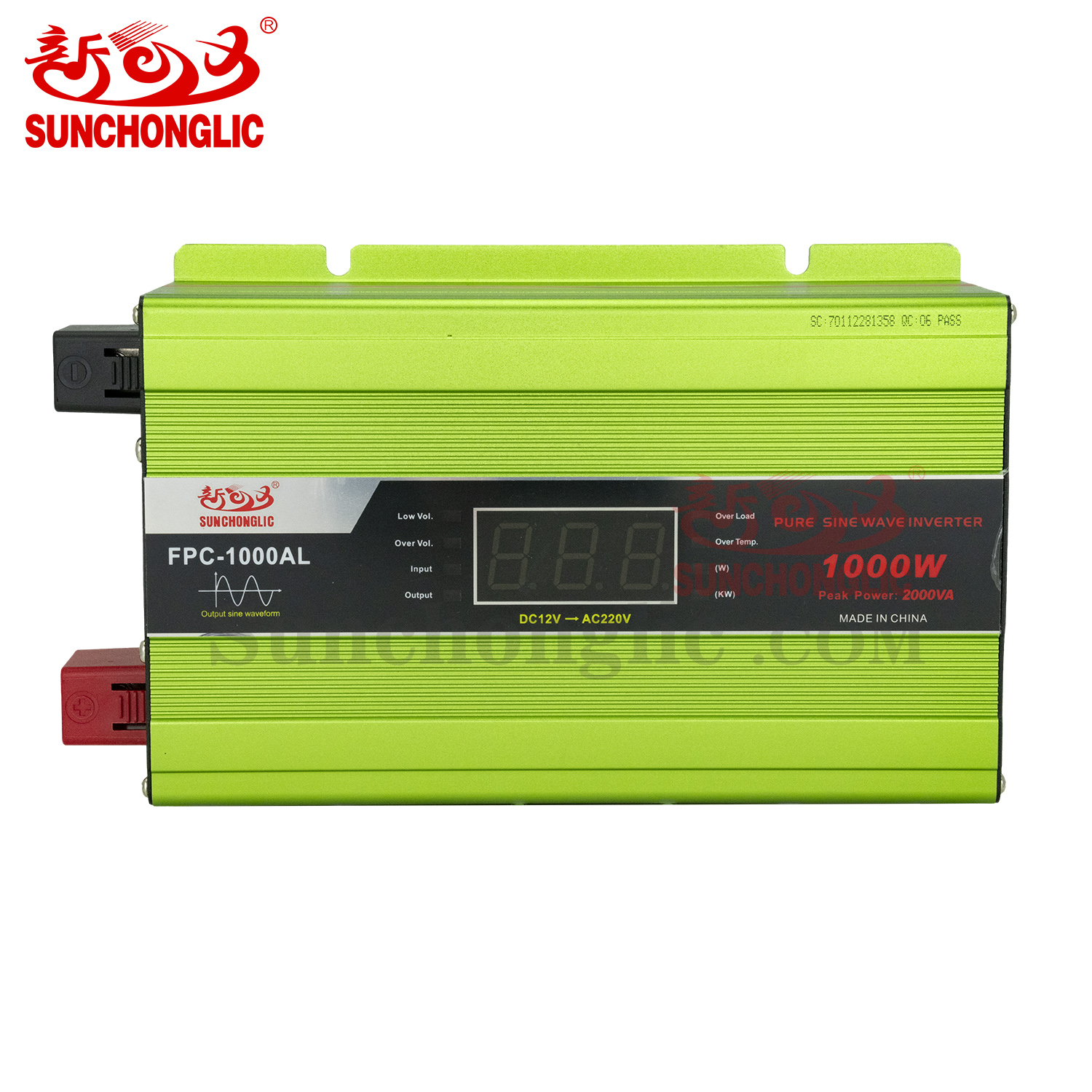

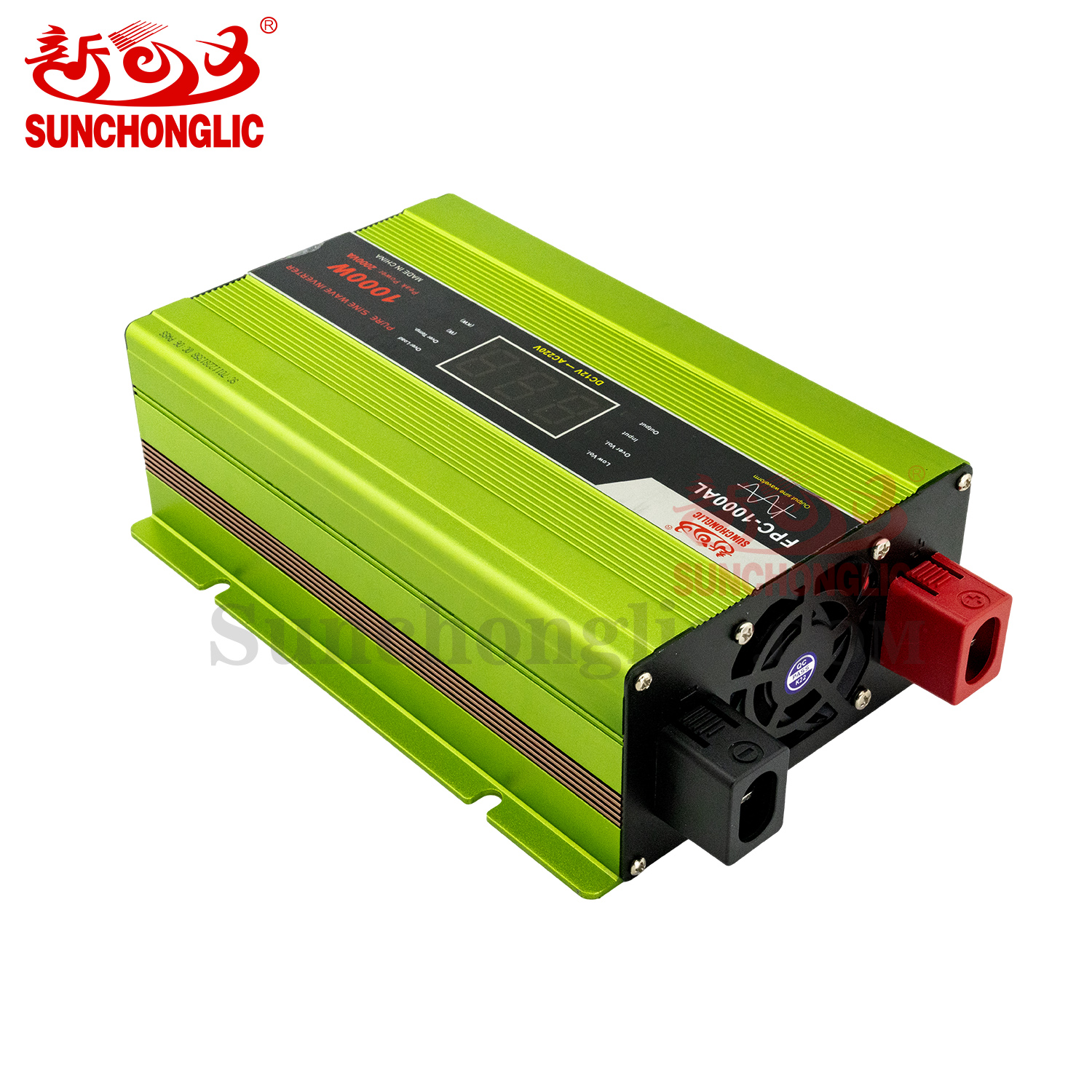

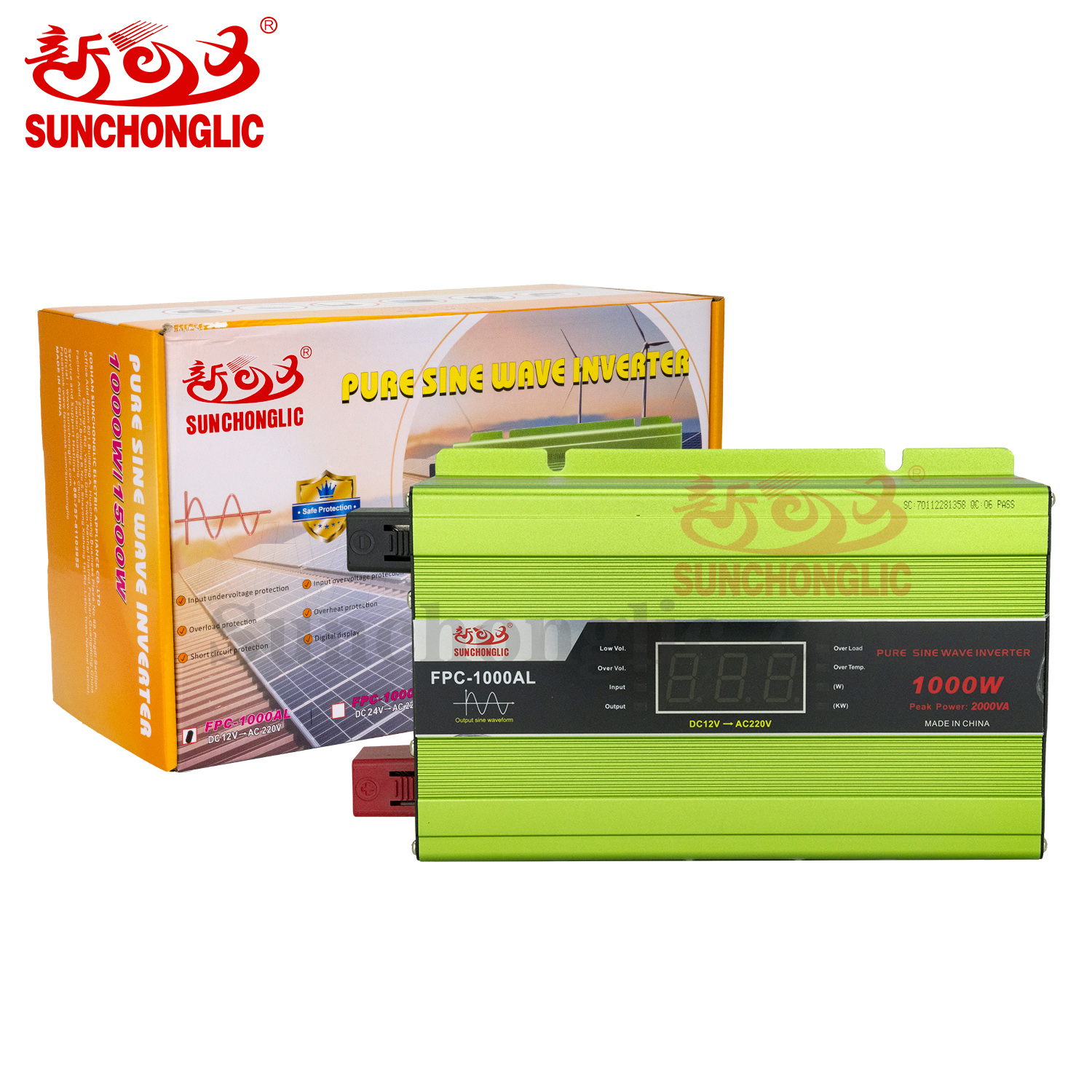

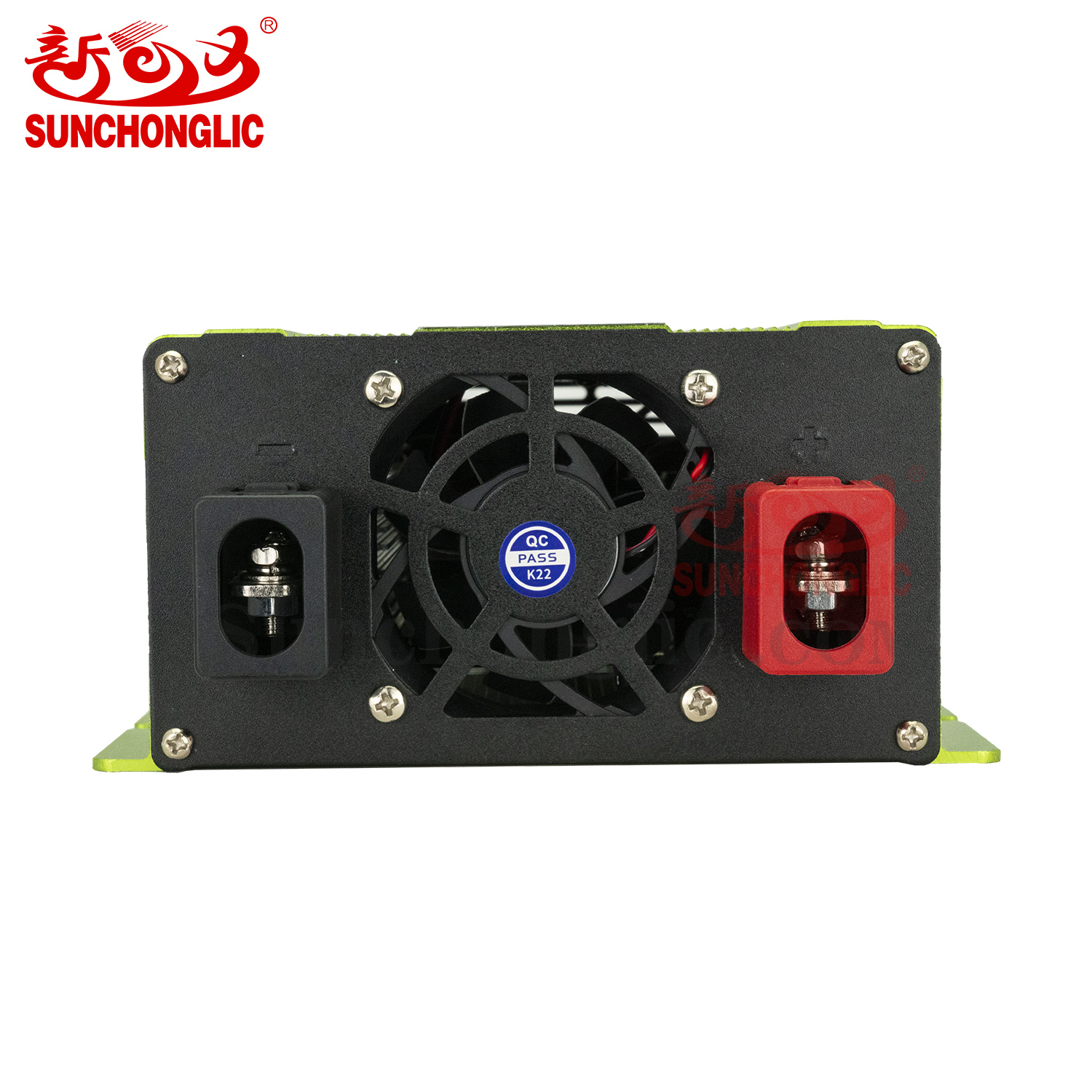

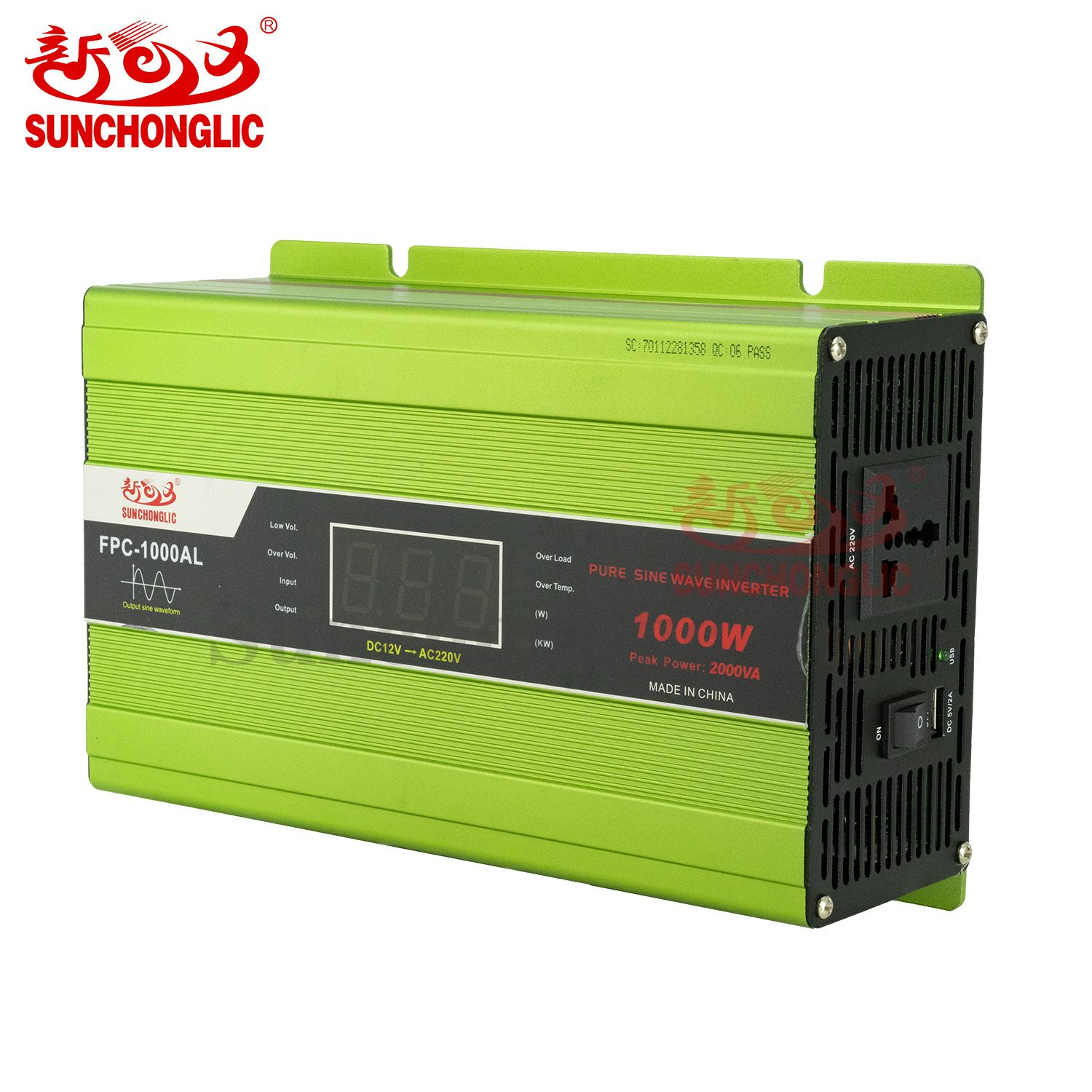

Product Photos
