FFU-3000C

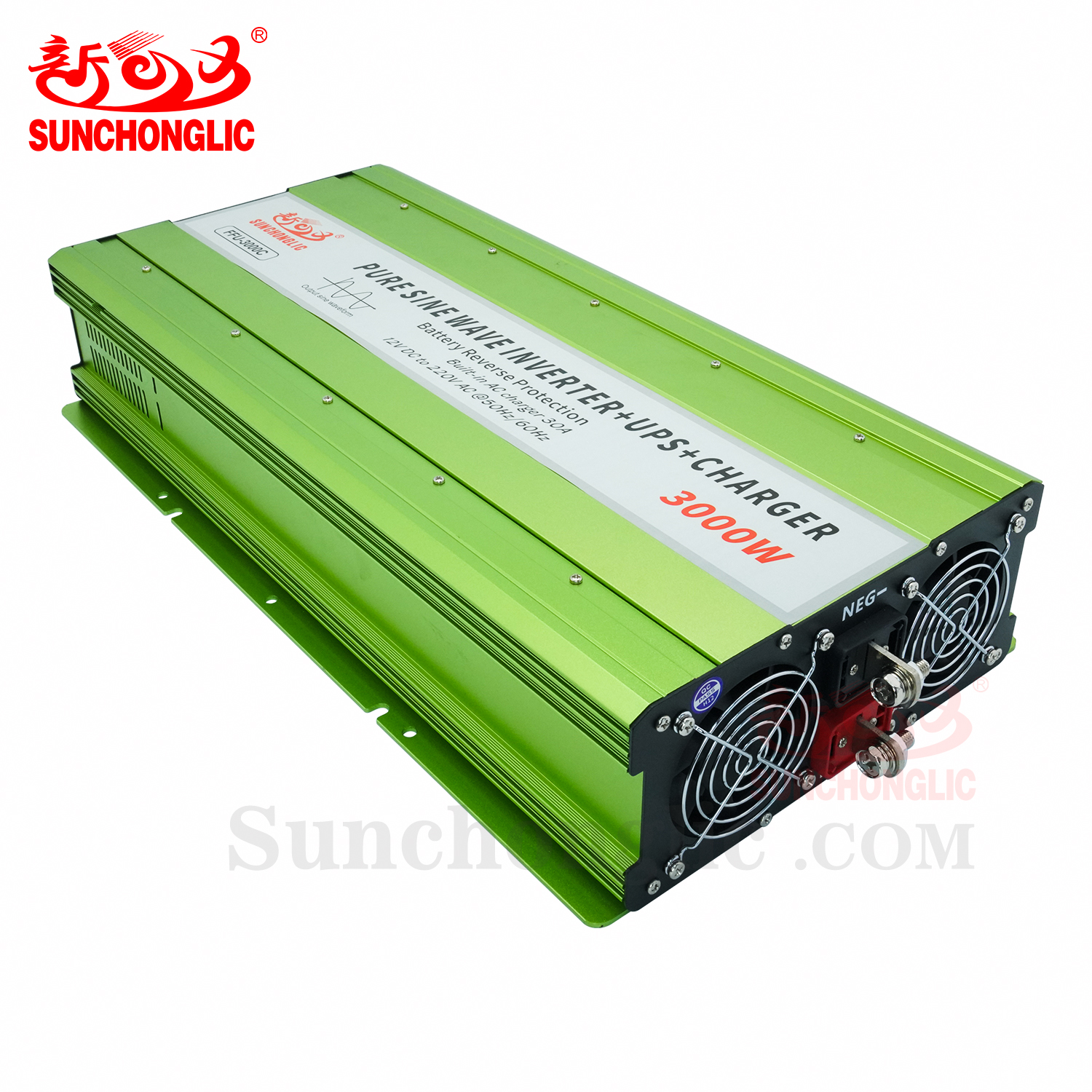

Sunchonglic 12V 3000W 3000 watt pure sine wave inverter ups power inverter with 30A AC charger

FFU-3000C

Pure Sine Wave Inverter

Features:

Perfect sine waveform output

Built-in 30A AC battery charger

Battery reverse protection

Mains frequency 50Hz/60Hz auto sense

Auto UPS power supply switch

12V DC to 220V AC output

(THD<3%)Pure sine waveform output(THD<3%)

Instantaneous Power is up to 6000w

Efficiency is up to 90%

Adopt topology design of resonant soft switch technology

Full digital control

Multi-channel temperature control collection

Multiple safe protections:Battery low voltage alarm/Battery low voltage shutdown /Output short circuit/Overload/Overvoltage/Over temperature protection

Application: Home appliances, electric tools, office and portable equipment, vehicles and yachts, etc

Built-in utility charging and UPS functions, Mains first with AC charging

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Model FFU-1000C FFU-2000C FFU-3000C FFU-3000D
AC Output Input Power AC 220V AC 220V AC 220V AC 220V
Output Power 1000W 2000W 3000W 3000W
Peak Power 2000W 4000W 6000W 6000W
Frequency 50/60Hz ± 0.1Hz
Auto Sense
50/60Hz ± 0.1Hz
Auto Sense
50/60Hz ± 0.1Hz
Auto Sense
50/60Hz ± 0.1Hz
Auto Sense
Waveform  Pure sine waveform output(THD<3%)
Switch Time 5ms
DC  Input No-load current <1A <1A <1 A <0.5A
Working voltage DC 12V DC 12V DC 12V DC 24V
Voltage range 9.5~14.5V 9.5~14.5V 9.5~14.5V 20~29V
Alarm voltage 10V +4% 10V +4% 10V+4% 21V+4%
Low voltage protection 9.5V ± 4% 9.5V ± 4% 9.5V ± 4% 20V+4%
DC current 83A 166A 250A 125A
Maximum power 89% 89% 89% 89%
No-load loss ≤10W @Standby mode
Shutdown mode ≤0.1mmA
Battery type Lead-acid battery
AC charger Mains input voltage  170-250V AC  170-250V AC  170-250V AC  170-250V AC
Charging Current (Max) 15A 20A 30A 30A
Charging voltage  13.7V-14.7V  13.7V-14.7V  13.7V-14.7V 27.5V-29V

Video Presentation

12V DC to 220V AC output

Perfect sine waveform output

Built-in 30A AC battery charger

Auto UPS power supply switch

Application: Home appliances, electric tools, office and portable equipment, vehicles and yachts, etc

Built-in utility charging and UPS functions, Mains first with AC charging

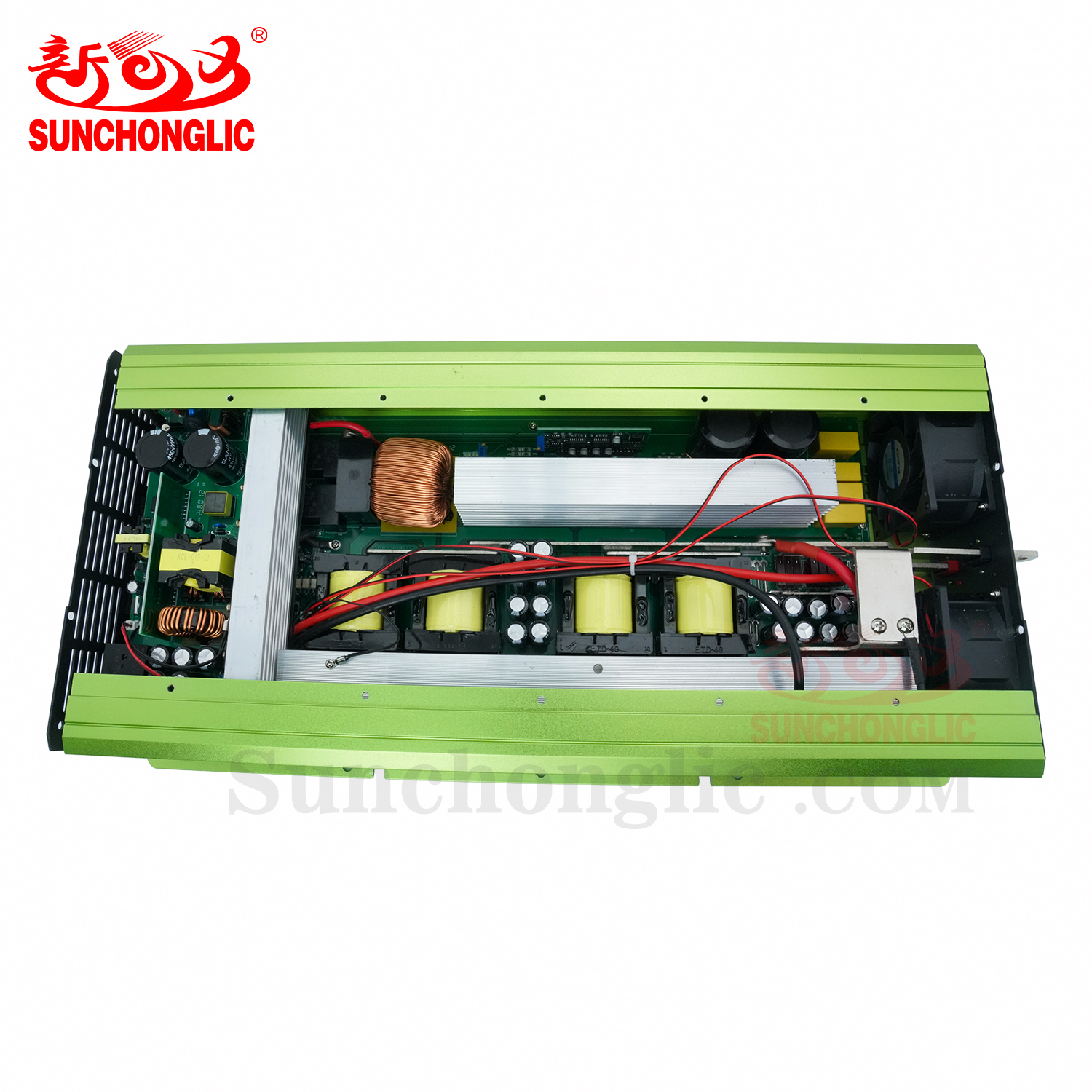

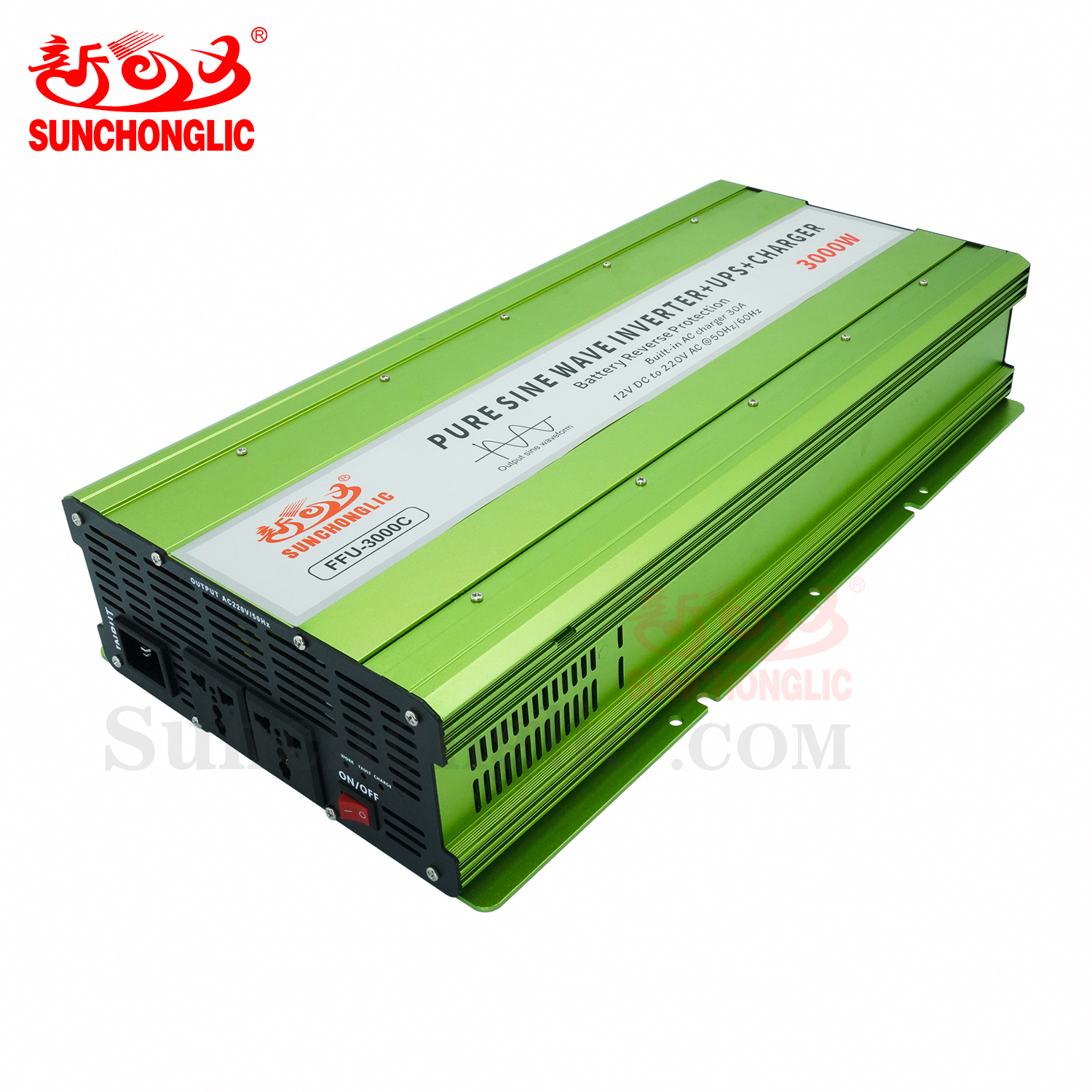

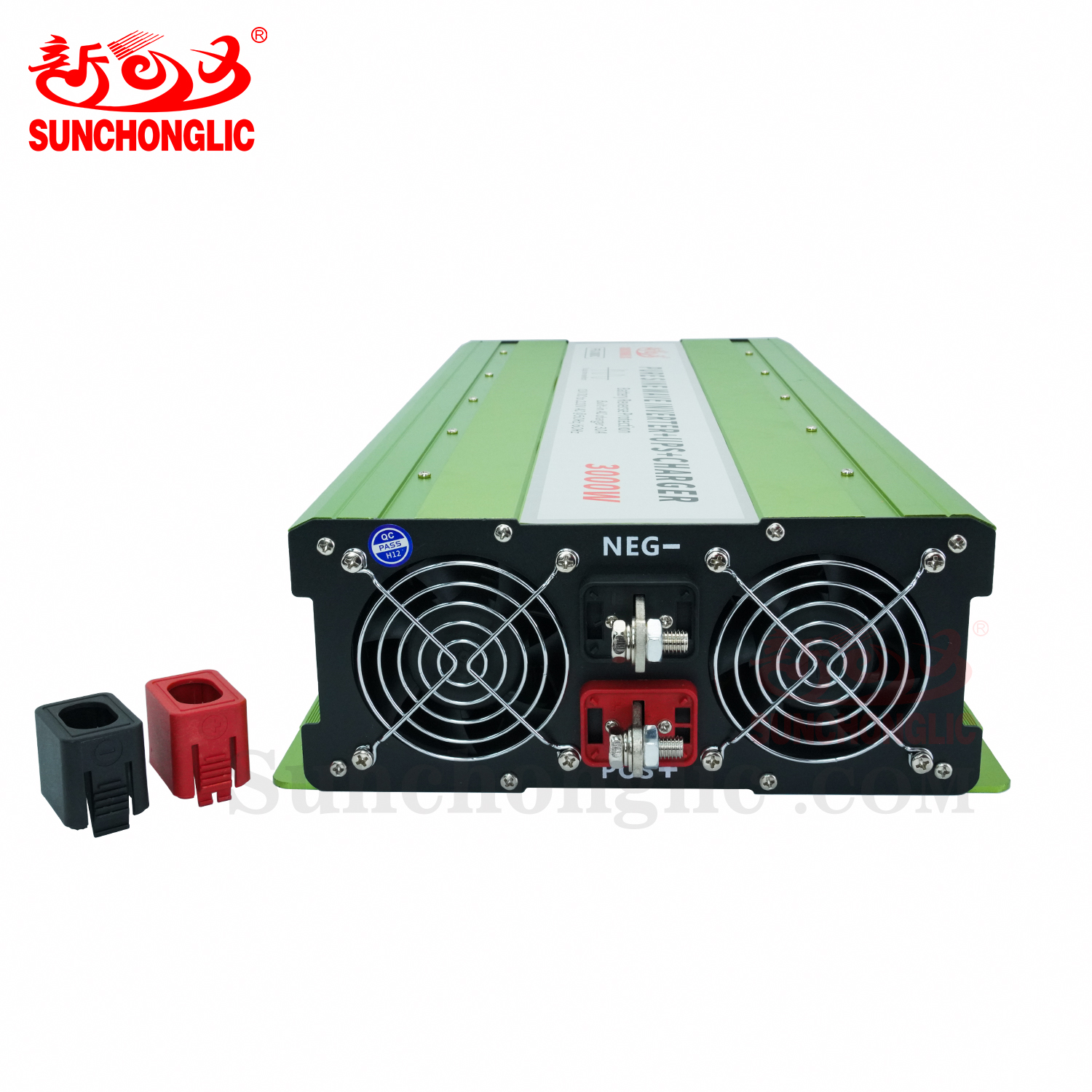

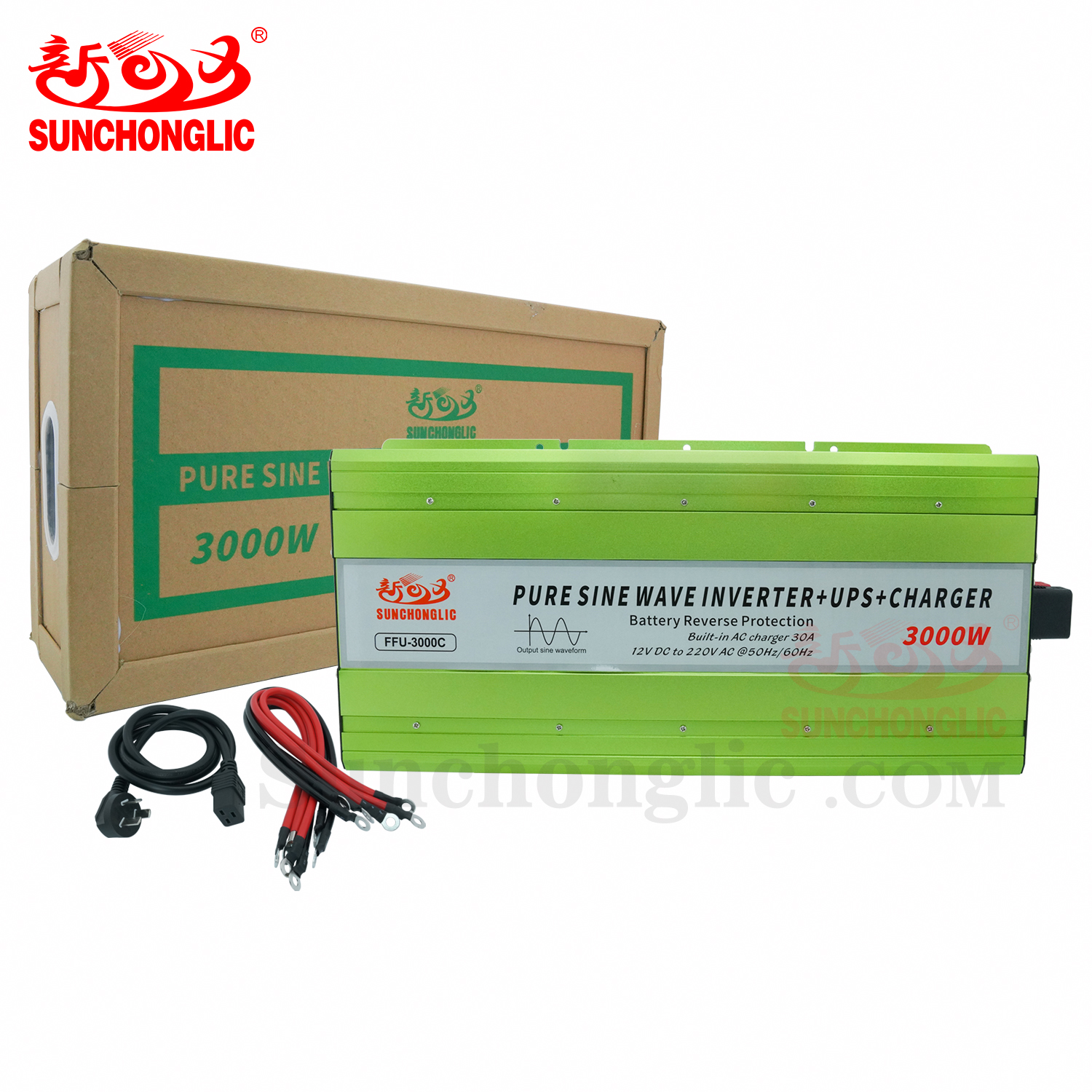

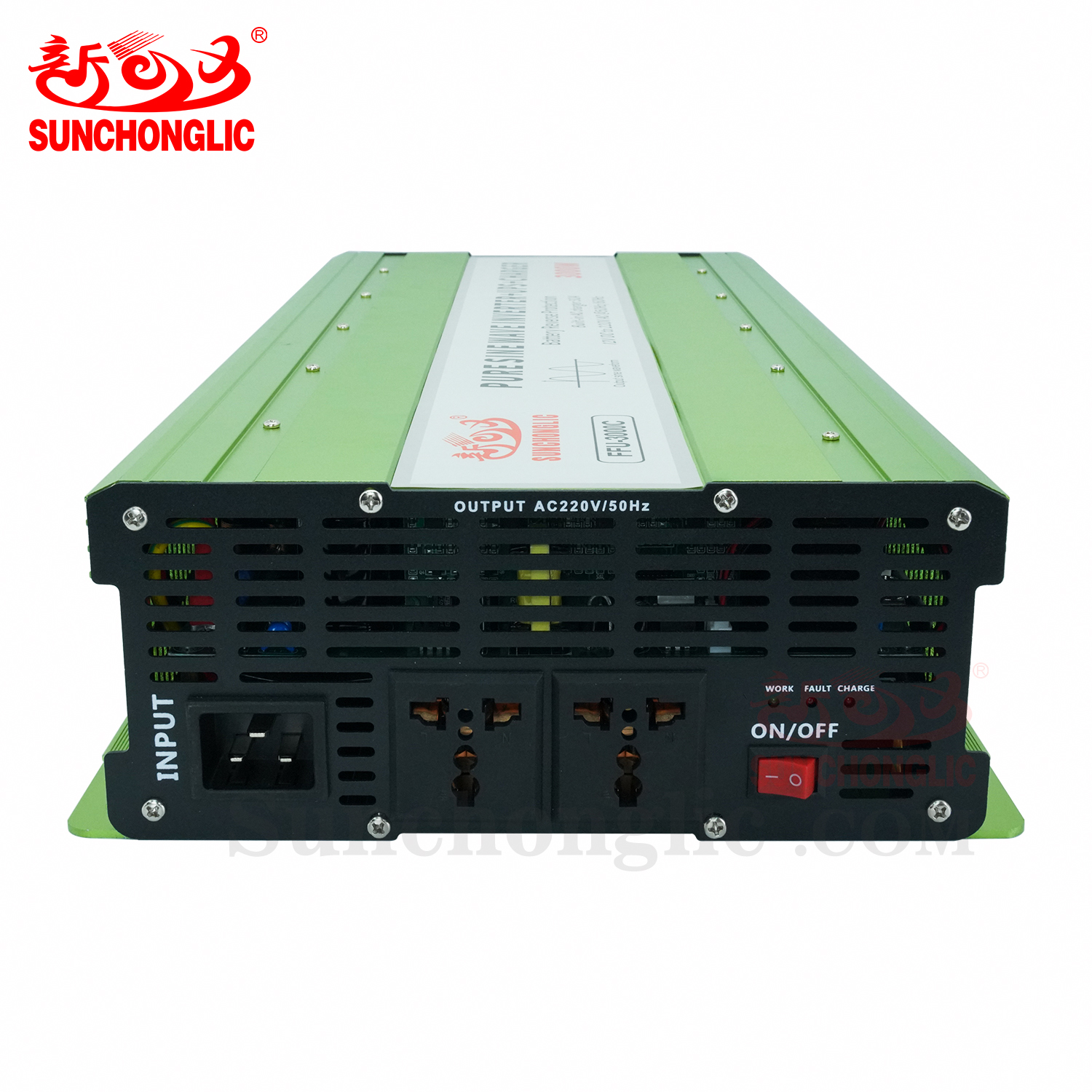

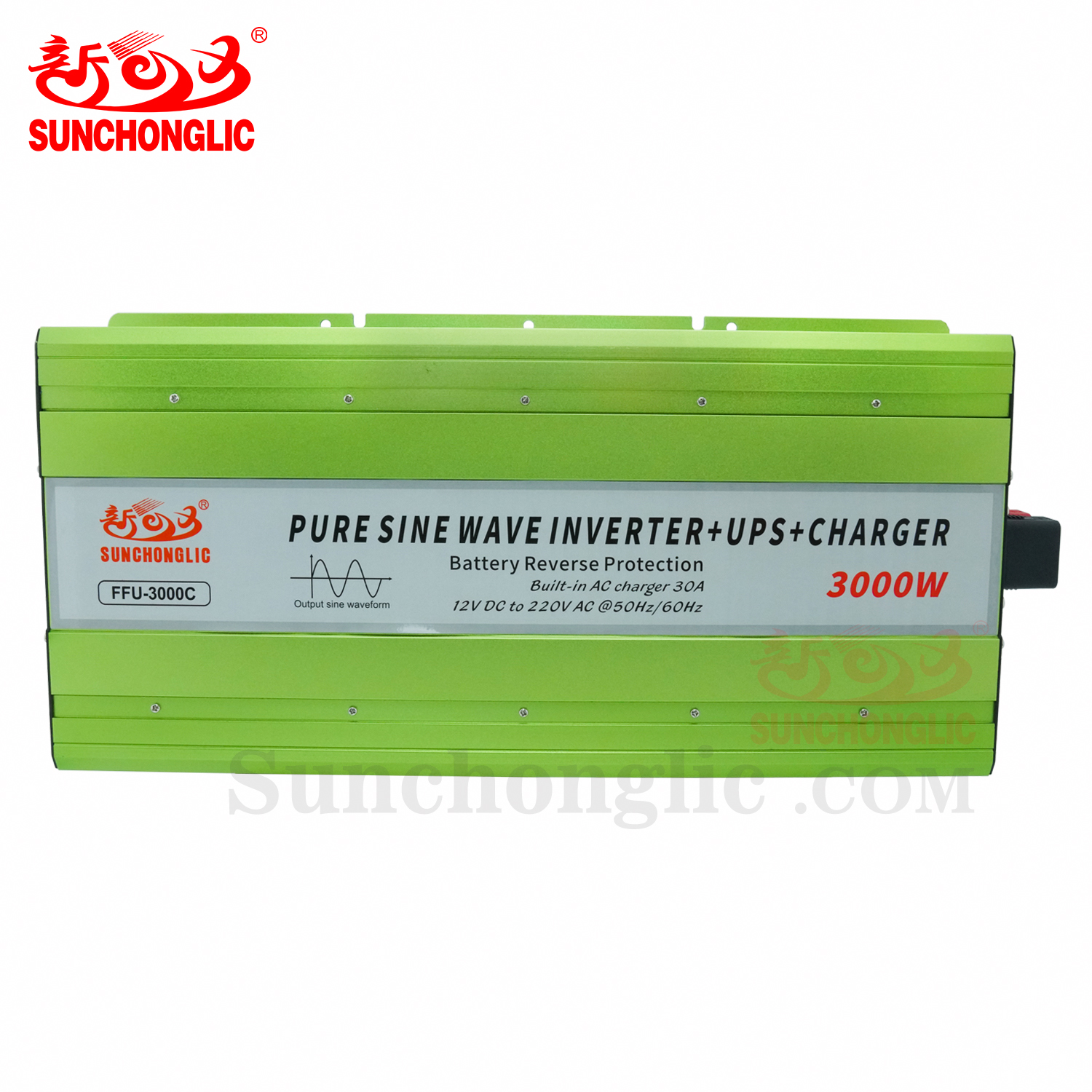

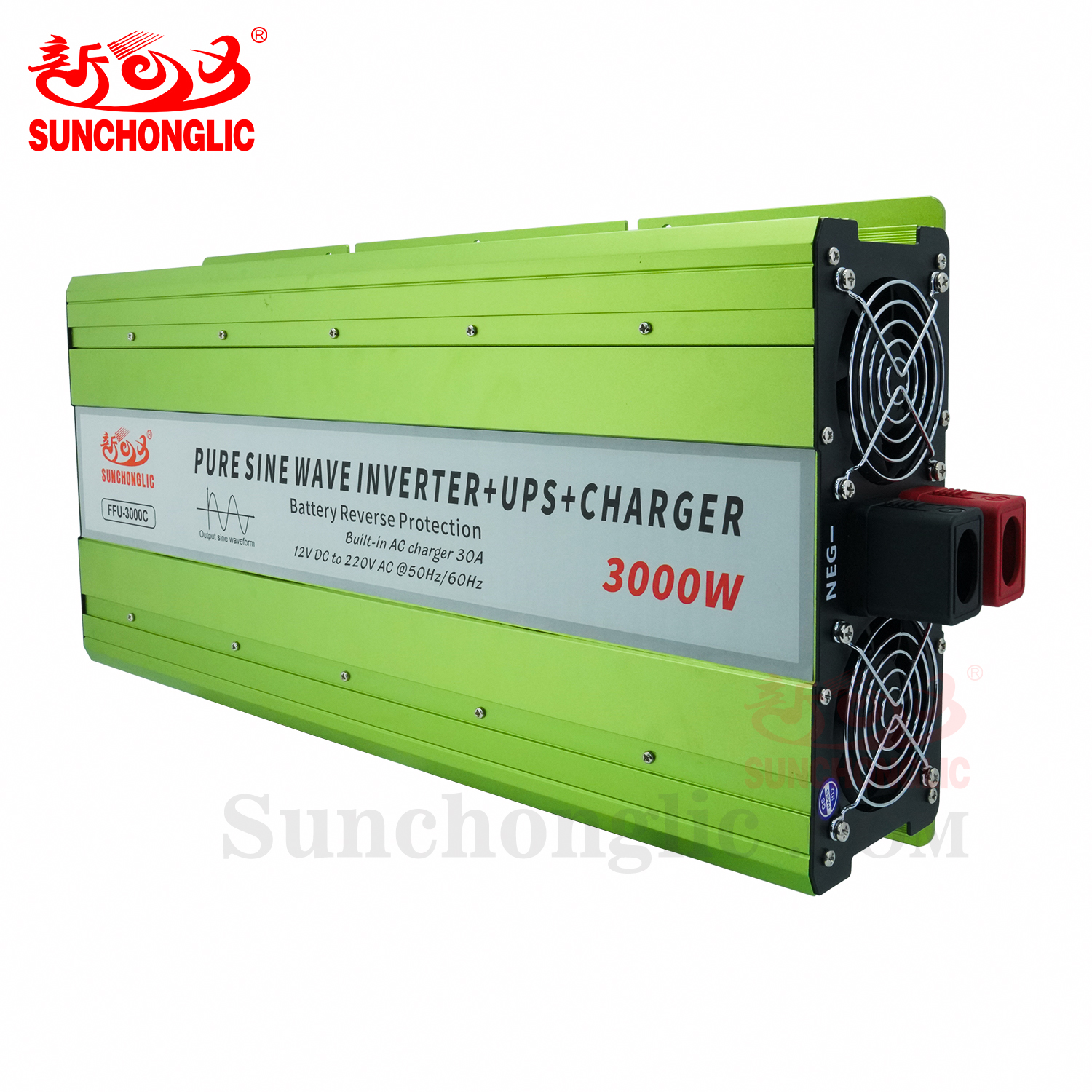

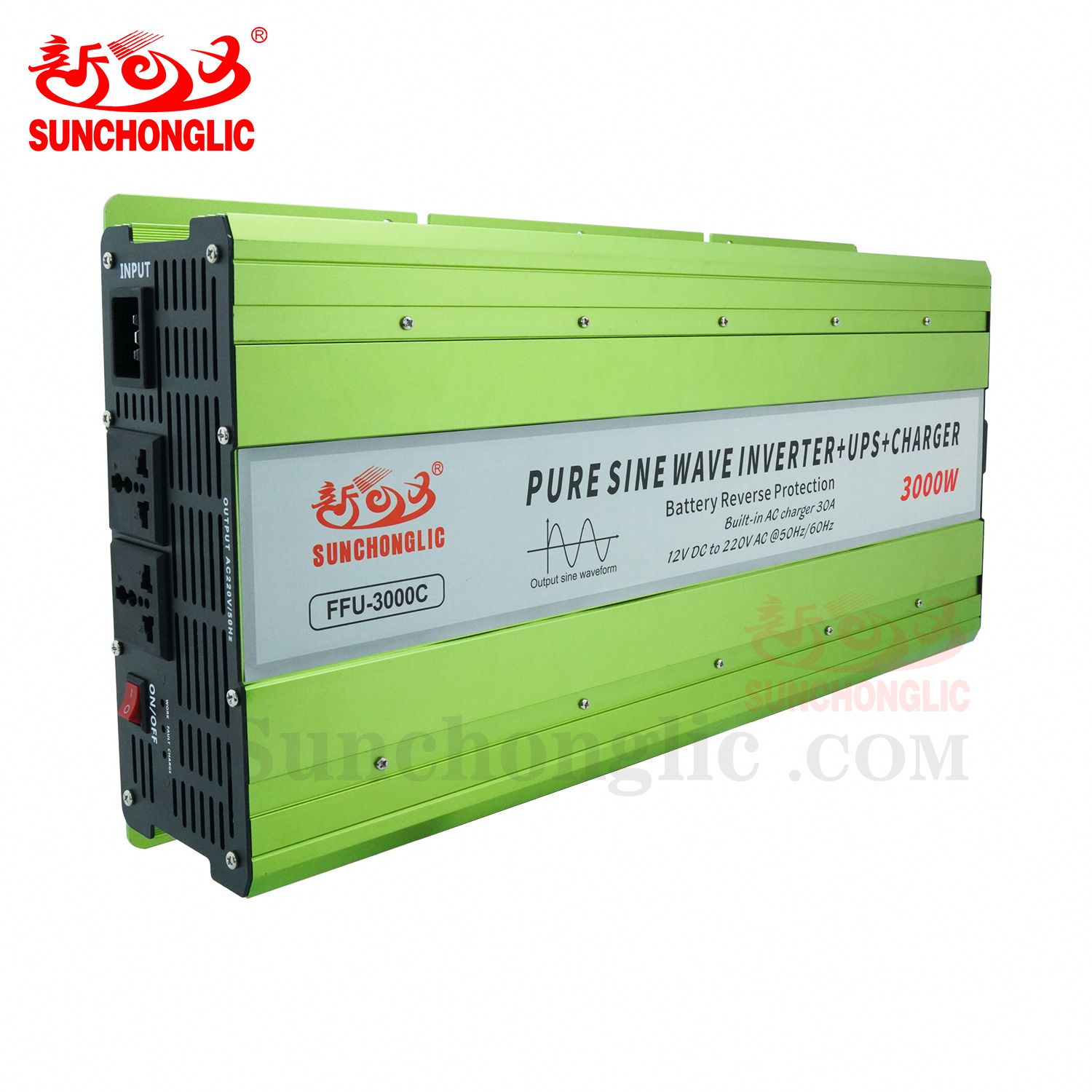

Product Photos
