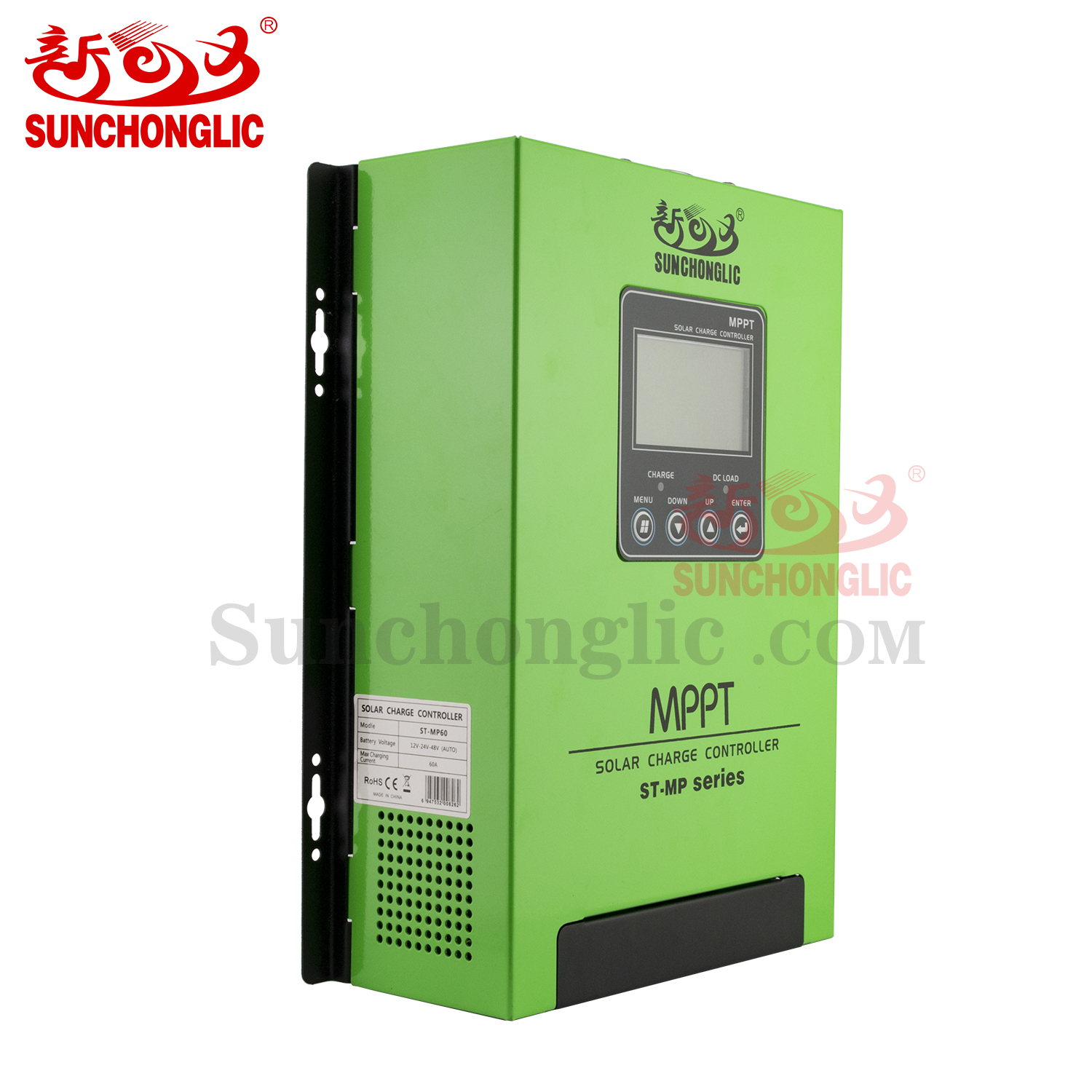

MPPT Solar Charge Controller
Excellent heat dissipation design and cooling fan of intelligent control.
Maximum power tracking technology can significantly increase the energy utilization rate of the solar system and can reach 97% of transfer efficiency.
Quick scan the entire I-V curve, can track the maximum power point within several seconds.
Applicable for 3 types of batteries.Lead acid batttery/Colloid storage battery,Lithium ion battery.Charging program can be selected.
Overcurrent protection, Short circuit protection, Overcharge protection,Overdischarge protection and Overload protection.
| Product Specification | |||||||
| Model: FT-MP30/40/50/60A Series | 30A | 40A | 50A | 60A | 80A | 100A | |
| Charging mode | Maximum automatic maximum power point tracking | ||||||
| charging method | Three stages: Constant current charging(MPPT). Equalizing charging,float charging | ||||||
| System type | 12V/24V/48V Automatic recognition/Manual setting | ||||||
| System identification of voltage | 12V System DC9VDC15V | ||||||
| 24V System DC18V-DC30V | |||||||
| 48V System DC36V-DC60V | |||||||
| Quiescent dissipation | 12V/24V/48V ≤2W | ||||||
| Overall Unit efficiency | 12V/24V/48V ≥96.5% | ||||||
| Photovoltaic module utilization ratio | 12V/24V/48V ≤99% | ||||||
| Input Characteristics | |||||||
| MPPT Working voltage range | 12V System DC18V-DC150V | ||||||
| 24V System DC30V-DC150V | |||||||
| 48V System DC65V-DC150V | |||||||
| Maximum solar input power | 12V System | 450W | 570W | 700W | 900W | 1200W | 1500W |
| 24V System | 750W | 1130W | 1400W | 1700W | 2250W | 2900W | |
| 48V System | 1500W | 2270W | 2800W | 3400W | 4500W | 5700W | |
| Output Characteristics | |||||||
|
Optional battery type (default lead-acid-free maintenance-free battery) |
Sealed lead acid, Gel, Nicd battery or User-defined | ||||||
| Floating charging voltage(lead acid battery) | 12V System | 13.8V (Customizable floating charge voltage) | |||||
| 24V System | 27.6V (Customizable floating charge voltage) | ||||||
| 48V System | 55.2V (Customizable floating charge voltage) | ||||||
| Average charge voltage(lead acid battery) | 12V System | 14.4V (Customizable floating charge voltage) | |||||
| 24V System | 28.8V (Customizable floating charge voltage) | ||||||
| 48V System | 57.6V (Customizable floating charge voltage) | ||||||
| Rated Current | 12V/24V/48V | 30A | 40A | 50A | 60A | 80A | 100A |
| Current-limiting protection | 12V/24V/48V | 30A | 40A | 50A | 60A | 80A | 100A |
| Temperature coefficient | 12V/24V/48V | ±0.02%/℃ | |||||
| Auto temperature compensation | 12V/24V/48V | -4mV℃ | |||||
| Display | |||||||

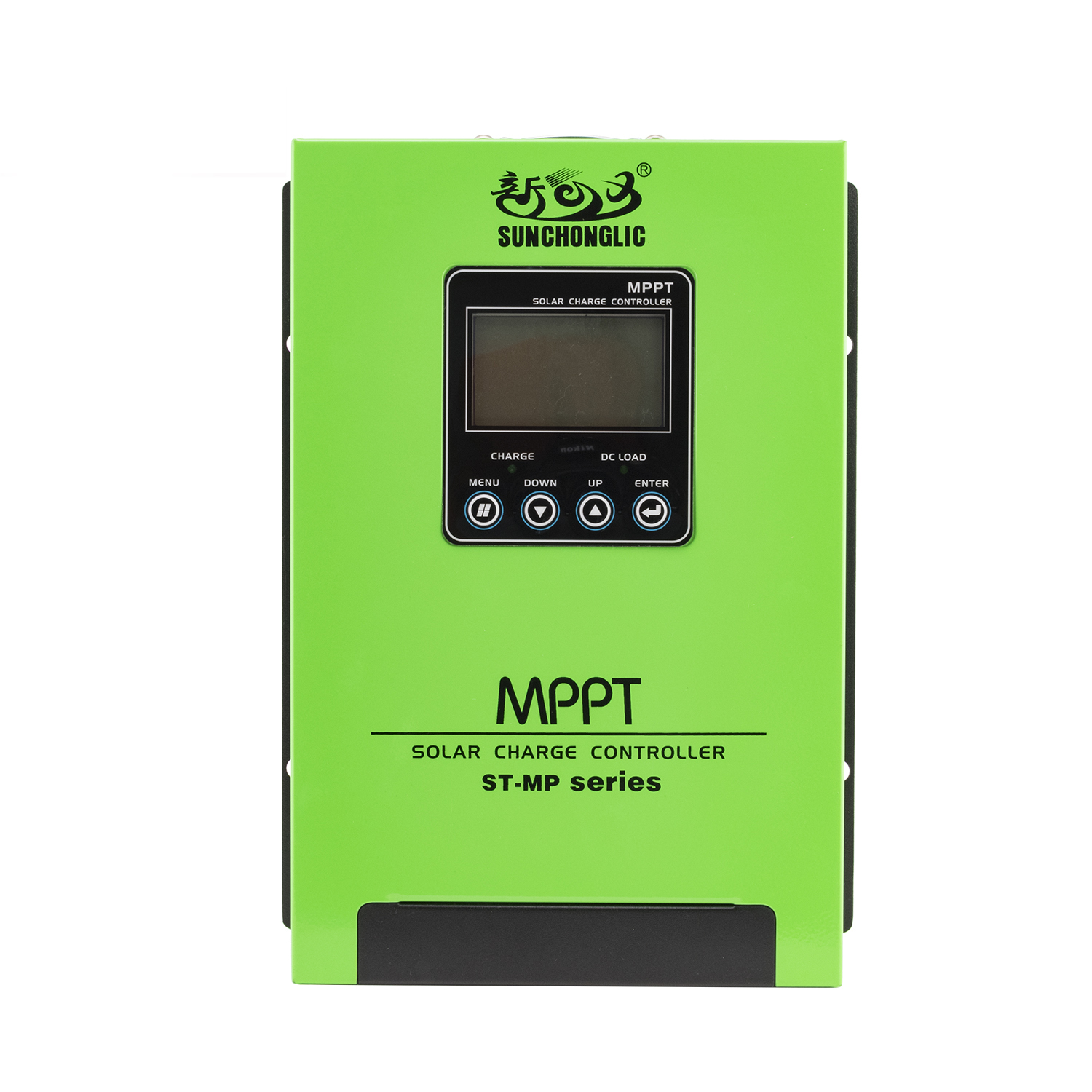

| LCD Display | LCD panel indicating solar power, load level, battery voltage/capacity,charging current,and fault conditions | ||||||
| LED Display | DC Output indication | ||||||
| Protection | |||||||
| Input low voltage protection | Reference input attribute | ||||||
| Input high voltage protection | Reference input attribute | ||||||
| Input polarity reverse protection | Yes | ||||||
| Output polarity reverse protection | Yes | ||||||
| Short-circuit protection | Could be short-circuited for a long time, could be recovered after the short-circuit fault is eliminated) | ||||||
| High temperature protection | 90 degrees celsius | ||||||
| Audible noise | ≤45db | ||||||

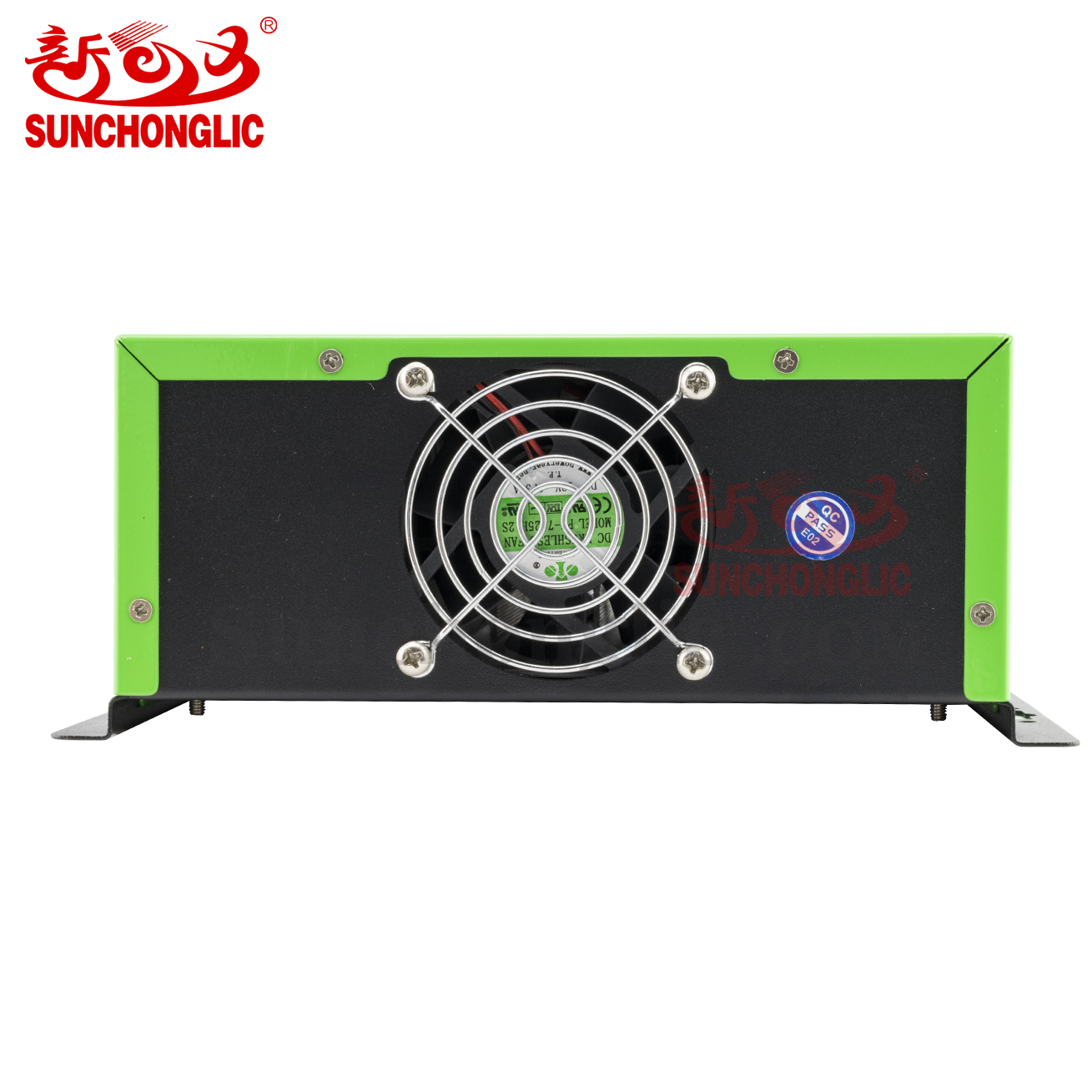

| Heat dissipation mode | Intelligent air cooling | ||||||
| Product specification package | |||||||
| Net Weight (kg) | 2.1 | 3 | 3.5 | ||||
| Type of mechanical protection | IP32 | ||||||
| Environment requirements | |||||||
| Humidity | 0~90%RH (No Dew) | ||||||
| Height above sea level | 0~3500m | ||||||
| Ambient temperature | -20℃~+60℃ | ||||||
| Storge temperature | -40℃~+70℃ | ||||||
| Photovoltaic module configuration | |||||||
| System voltage (battery voltage) | |||||||
| 12V System | 18V-144V | ||||||
| 24V System | 36V-144V | ||||||
| 48V System | 72V-144V | ||||||
| Specification of cable and miniature circuit breaker | |||||||
| Model | FT-MP-30A | FT-MP-40A | FT-MP-50A | FT-MP-60A | FT-MP-80A | FT-MP-100A | |
| Cable(Copper) | 6mm² | 8mm² | 10mm² | 16mm² | 20mm² | 25mm² | |
| Circuit breaker | 50A | 63A | 63A | 100A | 125A | 150A | |
