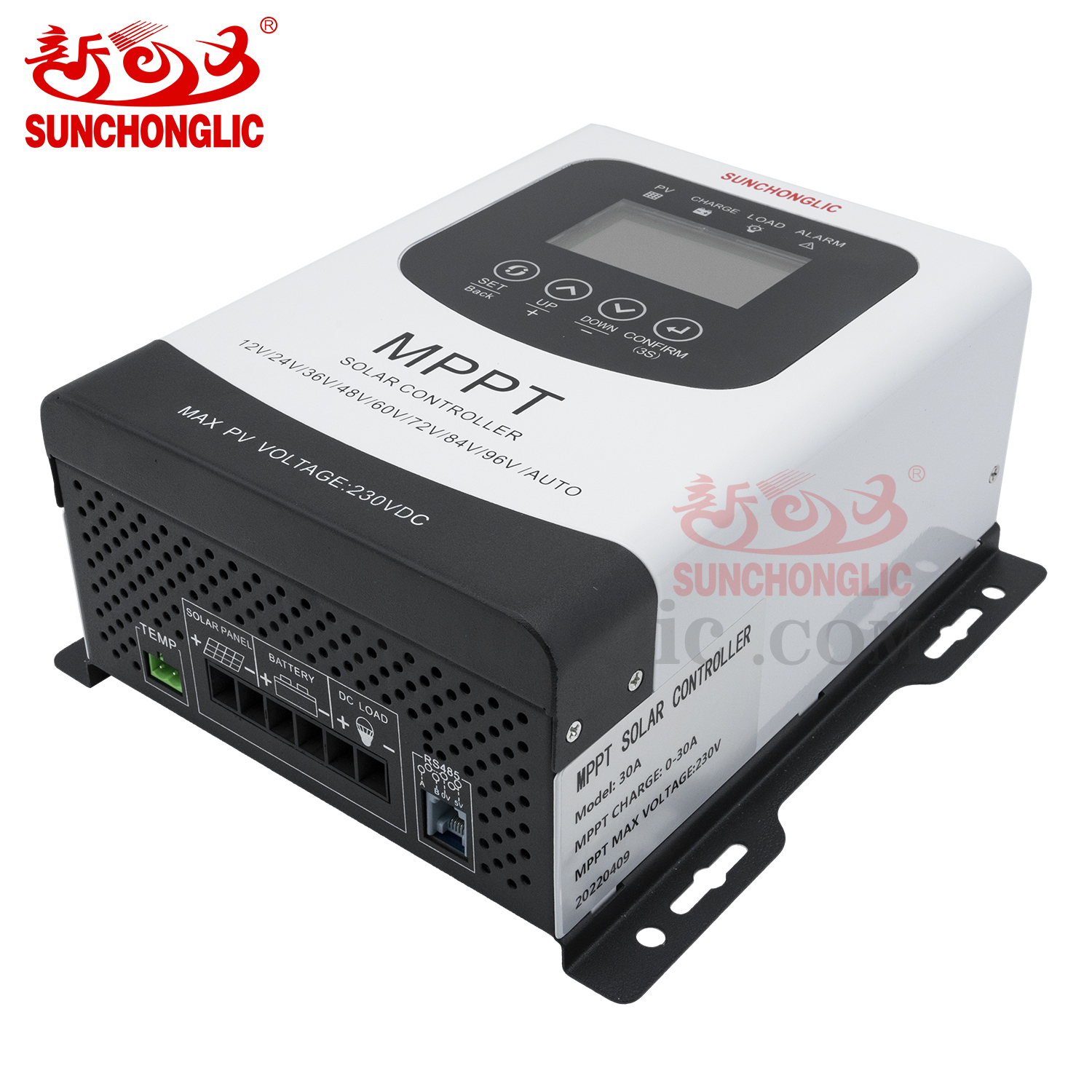

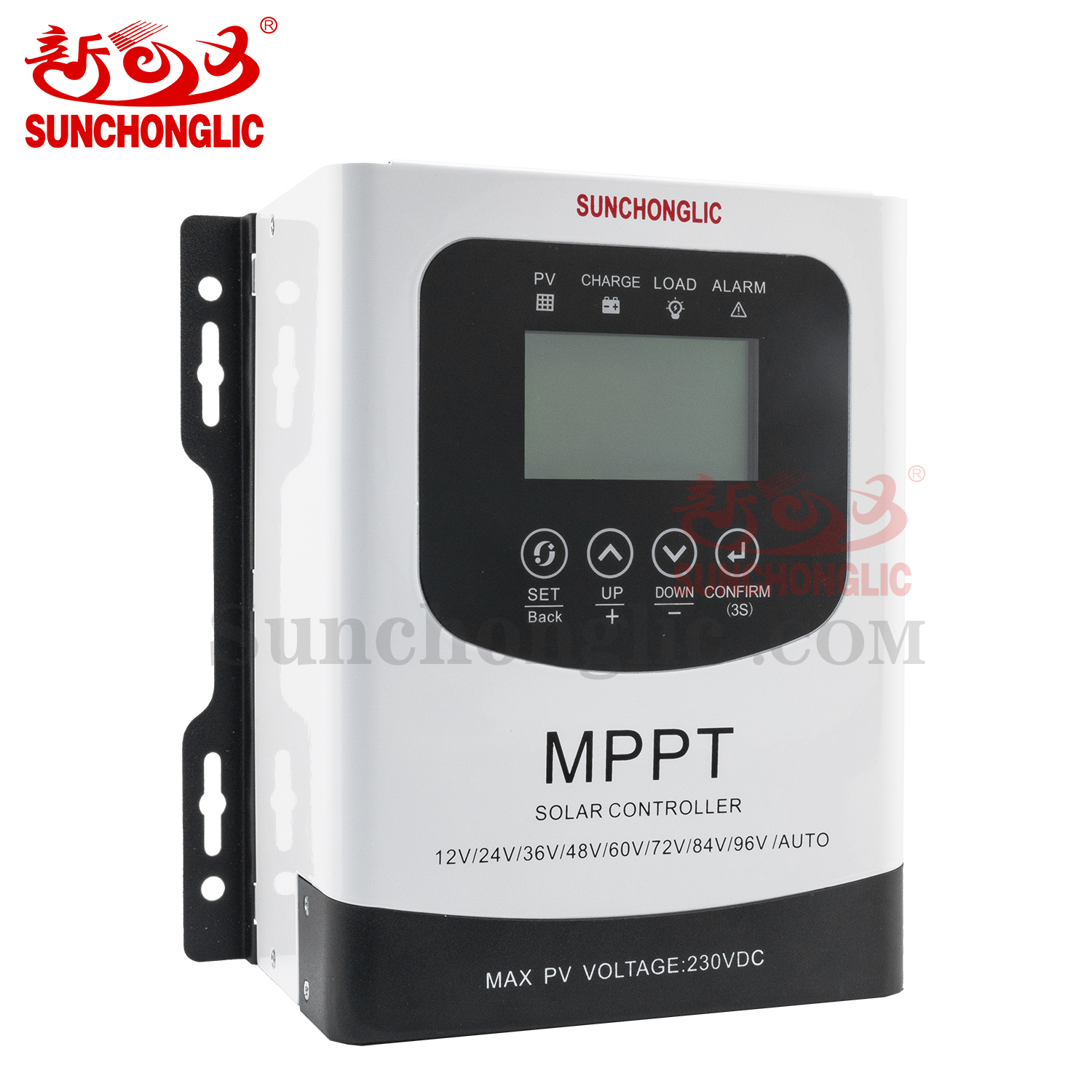

Sunchonglic solar charge controller 12V 24V 36V 48V 60V 72V 84V 96V 30A MPPT solar charger controller

MPPT 30A

MPPT Solar Charge Controller

Features:

Designed for off-grid solar system battery charging and discharging.

Regulatory mechanism of temperature compensation.

Built-in Lithium battery activation function.

Built-in solar data communication monitoring interface(RS485).

Applicable for lead acid battery(AGM/GEL/SLA) , Lithium iron phosphate battery and Ternary polymer lithium battery as well as customized battery.

Built-in advanced Maximum Power Point Tracking algorithm.

Charging current can be manually regulated.

Multiple charging and discharging protections.

Designed for 12V/24V/36V/48V/60V/72V/84V/96V DC.

Max PV array open circuit voltage 230V DC.

Support Max 96V lead acid battery.

Support Max 45 cells LiFePO4.

INQUIRE NOW

SEND ENQUIRY

Specifications

Model		30A/40A	50A/60A	100A/200A
Charging Mode		MPPT automatic maximum power tracking
Charging Method		MPPT tracks maximum power,fast charge,balanced charge,and float charge
Battery type	Lead Acid	(12V/24V/36V/48V/96V Auto+Adjustable 12V/24V/36V/48V/60V/72V/84V/96V)
	Gel	12V/24V/36V/48V/60V/72V/84V/96V
	LifePo 4	Single voltage 3.2* numbers of strings (2 strings-45 strings adjustable)
	Li-ion	Single voltage 3.7* numbers of strings (2 strings-45 strings adjustable)
	USER	Adjustable limit voltage for equal charge, float charge and DC discharge:8V-170V
With lithium battery activation function		With photovoltaic input,there is charging voltage(activate lithium battery),can be used without battery DC output
PV maximum open circuit input voltage		0-230V
The charging current is adjustable		0-30A 0-40A	0-50A 0-60A	0-100A 0-120A
Start charging		PV voltage is greater than + 3V of battery voltage(low current charging on rainy days)
Direct charging current output function		DC continuous output 25A	DC continuous output 60A	DC continuous output 100A
Temperature compensation		According to the temperature of the battery,the charging voltage and current are automatically compensated to prolong the battery life
Display communication		LCD display with touch button:(generating capacity/photovoltaic voltage/battery voltage/charging current/power/operation status) Chinese and English display Setting:(battery type,charging current,return to factory)
		8-pin RS485 communication interface(operation status and setting can be queried)
Working environment temperature		-20℃-40℃
Protection level		IP21
Altitude		0-3000m
Product size		202x215x100mm	218x265x100mm	/
