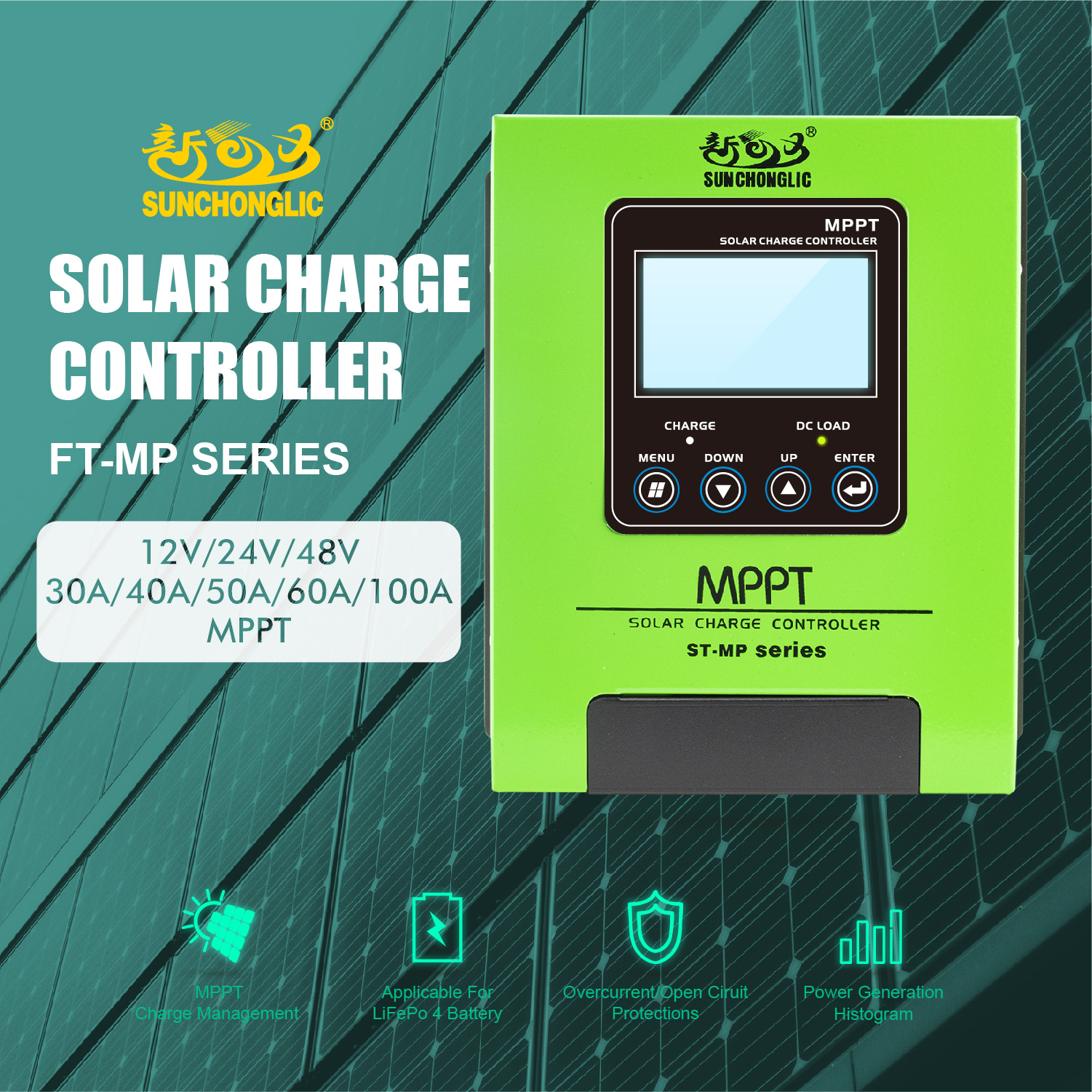

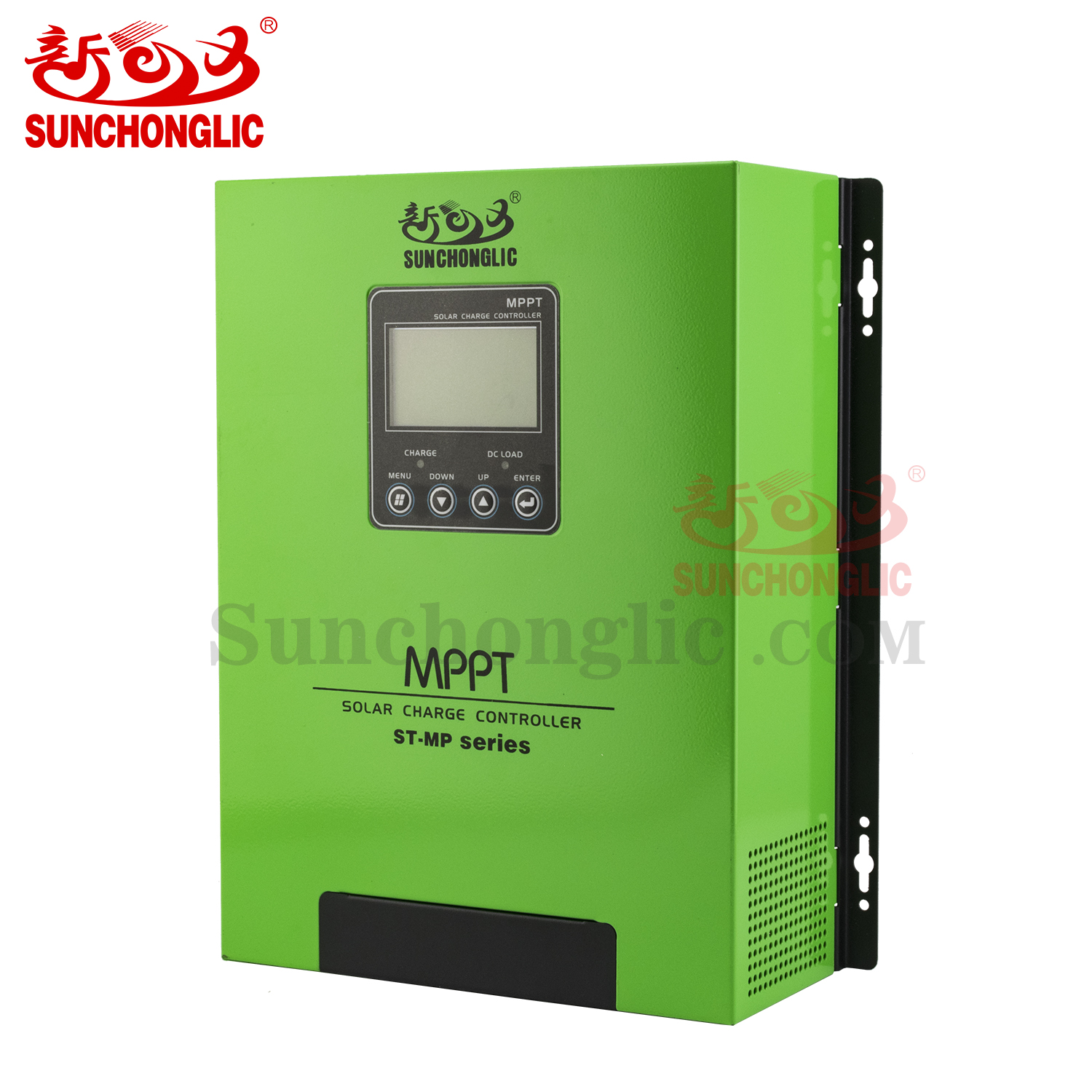

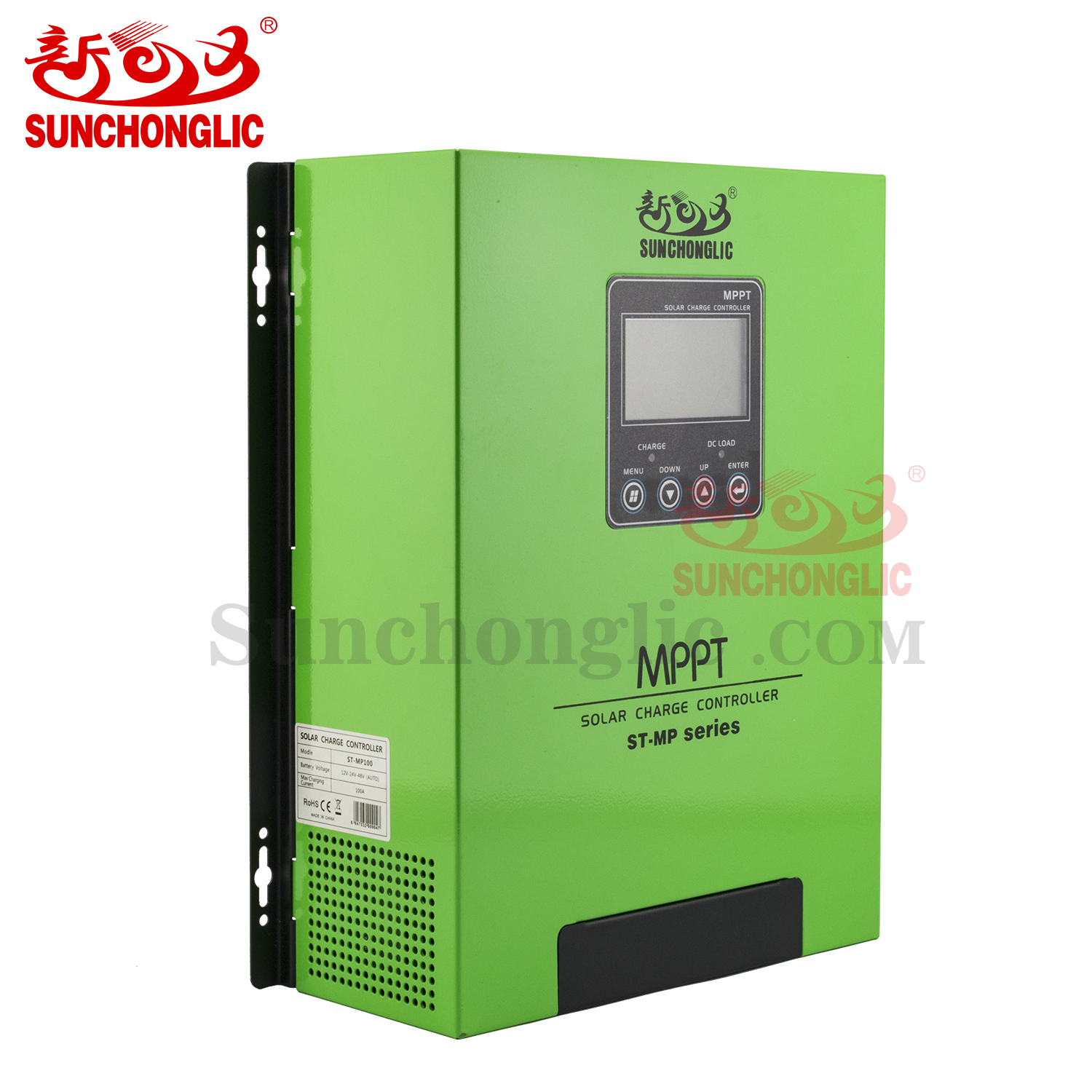

Sunchonglic 12V 24V 48V 100A mppt solar charge controller

FT-MP-100A

MPPT Solar Charge Controller

Features:

PV array Max input up to 150V DC.

Regulatory mechanism of temperature compensation.

Charging current can be manually regulated according to battery capacity.

LCD screen Display with backlight.

Built in solar power generation histogram.

Designed for 12V/24V/48V solar power system.

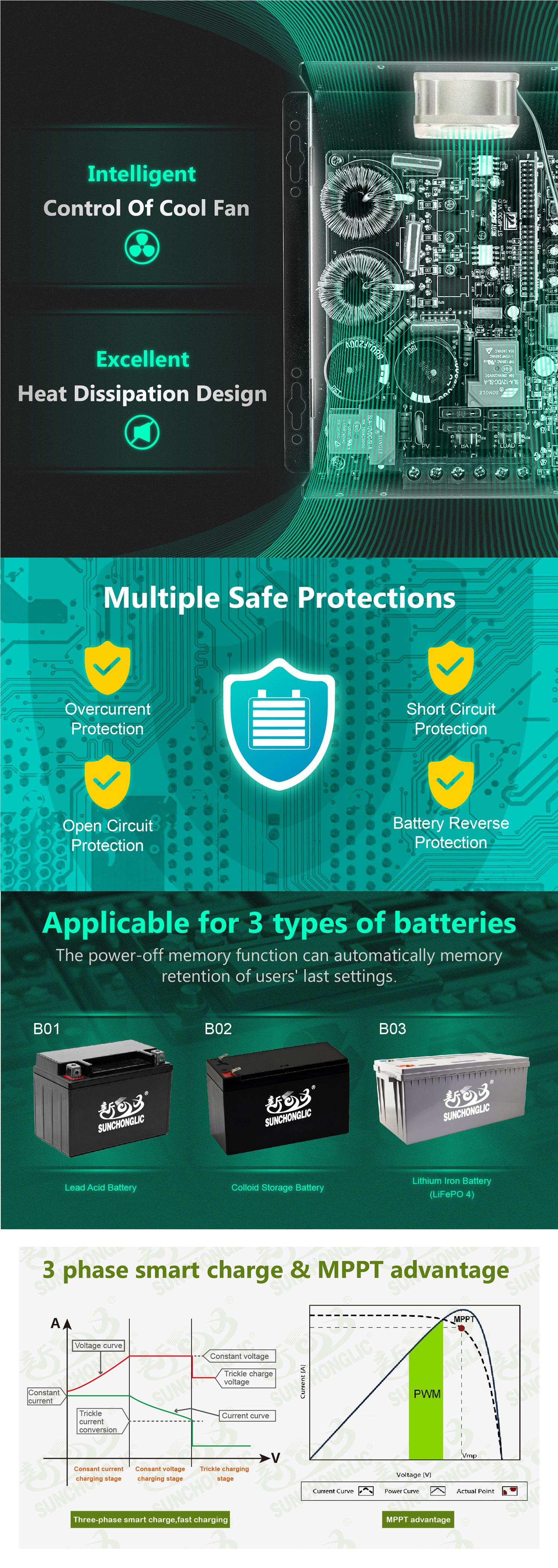

Applicable for 3 types of batteries,charging program can be selected. Support Lead acid battery,Colloid storage battery,LiFePO4 Lithium battery.

DC output mode can be regulated.

Excellent heat dissipation design and cooling fan of intelligent control.

DC output mode can be regulated.

Excellent heat dissipation design and cooling fan of intelligent control.

Maximum power tracking technology can significantly increase the energy utilization rate of the solar system and can reach 97% of transfer efficiency.

Quick scan the entire I-V curve, can track the maximum power point within several seconds.

Overcurrent protection,Short circuit protection,Overcharge protection,Overdischarge protection and Overload protection.

INQUIRE NOW

SEND ENQUIRY

Specifications

Product Specification
Model: FT-MP30/40/50/60A Series		30A	40A	50A	60A	80A	100A
Charging mode	Maximum automatic maximum power point tracking
charging method	Three stages: Constant current charging(MPPT). Equalizing charging,float charging
System type	12V/24V/48V Automatic recognition/Manual setting
System identification of voltage	12V System DC9VDC15V
	24V System DC18V-DC30V
	48V System DC36V-DC60V
Quiescent dissipation	12V/24V/48V ≤2W
Overall Unit efficiency	12V/24V/48V ≥96.5%
Photovoltaic module utilization ratio	12V/24V/48V ≤99%
Input Characteristics
MPPT Working voltage range	12V System DC18V-DC150V
	24V System DC30V-DC150V
	48V System DC65V-DC150V
Maximum solar input power	12V System	450W	570W	700W	900W	1200W	1500W
	24V System	750W	1130W	1400W	1700W	2250W	2900W
	48V System	1500W	2270W	2800W	3400W	4500W	5700W
Output Characteristics
Optional battery type (default lead-acid-free maintenance-free battery)	Sealed lead acid, Gel, Nicd battery or User-defined
Floating charging voltage(lead acid battery)	12V System	13.8V (Customizable floating charge voltage)
	24V System	27.6V (Customizable floating charge voltage)
	48V System	55.2V (Customizable floating charge voltage)
Average charge voltage(lead acid battery)	12V System	14.4V (Customizable floating charge voltage)
	24V System	28.8V (Customizable floating charge voltage)
	48V System	57.6V (Customizable floating charge voltage)
Rated Current	12V/24V/48V	30A	40A	50A	60A	80A	100A
Current-limiting protection	12V/24V/48V	30A	40A	50A	60A	80A	100A
Temperature coefficient	12V/24V/48V	±0.02%/℃
Auto temperature compensation	12V/24V/48V	-4mV℃
Display
LCD Display	LCD panel indicating solar power, load level, battery voltage/capacity,charging current,and fault conditions
LED Display	DC Output indication
Protection
Input low voltage protection	Reference input attribute
Input high voltage protection	Reference input attribute
Input polarity reverse protection	Yes
Output polarity reverse protection	Yes
Short-circuit protection	Could be short-circuited for a long time, could be recovered after the short-circuit fault is eliminated)
High temperature protection	90 degrees celsius
Audible noise	≤45db
Heat dissipation mode	Intelligent air cooling
Product specification package
Net Weight (kg)	2.1		3		3.5
Type of mechanical protection	IP32
Environment requirements
Humidity	0~90%RH (No Dew)
Height above sea level	0~3500m
Ambient temperature	-20℃~+60℃
Storge temperature	-40℃~+70℃
Photovoltaic module configuration
System voltage (battery voltage)
12V System	18V-144V
24V System	36V-144V
48V System	72V-144V

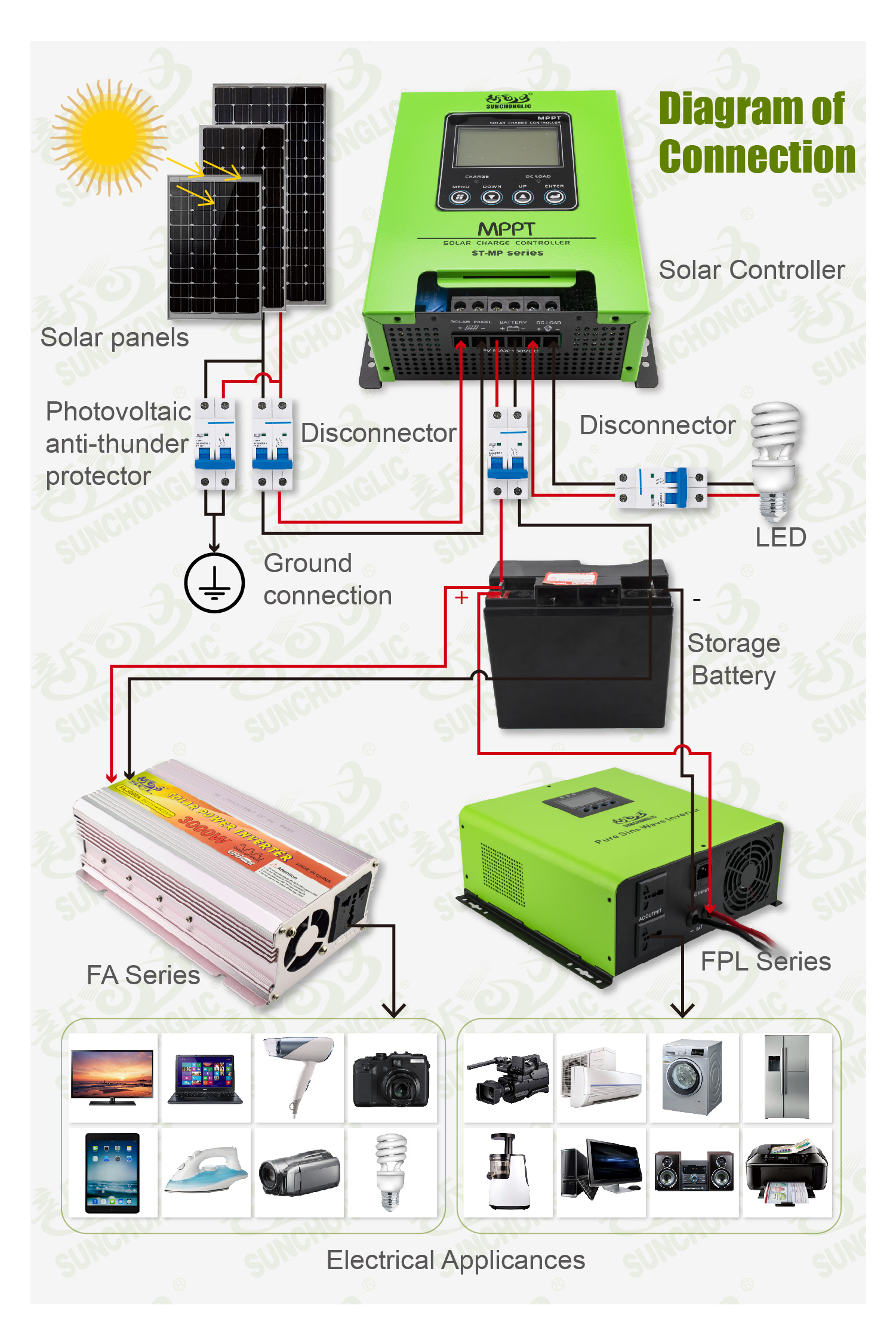

Specification of cable and miniature circuit breaker
Model	FT-MP-30A	FT-MP-40A	FT-MP-50A	FT-MP-60A	FT-MP-80A	FT-MP-100A
Cable(Copper)	6mm²	8mm²	10mm²	16mm²	20mm²	25mm²
Circuit breaker	50A	63A	63A	100A	125A	150A

Sunchonglic 12V 24V 48V 100A mppt solar charge controller

FT-MP-100A

Features:

SEND ENQUIRY

Specifications

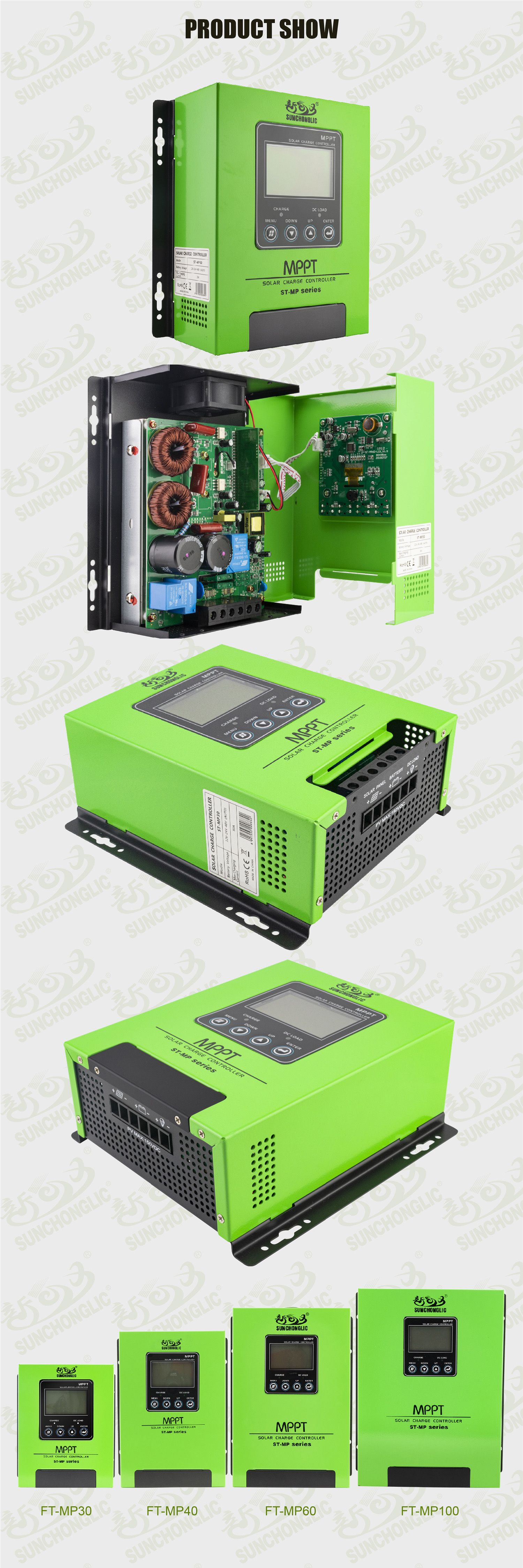

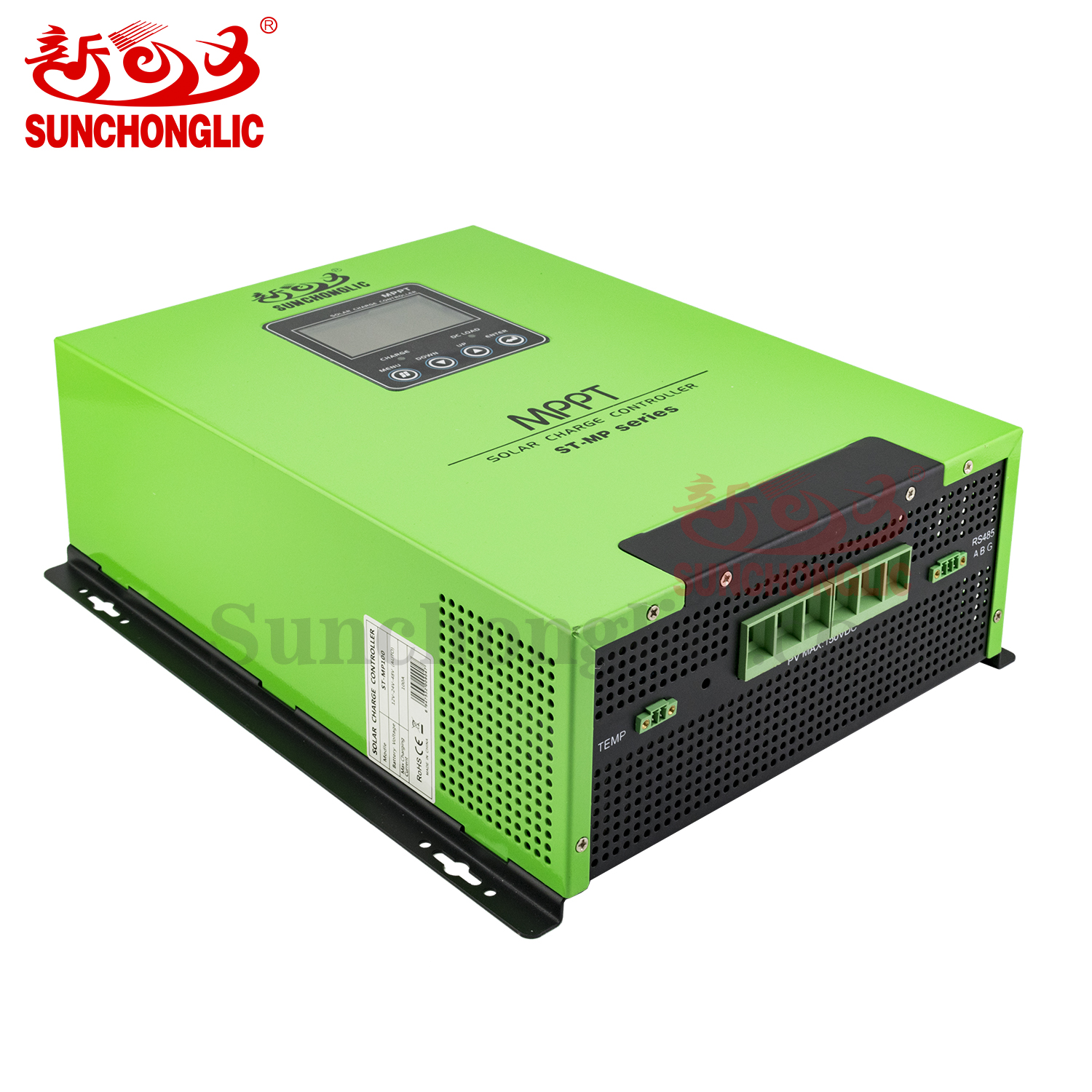

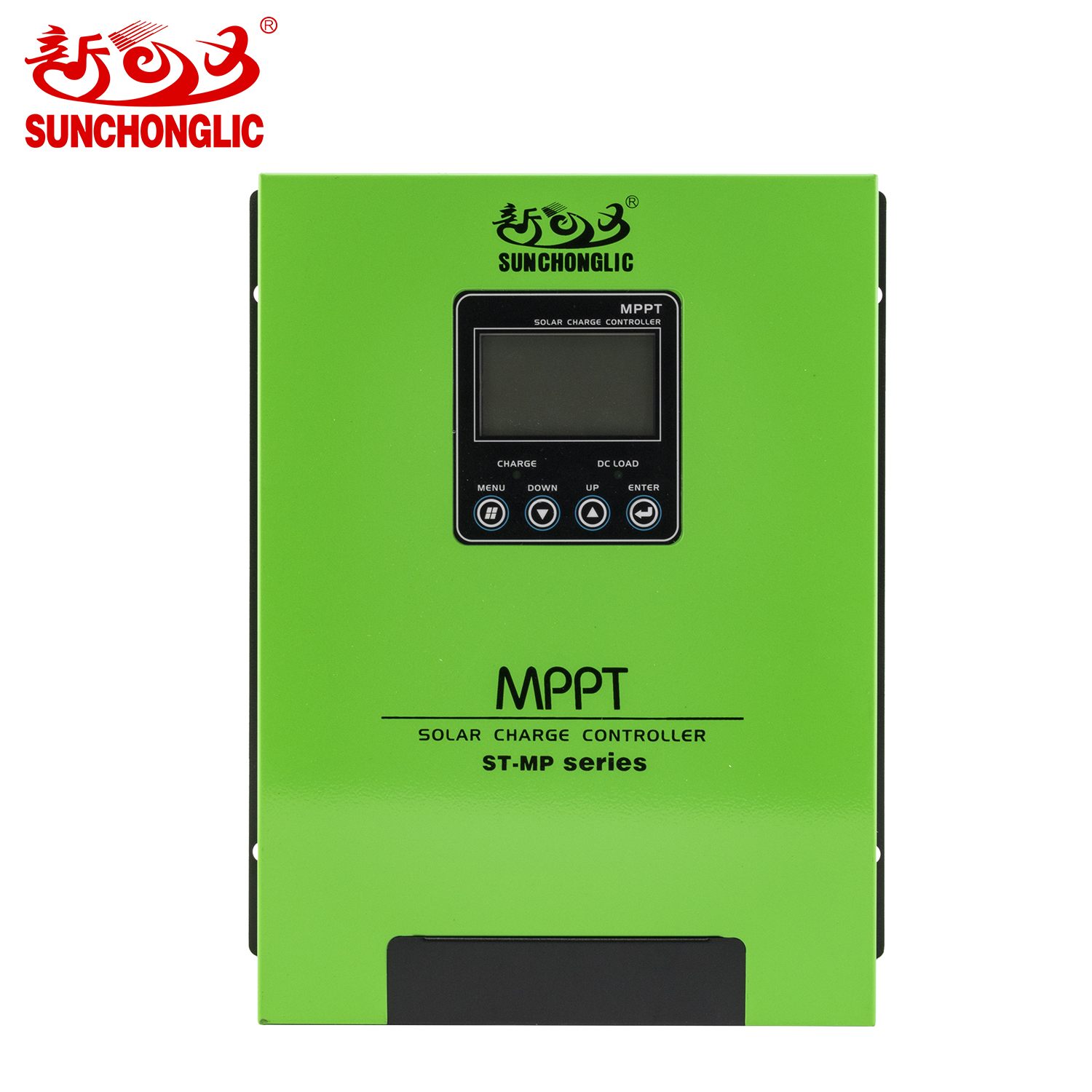

Product Photos
