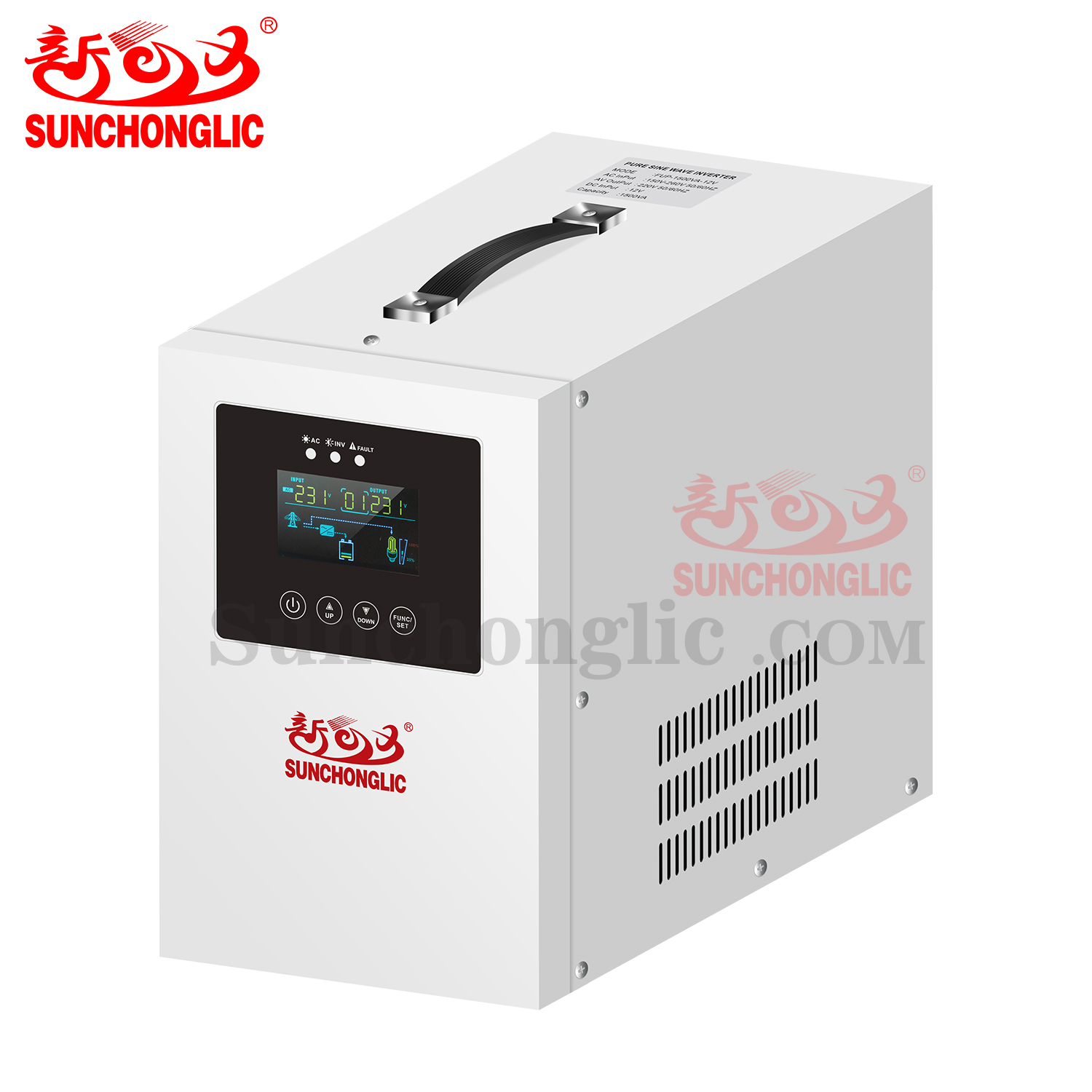

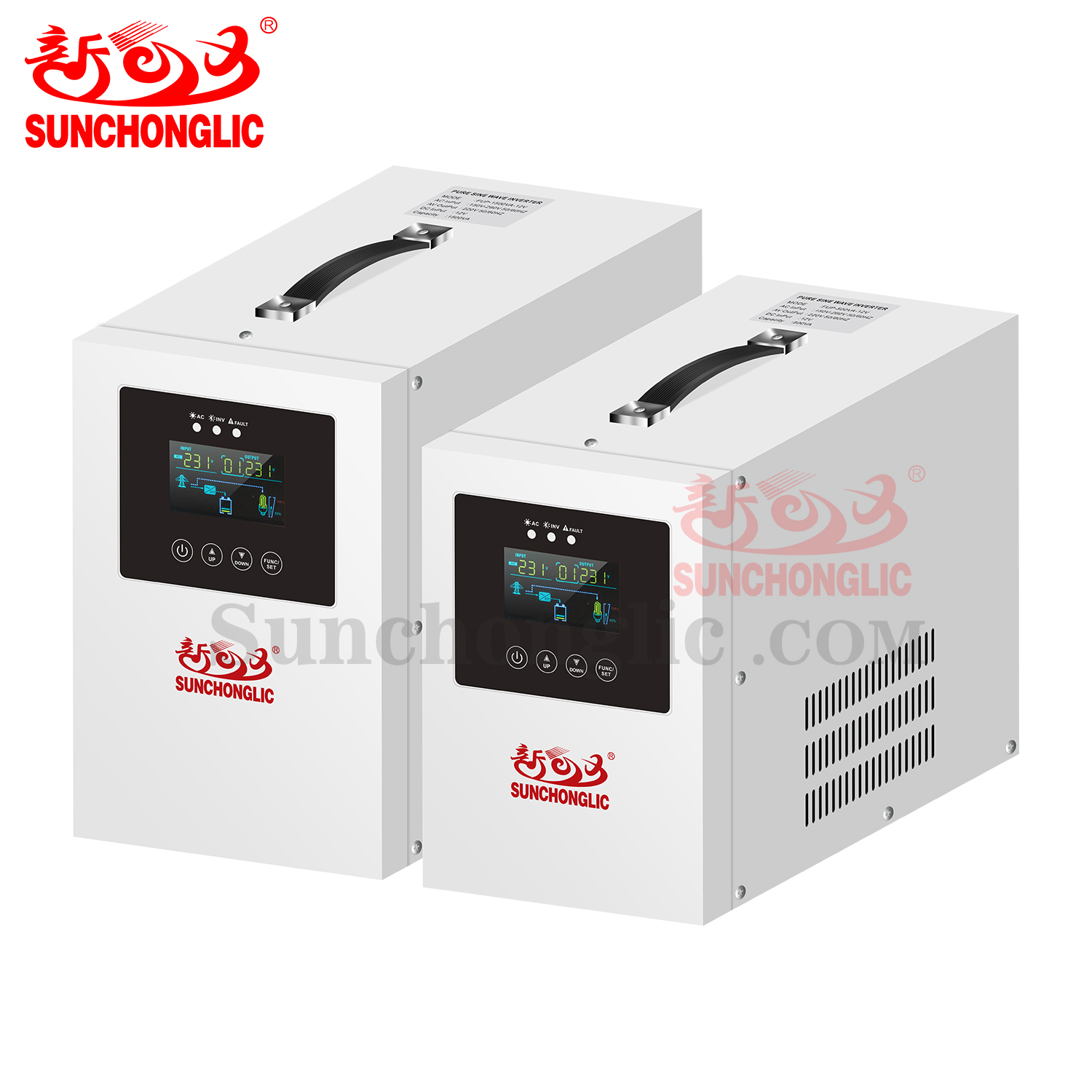

Sunchonglic 500w 800va pure sine wave invert UPS power inverter low frequency inverter charger

FUP-800A

UPS Charger Inverter

Pure sine wave UPS inverter.

Automatic recharge.

Generator compatible.

Protection for overload.

Interruptible buzzer alarm.

Battery is not included.

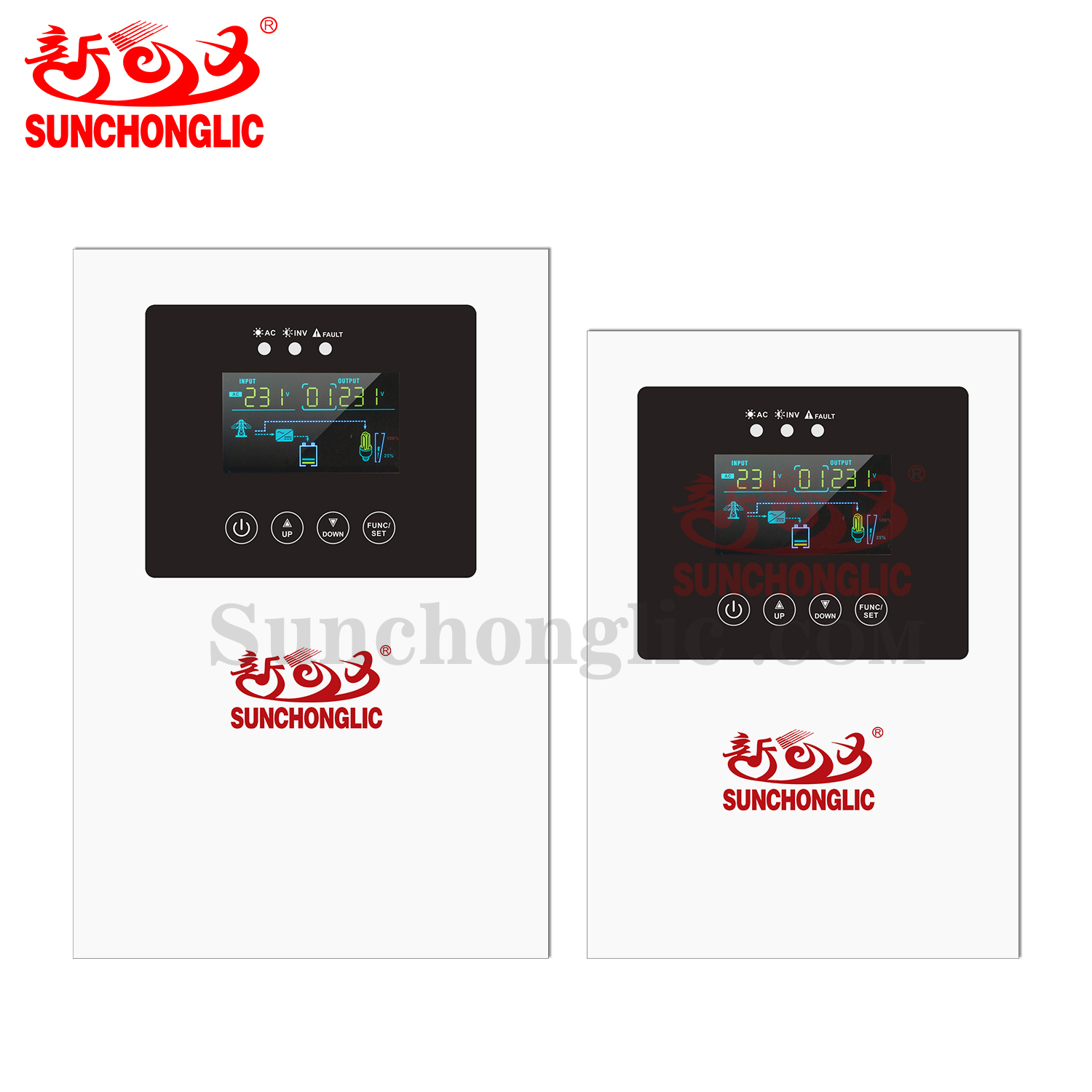

LCD & status LED display.

Smart battery management.

High Reliability Microprocessor.

Heavy duty copper transformaer.

AVR(automatic voltage regulator.

Auto restart while AC is recovering.

UPS power supply

INQUIRE NOW

Specification	Model	500VA	800VA	1000VA	1500VA
	Power	350W	500W	700W	1050W
Input	Voltage range	AC150-265V
	Frequency range	50Hz/60Hz
Output	AC Voltage Regulation (Batt.Mode)	AC220V±25V
	Frequency range (Batt.Mode)	50Hz/60Hz
	Waveform	Pure Sine Wave
Battery	Rated battery voltage	12VDC（10-16V）
	Battery Type(external)	12V
	Charge Modes	3 stage;bulk,boost,float
	Charging current	DC15A		DC20A
General characteristics	Protection	Overload,Overheat,Output high/low voltage,Battery low voltage,Short-circuit,Over-charge,Over-discharge
	Switch time	10ms
	Operating Humidity	10-90%
	Operating Temperature	0℃+40℃
	Class Protection	IP20
	Dimension DxWxH(mm)	335x148x208		335x160x237
