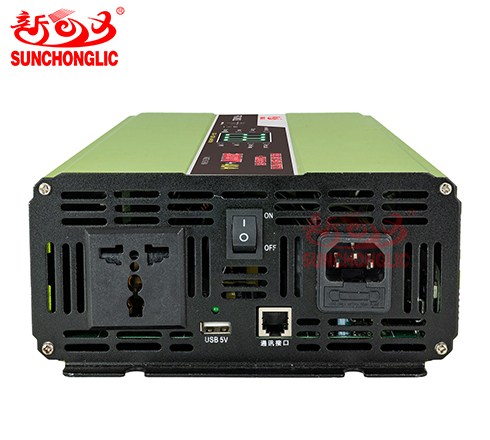

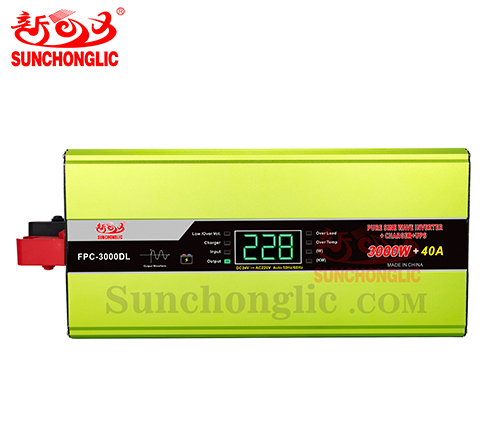

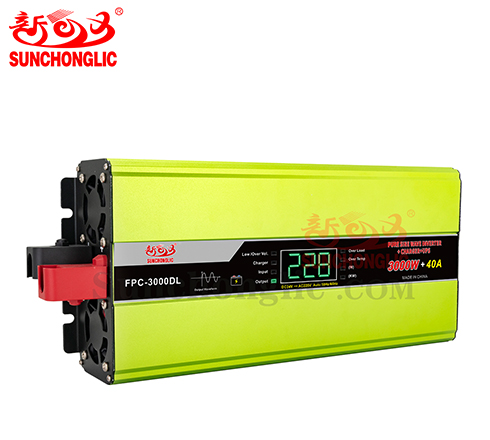

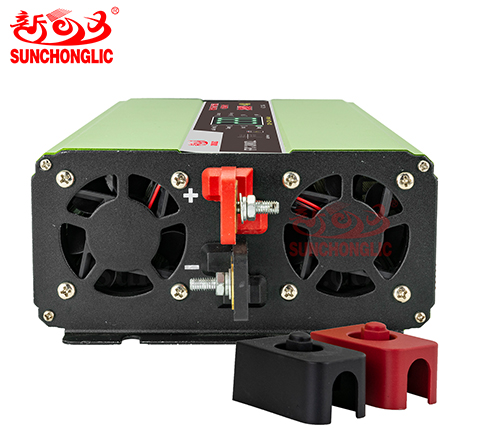

Sunchonglic 24v 220v 3000w 3kw 3000 watt pure sine wave ups inverter off grid solar inverter with charger

FPC-3000DL

UPS Charger Inverter

5V 2A USB charging interface.

Pure sine waveform output

Applicable for inductive loads(Applicable for Air conditioner)

Input and output are completely independent

Universal socket, suitable for all kinds of plugs

High-procision voltage stability technology

Built-in AC charger and UPS

100% pure sine wave output waveform: designed for sensitive loads(Total Harmonic Distortion(THD)<3%

Multiple safe protections,including overload/overvoltage/low voltage/high temperature and output short circuit protection

INQUIRE NOW

Model		FPC-500CL	FPC-1000CL	FPC-2000CL	FPC-3000DL
DC Input	Rated Battery Voltage	12VDC (10-15VDC)			24VDC (20-30VDC)
	Rated current	50A	100A	200A	130A
	No-load current	≤800mA	≤1000mA	≤1500mA
	Efficiency	≥90%		≥88%
	Battery type	Lead-acid Battery
AC Output	Rated Power	500W	1000W	2000W	3000W
	AC Voltage	220VAC
	Frequency	50Hz/60Hz
	Waveform	Pure sine wave
Mains	Power failure switching time	10ms
Charging	Current	6A	10A	35A	40A
Input protection	Low voltage alarm	10.5V-15V			21V-30V
	Battery under-voltage shutdown	9.5V-10V			19V-20V
	Battery low voltage recovery	11.5V-12V			23V-24V
	Battery over voltage protection	15-15.5V			30-31V
	Battery over voltage recovery	14.5-15V			29-30V
	Reverse connection protection	NO
Output protection	Output short	Turn off the output and resume after restart
	Overload protection	When the output power is bigger than the rated value: FPC-1000CL over 1000W. FPC-2000CL over 2000W.FPC-3000CL over than 3000W.inverter will automatically turn off the output,and recover after 2S.It will try to recover 3 times and after all failures,the output will be turned off.
	Overload temperature	Turn off the output when the internal temperature is higher than 85℃，and automatically resume the output when it is lower than 70℃
Environment	Working environment temperature	-40~70℃
	Working humidity	20%~95%RH
	Storage temperature/humidity	-40~85℃,10~90%RH
Others	Packing/CTN	/
