Sunchonglic Off Grid MPPT Solar PV Inverter Without Battery 3KVA 5KVA 7KVA 10KVA

Solar Inverter Without Battery

Hybrid Solar Inverter

Features:

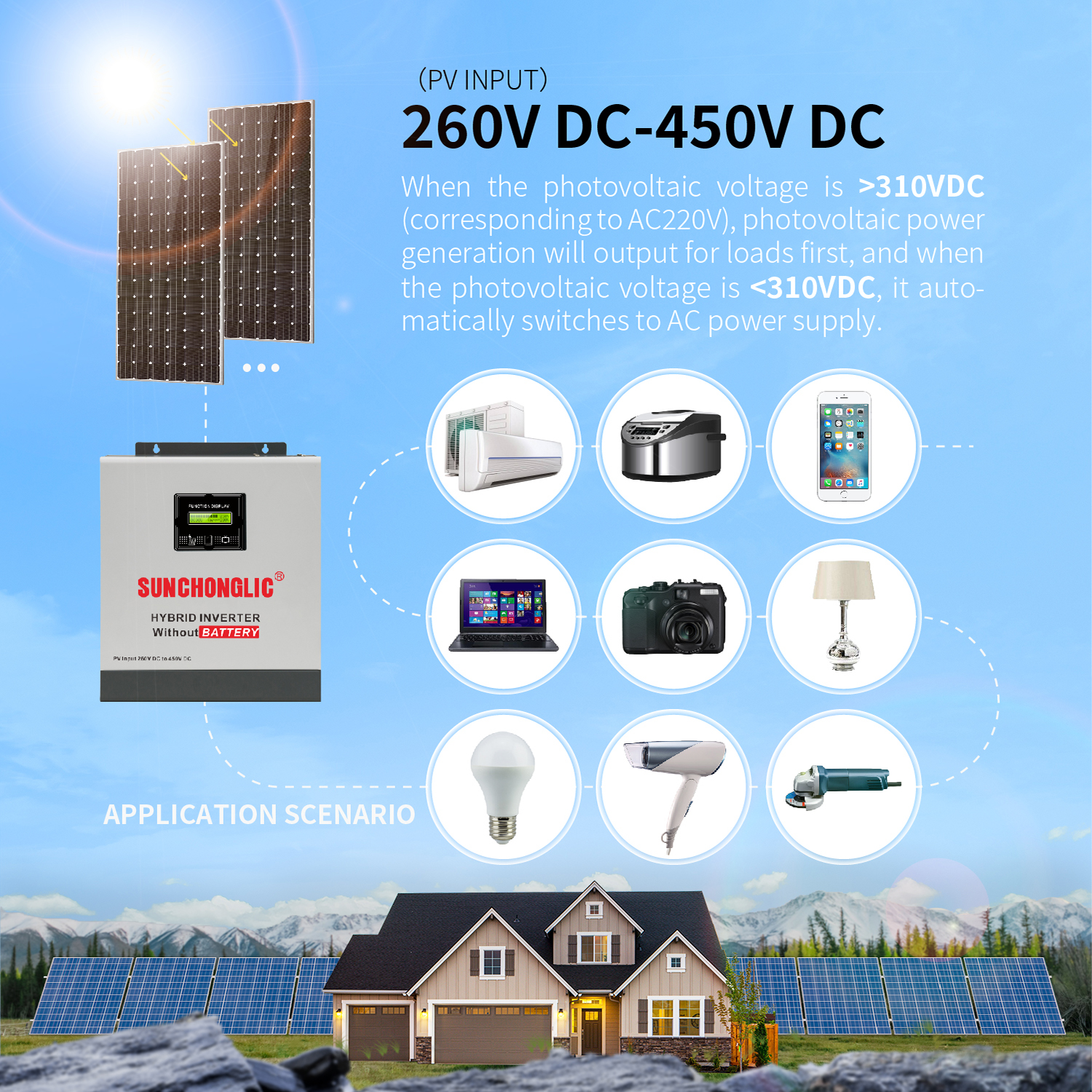

PV array input voltage range 260V DC to 450V DC.

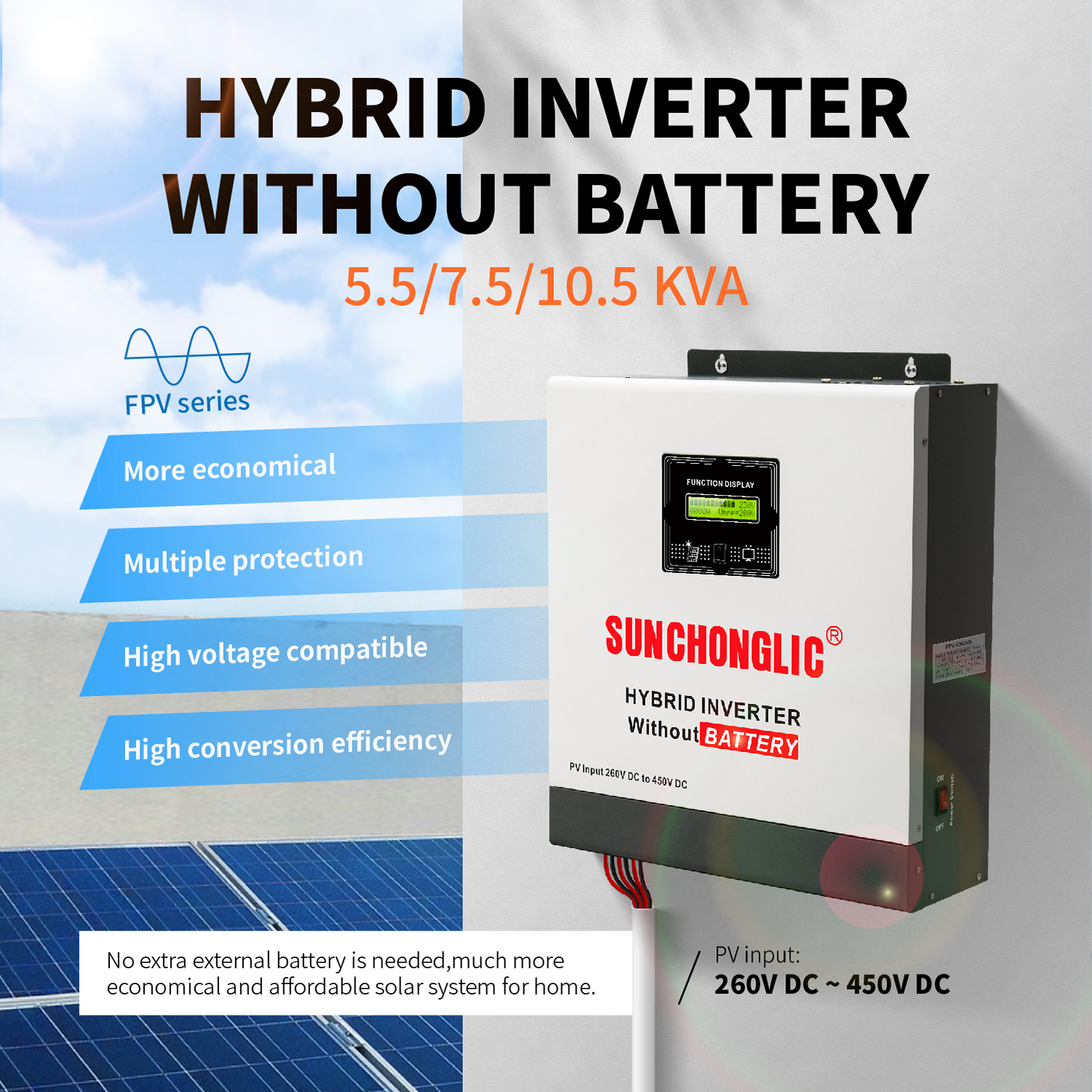

No extra external battery is needed,much more economical and affordable solar system for home.

Mains 220V AC output.

Built-in 12V DC output interface(Optional).

Multiple safe protections,Anti-islanding protection.

Built-in uninterrupted power supply.

INQUIRE NOW

SEND ENQUIRY

Specifications

Model		FPV-5.5KVA	FPV-7.5KVA	FPV-10KVA
PV DC input paramerters	Maximum input power(W)	3500W	5000W	7000W
	PV input voltage range(Vdc)	260VDC-450CVDC
	PV max input current(Idc)	13	18	23
AC input parameters	AC input range(Vac)	150VAC-300VAC
	AC rated voltage(Vac)	220VAC
AC output parameters	Peak output power (W)	5000	6000	8000
	Rated output power(W)	3500	5000	7000
	Output waveform	Pure sine wave
	Output voltage range(Vac)	160VAC-240VAC
	Maximum output current(A)	18A	25A	35A
	Rated output voltage(Vac)	220V/230
	Rated output current(A)	16A	22.7A	28A
	Output frequency range(Hz)	40Hz-50Hz
	Current harmonics(at rated power)	＜5%
	Maximum efficiency	95%
Environmental parameters	Operating temperature range(℃)	-25~+60
	Relative humidity	0-95% No condensation
	Altitude(m)	≤2000

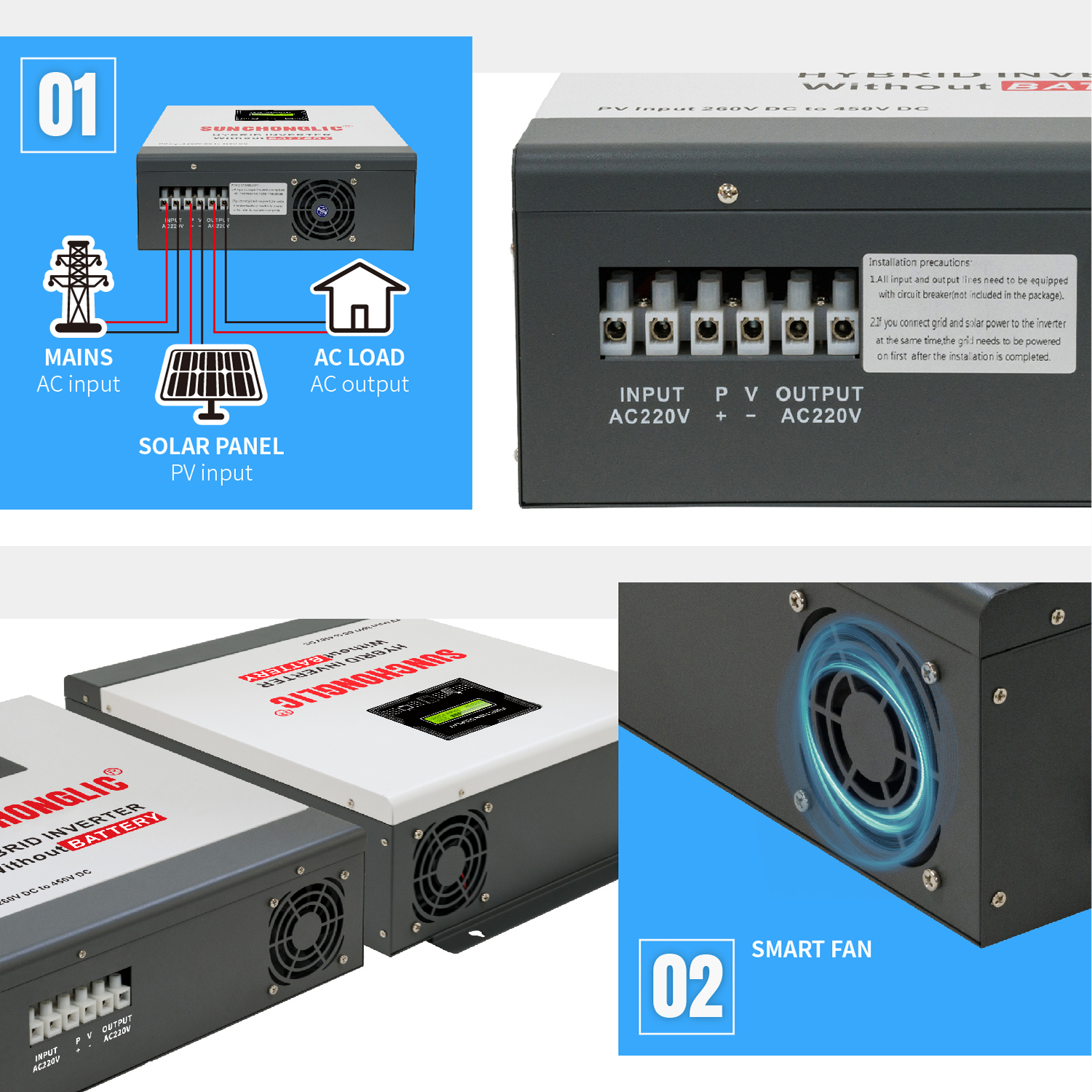

	Cooling method	Fan cooling
	Nighttime energy consumption(W)	＜0.2
	Noise decibel(dB)	＜50

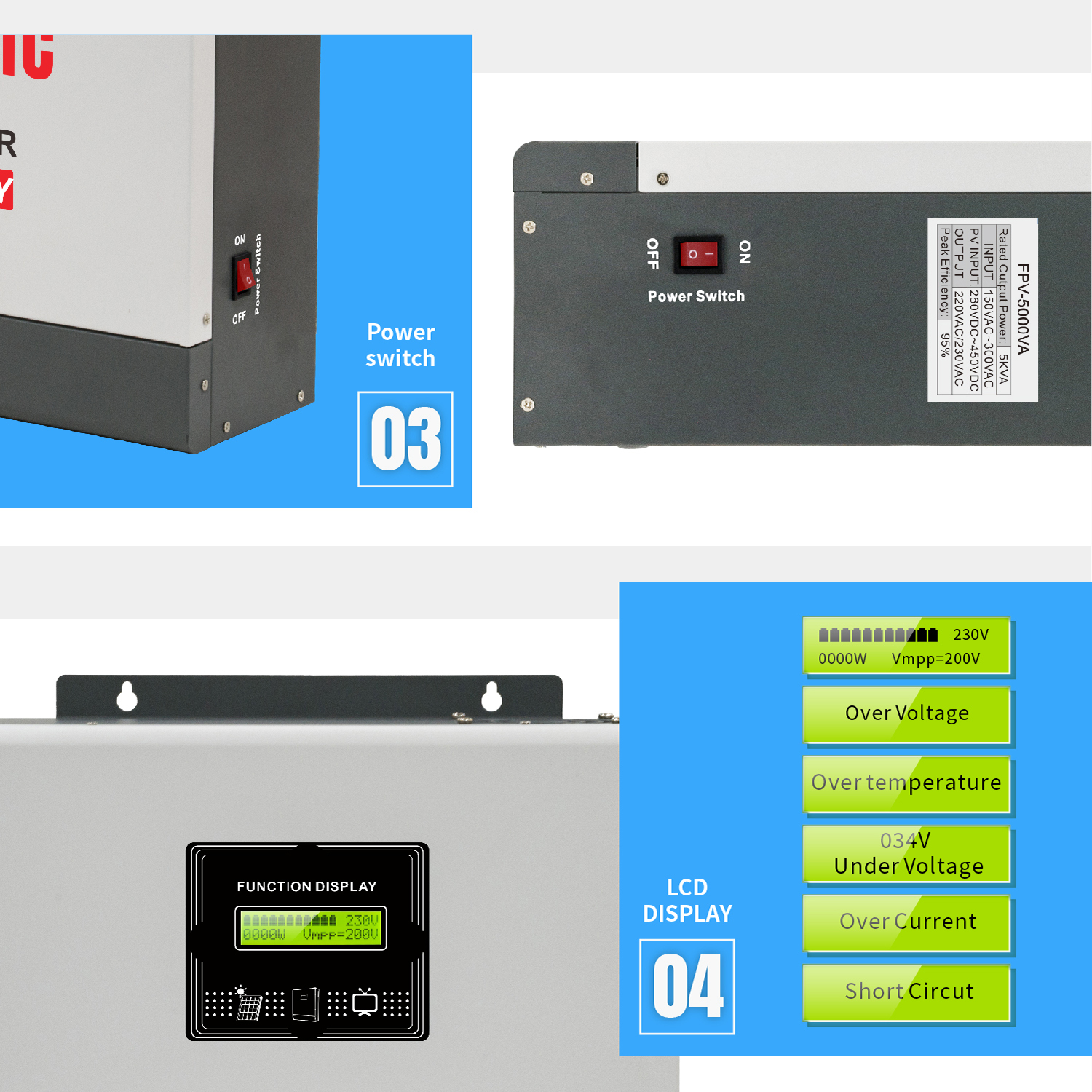

Communication	LCD	2 lines of charcter of display

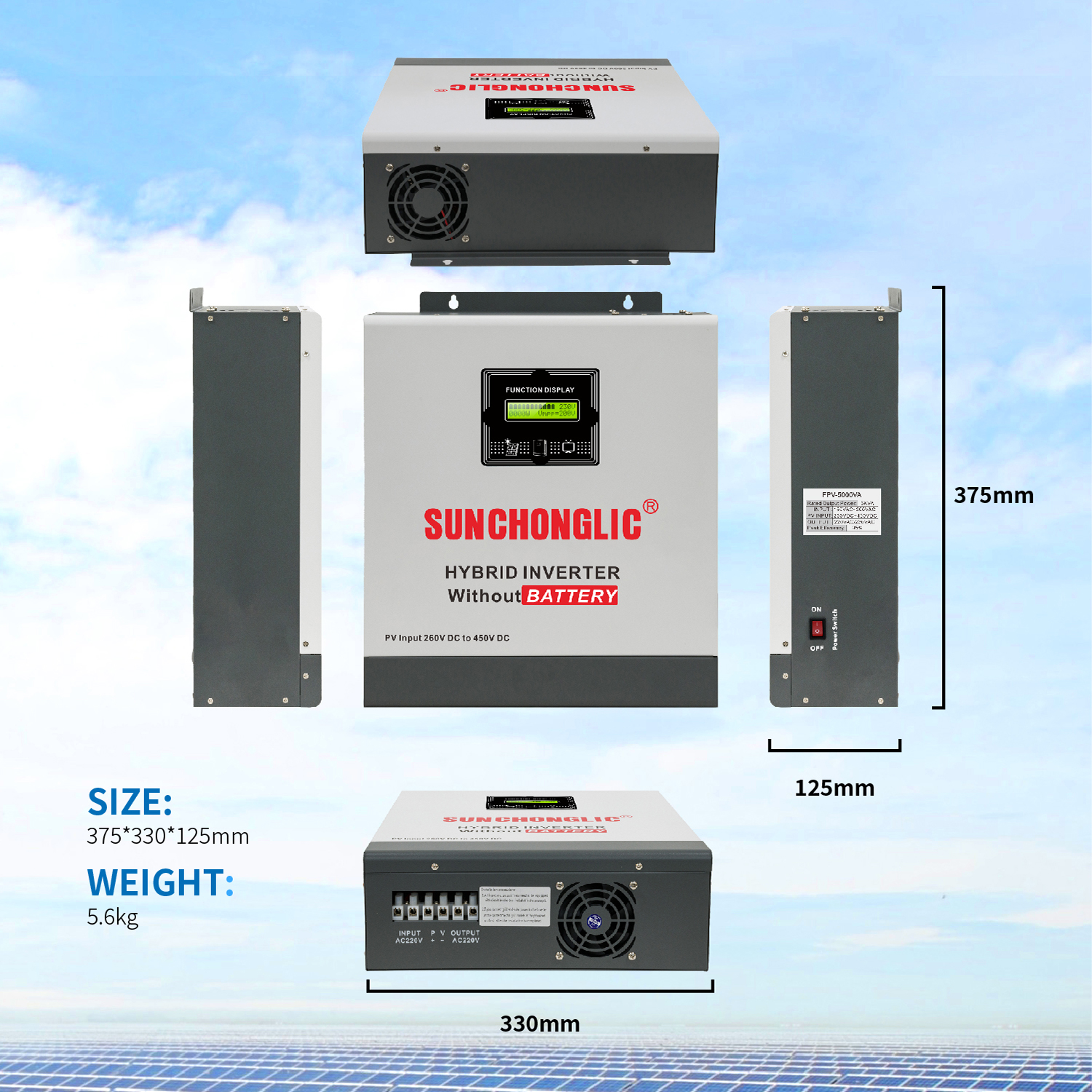

Mechanical properties	Dimensions(Width x depth x heigh)mm	375330125
	Weight(KG)	5.6

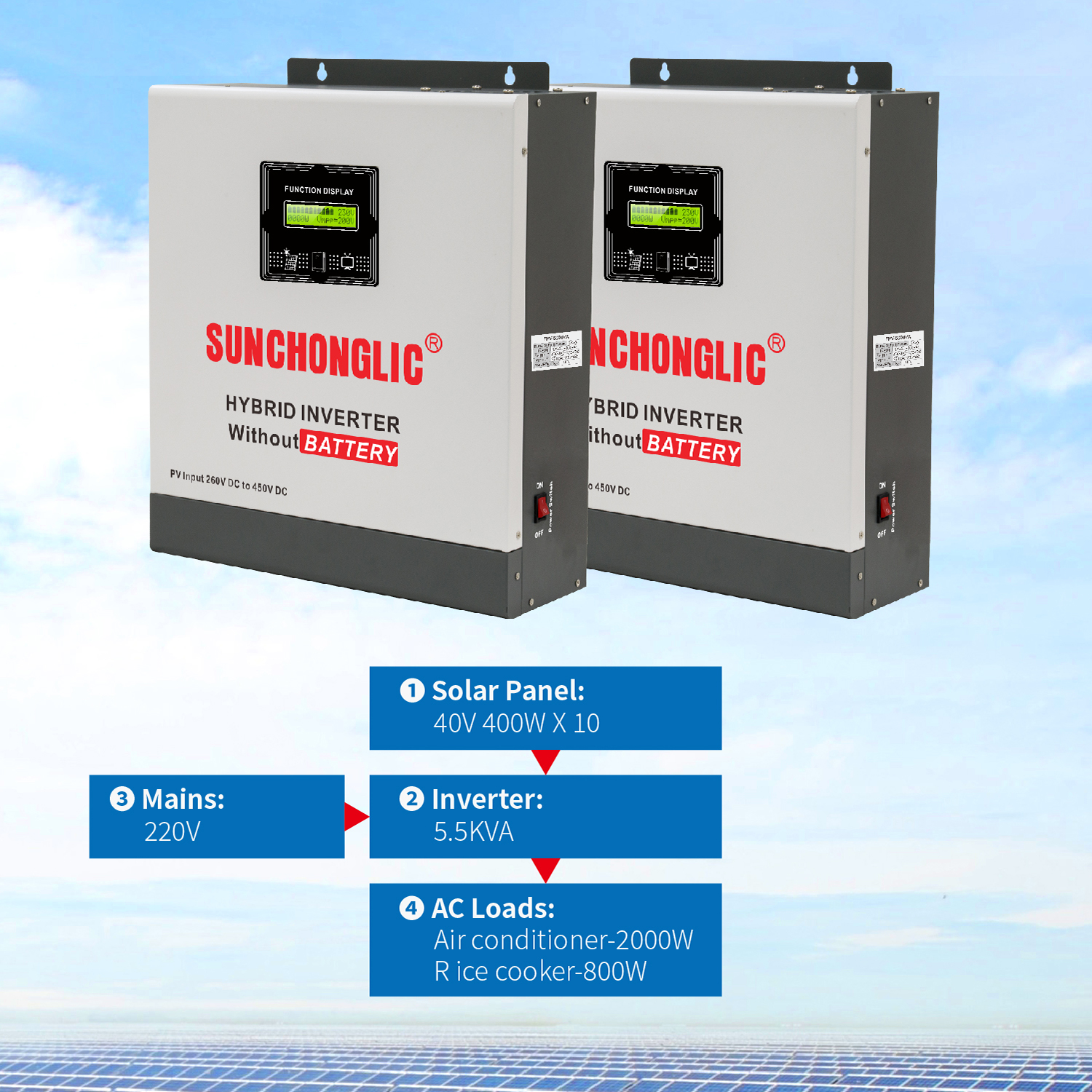

Product Photos

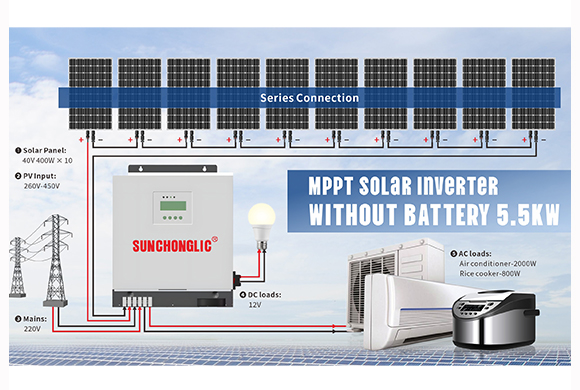

Introducing the 3KVA 5KVA 7 KVA 10KVA off-grid solar inverter without battery, a reliable solar solution for powering your home appliances.This solar inverter is designed for off-grid solar system,With multiple power capacity, it can efficiently handle a variety of appliances seamlessly, making it an ideal choice for homes and small businesses to save on your utility bill.
