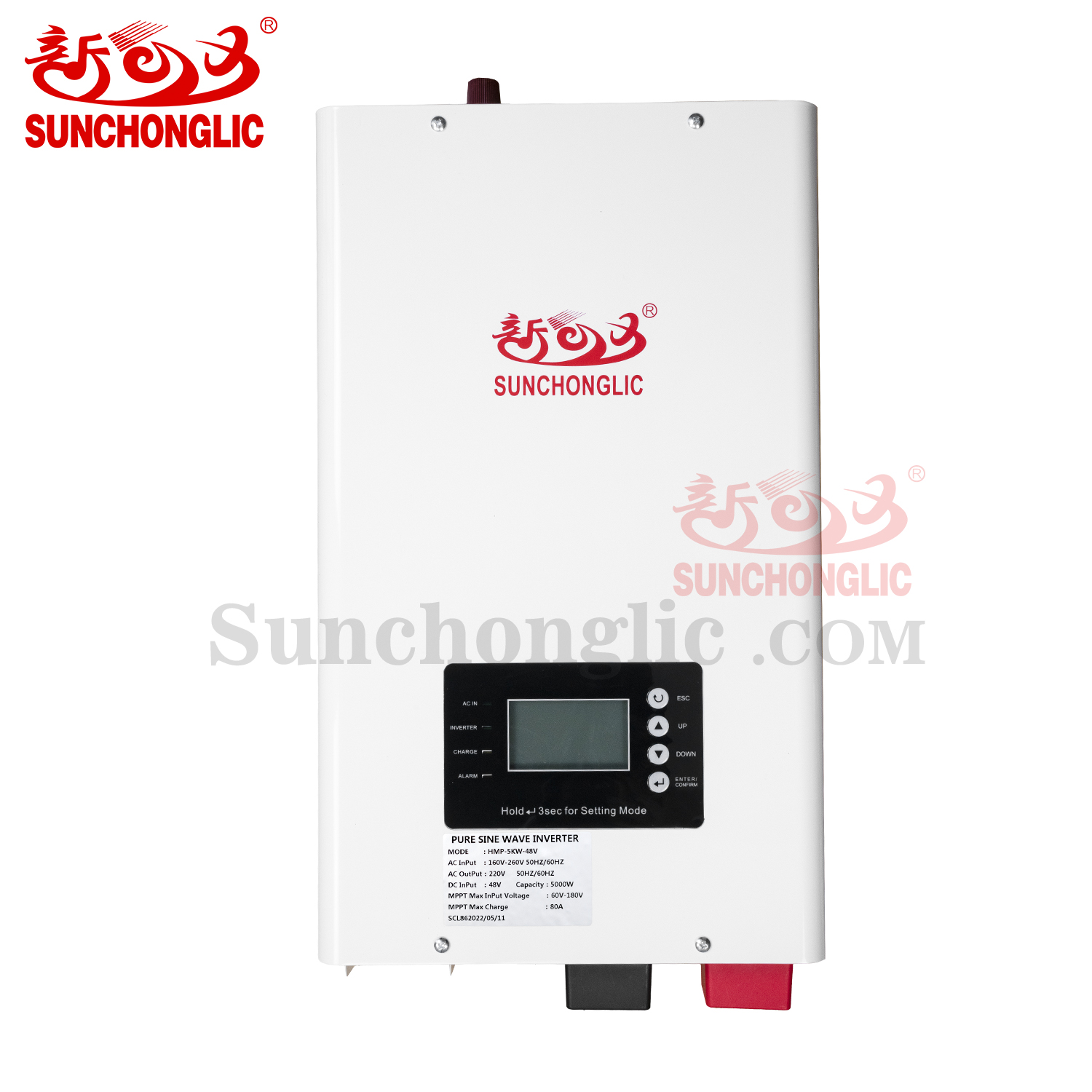

HMP-2KW-24V

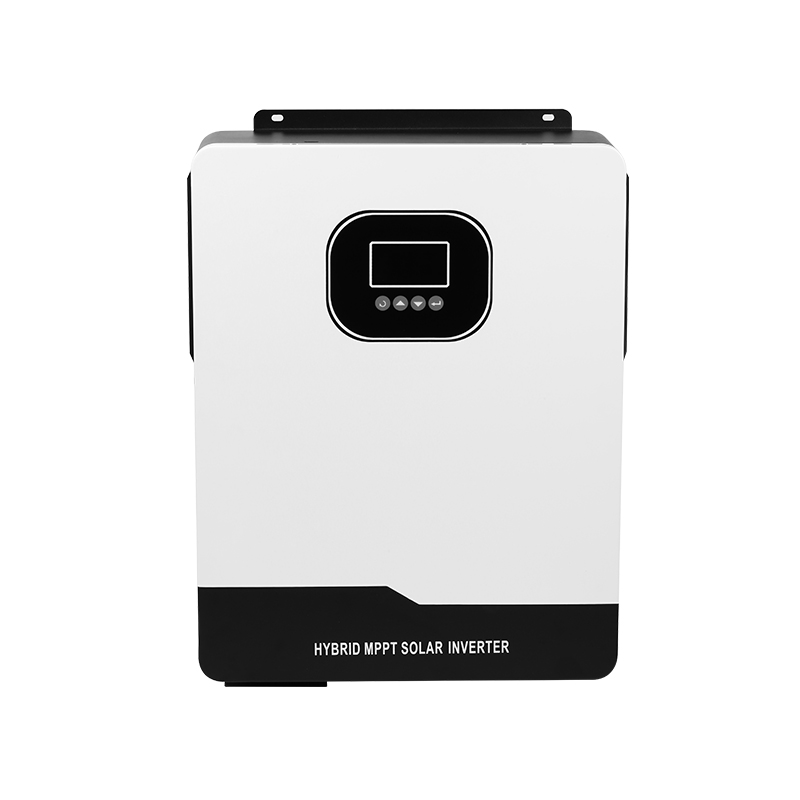

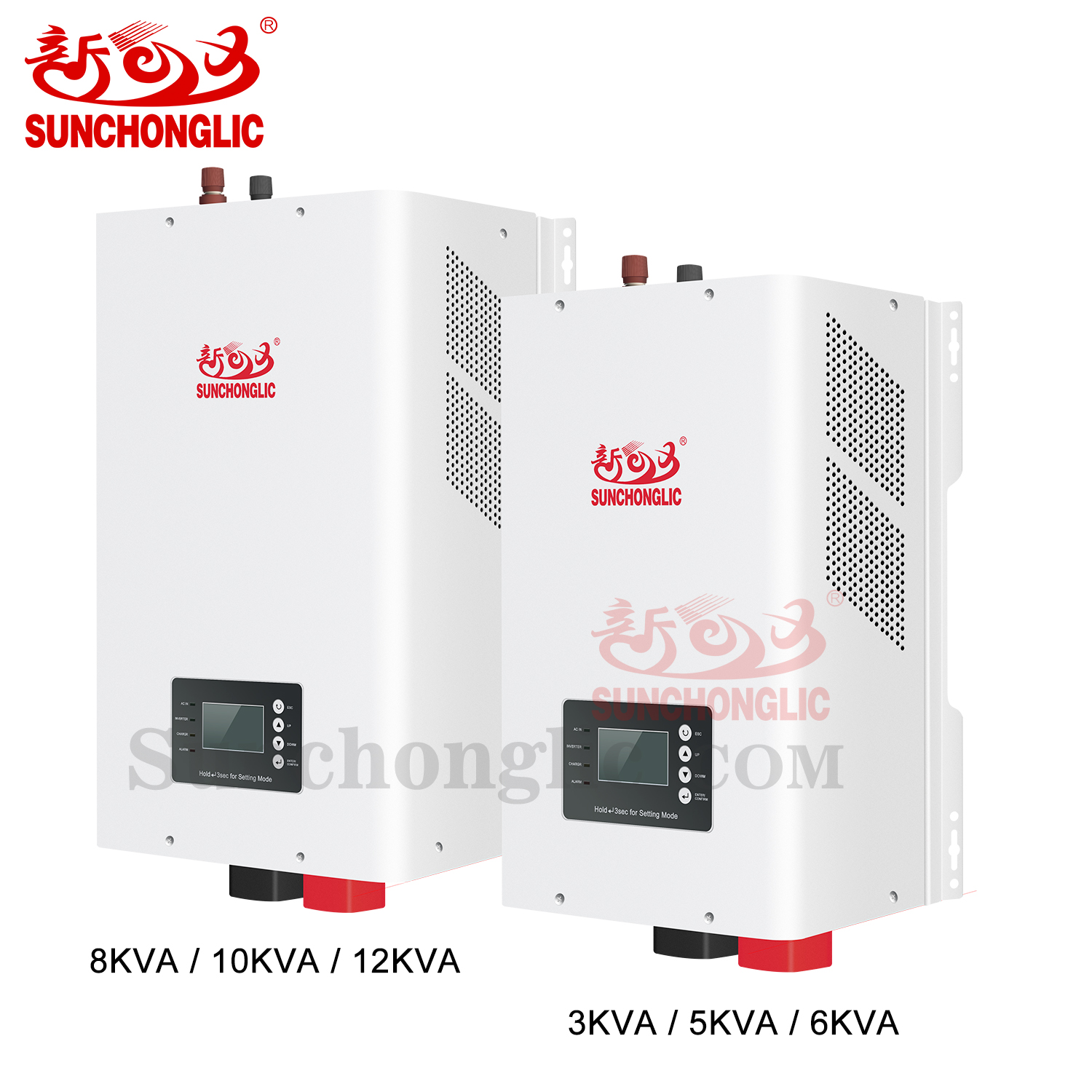

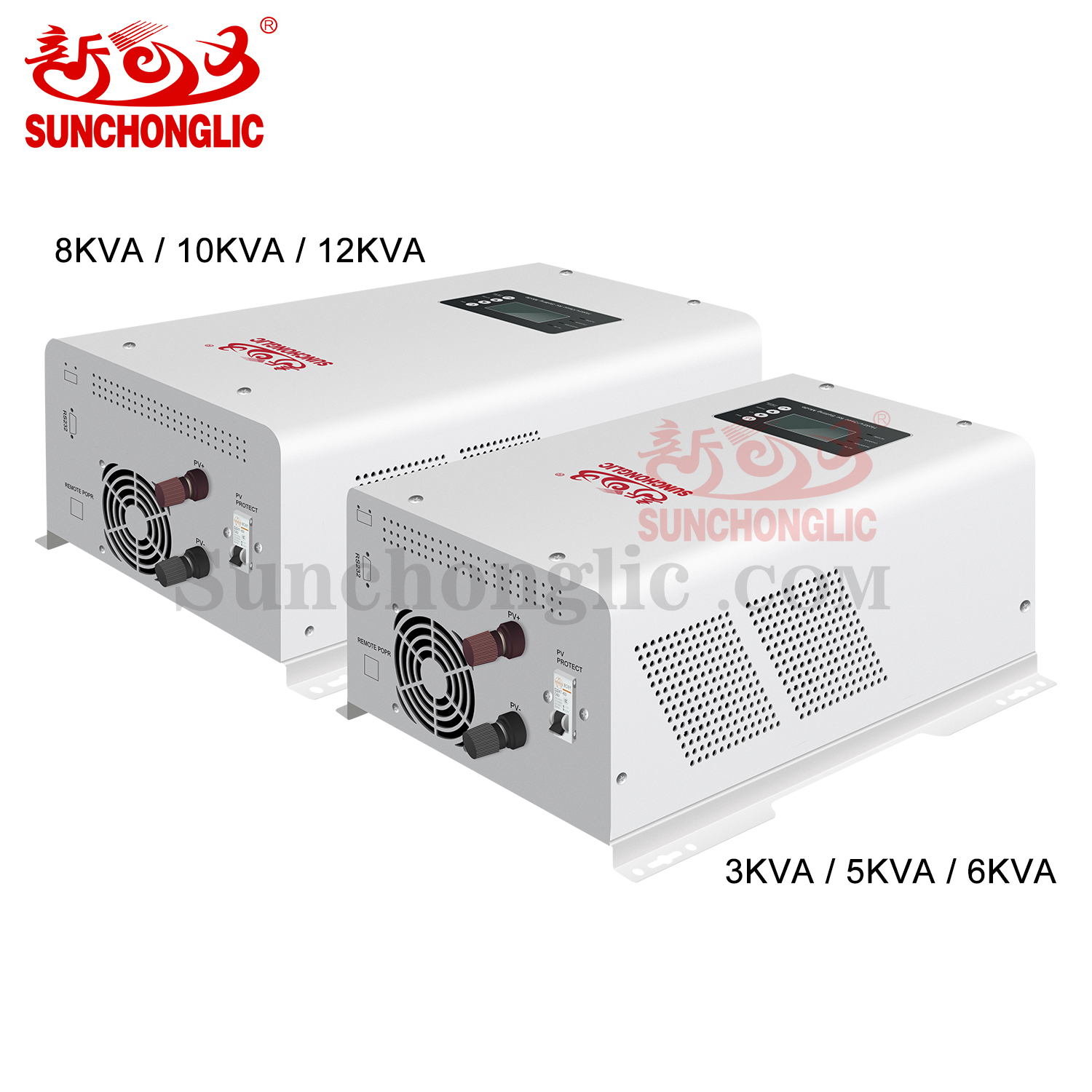

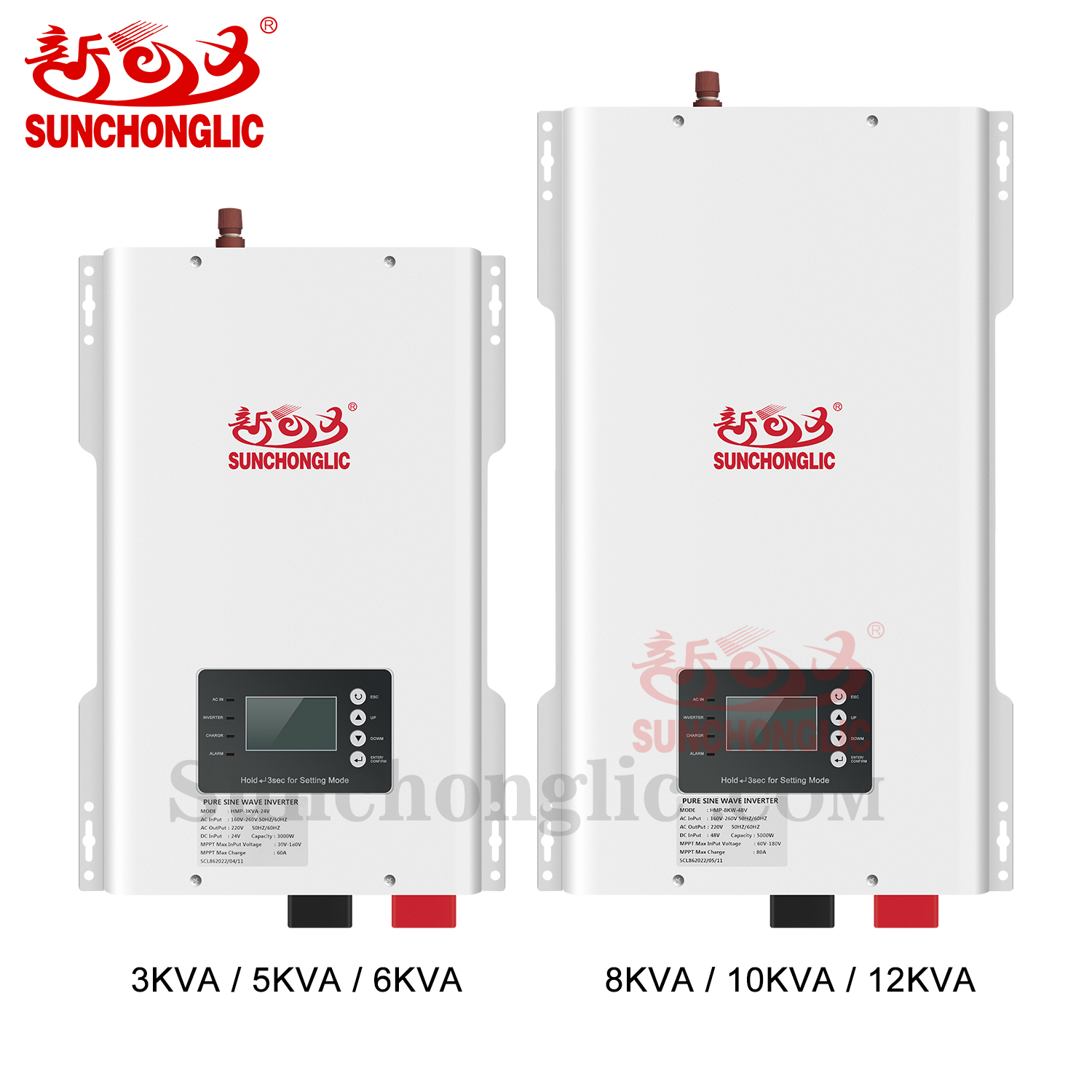

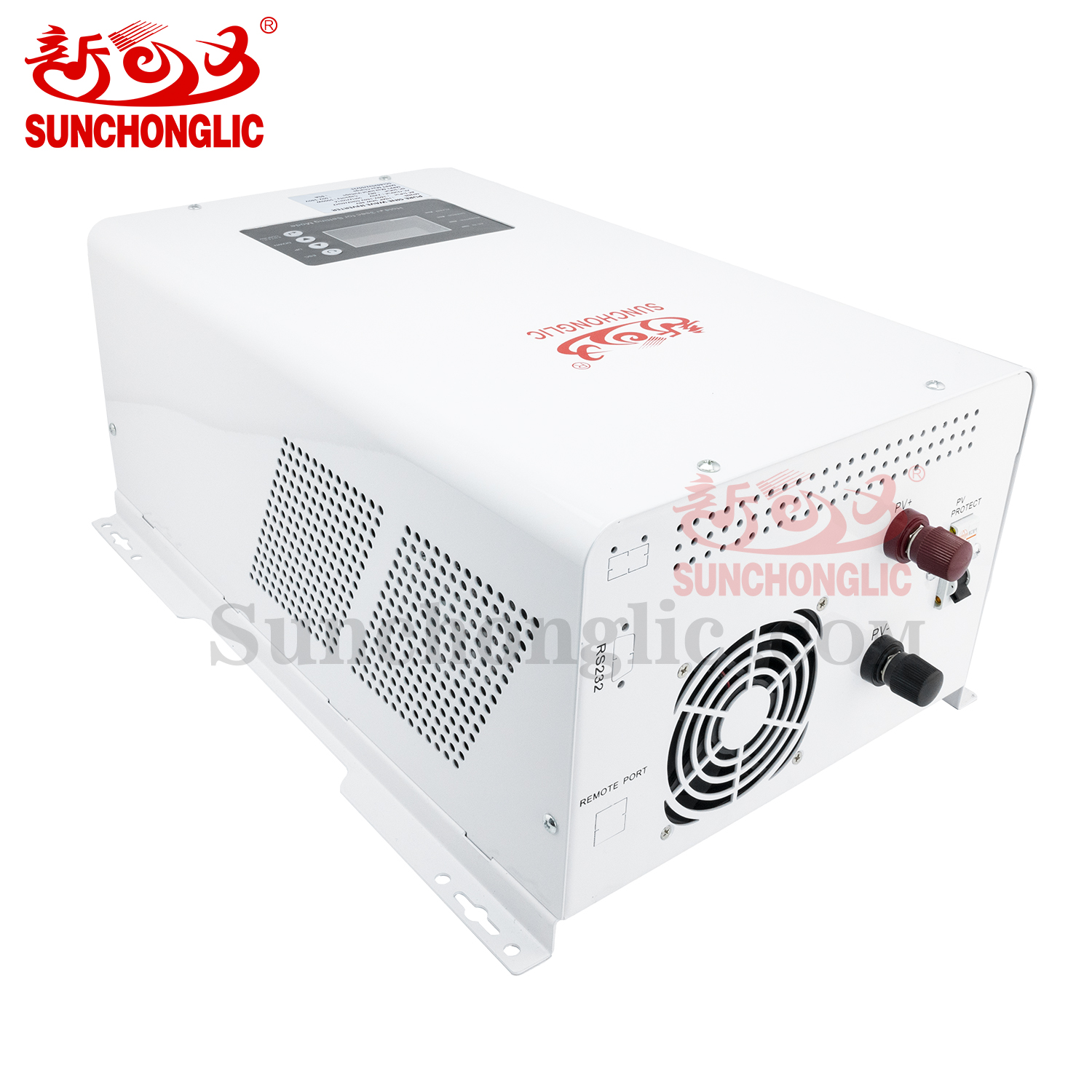

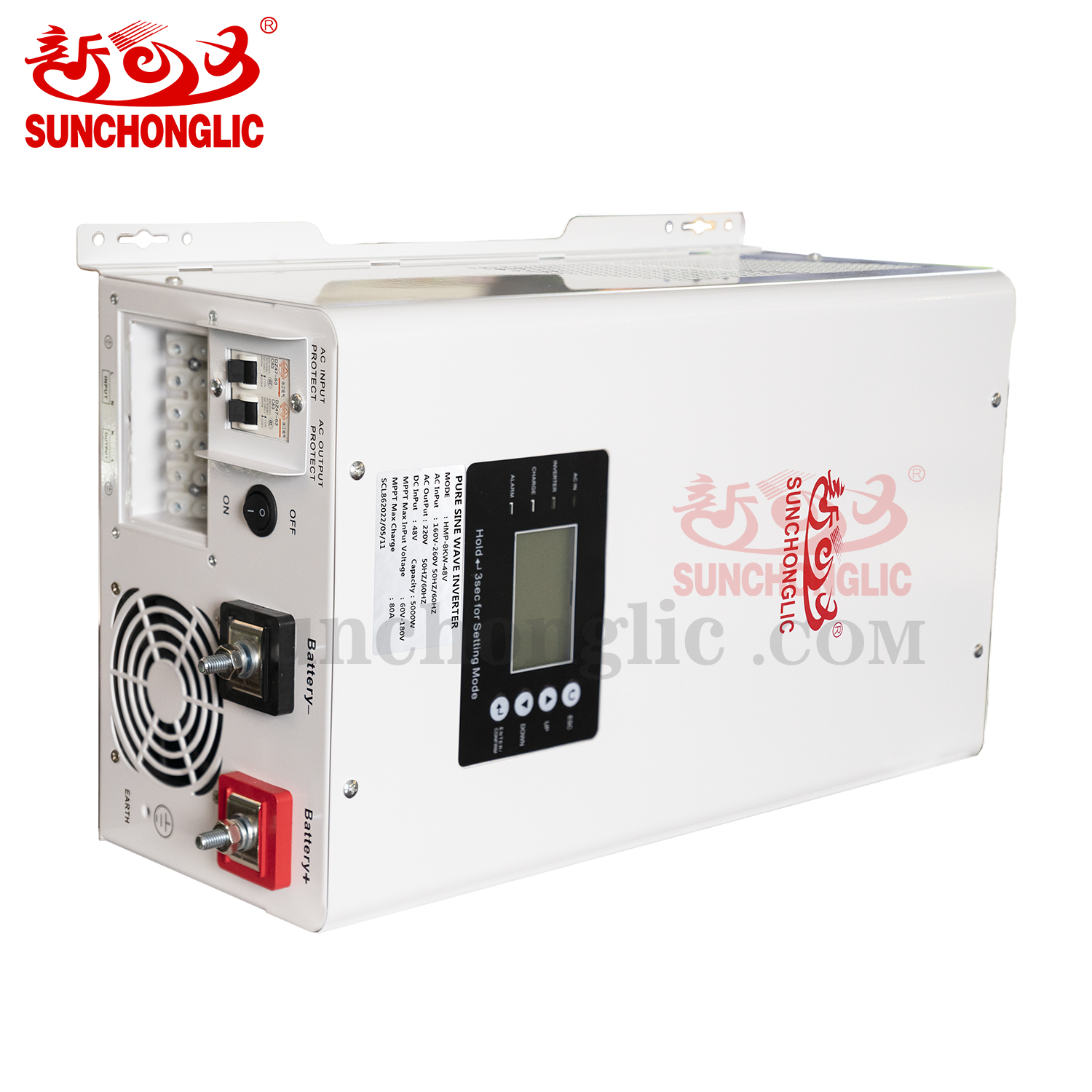

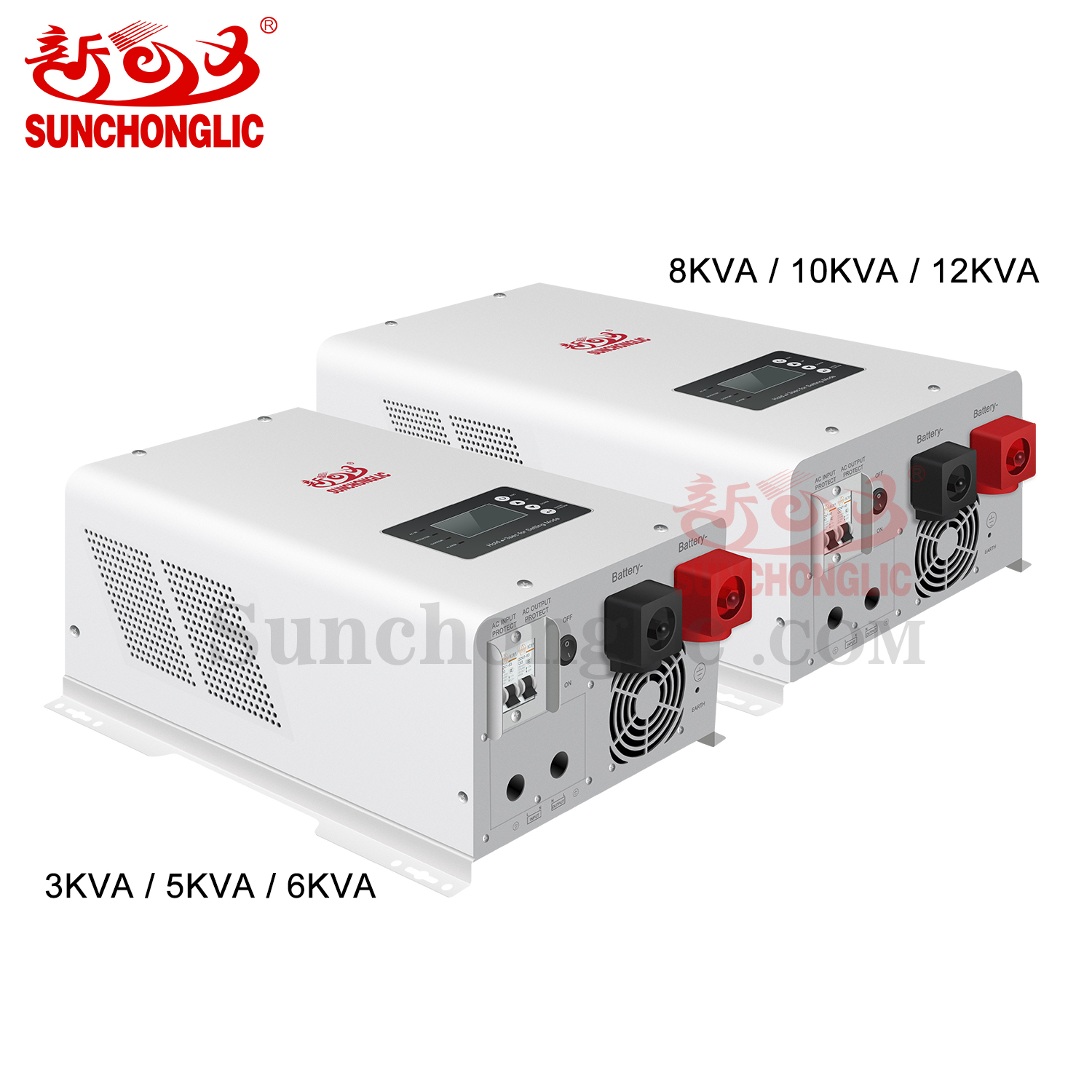

Sunchonglic 24v 2kw 2000w low frequency pure sine wave off grid solar mppt hybrid inverter

HMP-2KW-24V

Hybrid Solar Inverter

Features:

Pure sine waveform output with built-in transformer and AVR stabilizer(Specially designed to start up inductive loads such as air conditioner,refrigerators, motors, water pumps, compressors and laser printers).

Built-in 60A/80A/160A MPPT solar controller and AC charger.

Output voltage(200V/210V/220V/230V/240V @50Hz/60Hz) can be manually regulated at site.

Support Lead acid battery/Gel battery/lithium iron phosphate battery/ternary lithium battery/customized battery.

RS232/RS485 Communications port is optional.

3 times start-up peak power of resisting voltaic impingement, excellent loading capability.

High conversion efficiency is up to 90%.

Built-in Lithium battery activation function.

PV array Open circuit input voltage 230V DC.

Support 3 working modes: Mains priority,Battery priority,PV priority.

INQUIRE NOW

SEND ENQUIRY

Specifications

Model	Capacity	2kw	3kw	4kw	5kw	6kw	8kw	10kw	12kw
	Peak capacity	6kw	9kw	12kw	15kw	18kw	24kw	30kw	36kw
	Battery voltage	12v/24v/48v	12v/24v/48v	24v/48v	24v/48v	24v/48v	48v	48v	48v
Inbuilt MPPT	Charging current	60A	60A	60A	60A	60A	60A	60A	60A

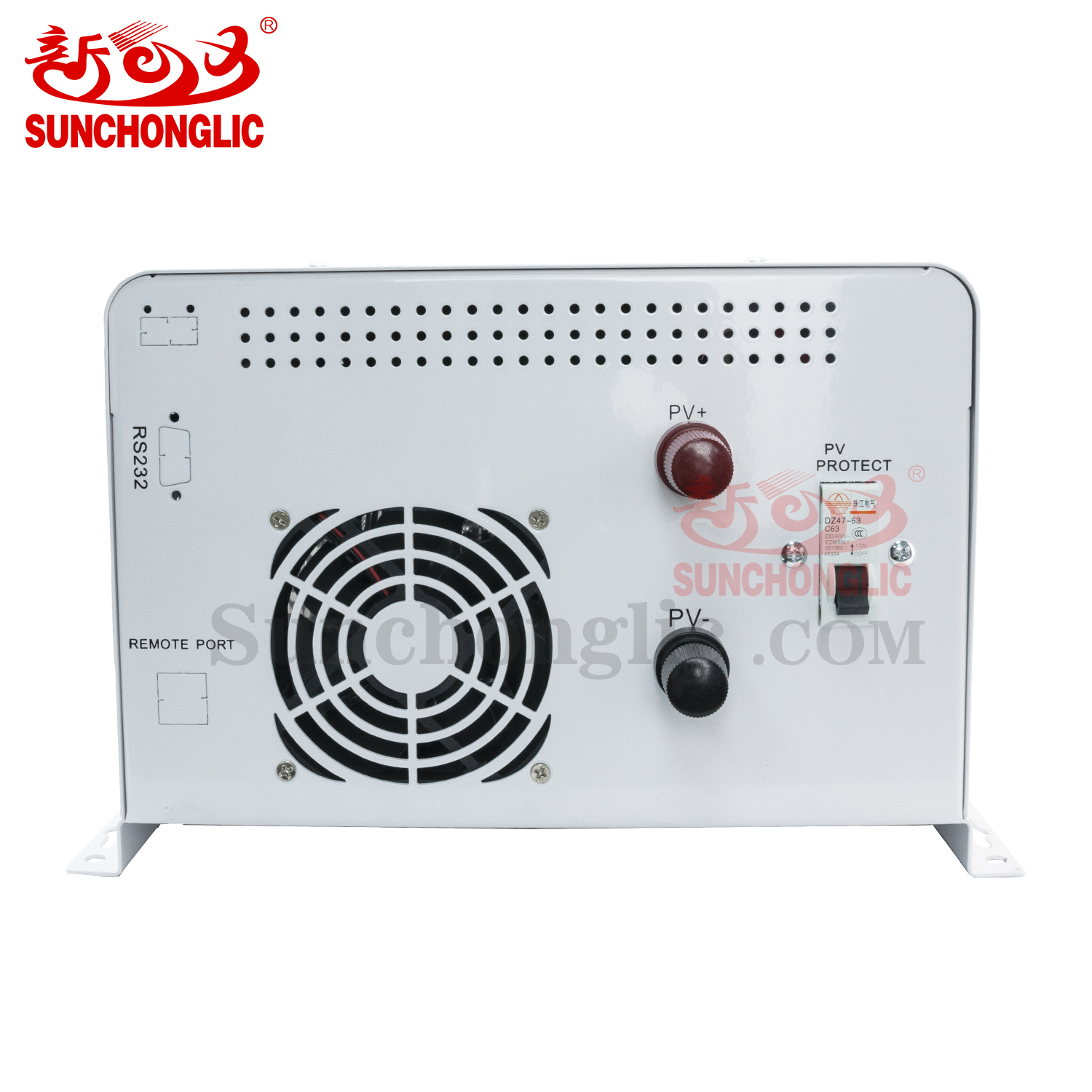

	PV input port	One route(60A)
	PV input voltage range	15V-180V(12V system); 30V-180V(24V system); 60V-180V(48V system)
	Max PV input capacity	60A: 720W (12V system) 1440W(24V system) 2880W(48V system)
	Max charging current,can be adjustable	OFF 30A/60A(can switch OFF PV charging)
	MPPT efficiency	≈99%
	Unattended mode	Inverter is OFF mode:MPPT can charge battery if there is sunshine
Input	DC input voltage range	10.5VDC-15VDC (single battery voltage 12V)
	AC input voltage range	110VAC:(80-130)VAC; 220VAC: (160-260)VAC/(130-280)VAC,can ajdust at site
	AC input frequency	45HZ-65HZ auto test
	AC charging current can choose	OFF(can switch off AC charging function)
Output	Output wave	Pure sine wave
	Output efficiency	≈90%
	Output voltage	200V/210V/220V/230V/240V can adjust at site
	Output frequency	50Hz/60Hz can adjust at site
	ECO mode and loss	5W
Working mode	Inverter working mode	AC priority, DC priority, ECO mode, unattended mode, generator mode
	LCD display working mode	Normal mode/"ON" mode
Battery parameter	Battery types	Lead-acid battery/GEL battery/ lithium iron phosphate battery/ ternary lithium battery/customized battery
	Battery customized parameters	Constant voltage charging, Floating charging, battery recover, AC recover, low voltage alarm and low voltage protection
	Battery charging types	Lead-acid: three steps, constant current charging, constant voltage charging, floating charging Lithium battery: constant current charging, constant voltage charging
	Lithium battery string numbers can choose	lithium iron phosphate battery:3.2V single one ternary lithium battery:3.7V single one

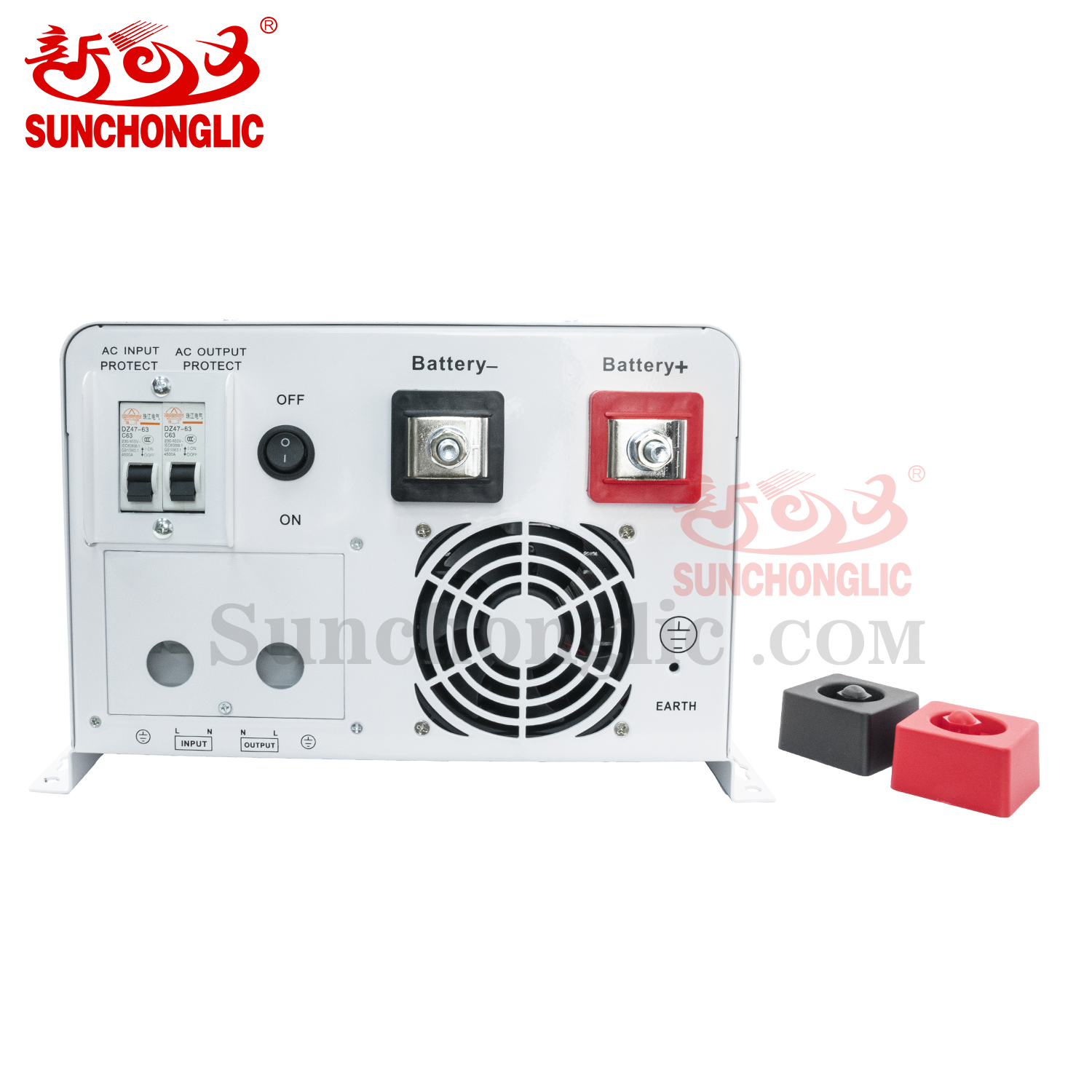

Protections		Battery low voltage/battery over voltage/over load protection/ high temperature protection/ charging type protections

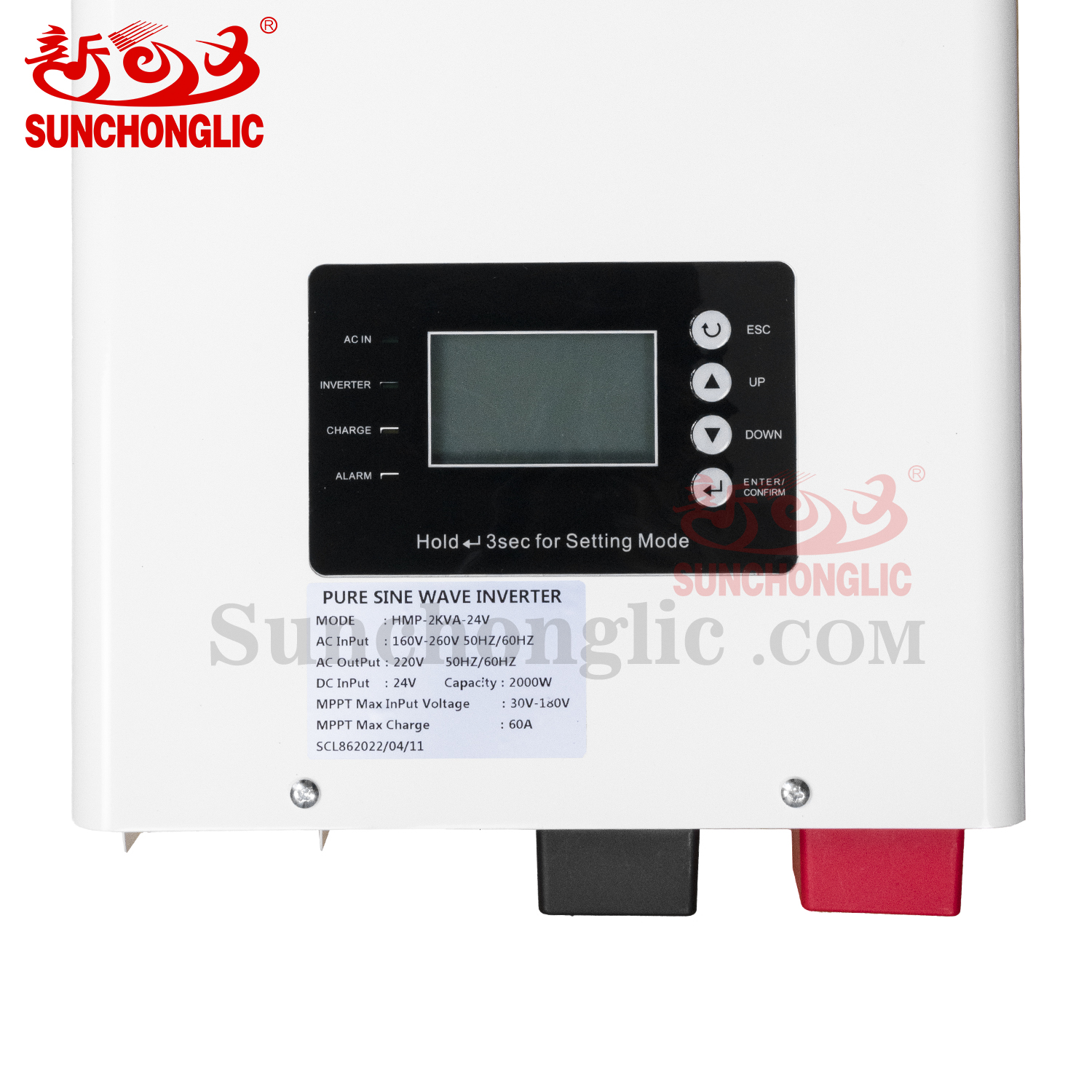

LCD display	LCD display	AC station, DC station, charging station and alarm
	Front panel display	Working station, input and output voltage, PV parameters and inverter parameters
	Language	Chinese/English can choose
Transfer time		<5ms
Heat-dissipating type		Intelligent temperature control
Communications		RS232/RS485(can choose)
Working temperature		(-10℃~40℃)
Altitude		≤3000m
Inverter size (LWHmm)		495320220mm					560390200mm

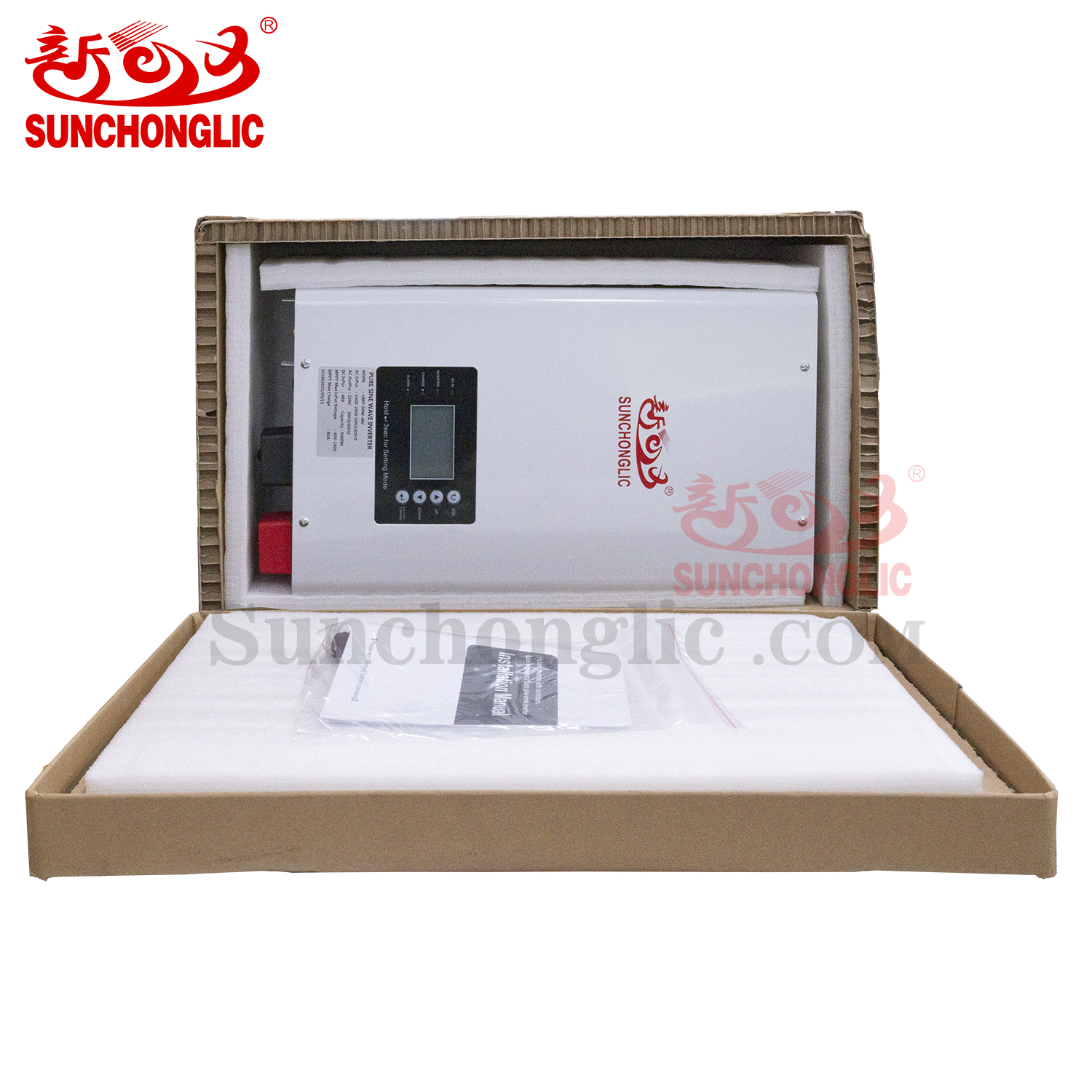

Packing size (LWHmm)		600380290mm					715420316mm
Net weight(kg) (About)		16.5kg	19.5kg	22kg	25kg	28kg	31.5kg	36kg	40kg
Gross weight (kg) (About)		19.5kg	22kg	25kg	28kg	31kg	36kg	41kg	45kg
