Model |
Capacity |
2kw |
3kw |
4kw |
5kw |
6kw |
8kw |
10kw |
12kw |
|
Peak capacity |
6kw |
9kw |
12kw |
15kw |
18kw |
24kw |
30kw |
36kw |
|
Battery voltage |
12v/24v/48v |
12v/24v/48v |
24v/48v |
24v/48v |
24v/48v |
48v |
48v |
48v |
|
Inbuilt MPPT |
Charging current |
60A |
60A |
60A |
60A |
60A |
60A |
60A |
60A |
|

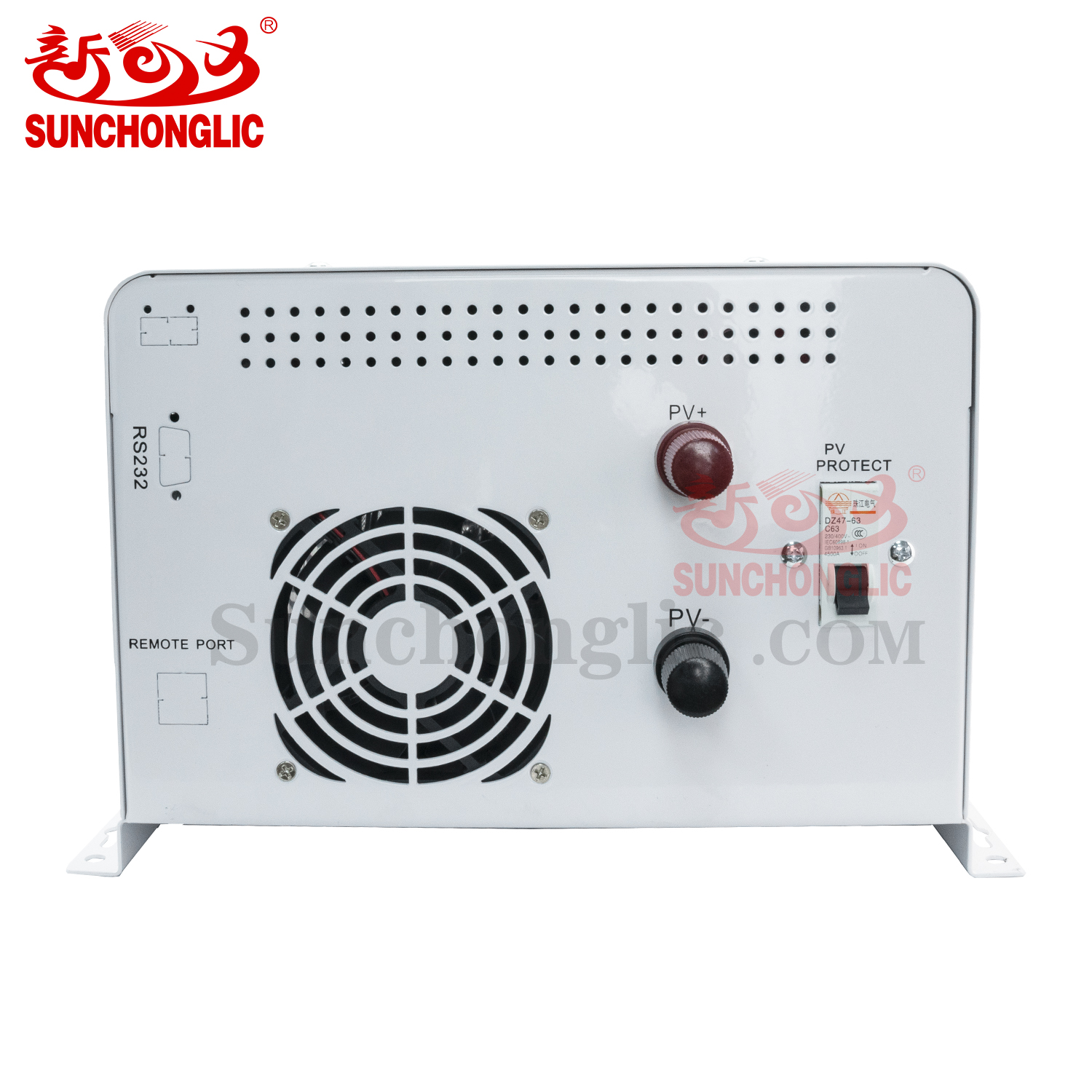

PV input port |
One route(60A) |
|
PV input voltage range |
15V-180V(12V system); 30V-180V(24V system); 60V-180V(48V system) |
|
Max PV input capacity |
60A: 720W (12V system) 1440W(24V system) 2880W(48V system) |
|
Max charging current,can be adjustable |
OFF 30A/60A(can switch OFF PV charging) |
|
MPPT efficiency |
≈99% |
|
Unattended mode |
Inverter is OFF mode:MPPT can charge battery if there is sunshine |
|
Input |
DC input voltage range |
10.5VDC-15VDC (single battery voltage 12V) |
|
AC input voltage range |
110VAC:(80-130)VAC; 220VAC: (160-260)VAC/(130-280)VAC,can ajdust at site |
|
AC input frequency |
45HZ-65HZ auto test |
|
AC charging current can choose |
OFF(can switch off AC charging function) |
|
Output |
Output wave |
Pure sine wave |
|
Output efficiency |
≈90% |
|
Output voltage |
200V/210V/220V/230V/240V can adjust at site |
|
Output frequency |
50Hz/60Hz can adjust at site |
|
ECO mode and loss |
5W |
|
Working mode |
Inverter working mode |
AC priority, DC priority, ECO mode, unattended mode, generator mode |
|
LCD display working mode |
Normal mode/"ON" mode |
|
Battery parameter |
Battery types |
Lead-acid battery/GEL battery/ lithium iron phosphate battery/ ternary lithium battery/customized battery |
|
Battery customized parameters |
Constant voltage charging, Floating charging, battery recover, AC recover, low voltage alarm
and low voltage protection |
|
Battery charging types |
Lead-acid: three steps, constant current charging, constant voltage charging, floating charging
Lithium battery: constant current charging, constant voltage charging |
|
Lithium battery string numbers can choose |
lithium iron phosphate battery:3.2V single one ternary lithium battery:3.7V single one |
|
Protections |
Battery low voltage/battery over voltage/over load protection/ high temperature protection/
charging type protections |
|

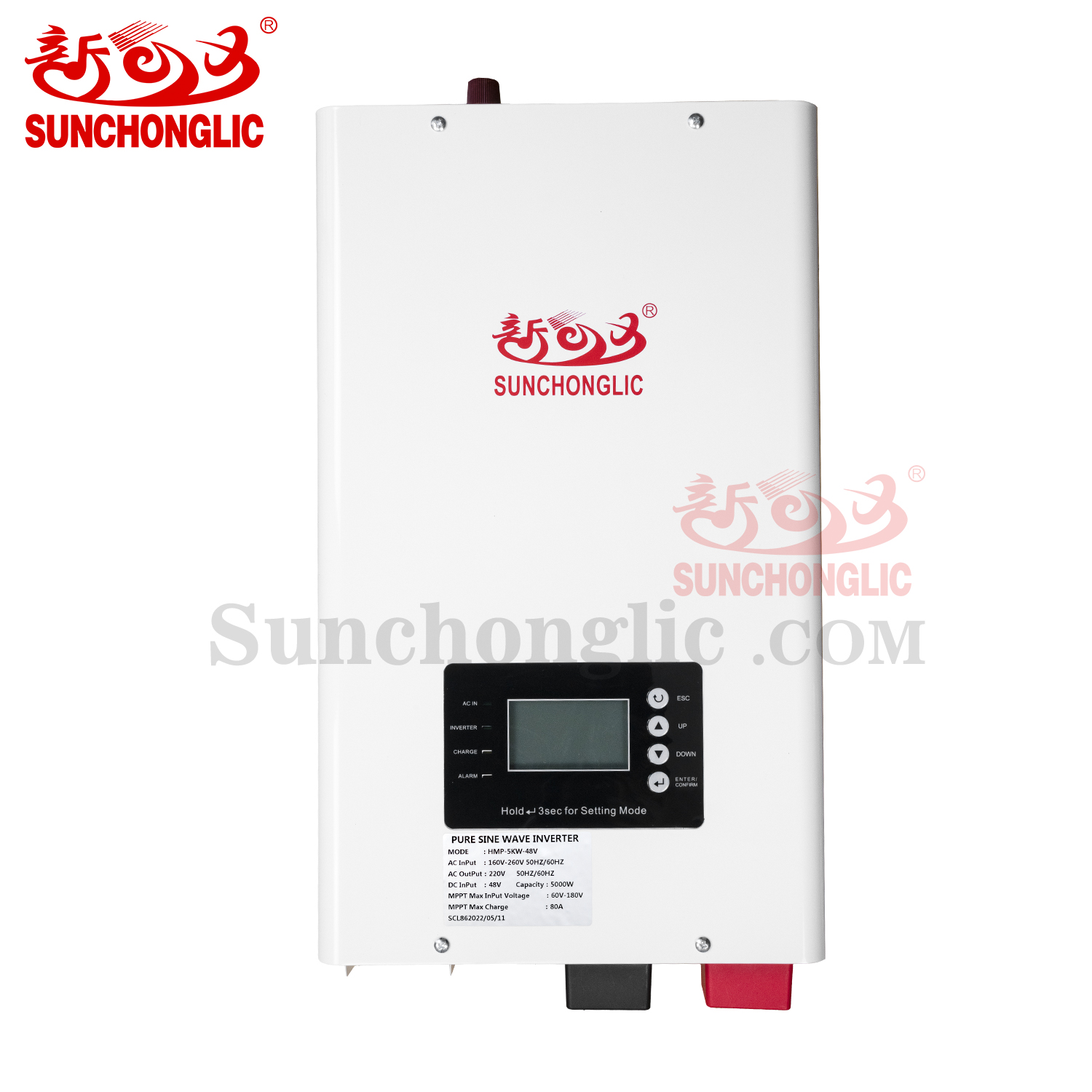

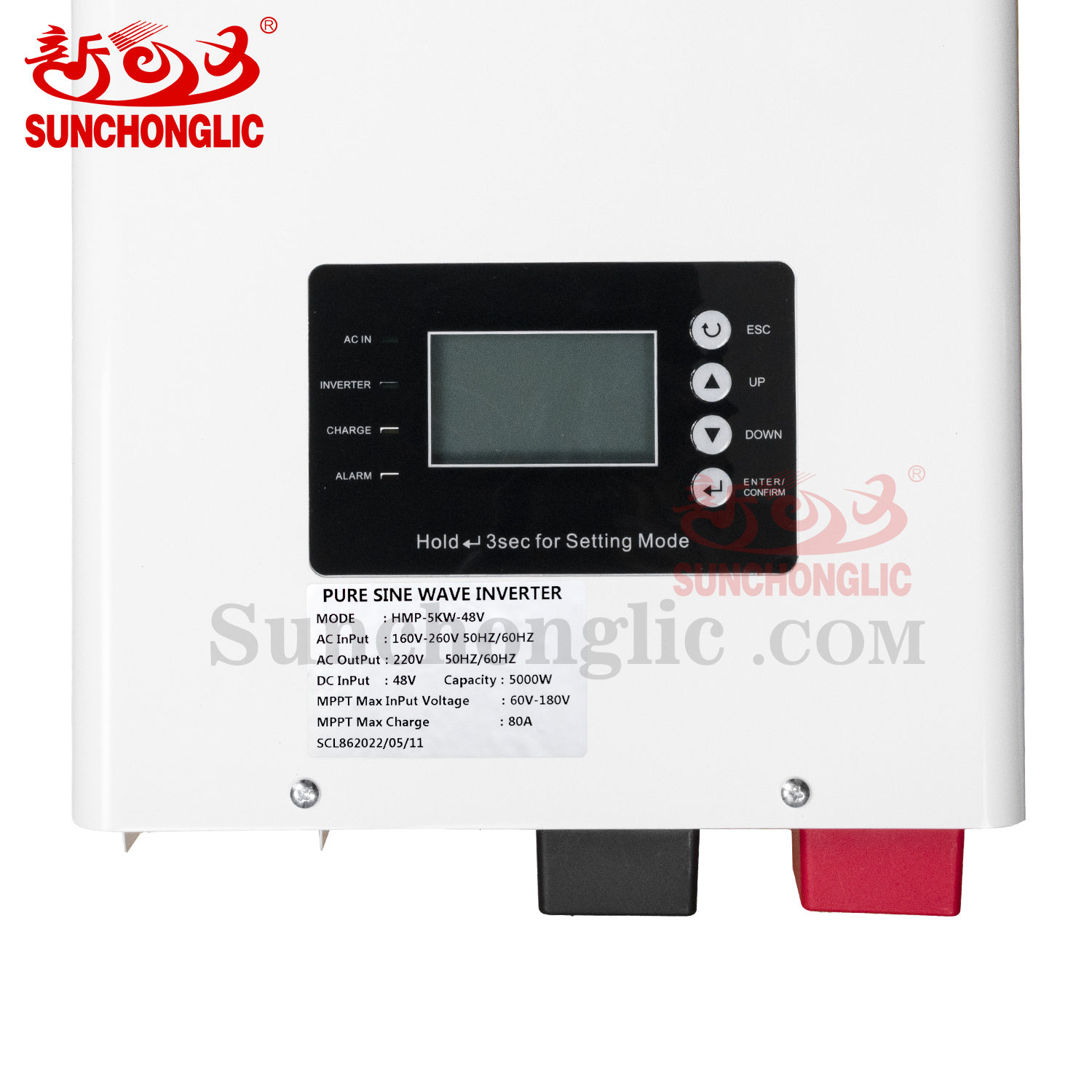

LCD display |
LCD display |
AC station, DC station, charging station and alarm |
|
Front panel display |
Working station, input and output voltage, PV parameters and inverter parameters |
|
Language |
Chinese/English can choose |
|
Transfer time |
<5ms |
|
Heat-dissipating type |
Intelligent temperature control |
|
Communications |
RS232/RS485(can choose) |
|
Working temperature |
(-10℃~40℃) |
|
Altitude |
≤3000m |
|
Inverter size (L*W*Hmm) |
495*320*220mm |
560*390*200mm |
|
Packing size (L*W*Hmm) |
600*380*290mm |
715*420*316mm |
|
Net weight(kg) (About) |
16.5kg |
19.5kg |
22kg |
25kg |
28kg |
31.5kg |
36kg |
40kg |
|
Gross weight (kg) (About) |
19.5kg |
22kg |
25kg |
28kg |
31kg |
36kg |
41kg |
45kg |
