FMA-2420

Sunchonglic 24V 20A three-phase lead acid car battery charger

FMA-2420

AGM/GEL Battery Charger

Features:

The FMA series lead-acid battery charger is professional design according to the power battery of electric vehicles equipment.

It use the advanced soft switch technology,with small size,convenientinst allation,high conversion efficiency, running fully loaded for a long time,stable output current,large capacity,high reliability,long life features etc.

With short-circuited protection, low-voltage protection, over-heated protection. The long delay digital counter can ensure the battery from the constant voltage to the float charge reliably every time.Avoid the lost control of battery heat caused by the hight temperture. Let the damage of battery drop to the lowest caused by the dehydration and the polar plate vulcanize which are the two general problems of charger.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Technical Parameter
Rated input voltage AC 220V~ ±15%
Rated frequency 47~63Hz
Charge current 20A
Rated voltage 24V
Constant charge voltage 29-29.6V
Floating voltgae 27.5V
Charge mode Three-step
Power factor ≥0.85
Full load efficiency ≥87%
Temperature range -40 ~ +105℃
Mechanical shock and quake-proof degree Agree with the SAEJ1378 requirements.

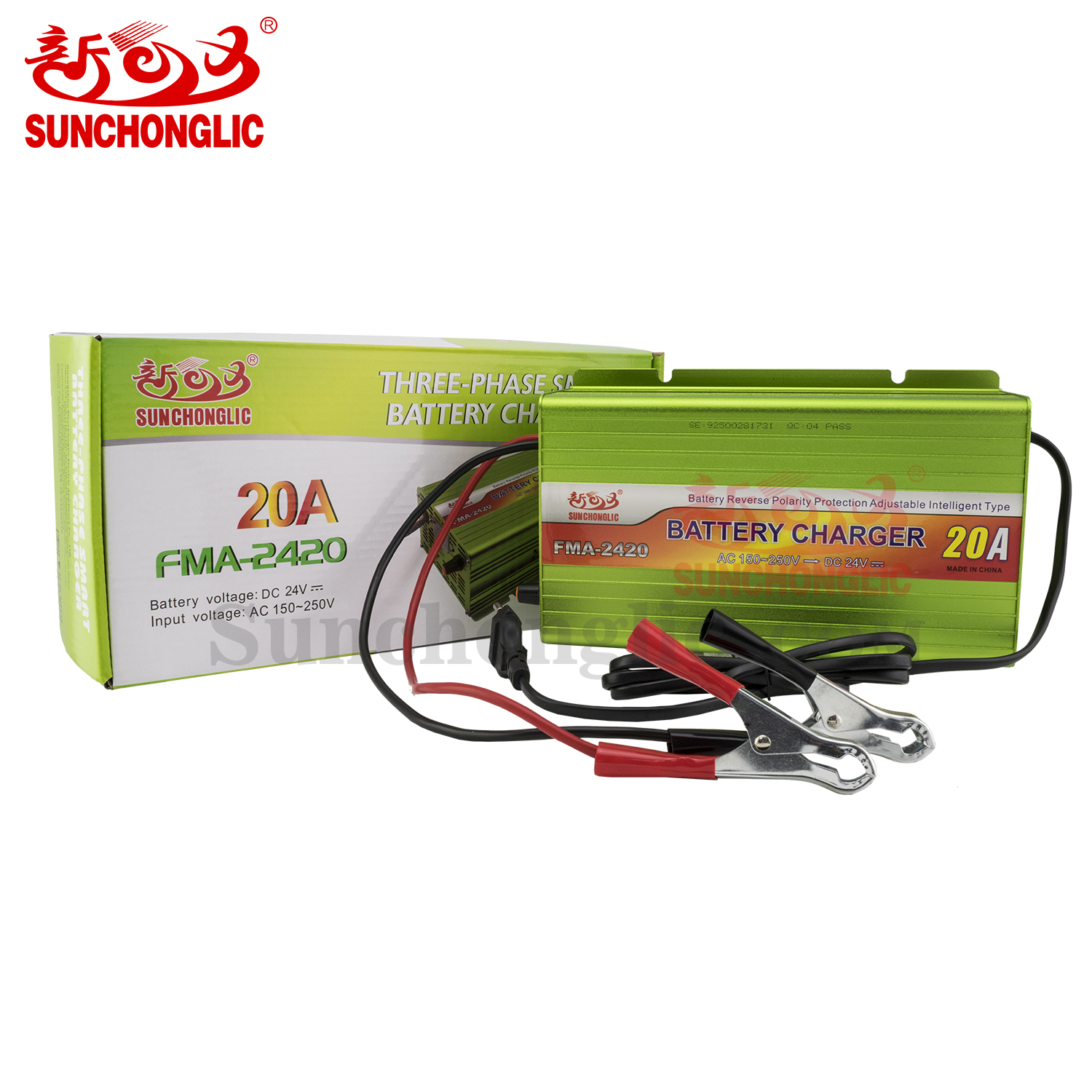

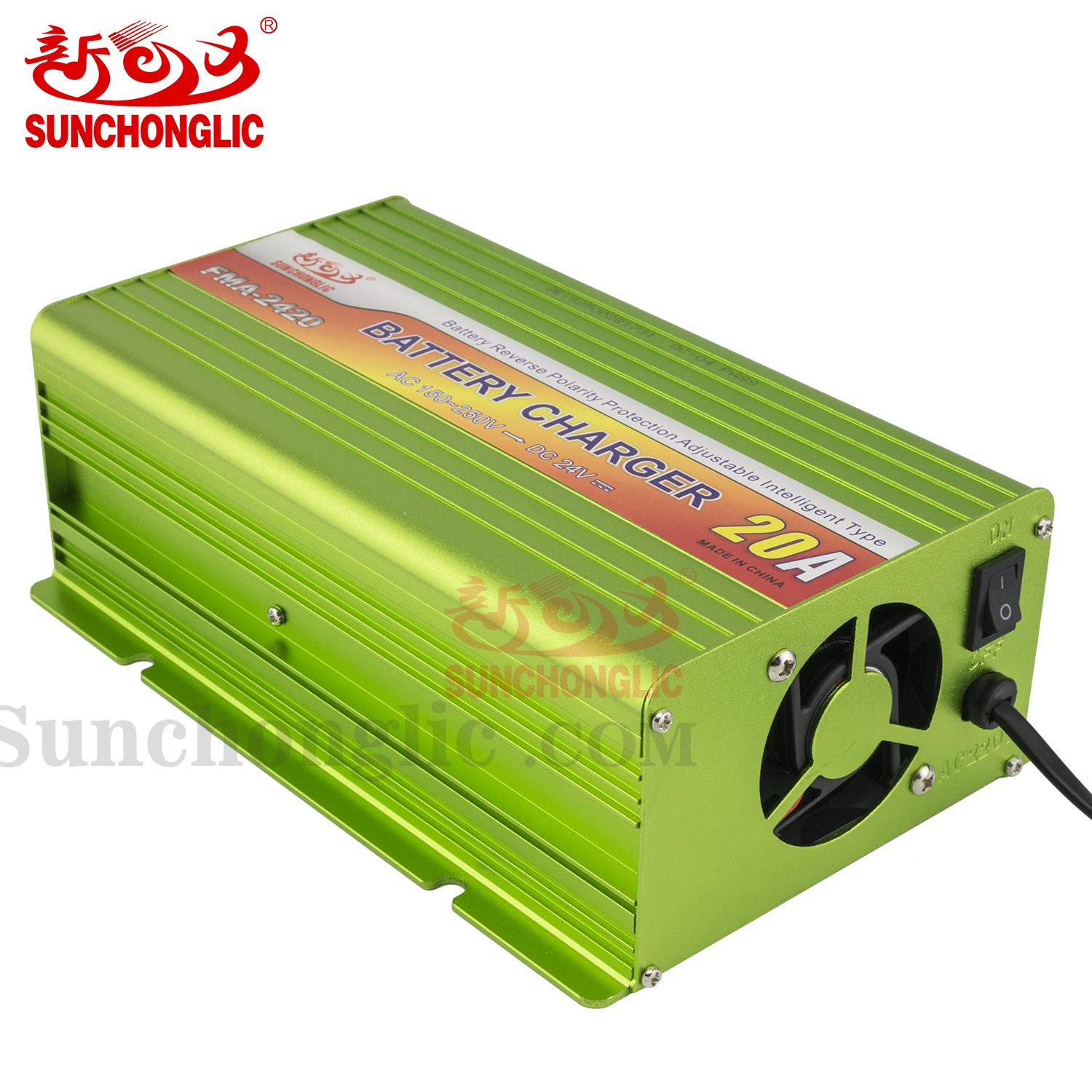

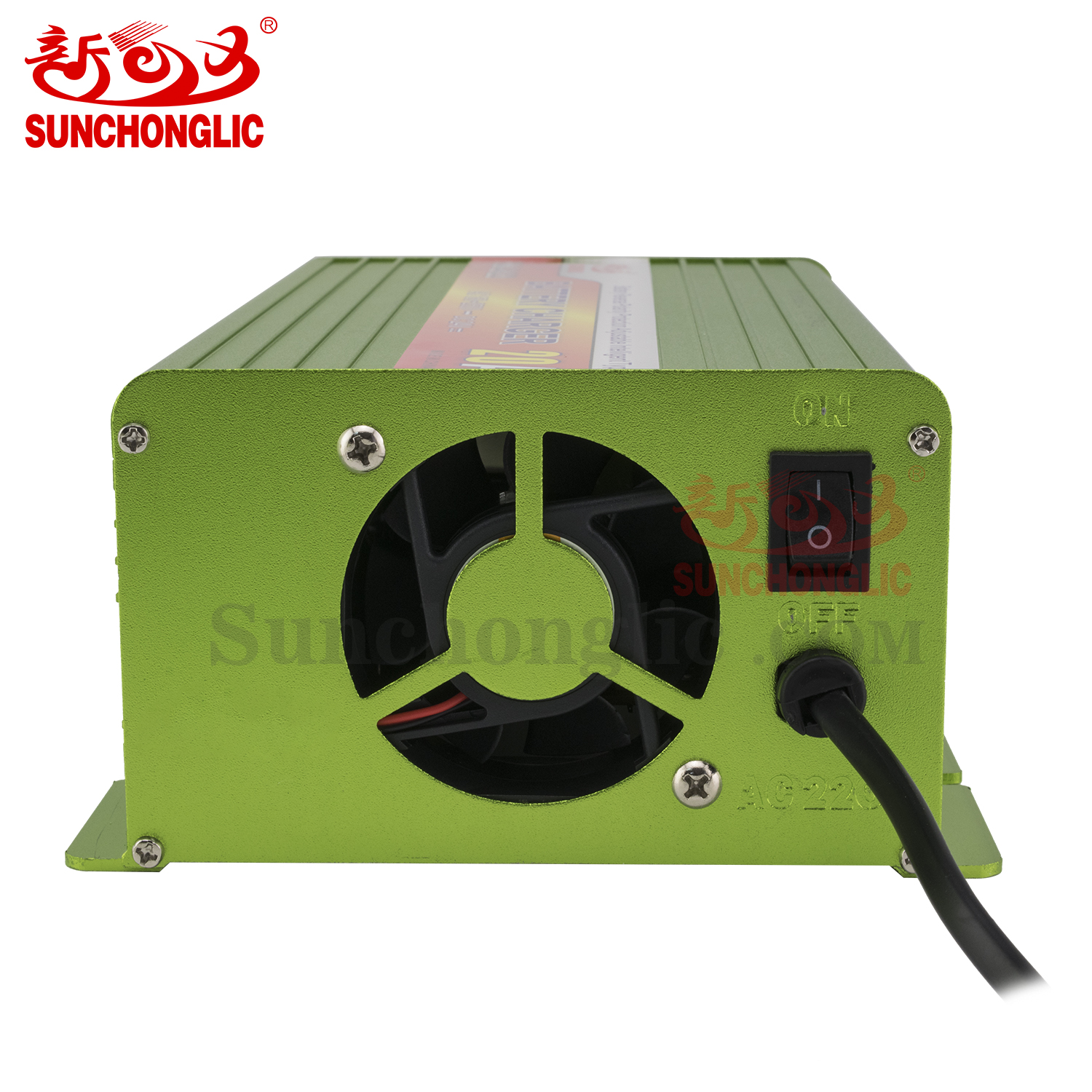

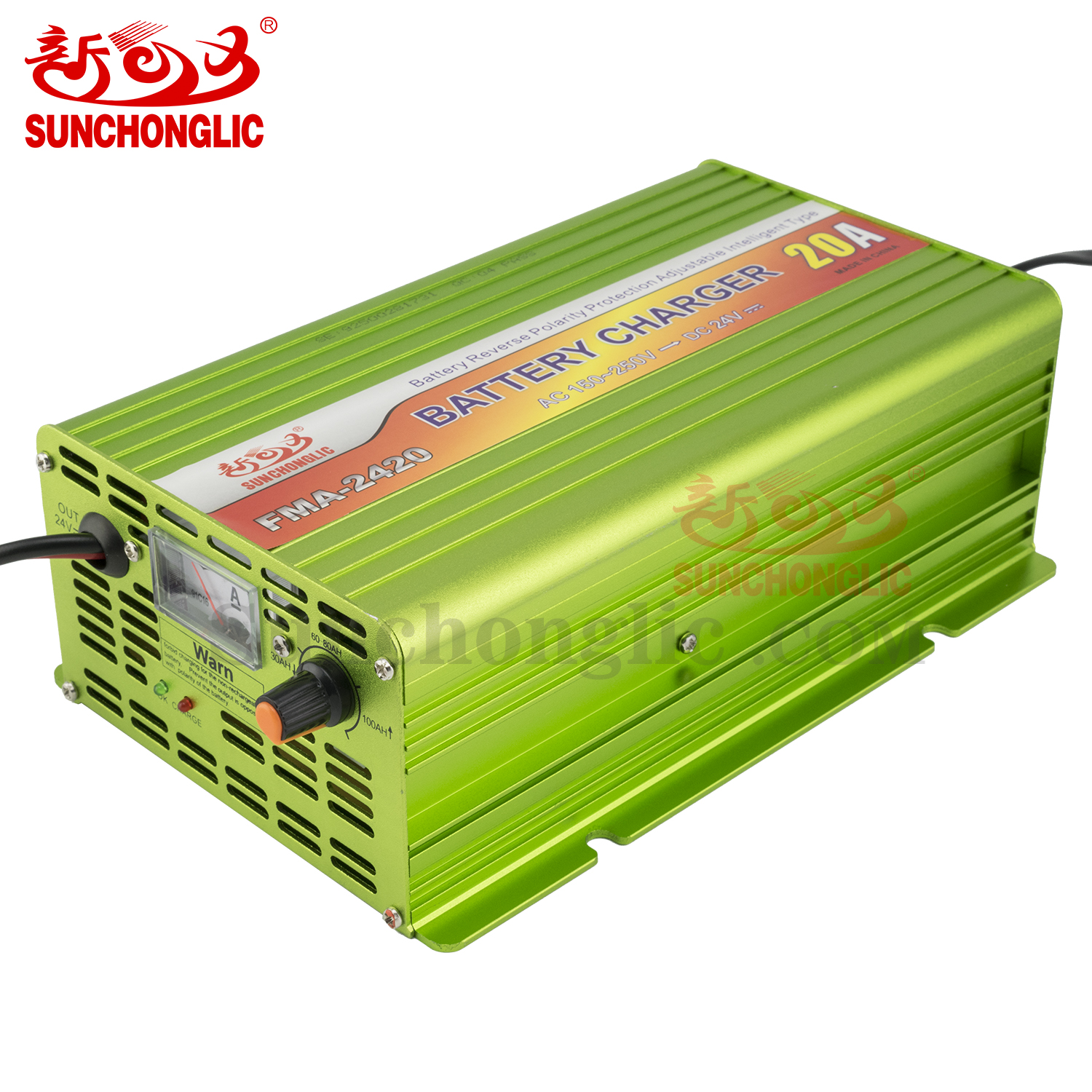

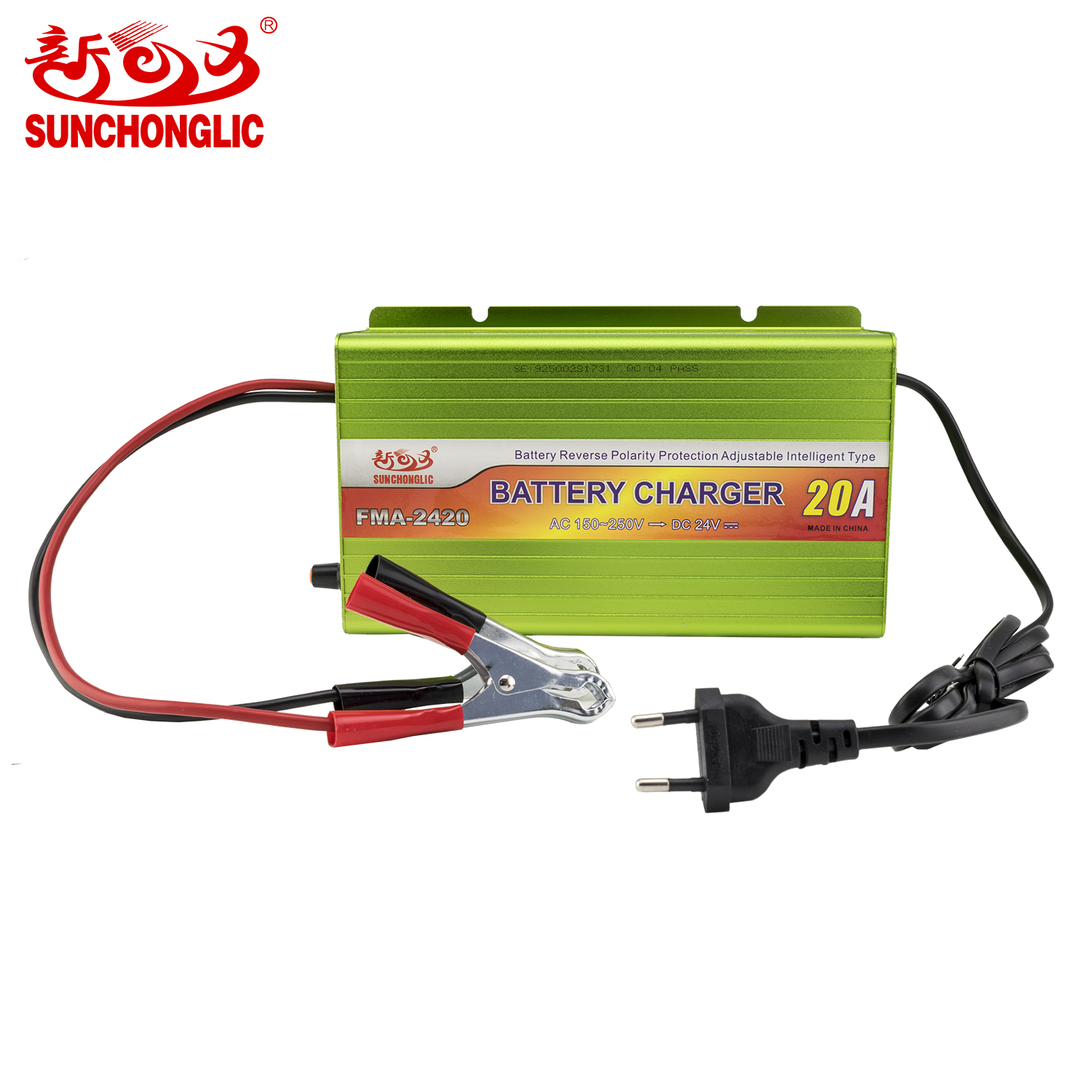

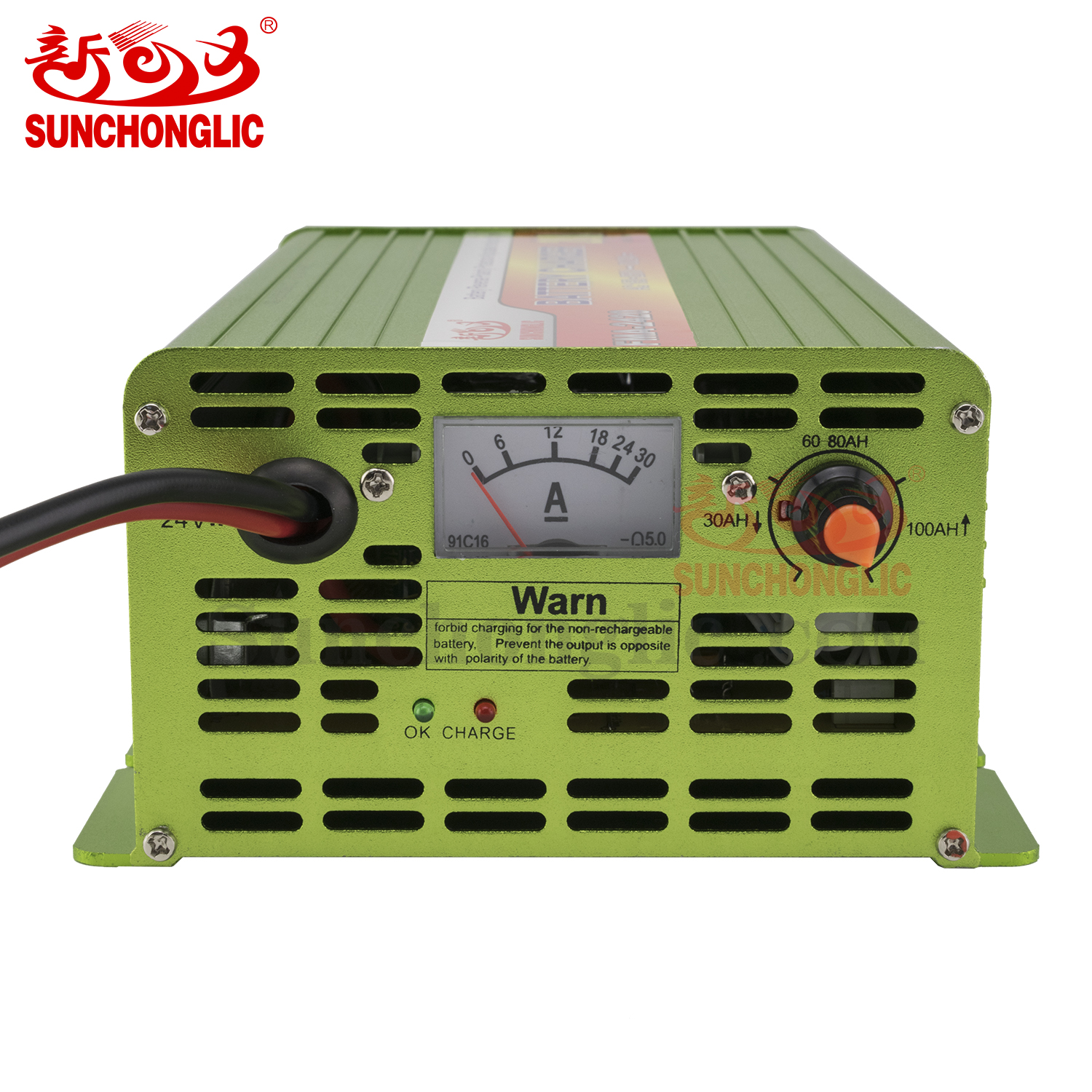

Product Photos
