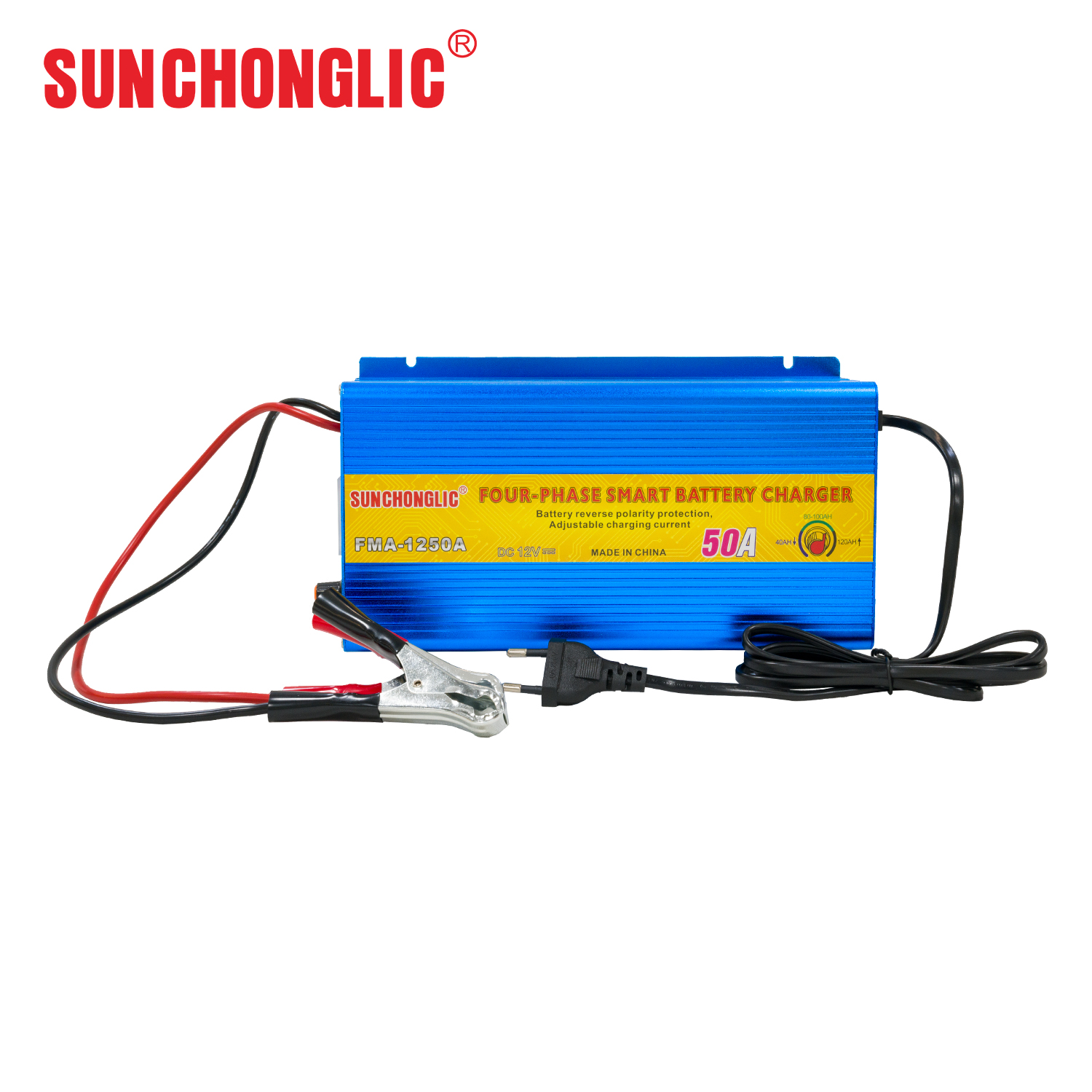

You are here: Home > Products > AGM/GEL Battery Charger > FMA-1250A

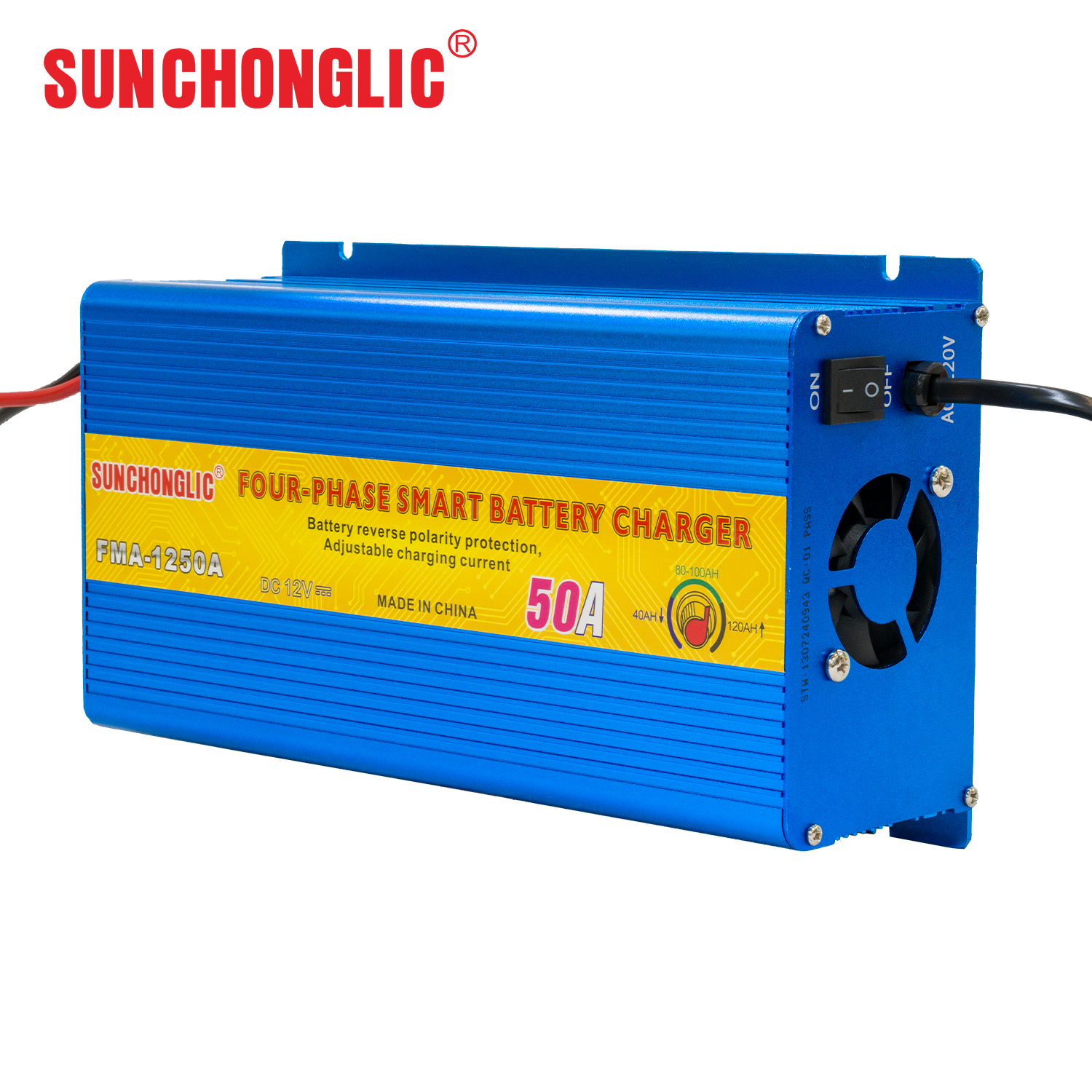

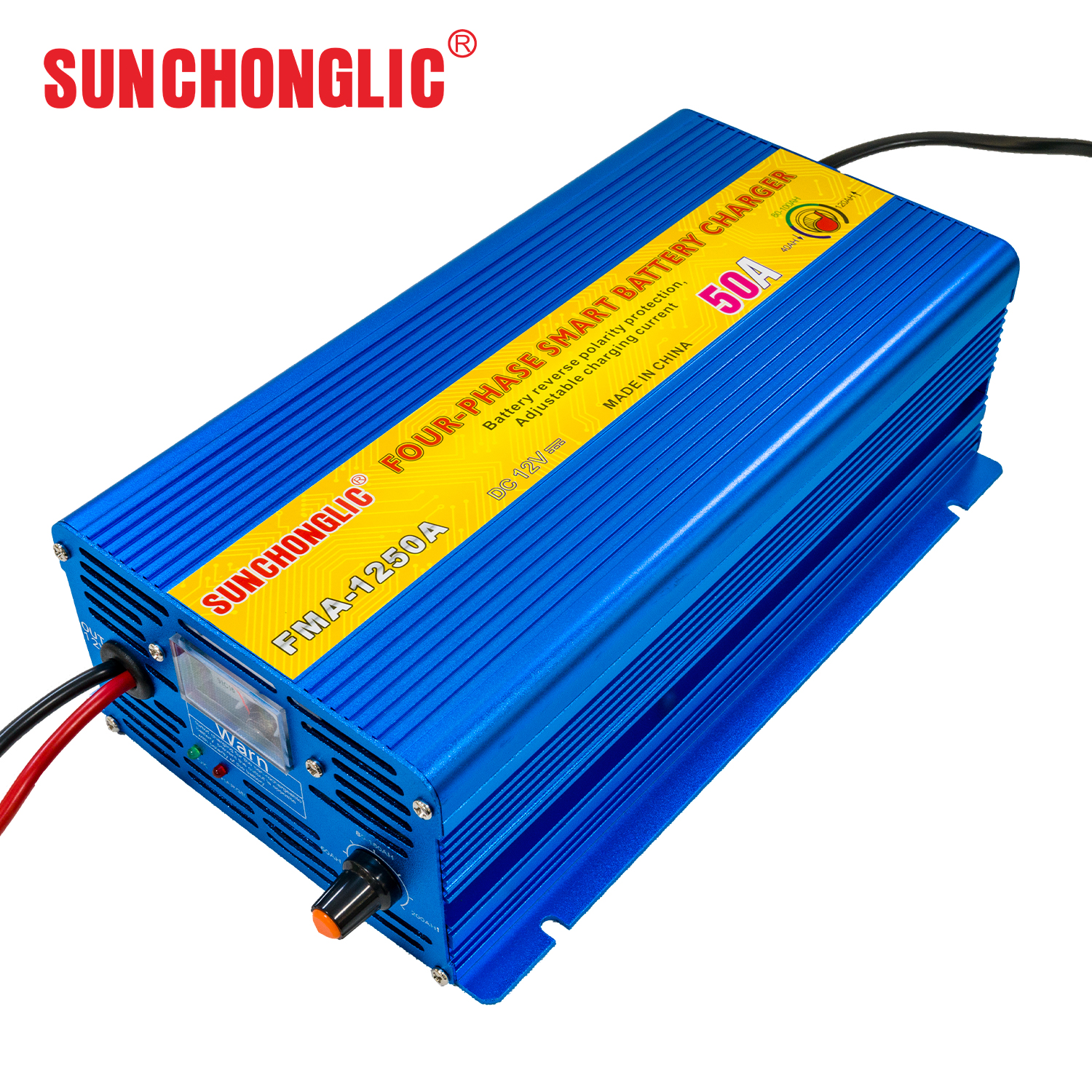

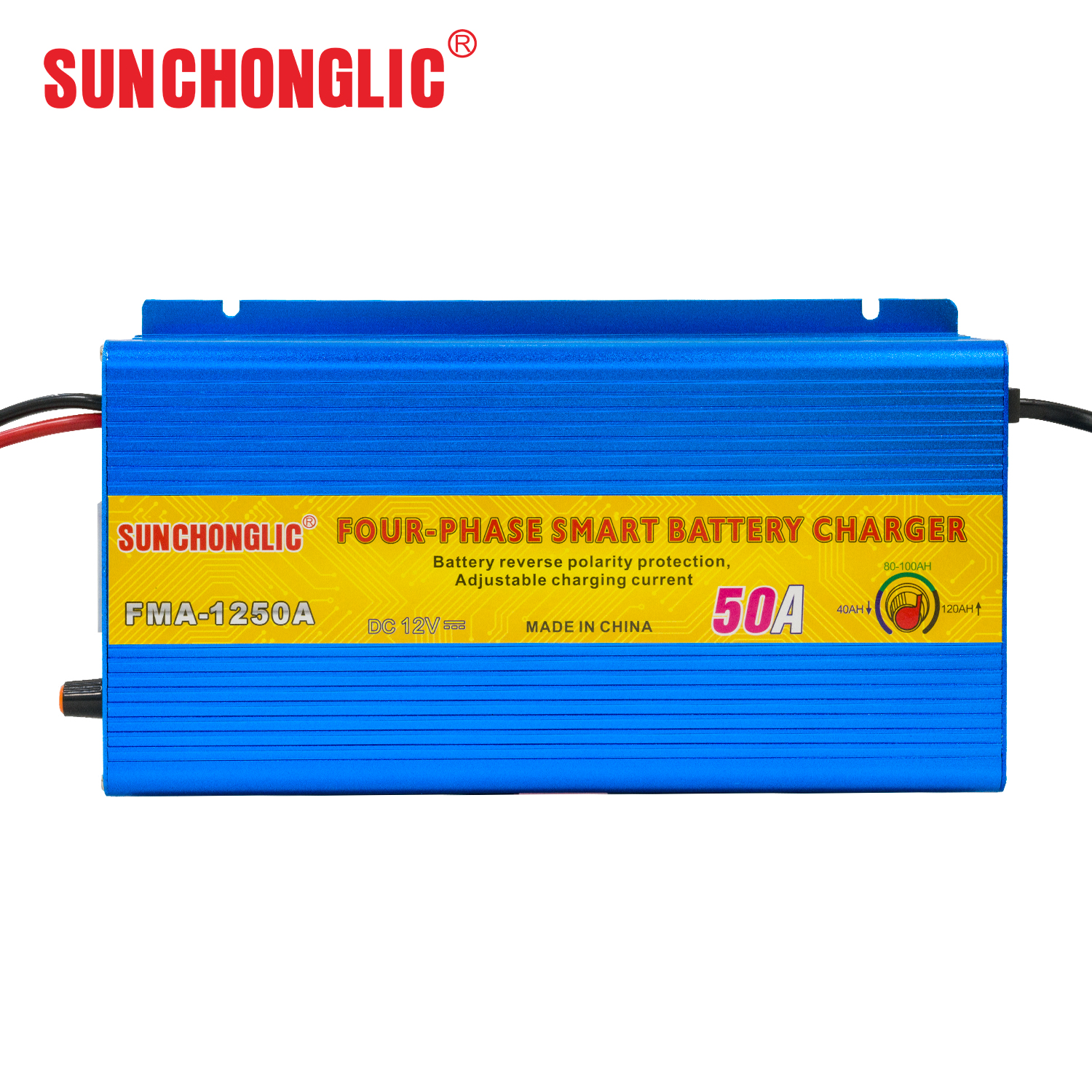

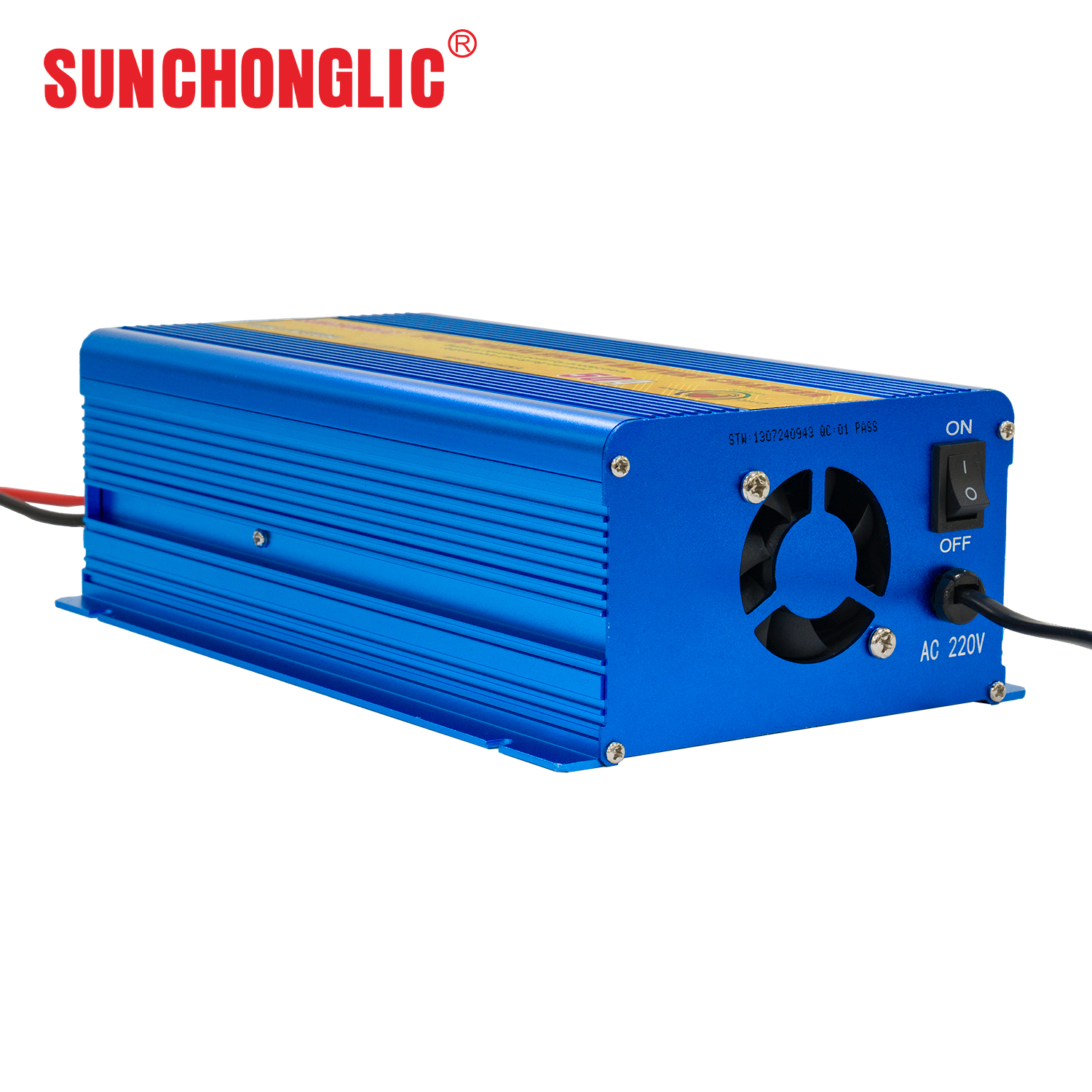

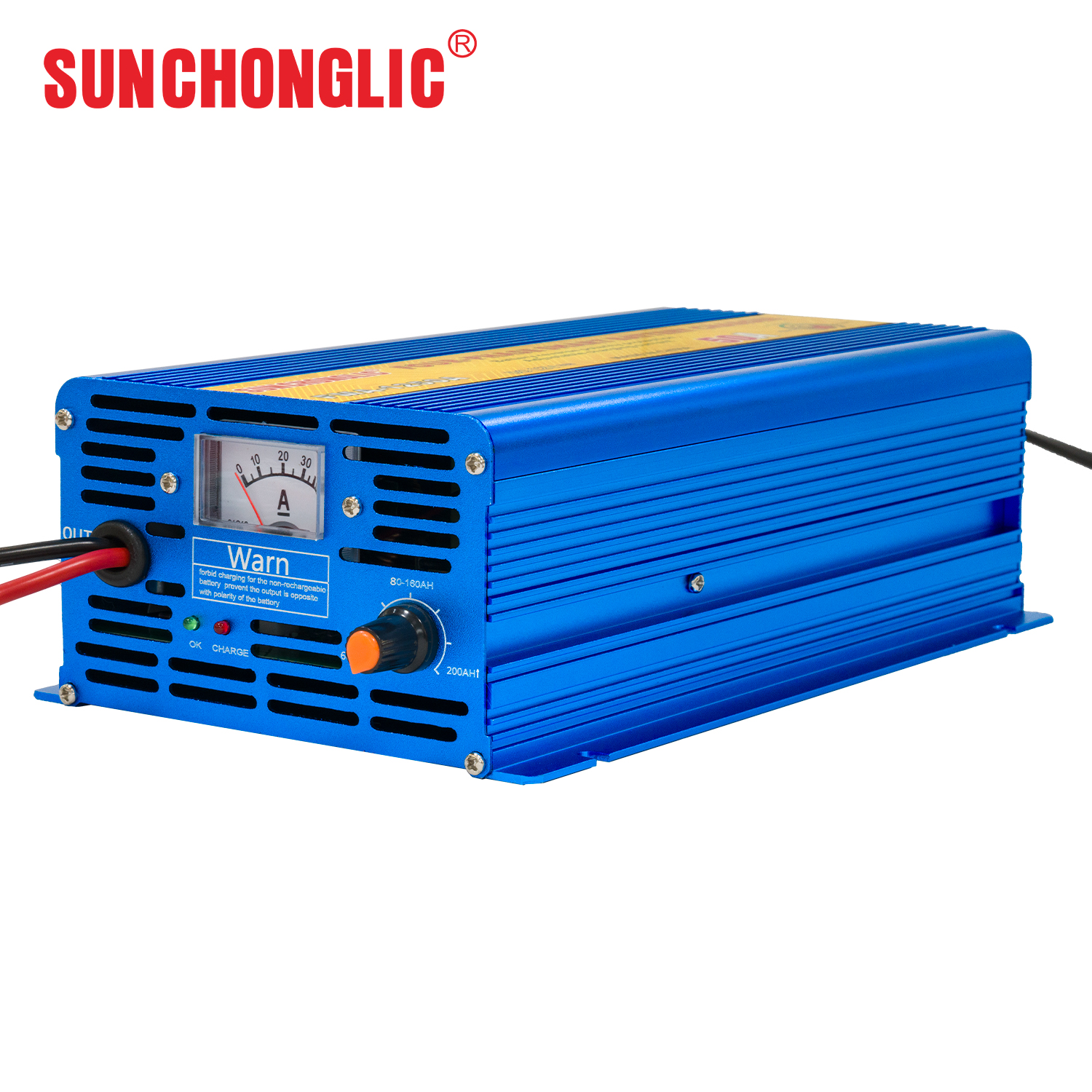

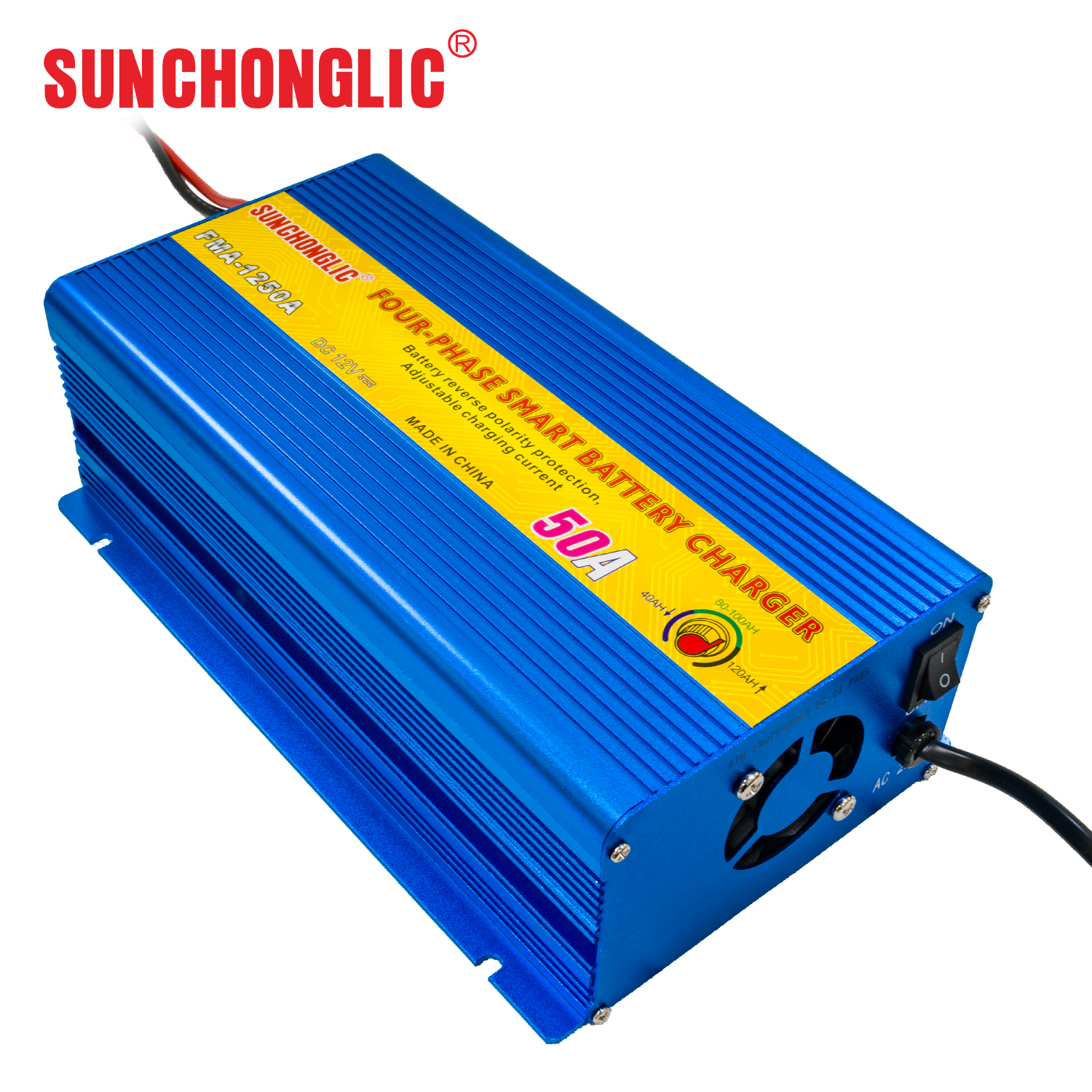

AGM/GEL Battery Charger
The FMA series lead-acid battery charger is professional design according to the power battery of electric vehicles equipment.
It use the advanced soft switch technology,with small size,convenientinst allation,high conversion efficiency, running fully loaded for a long time,stable output current,large capacity,high reliability,long life features etc.

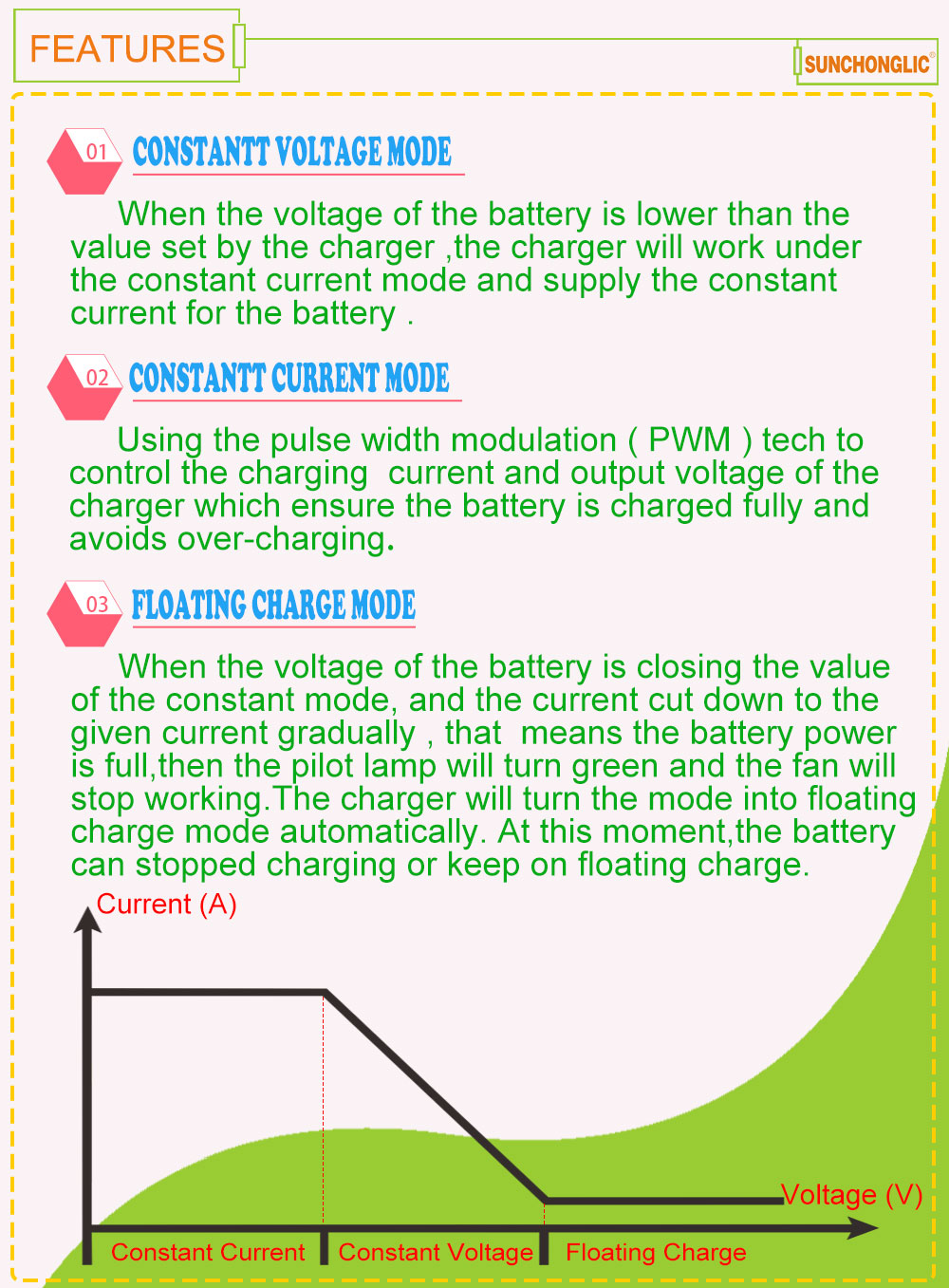

With short-circuited protection, low-voltage protection, over-heated protection. The long delay digital counter can ensure the battery from the constant voltage to the float charge reliably every time.Avoid the lost control of battery heat caused by the hight temperture. Let the damage of battery drop to the lowest caused by the dehydration and the polar plate vulcanize which are the two general problems of charger.
Model | FMA-1210A | FMA-1220A | FMA-1230A | FMA-1240A | FMA-1250A |
Charge Current | 10A | 20A | 30A | 40A | 50A |
Input voltage | AC220V±10% 50Hz | ||||
Rated voltage | 12V | ||||
Constant charge current | 10A±5% | 20A±5% | 30A±5% | 40A±5% | 50A±5% |
Constant charge voltage | 14.5-14.8V | ||||
Floating voltage | 13.8V | 13.8V | 13.8V | 14.7V | 14.7V |
Charge mode | Three-step | Three-step | Four-step | Four-step | Four-step |
