Sunchonglic 24v 3000va 2100w low frequency UPS pure sine wave 60A mppt solar hybrid inverter with AC charger

FMP-3000B

UPS Charger Inverter

Features:

24V 3000va UPS pure sine wave mppt solar inverter.

Built-in 25A AC charger.

Pure Sine Waveform Output,ensuring compatibility with sensitive electronics.

Support for lead acid battery/lithium iron phosphate battery/ternaery lithium battery.

Built-in 60A MPPT solar charge controller,which is efficient for solar energy conversion and management.

Built-in UPS function.This feature ensures uninterrupted power supply by seamlessly switching to battery backup during power outages, providing continuous and reliable power to your devices.

INQUIRE NOW

SEND ENQUIRY

Specifications

Specification	Model	500VA	800VA	1000VA	1500VA	2000VA	3000VA
	Power	350W	500W	700W	1050W	1400W	2100W
Input	Voltage range	AC150-265V				AC160-260V
	Frequency range	50Hz/60Hz
Output	AC Voltage Regulation (Batt.Mode)	AC220V±25V
	Frequency range (Batt.Mode)	50Hz/60Hz
	Waveform	Pure Sine Wave
Battery	Battery Type(external)	12V				24V
	Rated battery voltage	12VDC（10-16V）				24VDC(20-32V)
	Charge Modes	3 stage;bulk,boost,float
	Charging current	DC15A		DC20A
	Protection	Overload,Overheat,Output high/low voltage,Battery low voltage,Short-circuit,Over-charge,Over-discharge
General characteristics	Switch time	10ms
	Operating Humidity	10-90%
	Operating Temperature	0℃+40℃
	Class Protection	IP20
	Dimension DxWxH(mm)	335x148x208		335x160x237		440x228x200
				325x320x150		465x320x200
MPPT(Optional)	PV array Input Voltage	12V(18-98V)				30V-180V
	Solar charging current	30A					60A

Sunchonglic 24v 3000va 2100w low frequency UPS pure sine wave 60A mppt solar hybrid inverter with AC charger

FMP-3000B

Features:

SEND ENQUIRY

Specifications

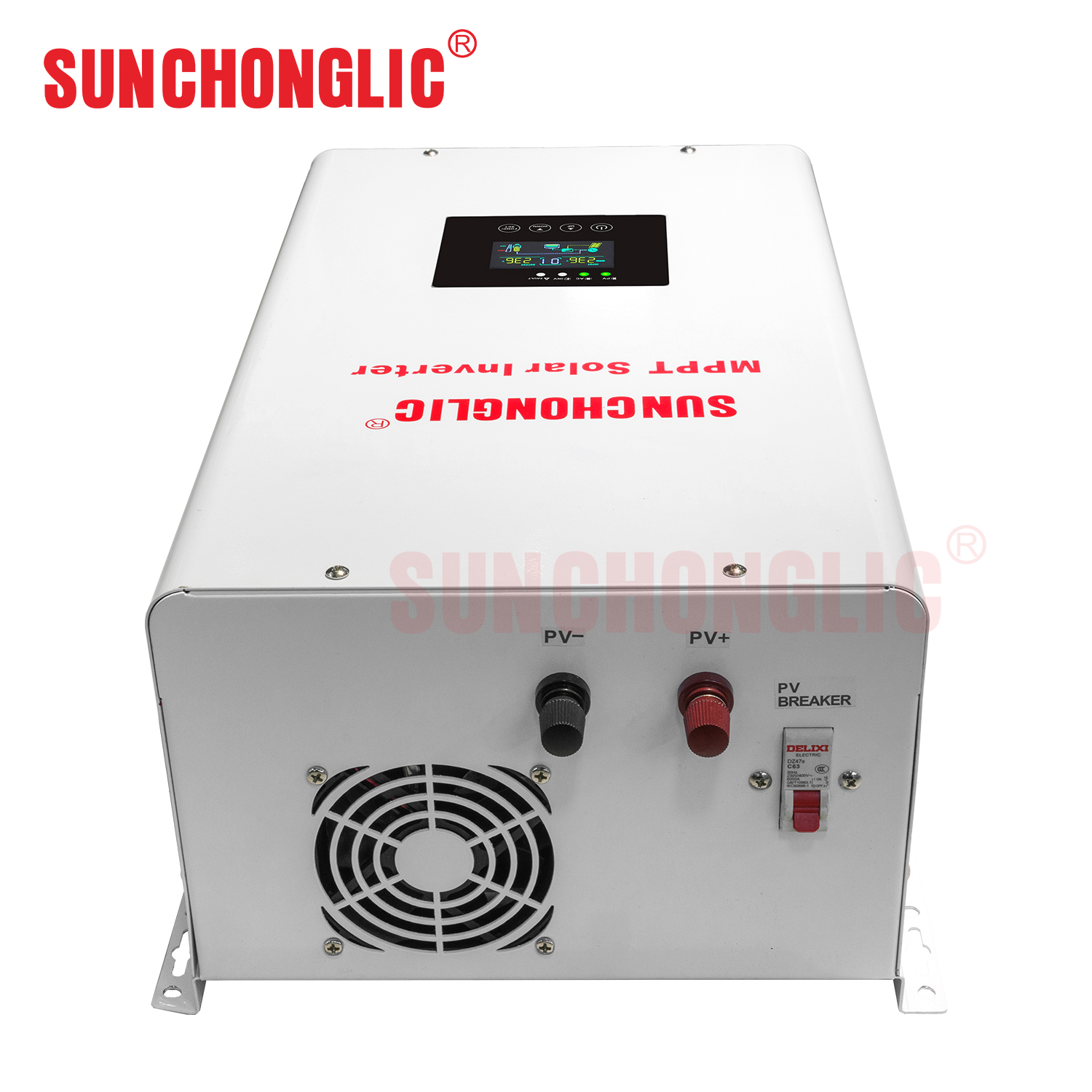

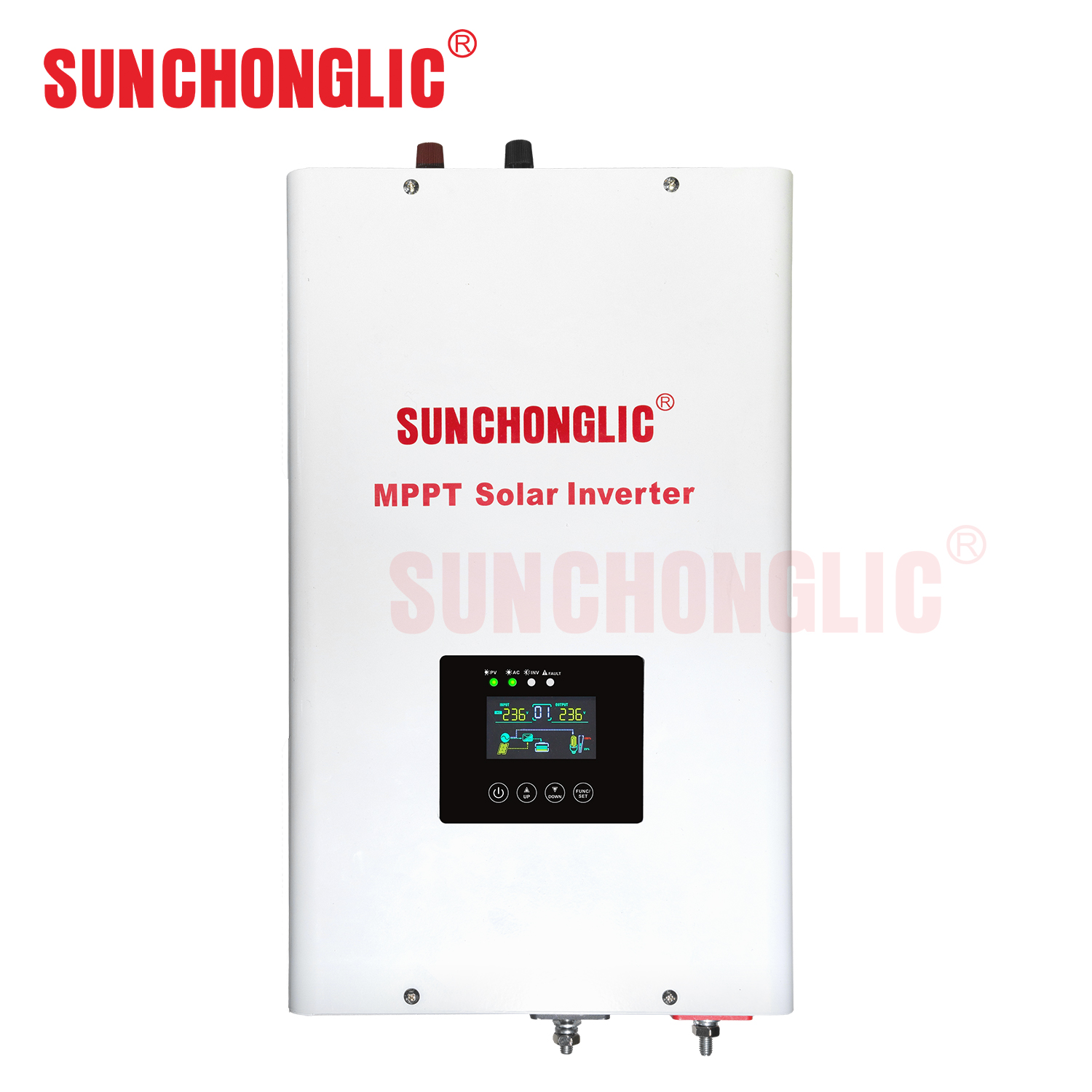

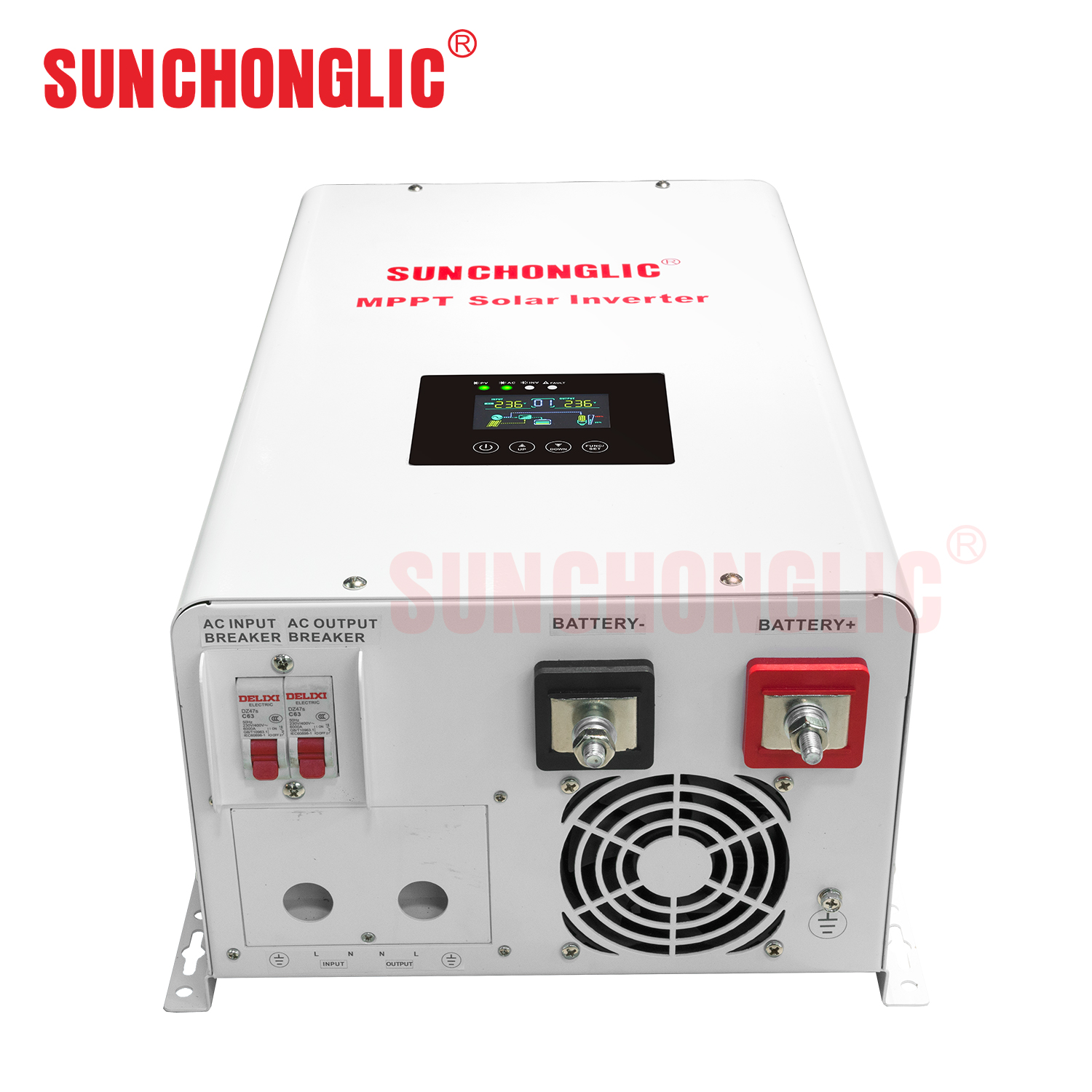

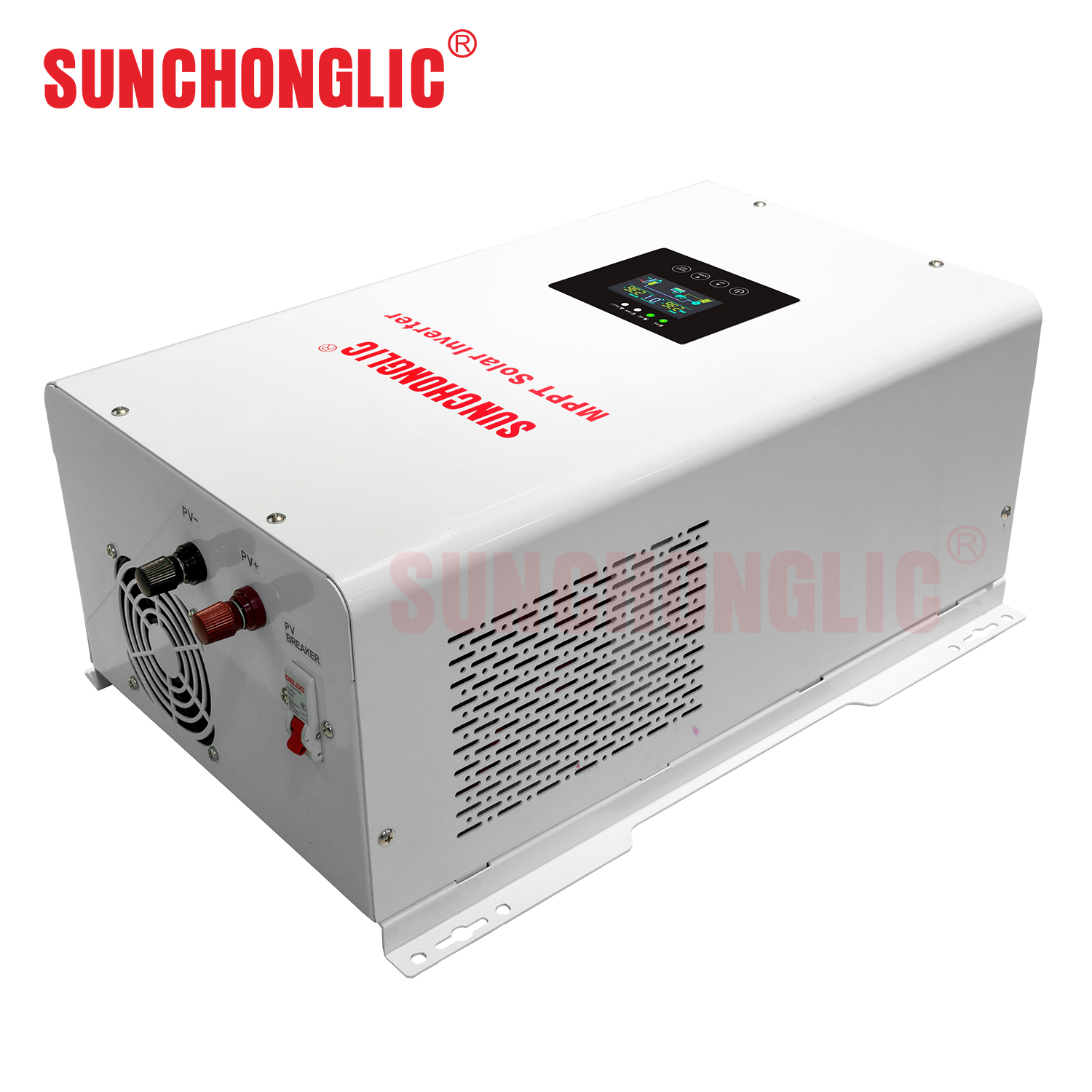

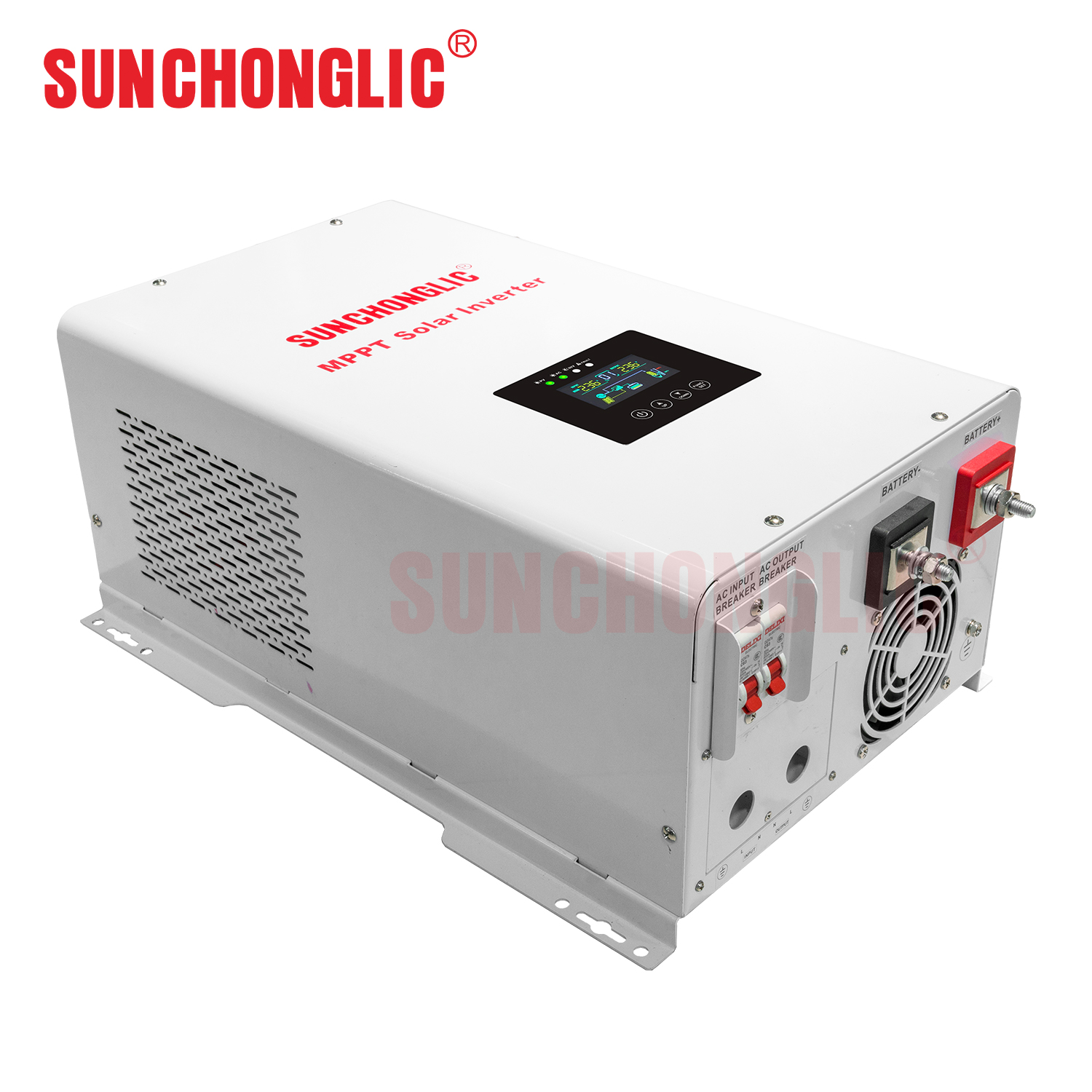

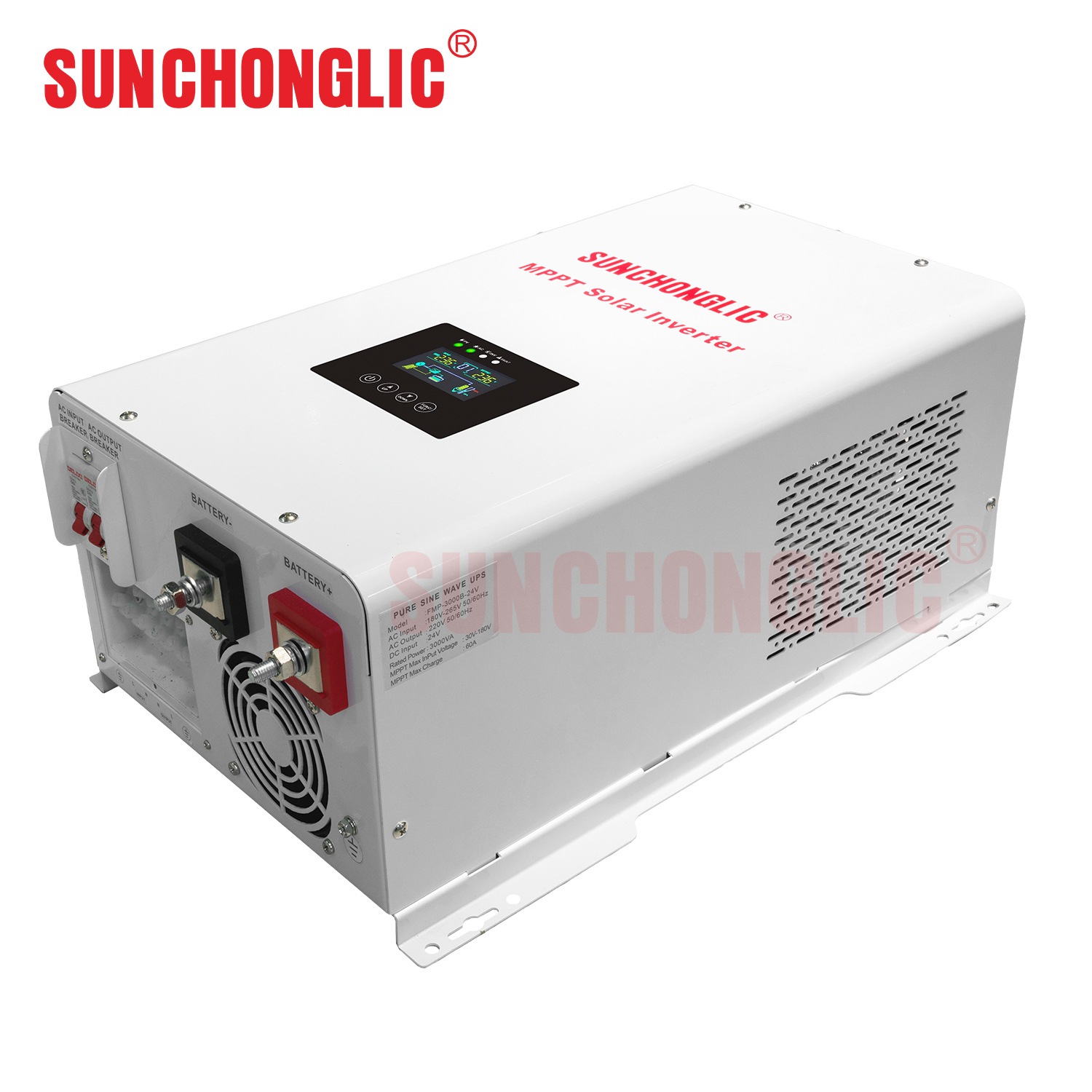

Product Photos
