FMP-1000A

Sunchonglic 12V 1000VA 700W UPS true sine wave pure sine wave mppt solar inverter

FMP-1000A

UPS Charger Inverter

Features:

12V 1000va UPS pure sine wave mppt inverter.

Pure Sine Waveform Output.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Specification
Model
500VA
800VA
1000VA
1500VA
Power
350W
500W
700W
1050W
Input
Voltage range
AC150-265V
Frequency range
50Hz/60Hz
Output
AC Voltage Regulation (Batt.Mode)
AC220V±25V
Frequency range (Batt.Mode)
50Hz/60Hz
Waveform
Pure Sine Wave
Battery
Rated battery voltage
12VDC(10-16V)
Battery Type(external)
12V
Charge Modes
3 stage;bulk,boost,float
Charging current
DC15A
DC20A
General characteristics
Protection
Overload,Overheat,Output high/low voltage,Battery low voltage,Short-circuit,Over-charge,Over-discharge
Switch time
10ms
Operating Humidity
10-90%
Operating Temperature
0℃+40℃
Class Protection
IP20
Dimension DxWxH(mm)
335x148x208
335x160x237


325x320x150
MPPT
(optional)
PV array input voltage
12V(18-98V)
Solar charging current
30A

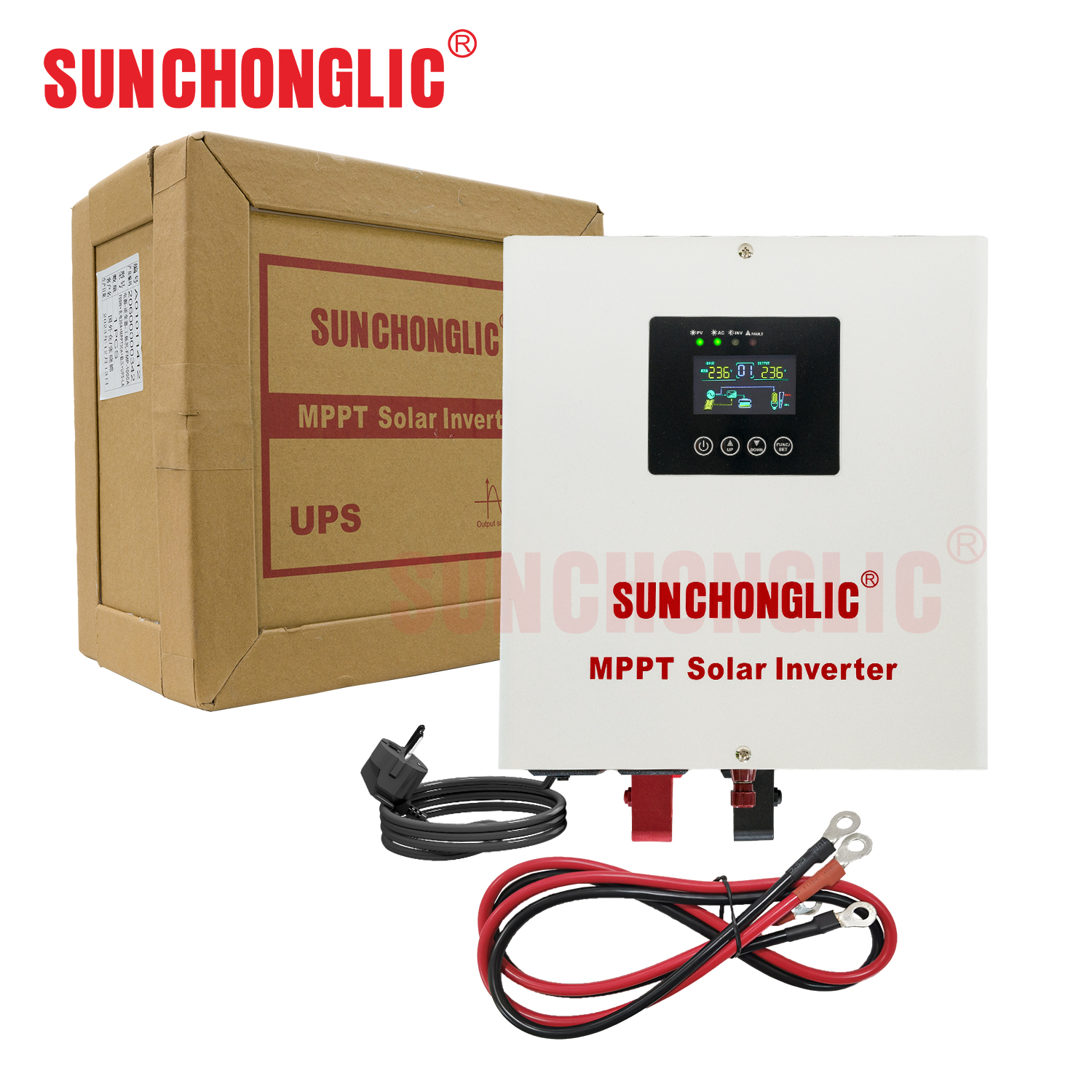

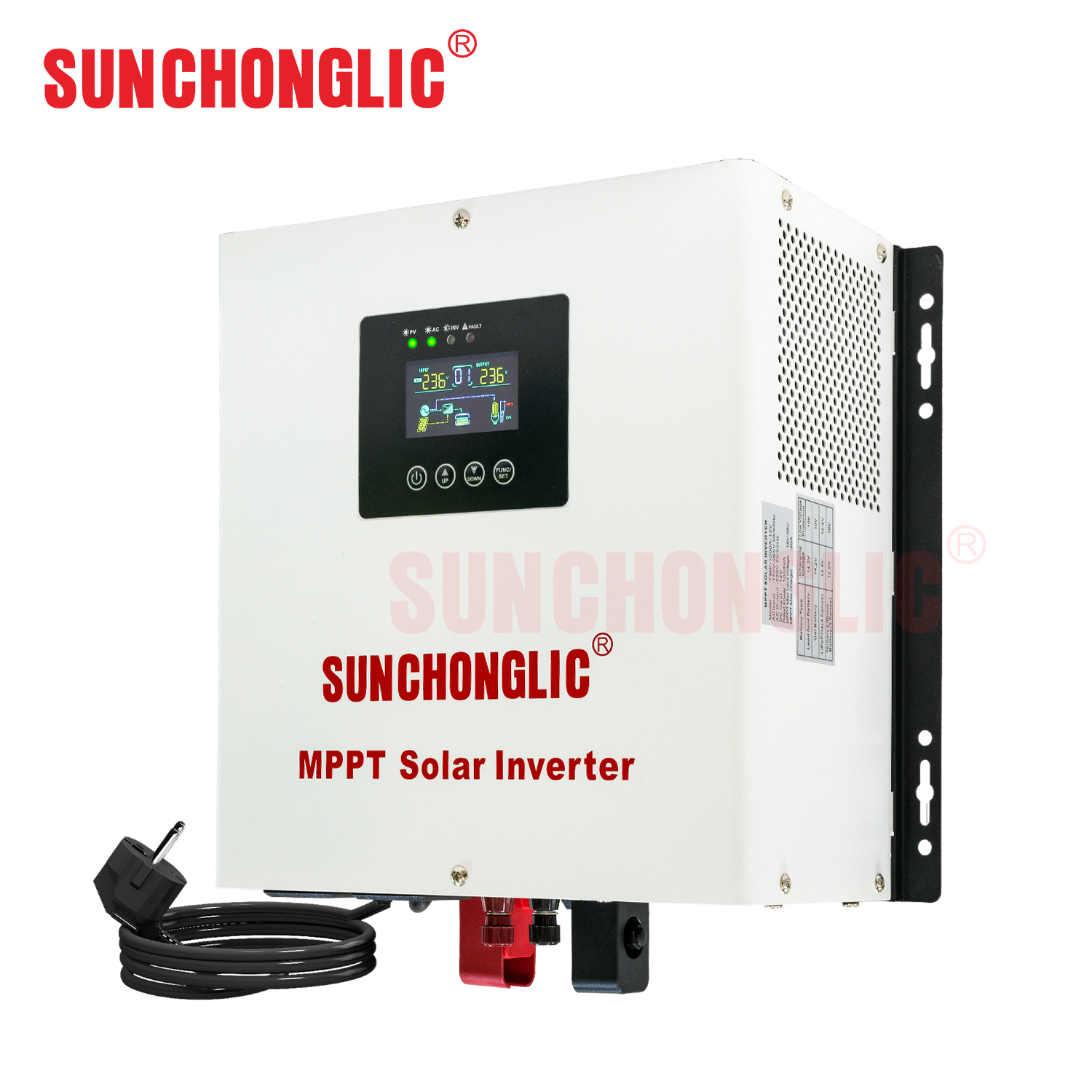

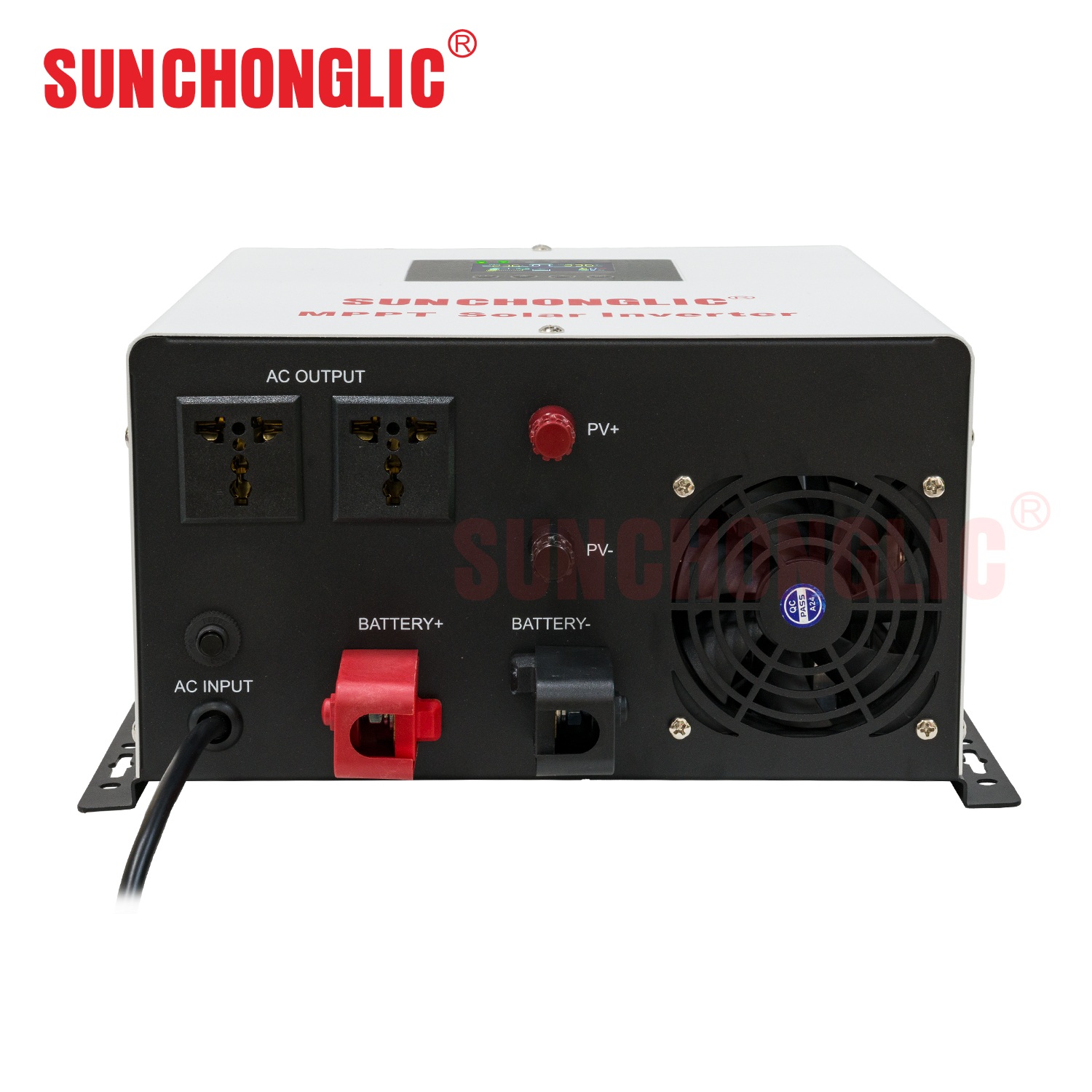

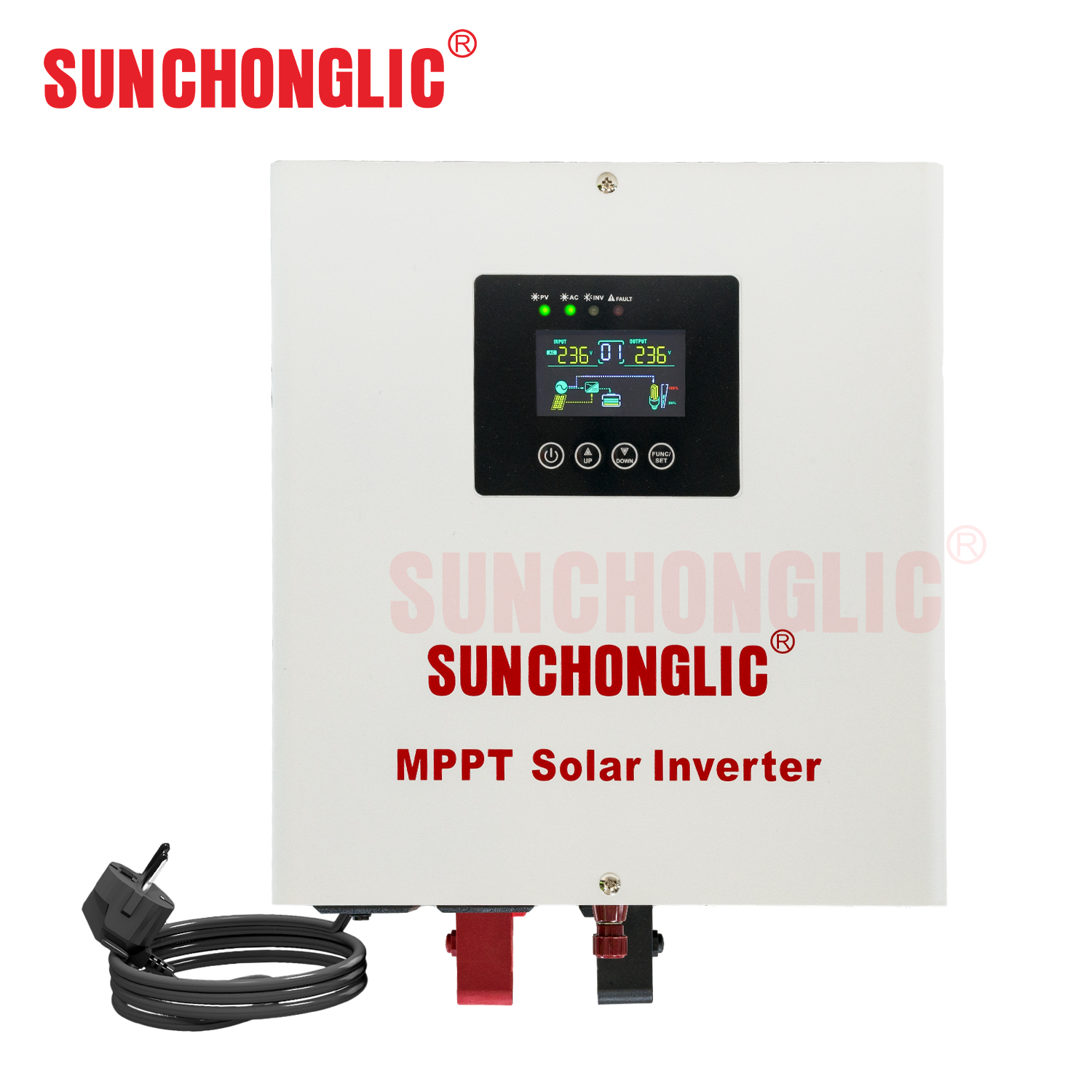

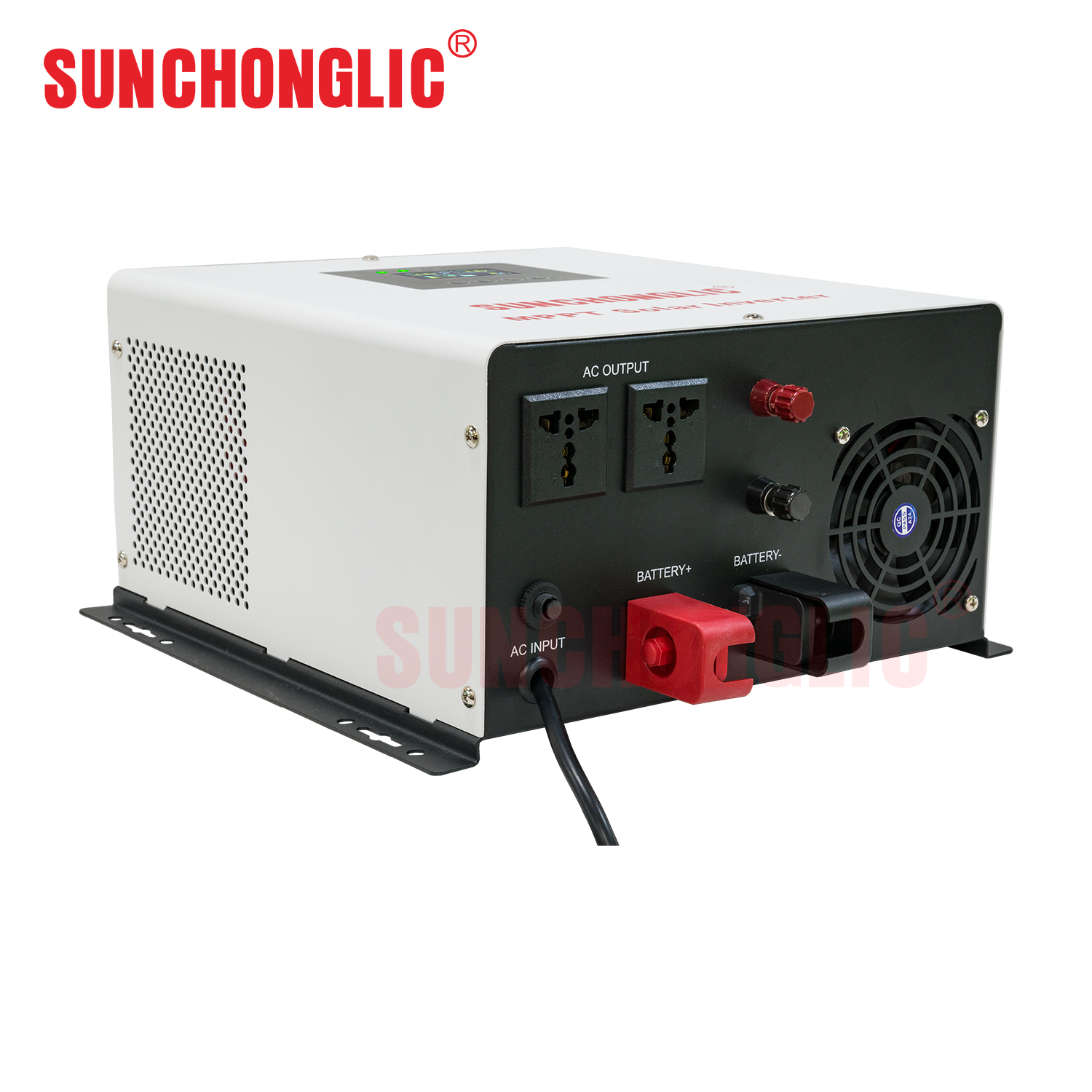

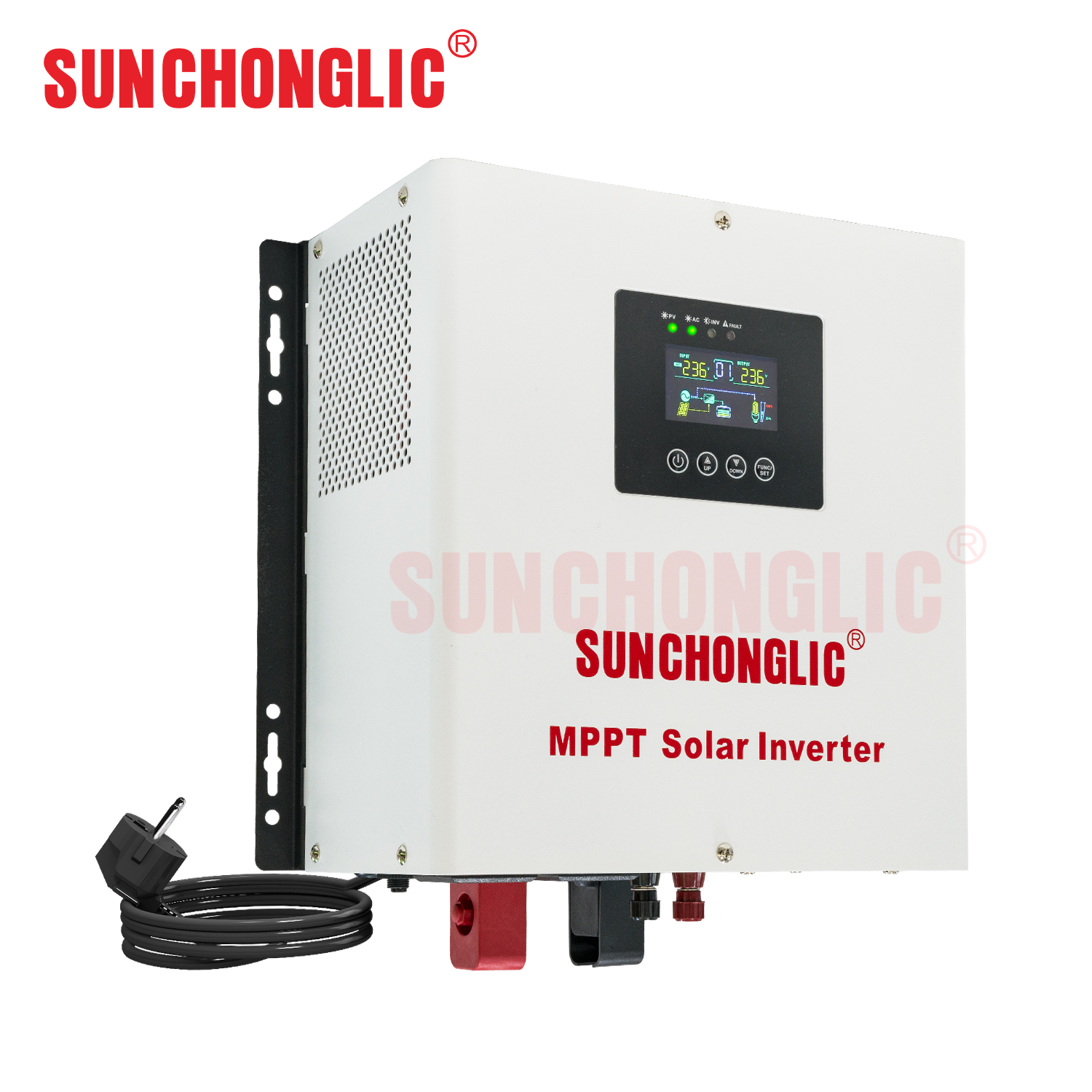

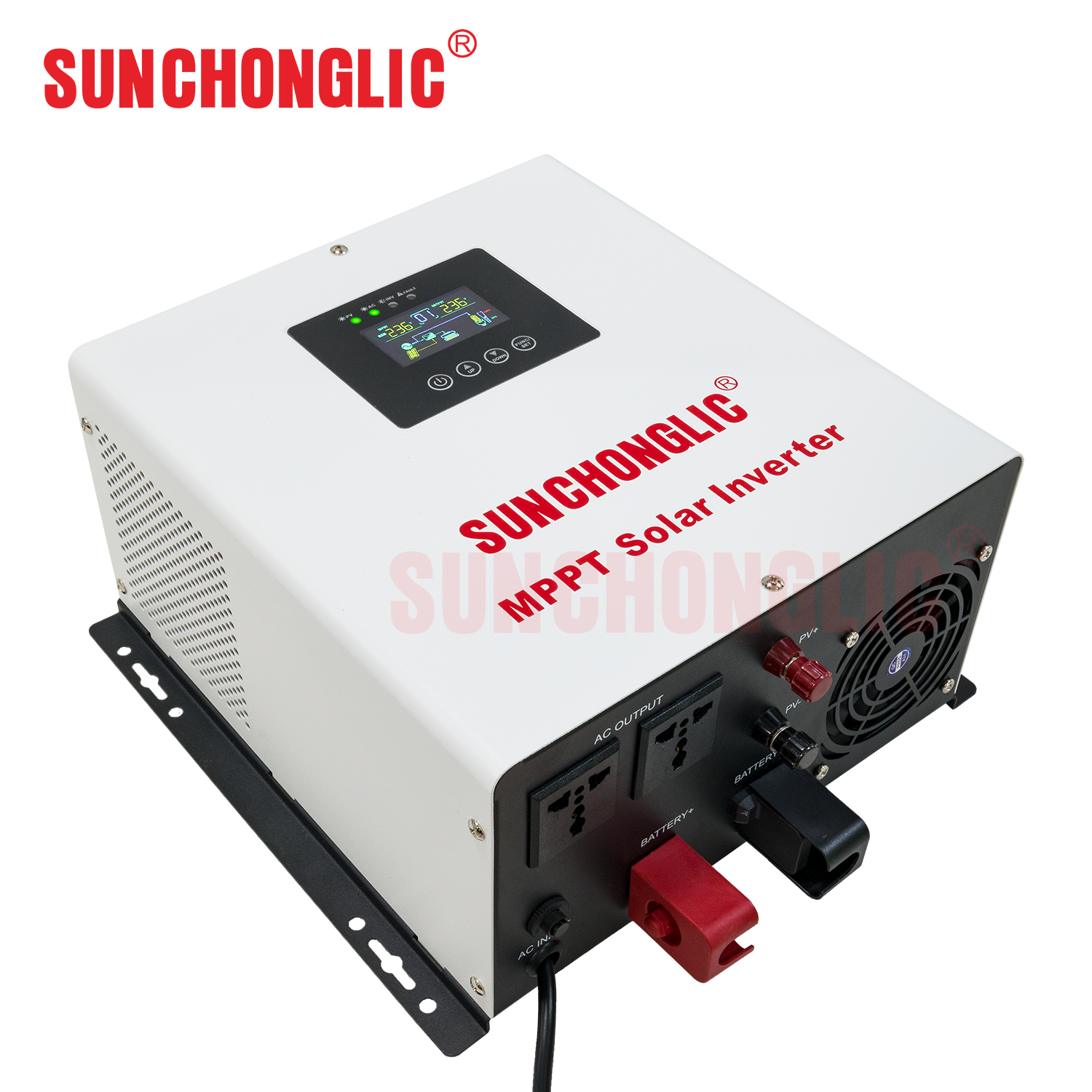

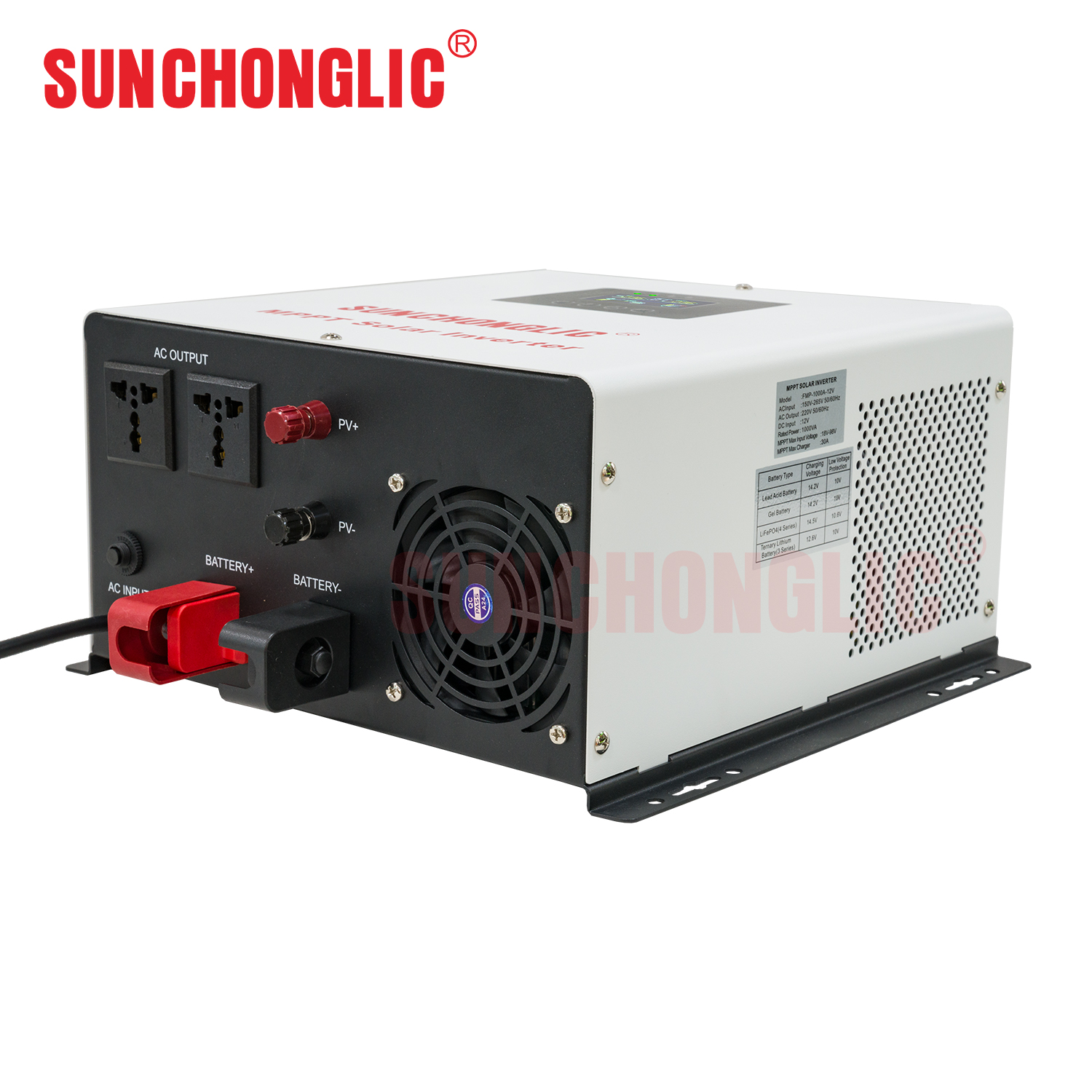

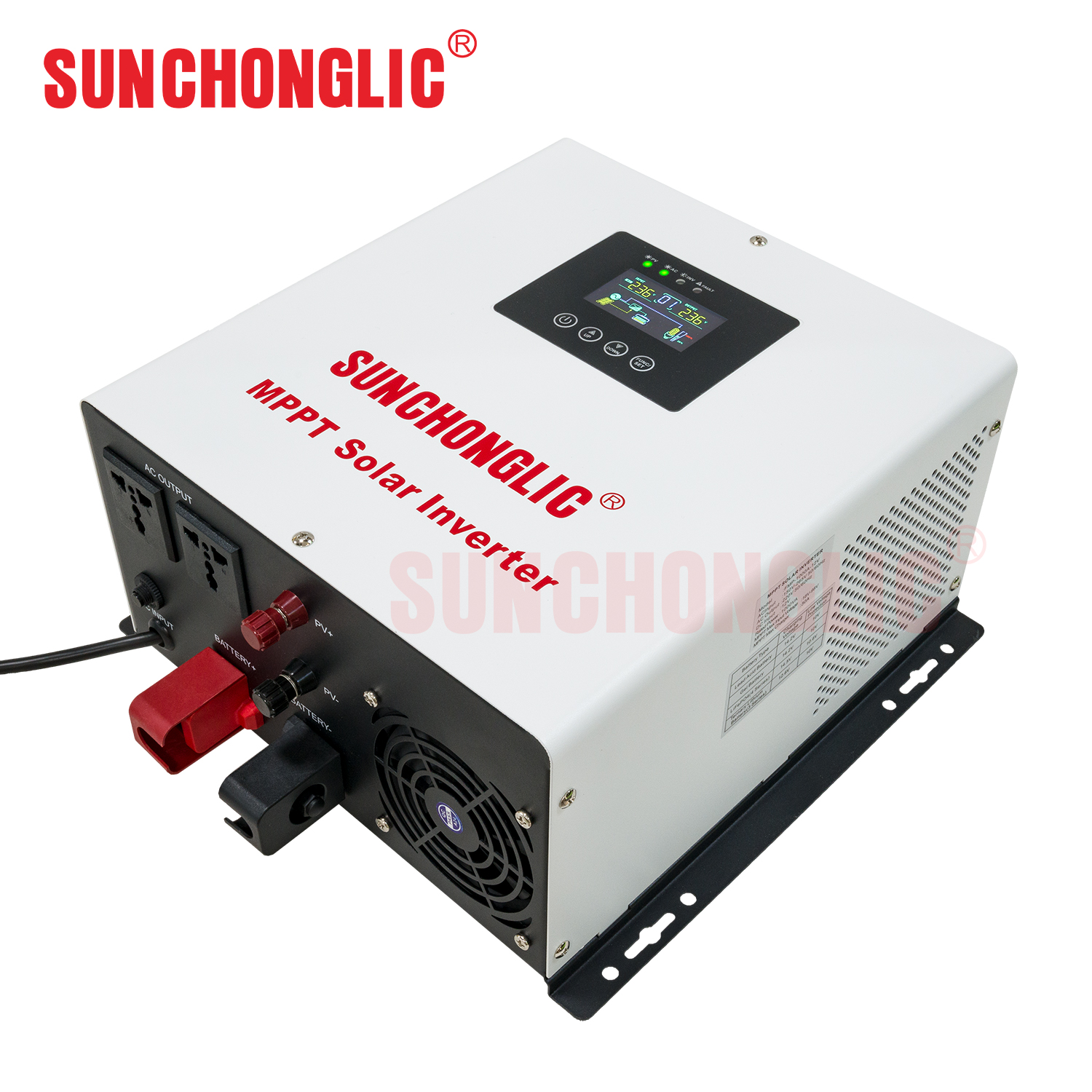

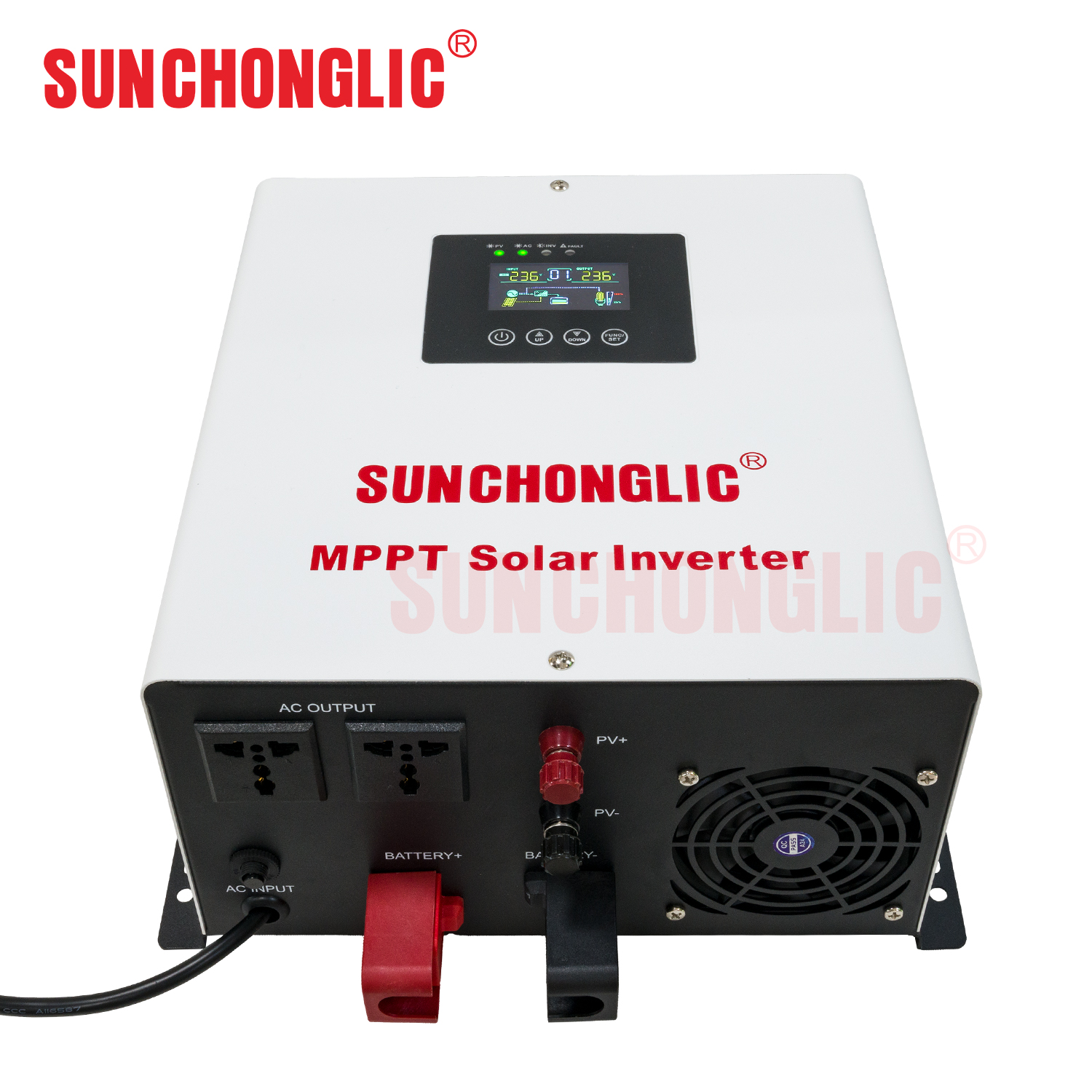

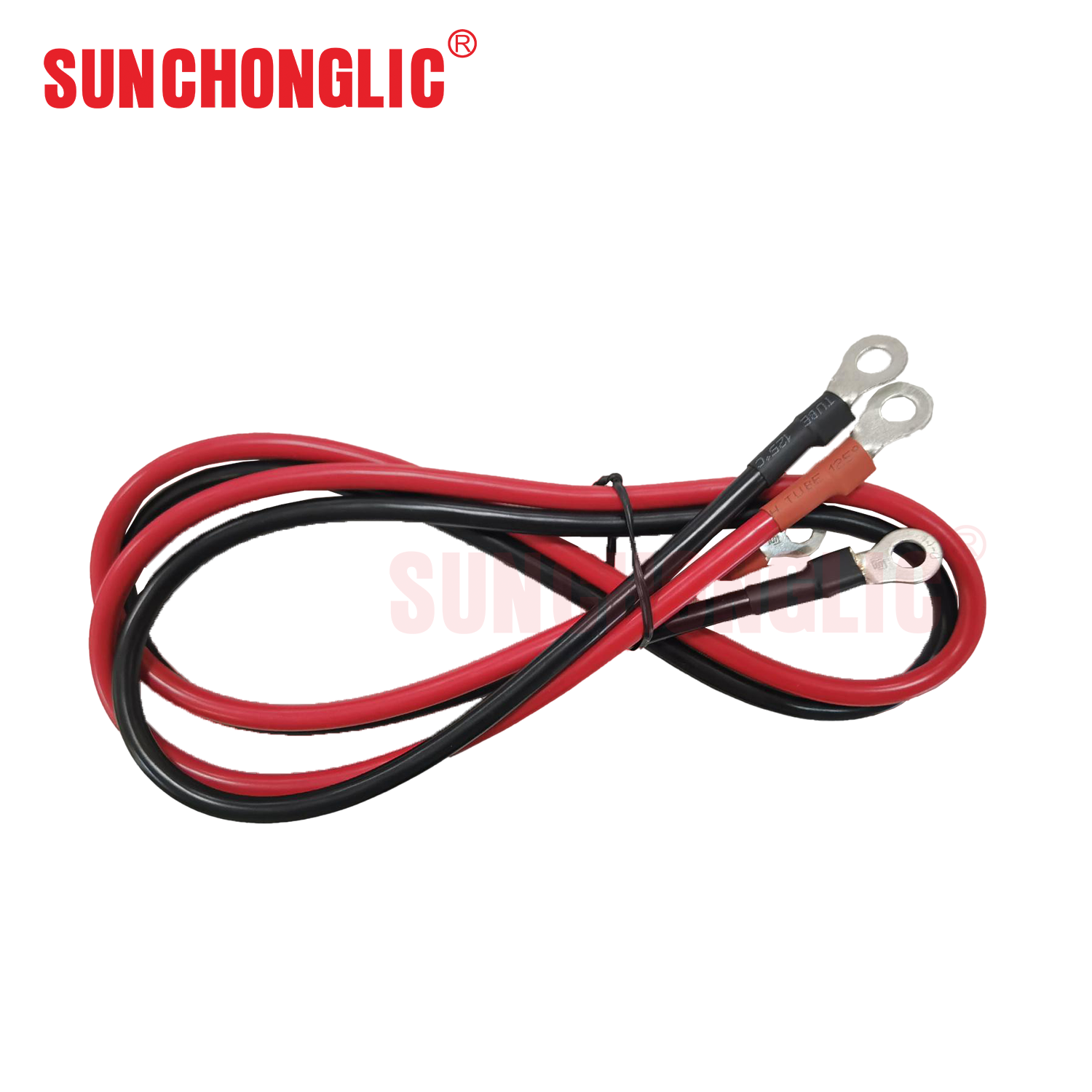

Product Photos
