FUP-3000B

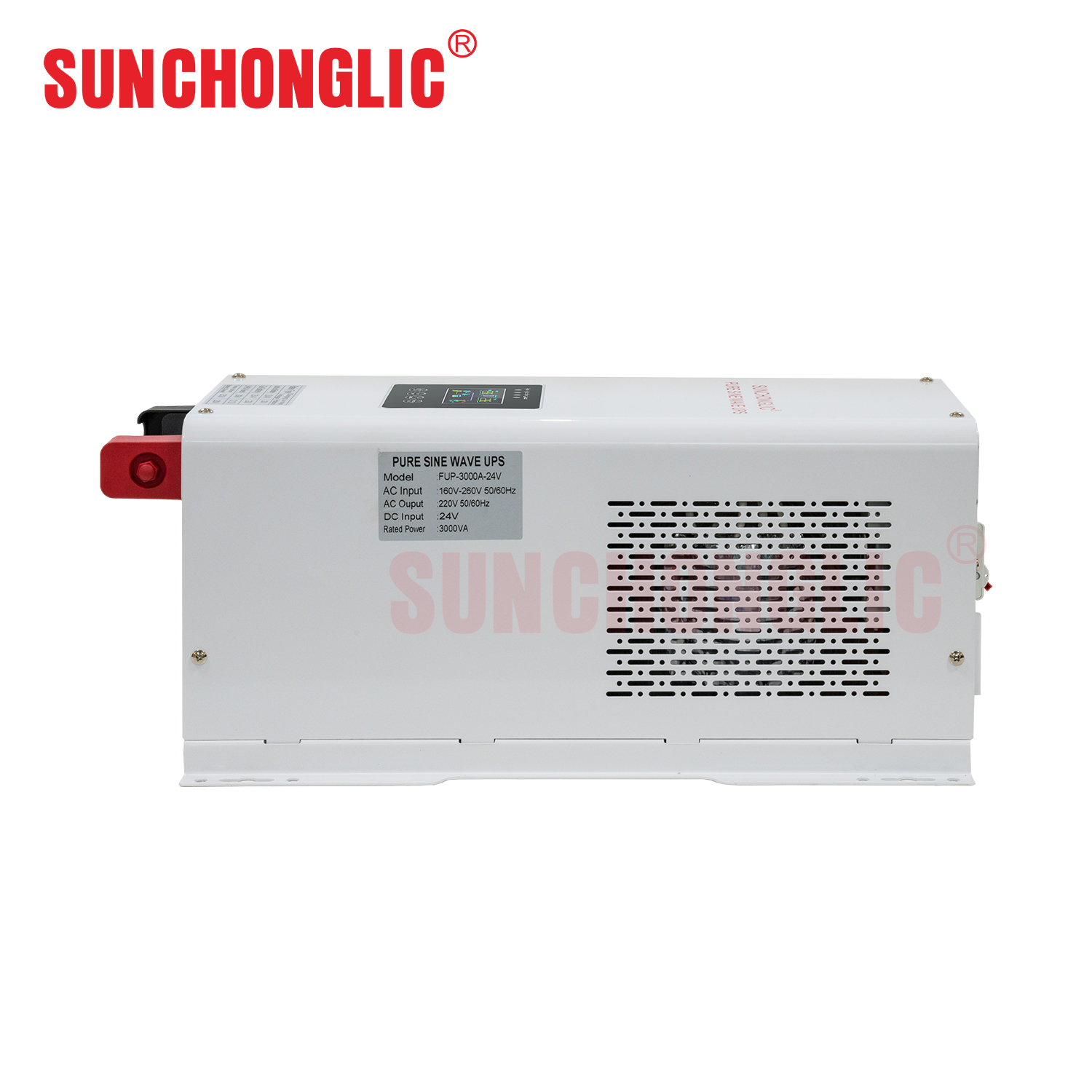

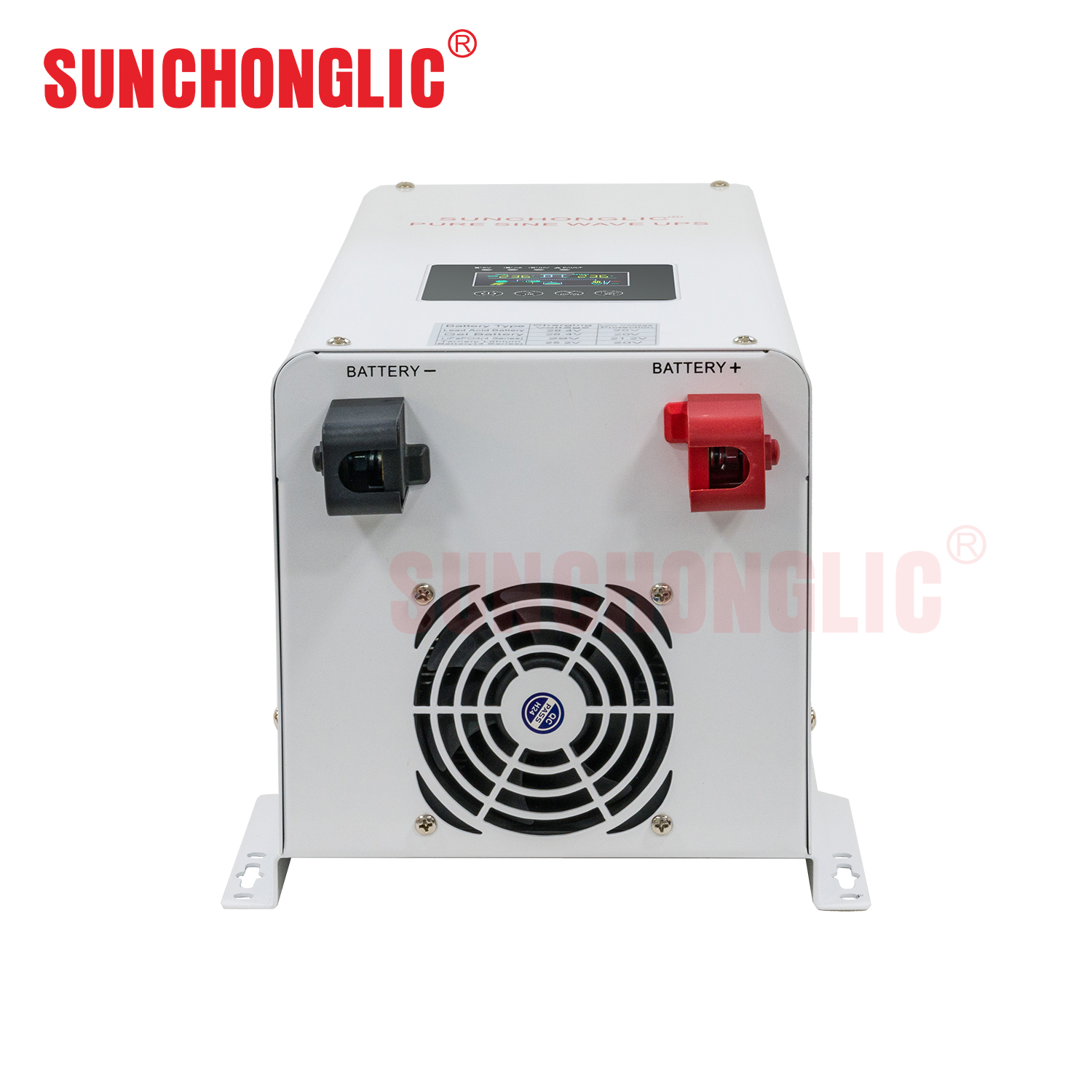

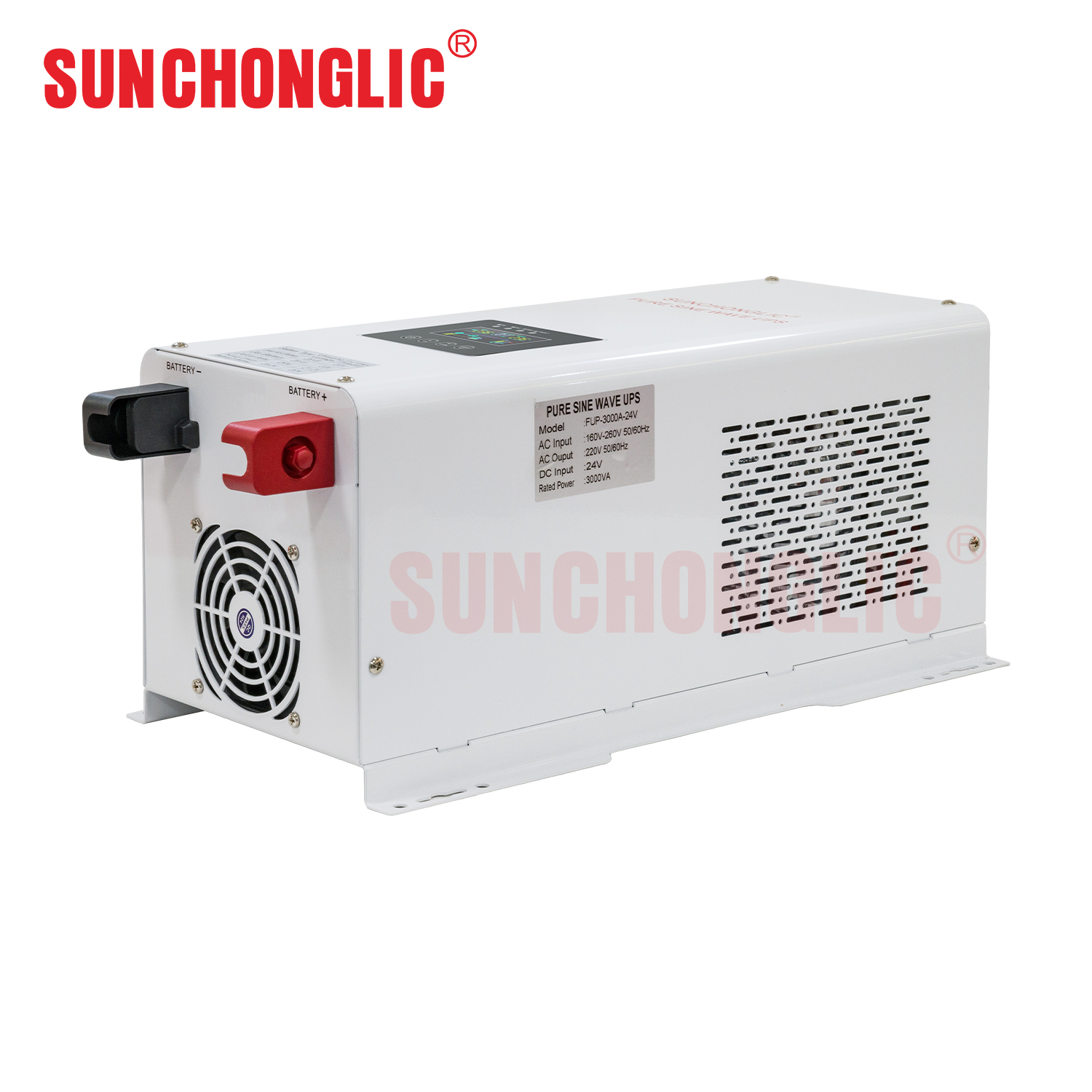

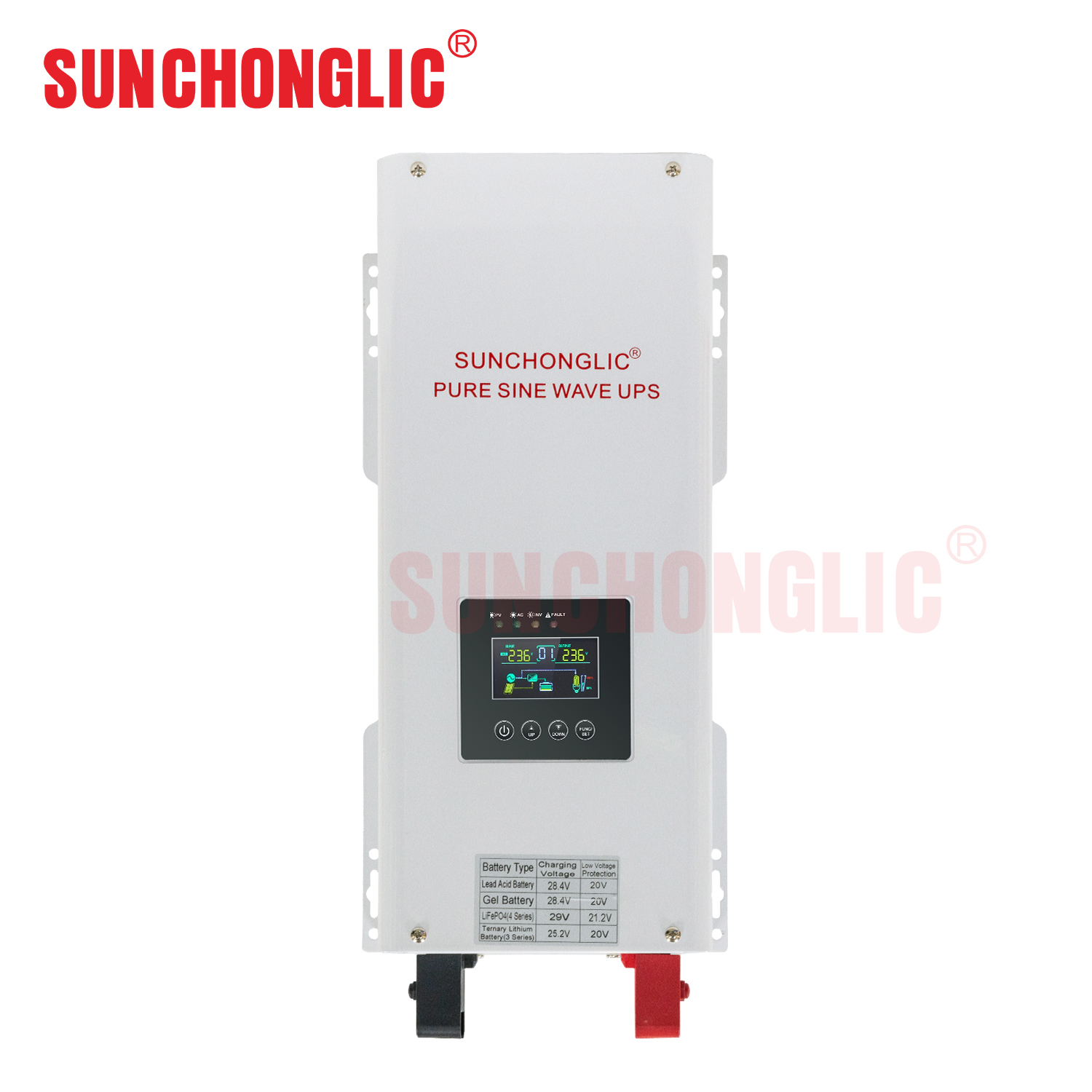

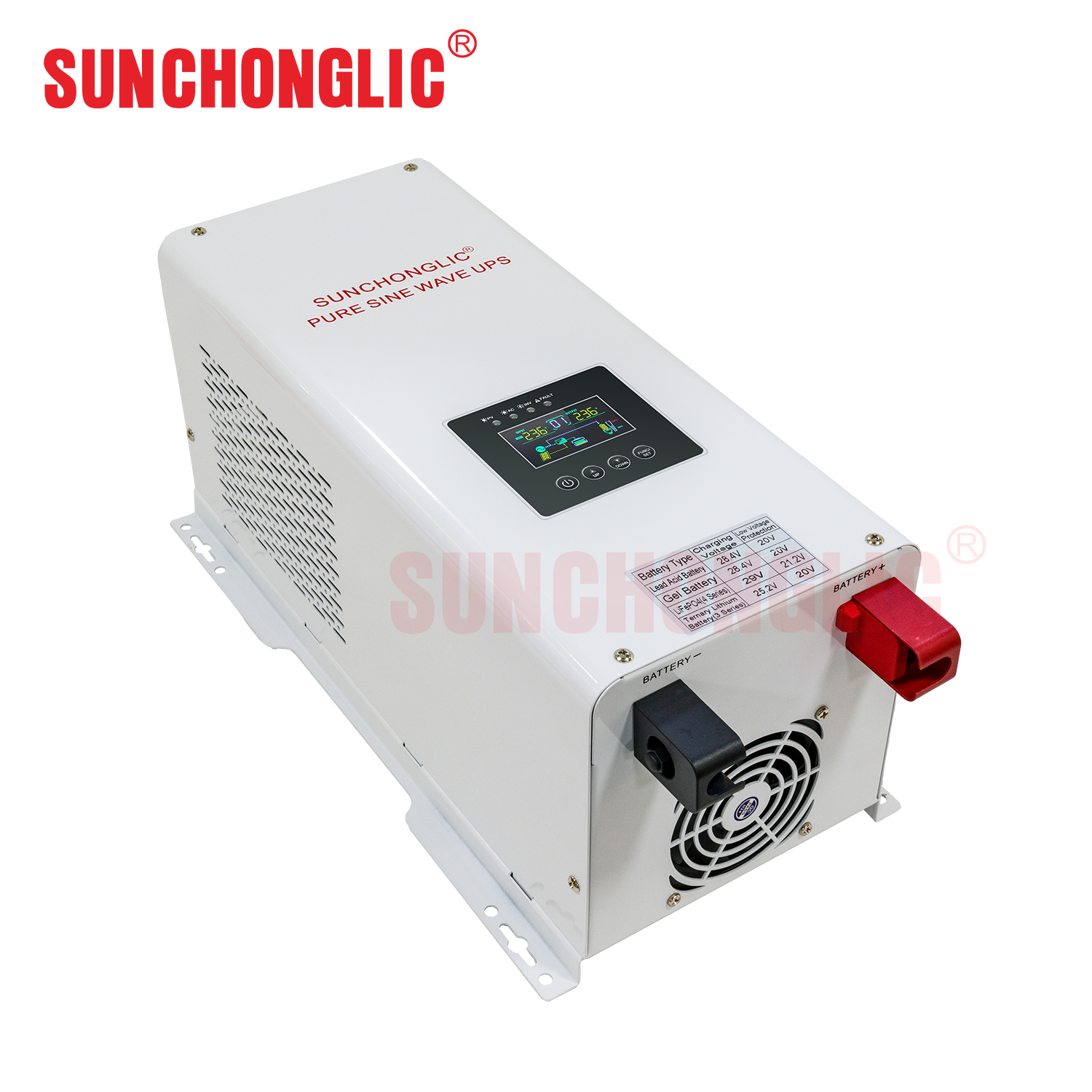

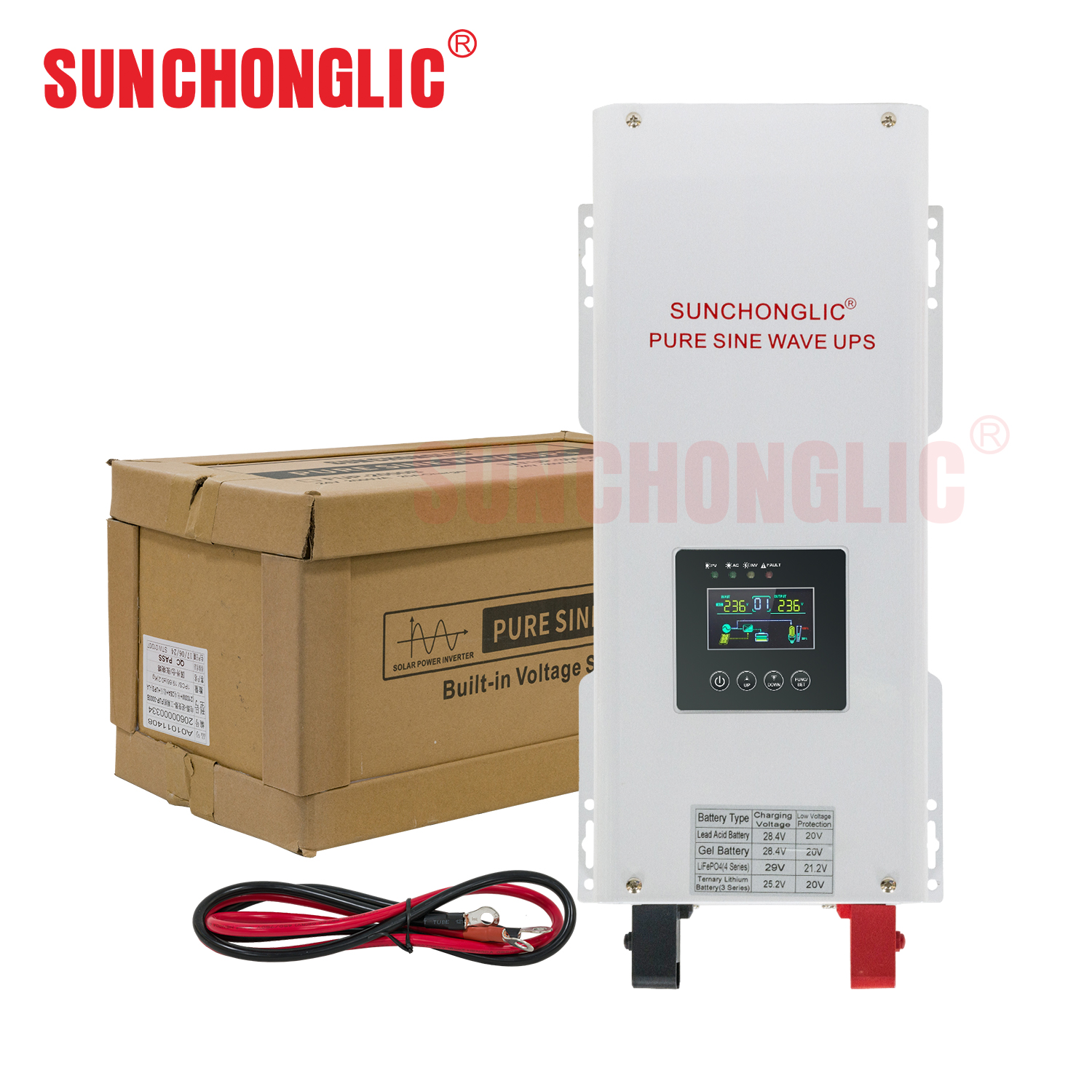

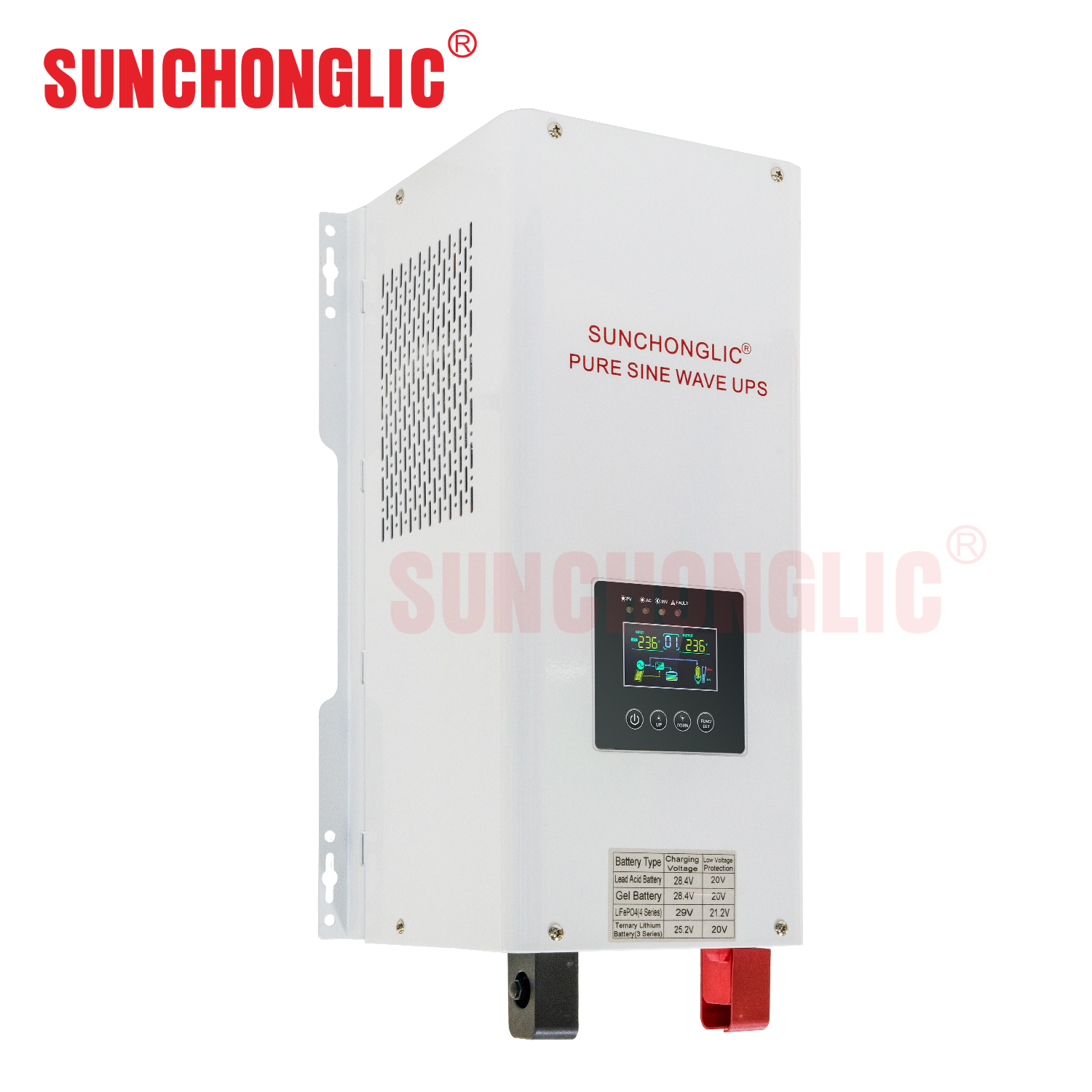

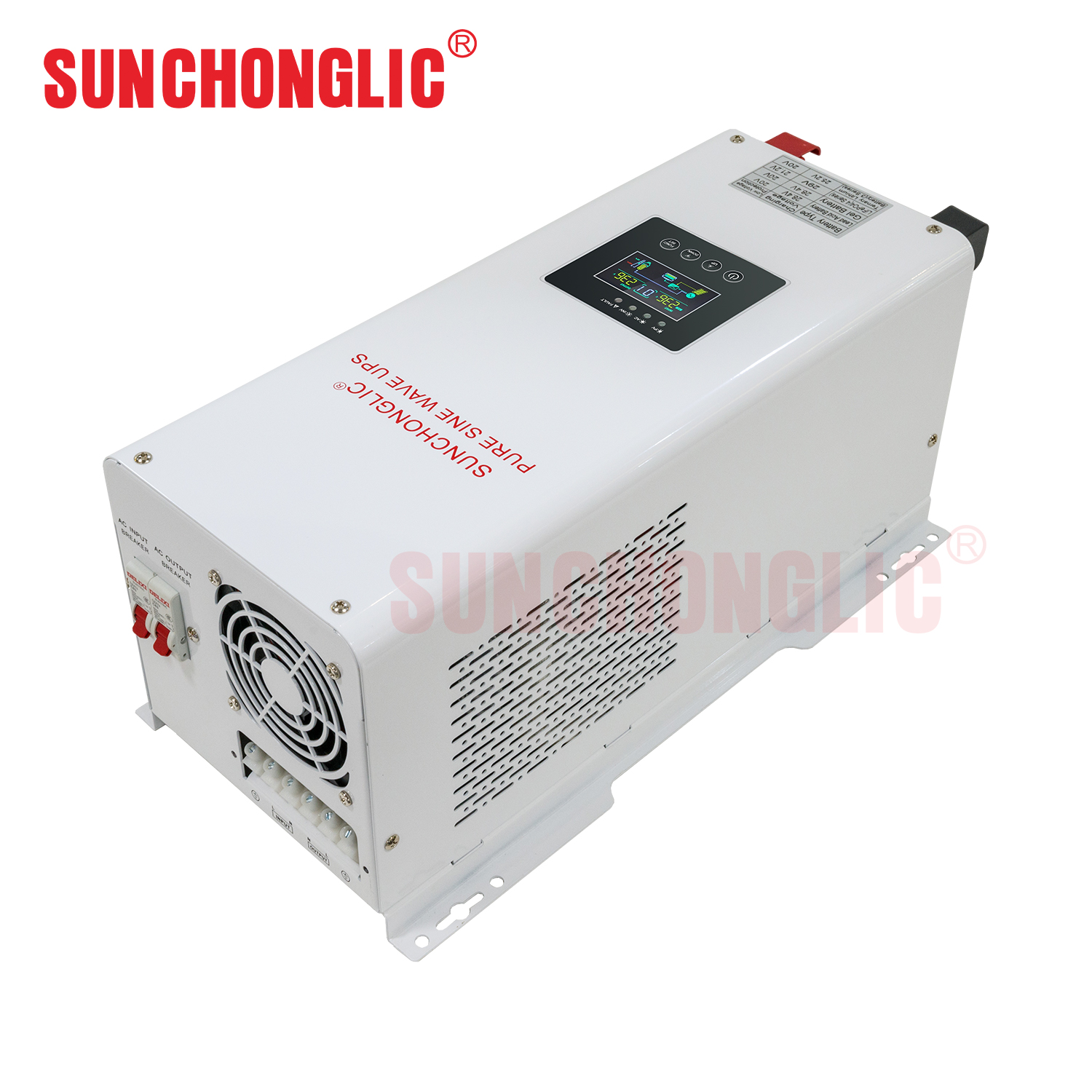

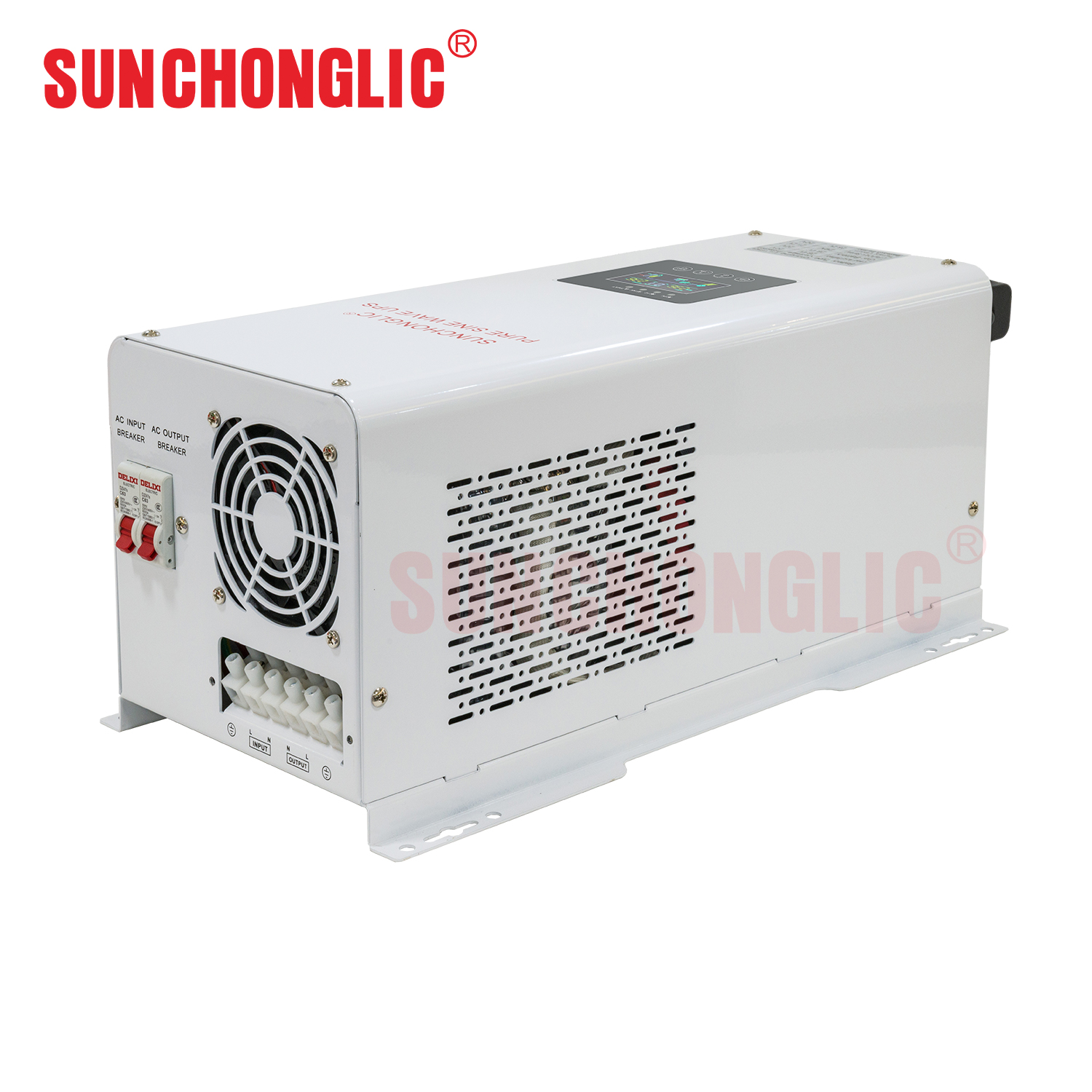

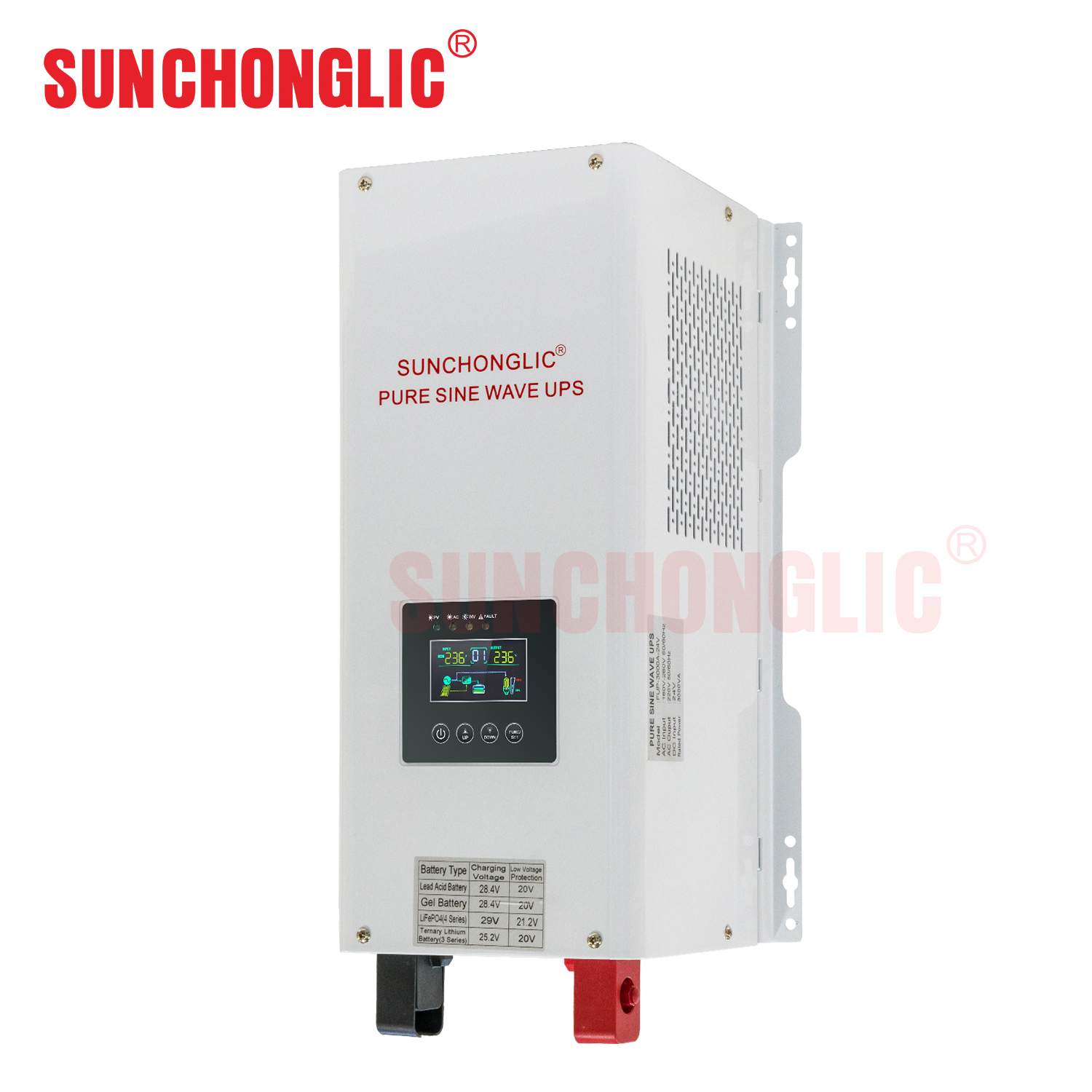

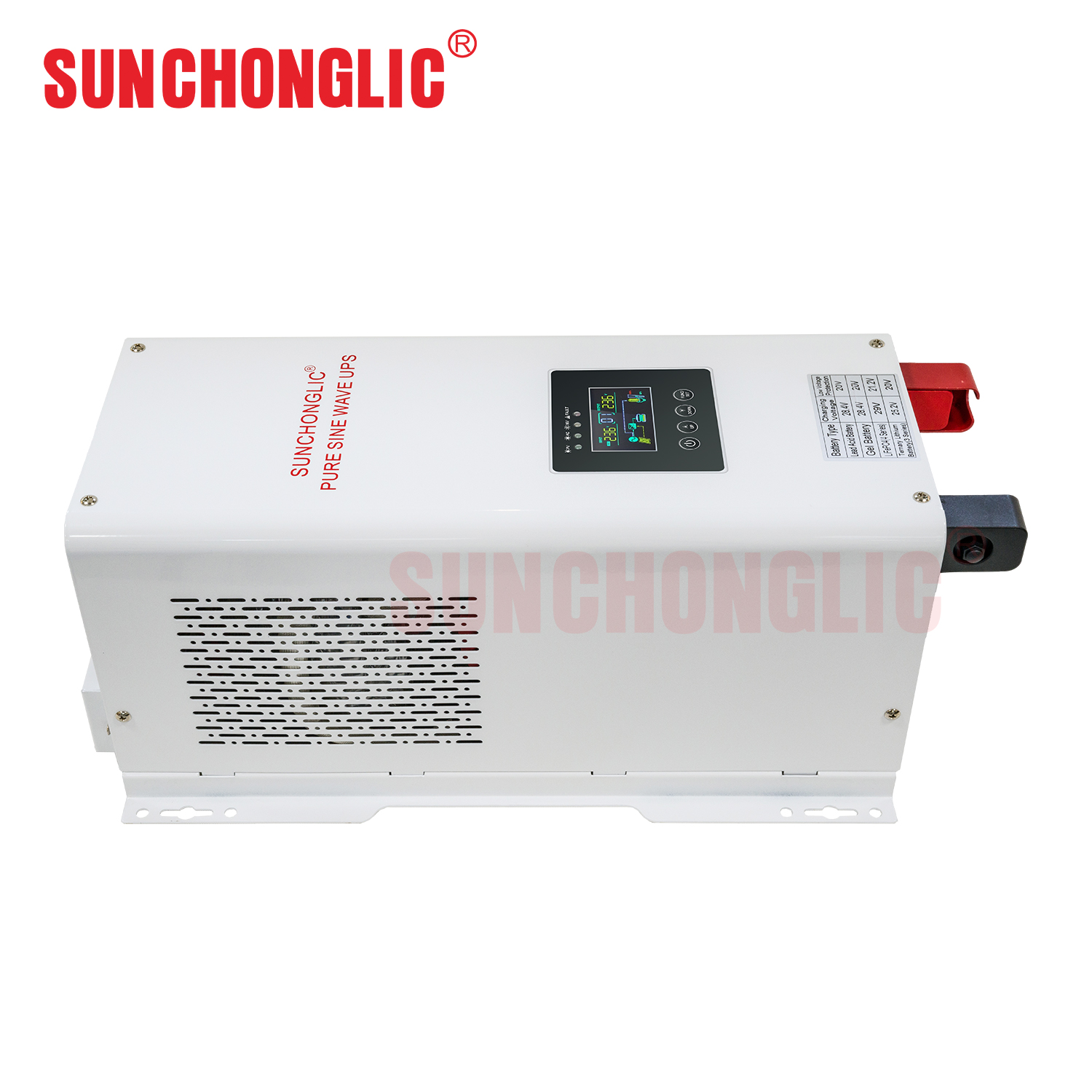

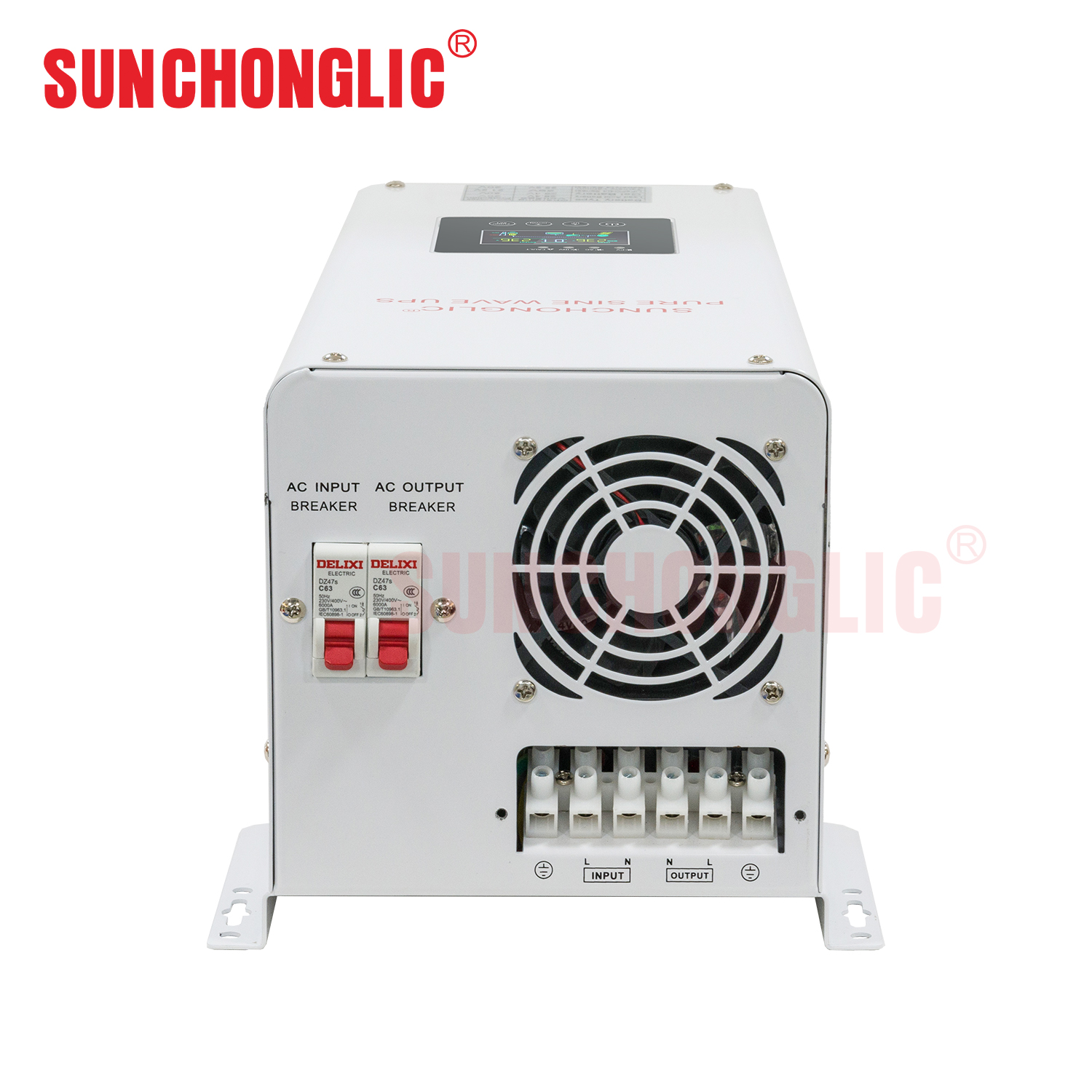

Sunchonglic 24V 3000va 2100W UPS pure sine wave low frequency solar power inverter charger with built in voltage stabilizer

FUP-3000B

UPS Charger Inverter

Features:

24V 3000VA pure sine wave UPS solar power inverter with 20A AC charger.

UPS power supply.

Automatic recharge.

Generator compatible.

Protection for overload.

Interruptible buzzer alarm.

Battery is not included.

LCD & status LED display.

Smart battery management.

Built-in AC charger and UPS.

High Reliability Microprocessor.

Heavy duty copper transformaer.

AVR(automatic voltage regulator.

Auto restart while AC is recovering.

Compatible with mains &generator.

INQUIRE NOW

SEND ENQUIRY

Specifications

Specification	Model	500VA	800VA	1000VA	1500VA	2000VA	3000VA
	Power	350W	500W	700W	1050W	1400W	2100W
Input	Voltage range	AC150-265V				AC160-260V
	Frequency range	50Hz/60Hz
Output	AC Voltage Regulation (Batt.Mode)	AC220V±25V
	Frequency range (Batt.Mode)	50Hz/60Hz
	Waveform	Pure Sine Wave
Battery	Battery Type(external)	12V				24V
	Rated battery voltage	12VDC（10-16V）				24VDC(20-32V)
	Charge Modes	3 stage;bulk,boost,float
	Charging current	DC15A		DC20A
	Protection	Overload,Overheat,Output high/low voltage,Battery low voltage,Short-circuit,Over-charge,Over-discharge
General characteristics	Switch time	10ms
	Operating Humidity	10-90%
	Operating Temperature	0℃+40℃
	Class Protection	IP20
	Dimension DxWxH(mm)	335x148x208		335x160x237		440x228x200
				325x320x150		465x320x200
MPPT(Optional)	PV array Input Voltage	12V(18-98V)				30V-180V
	Solar charging current	30A					60A

Video Presentation

This 24V 3000VA pure sine wave inverter combines with UPS function and 20A AC charger, providing reliable power conversion and backup. It's designed to work seamlessly with solar power systems, ensuring a stable and efficient energy supply. The pure sine wave output guarantees compatibility with sensitive electronics, while the built-in AC charger offers convenient recharging options. Ideal for both off-grid and backup power applications..
