Sunchonglic charger controller 12V 24

FT-M1260

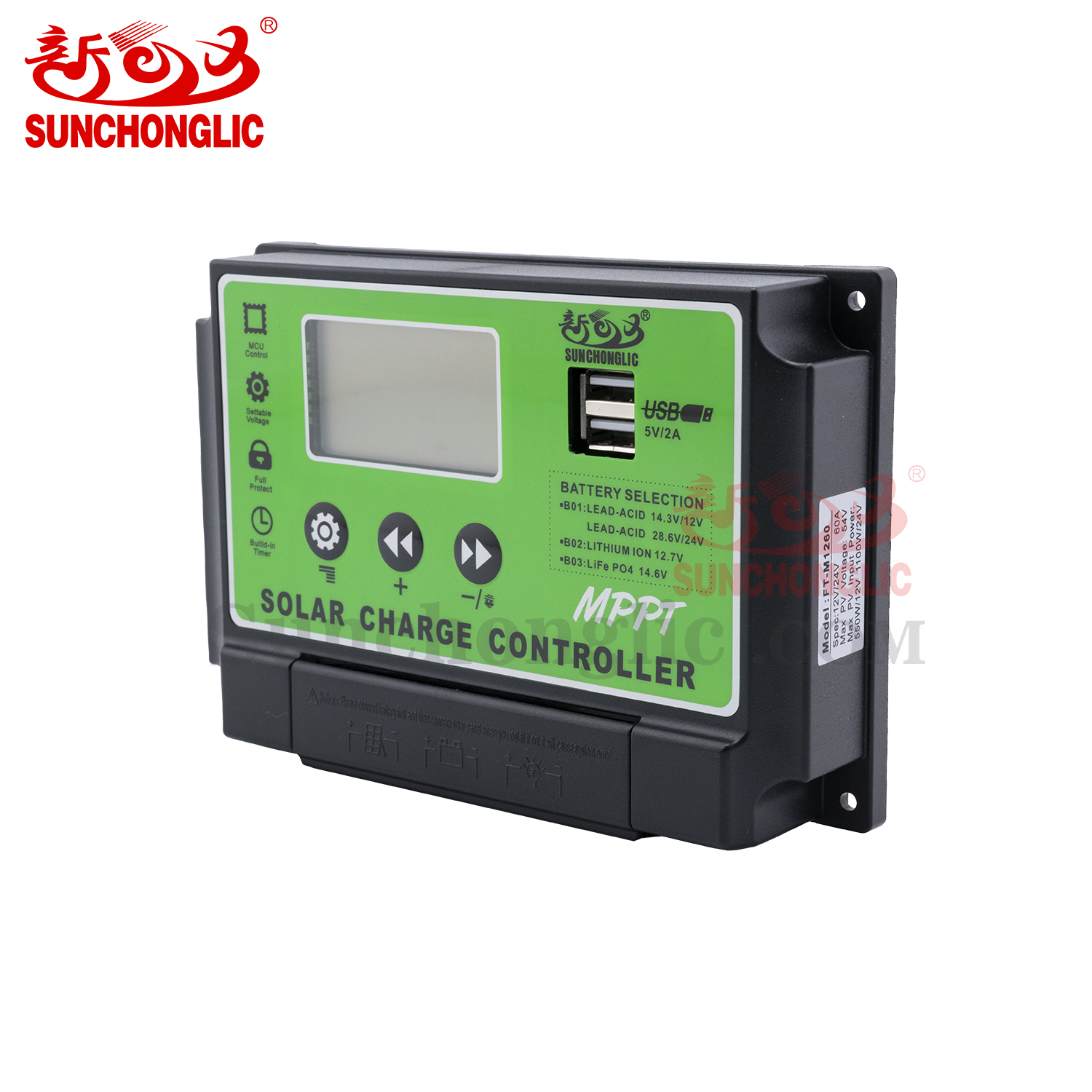

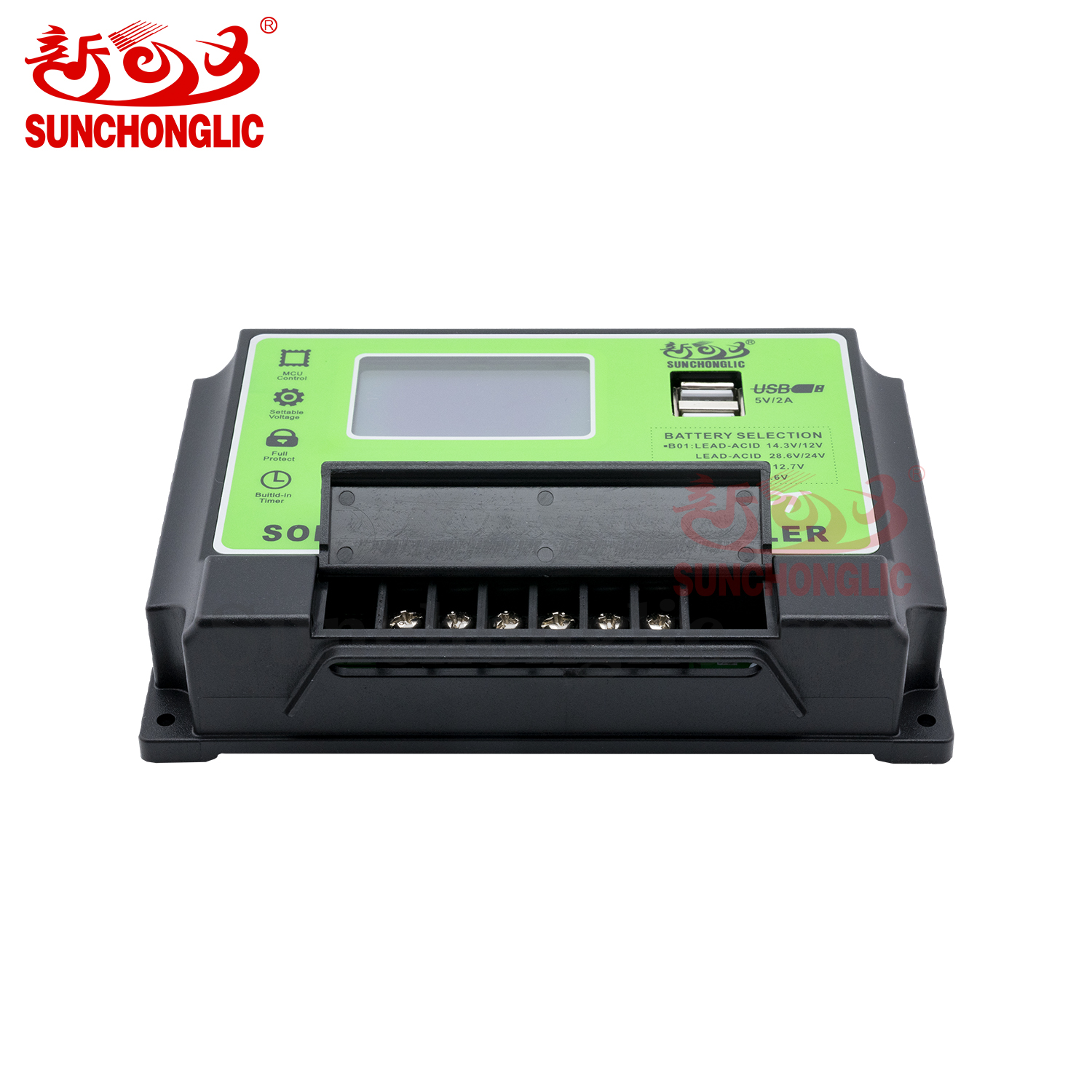

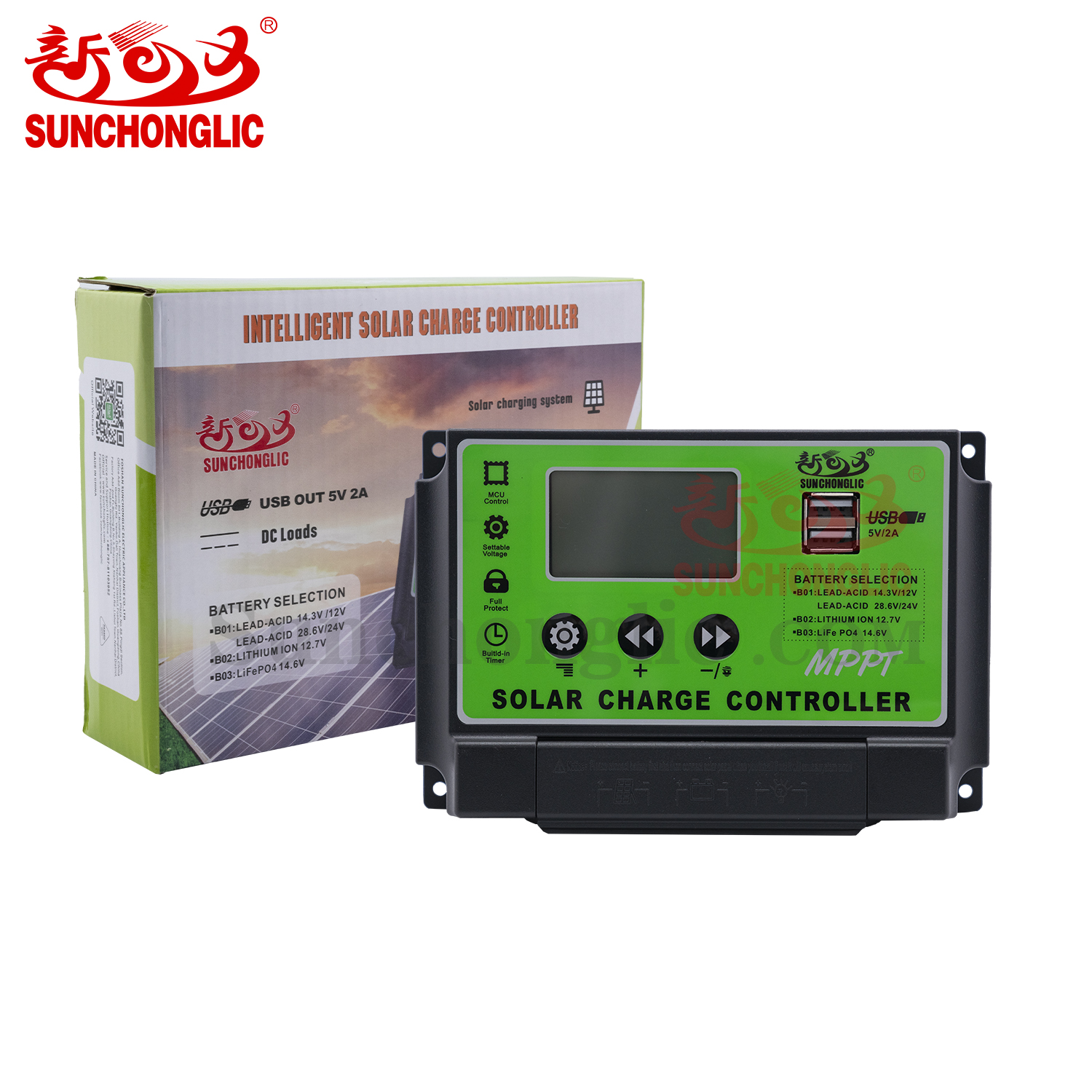

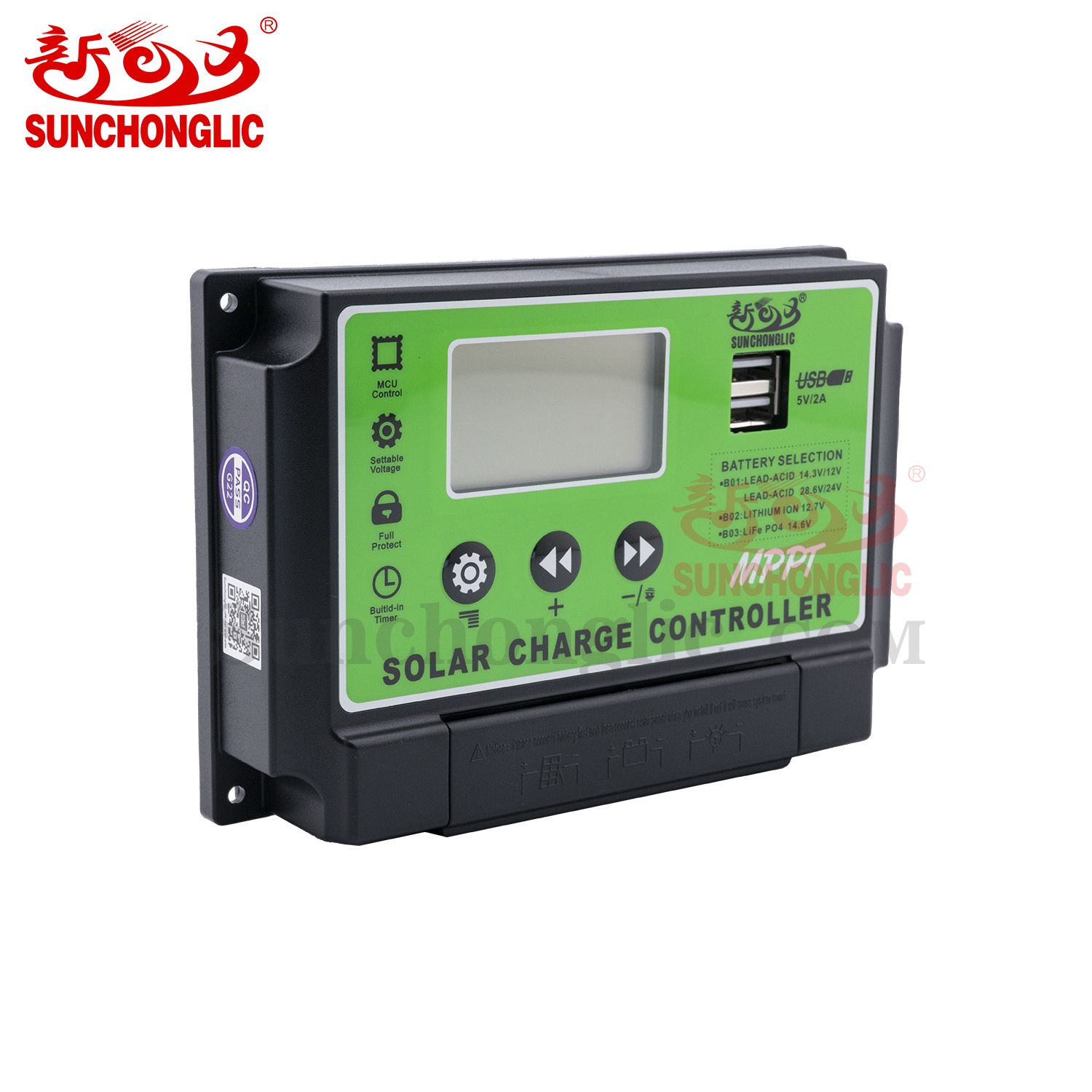

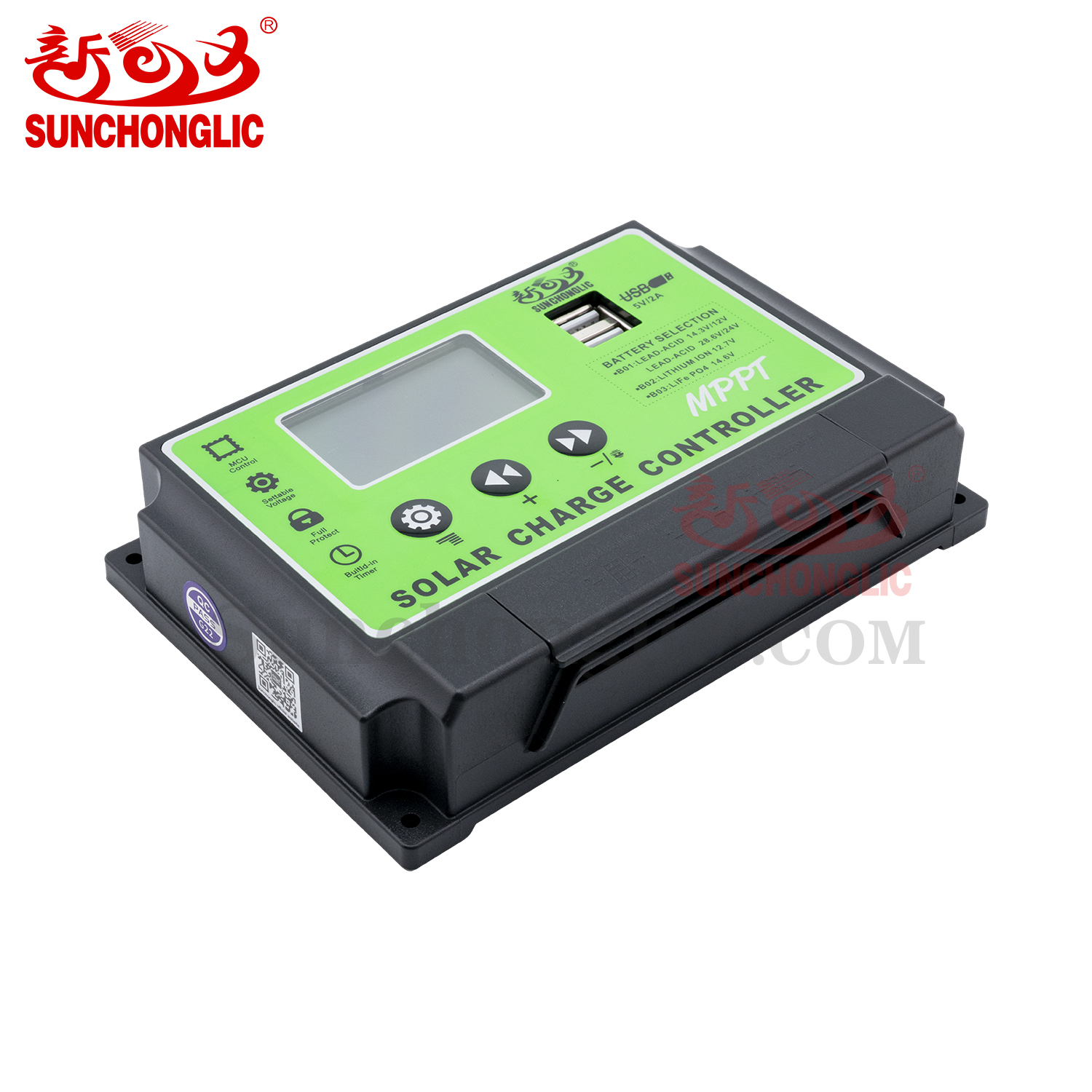

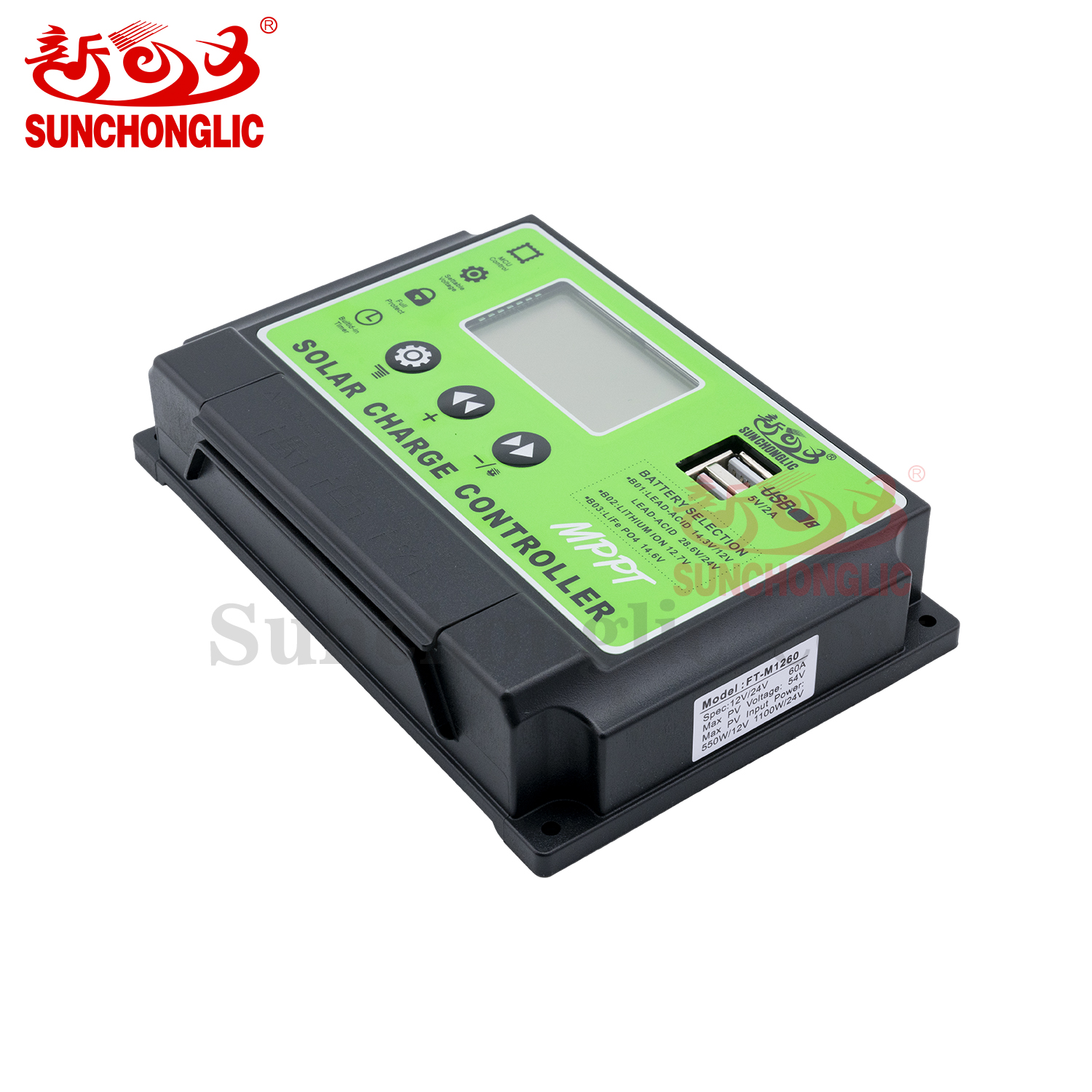

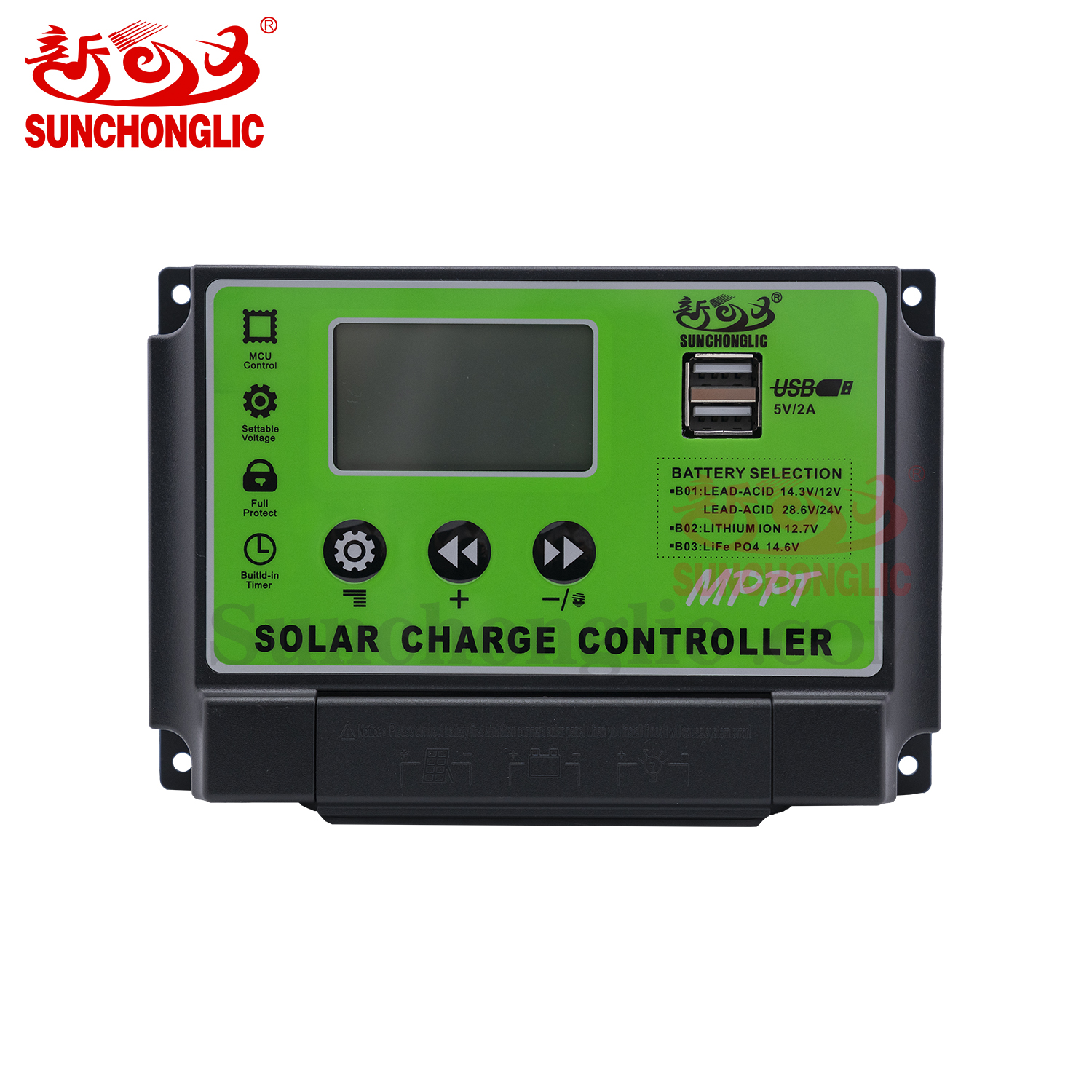

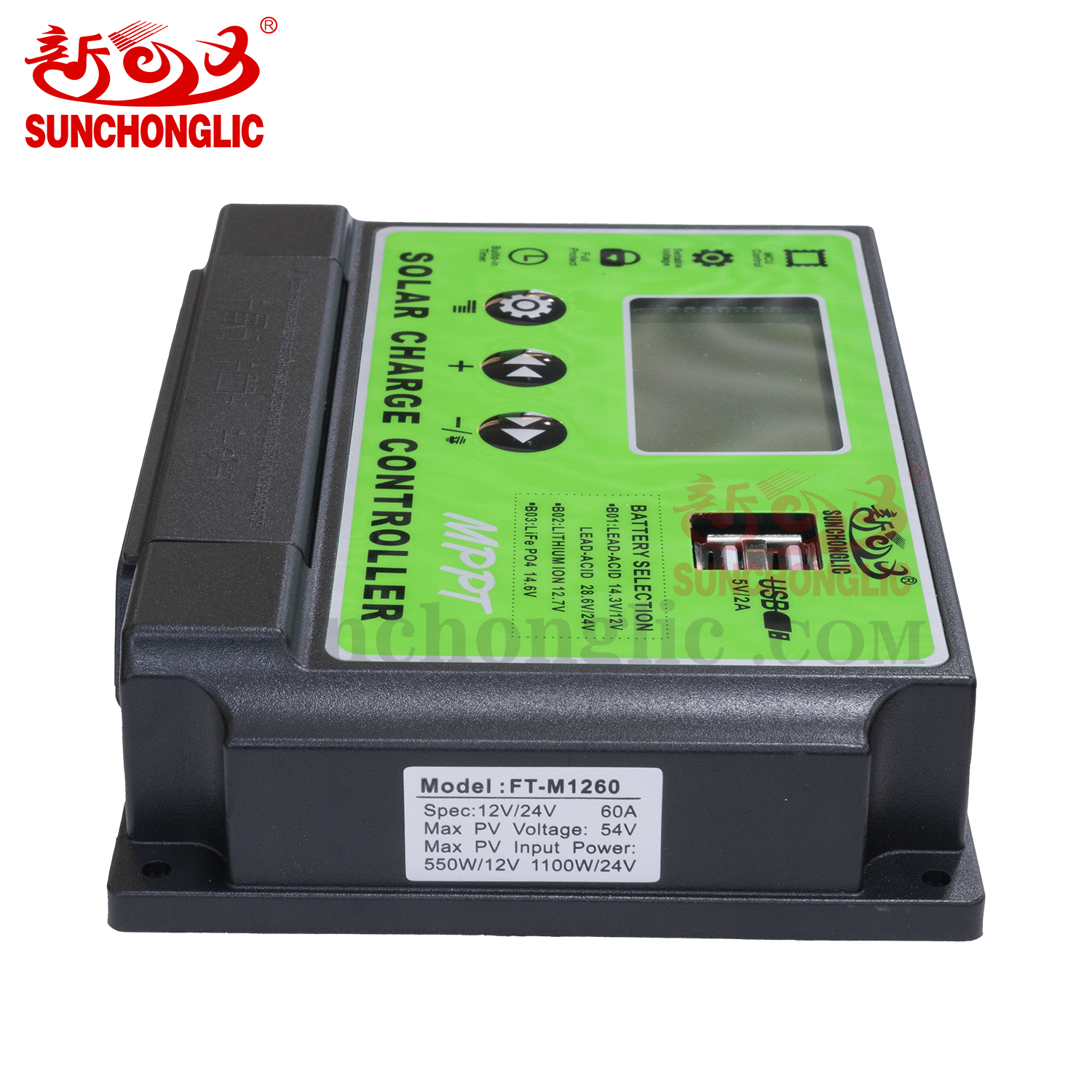

MPPT Solar Charge Controller

Applicable for 3 types of batteries:B01 Lead acid batttery,B02 Lithium ion battery,B03 Lithium iron phosphate battery

Power-cut memory function.The power-cut memory function can automatically memory retention of users' last settings

Large-screen LCD display

Dual 5V 2A USB output

Multiple protections.Overcurrent protection, Short circuit protection, Open ciruit protection and Battery reverse protection

INQUIRE NOW

Product Specification
Model	FT-M1240	FT-M1250	FT-M1260
System Voltage	12V/24V
Maximum PV input voltage	<54V
Rated current	40A	50A	60A
External 12V battery recommended solar panel specifications	500-600W/18V	700-800W/18V	800-900W/18V
External 24V battery recommended solar panel specifications	1000-1300W/36V	1500-1600W/36V	1800-2000W/36V
External battery	12V 150-200Ah
External battery	24V 150-200Ah
Battery Type(24V*2)	B01=Lead Acid Battery 12V
	B02=Lithium-ion battery 3 series 3.7V=11.1V
	B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V
Charging voltage(24V*2)	14.3V(B01)	12.6V(B02)	14.6V(B03)
Low-voltage cut off voltage(24V*2)	10.7V(B01)	9V(B02)	10V(B03)
Low power recovery voltage(24V*2)	12.6V(B01)	10.5V(B02)	12V(B03)
USB Output	5V/2A
Standby current	<10mA
Working temperatue	-35℃~+60℃
Size / Weight	/
