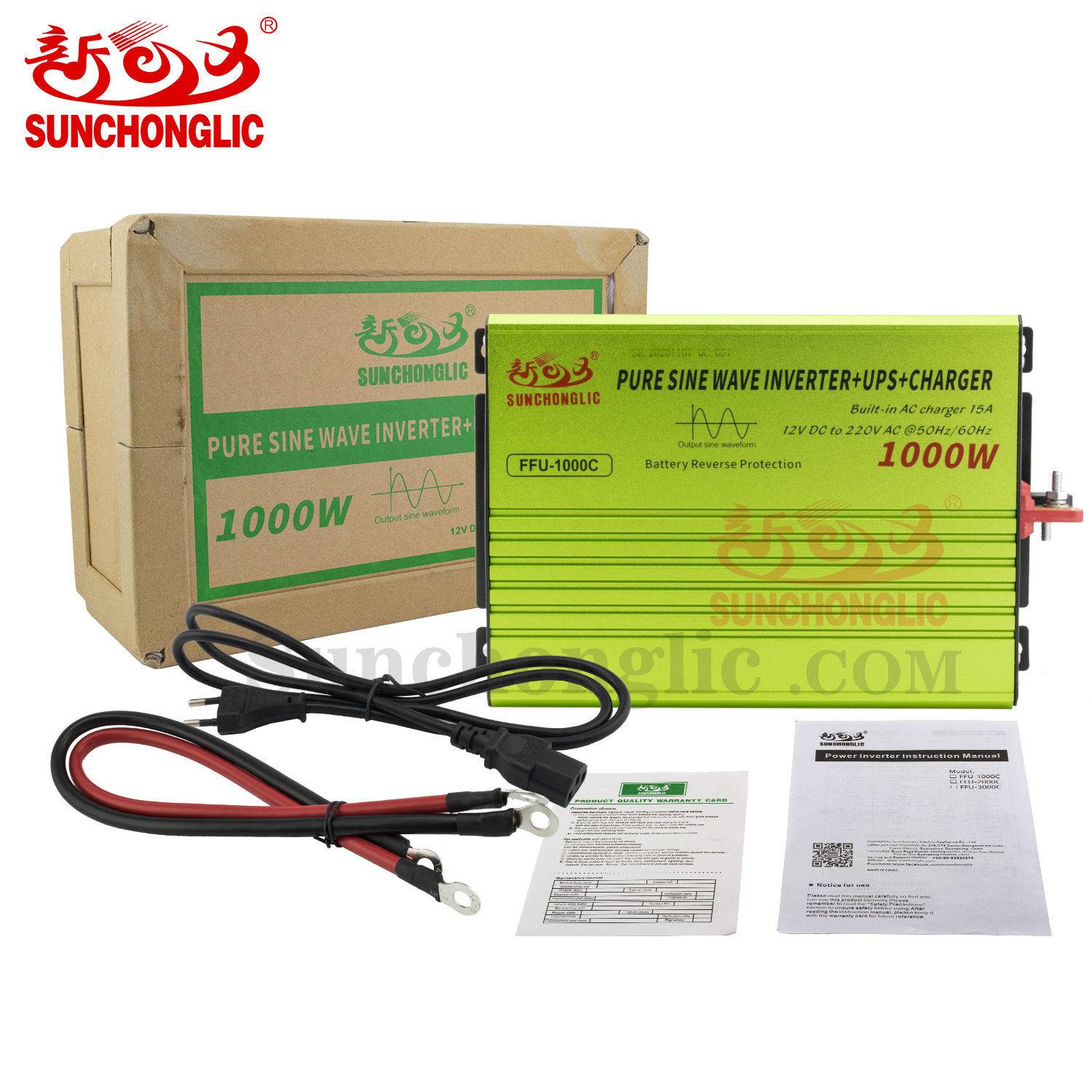

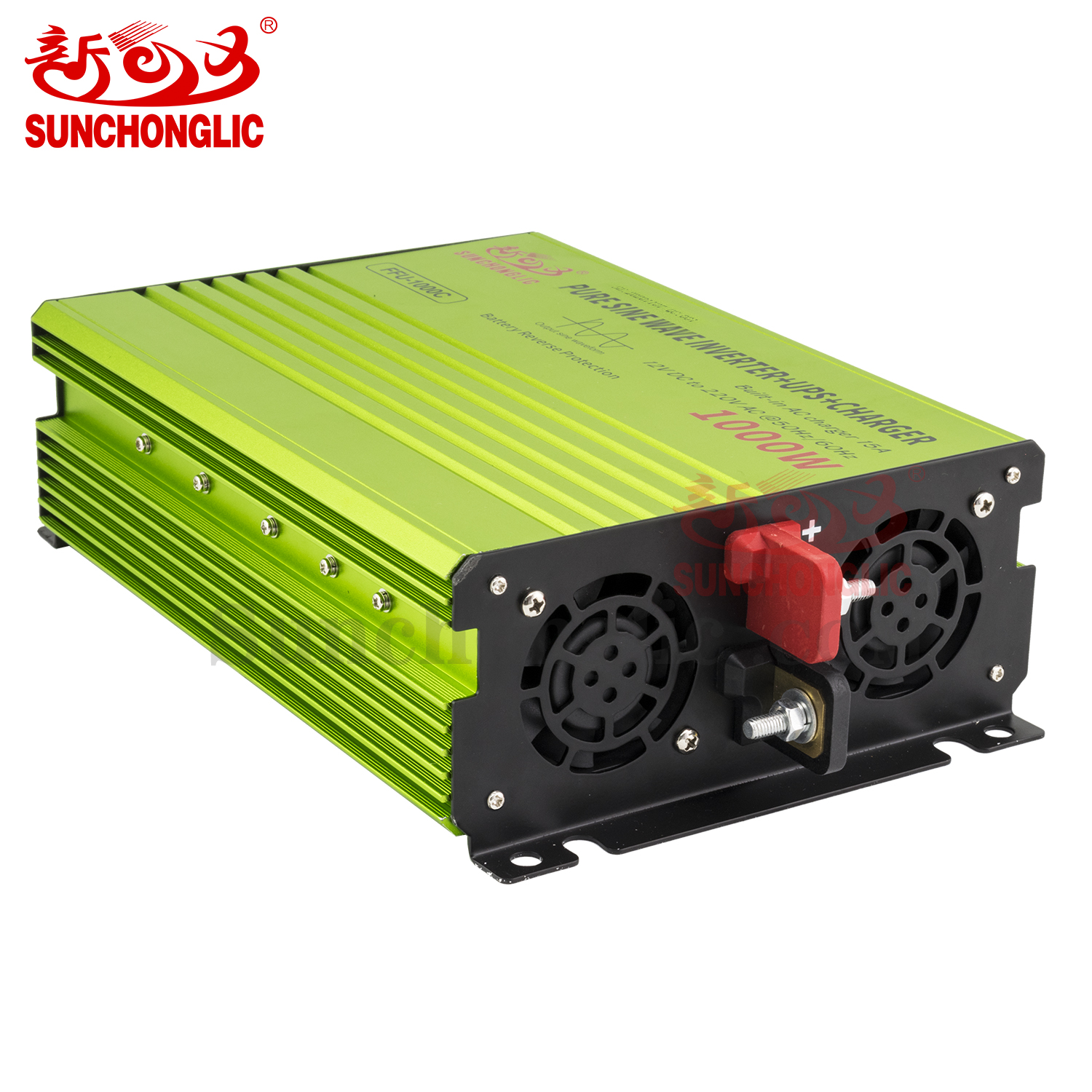

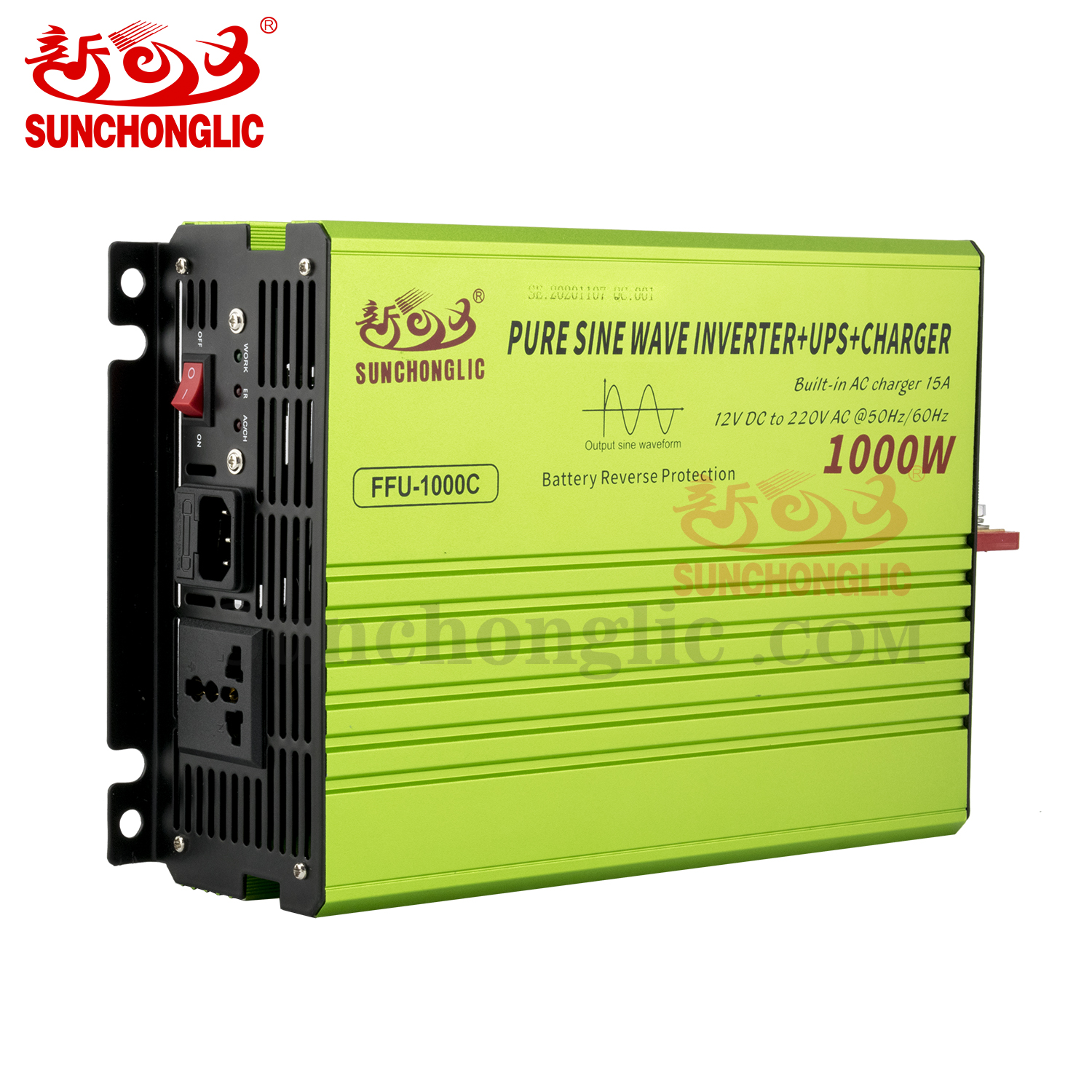

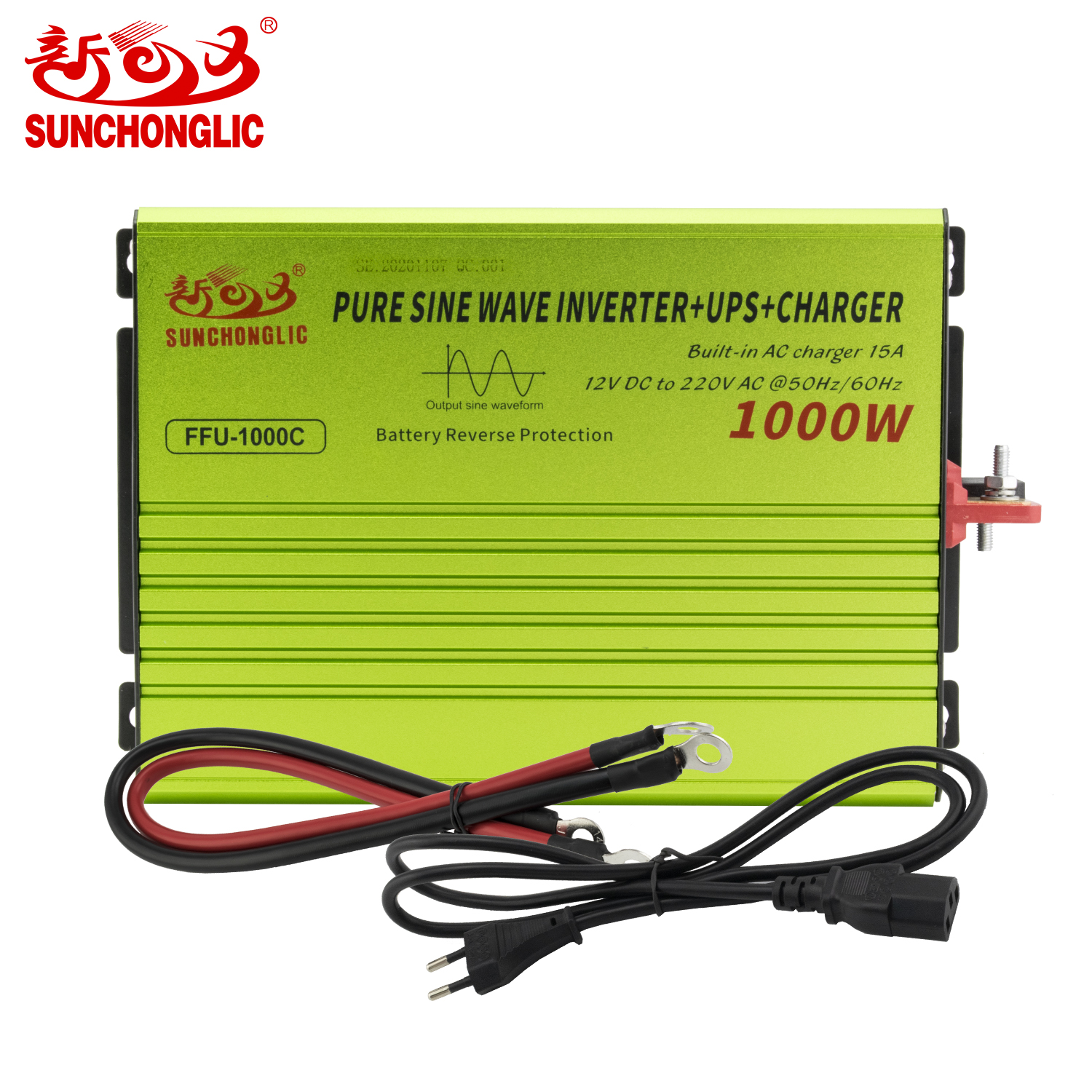

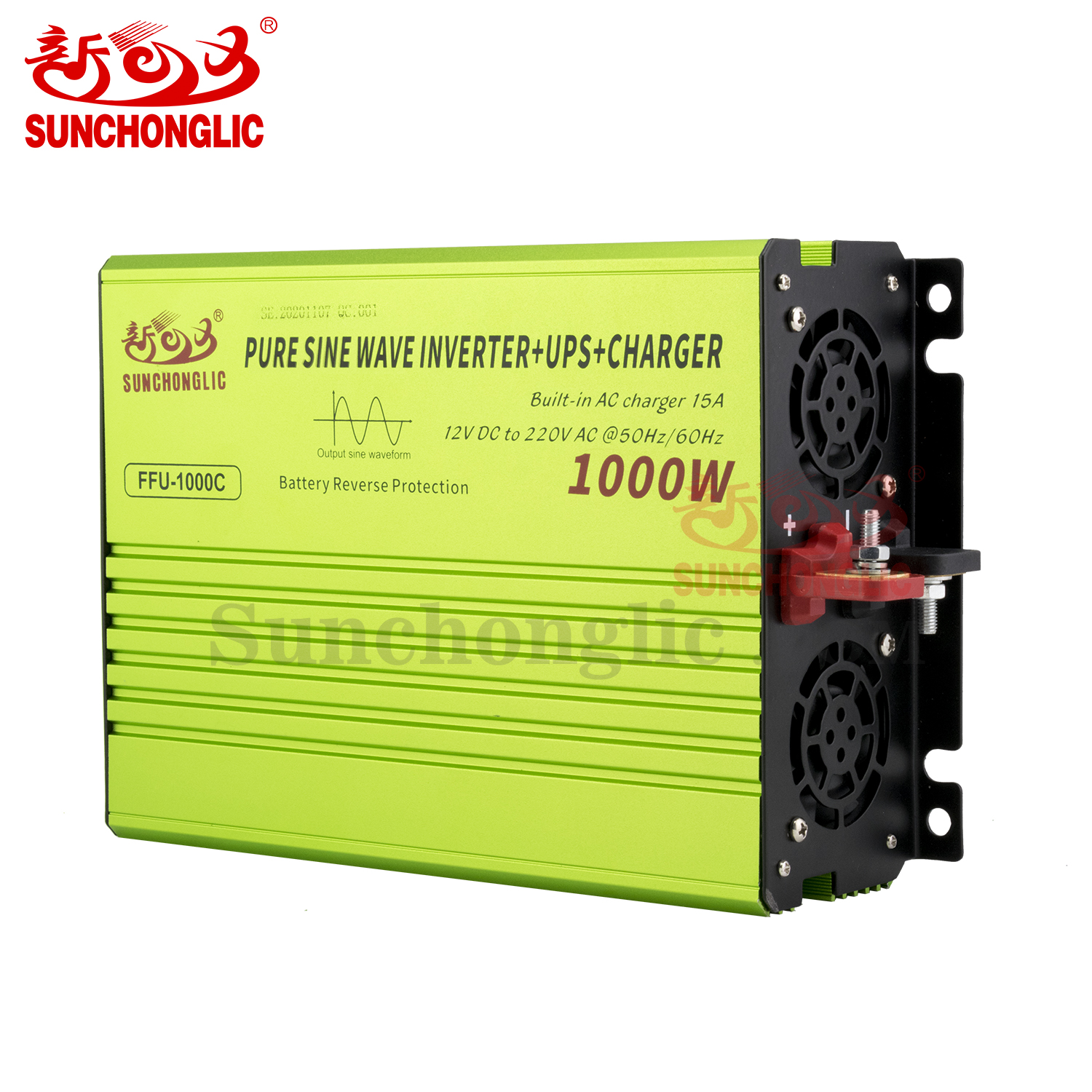

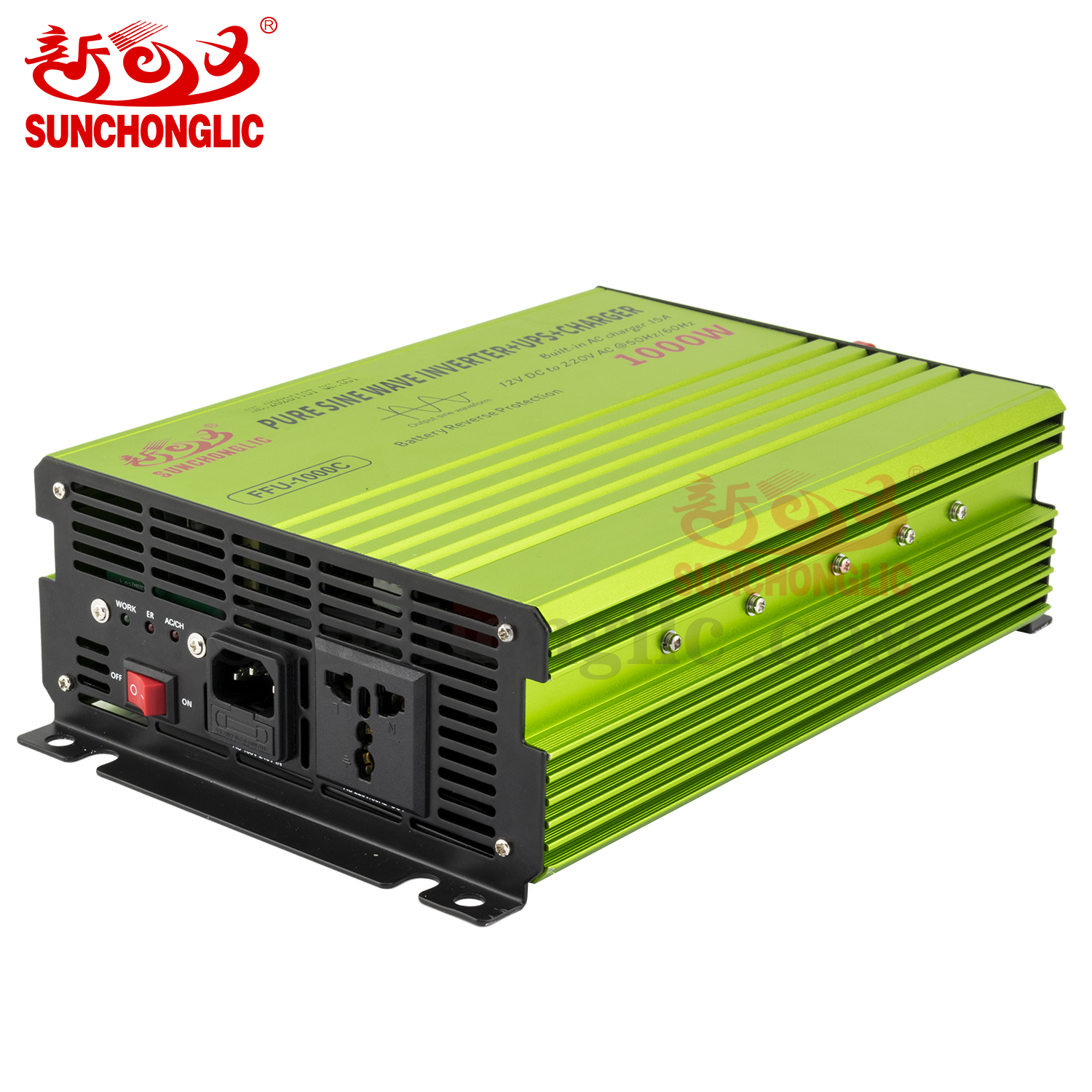

Sunchonglic 1000w 12V 220V pure sine wave inverter UPS 1KW with 15A AC charger

FFU-1000C

UPS Charger Inverter

Features:

Perfect sine waveform output

Built-in 15A AC battery charger

Battery reverse protection

Mains frequency 50Hz/60Hz auto sense

Auto UPS power supply switch

12V DC to 220V AC output

(THD<3%)Pure sine waveform output(THD<3%)

Instantaneous Power is up to 2000w

Efficiency is up to 91%

Adopt topology design of resonant soft switch technology

Full digital control

Multi-channel temperature control collection

Multiple safe protections:Battery low voltage alarm/Battery low voltage shutdown /Output short circuit/Overload/Overvoltage/Over temperature protection

Application: Home appliances, electric tools, office and portable equipment, vehicles and yachts, etc

Built-in utility charging and UPS functions, Mains first with AC charging

INQUIRE NOW

SEND ENQUIRY

Specifications

Model		FFU-1000C	FFU-2000C	FFU-3000C
AC Output	Input Power	AC 220V	AC 220V	AC 220V
	Output Power	1000W	2000W	3000W
	Peak Power	2000W	4000W	6000W
	Frequency	50/60Hz ± 0.1Hz Auto Sense	50/60Hz ± 0.1Hz Auto Sense	50/60Hz ± 0.1Hz Auto Sense
	Waveform	Pure sine waveform output(THD<3%)
	Switch Time	5ms
DC Input	No-load current	<1A	<1A	<1 A
	Working voltage	DC 12V	DC 12V	DC 12V
	Voltage range	9.5~14.5V	9.5~14.5V	9.5~14.5V
	Alarm voltage	10V +4%	10V +4%	10V+4%
	Low voltage protection	9.5V ± 4%	9.5V ± 4%	9.5V ± 4%
	DC current	94A	94A	94A
	Maximum power	89%	89%	89%
	No-load loss	≤10W @Standby mode
	Shutdown mode	≤0.1mmA
	Battery type	Lead-acid battery
AC charger	Mains input voltage	170-250V AC	170-250V AC	170-250V AC
	Charging Current (Max)	15A	20A	30A
	Charging voltage	13.7V-14.7V	13.7V-14.7V	13.7V-14.7V
