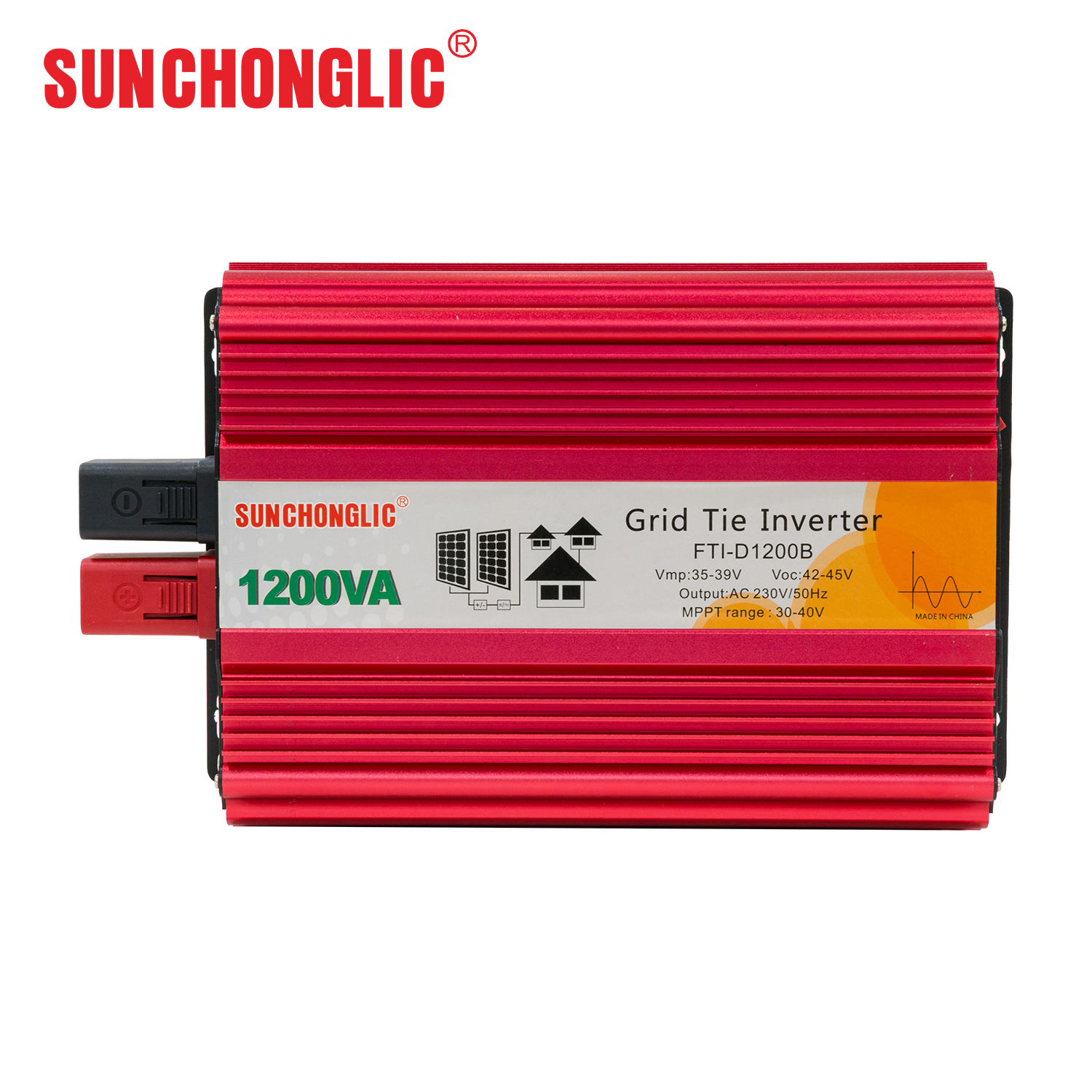

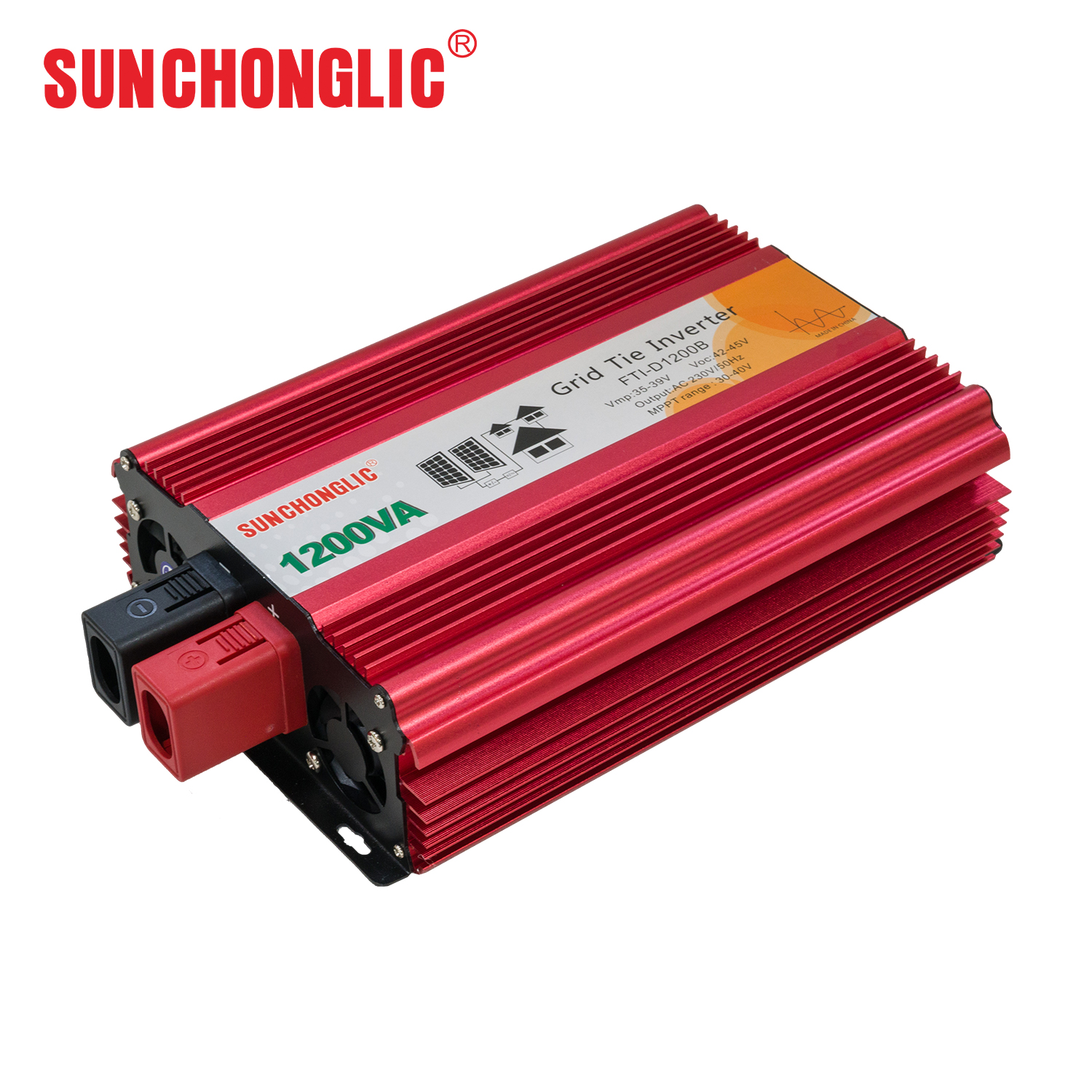

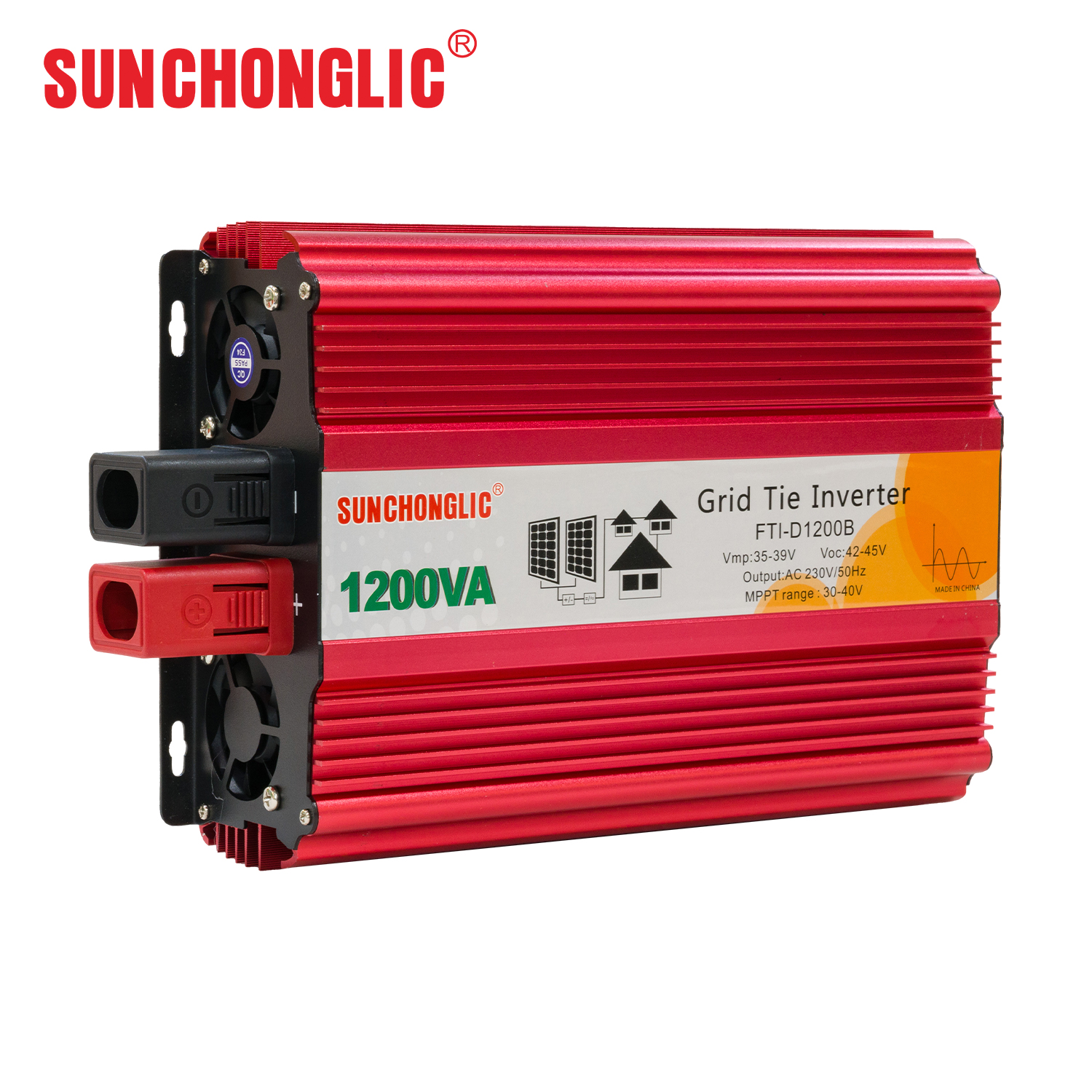

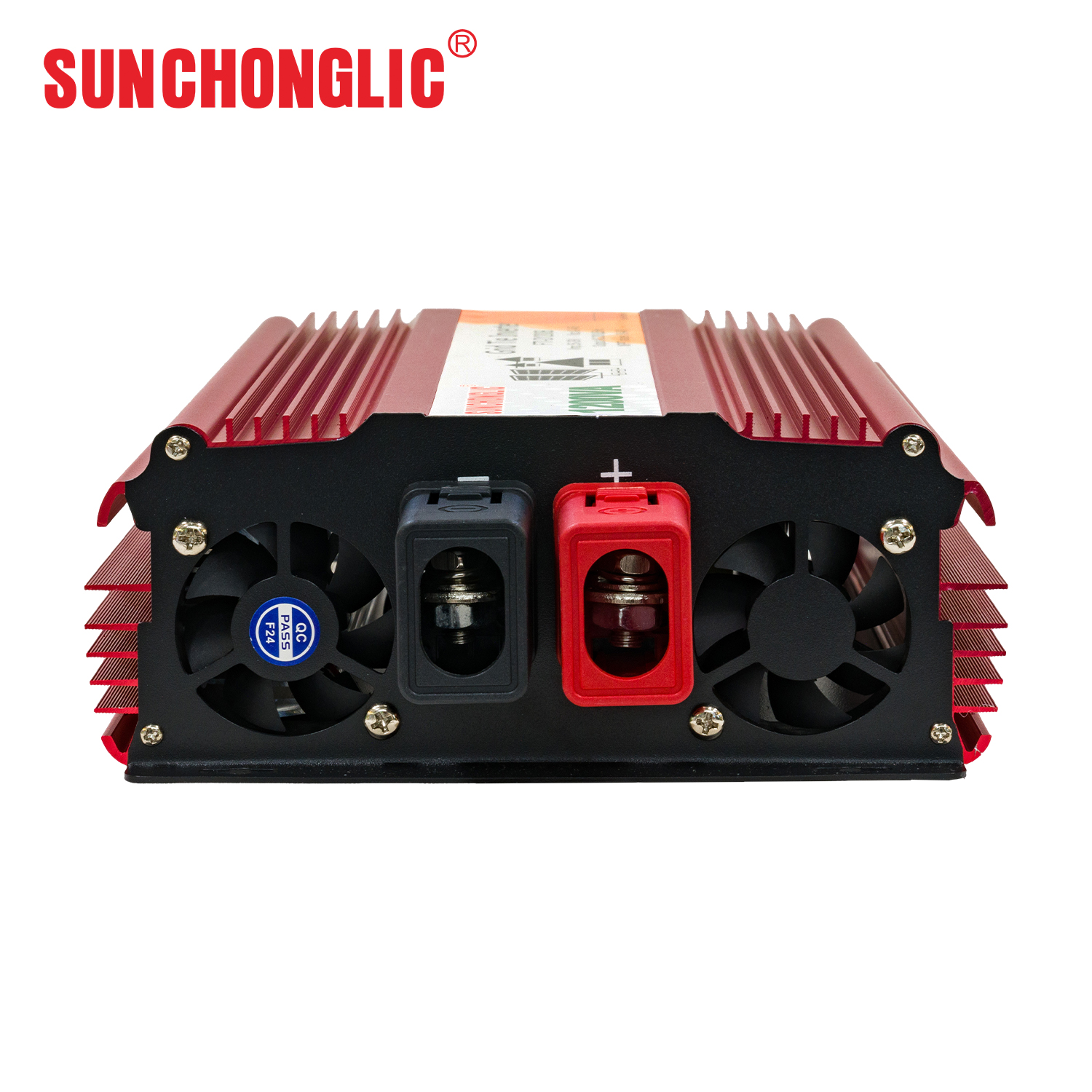

Sunchonglic 1200va 1200 watt 1200w solar on grid tied inverter

FTI-D1200B

Grid Tie Inverter

Compatible with Multi-parallel inverters

Anti-islanding protection,frequency protection

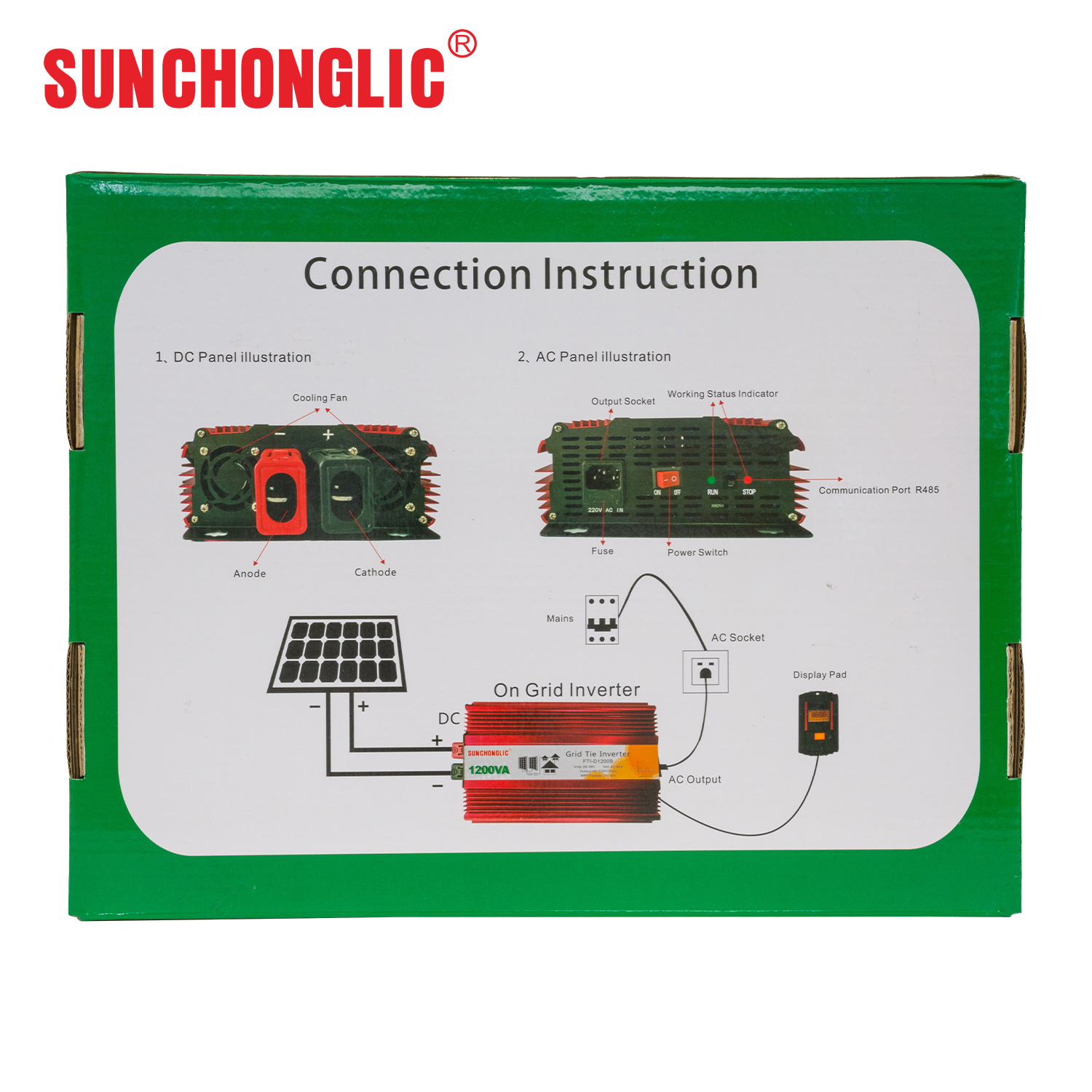

Adopt specialized wiring terminal, greatly improve reliability and safety performance

Small power grid-tie inverter can be parallerled to obtain large power output

Low standby power consumption, high conversion efficiency

Cooling fan is controlled and regulated by load power and temperature

Intelligent MPPT charge technology

Multiple inverters are compatible in the parallel, small power inverters can provide high power output

INQUIRE NOW

Product Specification
Model	FTI-D600B	FTI-D1000B	FTI-D1200B
Output Power	500W	950W	1200W
Voltage of solar panel	Vmp:35-39V,Voc:42-45V
Recommended power of solar panel	600-650w	1000-1100w	1000-1200w
MPPT Voltage Range	30-40V
AC Voltage Range	190-260V
Voltage frequency range of electric network	50HZ±1%
Power factor	>97.5%
MPPT Efficiency	>99%
Total Harmonic distortion	<5%
Phase Shift	<2%
Conversion Efficiency	>86%	>85%
Maximum Efficiency	>89%
Protection function	AC over/low voltage protection;input high/low voltage protection;high temperture protection;island protection;frequency protection,etc.
Working Temperature	-20℃-45℃
Waterproof level	Design for interior
Cooling Method	Controlled by smart fan
Standby Power	2-3W
Display mode	Grip of LED+LCD screen display
