FTI-D600B

Sunchonglic 24V 220V 600w Pure Sine Wave On Grid Tie Inverter

FTI-D600B

Grid Tie Inverter

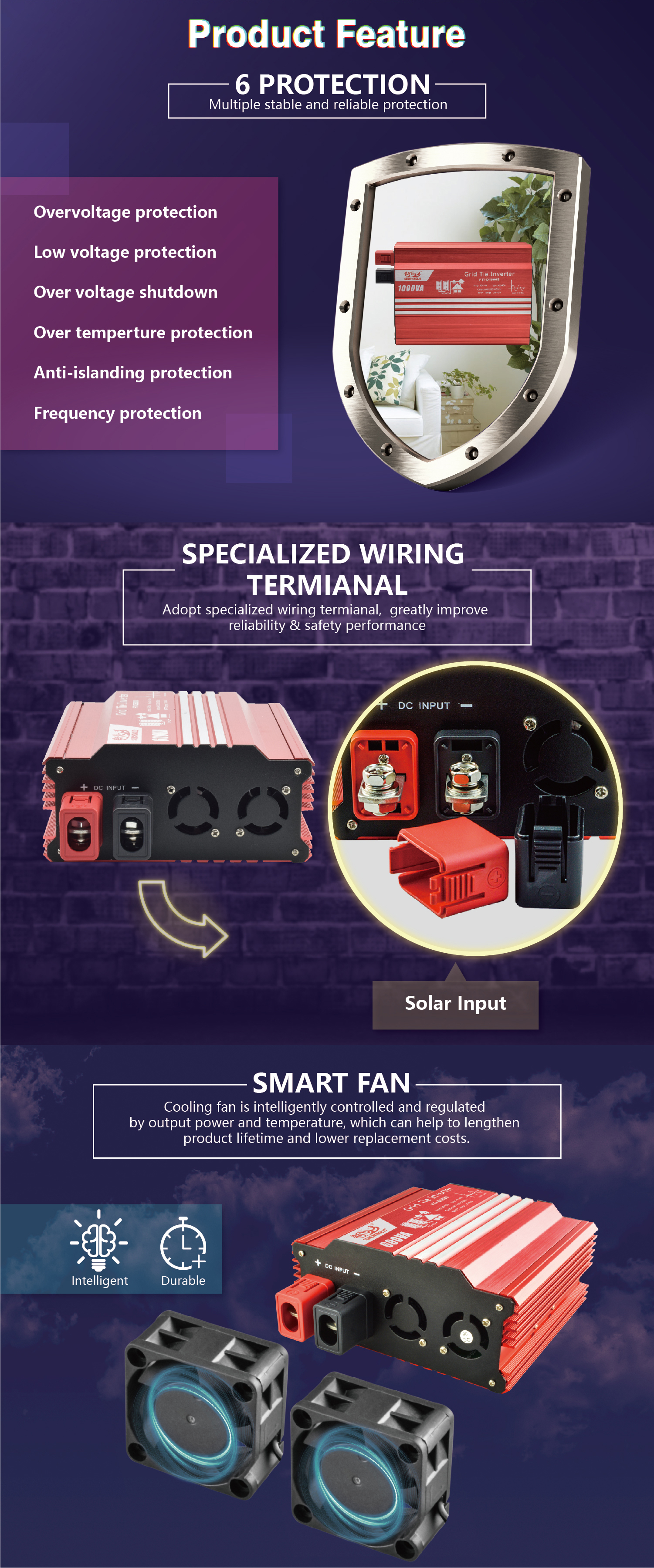

Features:

Compatible with Multi-parallel inverters

Anti-islanding protection,frequency protection

Adopt specialized wiring terminal, greatly improve reliability and safety performance

Small power grid-tie inverter can be parallerled to obtain large power output

Low standby power consumption, high conversion efficiency

Cooling fan is controlled and regulated by load power and temperature

Intelligent MPPT charge technology

Multiple inverters are compatible in the parallel, small power inverters can provide high power output

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Product Specification
Model FTI-D1000B FTI-D600B
Output Power 1000W 600W
Solar Panel Vmp:35-39V,Voc:42-45V
MPPT Voltage Range 30-40V
AC Voltage Range 190-260V
Volatge Frequency  50HZ±1%
Power factor >97.5%
MPPT Efficiency >99%
Total Harmonic (THD) <5%
Phase Shift <2%
Conversion Efficiency >85% >86%
Maximum Efficiency >89% >89%
Operating Temperature -20℃-45℃
Waterproof Rate Interior Design
Cooling Mode Intelligent design of the electric fan control system
Standby Power Loss 2-3W
Product Size 257*195*88.5mm 210*195*88.5mm

Compatible with Multi-parallel inverters

Anti-islanding protection,frequency protection

Adopt specialized wiring terminal, greatly improve reliability and safety performance

Small power grid-tie inverter can be parallerled to obtain large power output

Low standby power consumption, high conversion efficiency

Cooling fan is controlled and regulated by load power and temperature

Intelligent MPPT charge technology

Multiple inverters are compatible in the parallel, small power inverters can provide high power output

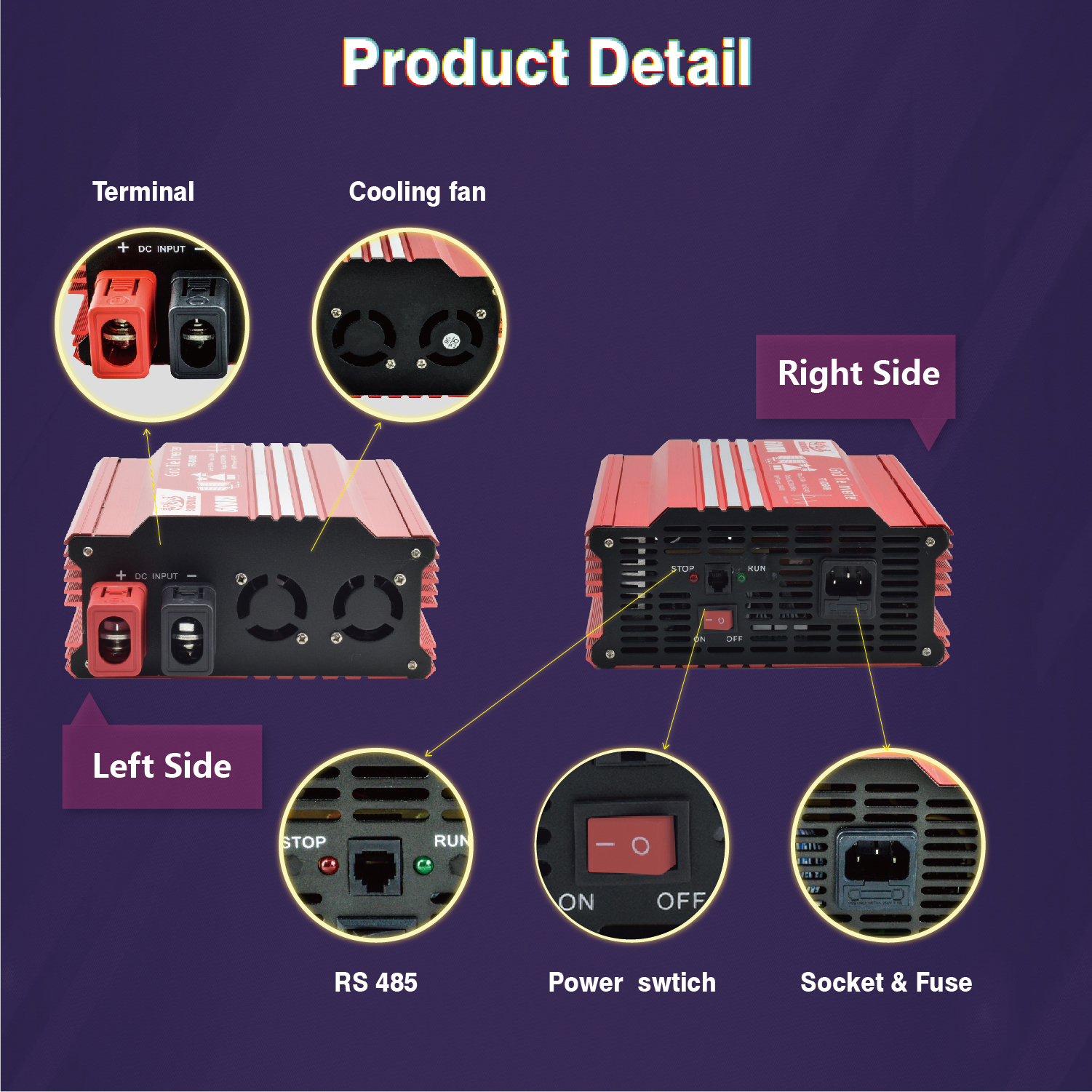

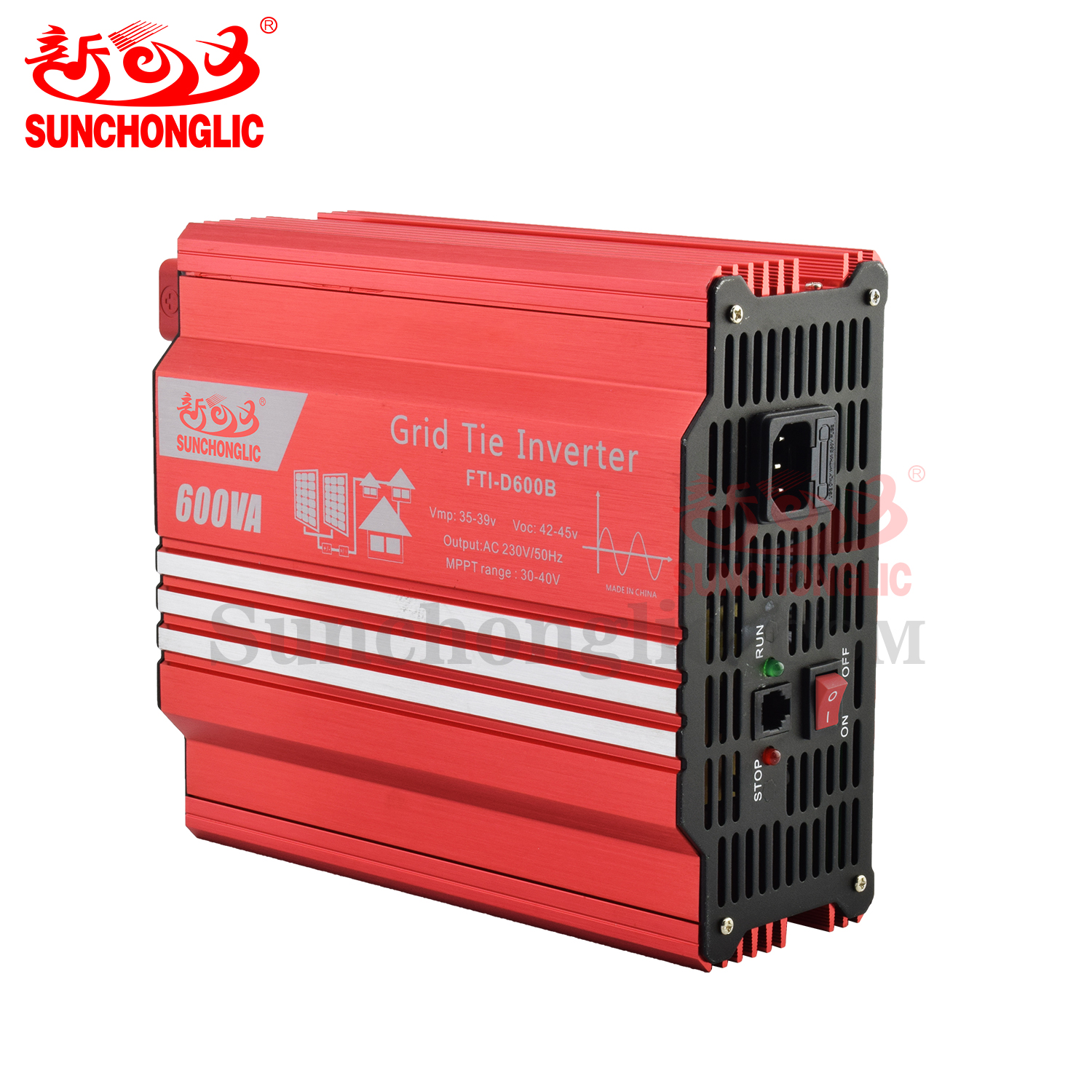

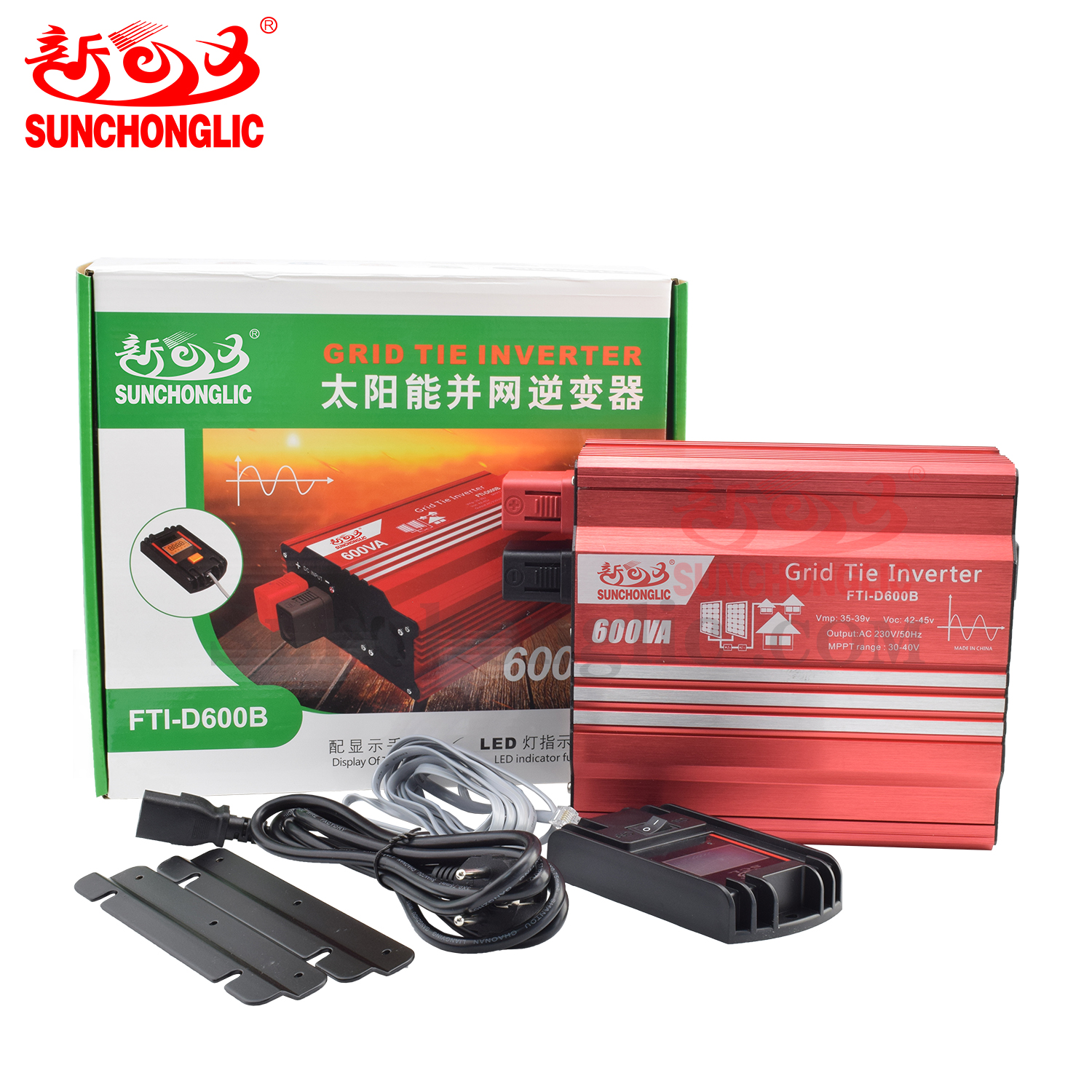

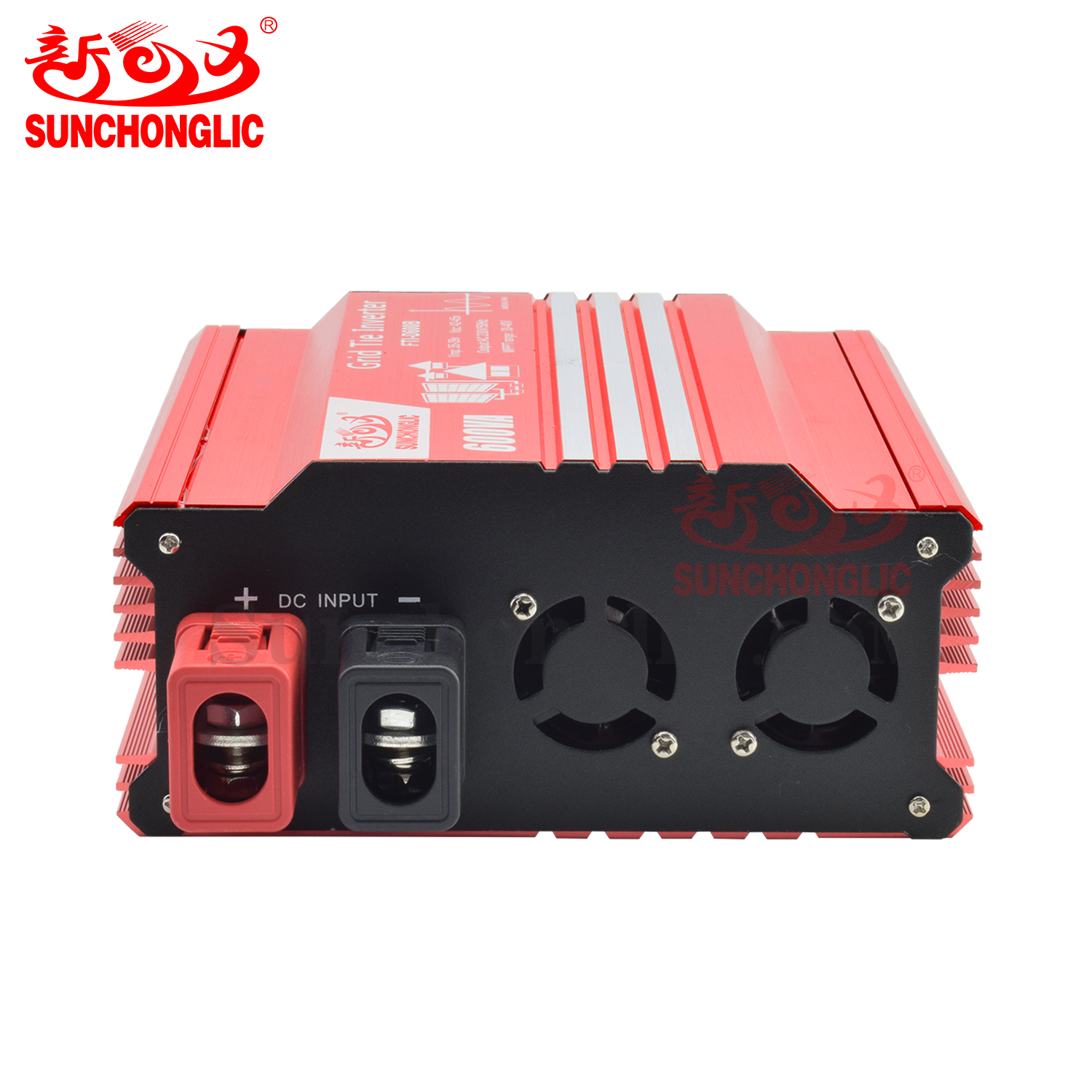

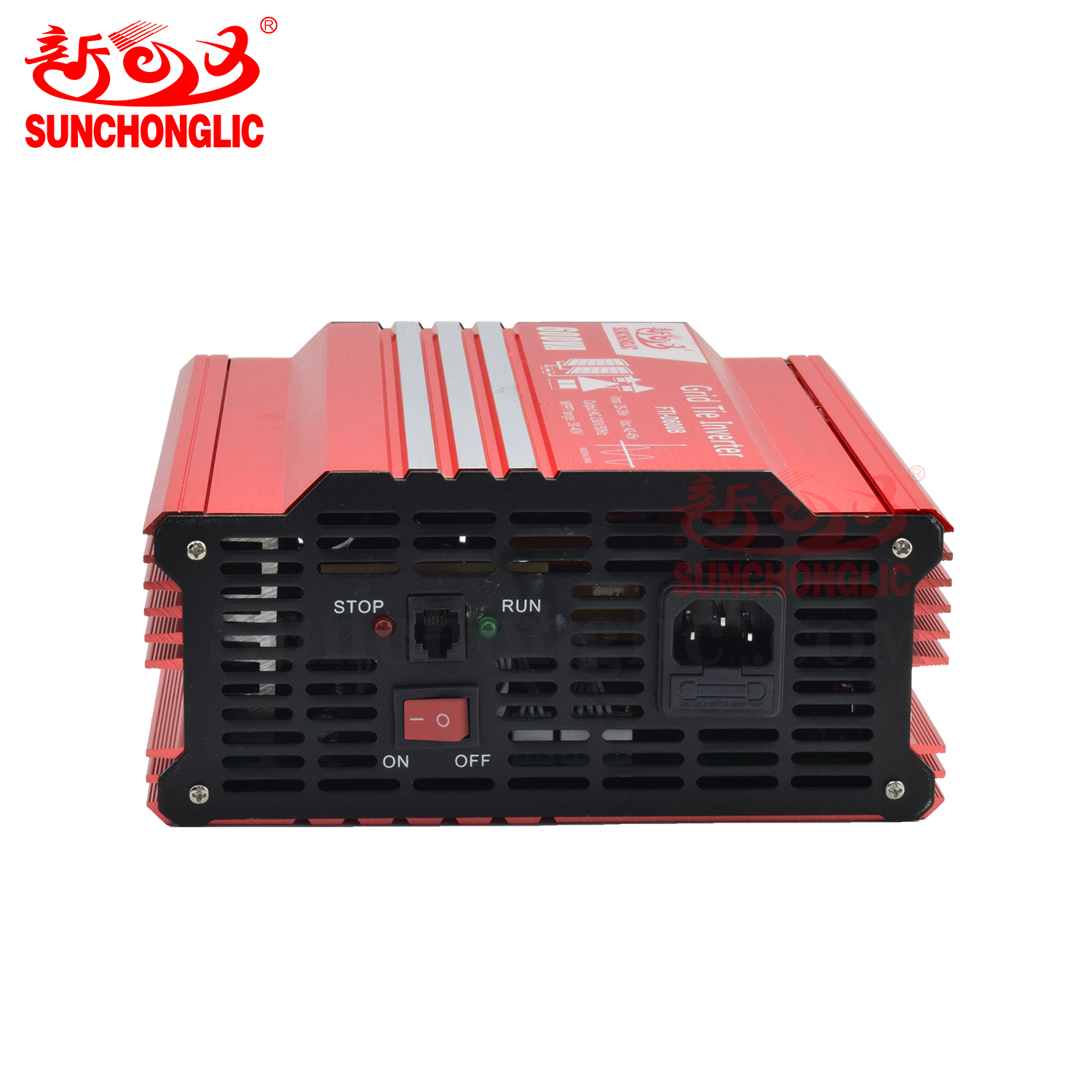

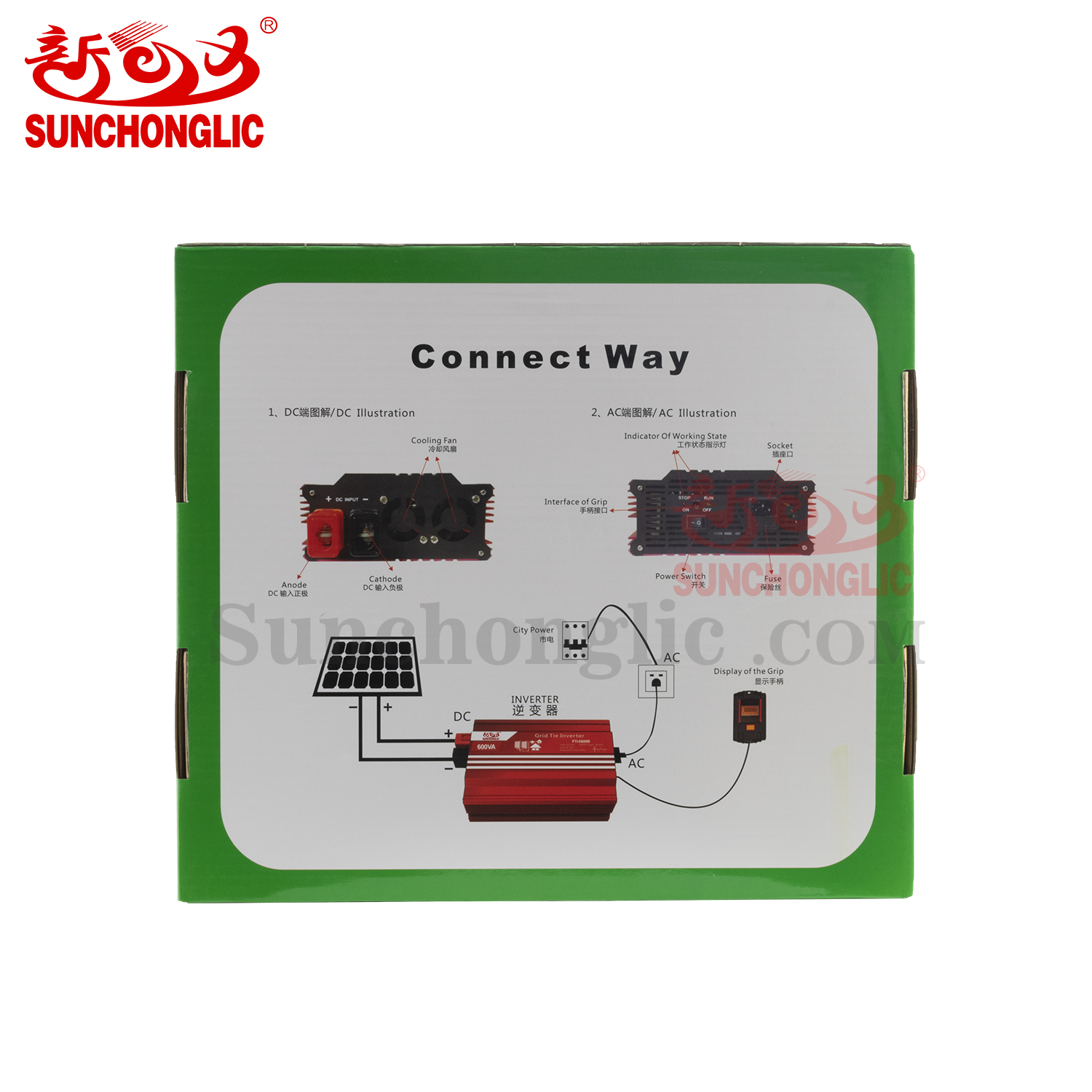

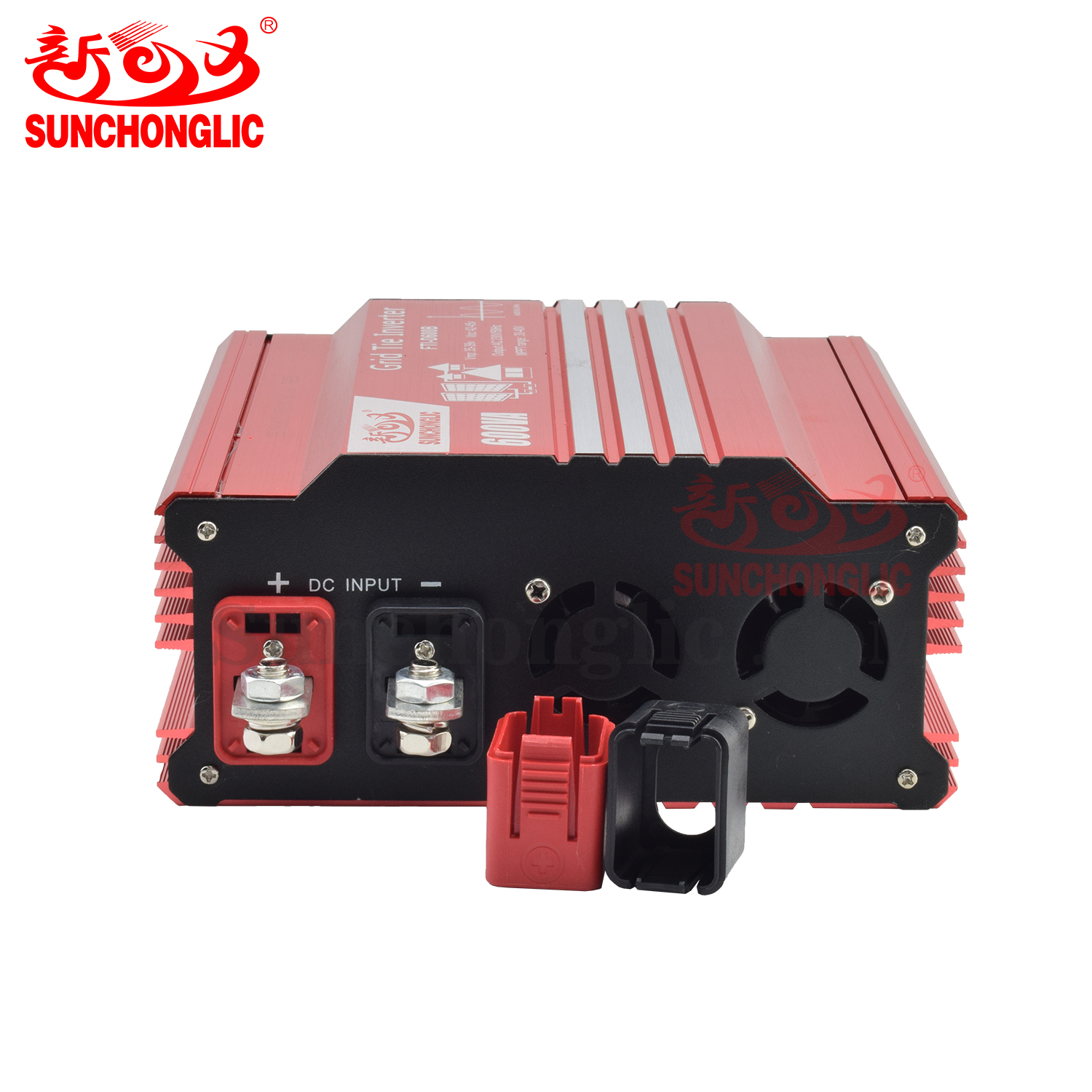

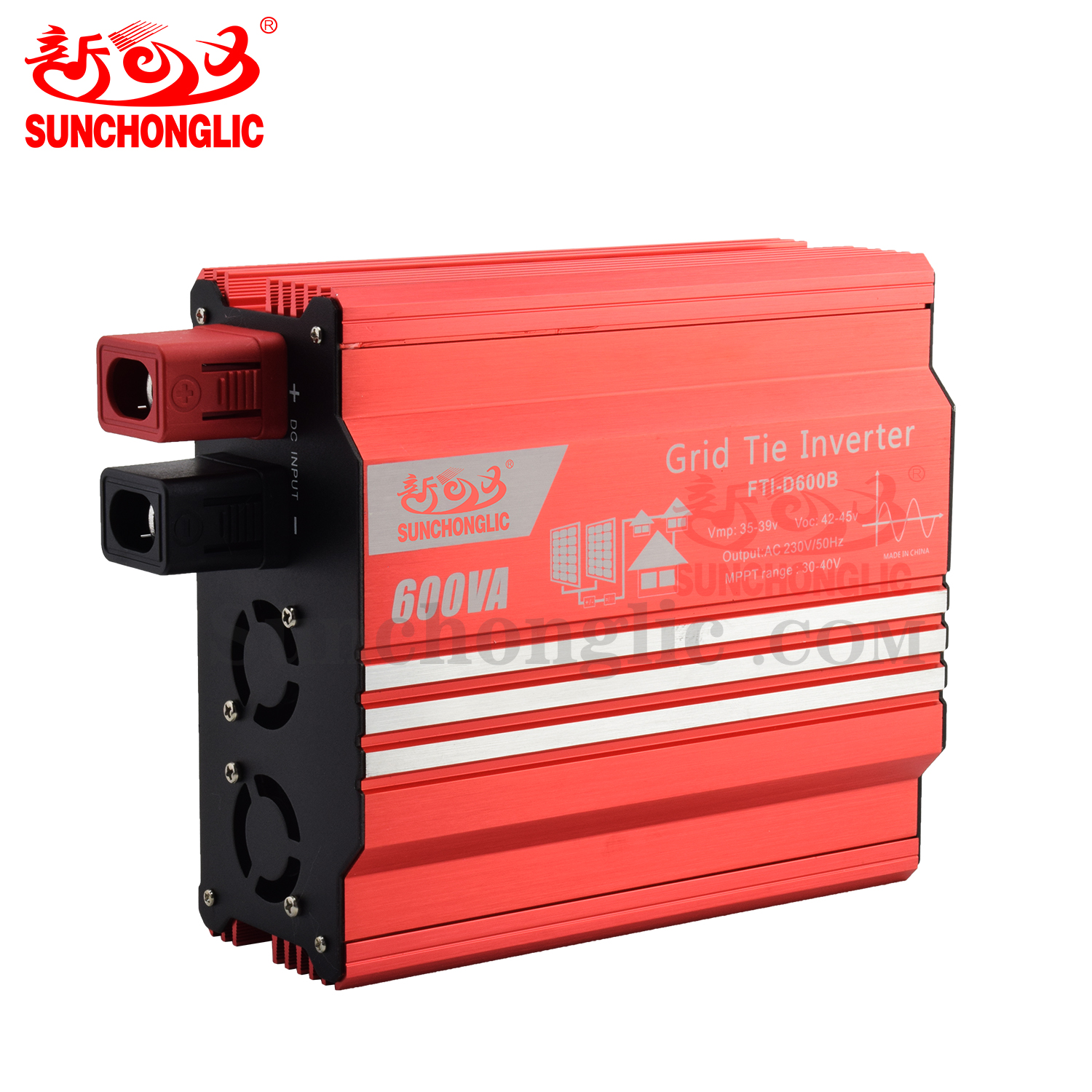

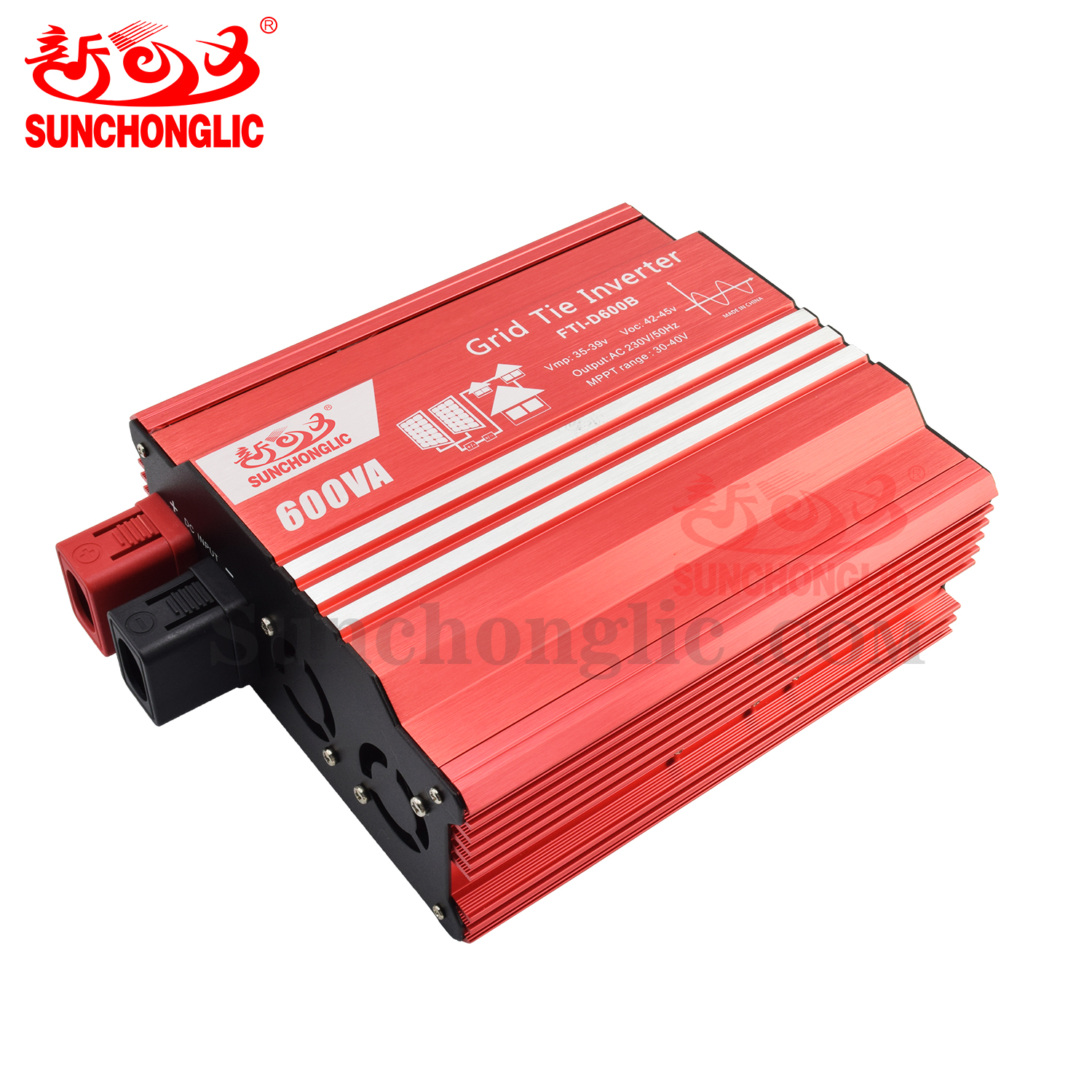

Product Photos
