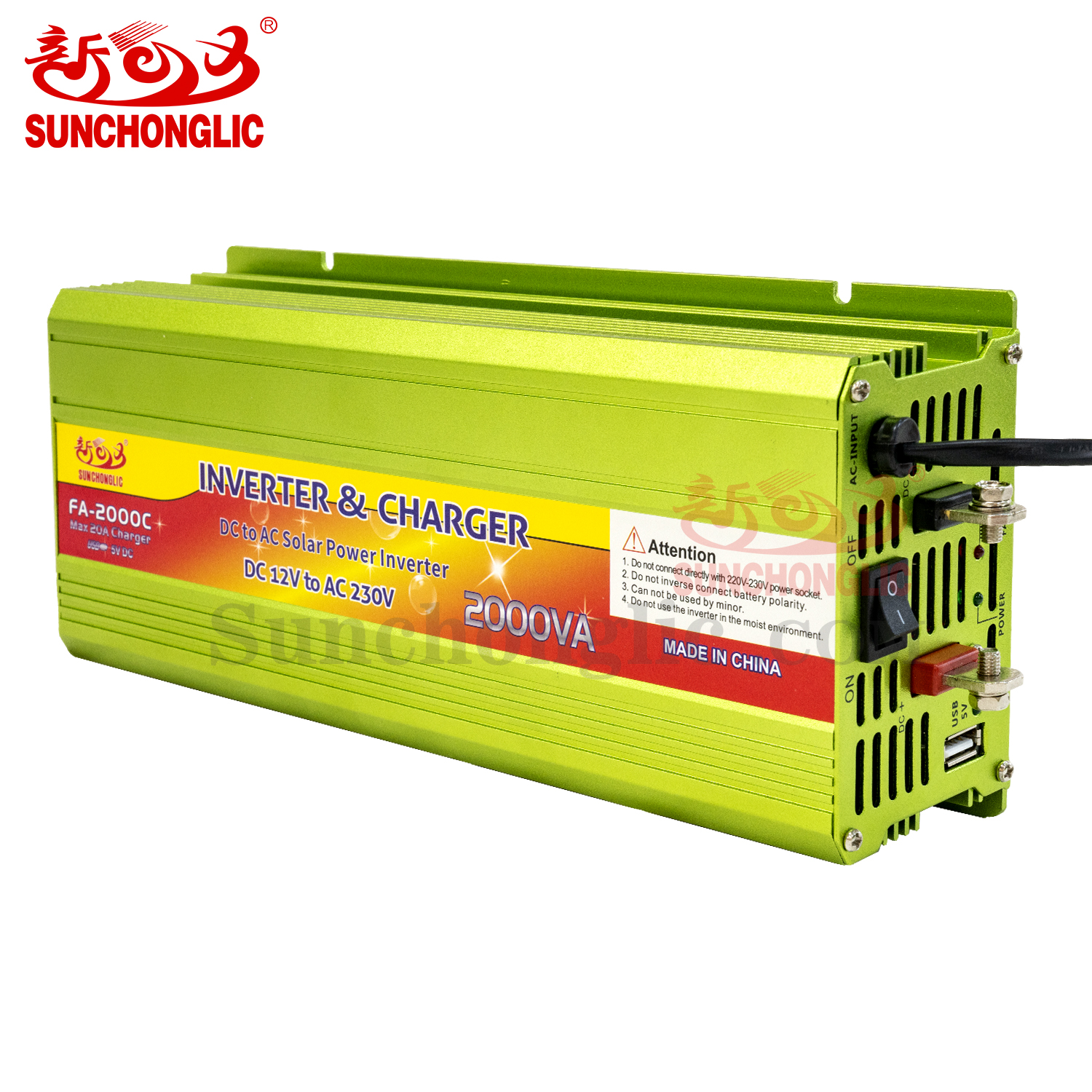

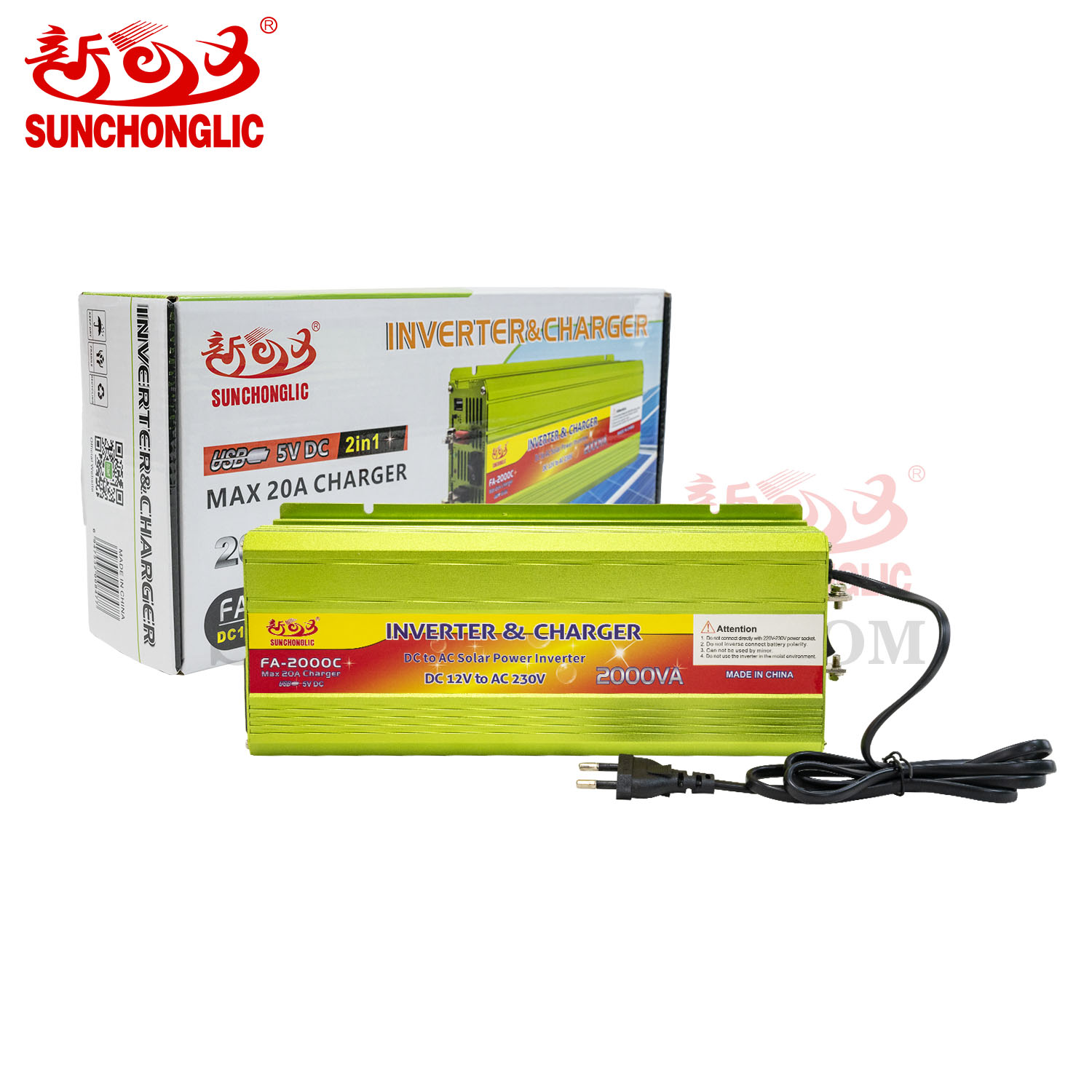

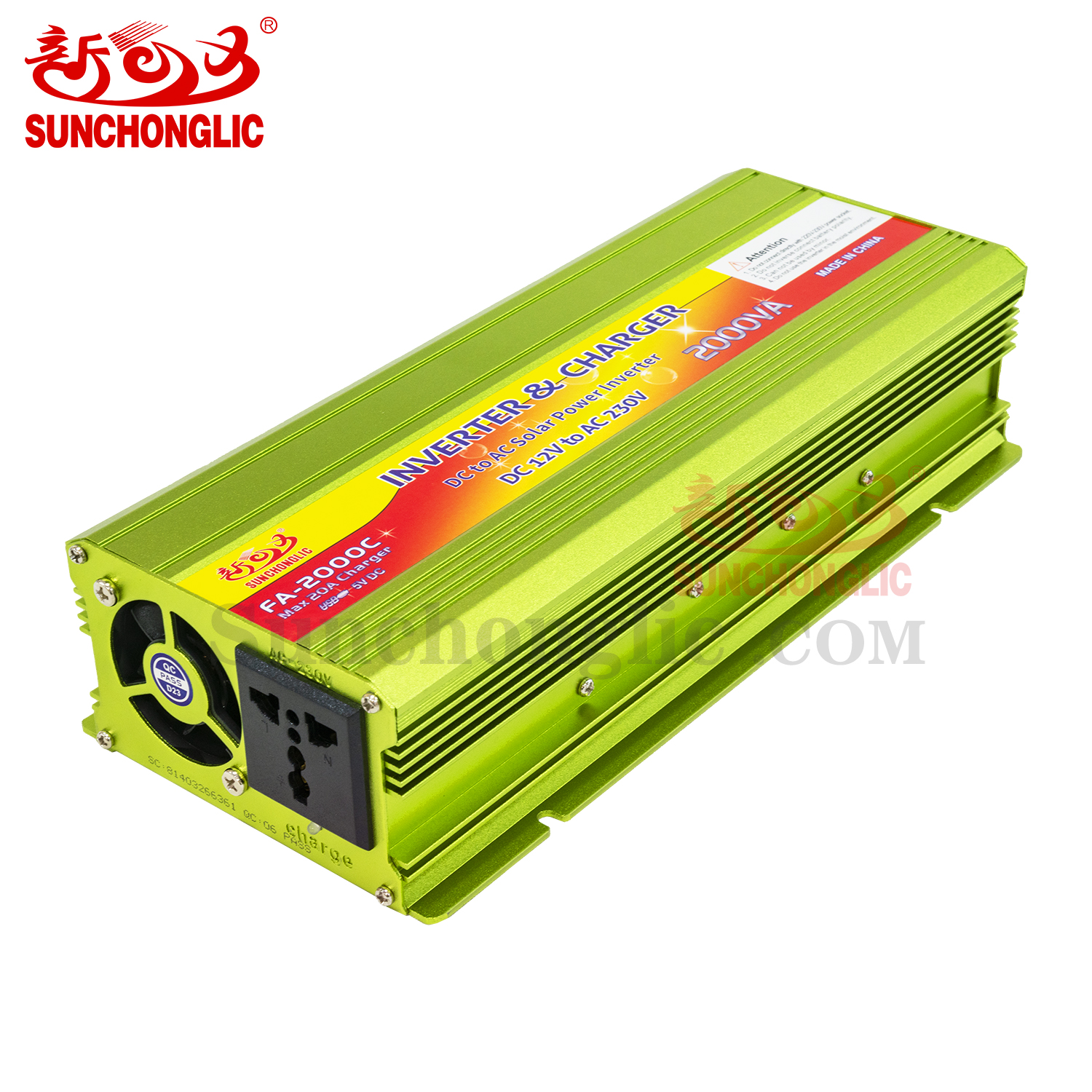

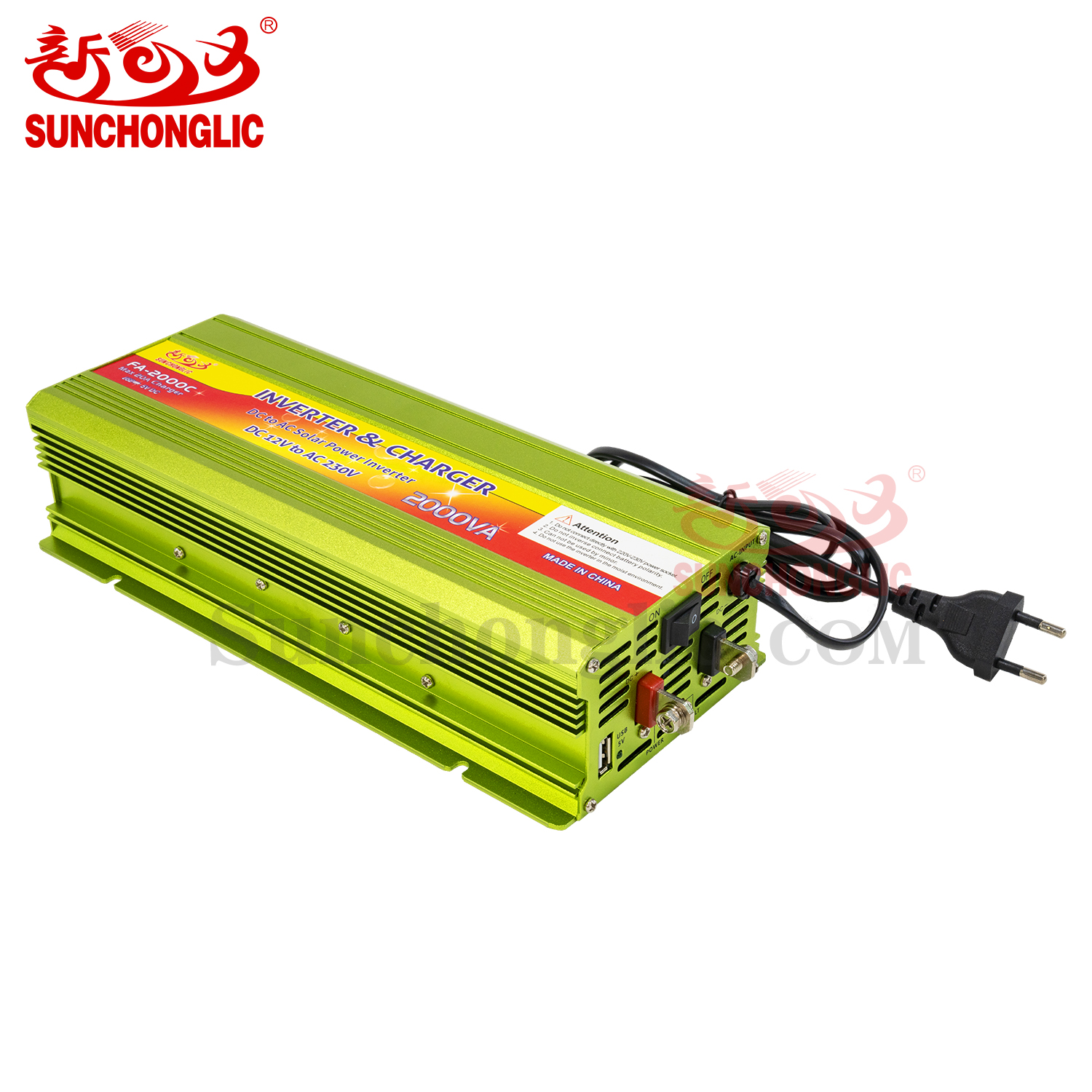

Inverter With Charger

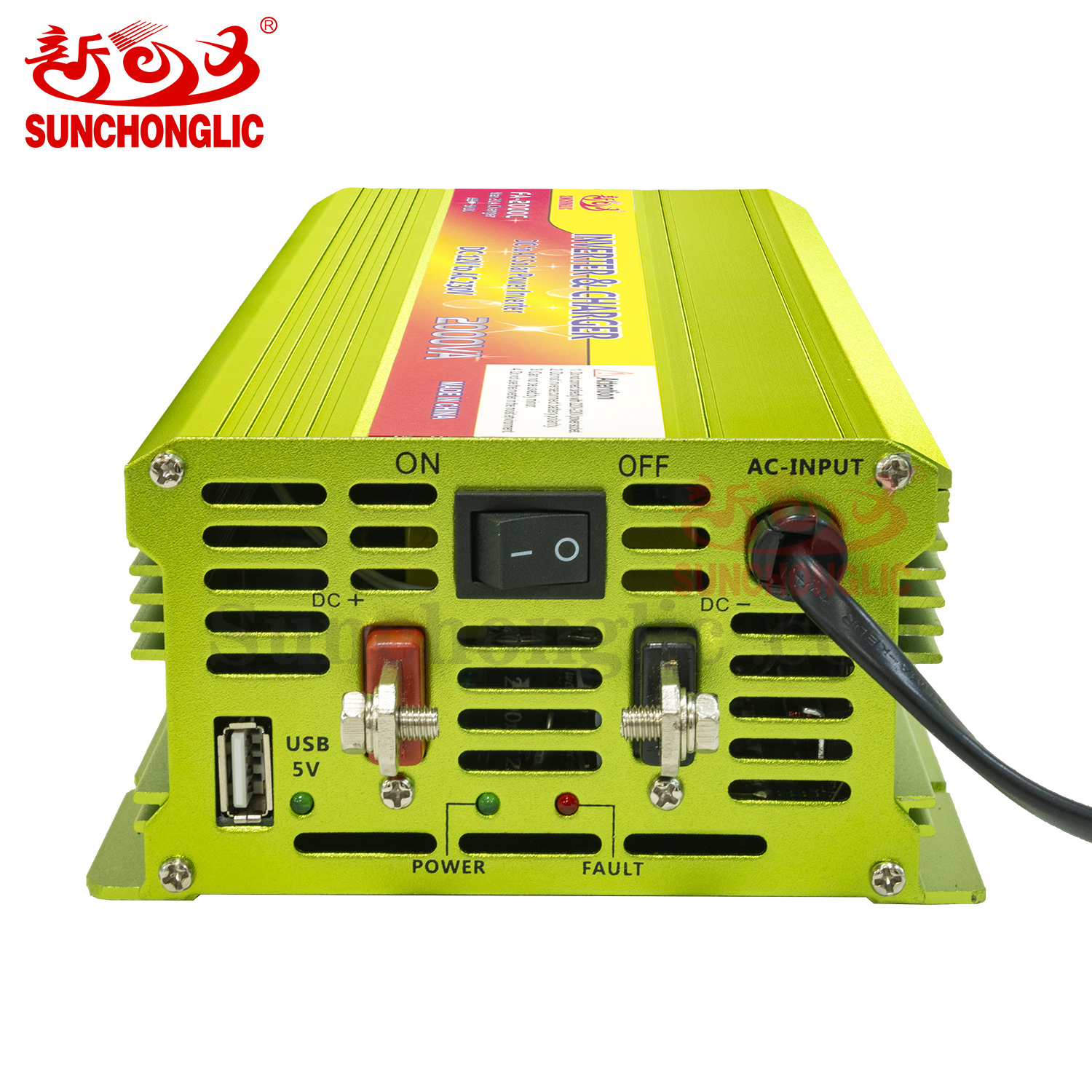

5V 1A USB Interface.
Modified sine waveform output.
New connecting terminal screws.
Built-in 20A charger.
High conversion efficiency, smart soft start function.
Input and output are completely independent.
Smart, light,and portable,designed for home use.

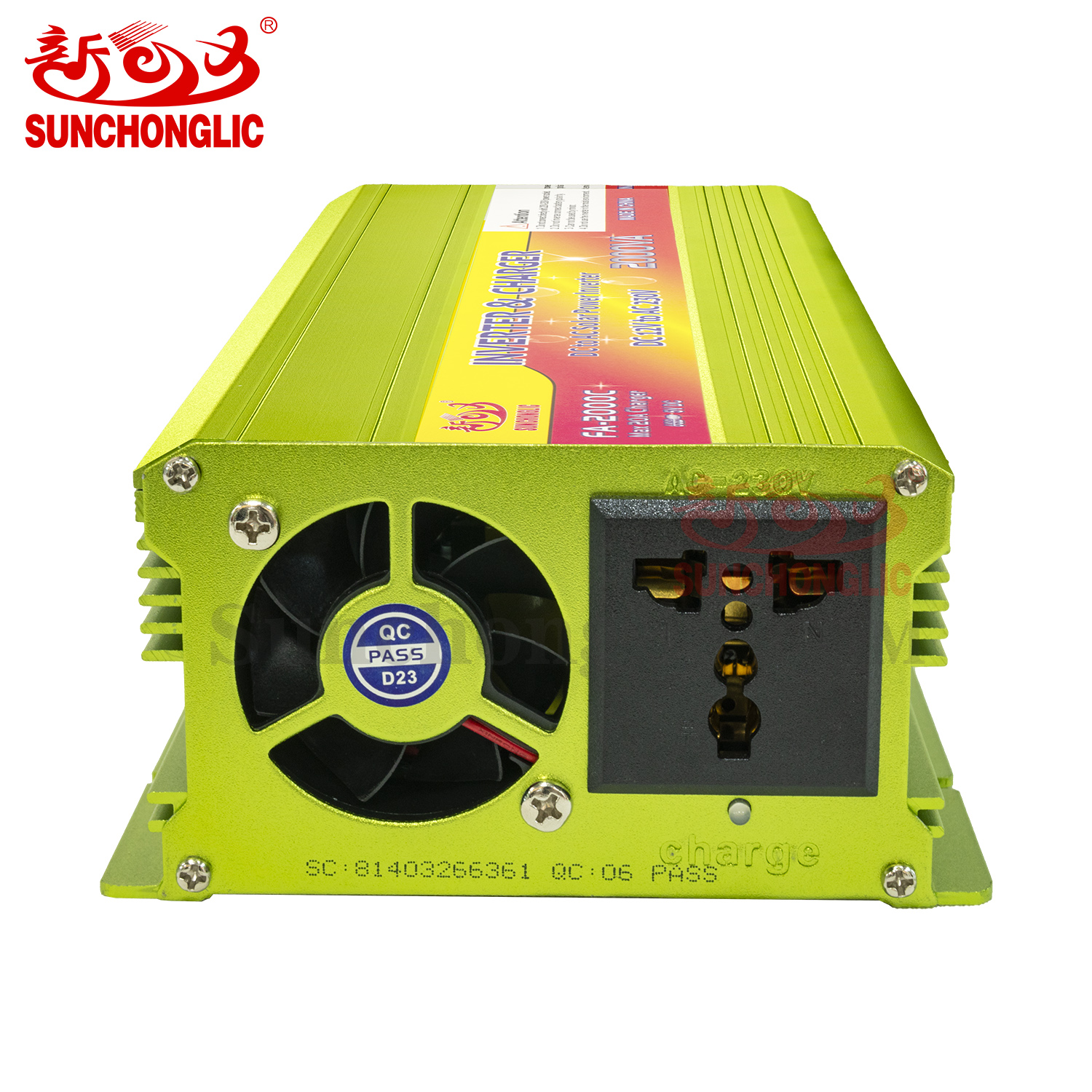

Universal socket, suitable for all kinds of plugs.
Applicable for resistive loads.
High-procision voltage stability and Aerospace-grade silence technology.
Cooler of fan and working status are intellectually controlled by MCU, which mostly prolongs its service life and helps to save the power consumption.
Multiple safe protections include overload/overvoltage/low voltage/high temperature and output short circuit protection.
Product Specification | ||

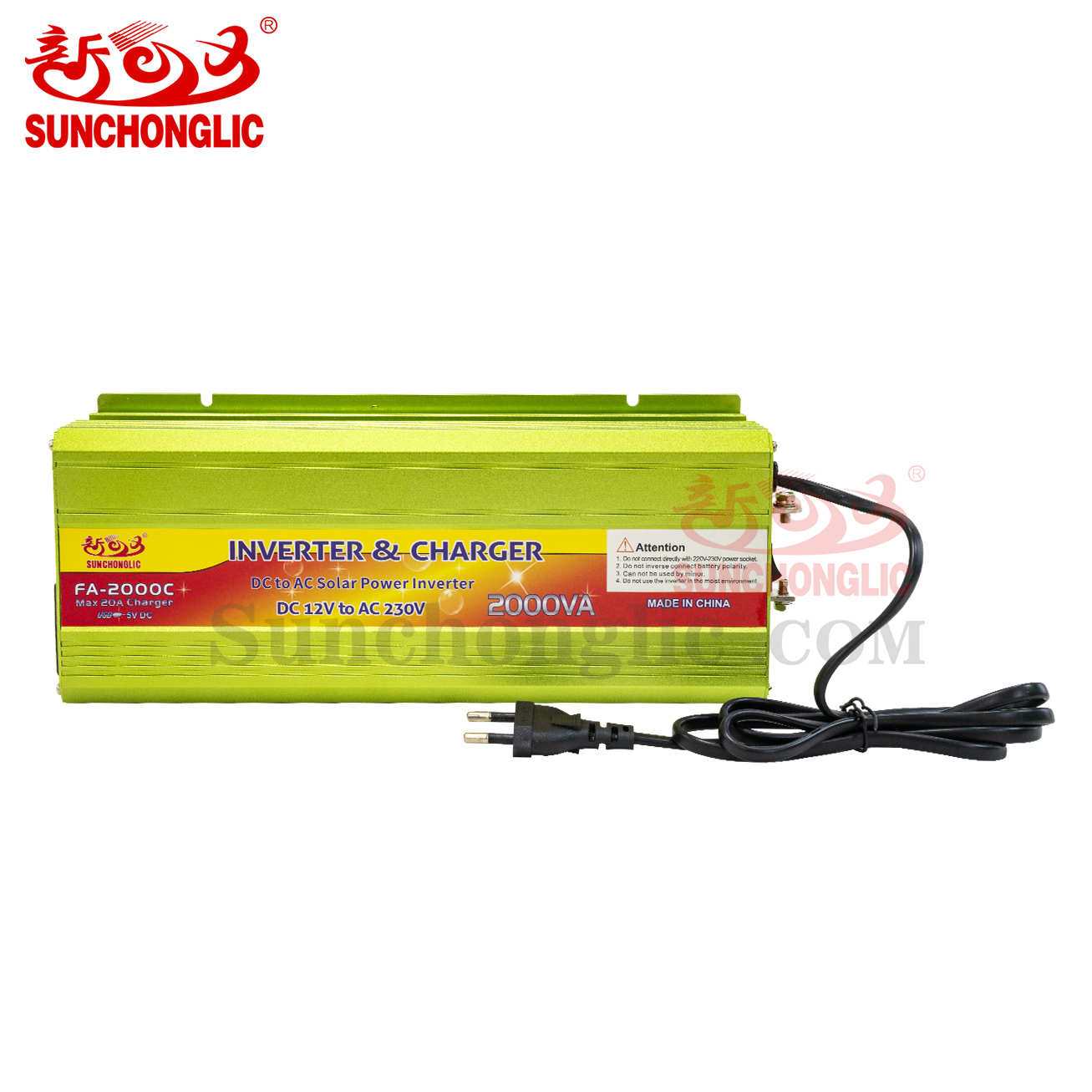

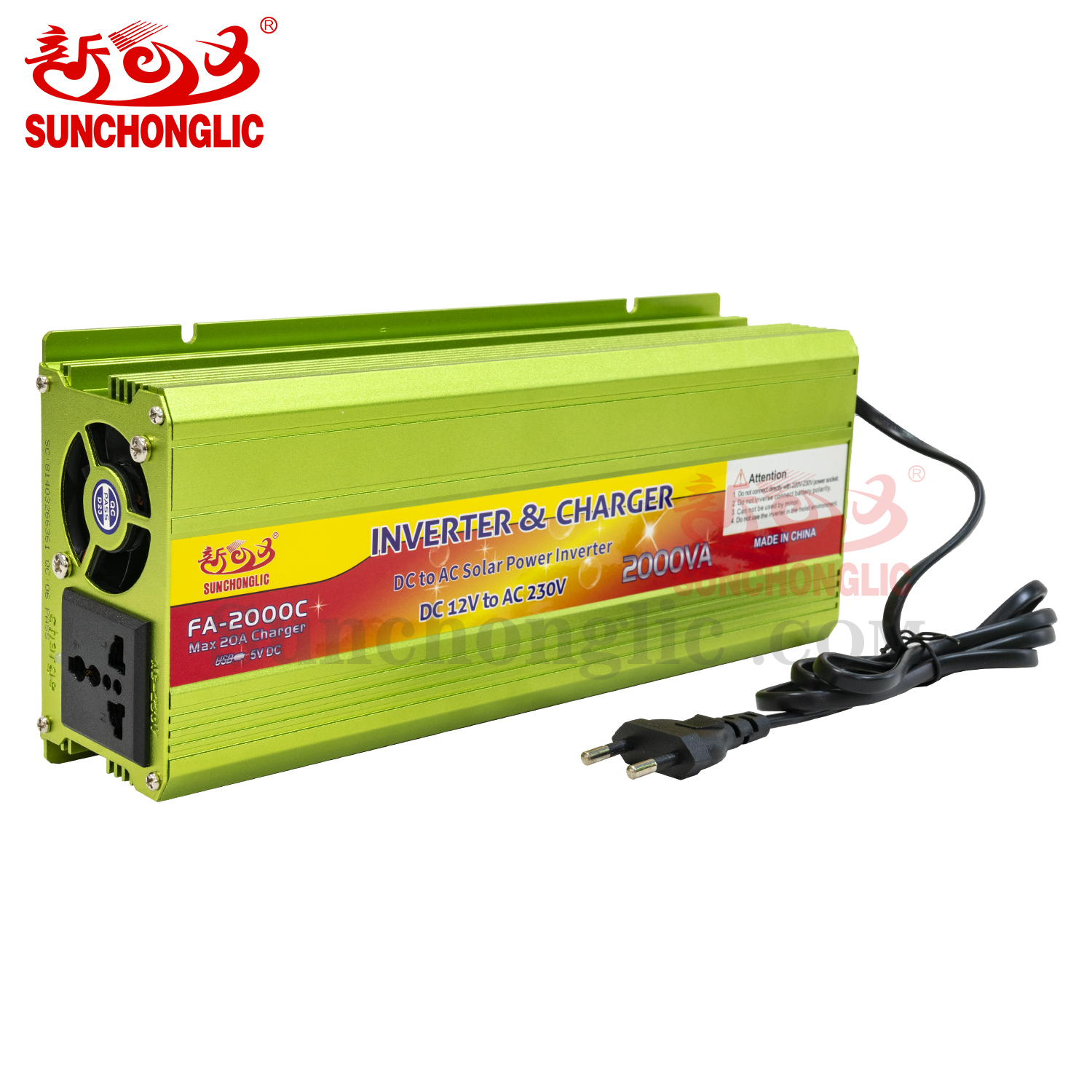

Model | FA-2000C | |
Inverter function | The voltage of the battery | DC12V |
Low Voltage Protection | Battery voltage ≤10V | |
Over Voltage Protection | Battery voltage ≥16V | |
Output Voltage | AC230V | |
Frequency | 50Hz±5Hz | |
Output Waveform | Modified sine wave | |
Efficiency | ≥85% | |
Input voltage | AC 150V~250V | |
Charging function | The voltage of the battery | DC 12V |
Maximum charging current | 20A | |
Charging Efficiency | 90% | |
Other | Noise Level | ≤45db |
Temperature | -20℃~50℃ | |
Humidity | 10%~90% | |
Dimensions | 283x128x70mm | |
Weight | 1.6Kg |
