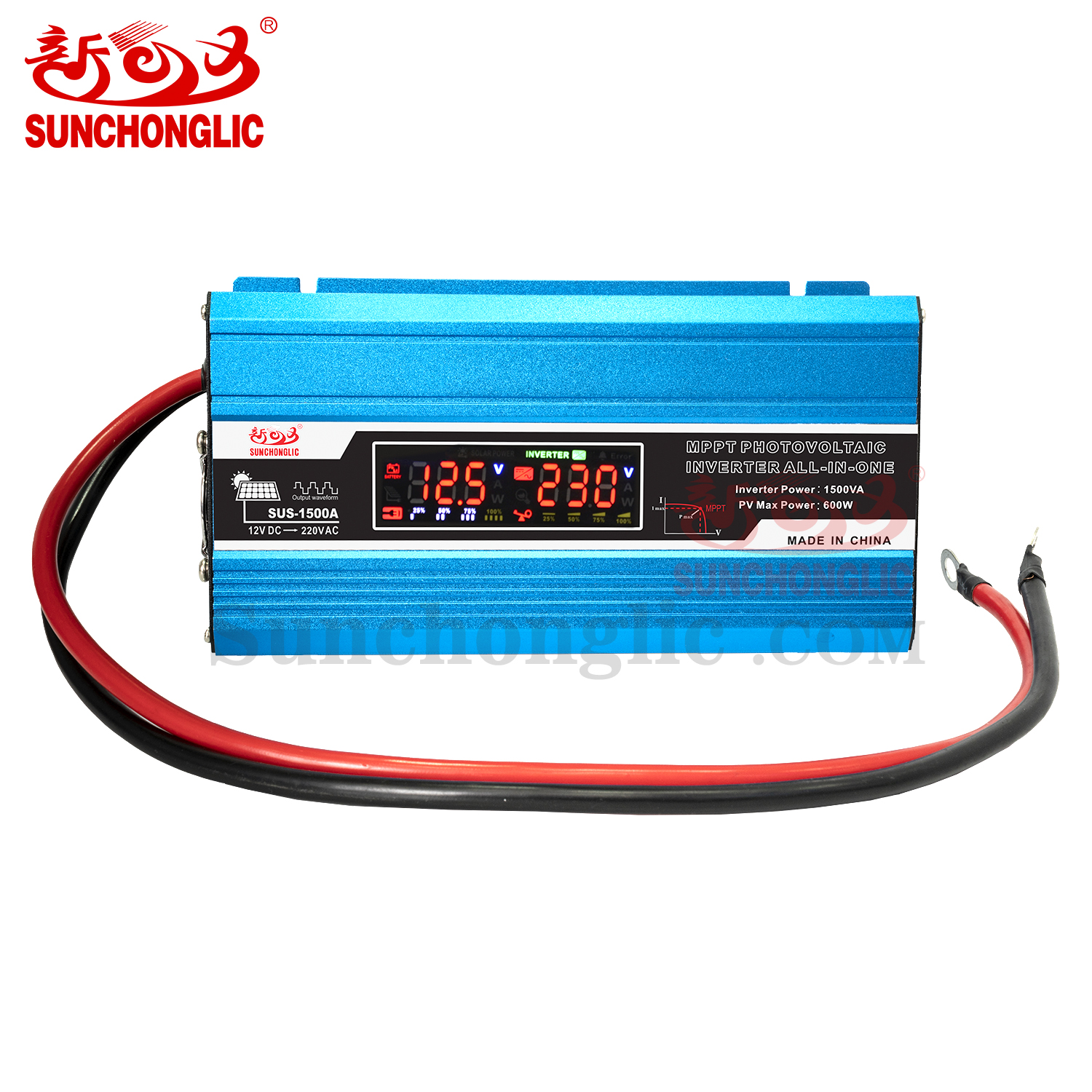

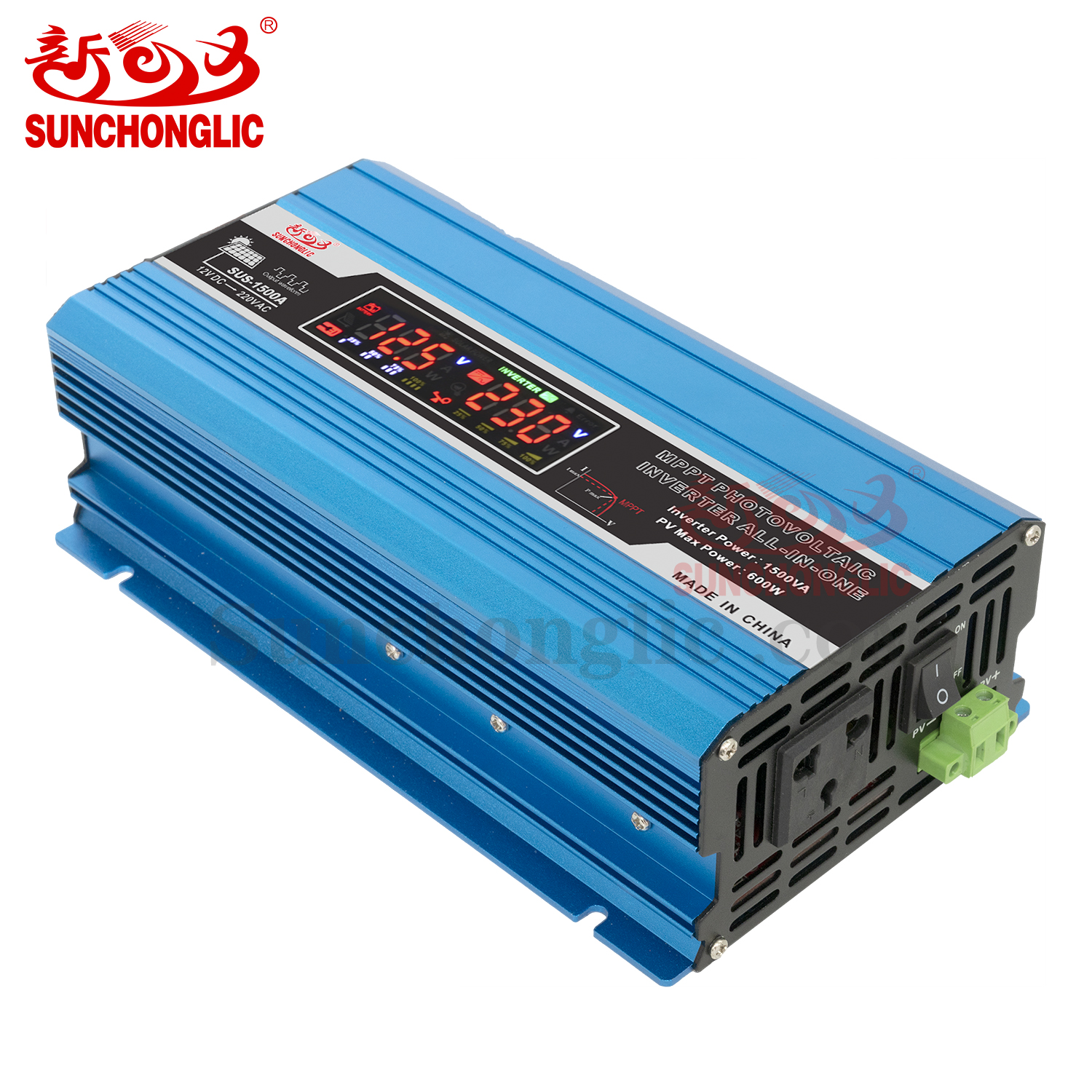

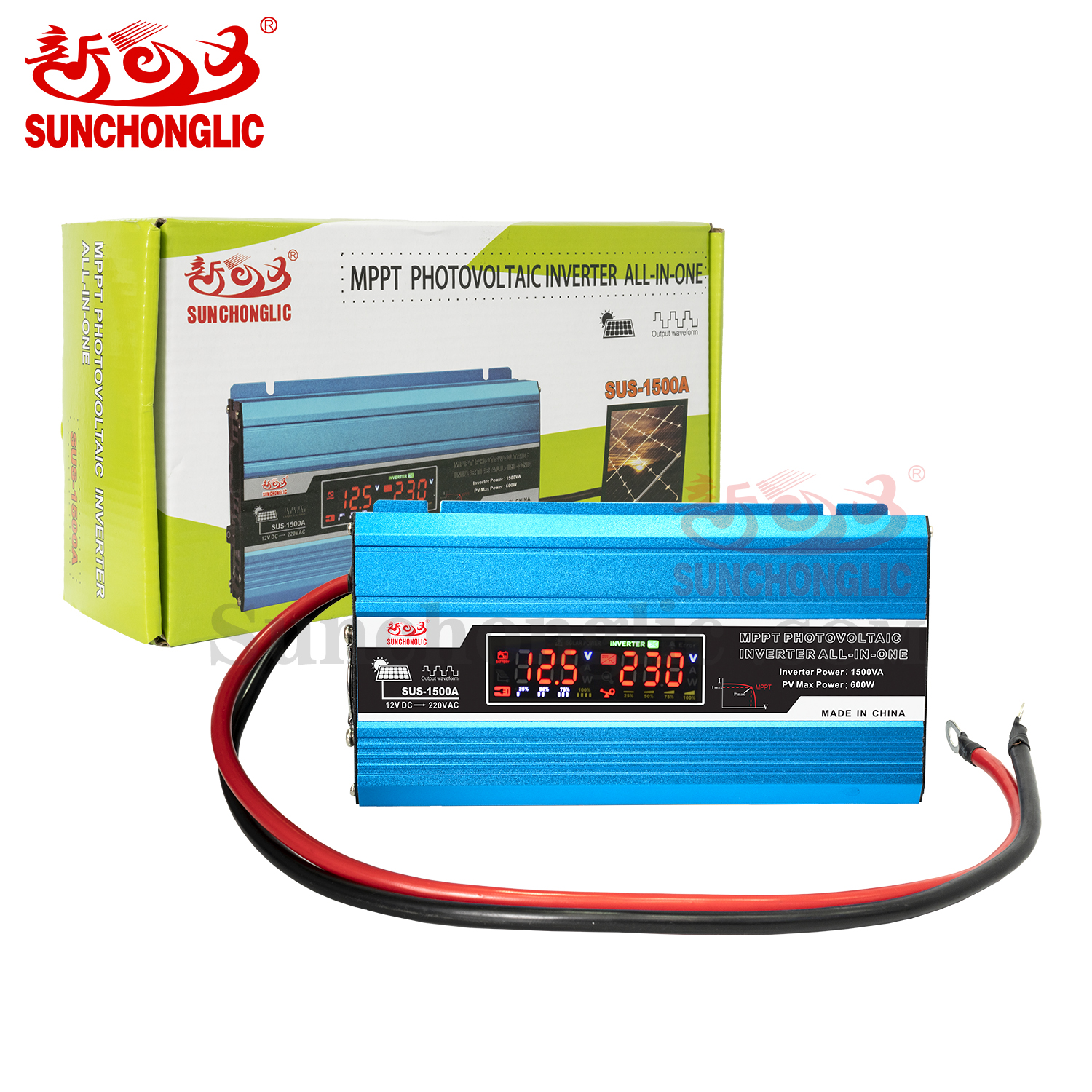

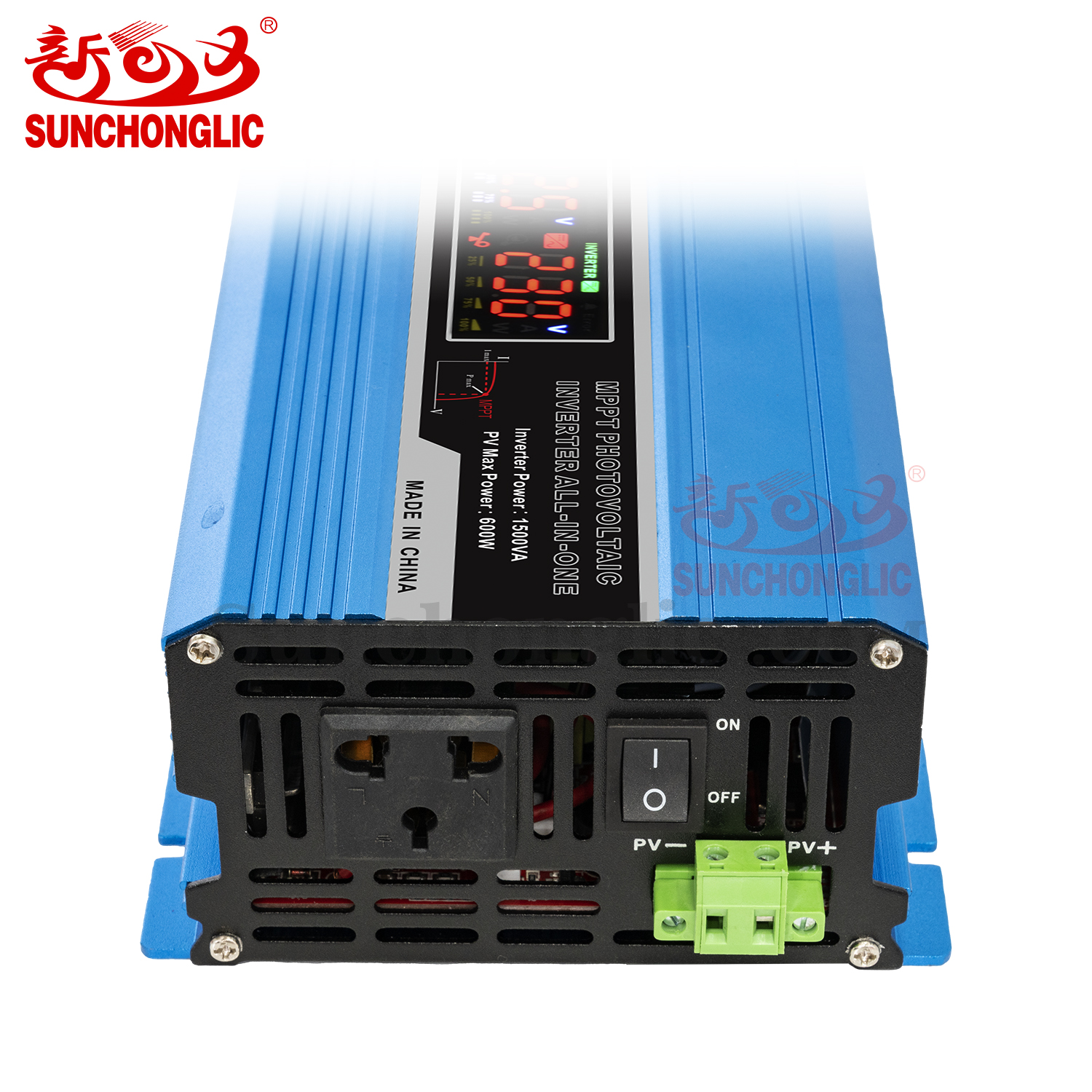

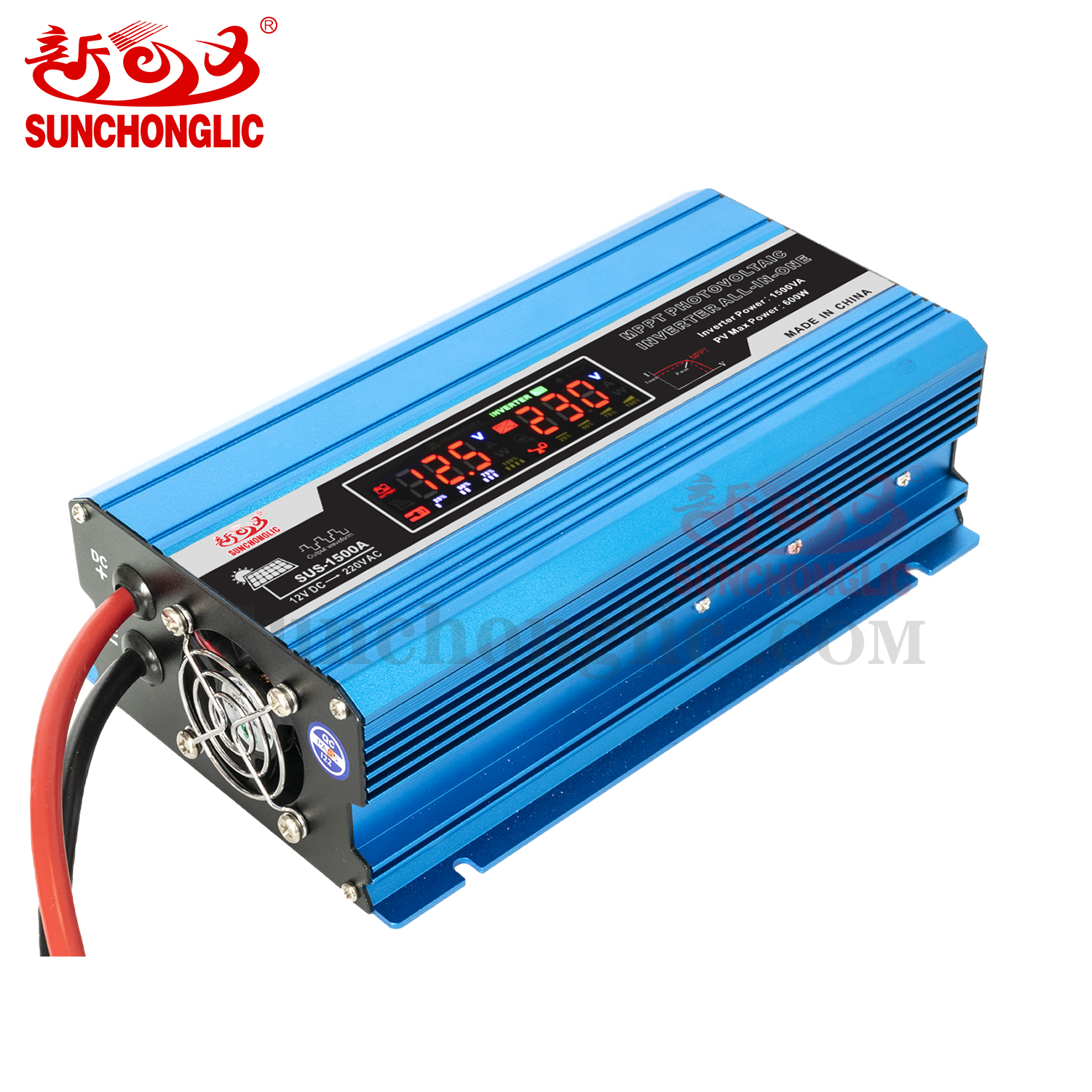

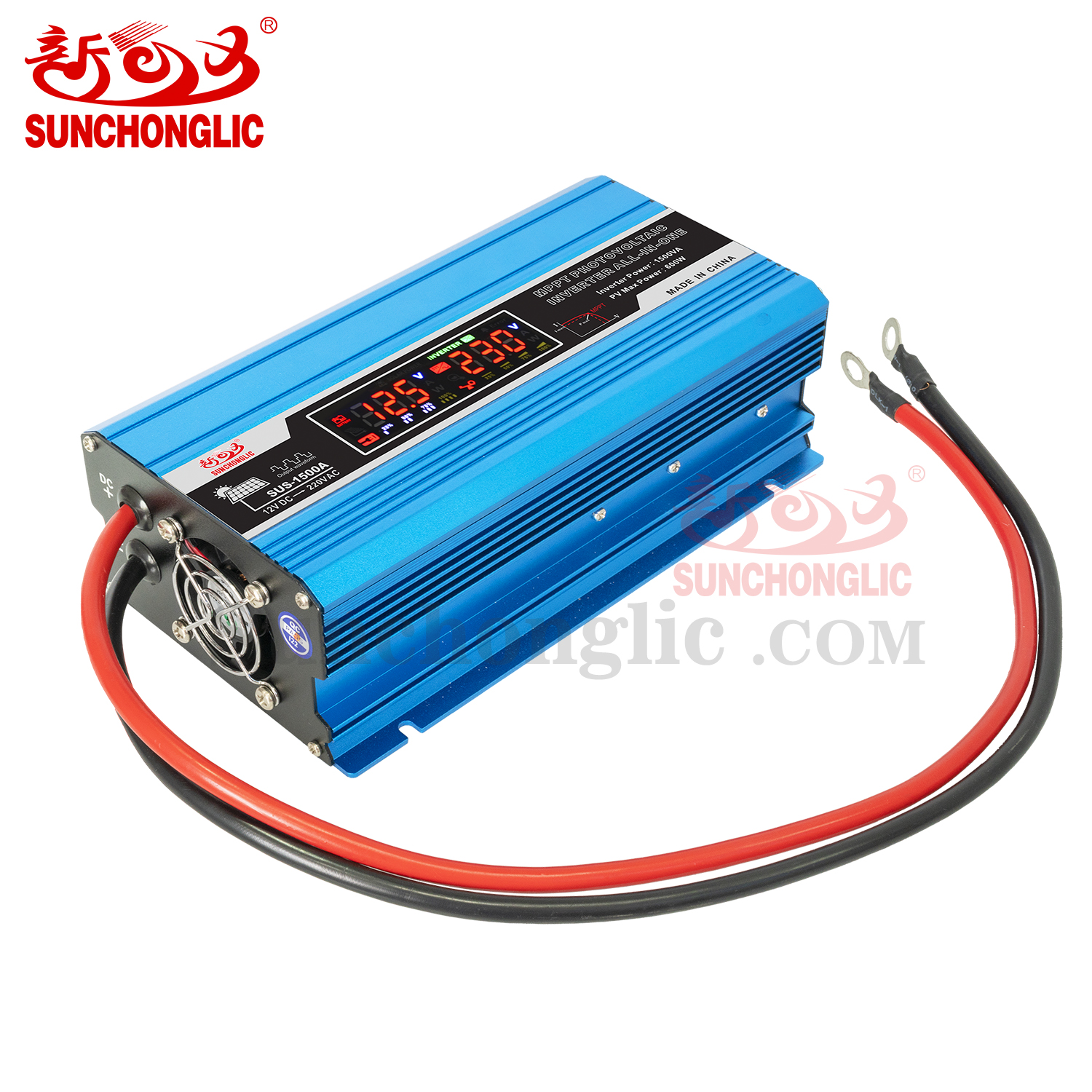

Sunchonglic 12v to 220v dc ac 1500va 1500w modified sine wave power inverter mppt photovoltaic inverter

SUS-1500A

Modified Sine Wave Inverter

This series is to control the inverter machine,the external battery is more convenient,flexible according to the needs of customers.

This series of system cover home system 100W to 1000W power,is the preferred choice of high lift configuration system.

DC output:12V(24V),5V,LED lamp with a camera,mobile phone charging.

Built-in 600W MPPT solar charge controller.

INQUIRE NOW

Model	SUS-1500A
The built-in controller	600W
Featured solar panel specifications	100~150W/18V
External battery	12V 100Ah~200Ah
Solar input range	18V~45V
Solar power output	600W max
Solar charging voltage	14.3V
Output voltage of the inverter	AC 220V±5%
Maximum continuous power	800W
Peak power	<0.8A
DC input voltage	DC9.7V~15.5V
Output frequency	50Hz±3Hz
Conversion efficiency	>88%
High pressure cut off	15V±0.5V
Low voltage alarm	10.2V±0.3V
Low cut	10V±0.3V
Overload,short circuit protection	Yes
Output waveform	Modified sine waveform
Cooling mode	Cooling fan
Working environment temperature	-20℃~40℃ @ 100% load/60 @ 60% load
Relative humidity	<90%RH
Overall dimensions	230x127x67mm
The weight of the inverter	1.5kg
