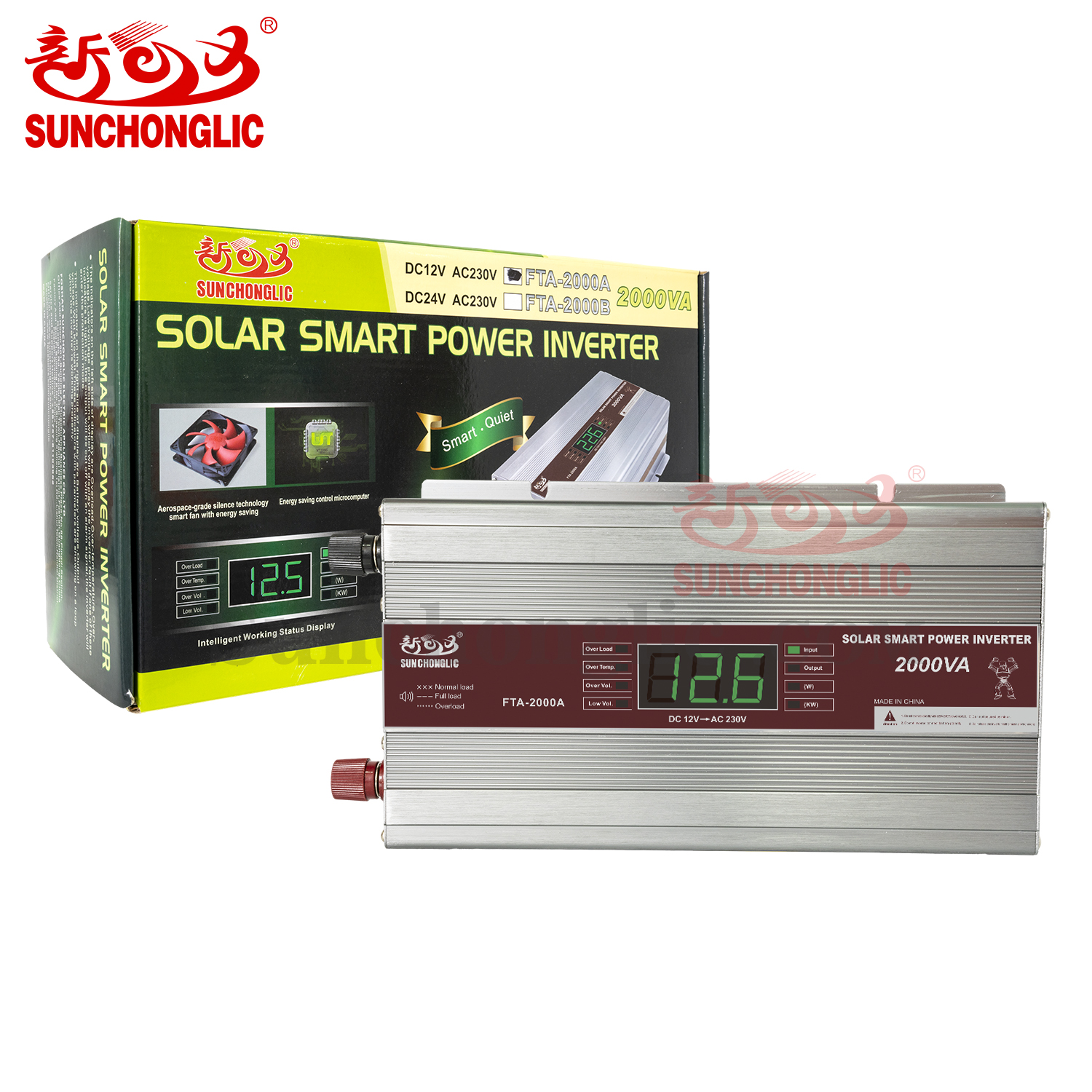

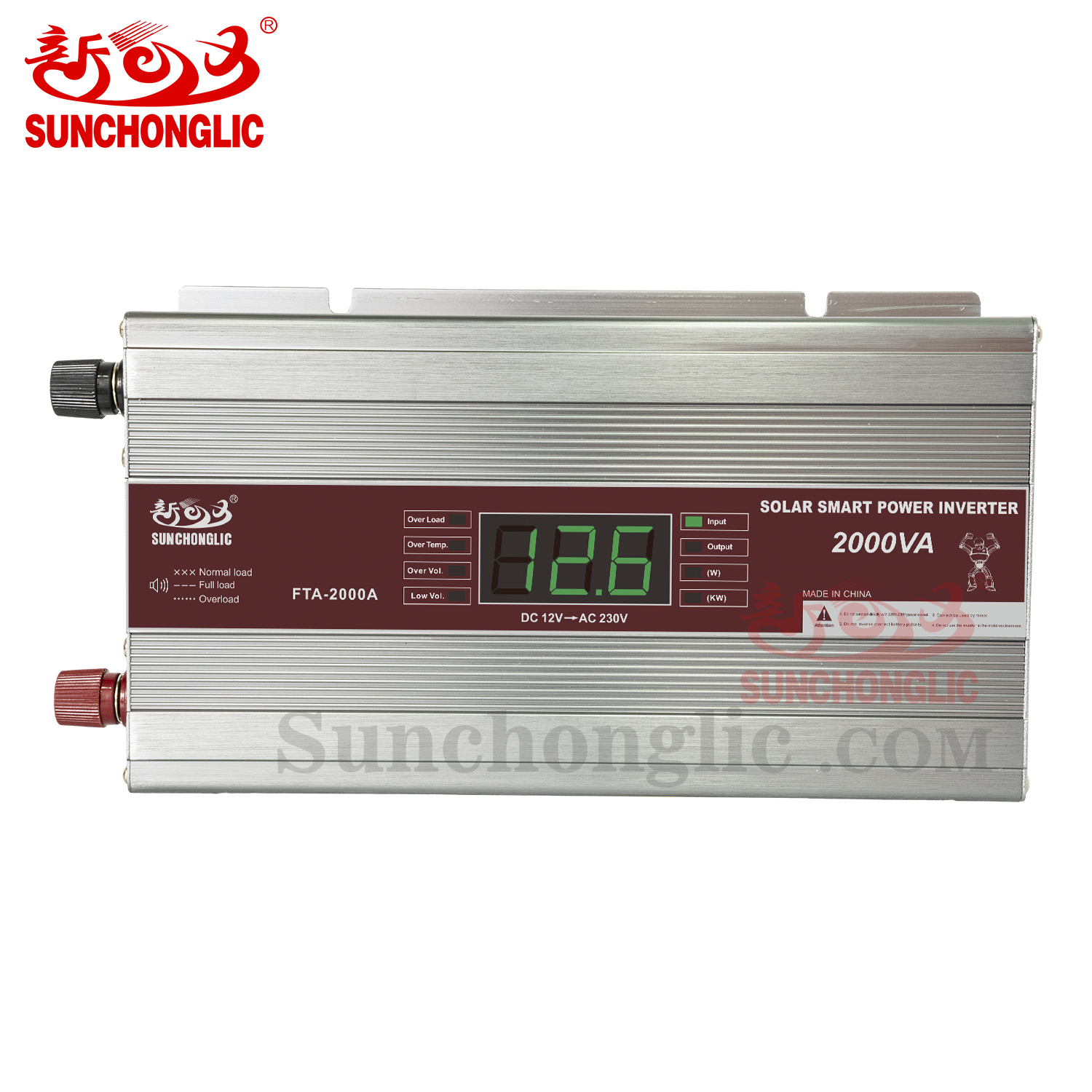

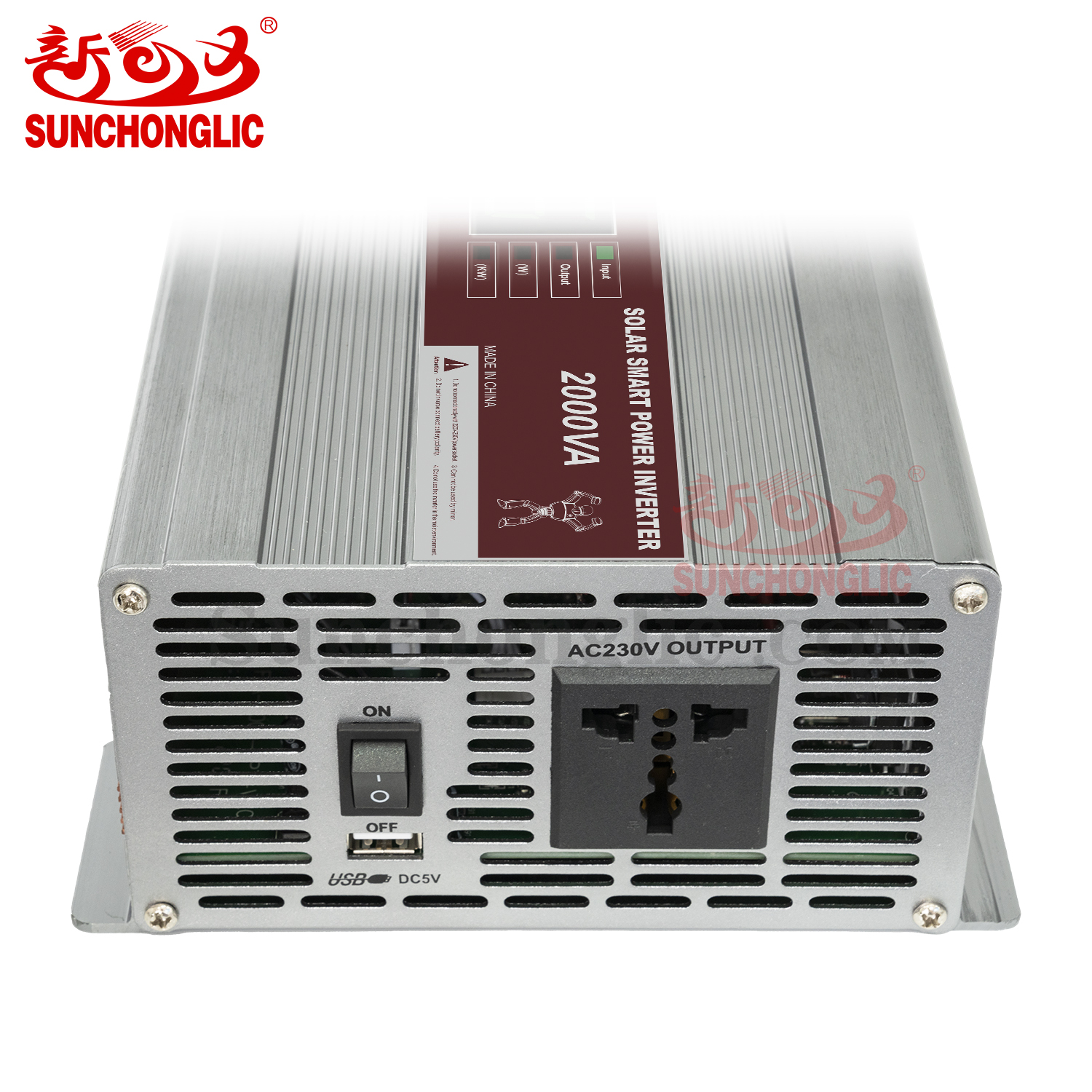

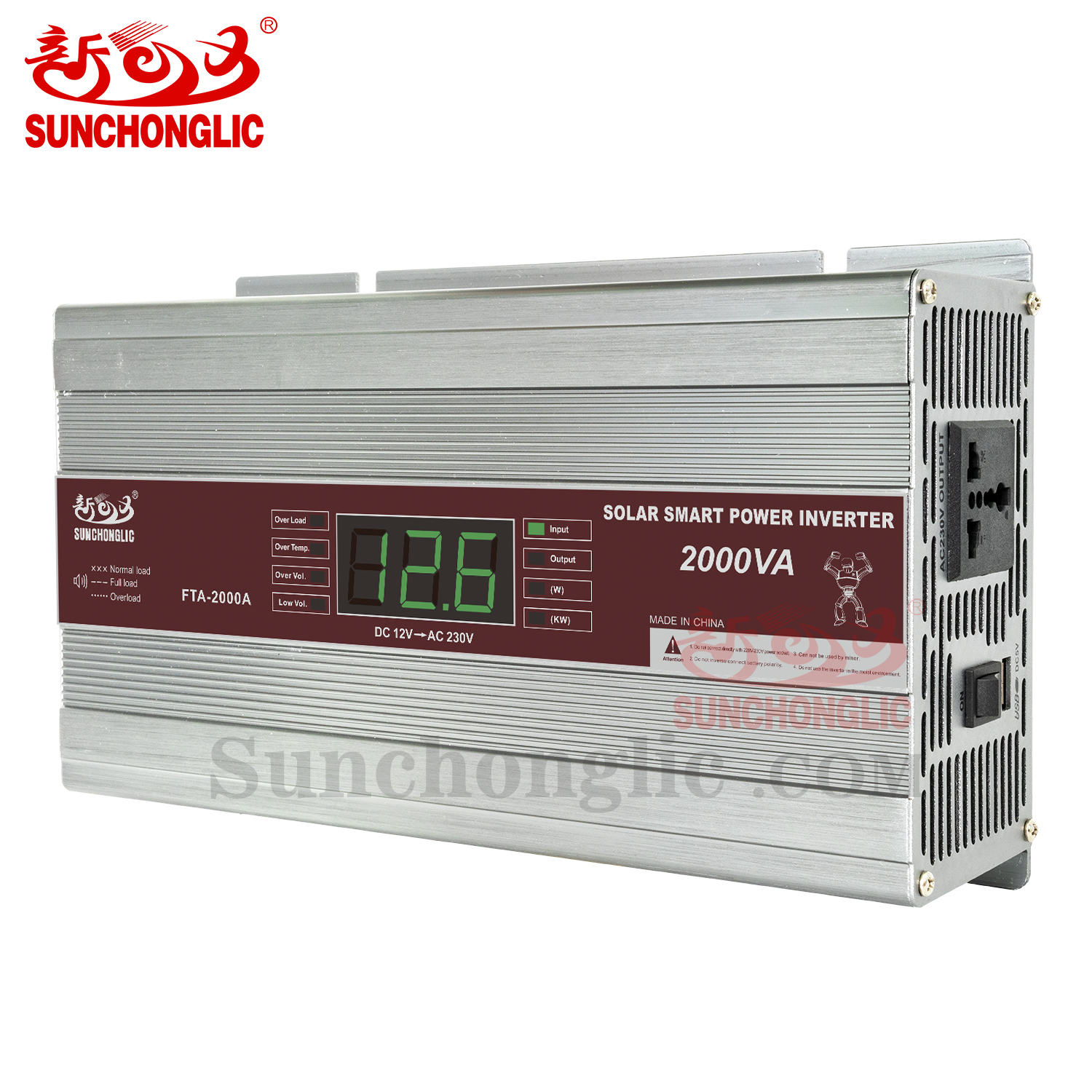

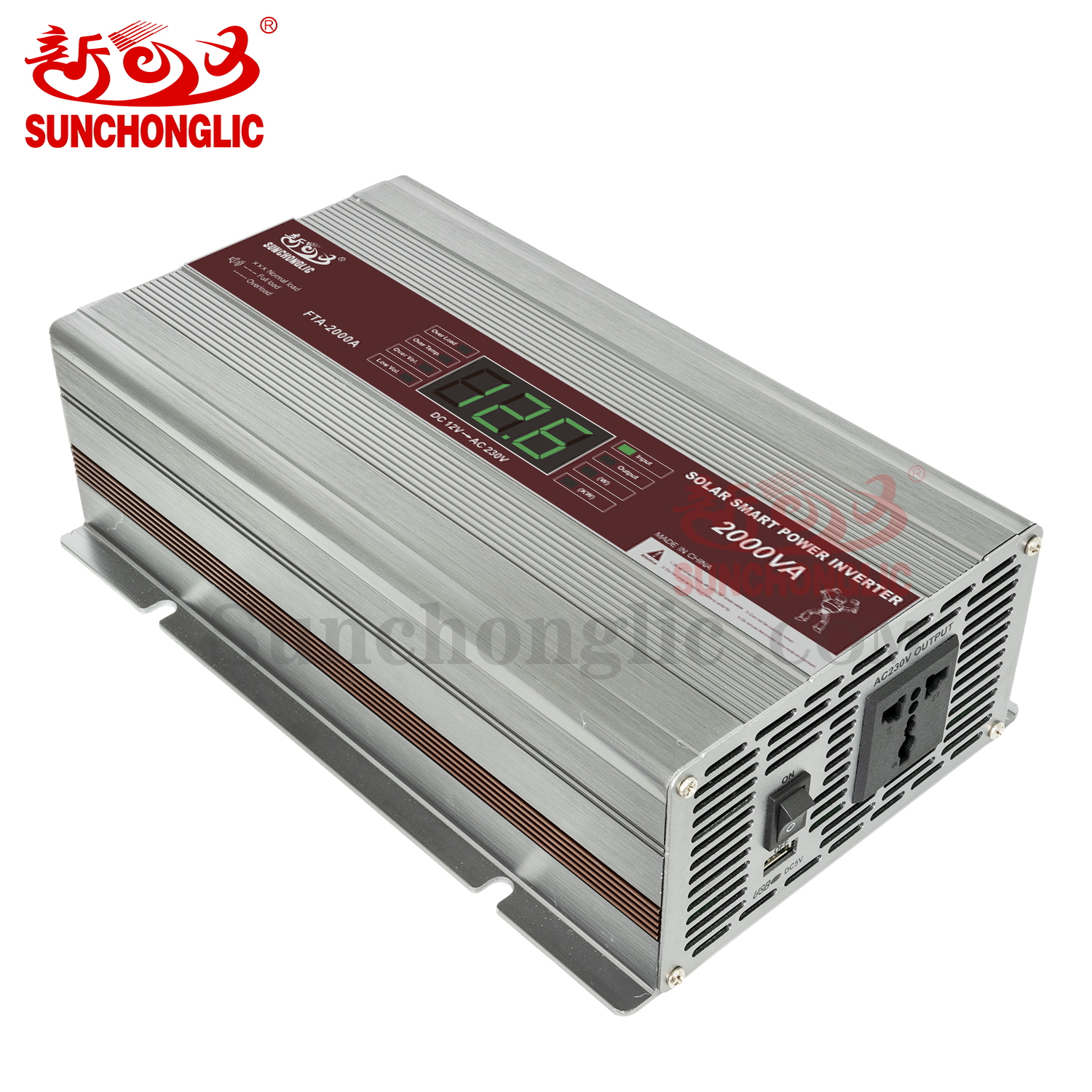

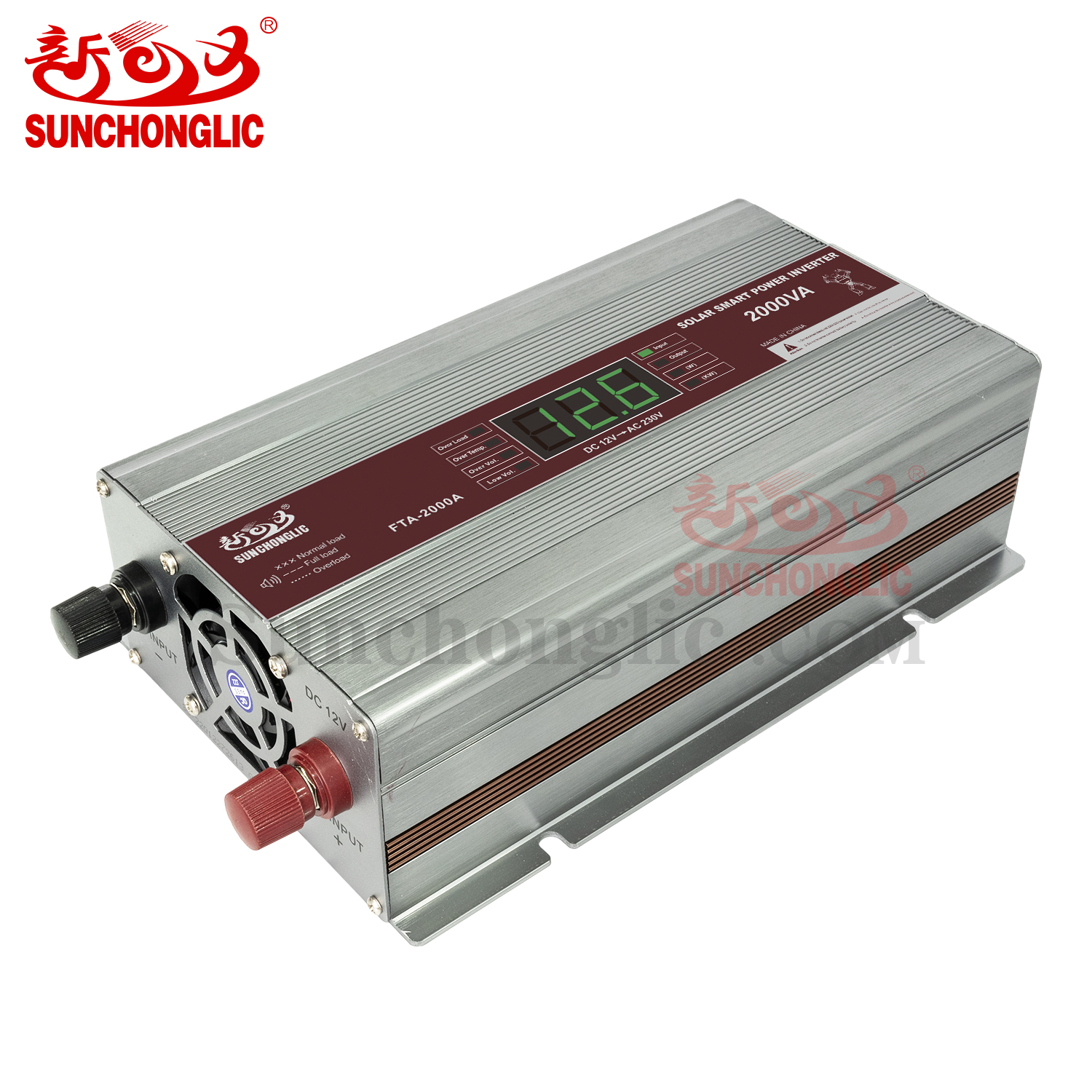

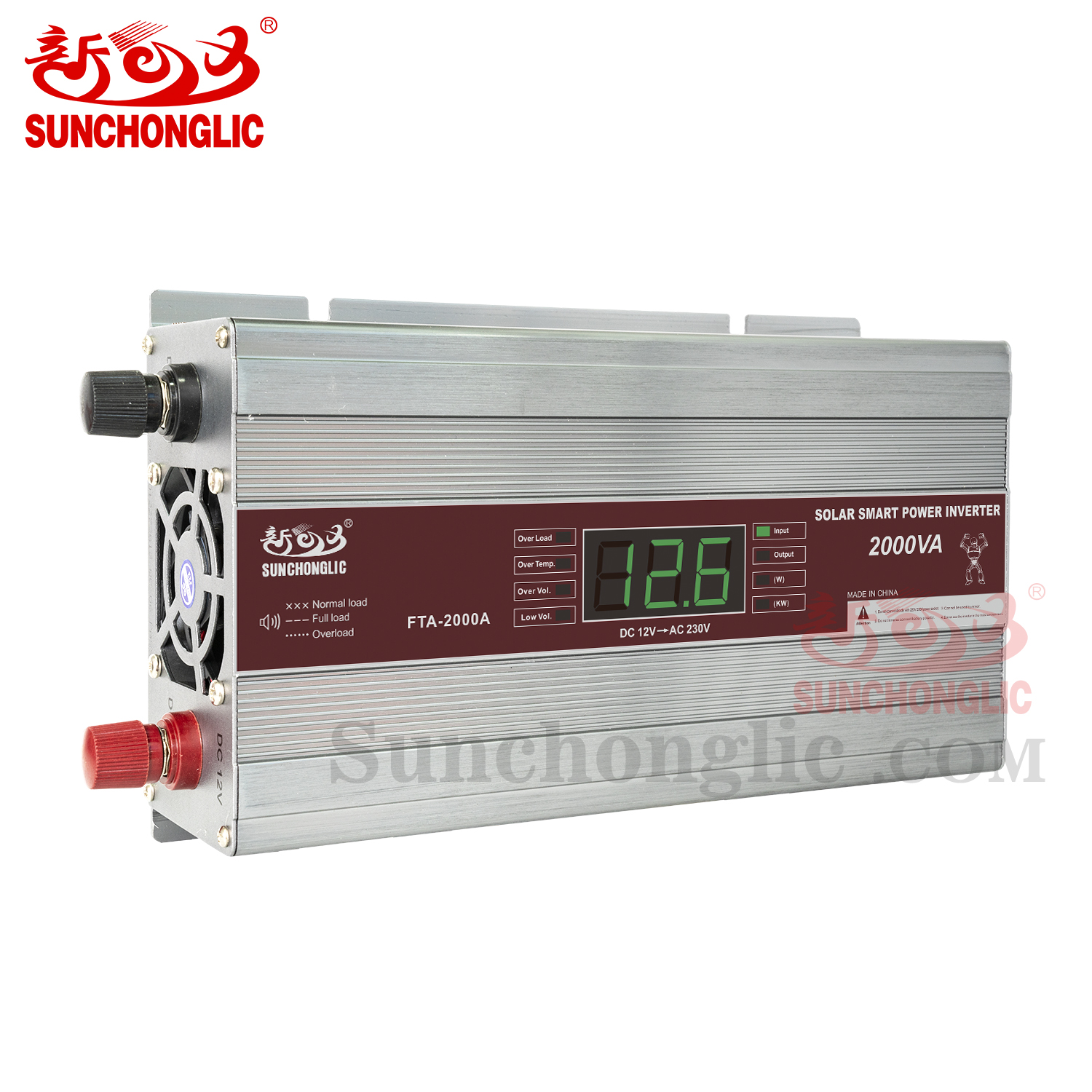

Sunchonglic 12v 220v 2000w 2000 watt off grid modify sine wave inverter

FTA-2000A

Modified Sine Wave Inverter

Features:

Modified sine waveform output

This waveform is the most appropriate for the linear load and the electronic equipment that use the switching power supply,such as light bulbs,electric cooker,energy saving lights and so on. Also applies to inductive loads such as transformers and motors.

Bulit-in 5V 1A USB Charging interface

Aerospace-grade silence technology,smart fan with energy saving

Smart power starting

LED Digital display,power display,battery capacity display.

INQUIRE NOW

SEND ENQUIRY

Specifications

Model		FTA- 500A	FTA- 500B	FTA- 1000A	FTA-1000B	FTA-1500A	FTA- 1500B
Output	Output Voltage	AC230V	AC230V	AC230V	AC230V	AC230V	AC230V
	Output Power	400W	400W	650W	650W	1000W	1000W
	Peak Power	500W	500W	1000W	1000W	1500W	1500W
	Frequency	50Hz	50Hz	50Hz	50Hz	50Hz	50Hz
	USB	DC5V 1A	DC5V 1A	DC5V 1A	DC5V 1A	DC5V 1A	DC5V 1A
Input	No-load current	<0.3A	<0.2A	<0.5A	<0.3A	<1A	<0.5A
	Working volt	DC12V	DC24V	DC12V	DC24V	DC12V	DC24V
	Voltage range	10.5-15V	21-30V	10.5-15V	21-30V	10.5-15V	21-30V
	Alarm voltage	10.5V	21V	10.5V	21V	10.5V	21V
	Low-voltage protection	10V	20.5V	10V	20.5V	10V	20.5V
	Overvoltage protection	16V	31V	16V	31V	16V	31V
	Efficiency	>85%	>85%	>85%	>85%	>85%	>85%
	Product size	18x11.2x5.5cm		22.5x11.2x5.5cm		24.5x12.5x7.5cm
	Weight	0.56kg		0.81kg		1.37kg

Model		FTA-2000A	FTA-2000B	FTA- 3000A	FTA-3000B	FTA-4000A	FTA- 4000B
Output	Output Voltage	AC230V	AC230V	AC230V	AC230V	AC230V	AC230V
	Output Power	1500W	1500W	2000W	2000W	2500W	2500W
	Peak Power	2000W	2000W	3000W	3000W	4000W	4000W
	Frequency	50Hz	50Hz	50Hz	50Hz	50Hz	50Hz
	USB	DC5V 1A	DC5V 1A	DC5V 1A	DC5V 1A	DC5V 1A	DC5V 1A
Input	No-load current	<1A	<0.5A	<2A	<1A	<2.5A	<1.5A
	Working volt	DC12V	DC24V	DC12V	DC24V	DC12V	DC24V
	Voltage range	10.5-15V	21-30V	10.5-15V	21-30V	10.5-15V	21-30V
	Alarm voltage	10.5V	21V	10.5V	21V	10.5V	21V
	Low-voltage protection	10V	20.5V	10V	20.5V	10V	20.5V
	Overvoltage protection	16V	31V	16V	31V	16V	31V
	Efficiency	>85%	>85%	>85%	>85%	>85%	>85%
	Product size	32x18x8.5cm		36x18x8.5cm		39.8x19.5x8.8cm
	Weight	2.47kg		2.96kg		4.88kg
