SDB-1000A

Sunchonglic 1000w 12v 220v modified sine wave solar power inverter

SDB-1000A

Modified Sine Wave Inverter

Features:

DC 12V to AC 220V Power inverter 1000va

Built in 5V 1A USB charging interface

Modified sine waveform output

LCD display shows battery capacity,battery voltage,output voltage,load power

High conversion efficiency, smart soft start function

Input and output are completely independent

Smart, light,and portable designed for home use

Universal socket, suitable for all kinds of plugs

Applicable for resistive AC loads

High-procision voltage stability technology

Aerospace-grade silence technology

Cooler of fan and working status are intellectually controlled by MCU, which mostly prolongs its service life and helps to save the power consumption

Multiple safe protections are designed,including overload/overvoltage/low voltage/high temperature and short circuit protection

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Product Specification
Model  SDB-D500A SDB-D1000A
Output voltage  AC230V  AC230V
Output power  300W 600W
Peak power  500W 1000W
Output frequency    50Hz    50Hz
USB interface  DC5V 1A DC5V 1A
NO-load current  <0.3A <0.5A
Working volt  DC12V DC12V
Voltage range  10.5-15V 10.5-15V
Alarm voltage  10.5V 10.5V
low-voltage  10V 10V
Overvoltage 16V 16V
Efficiency  >85%
Size/PCS 20.3*11.2*5.5CM 22.5*11.2*5.5CM
Weight /PCS 0.59KG 0.75KG
Size/CTN 46*31*35cm 50*31*35cm
G.W/CTN 16.68KG 20.27KG
Output waveform  Modified sine wave

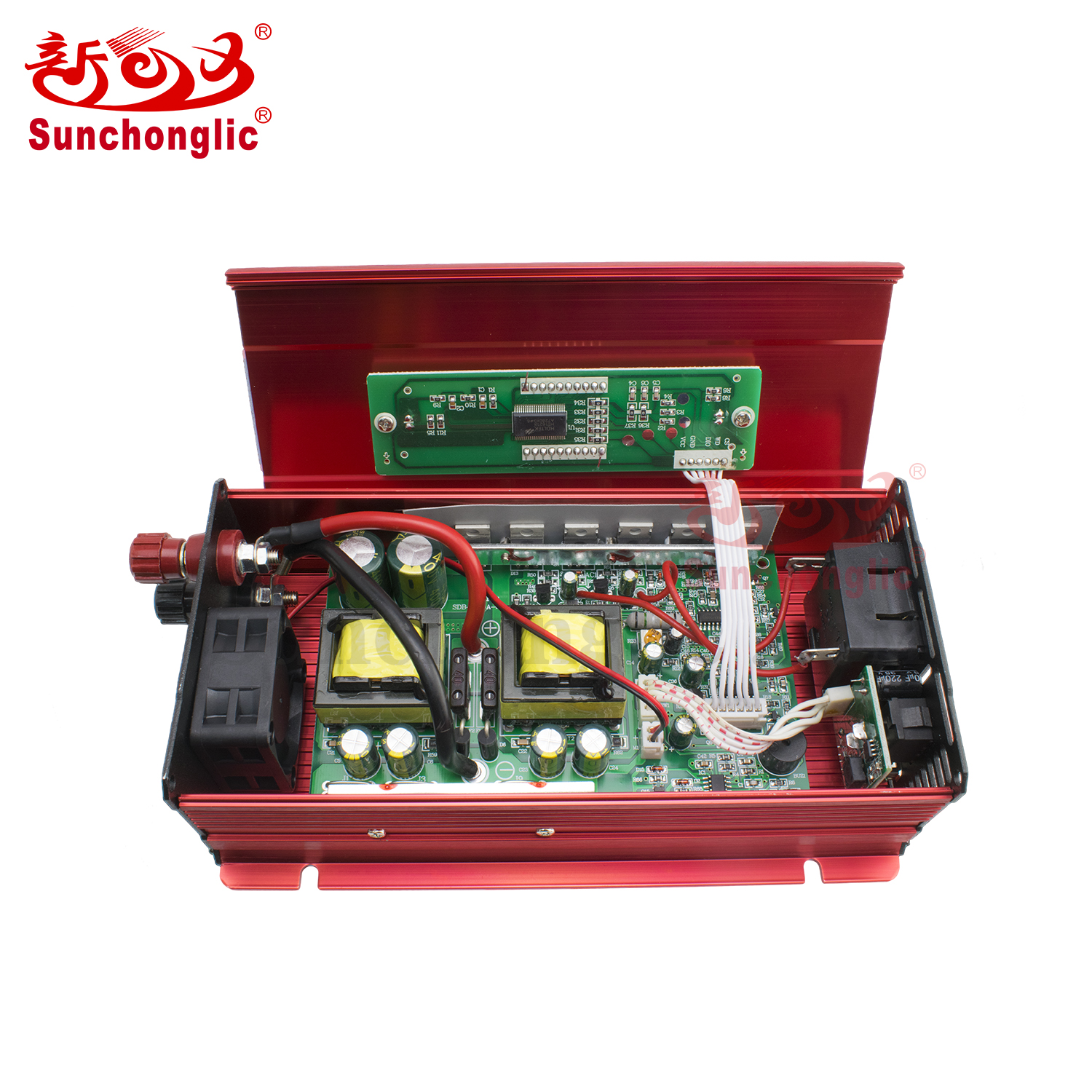

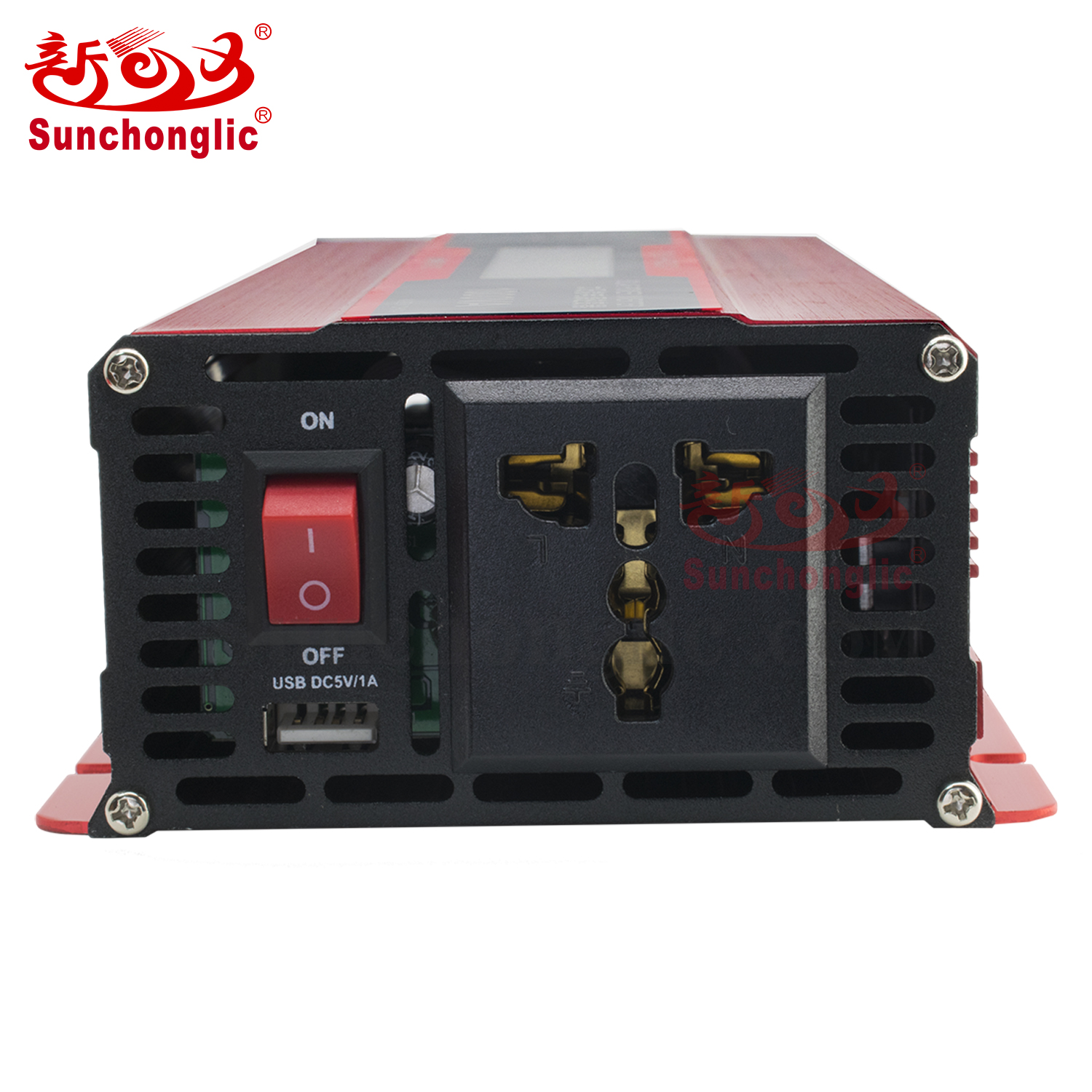

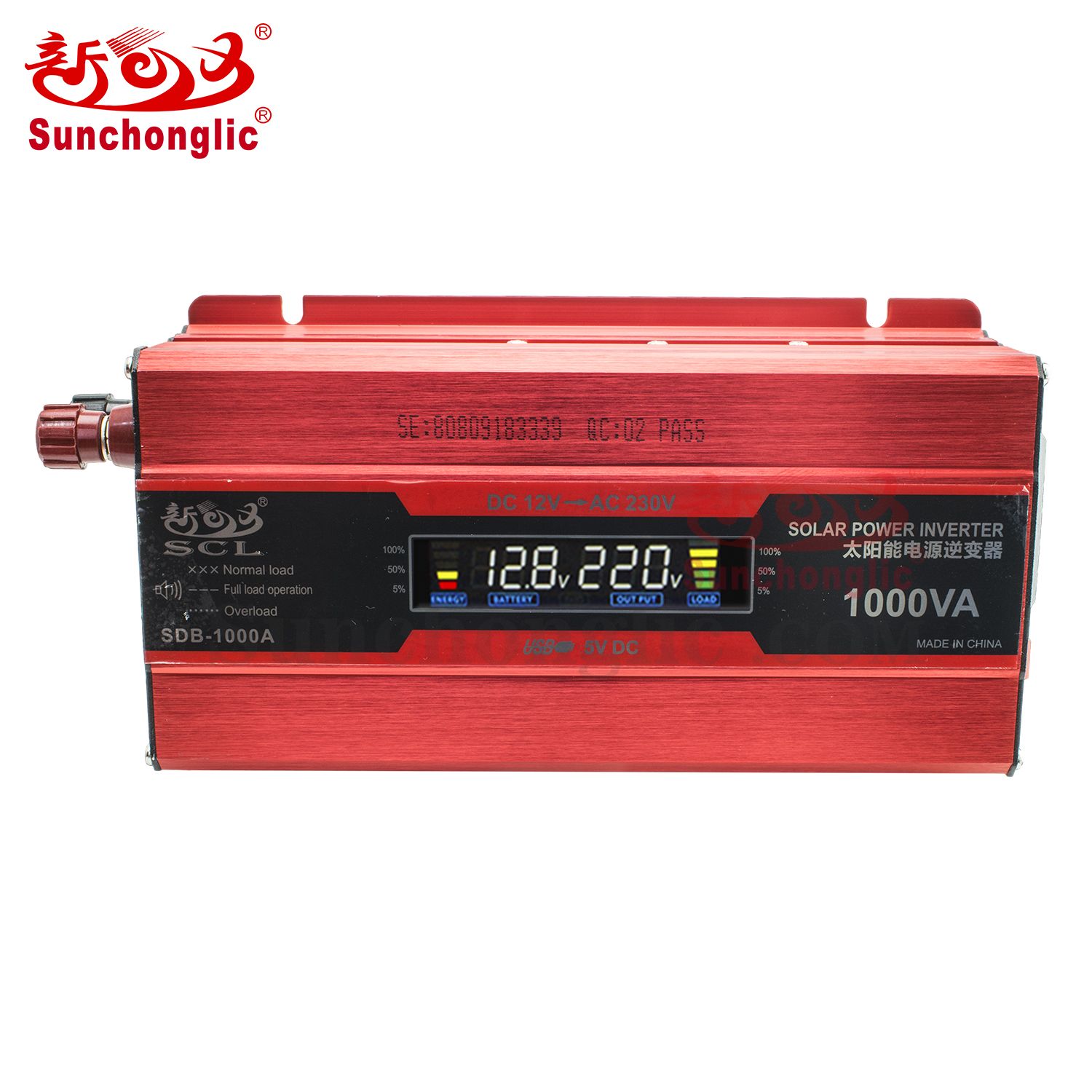

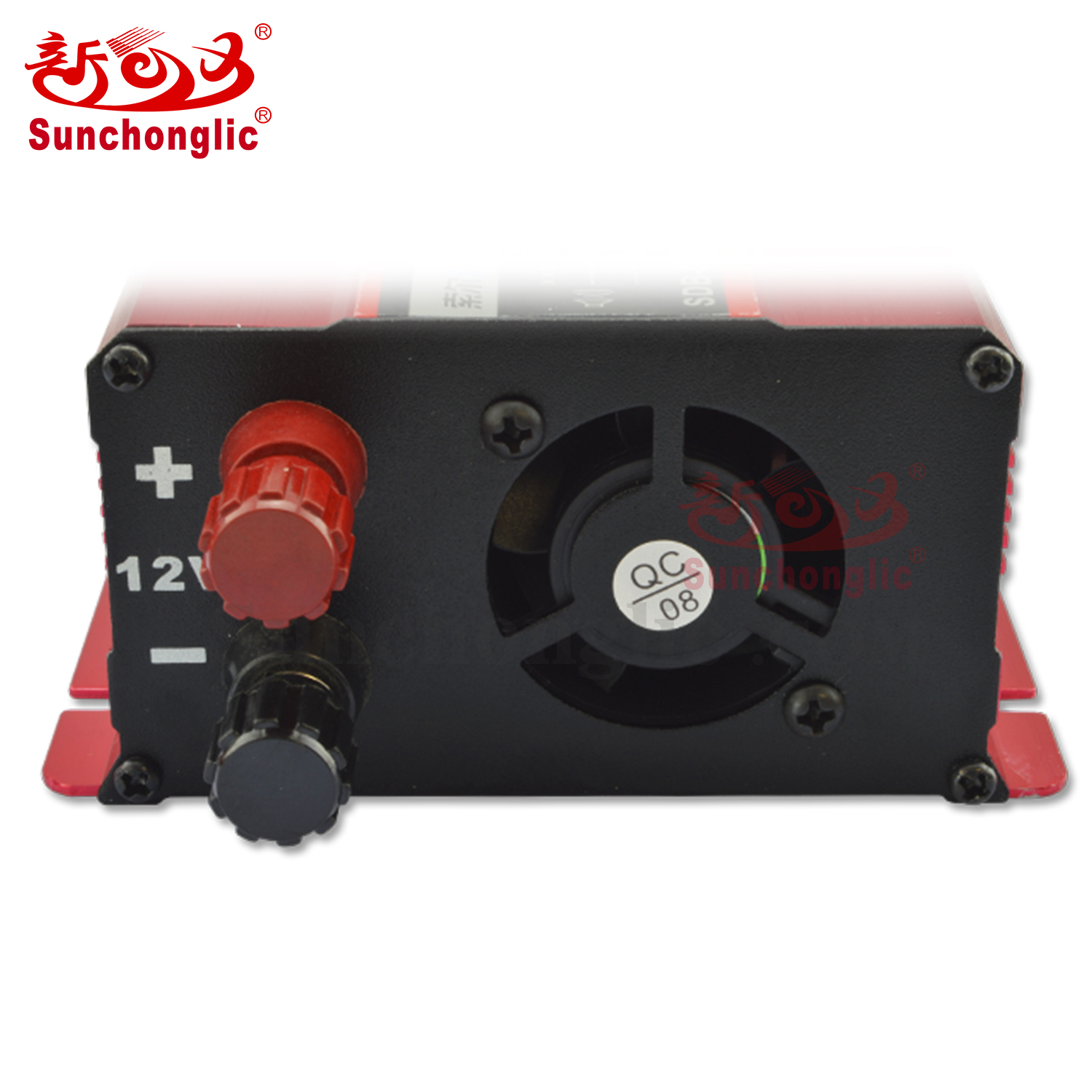

Product Photos
