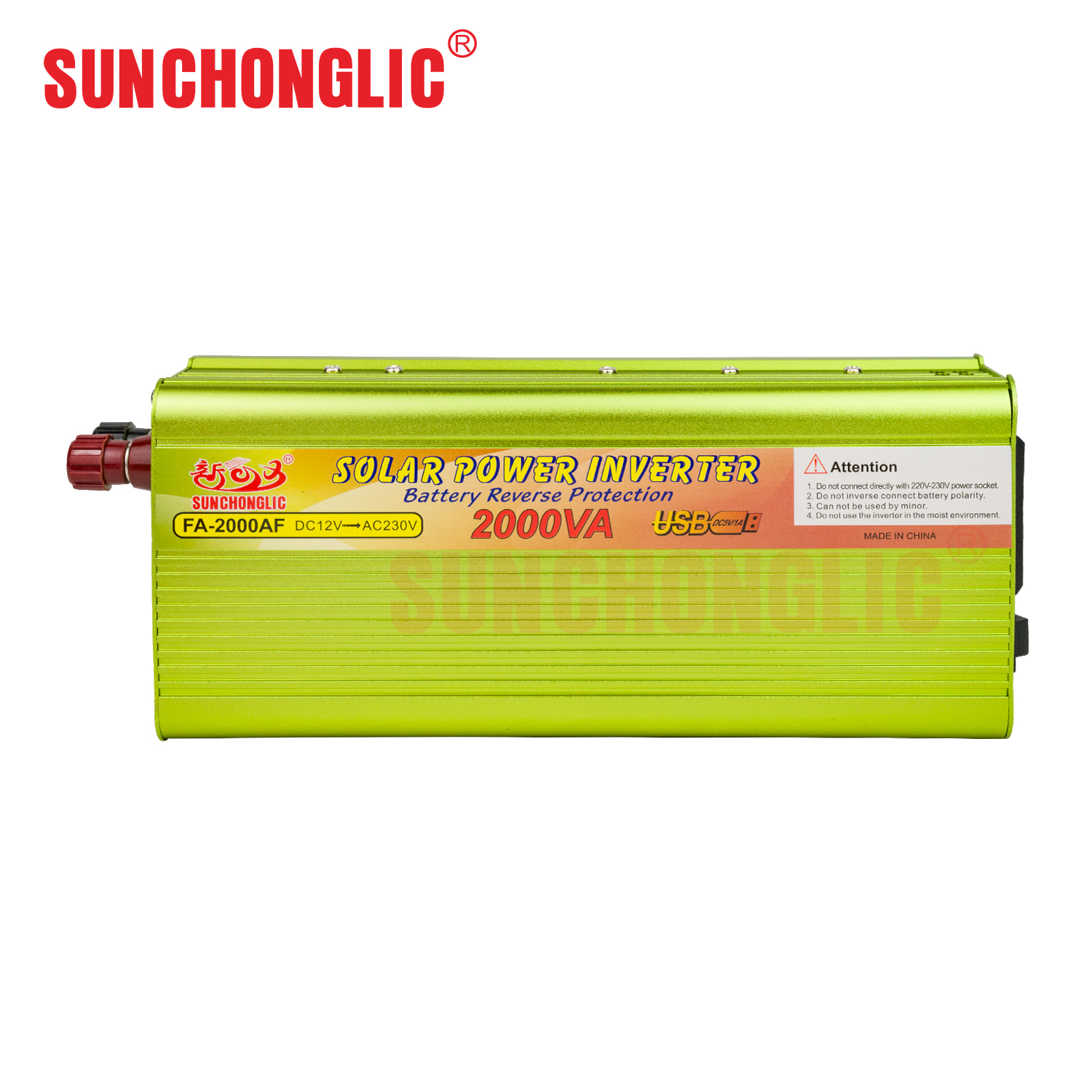

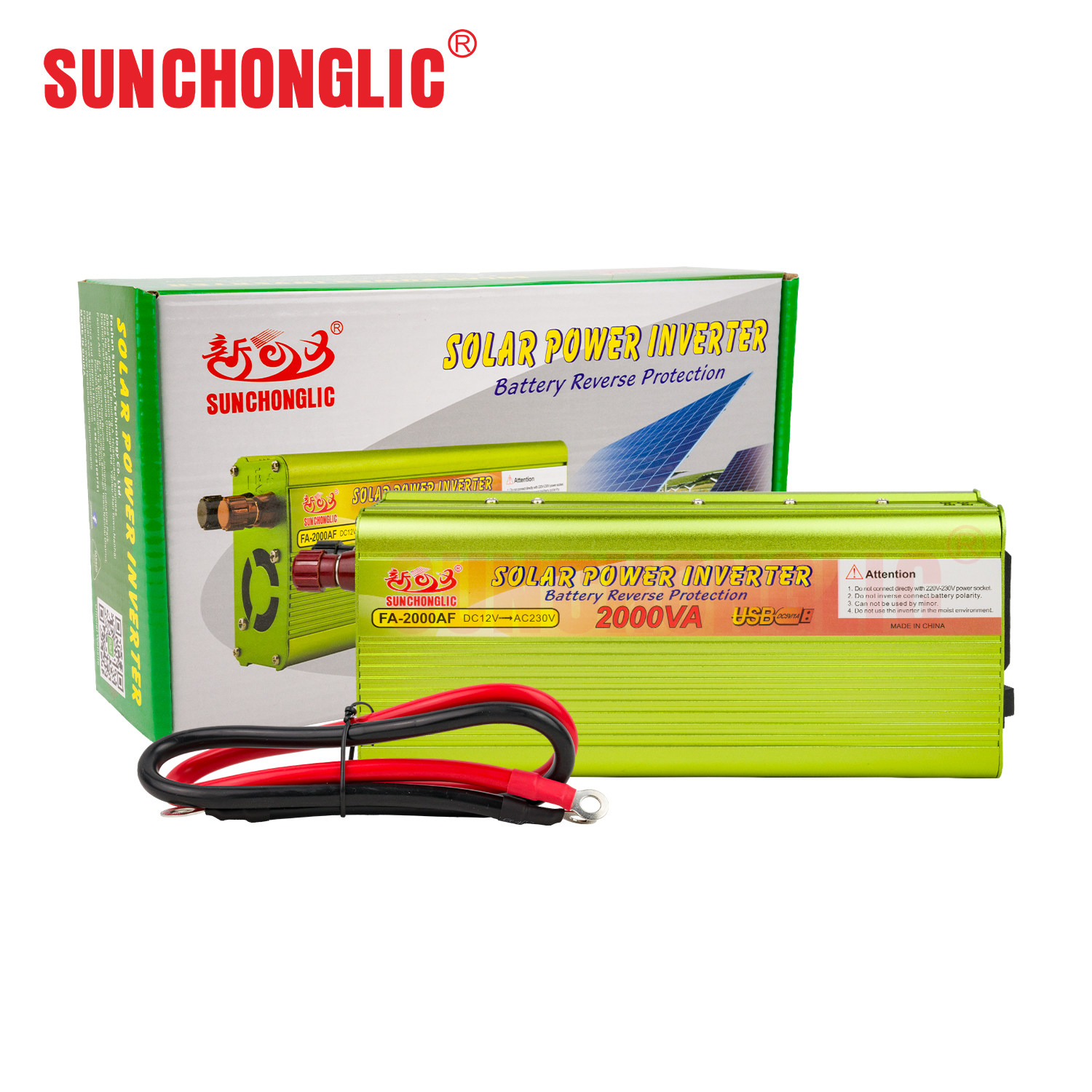

You are here: Home > Products > Modified Sine Wave Inverter > FA-2000AF
Modified Sine Wave Inverter

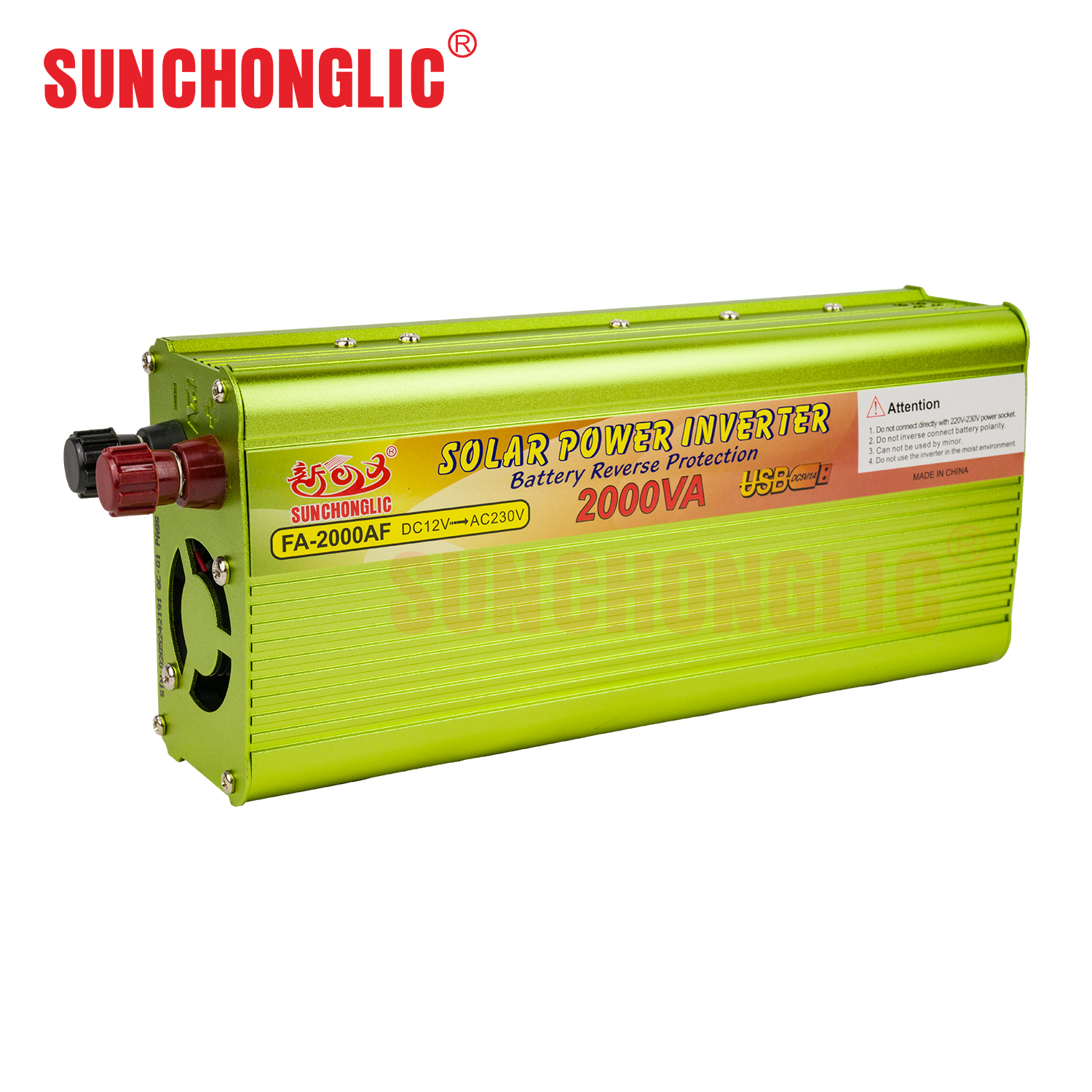

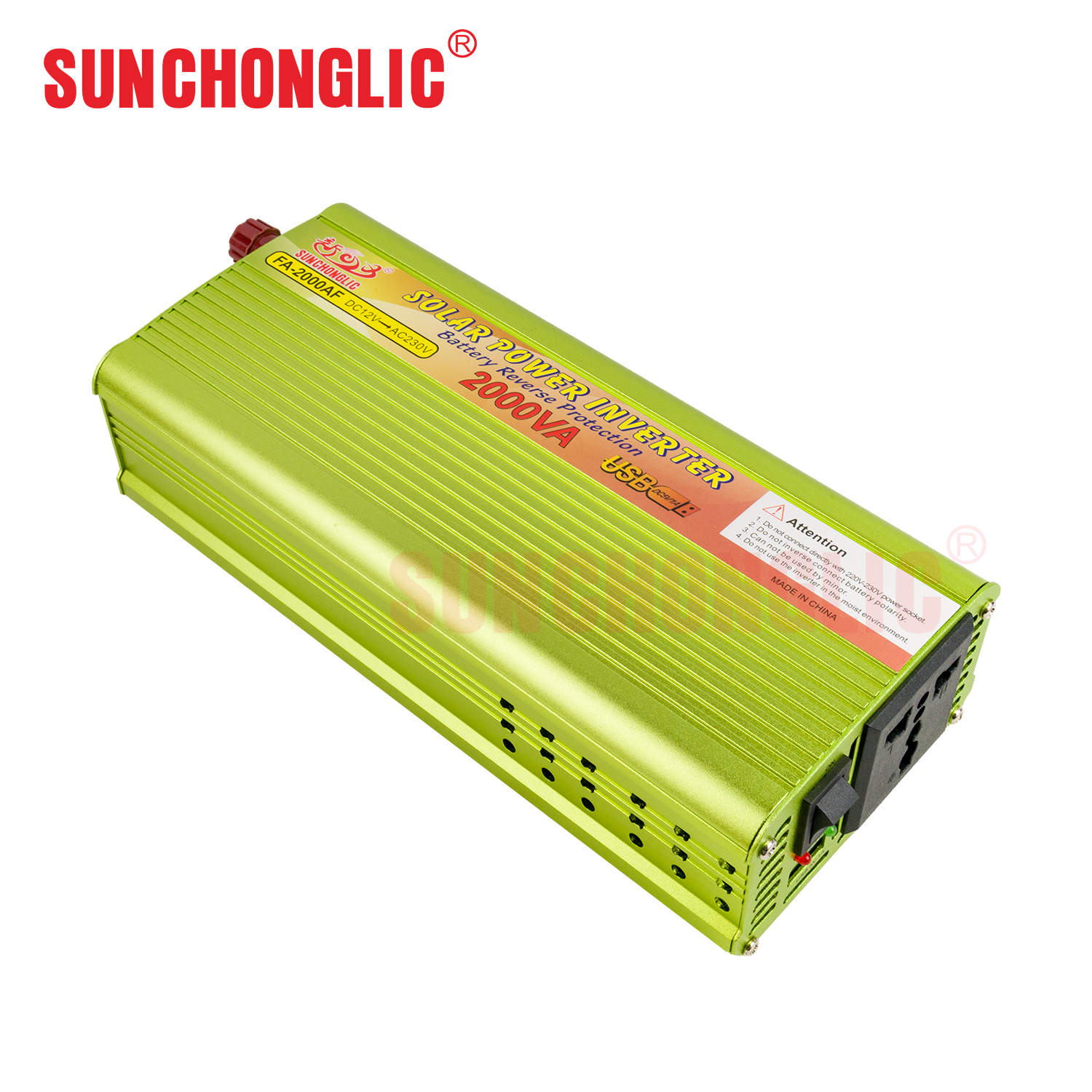

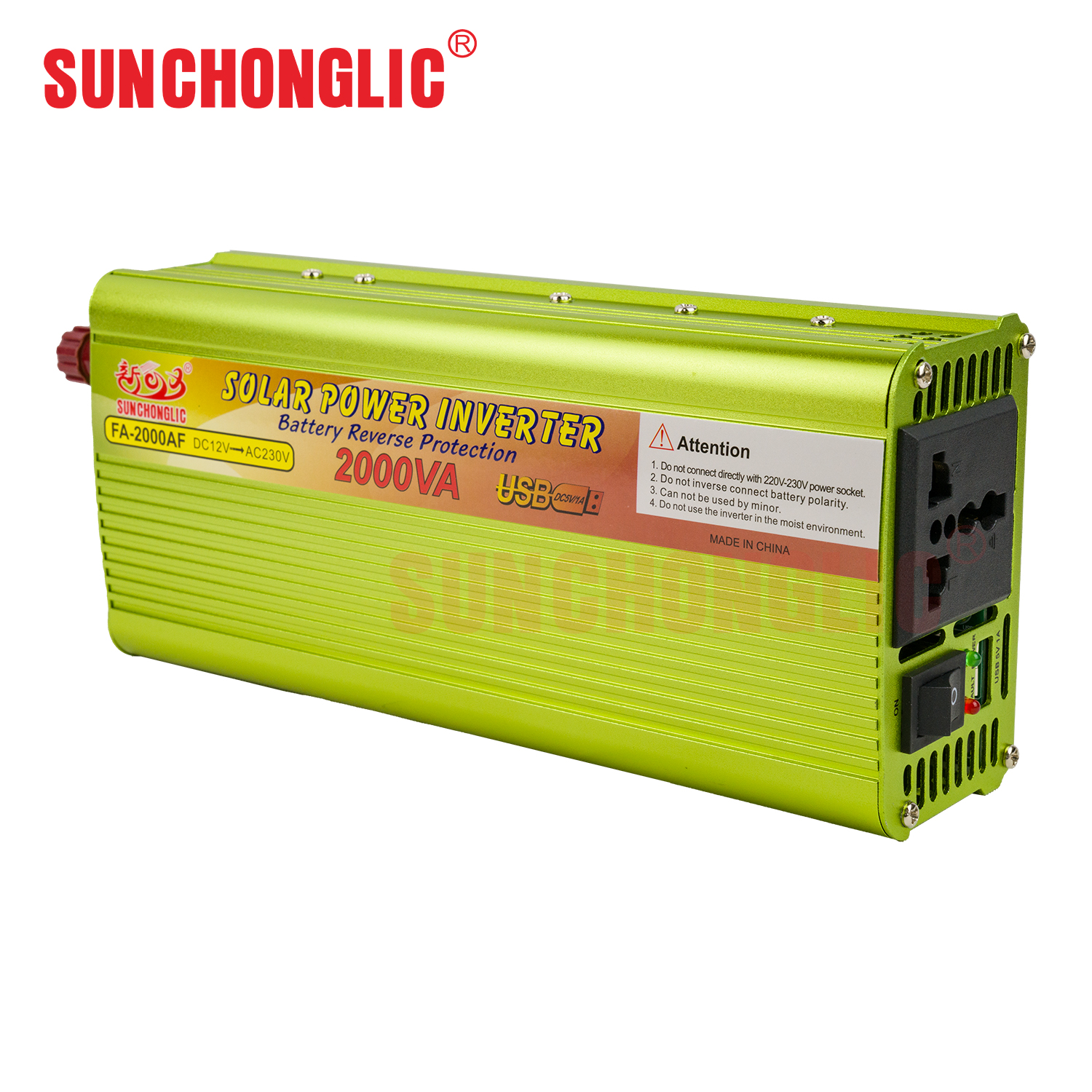

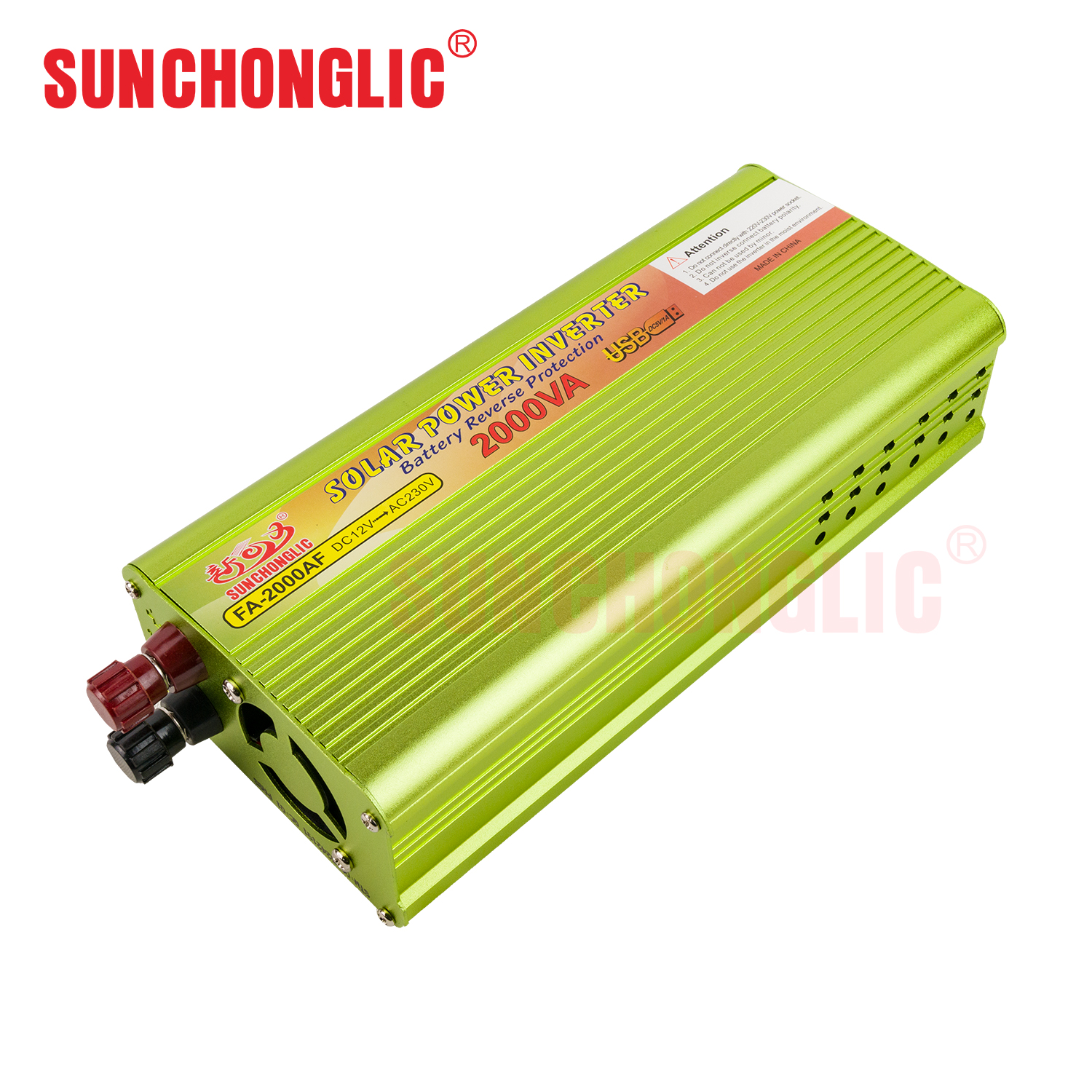

Sunchonglic series inverter 12v 220v 2000w are equipped with perfect protection circuits.Provide safe automatic shutdown function,including grounding protection,low voltage alarm to prevent damage to your battery
Modified sine waveform output.
Low standly power cost,high conversion efficiency.
Inverter and charger can work independent noninterference.
High and low voltage protection,meter,protection,output,and high reliability.

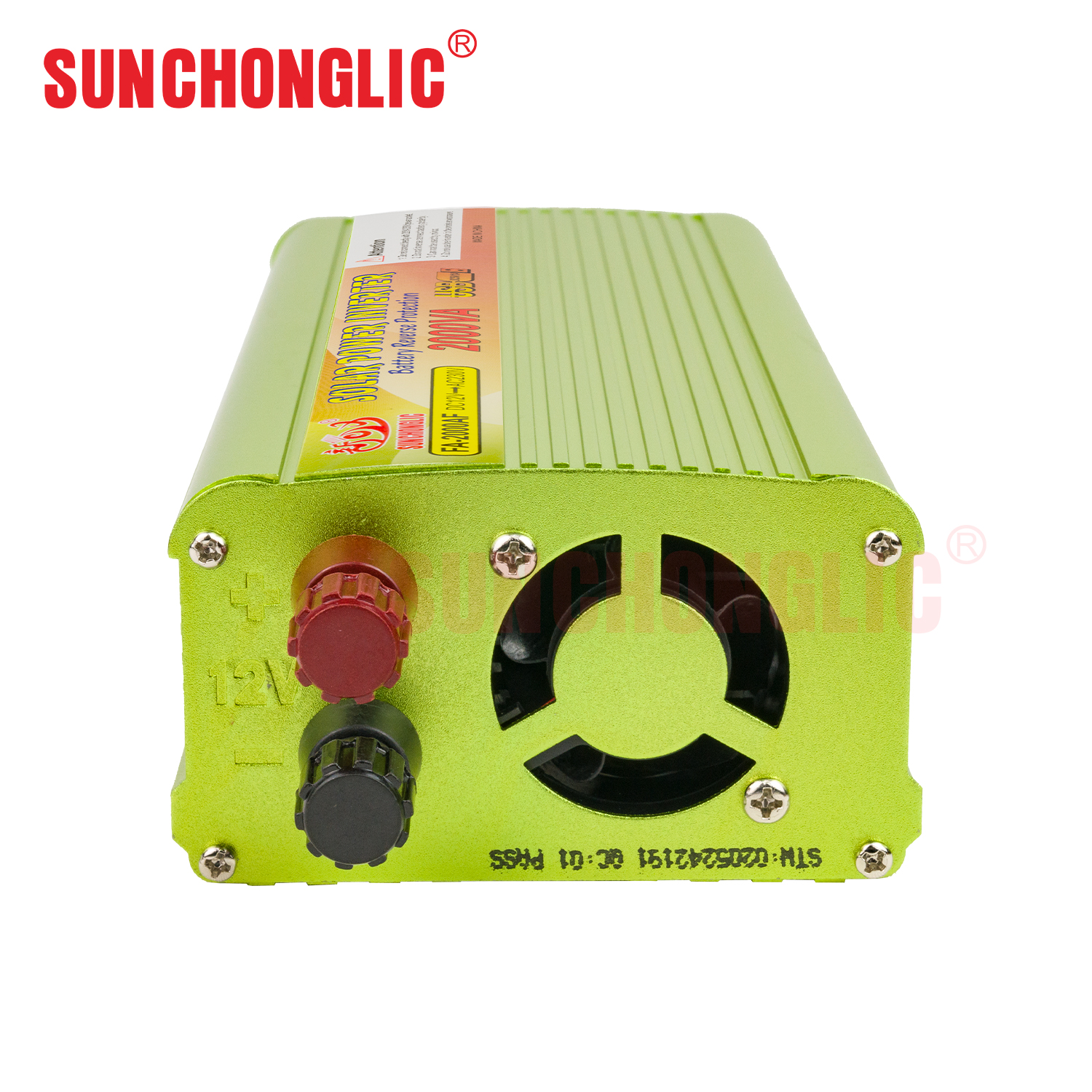

Smart fan is controlled by the load,if output didn't answer load,fan can not rotate.
2000w inverter have advanced anti-jamming technology, fully functional protection circuit and soft start circuit,convenient mode of operation.
Cooler of fan and working status are intellectually controlled by MCU, which mostly prolongs its service life and helps to save the power consumption
Protection circuit is automatic,including thermal protection,battery protection,short circuit protection,reverse connecting protection and ground protection.
Soft -start circuit has the function of gradually raise the output voltage when startup to eliminate cold start failure.And also has the function of instaneous output voltage drop and fast recovery to reduce the load boot instantly overloaded.
Product Specification | |||||
Model |
FA- 350AF |
FA- 500AF |
FA- 1000AF |
FA- 1500AF |
FA- 2000AF |
Output Voltage | 220VAC | ||||
Output Waveform | Modified sine waveform | ||||
Rated Power | 200W | 350W | 600W | 700W | 800W |
Peak Power | 350W | 500W | 1000W | 1500W | 2000W |

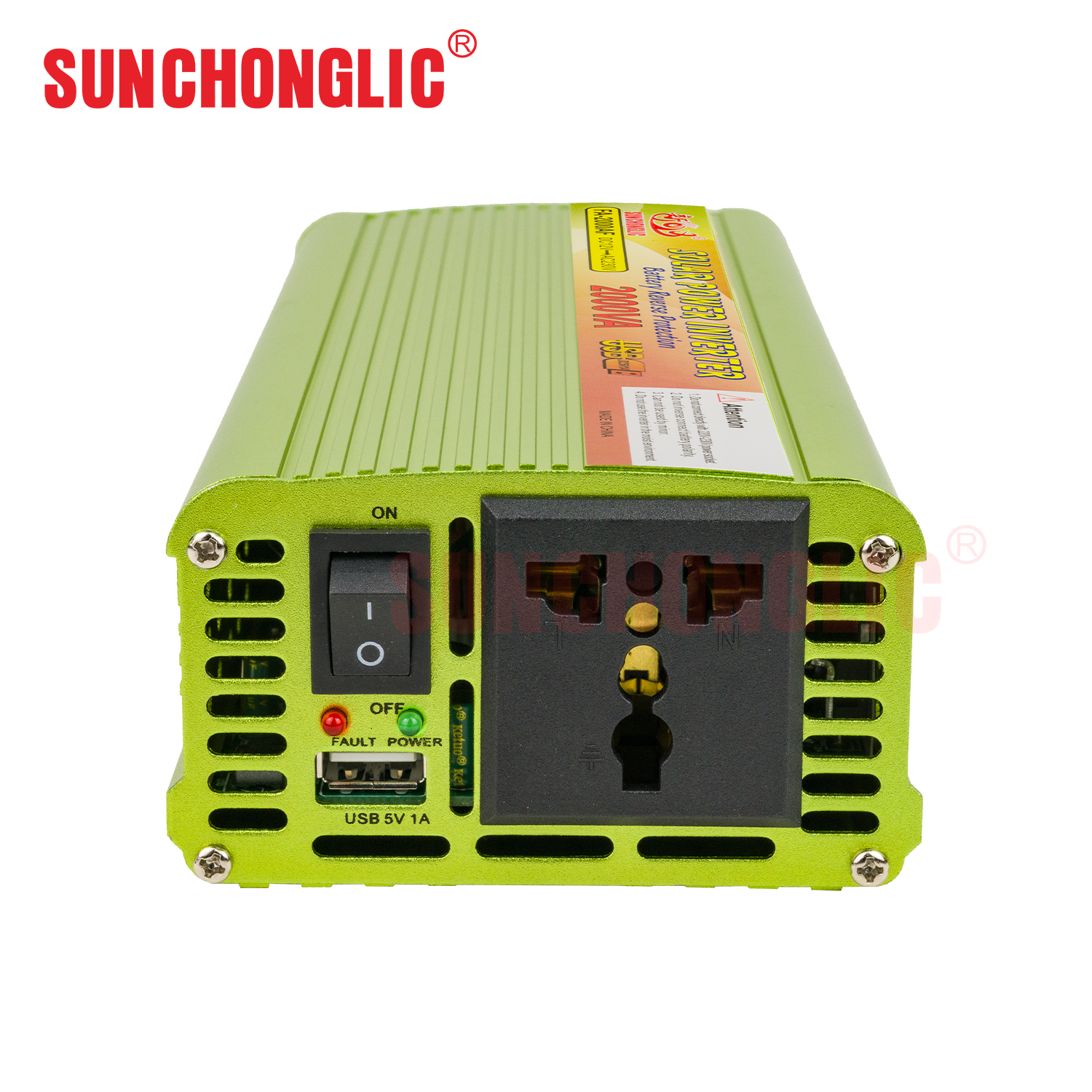

USB Output | DC5V 1A | / | |||
Working voltage | DC12V | ||||
Frequency | 50Hz | ||||
No-load Current | <0.5A | ||||
Voltage Range | 10.5-15V | ||||
Alarm Voltage | 10.5-15V | ||||
Low-voltage protection | 10.5V | ||||
Over voltage protection | 15V | ||||
Efficiency | 70%~80% | ||||
SIZE/CTN | 39*30*34cm | 39*30*34cm | 46*30*34cm | 46*30*33cm | 54*30*33cm |
G.W./CTN | 14.26kg | 14.26kg | 19.08kg | 17.50kg | 23.32kg |
Packing/CTN | 20PCS |
