FA-500A

Sunchonglic 12v dc to 220v ac 500va off grid power invertor for home use

FA-500A

Modified Sine Wave Inverter

Features:

Modified sine waveform output.

High conversion efficiency, smart soft start function.

Input and output are completely independent.

Smart, light,and portable designed for home use.

Universal socket, suitable for all kinds of plugs.

Applicable for resistive AC loads

High-procision voltage stability technology,Aerospace-grade silence technology

Cooler of fan and working status are intellectually controlled by MCU, which mostly prolongs its service life and helps to save the power consumption

Multiple safe protections are designed,including overload/overvoltage/low voltage/high temperature,short circuit and reverse connecting protection.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Product Specification
Model FA-
350A
FA-
500A
FA-
1000A
FA-
1500A

FA-

2000A

FA-
3000A
Output Voltage AC 220V±10V
Output Voltage Frequency 50Hz±5Hz
Output Waveform Modified sine waveform
Rated Power 300W 350W 550W 600W 800W 900W
Peak Power 350W 500W 1000W 1500W 2000W 3000W
USB Output / USB 5V
No-load standby current <250mA <500mA <0.5A
Input Voltage Range DC 10V-15V DC 10.5-15V
Undervoltage Alarm Voltage DC 10 -10.5V DC 10.5-15V
Undervoltage protection voltage DC 9-10V DC 10.5V
Overvoltage protection voltage DC 15-16V DC 15V
Conversion efficiency ≥84% 70%-80%
SIZE/CTN(CM) 39*30*34 39*30*33 46*30*33 46*30*33 54*30*33 44*28.5*32
G.W./CTN 14.26kg 12.02kg 15.43kg 15.32kg 22.19kg 17.05kg
Packing/CTN 20PCS 12PCS

Video Presentation

Smart,light,and portable,designed for home use.

500va DC 12V to AC 220V power inverter.

Modified/Square waveform output.

Universal socket, suitable for all kinds of plugs.

Input and output are completely independent.

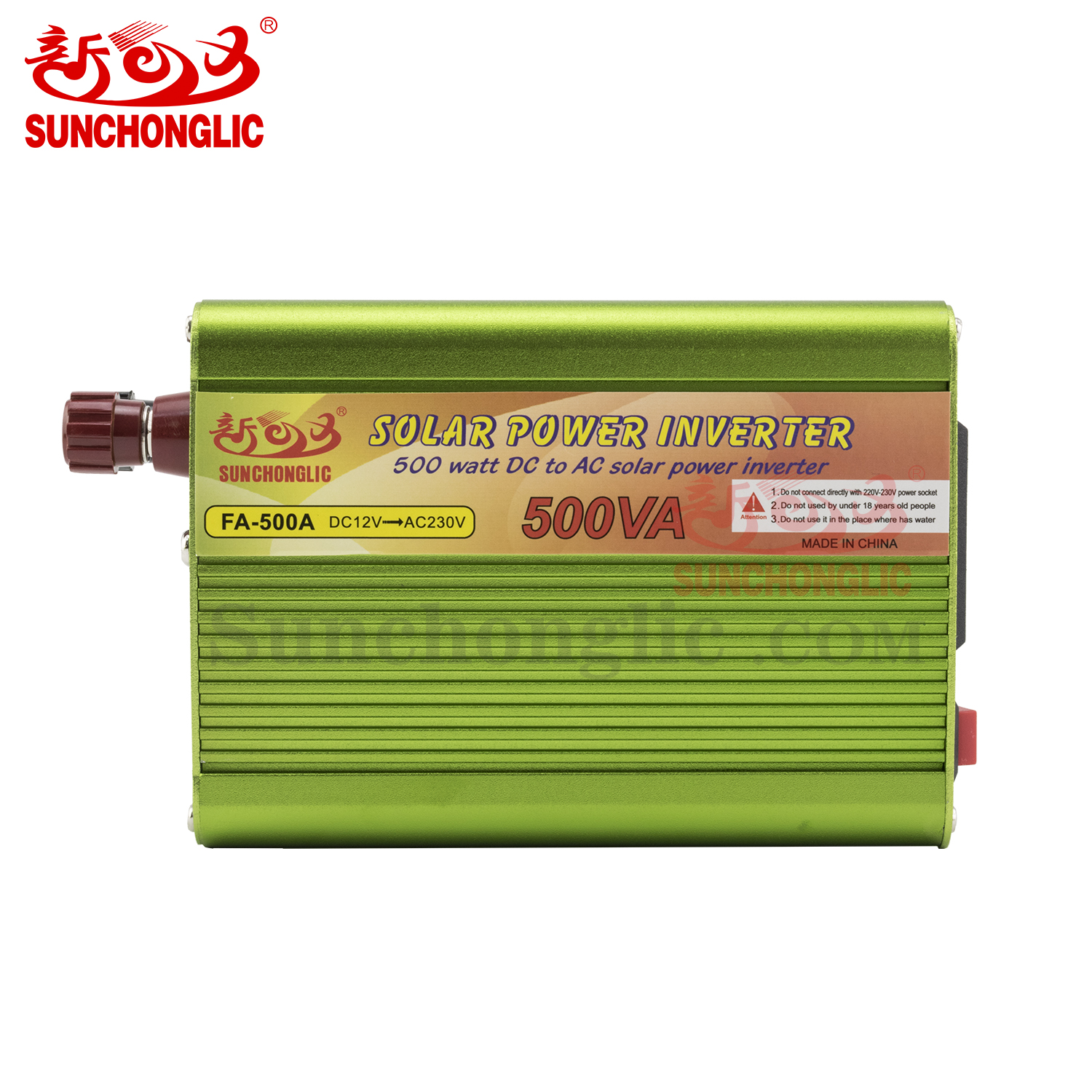

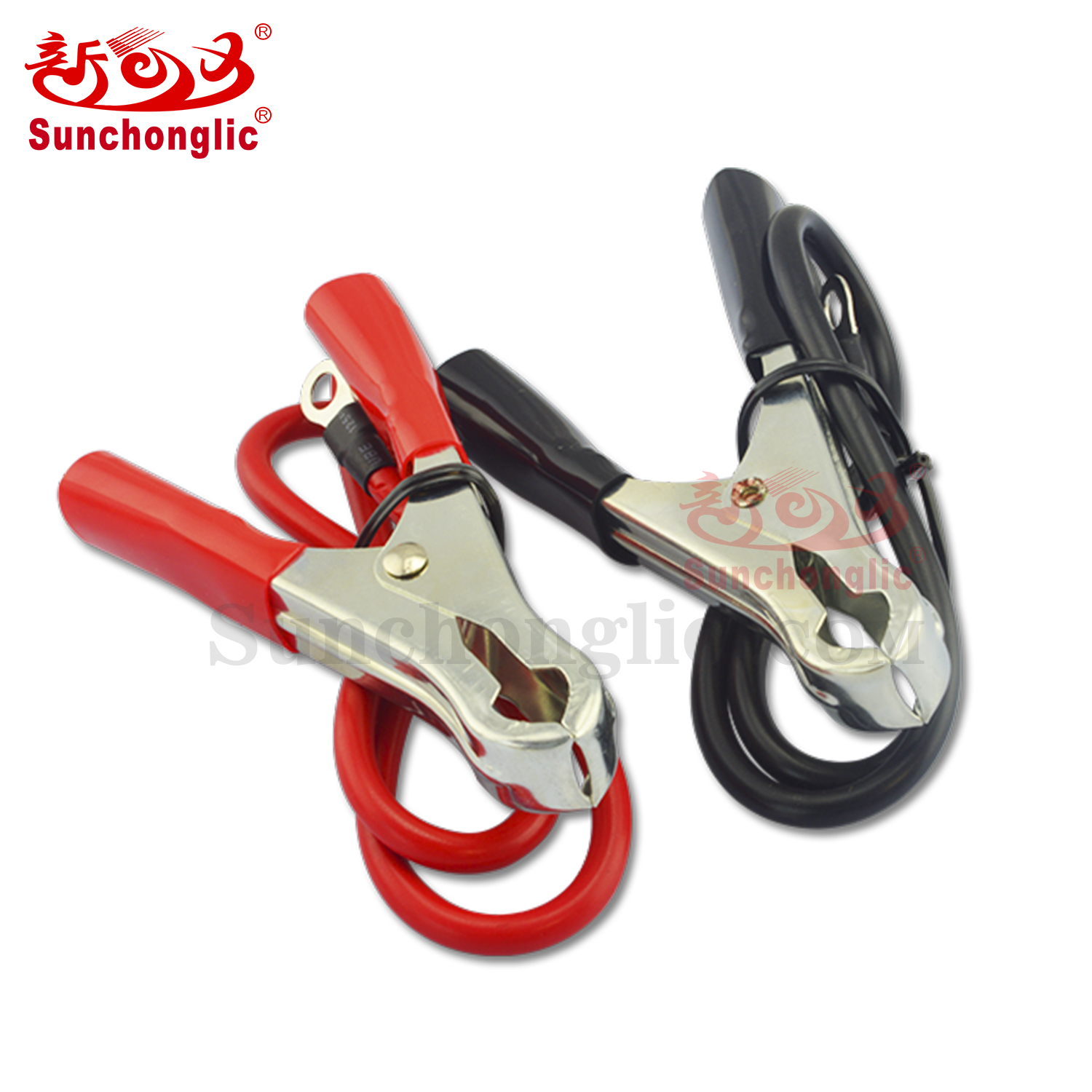

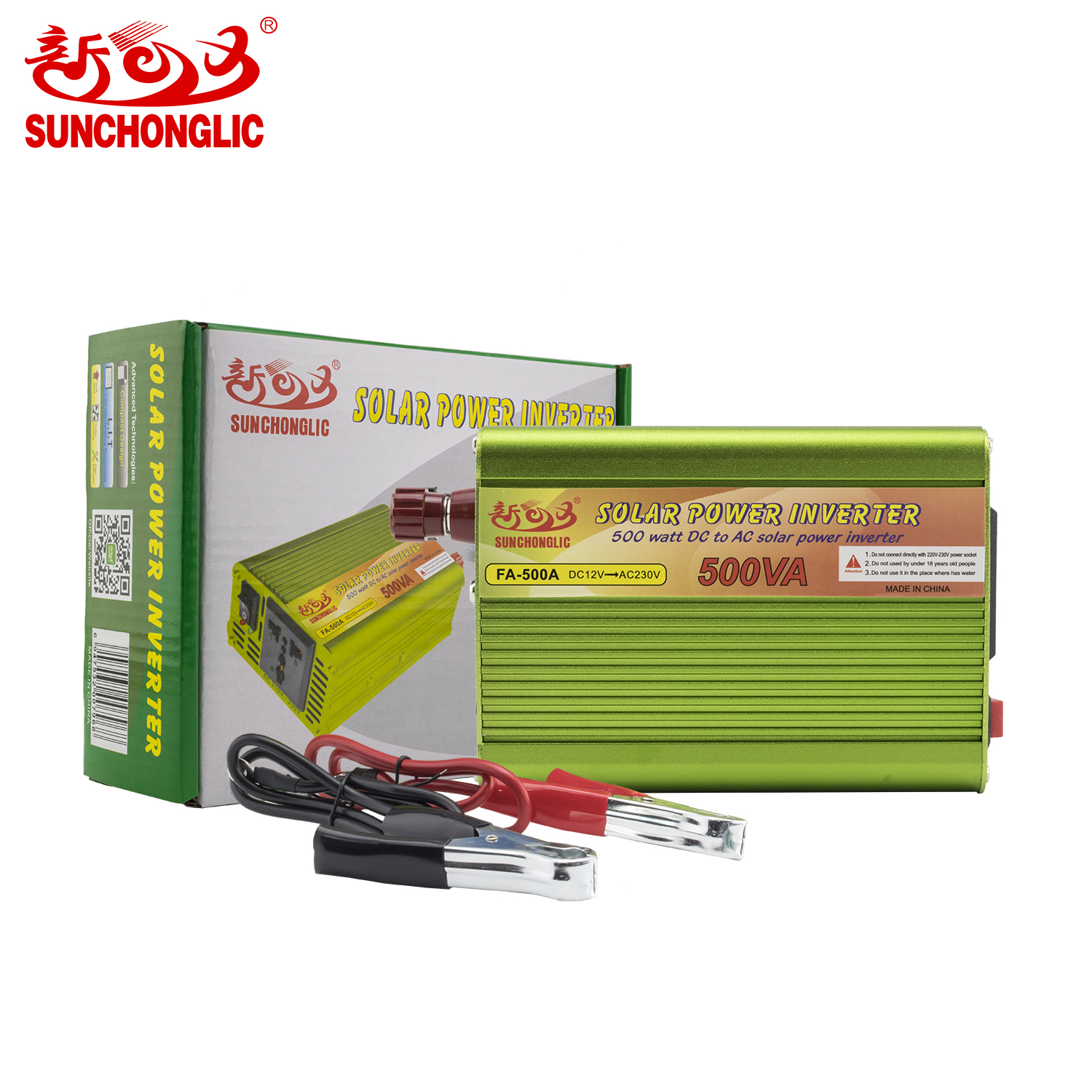

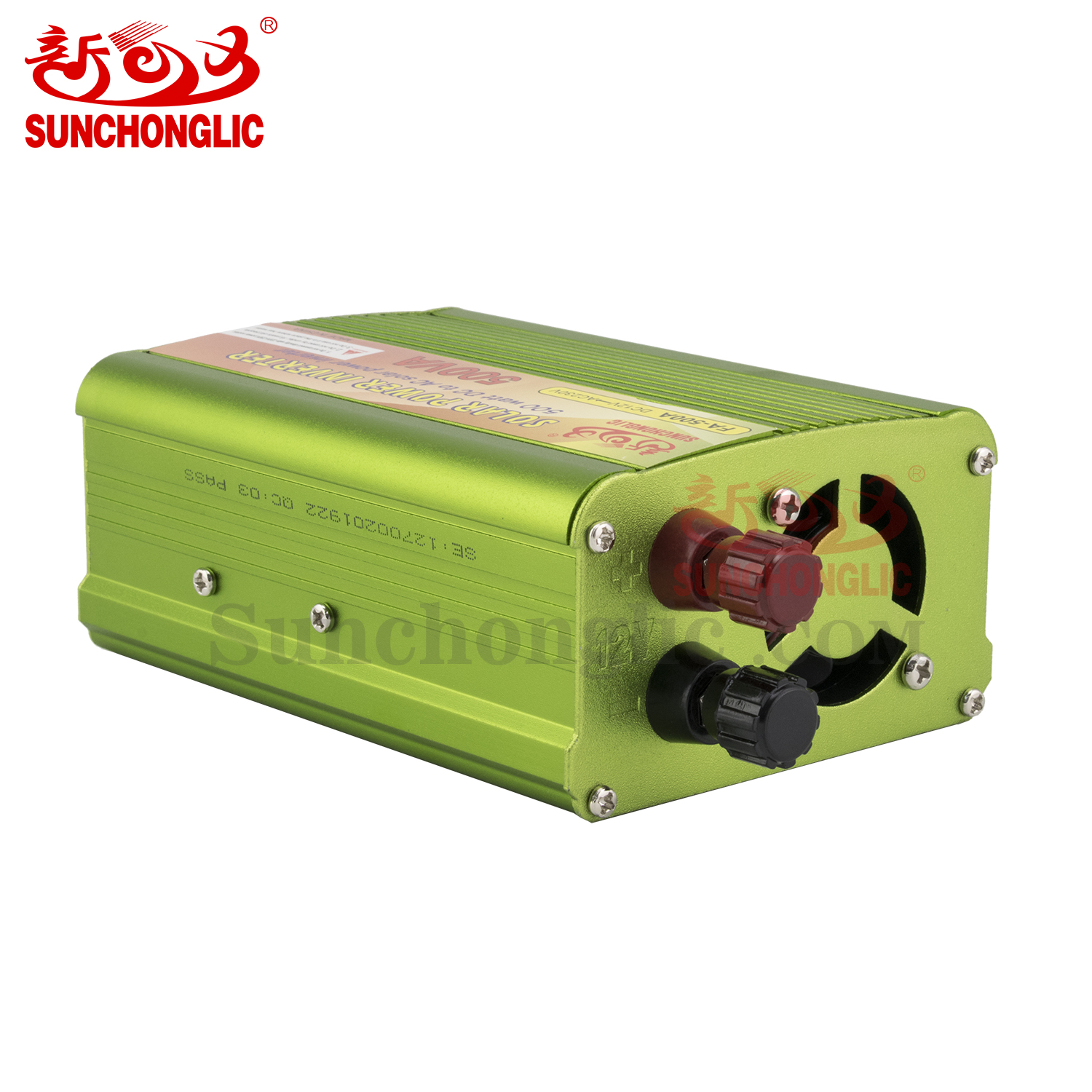

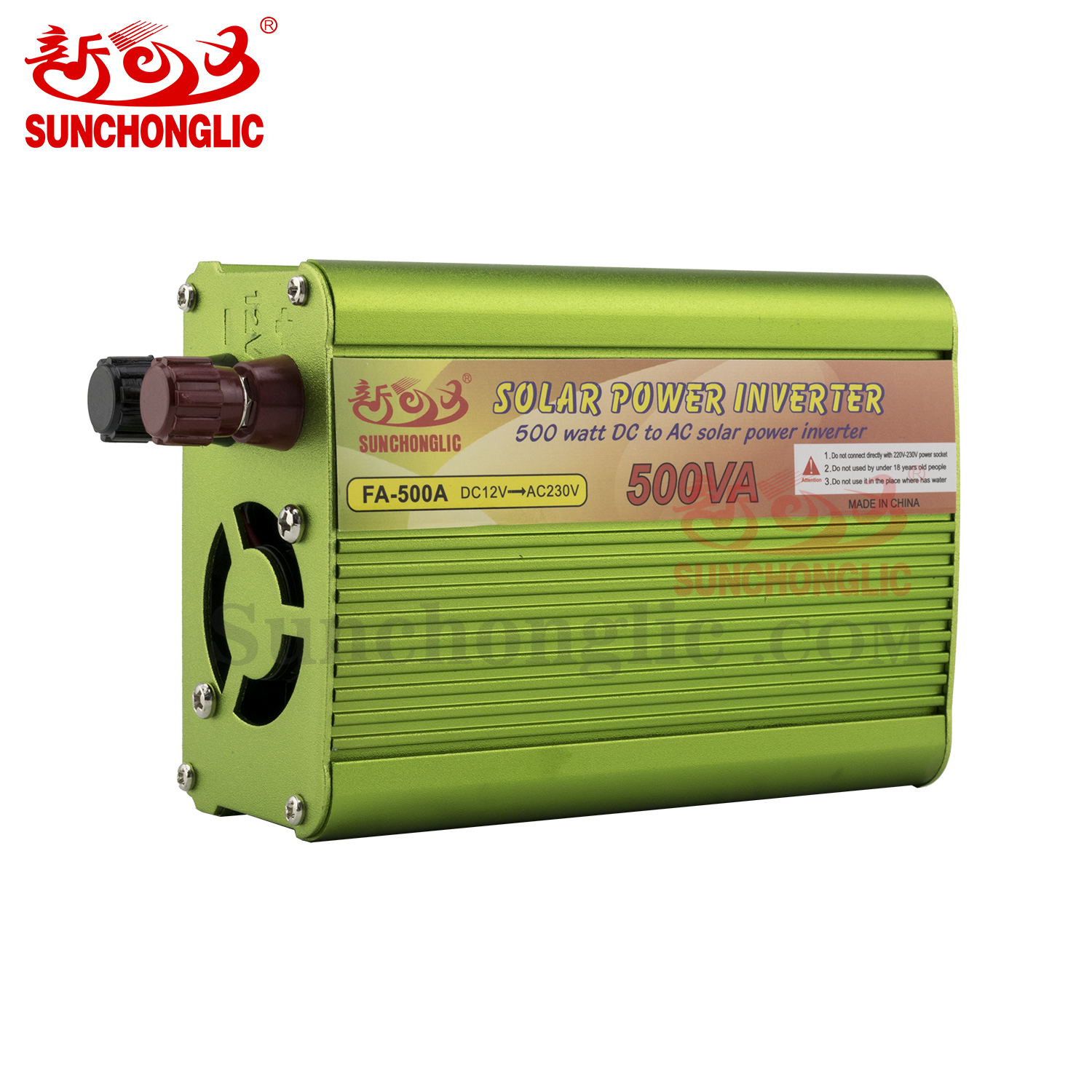

Product Photos
