FTB-2000A

Sunchonglic 2000w 2000 watt 2kw inversor DC 12V to AC 110V 60Hz off grid solar power inverter

FTB-2000A

Modified Inverter 110V

Features:

12V 110V 60Hz 2000w off grid modified sine wave power inverter.

It is very portable and easy to use,no matter it connect to a car or other 12V battery.

It could provide home applicance with reliable AC power such as TV,DVD players and electric tools,etc.

Modified sine waveform output.

Built in 5V 1A USB charging interface.

Conversion efficiency is up to 90%.

Low leakage current, less than 90μA.

Intelligent speed regulation fan.

Multiple protections: short circuit protection/overheat protection/overload protection/input overvoltage protection/input under voltage protection.

Applications: Vehicles, yachts, home appliances, office and portable equipment,etc.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Model FTB-2000A
Input Rated battery voltage 12V
Rated current 165A
No load current ≤1200mA
Efficiency ≥90%
Battery type Lead-acid battery
AC output rated power 2000W
AC voltage 110VAC
Frequency 60Hz
Waveform Modified sine wave
Input Protection Battery under voltage shutdown 10V±0.3V
Battery under voltage recovery 11.5V±0.3V
Battery over voltage protection 15.5V±0.3V
Battery over voltage recovery 15V±0.3V
Output Protection Output short circuit Protection:turn off output and resume after restart
Over load Protection:output power>2000W,turn off output and resume after restart
Over heat Internal temperature>90℃,turn off output
Internal temperature<80℃,automatically resume output
Environment Working temperature  -40~+70℃
Working humidity 20%~95%RH
Storage temperature/humidity 10%~95%RH,-40~+85℃
Others Dimension 256*155*85mm

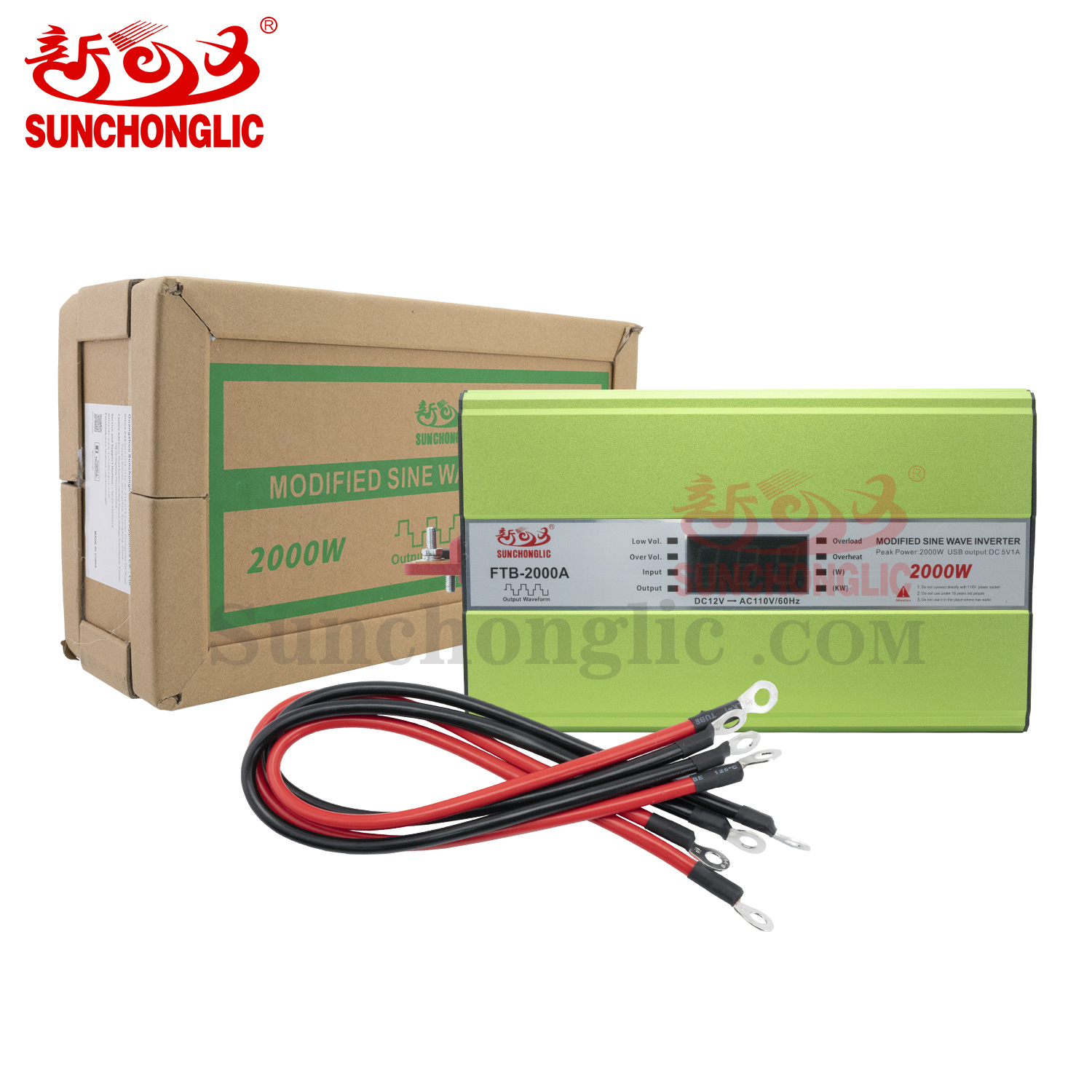

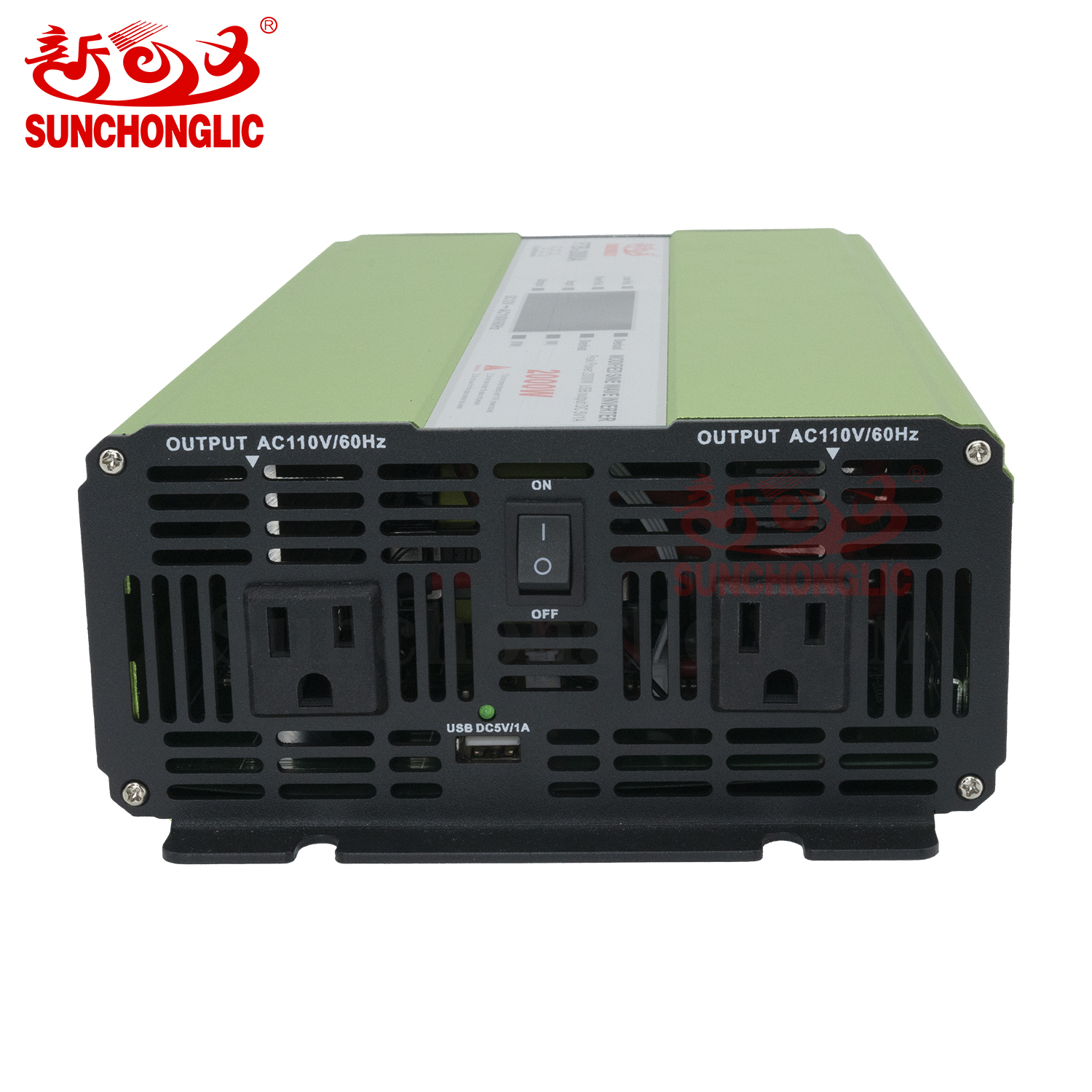

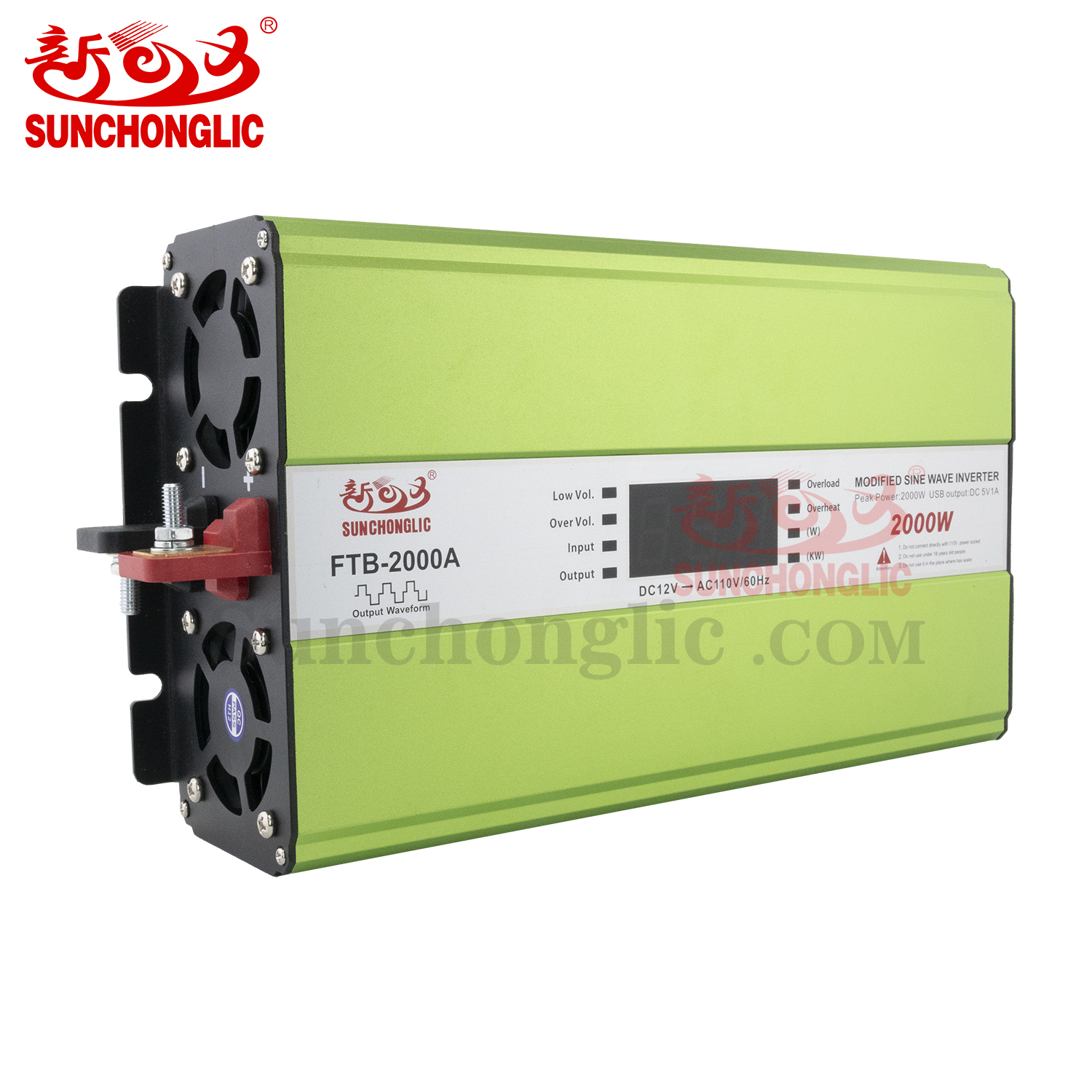

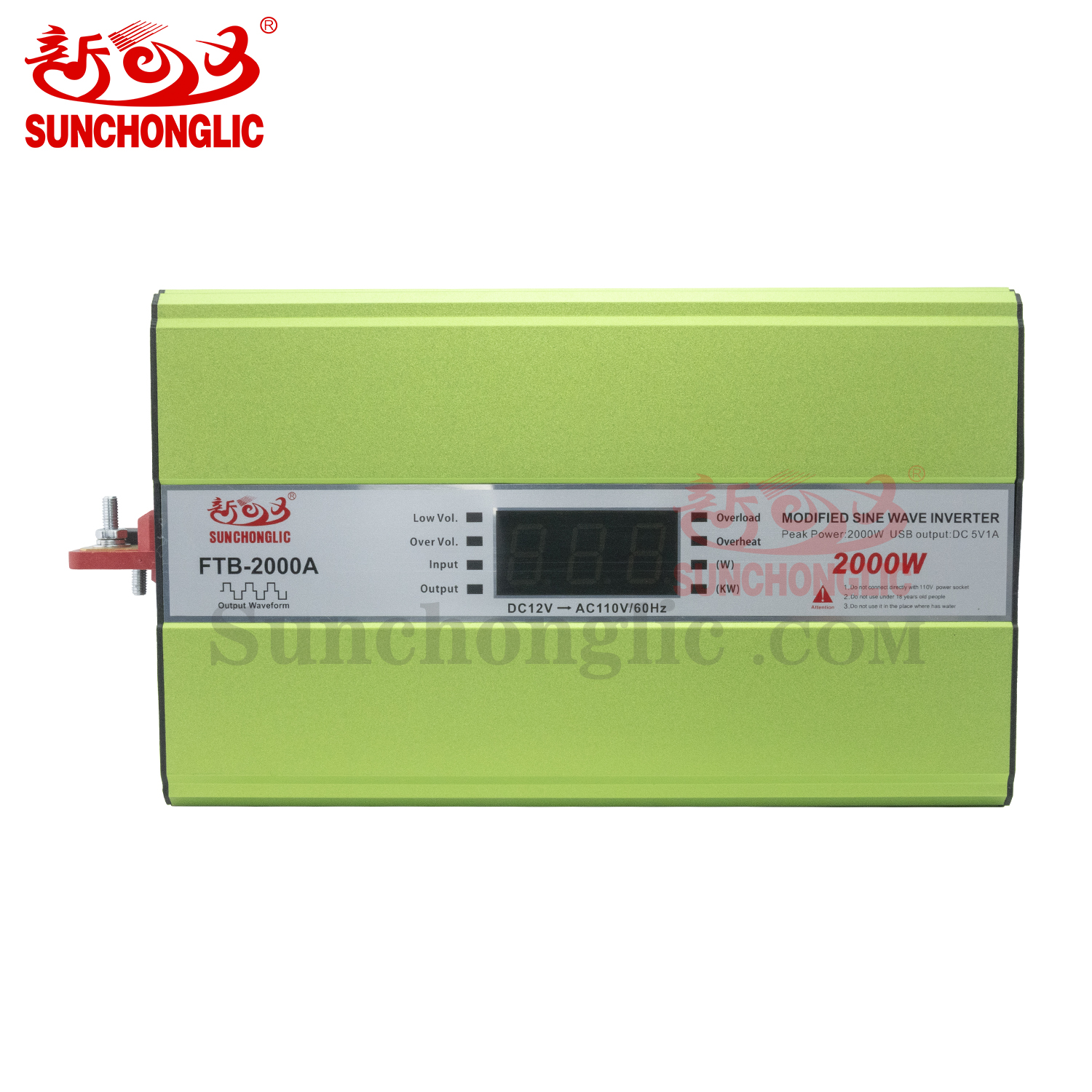

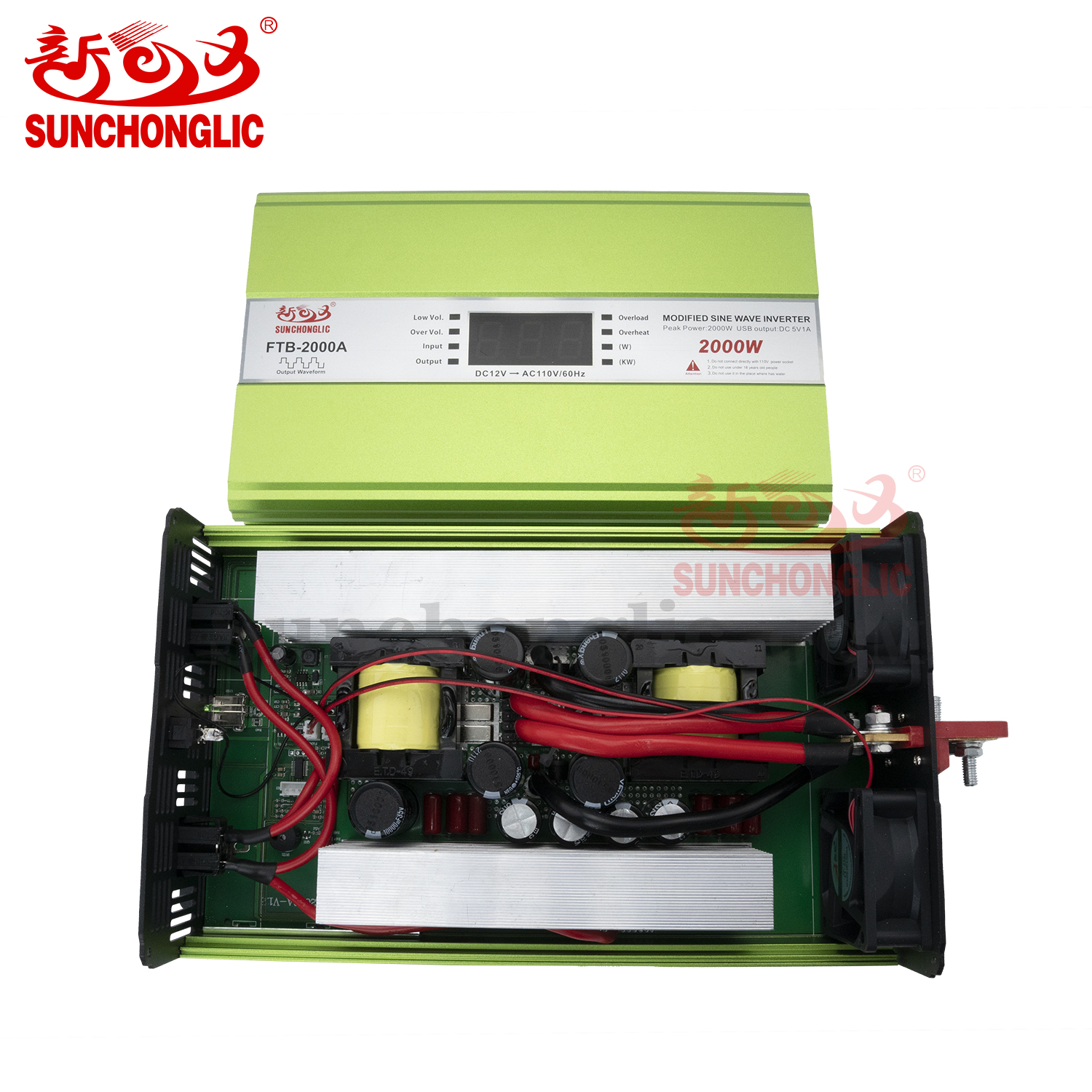

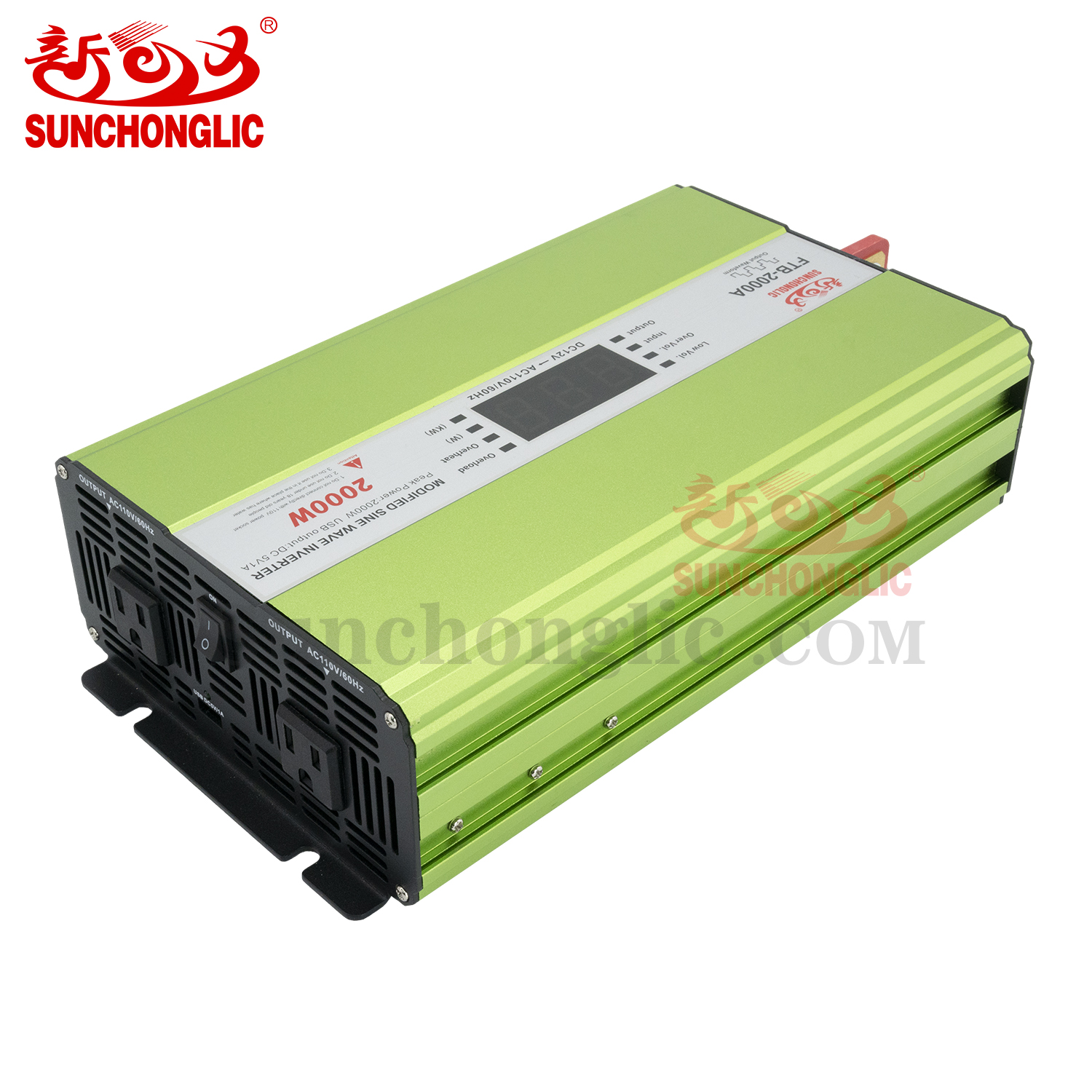

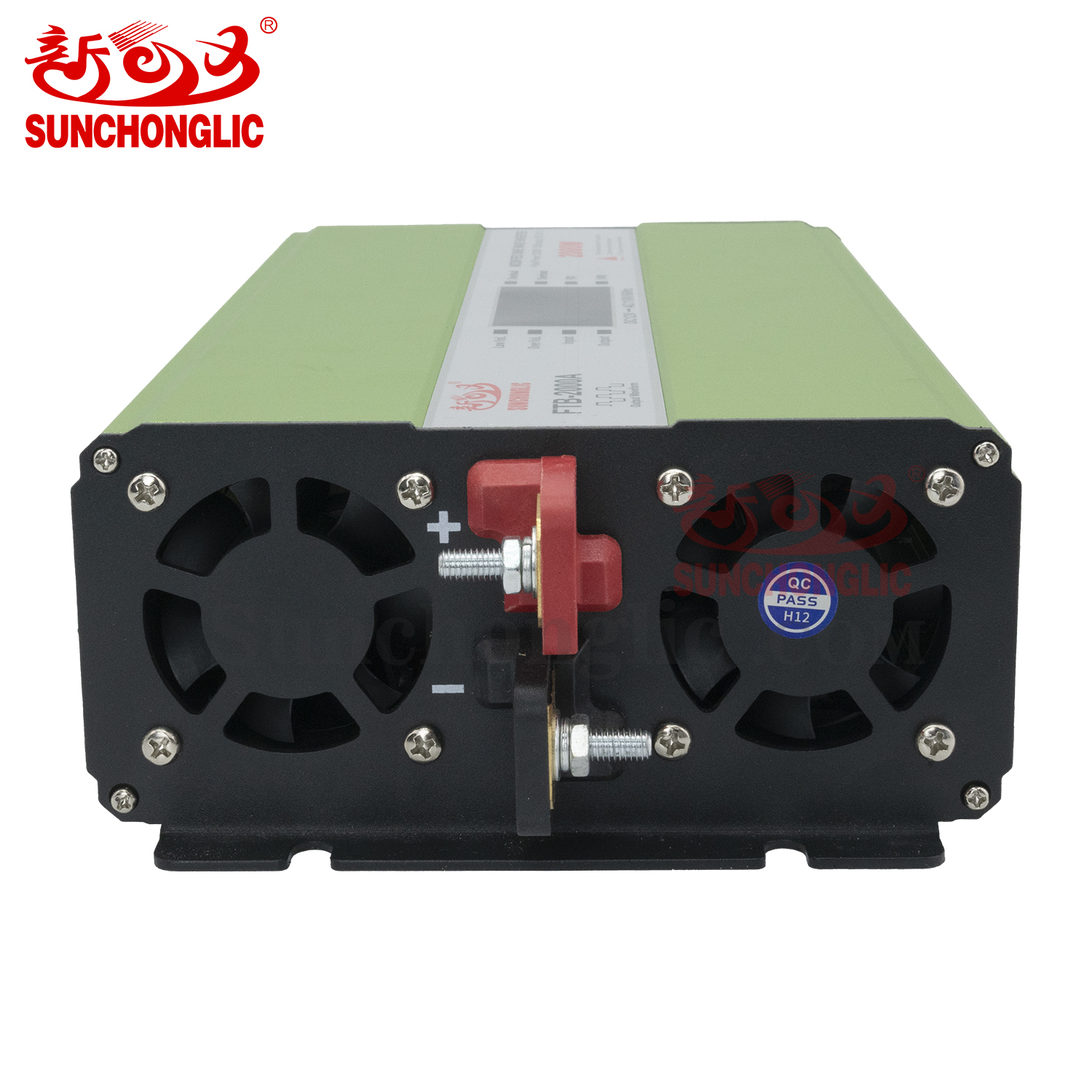

Product Photos
