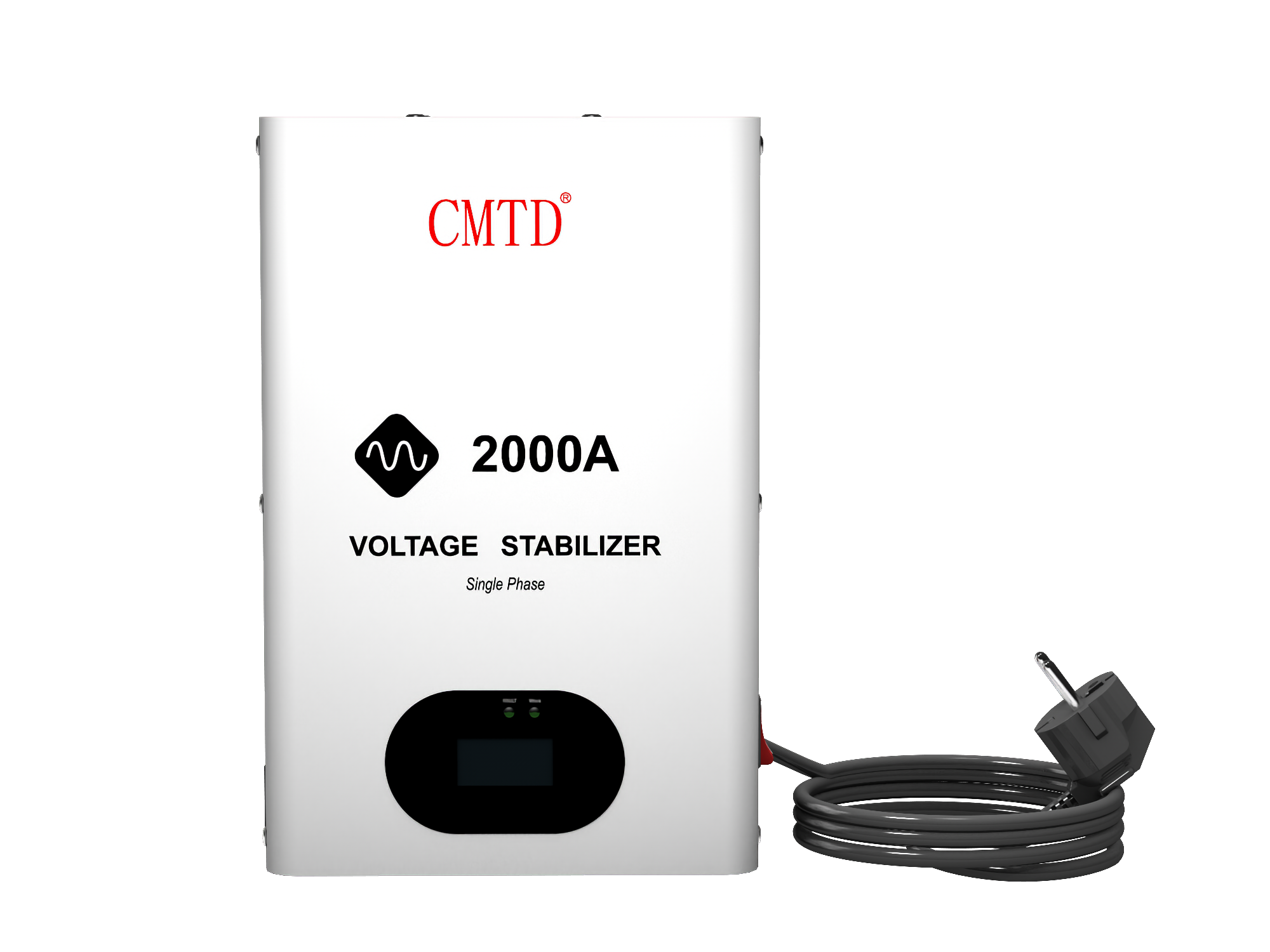

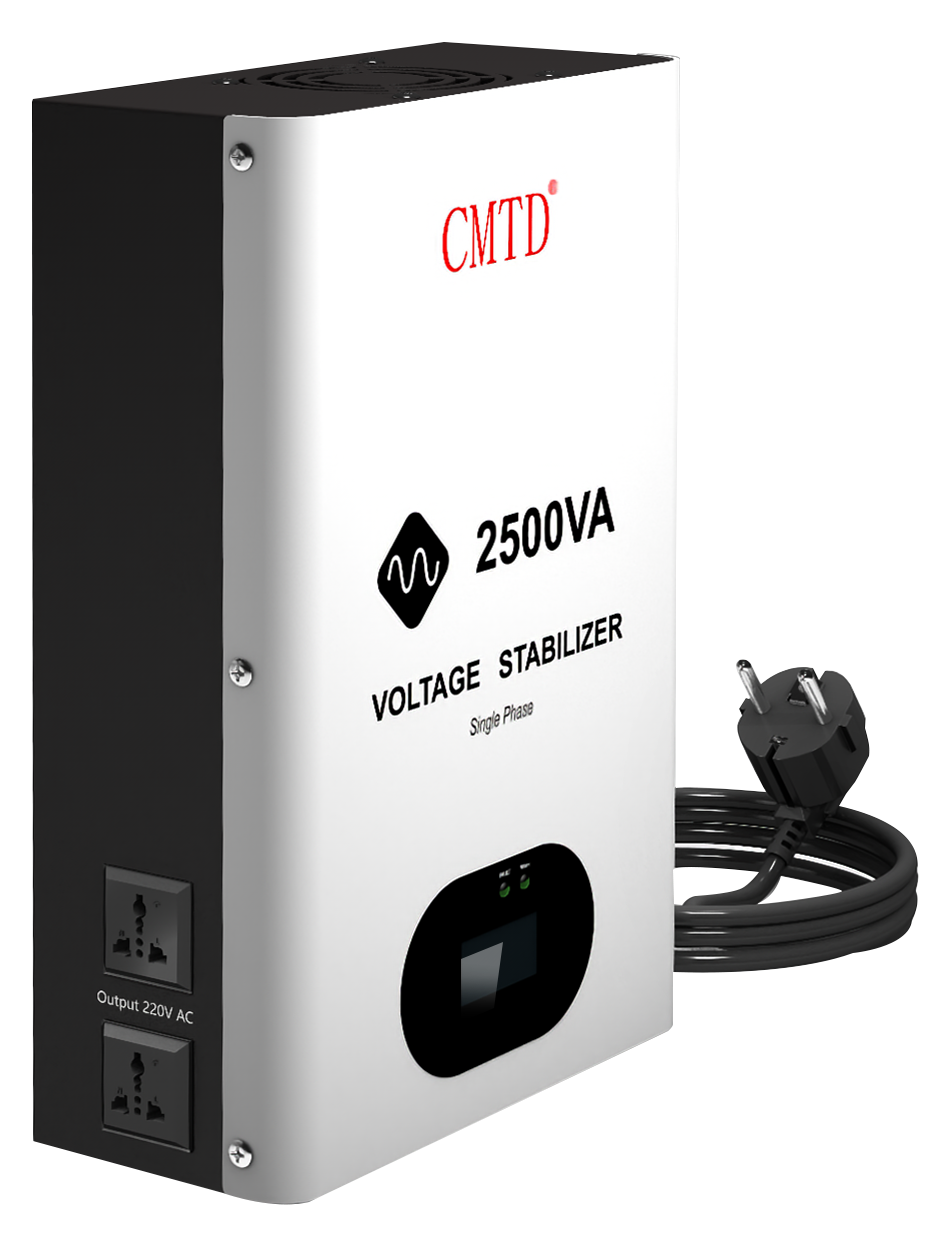

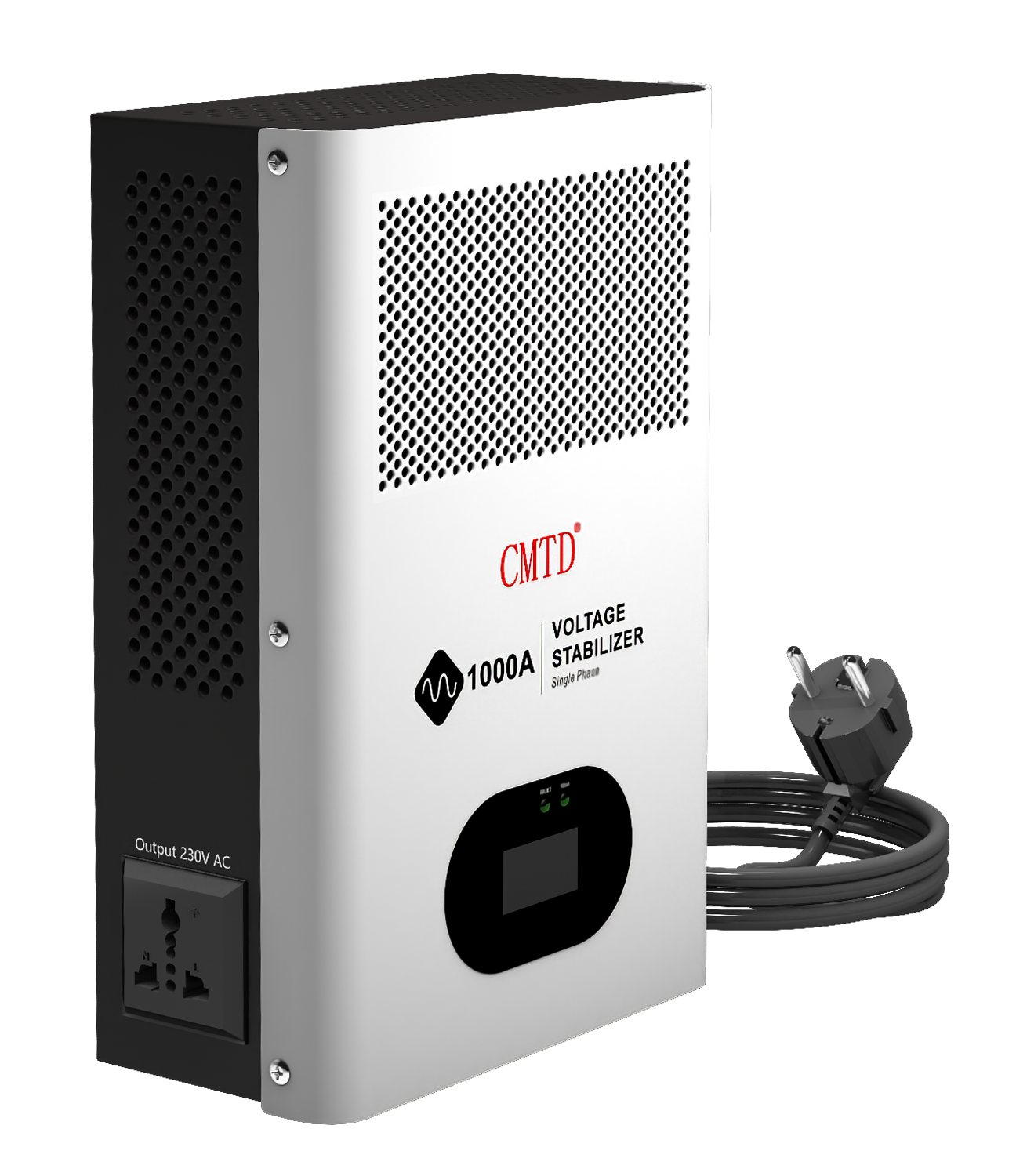

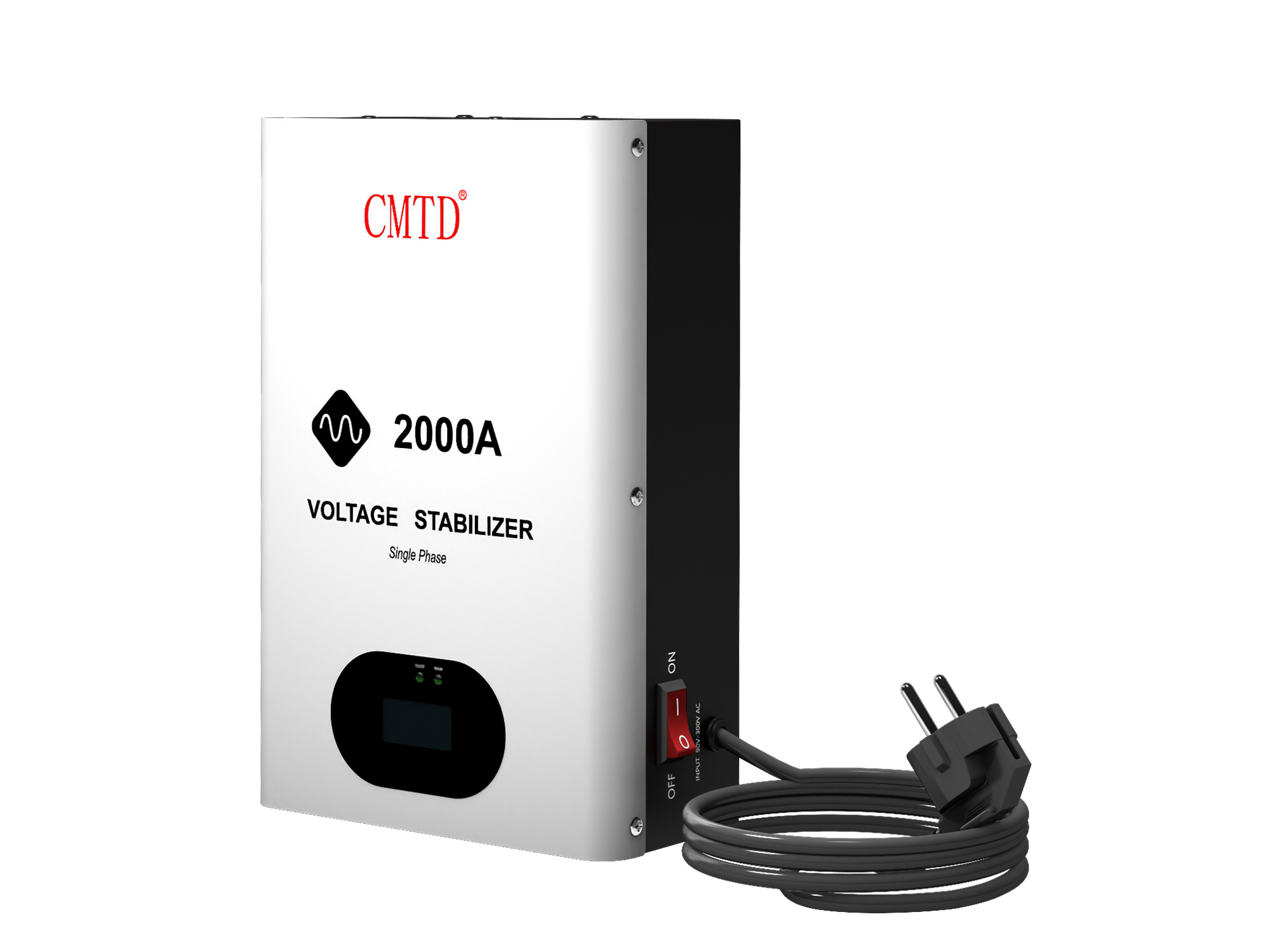

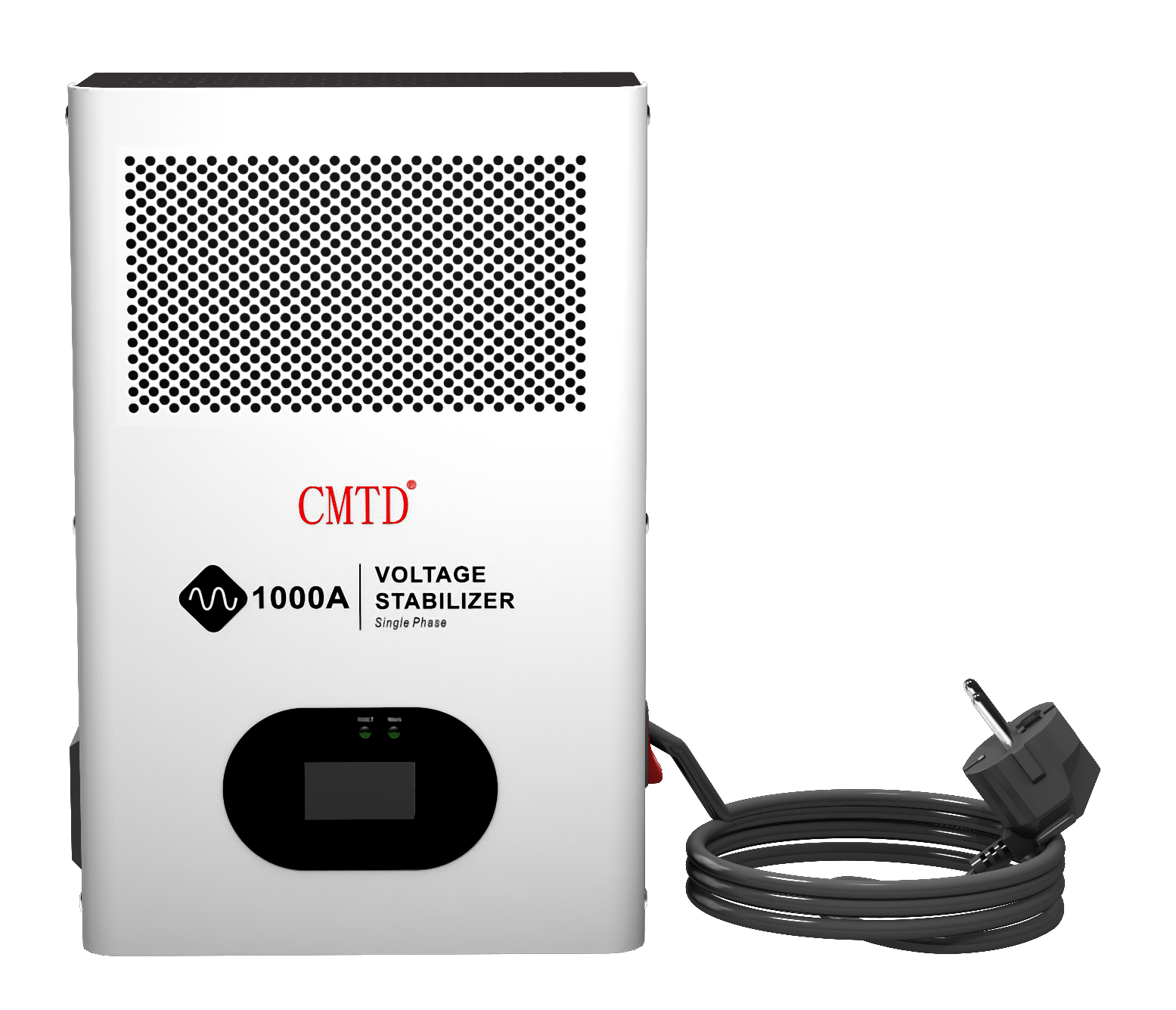

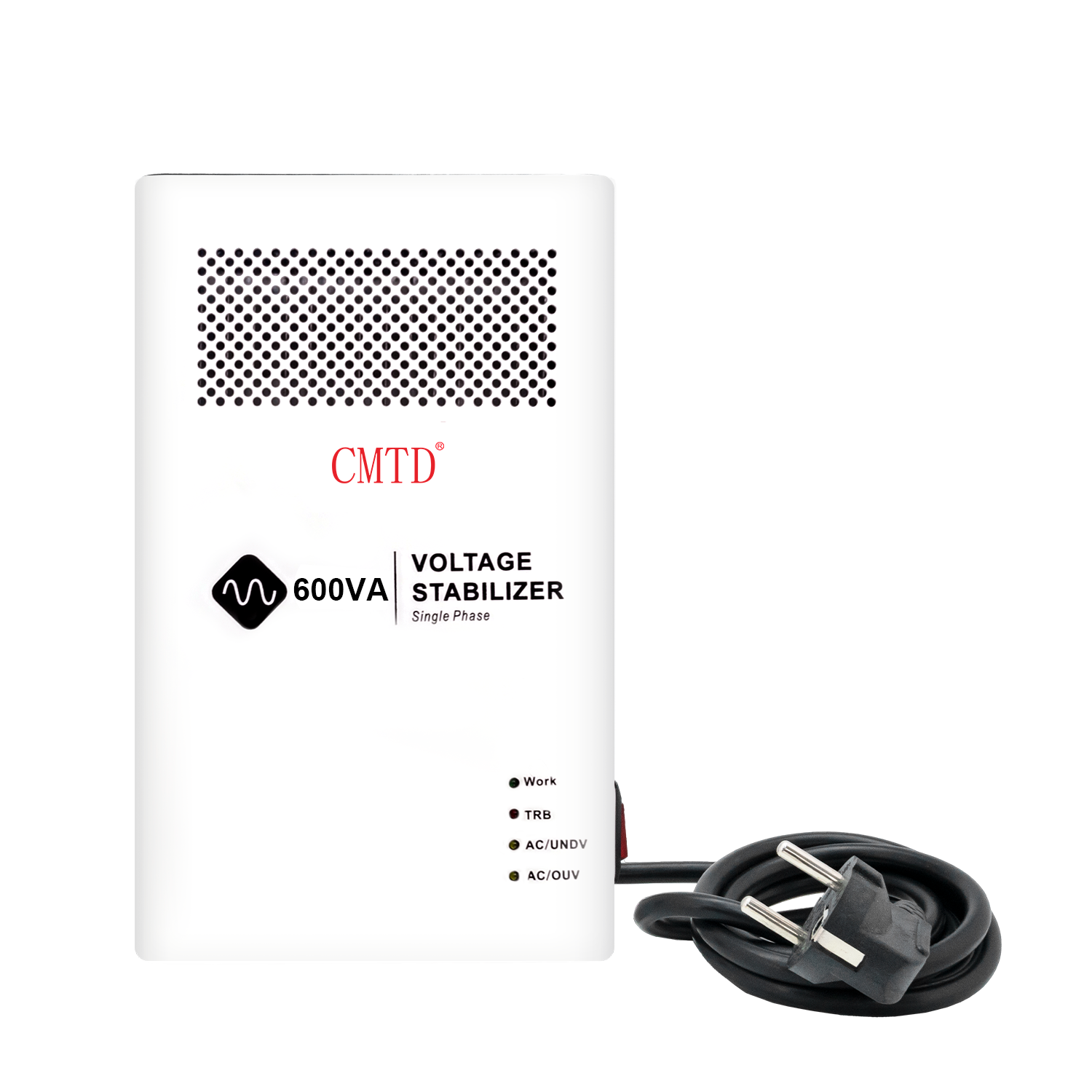

Voltage Stabilizer
Active power,:600VA/700VA/1000VA/2000VA/2500VA
Limit input voltage range, V:90-310
Rated output voltage, V:220/230
Output voltage waveform:Pure sine wave
Principle of stabilization:Inverter(double conversion)
Stabilization accuracy, %:±2
LED indicator:Normal, overload/overtemperature, input voltage < 90 V, input voltage > 310 V
Performs stepless continuous stabilization of the input voltage in a wide range (90V-310V AC)
Provides the output voltage with a perfect sine waveform with maximum accuracy (± 2%).
Single-phase voltage stabilizer protects against surges, drawdowns and voltage fluctuations in the mains:
Heating boiler electronics
Pumping equipment
Televisions, audio and video equipmen
Computers and peripheral equipment
Lighting equipment
Other household and office equipment with low power consumption.
Model | AC-600VA | AC-800VA | AC-1000VA | AC-2000VA | AC-3000VA | |
AC input voltage range | 90-310±5V | |||||
Input low voltage recovery | 110±5V | |||||
Input Overvoltage Recovery | 290±5V | |||||
The output voltage | 230±4V | |||||
Input Voltage Frequency Range | 43-47±1Hz | |||||
smart fan | NO | YES | ||||
Output Power |
V≥190V Input voltage V≥190V |
620W | 720W | 1000w | 2000W | 3000W |
V≤185V Input voltage V≤185V |
W=V*2.88 | W=V*3.65 | 1000w | W=V*9.76 | W=V*13 | |
Rated output current | 2.7A | 3.1A | 5A | 8.8A | 12.2A | |
Rated input current | 3.1A | 3.9A | 9.2A | 10.5A | 14A | |
LED Display | LED lights | LCD screen+ LED light |
Rated power:600VA/700VA/1000VA/2000VA/2500VA
Limit input voltage range, V:90-310
Rated output voltage, V:220/230
Standy by power loss:10%
Stabilization accuracy:±2%
