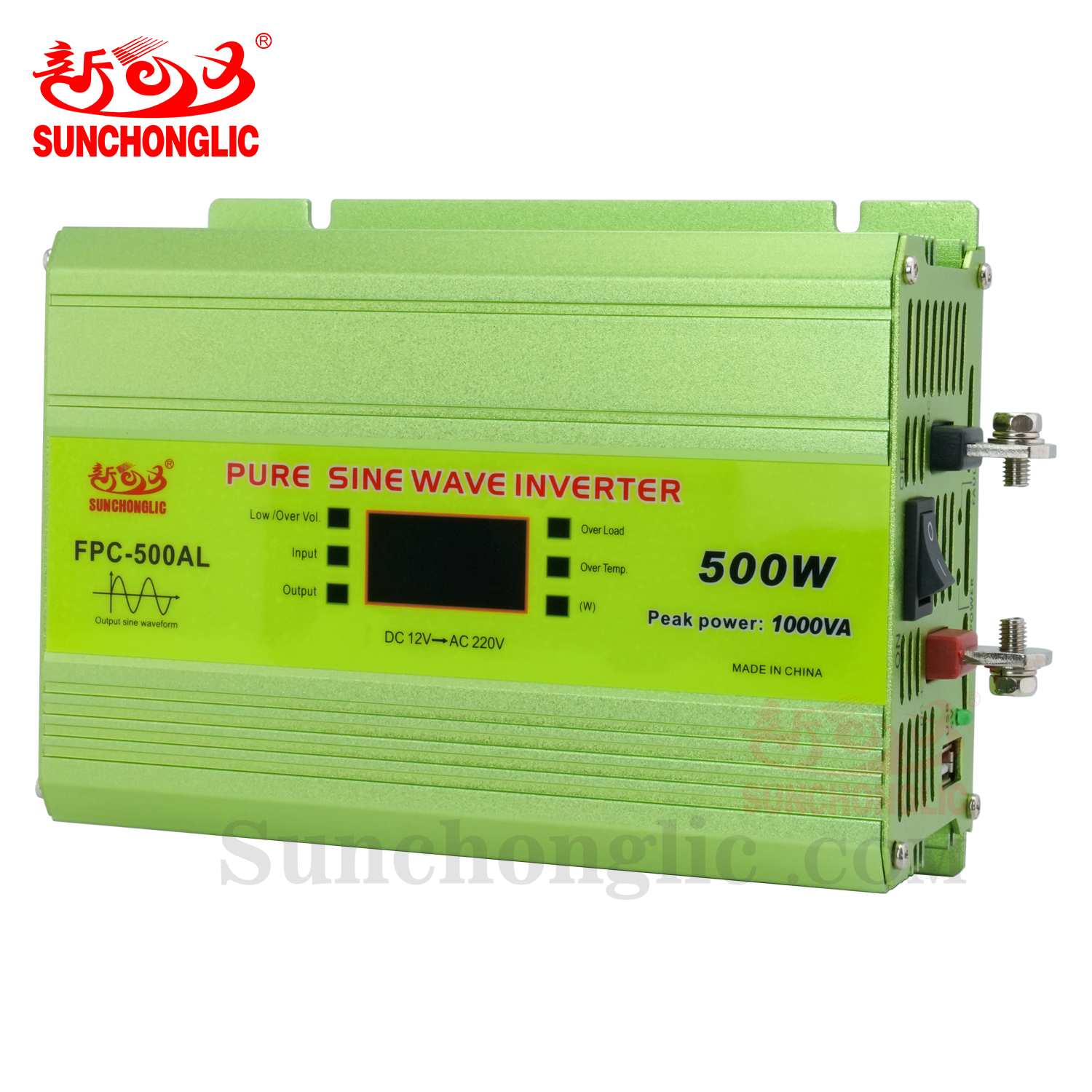

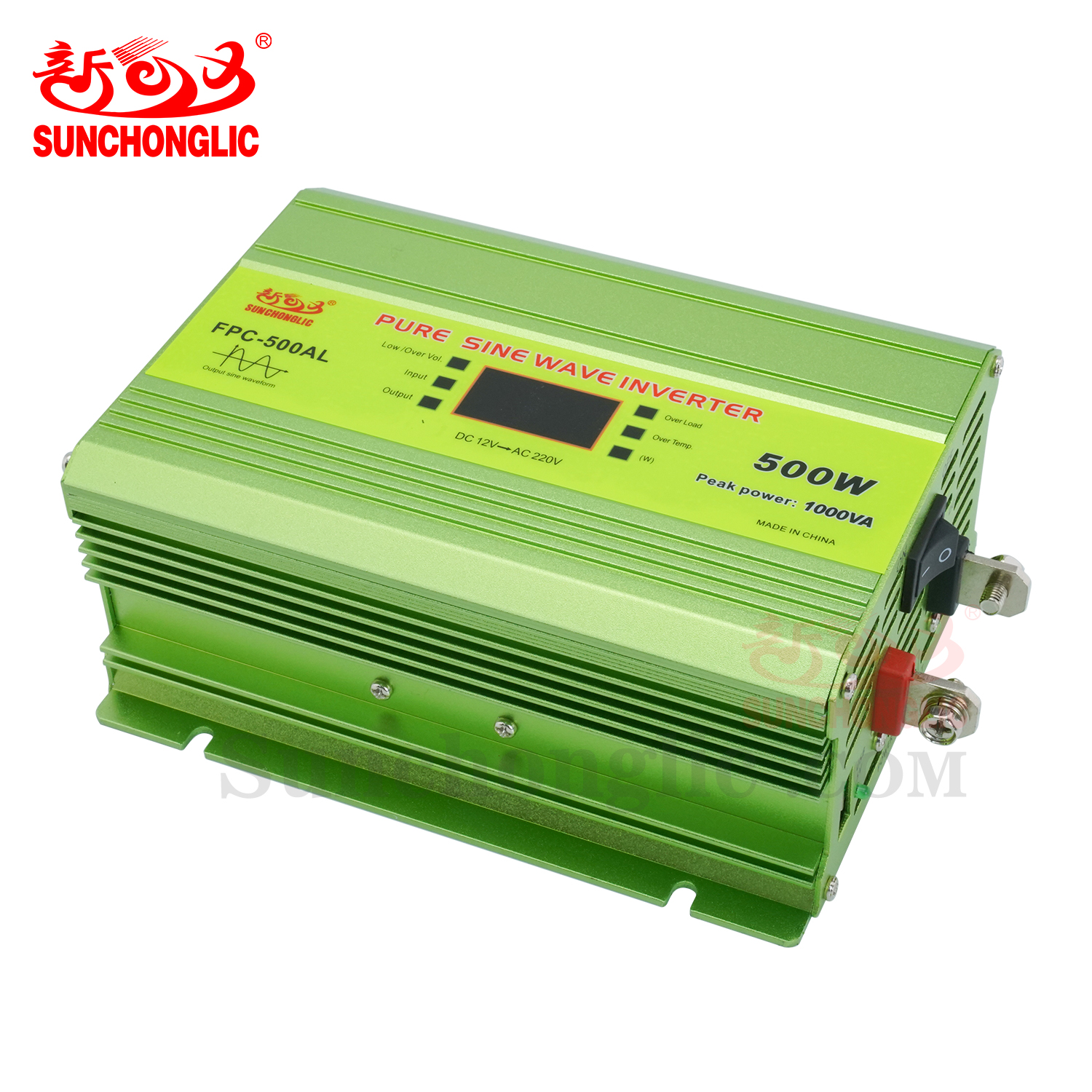

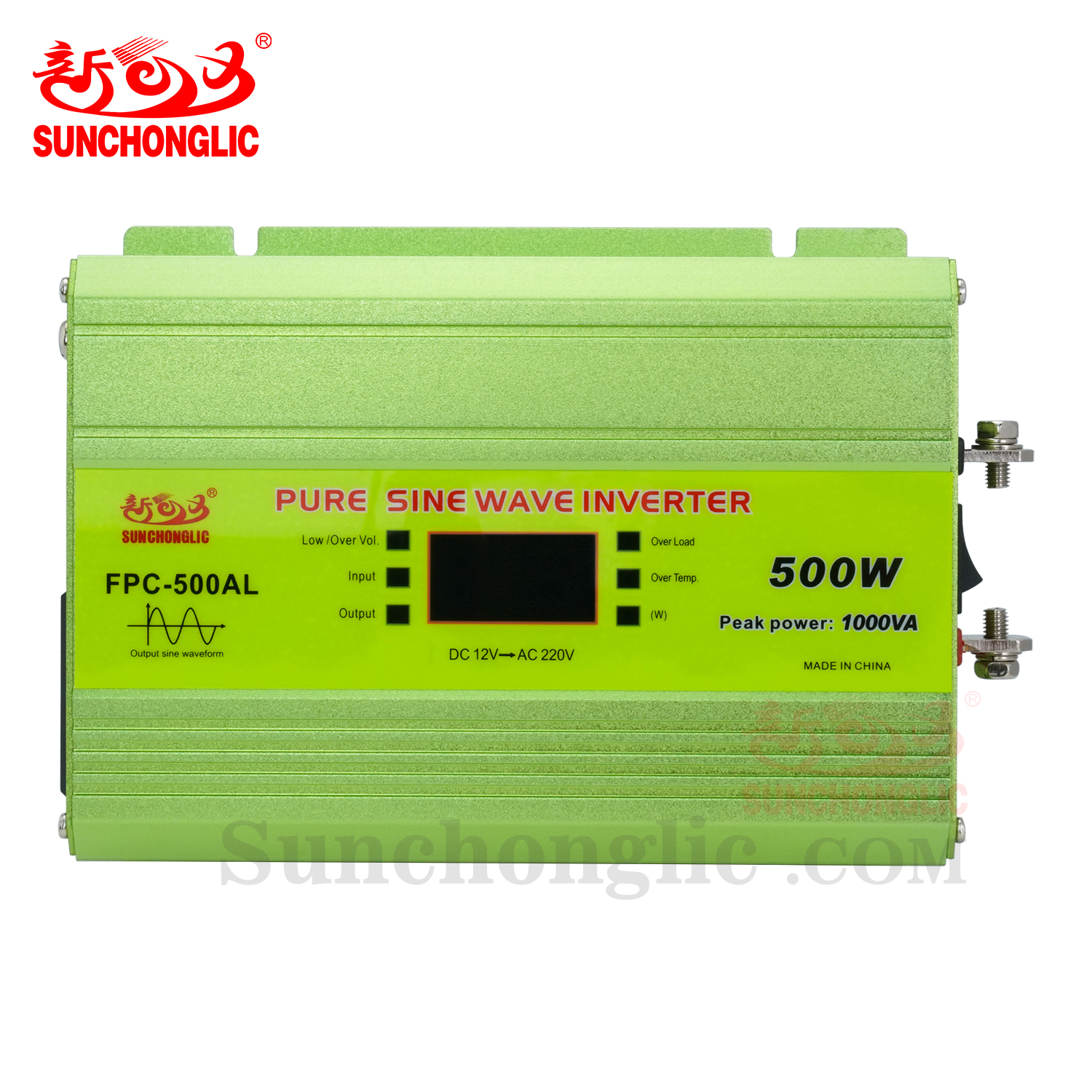

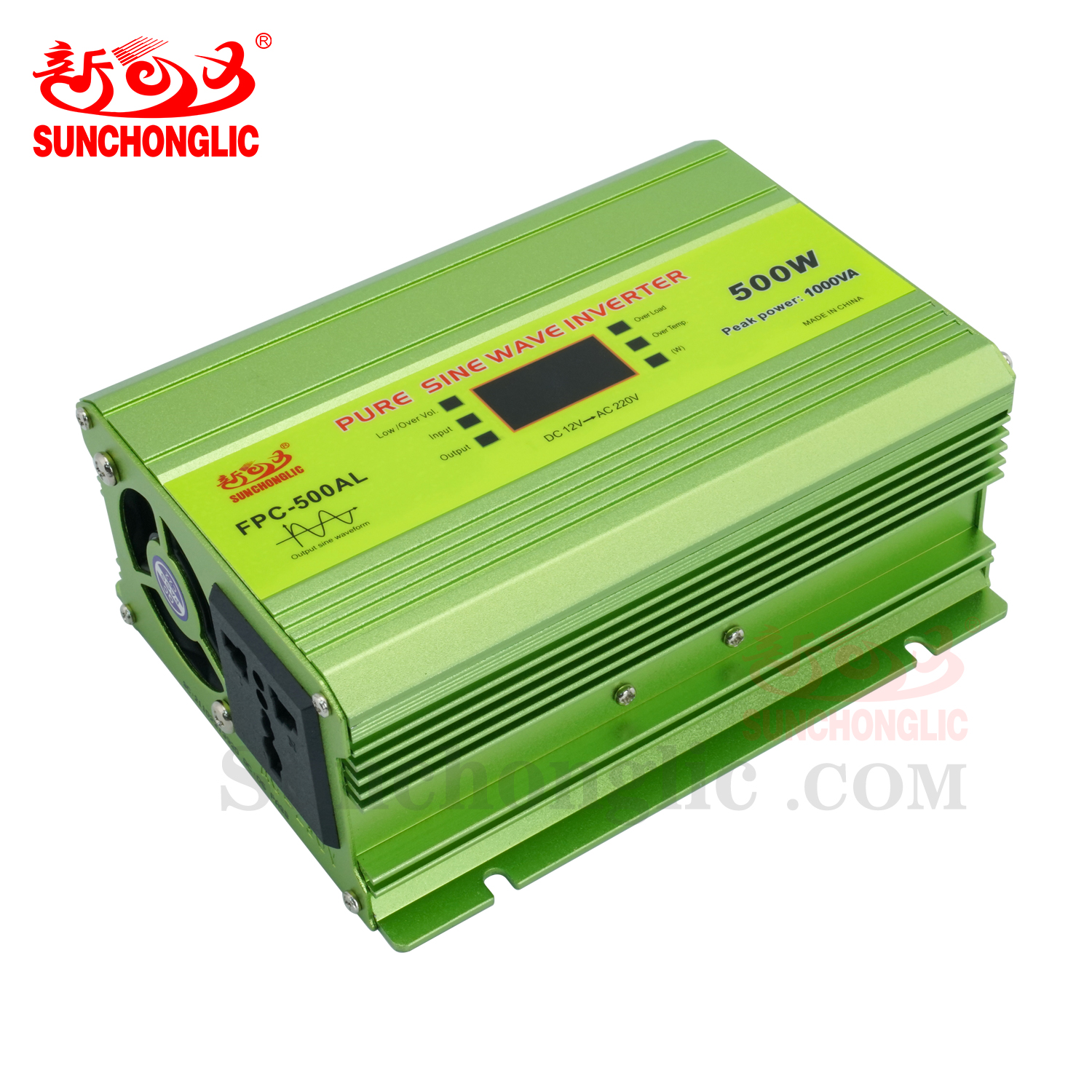

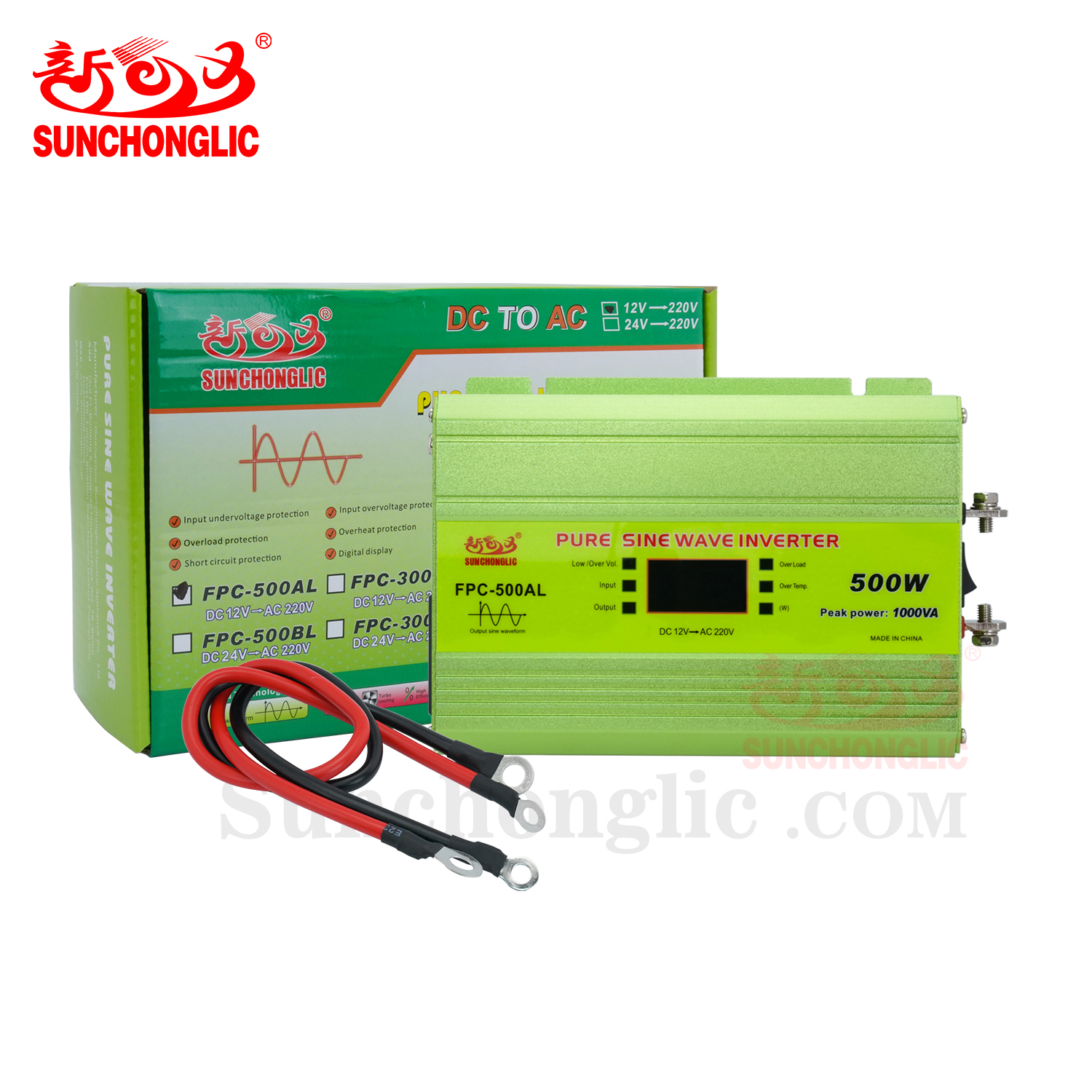

Sunchonglic 12v dc to 220v ac 500w pure sine wave inverter power inverter

FPC-500AL

Pure Sine Wave Inverter

Features:

Pure sine waveform output

Input and output are completely independent

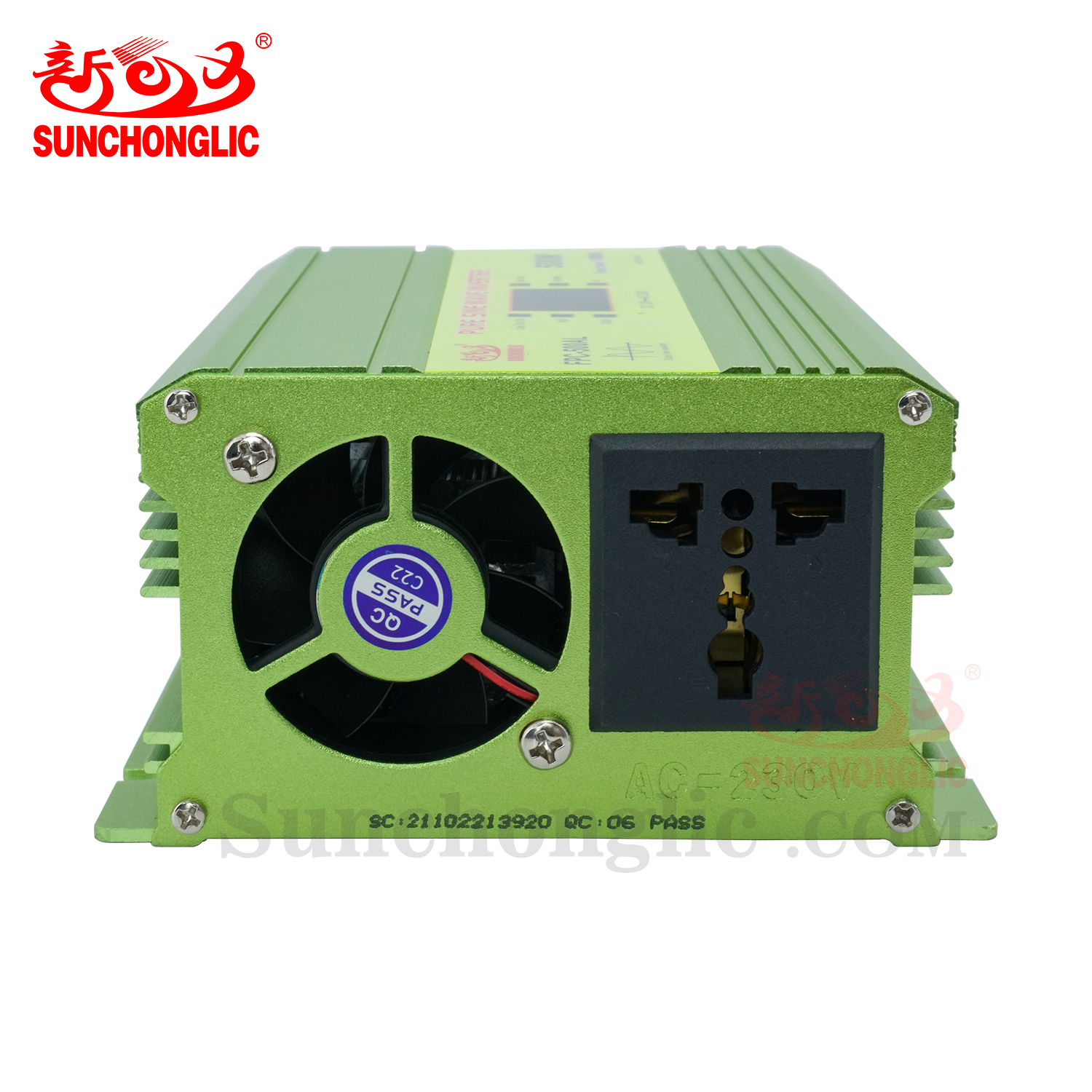

Universal socket, suitable for all kinds of plugs

Efficiency is more than 91%

Low leakage current, less than 90 microamperes

Intelligent speed-regulating fan: The fan with output power greater than 100w or temperature in the machine over 50℃ rotates fast, otherwise it rotates slowly

Multiple protection: Input undervoltage protection/Input overvoltage protection/Overload protection/Overheat protection/Short circuit protection.

Applications: Vehicles and yachts; Home appliances, Office and portable equipments,etc.

INQUIRE NOW

SEND ENQUIRY

Specifications

Product Parameters

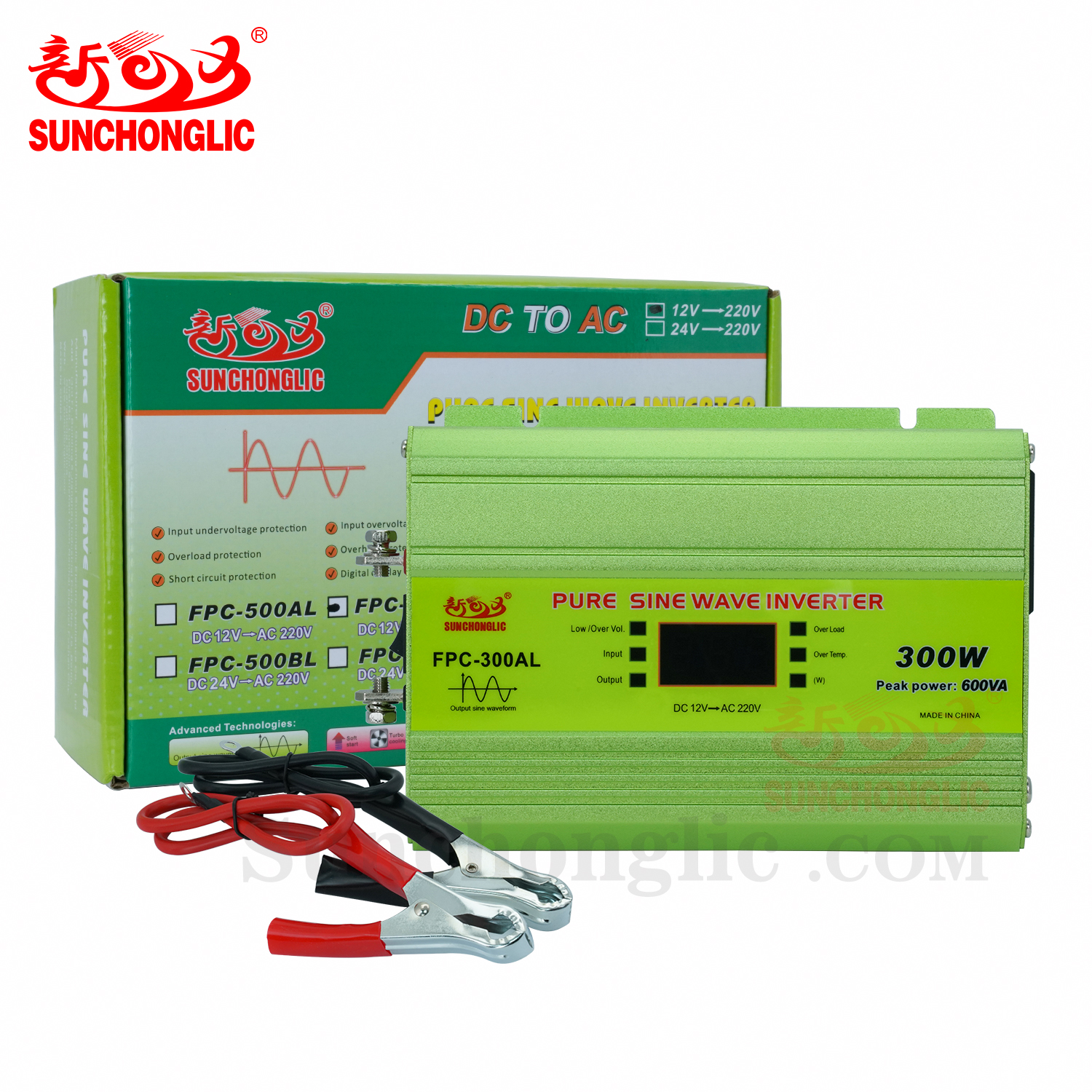

Model		FPC-300AL	FPC-300BL	FPC-500AL	FPC-500BL
DC Input	Rated Battery Voltage	12VDC	24VDC	12VDC	24VDC
	Rated Current	32A	16A	50A	25A
	No-load current	≤600mA	≤300mA	≤600mA	≤300mA
	Efficiency	≥91%
	Battery Type	Lead-acid Battery
AC Output	Rated Power	300W		500W
	AC Voltage	220VAC
	Frequency	50Hz
	Waveform	Pure Sine Wave
Input Protection	Low Voltage Alarm	10-10.5V	20-21V	10-10.5V	20-21V
	Battery under-voltage shutdowm	9.5-10V	19-20V	9.5-10V	19-20V
	Battery low voltage recovery
	Battery overvoltage protection	15-15.5V	30-31V	15-15.5V	30-31V
	Battery overvoltage recovery	14-14.5V	28-29V	14-14.5V	28-29V
	Reverse connection protection	Yes
Output Protection	Output short protection	Turn off output and resume after restart
	Overload protection	Turn off output and resume after restart
	Overtemperature protection	Turn off the output when the internal temperature is higher than 85℃, and automatically resume the output when it is lower than 70℃
Environment	Working environment temperature	-40~70℃
	Working humidity	20%~95%RH
	Storage temperature/humidity	-40~85℃, 10~90%RH
Other	Sizes	18512670mm
