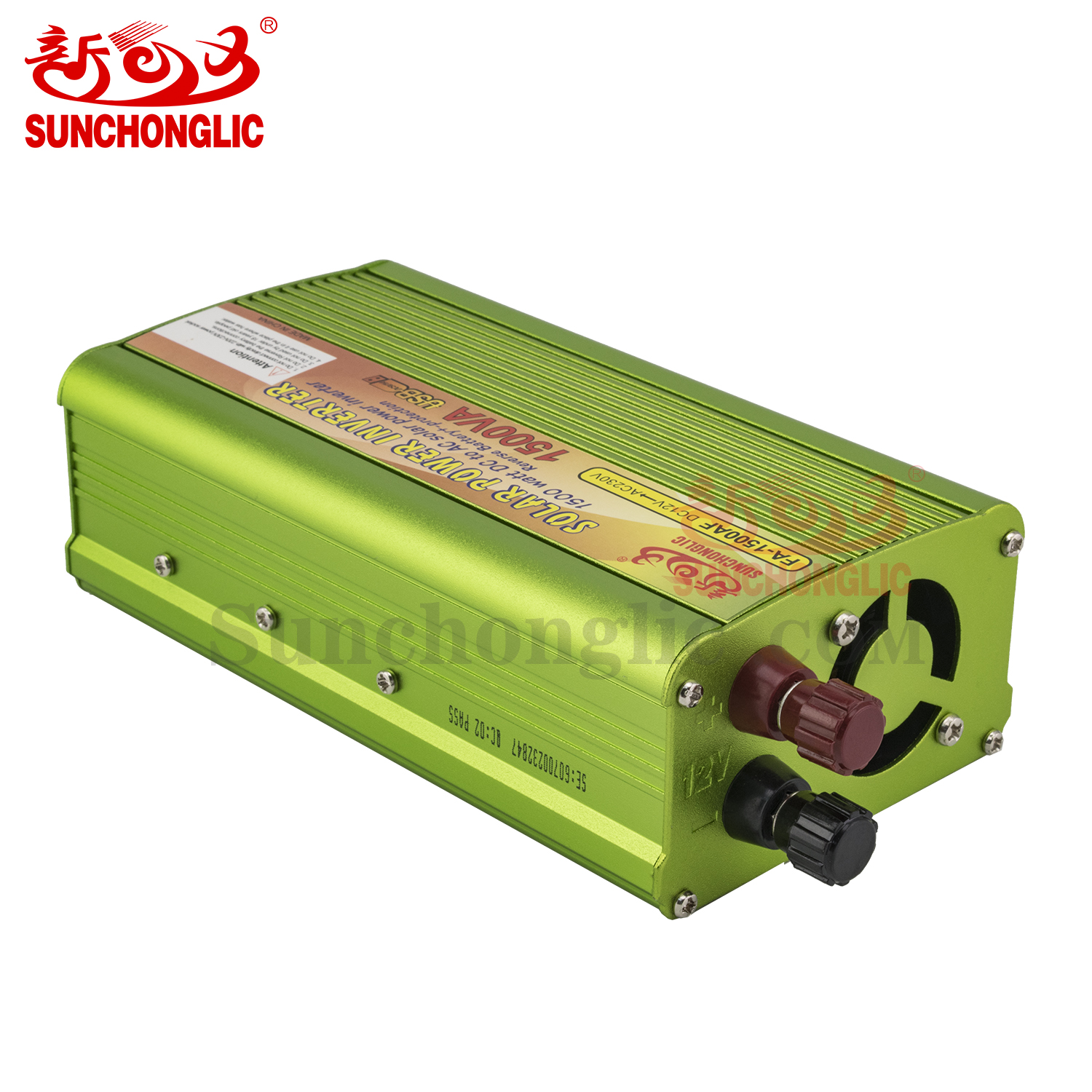

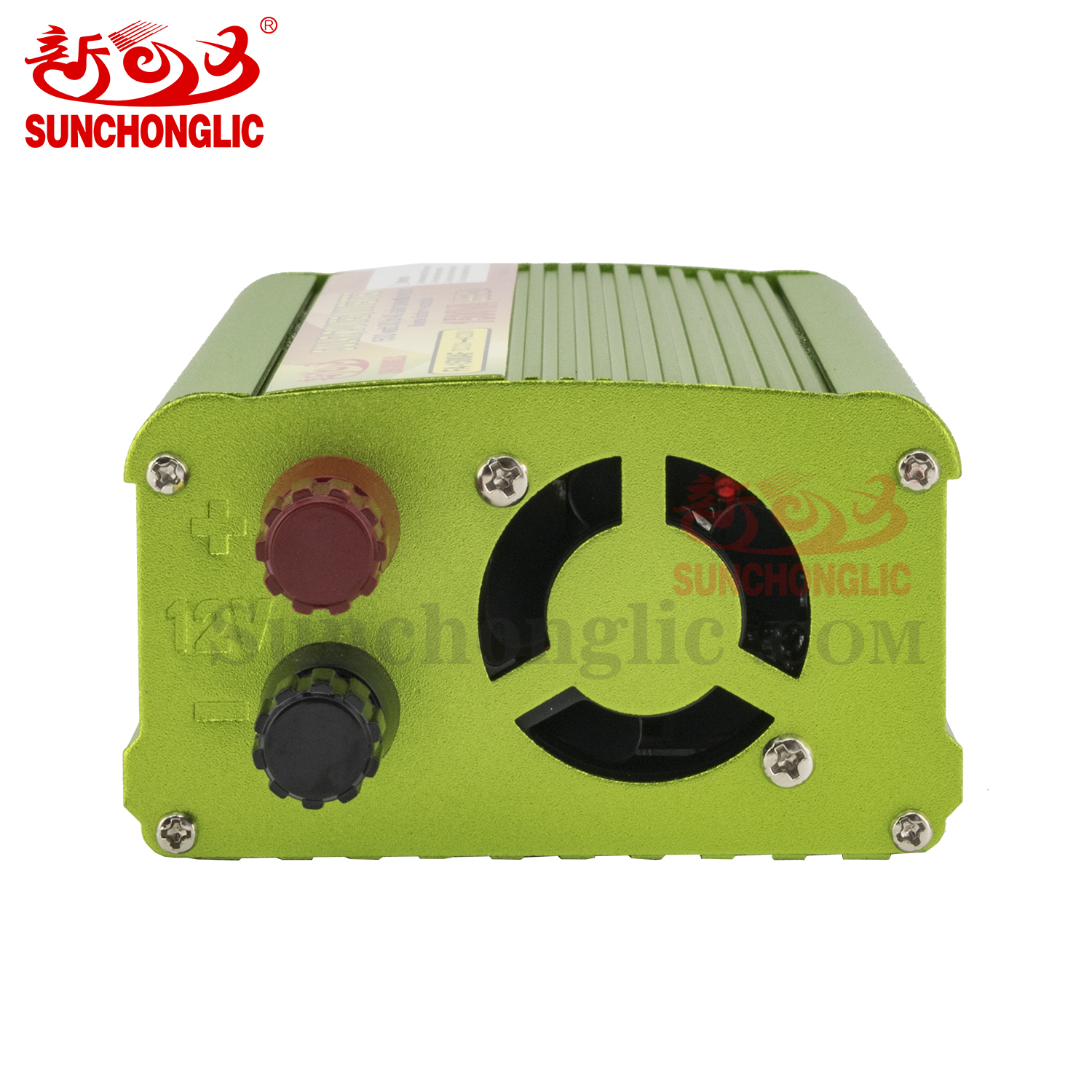

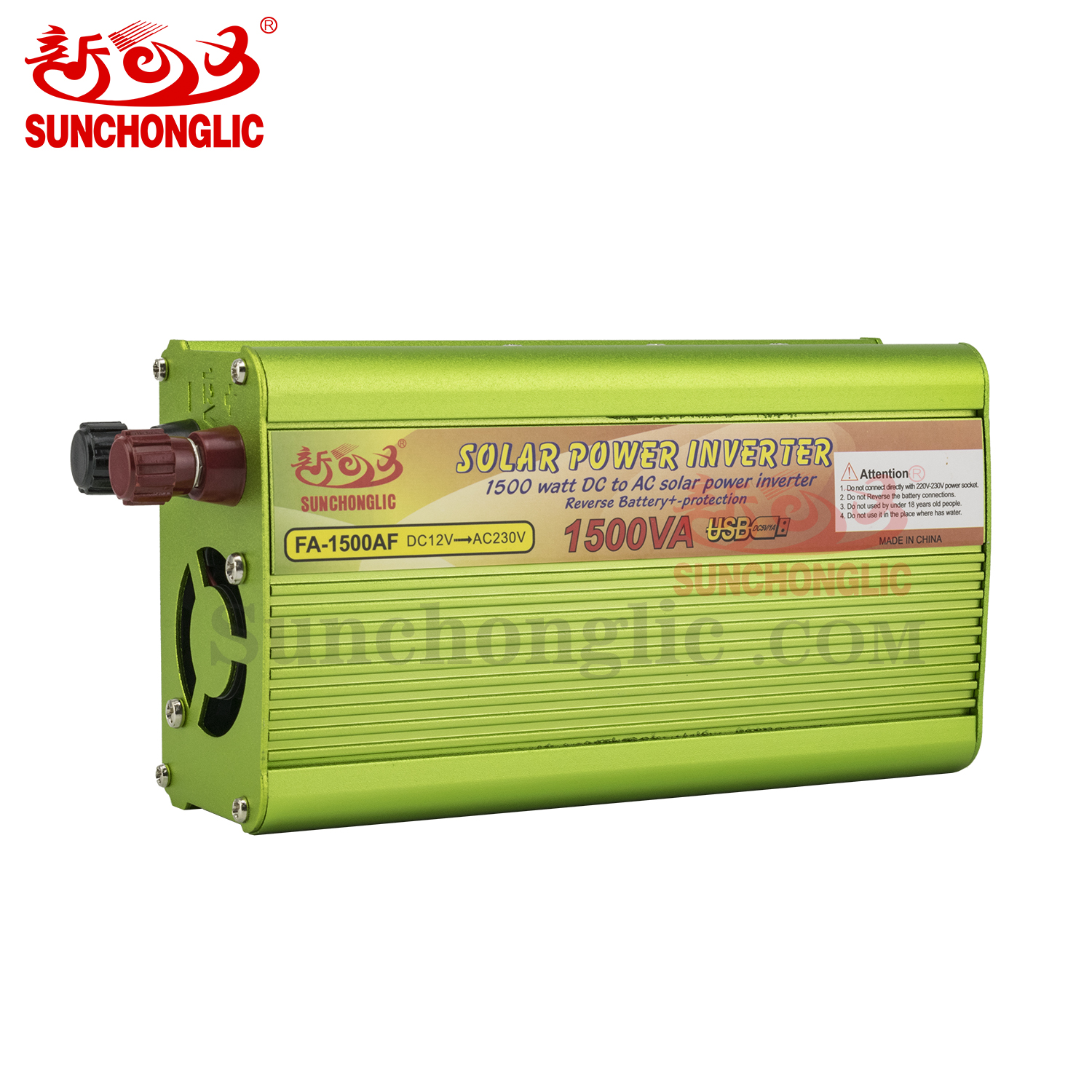

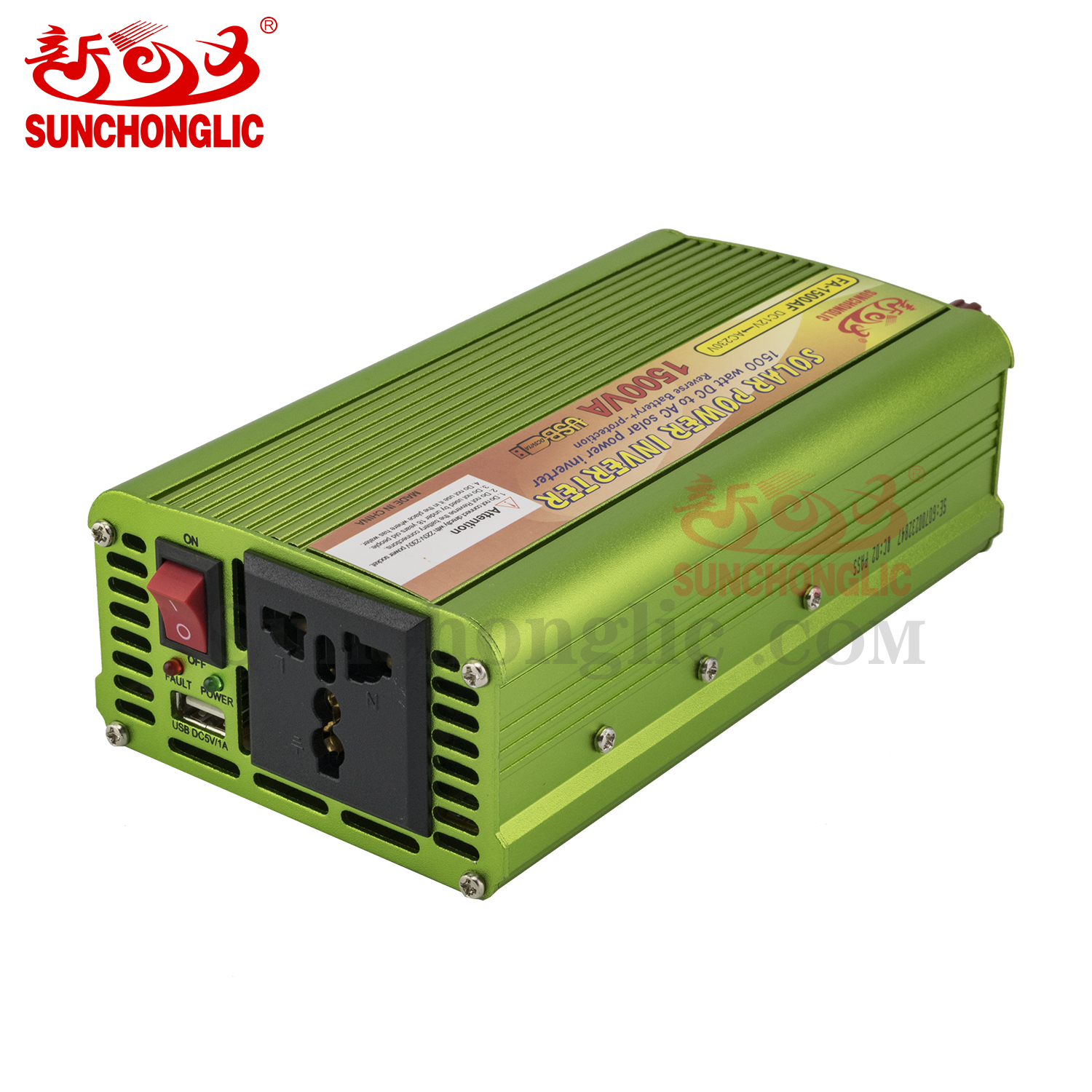

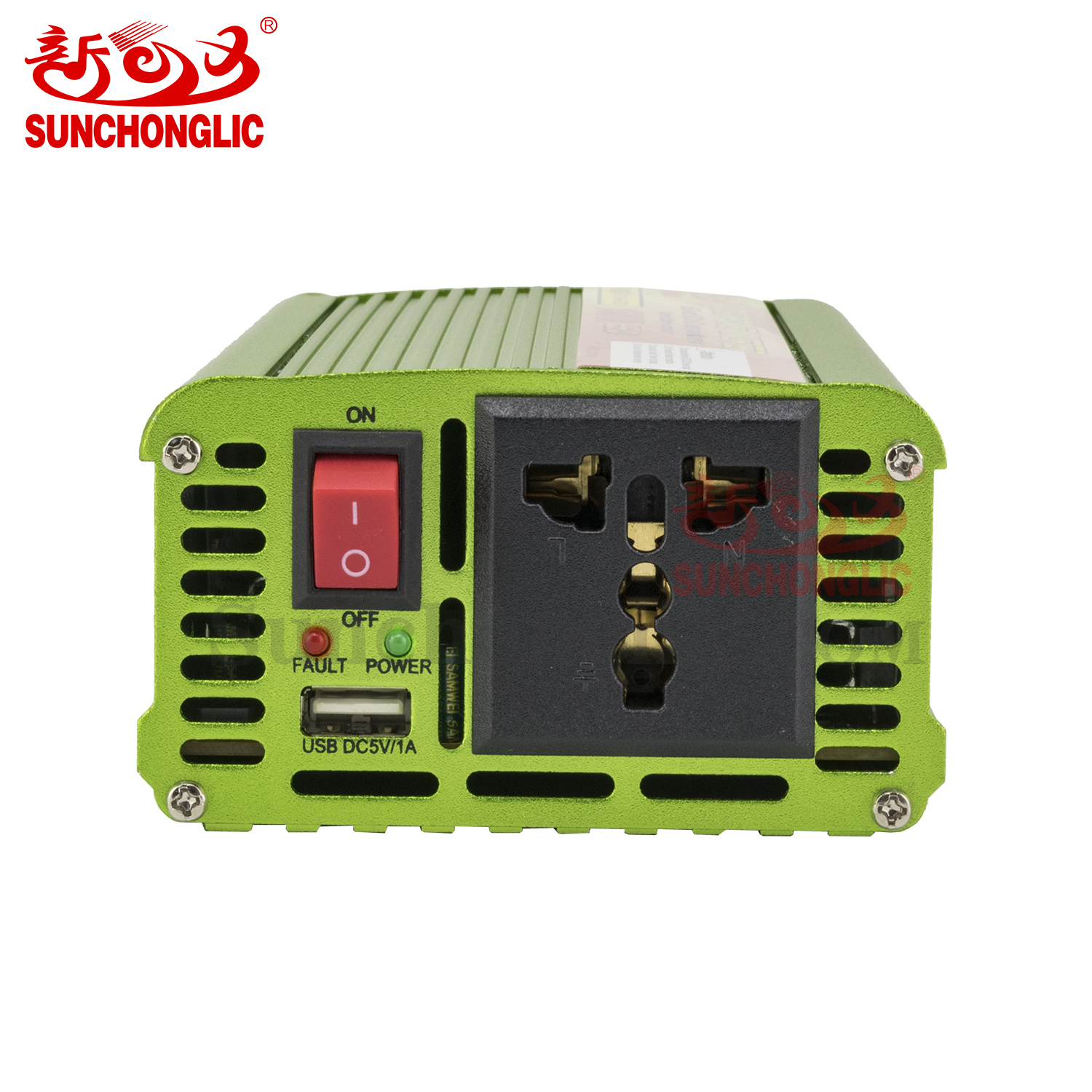

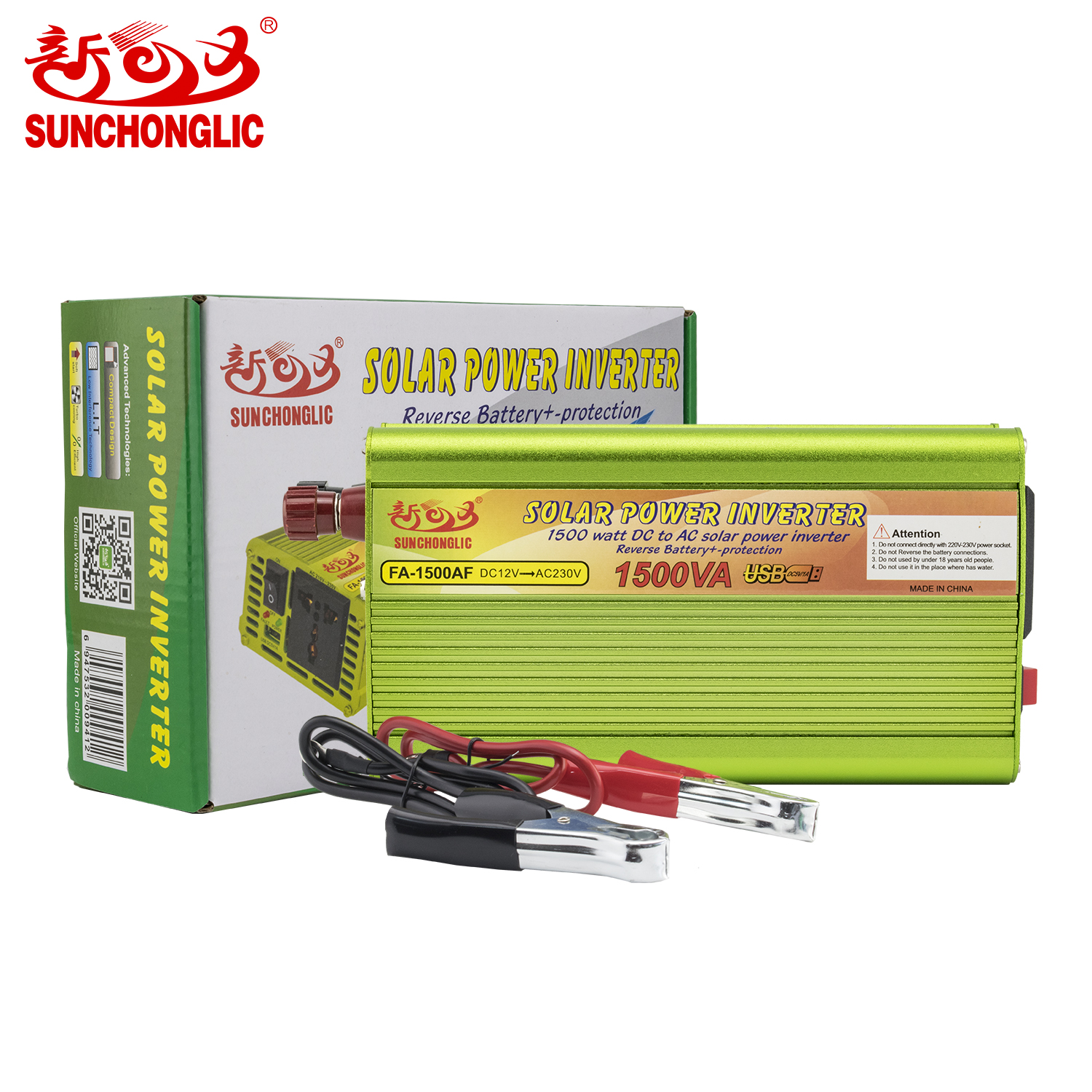

Modified Sine Wave Inverter
Reverse connecting protection.
5V 1A USB charging interface.
Modified sine waveform output.
Inverter and charger can work independent noninterference.
High conversion efficiency, smart soft start function.
Input and output are completely independent.
Smart, light,and portable,1500 watt inverter specially designed for home use.
Universal socket, suitable for all kinds of plugs.
Applicable for resistive AC loads.
High-procision voltage stability technology&Aerospace-grade silence technology.
Cooler of fan and working status are intellectually controlled by MCU, which mostly prolongs its service life and helps to save the power consumption.
Multiple safe protections,including overload/overvoltage /low voltage/high temperature/output short circuit and battery reverse protection.
Product Specification | |||||
Model |
FA- 350AF |
FA- 500AF |
FA- 1000AF |
FA- 1500AF |
FA- 2000AF |
Output Voltage | 220VAC | ||||
Output Waveform | Modified sine waveform | ||||
Rated Power | 200W | 350W | 600W | 700W | 800W |
Peak Power | 350W | 500W | 1000W | 1500W | 2000W |
USB Output | DC5V 1A | / | |||
Working voltage | DC12V | ||||
Frequency | 50Hz | ||||
No-load Current | <0.5A | ||||
Voltage Range | 10.5-15V | ||||
Alarm Voltage | 10.5-15V | ||||
Low-voltage protection | 10.5V | ||||
Over voltage protection | 15V | ||||
Efficiency | 70%~80% | ||||
SIZE/CTN | 39*30*34cm | 39*30*34cm | 46*30*34cm | 46*30*33cm | 54*30*33cm |
G.W./CTN | 14.26kg | 14.26kg | 19.08kg | 17.50kg | 23.32kg |
Packing/CTN | 20PCS |
