Modified Sine Wave Inverter

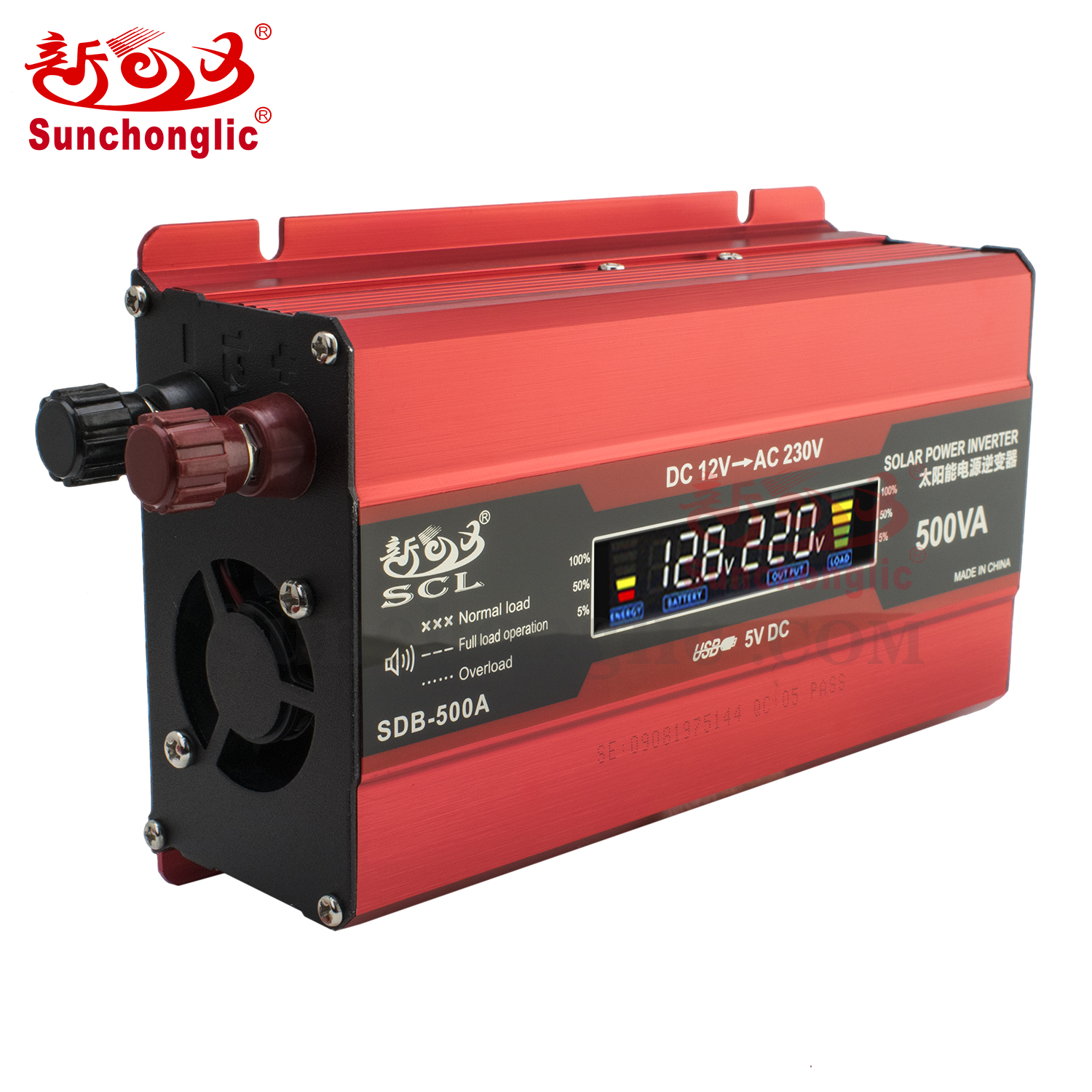

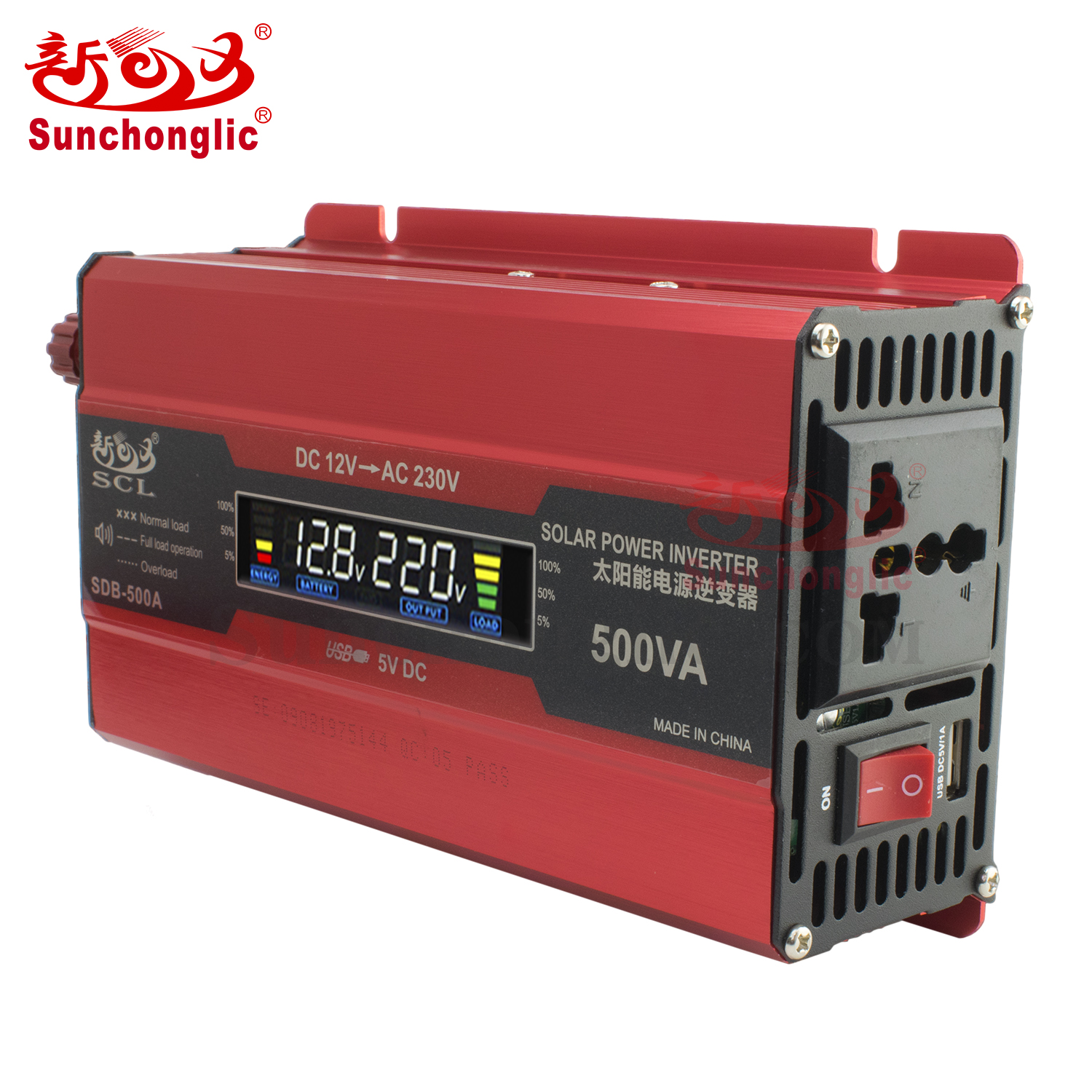

DC 12V to AC 220V Power inverter 500va
Built in 5V 1A USB charging interface
Modified sine waveform output

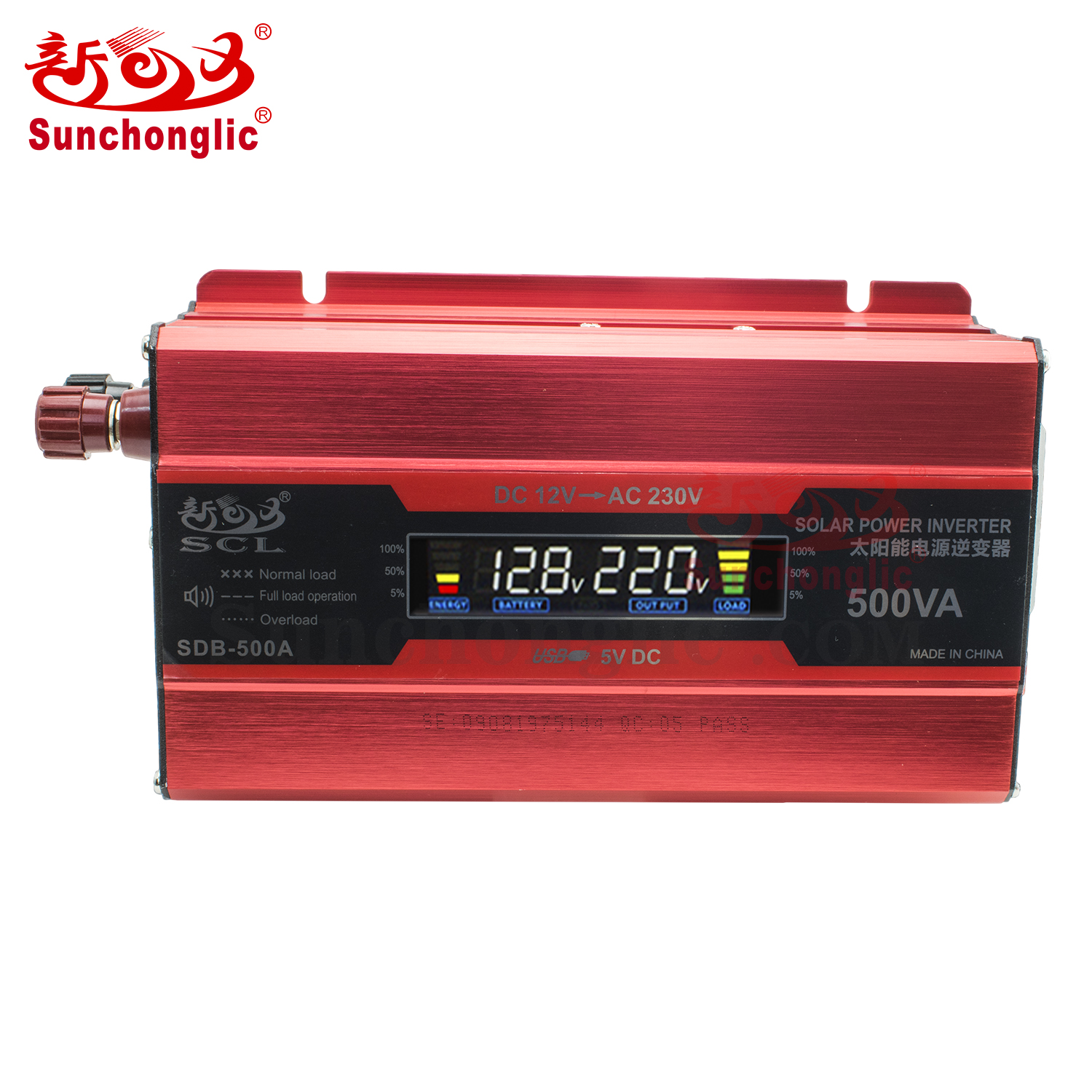

LCD display shows battery capacity,battery voltage,output voltage,load power
High conversion efficiency, smart soft start function
Input and output are completely independent
Smart, light,and portable designed for home use

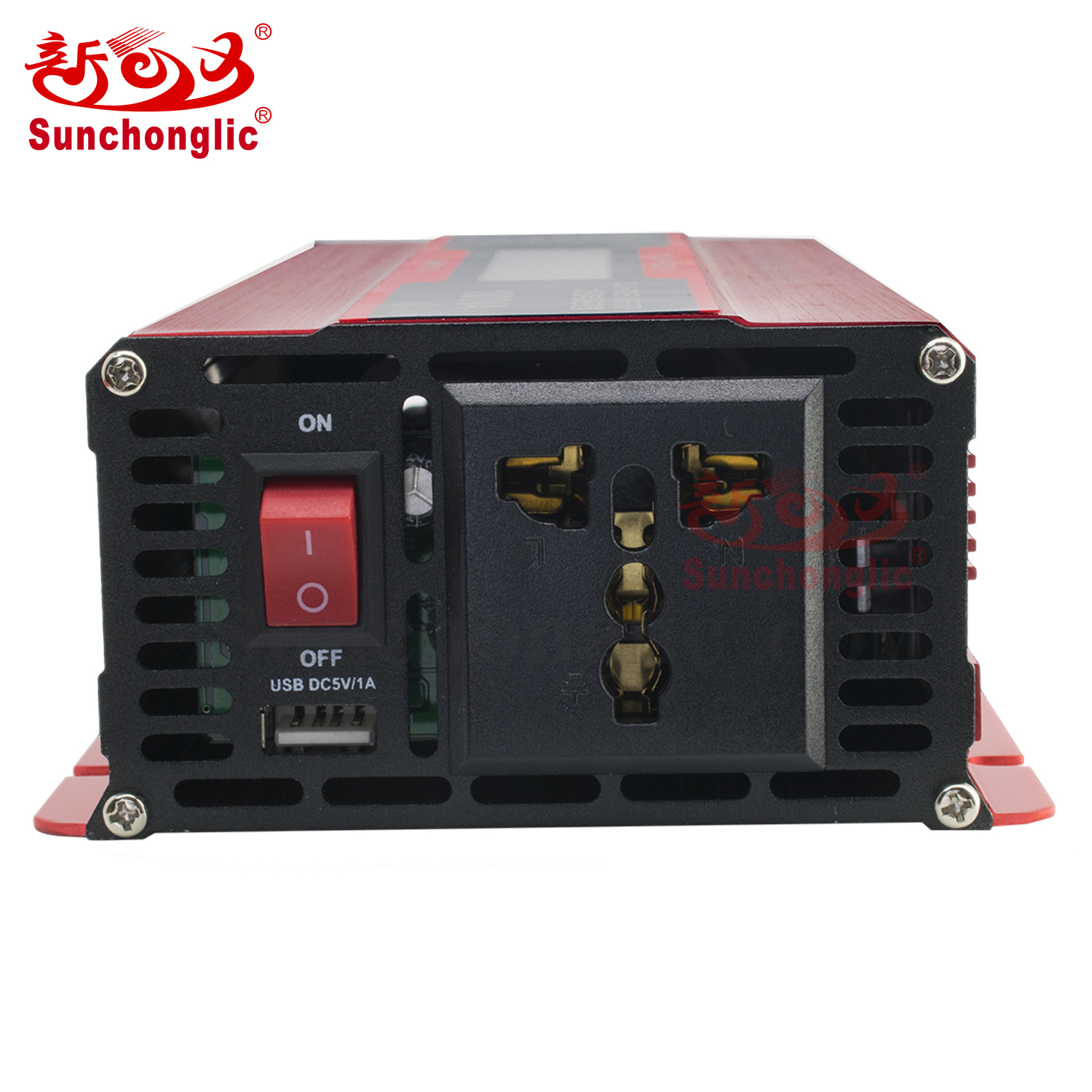

Universal socket, suitable for all kinds of plugs
Applicable for resistive AC loads
High-procision voltage stability technology
Aerospace-grade silence technology

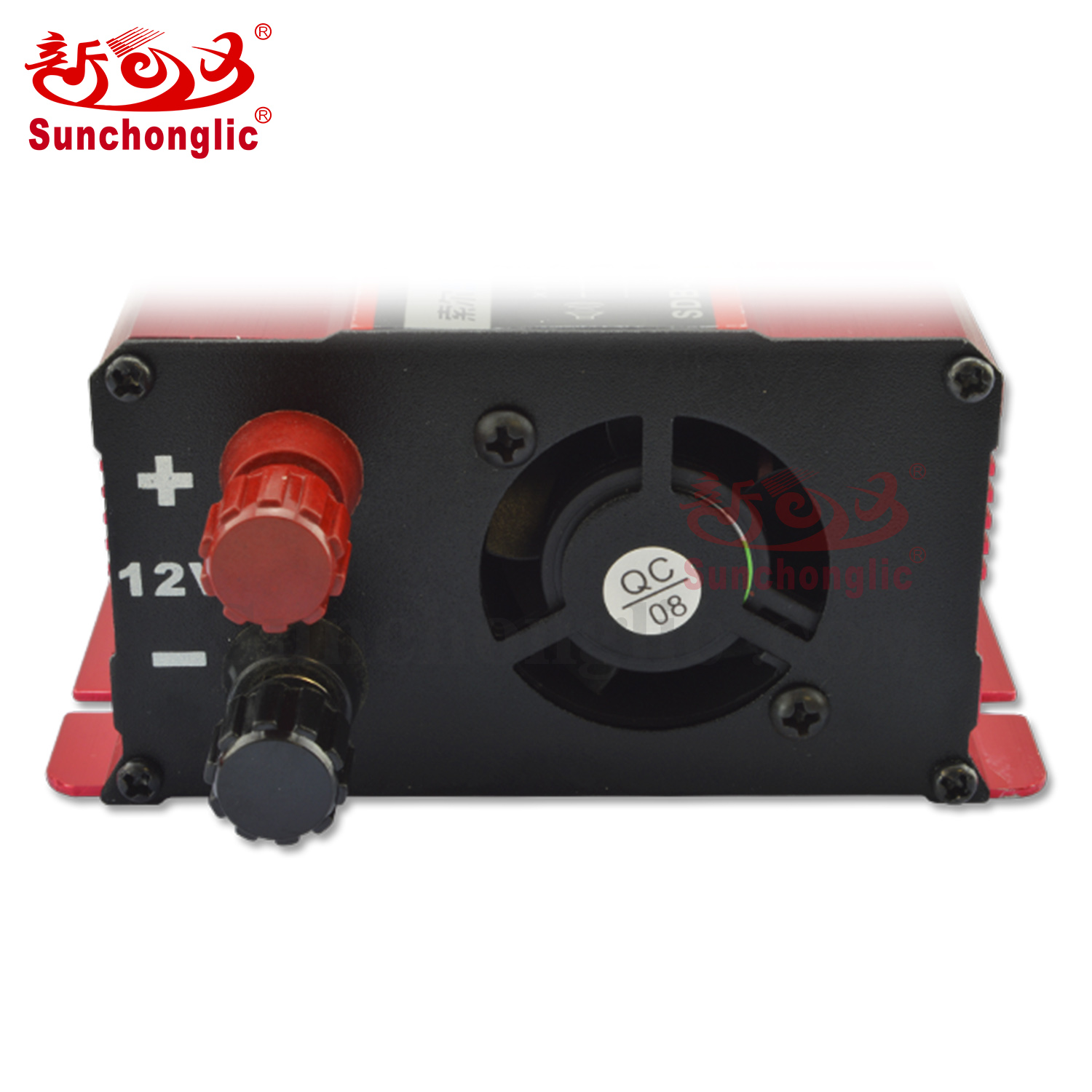

Cooler of fan and working status are intellectually controlled by MCU, which mostly prolongs its service life and helps to save the power consumption
Multiple safe protections are designed,including overload/overvoltage/low voltage/high temperature and short circuit protection
Product Specification | ||
Model | SDB-D500A | SDB-D1000A |
Output voltage | AC230V | AC230V |
Output power | 300W | 600W |
Peak power | 500W | 1000W |
Output frequency | 50Hz | 50Hz |
USB interface | DC5V 1A | DC5V 1A |
NO-load current | <0.3A | <0.5A |
Working volt | DC12V | DC12V |
Voltage range | 10.5-15V | 10.5-15V |
Alarm voltage | 10.5V | 10.5V |
low-voltage | 10V | 10V |
Overvoltage | 16V | 16V |
Efficiency | >85% | |
Size/PCS | 20.3*11.2*5.5CM | 22.5*11.2*5.5CM |
Weight /PCS | 0.59KG | 0.75KG |
Size/CTN | 46*31*35cm | 50*31*35cm |
G.W/CTN | 16.68KG | 20.27KG |
Output waveform | Modified sine wave |
