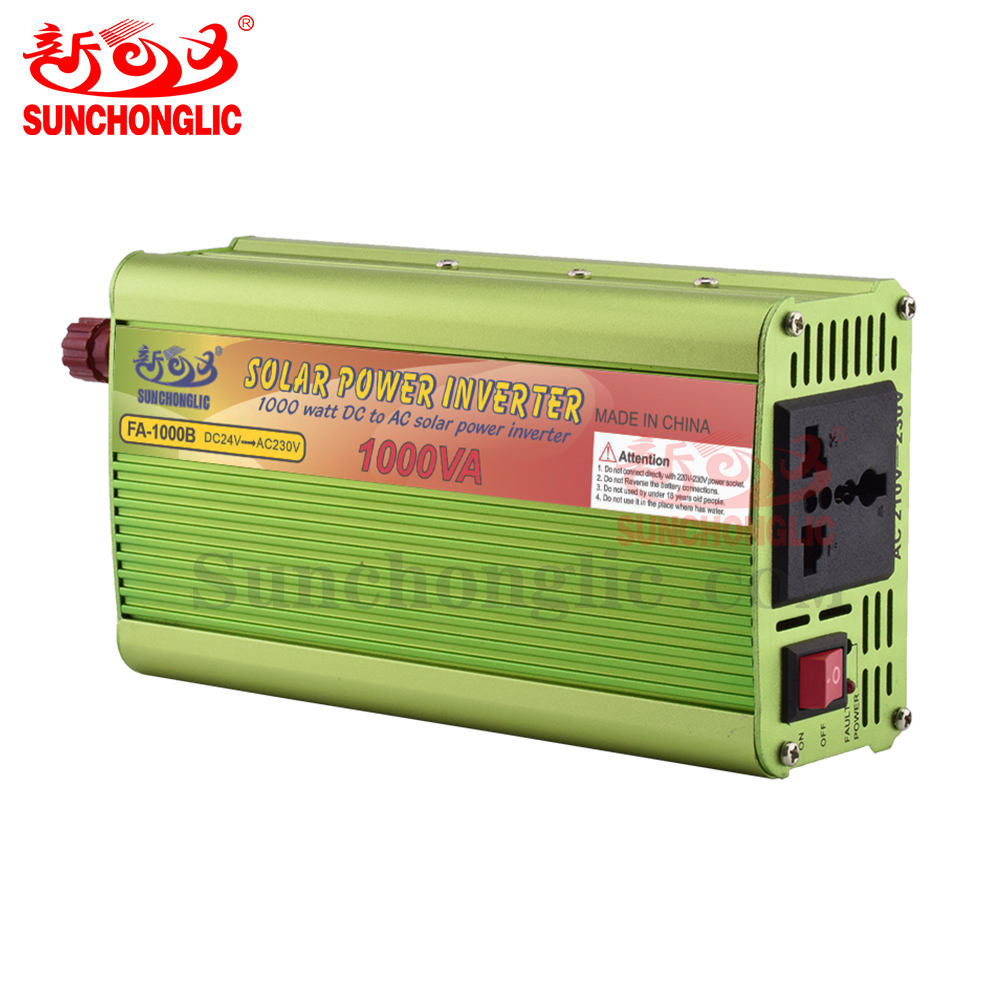

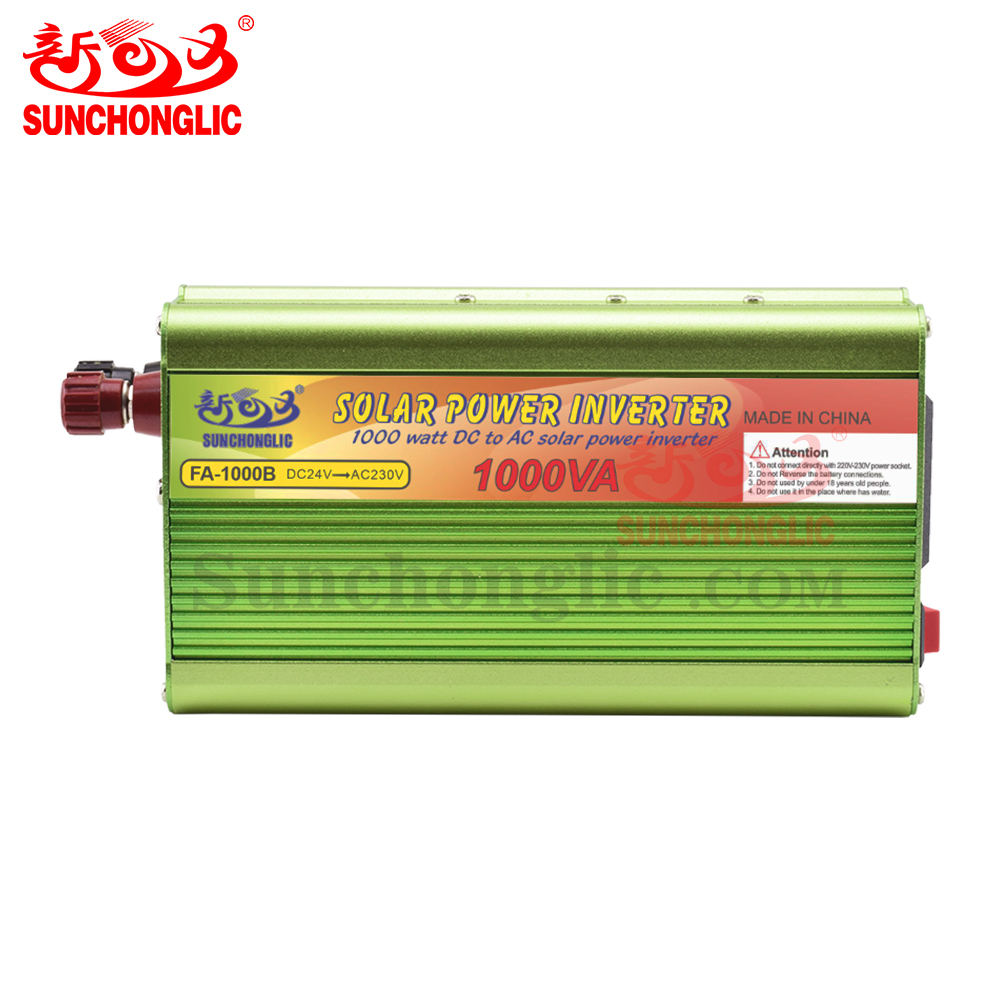

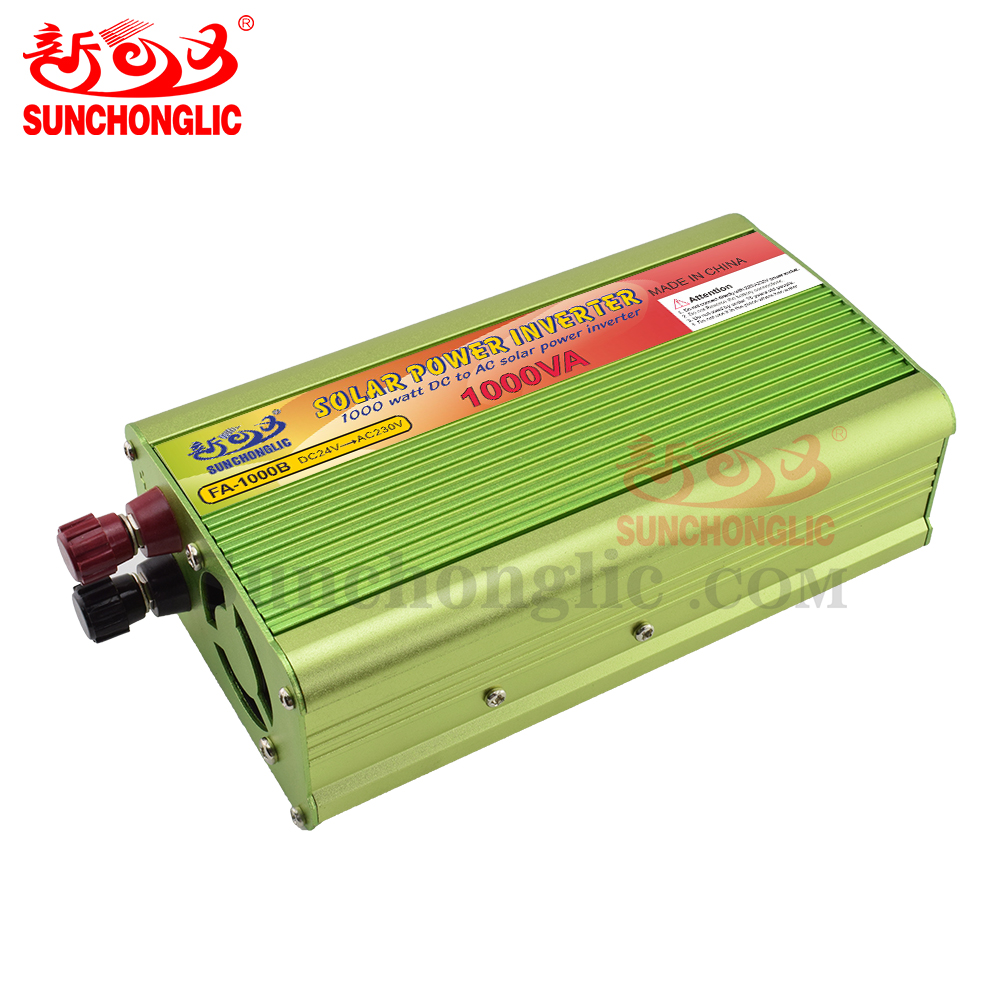

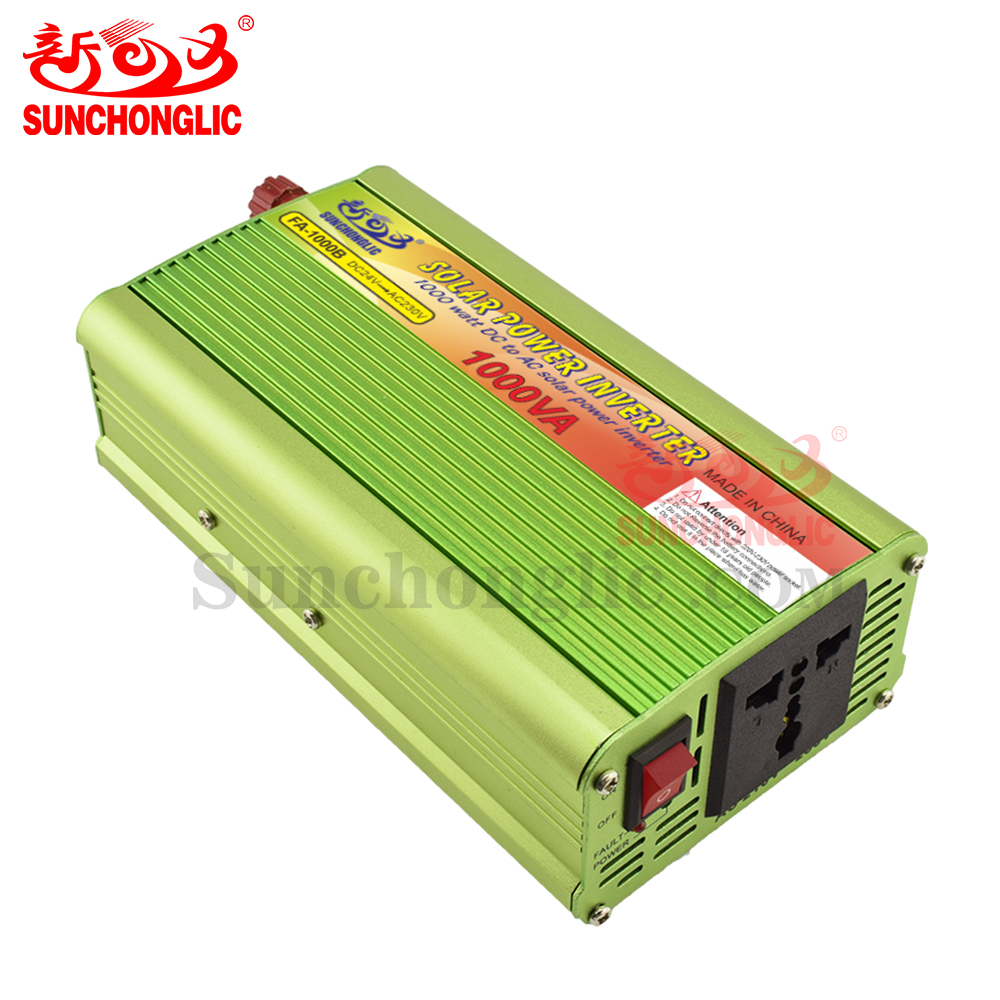

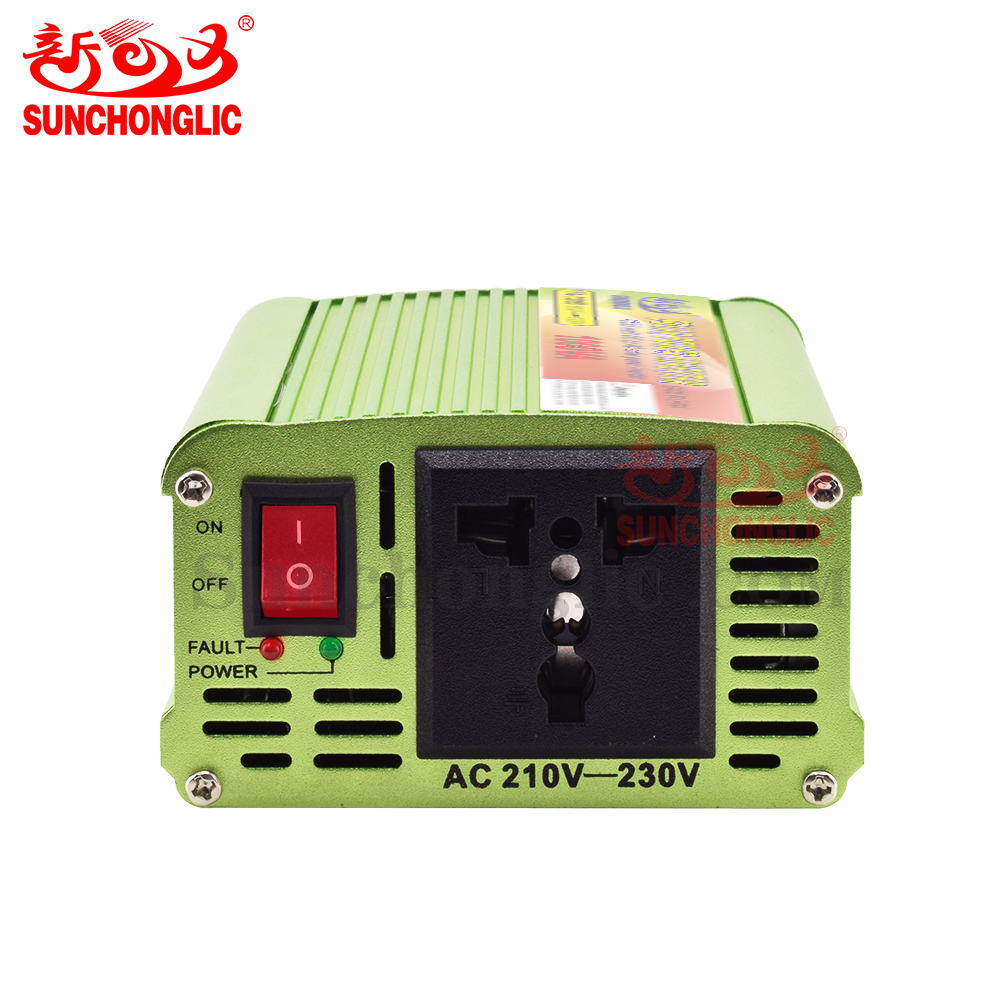

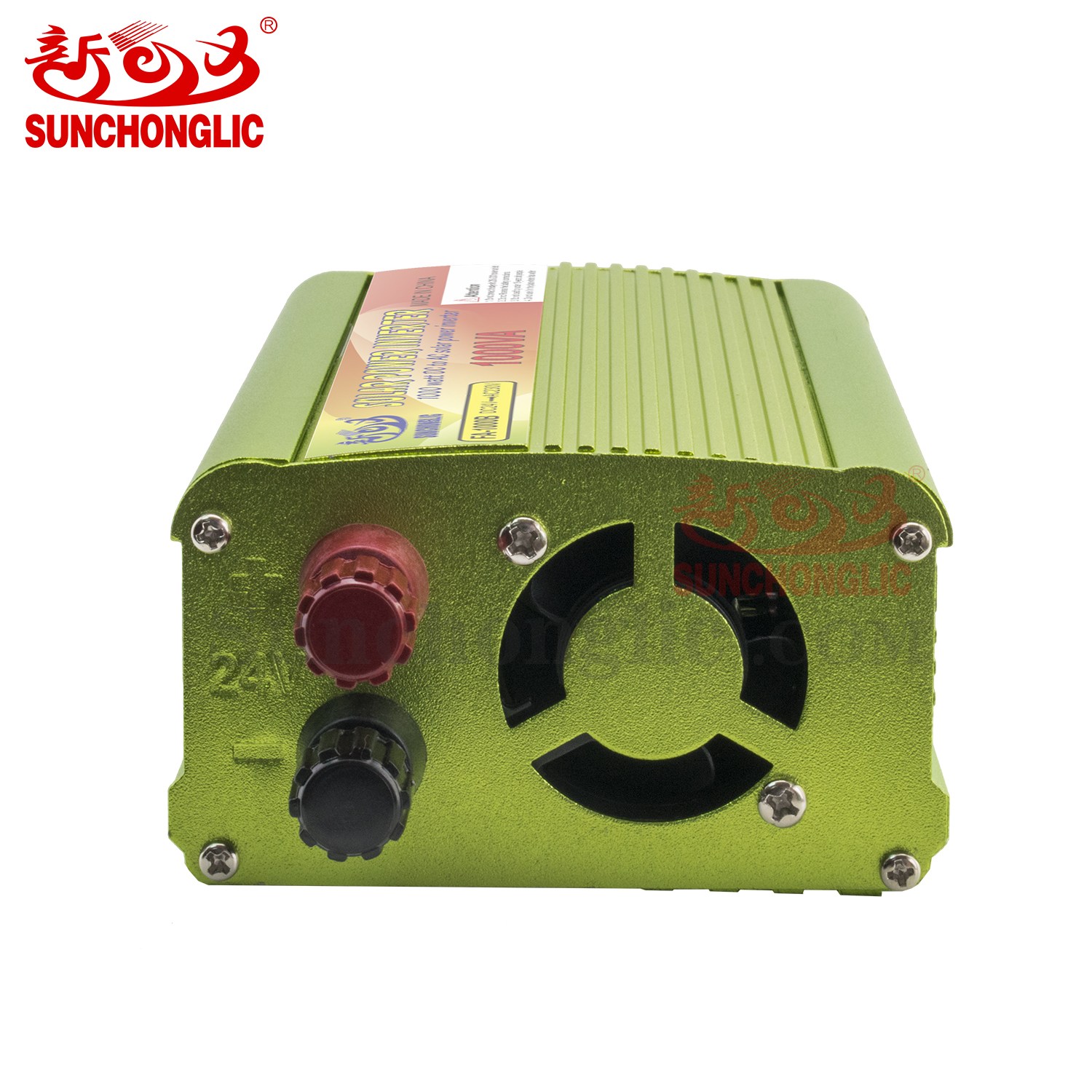

Modified Sine Wave Inverter
Modified sine waveform output.
High conversion efficiency, smart soft start function.
Input and output are completely independent.
Smart, light,and portable designed for home use.
Universal socket, suitable for all kinds of plugs.
Applicable for resistive AC loads
High-procision voltage stability technology,Aerospace-grade silence technology
Cooler of fan and working status are intellectually controlled by MCU, which mostly prolongs its service life and helps to save the power consumption
Multiple safe protections are designed,including overload/overvoltage/low voltage/high temperature,short circuit and reverse connecting protection.
Product Specification | ||
Model | FA-500B | FA-1000B |
Output Voltage | 220VAC | |
Output Waveform | Modified sine waveform | |
Rated Power | 350W | 600W |
Peak Power | 500W | 1000W |
Working voltage | DC24V | |
Frequency | 50Hz | |
No-load Current | <0.5A | |
Voltage Range | 21-30V | |
Alarm Voltage | 21-30V | |
Low-voltage protection | 21V | |
Over voltage protection | 30V | |
Efficiency | 70%~80% | |
SIZE/CTN | 39*30*34cm | 46*30*33cm |
G.W./CTN | 14.26KG | 16.94kg |
Packing/CTN | 20PCS |
