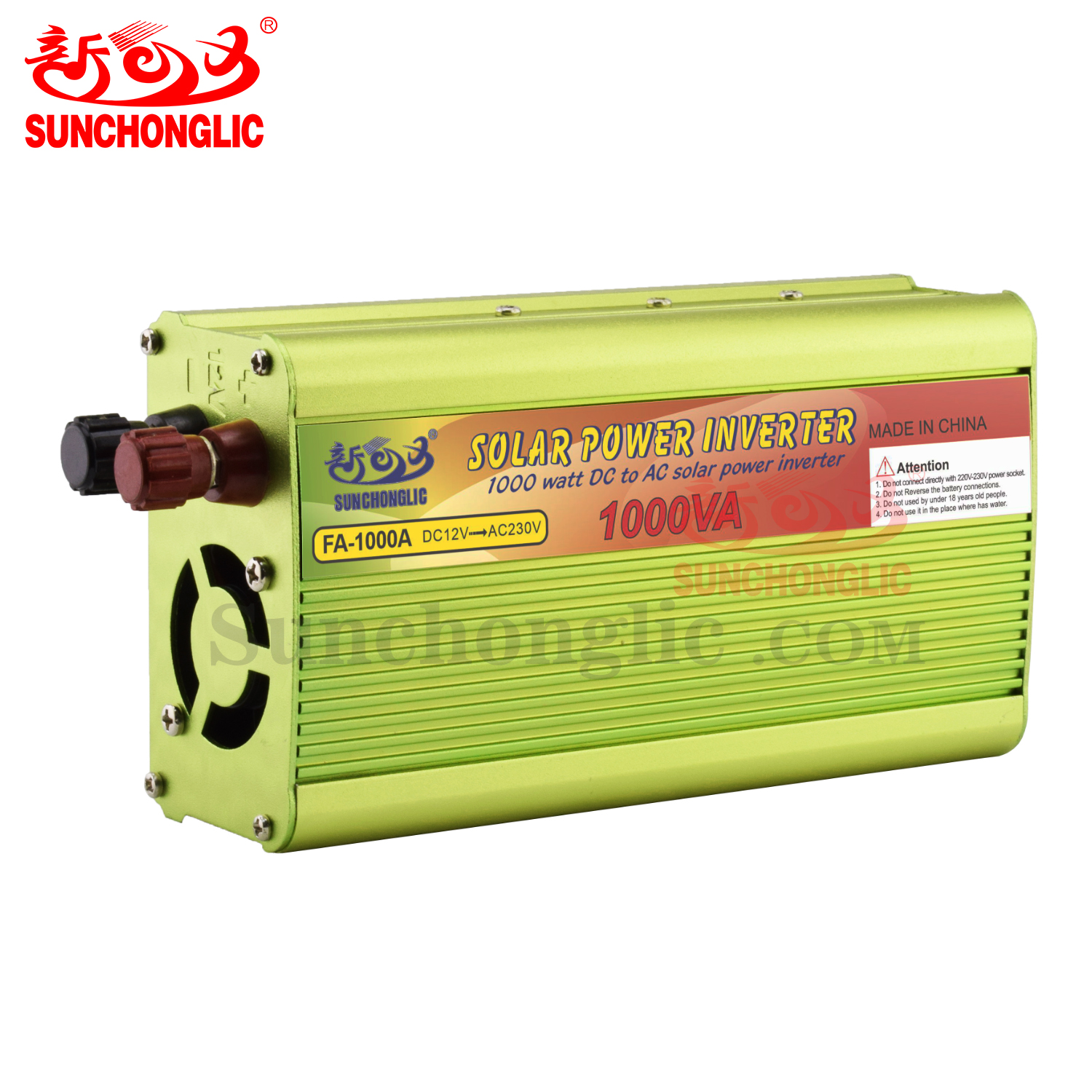

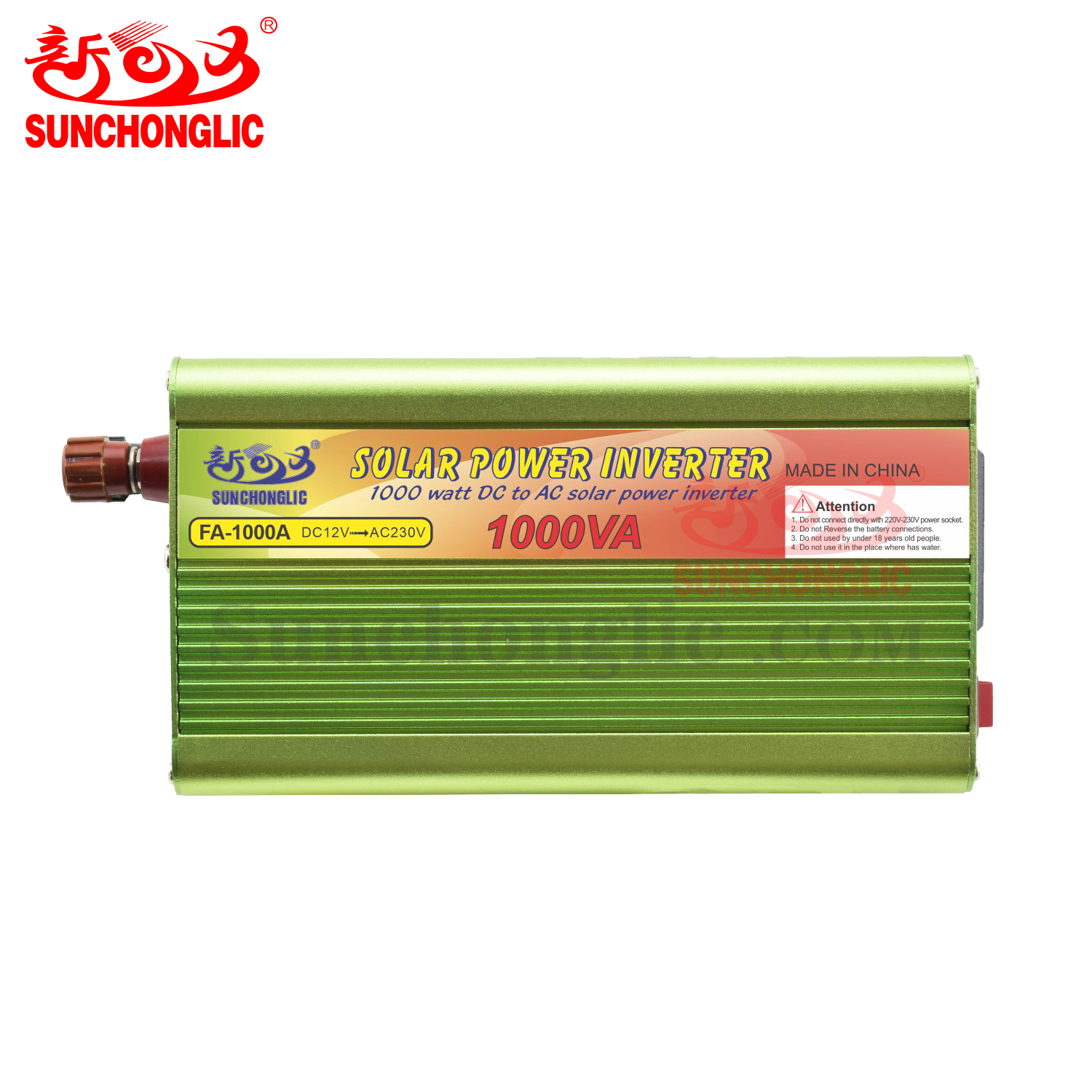

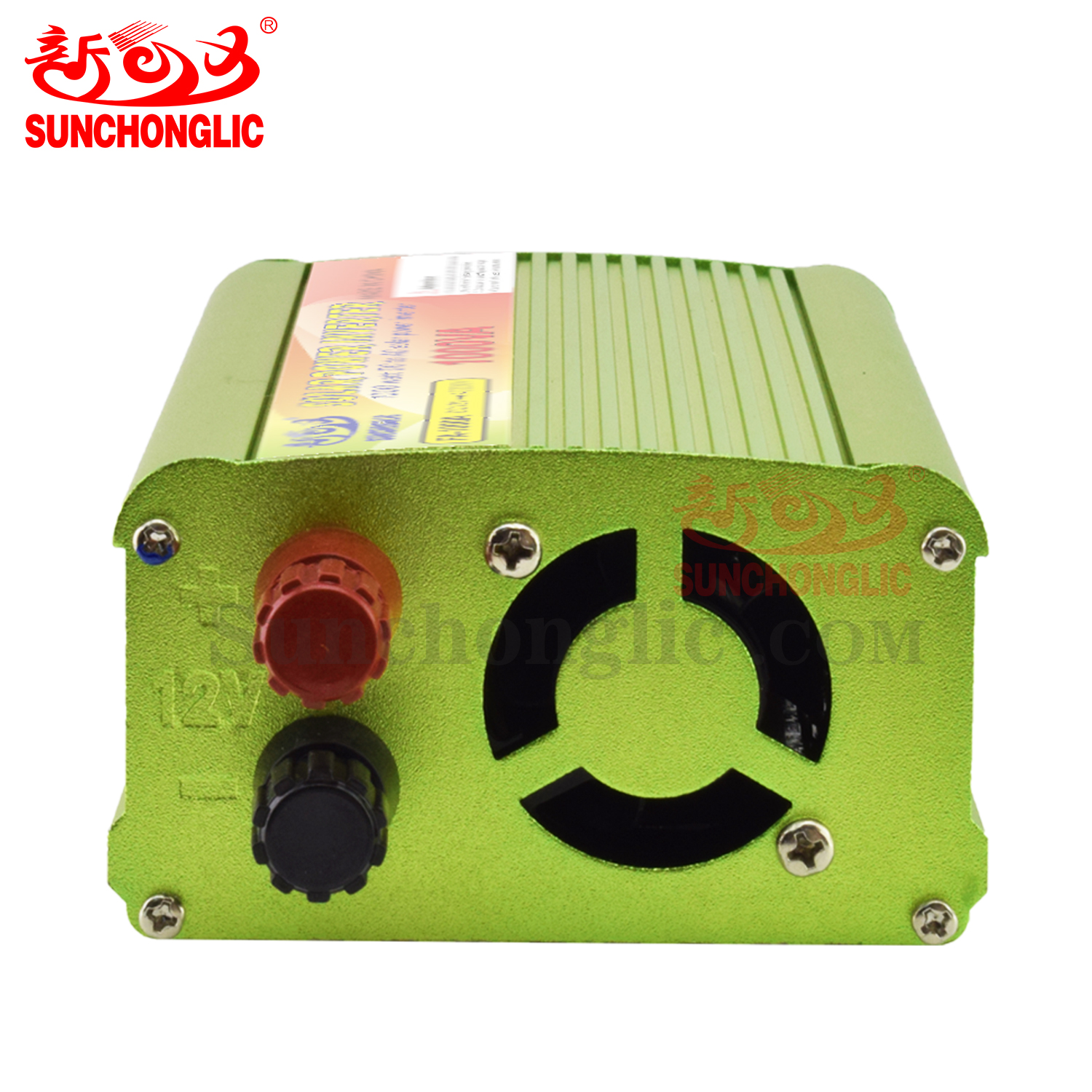

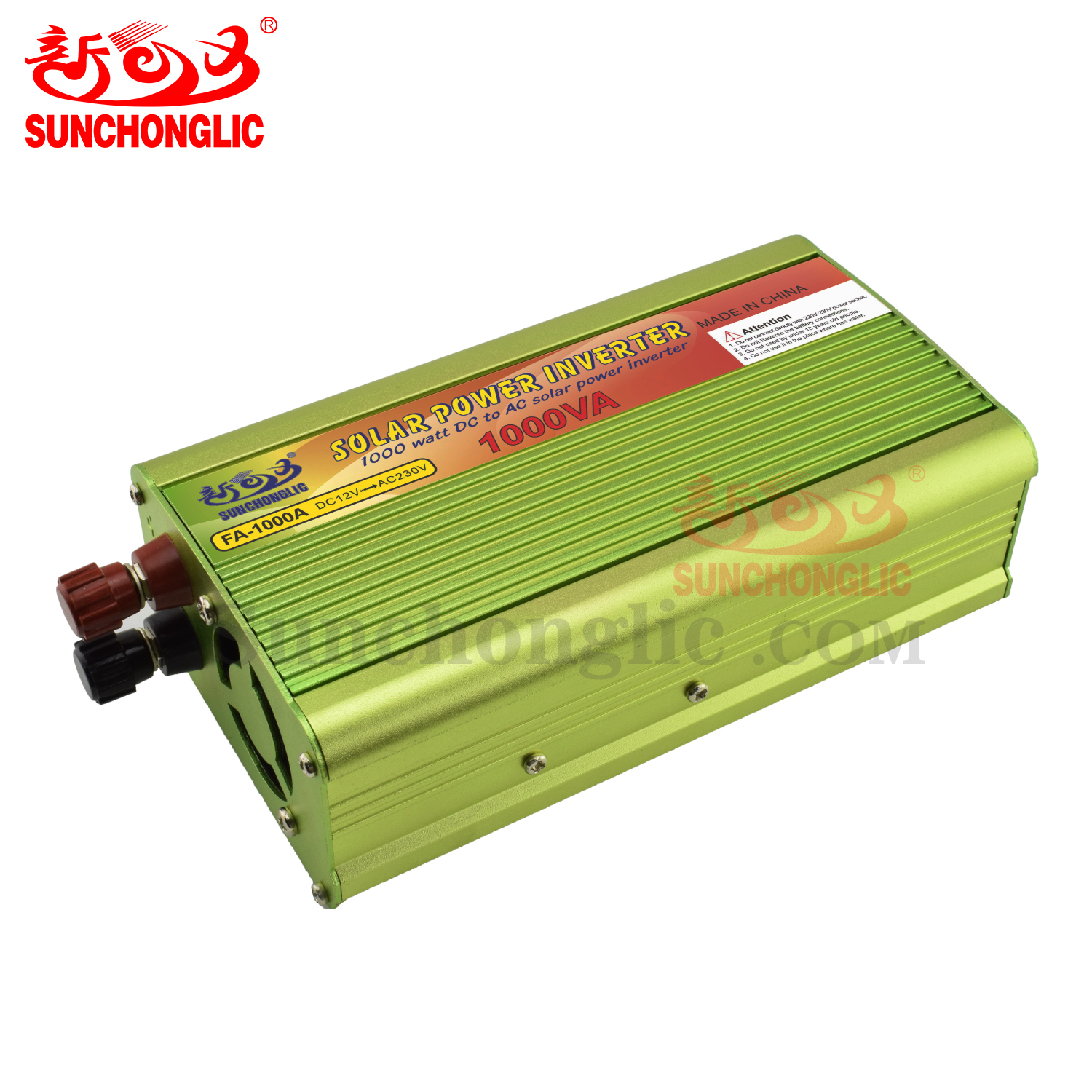

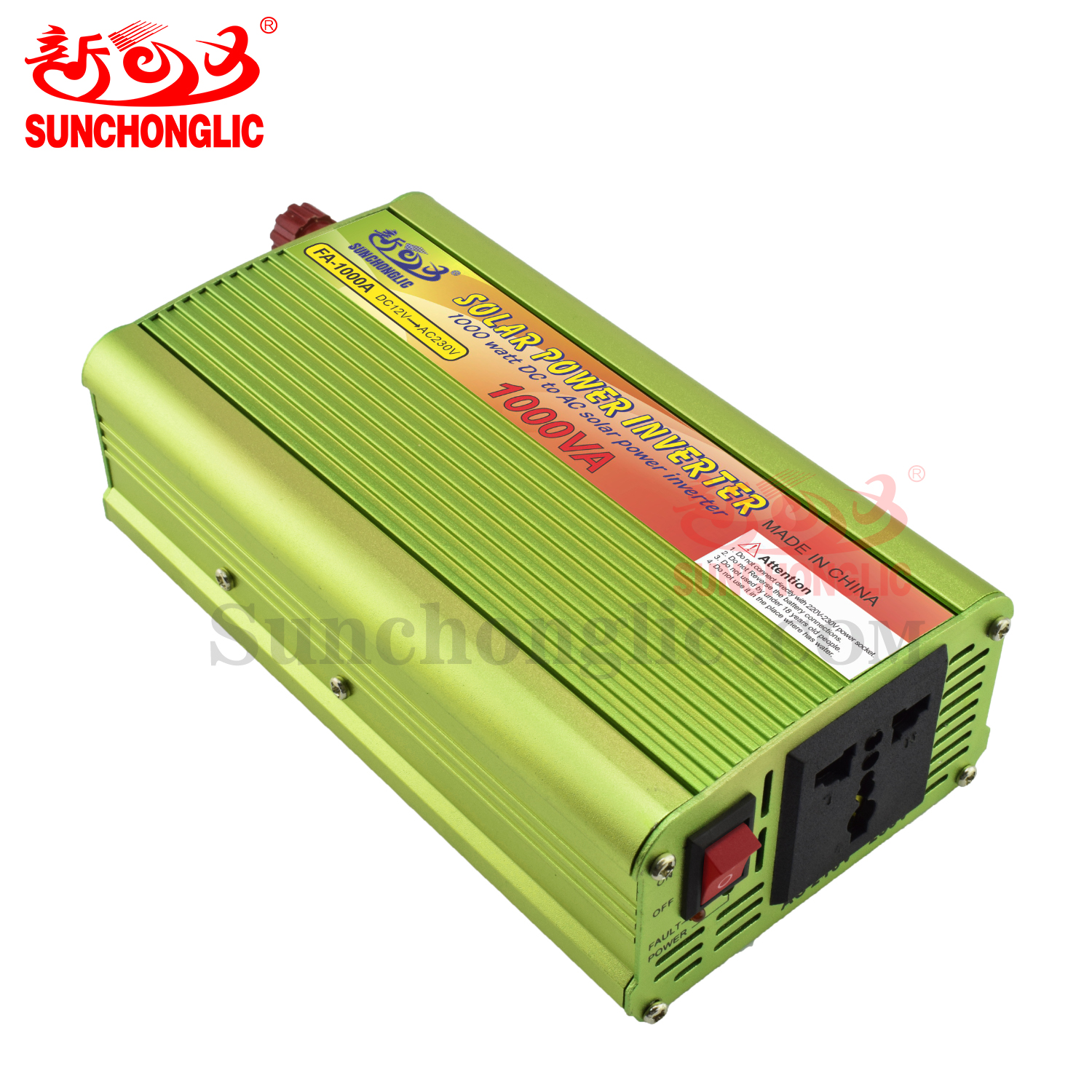

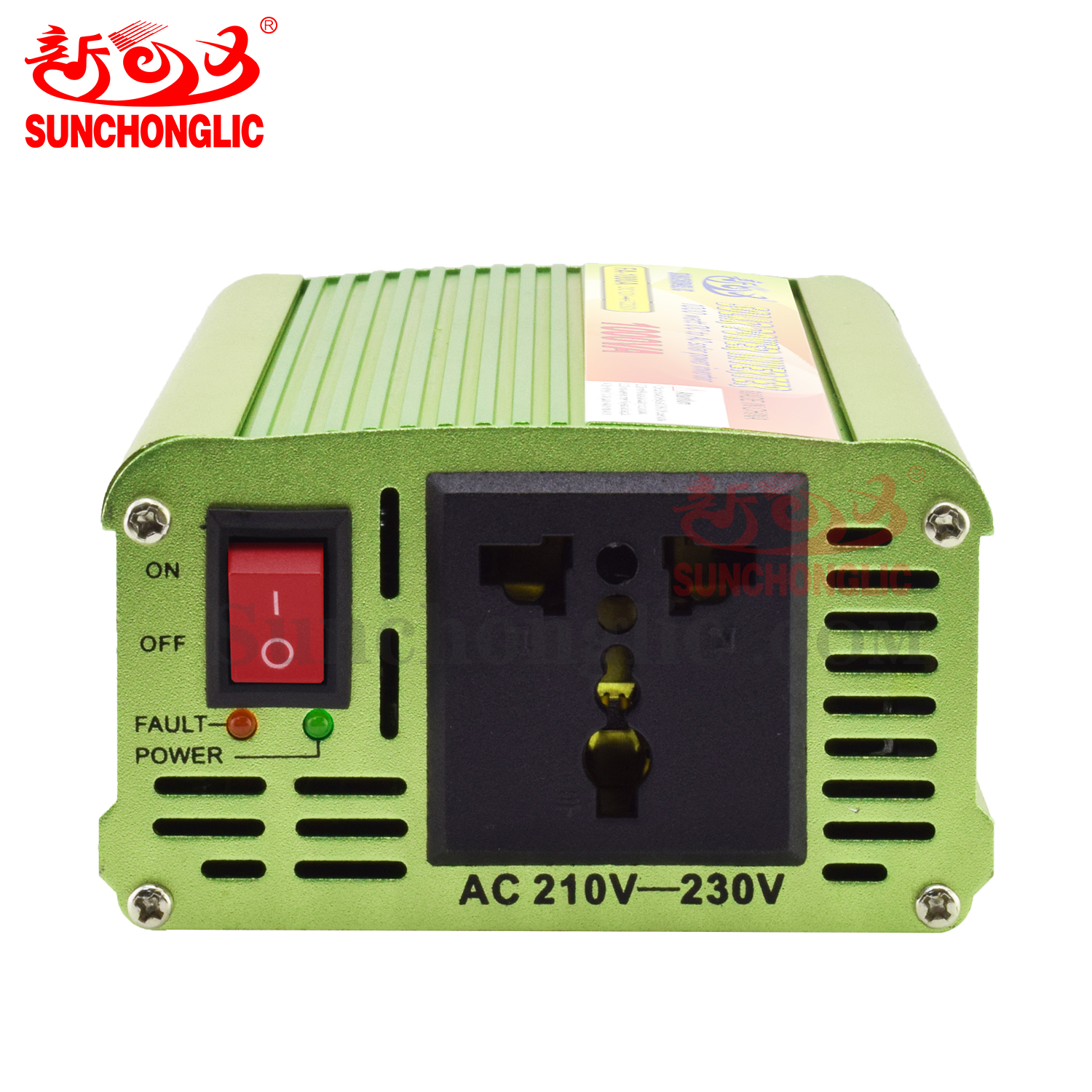

Sunchonglic 12v 220v 1000va Invertor Modified Sine Power Inverter

FA-1000A

Modified Sine Wave Inverter

Features:

Modified sine waveform output.

High conversion efficiency, smart soft start function.

Input and output are completely independent.

Smart, light,and portable designed for home use.

Universal socket, suitable for all kinds of plugs.

Applicable for resistive AC loads.

High-procision voltage stability technology,Aerospace-grade silence technology.

Cooler of fan and working status are intellectually controlled by MCU, which mostly prolongs its service life and helps to save the power consumption.

Multiple safe protections are designed,including overload/overvoltage/low voltage/high temperature,short circuit and reverse connecting protection.

INQUIRE NOW

SEND ENQUIRY

Specifications

Product Specification

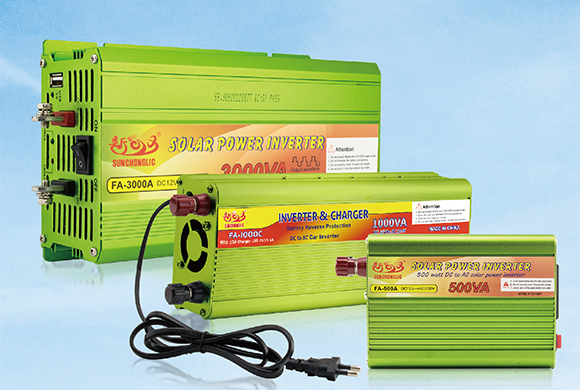

Model	FA- 350A	FA- 500A	FA- 1000A	FA- 1500A	FA- 2000A	FA- 3000A

Output Voltage	AC 220V±10V
Output Voltage Frequency	50Hz±5Hz
Output Waveform	Modified sine waveform
Rated Power	300W	350W	550W	600W	800W	900W
Peak Power	350W	500W	1000W	1500W	2000W	3000W
USB Output	/					USB 5V
No-load standby current	<250mA		<500mA		<0.5A
Input Voltage Range	DC 10V-15V				DC 10.5-15V
Undervoltage Alarm Voltage	DC 10 -10.5V				DC 10.5-15V
Undervoltage protection voltage	DC 9-10V				DC 10.5V
Overvoltage protection voltage	DC 15-16V				DC 15V
Conversion efficiency	≥84%				70%-80%
SIZE/CTN(CM)	393034	393033	463033	463033	543033	4428.532
G.W./CTN	14.26kg	12.02kg	15.43kg	15.32kg	22.19kg	17.05kg
Packing/CTN	20PCS					12PCS
