Voltage Stabilizer

Sunchonglic voltage regulator 220V 230V AC 600W 700W 1000W 2000W 2500W Single-Phase voltage regulator stabilizer

Voltage Stabilizer

Voltage Stabilizer

Features:

Active power,:600VA/700VA/1000VA/2000VA/2500VA

Limit input voltage range, V:90-310

Rated output voltage, V:220/230

Output voltage waveform:Pure sine wave

Principle of stabilization:Inverter(double conversion)

Stabilization accuracy, %:±2

LED indicator:Normal, overload/overtemperature, input voltage < 90 V, input voltage > 310 V

Performs stepless continuous stabilization of the input voltage in a wide range (90V-310V AC)

Provides the output voltage with a perfect sine waveform with maximum accuracy (± 2%).

Single-phase voltage stabilizer protects against surges, drawdowns and voltage fluctuations in the mains:

Heating boiler electronics

Pumping equipment

Televisions, audio and video equipmen

Computers and peripheral equipment

Lighting equipment

Other household and office equipment with low power consumption.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Model AC-600VA AC-800VA AC-1000VA AC-2000VA AC-3000VA
AC input voltage range 90-310±5V
Input low voltage recovery 110±5V
Input Overvoltage Recovery 290±5V
The output voltage 230±4V
Input Voltage Frequency Range 43-47±1Hz
smart fan NO YES
Output Power V≥190V
Input voltage V≥190V
620W 720W 1000w 2000W 3000W
V≤185V
Input voltage V≤185V
W=V*2.88 W=V*3.65 1000w W=V*9.76 W=V*13
Rated output current 2.7A 3.1A 5A 8.8A 12.2A
Rated input current 3.1A 3.9A 9.2A 10.5A 14A
LED Display LED lights LCD screen+ LED light

Video Presentation

Rated power:600VA/700VA/1000VA/2000VA/2500VA

Limit input voltage range, V:90-310

Rated output voltage, V:220/230

Standy by power loss:10%

Stabilization accuracy:±2%

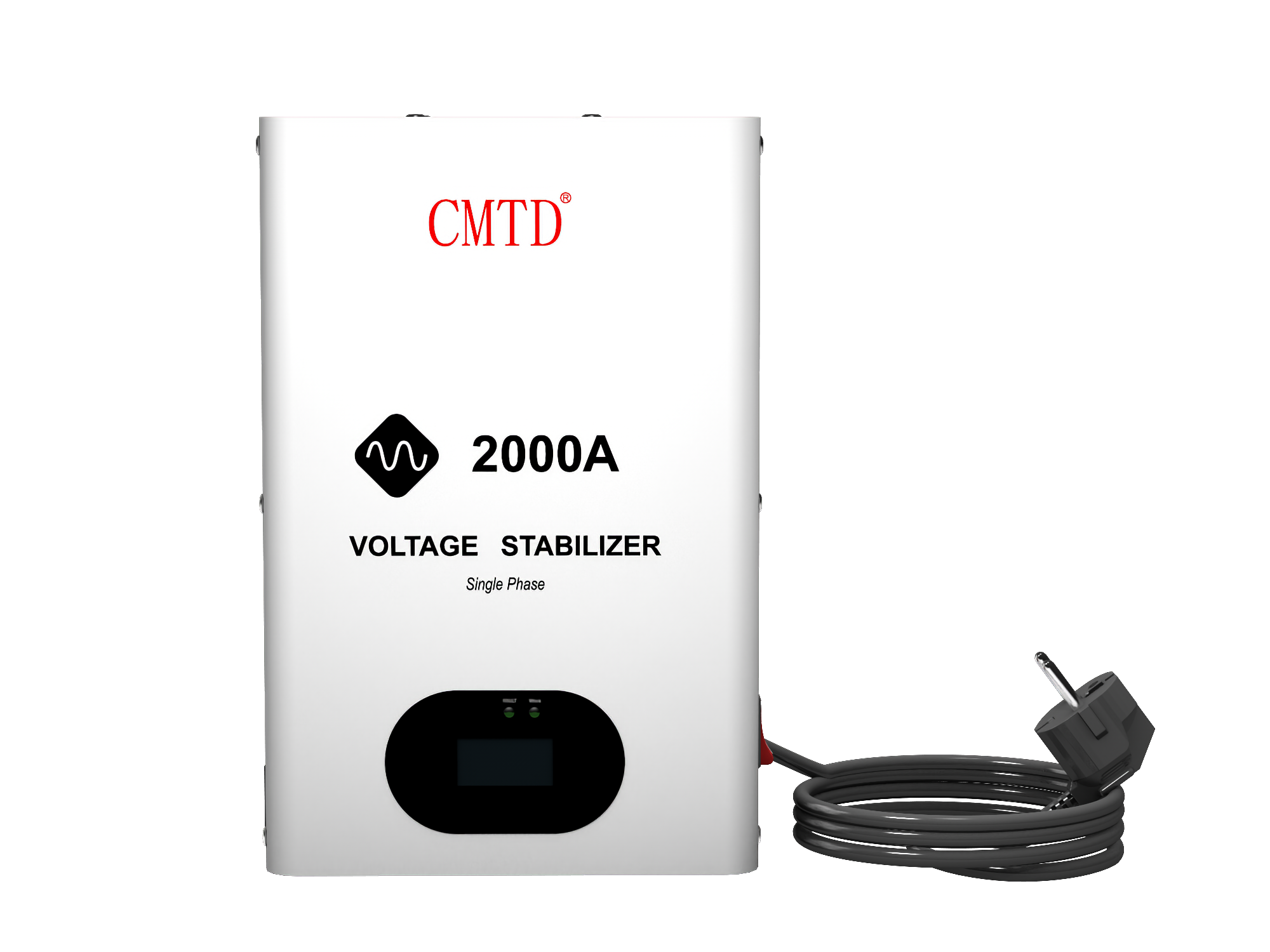

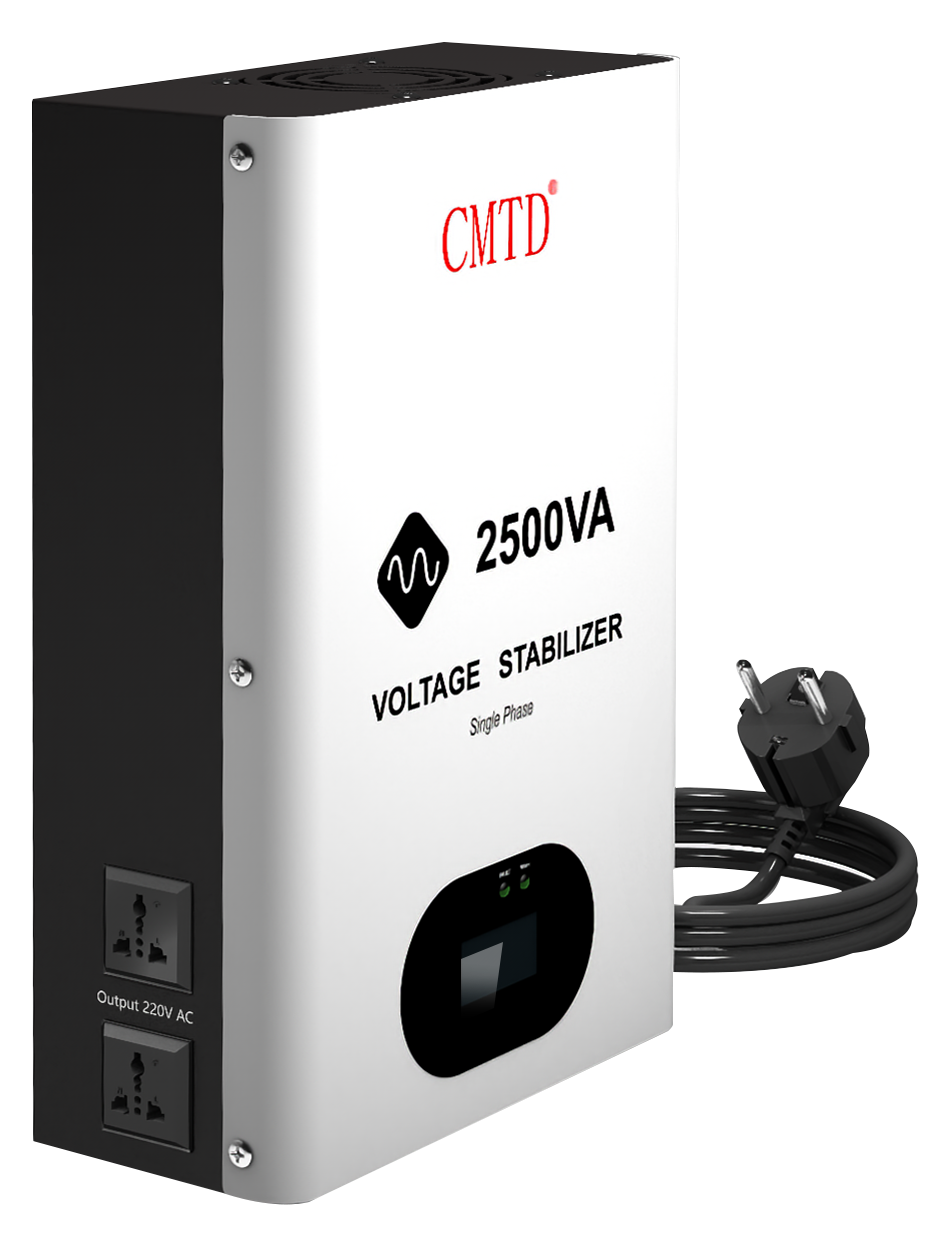

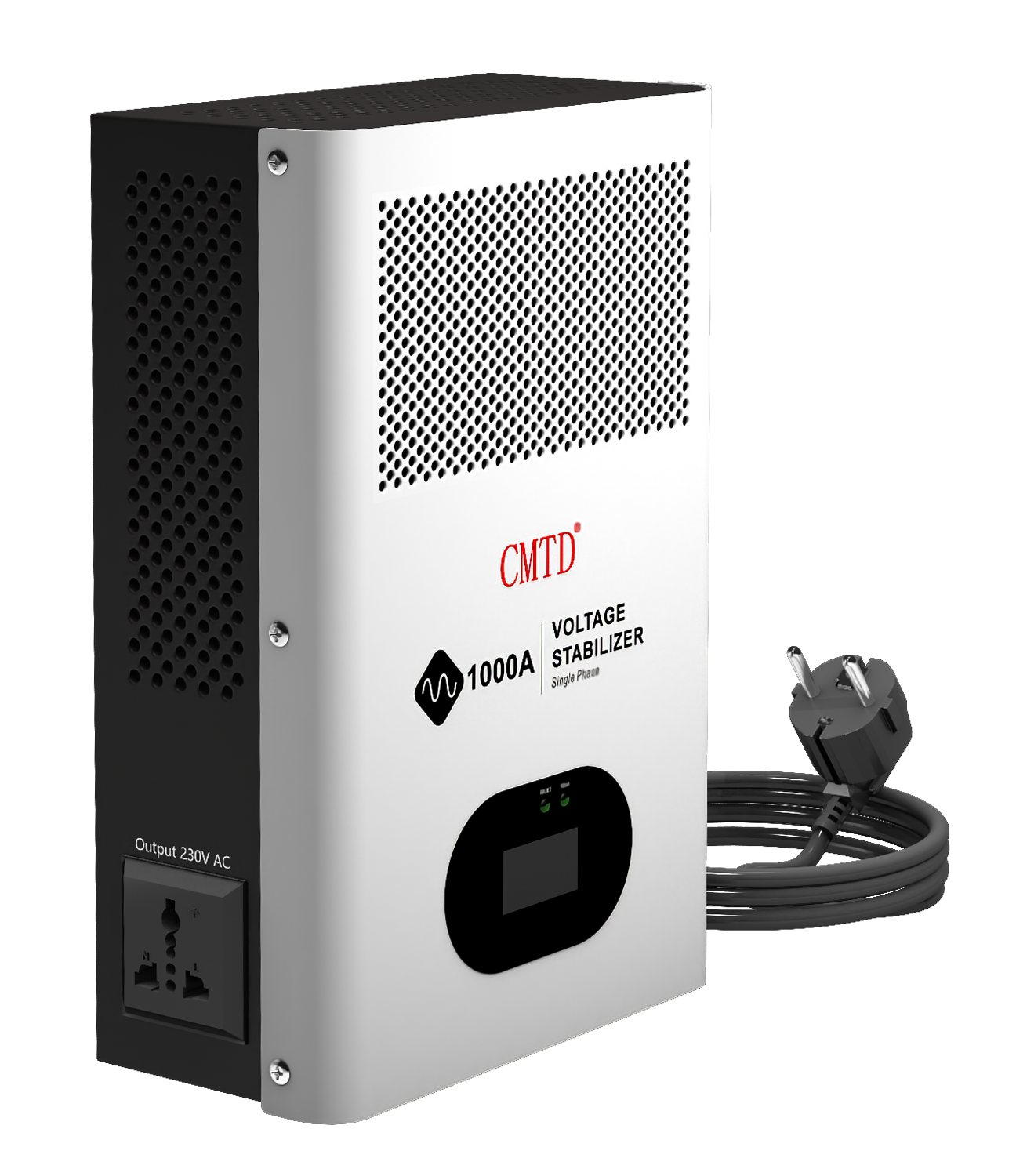

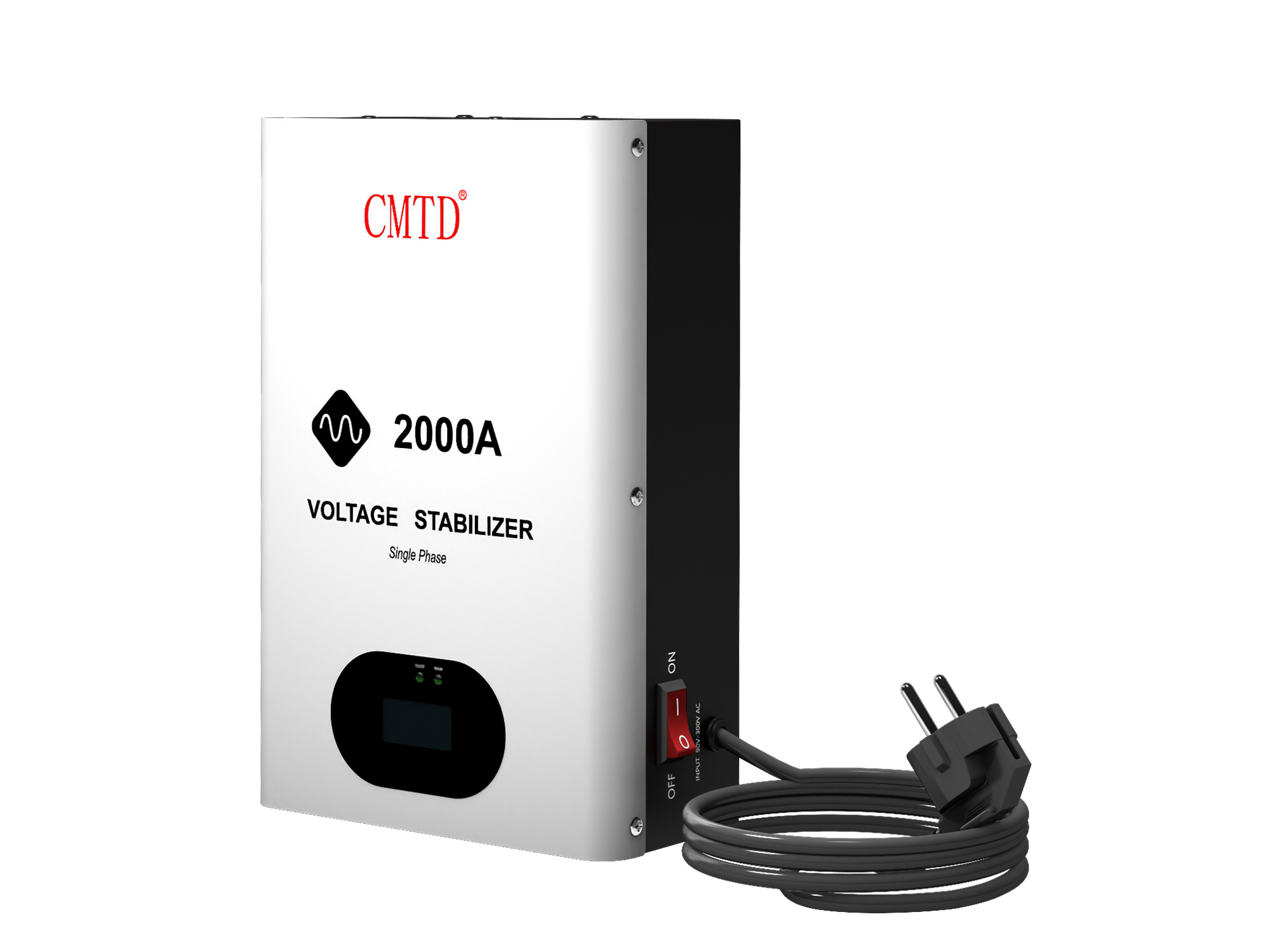

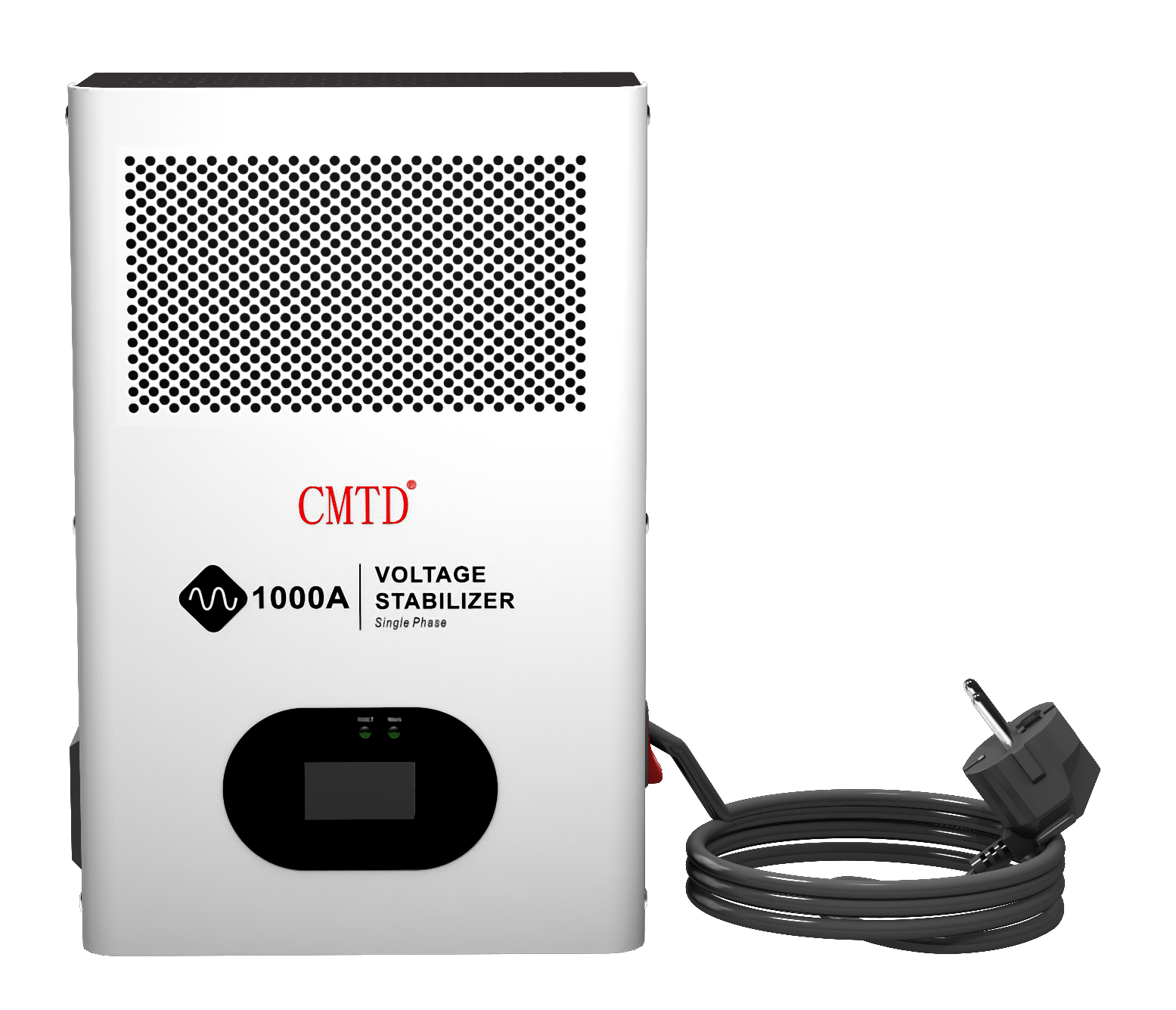

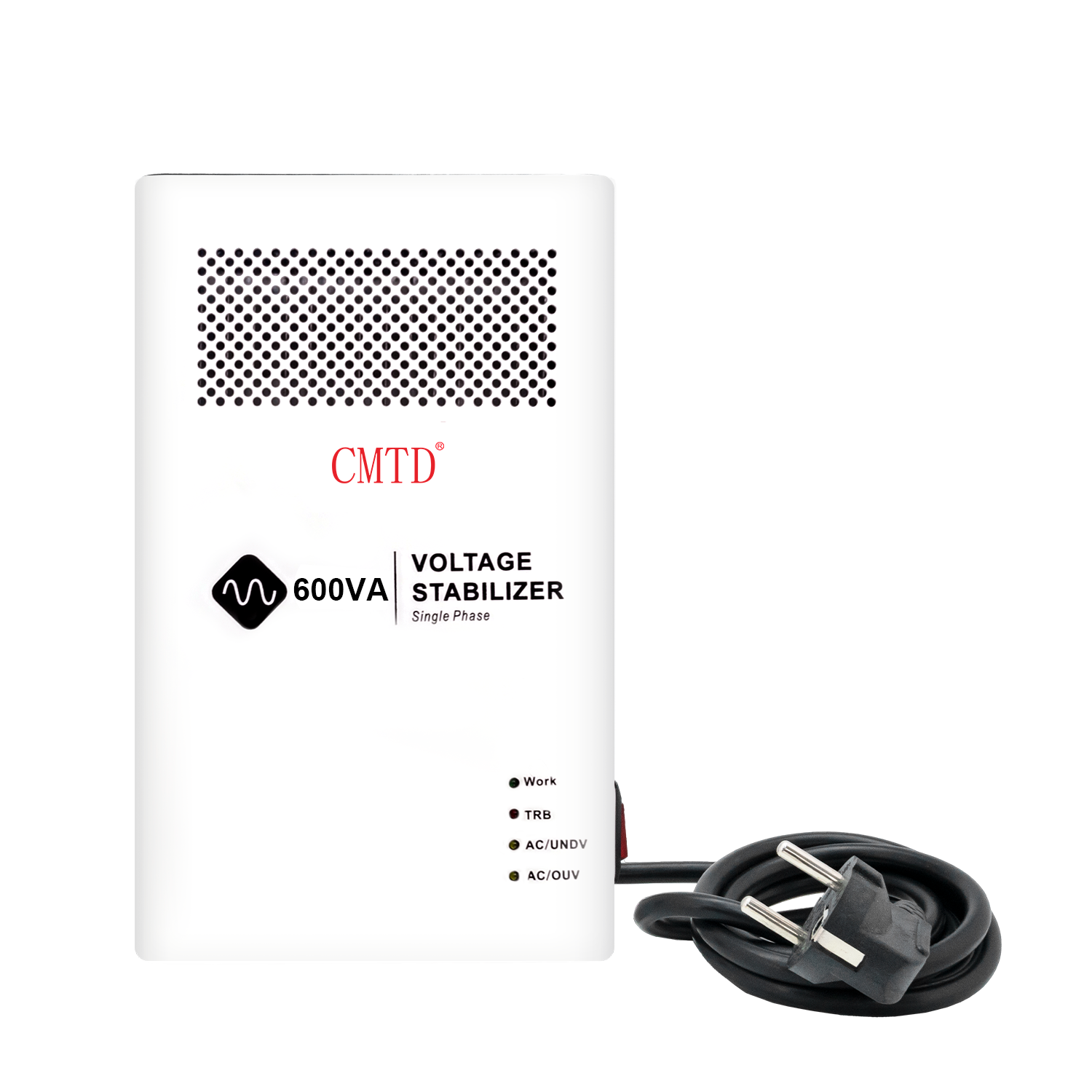

Product Photos
