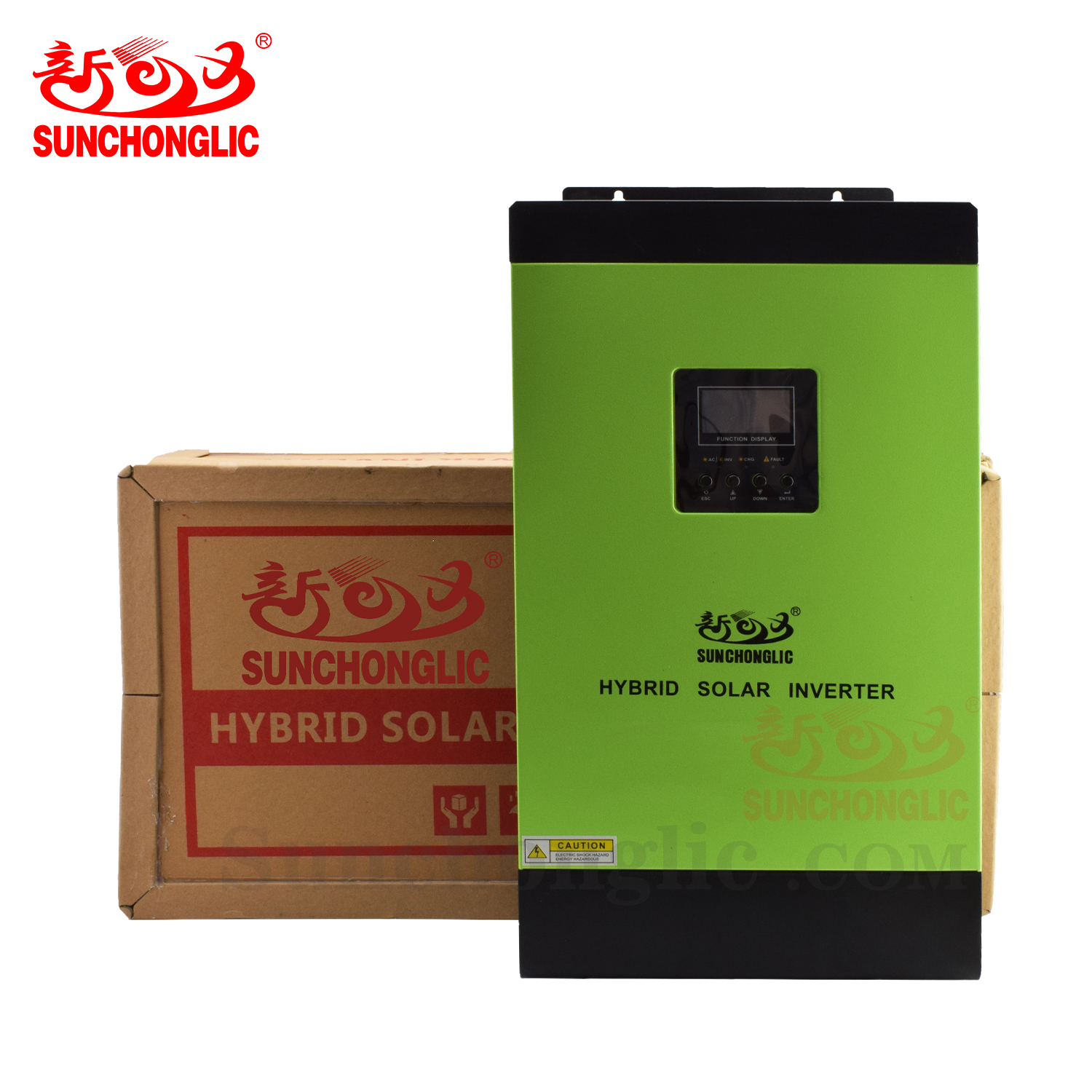

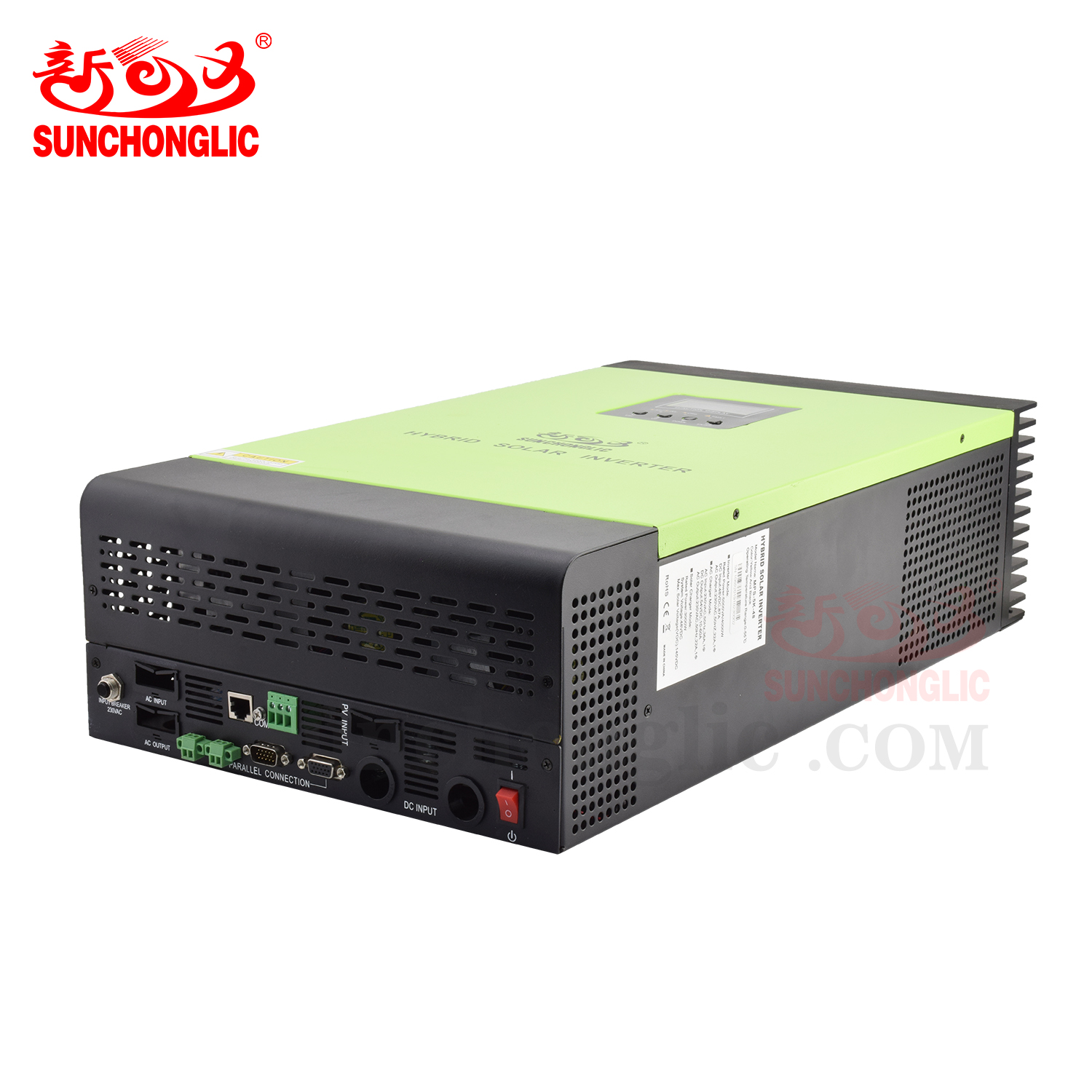

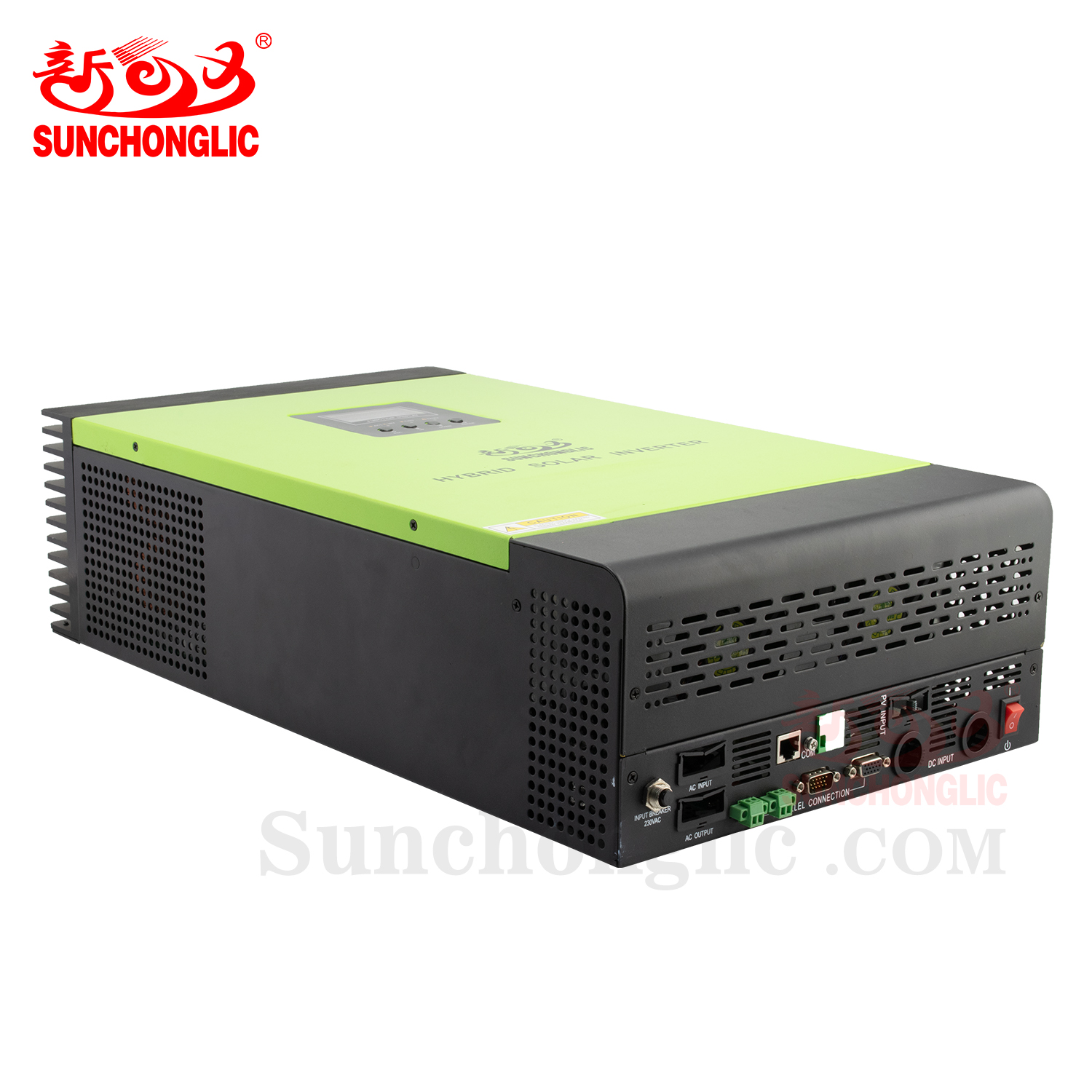

You are here: Home > Products > Modified Sine Wave Inverter > MPS-5K-48

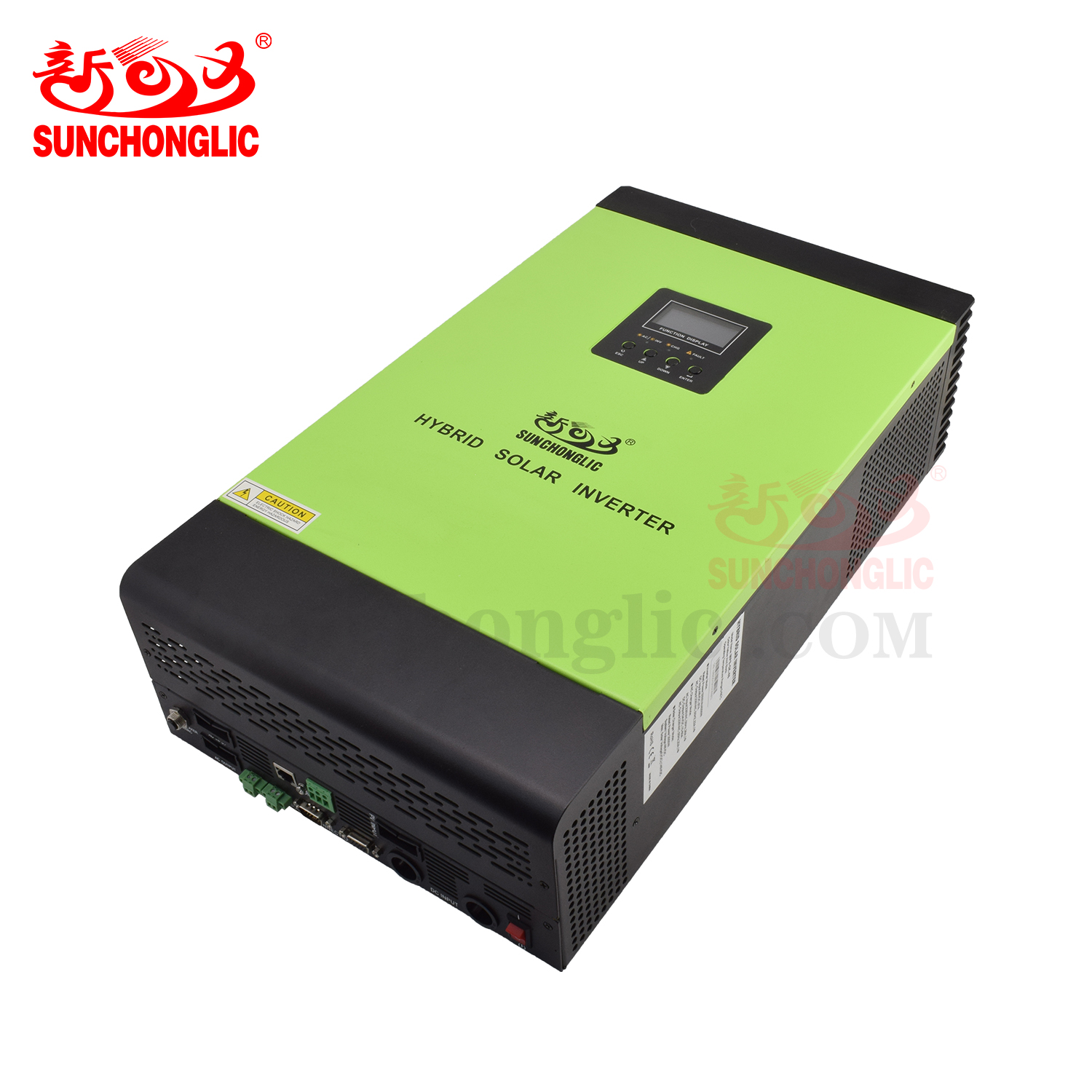

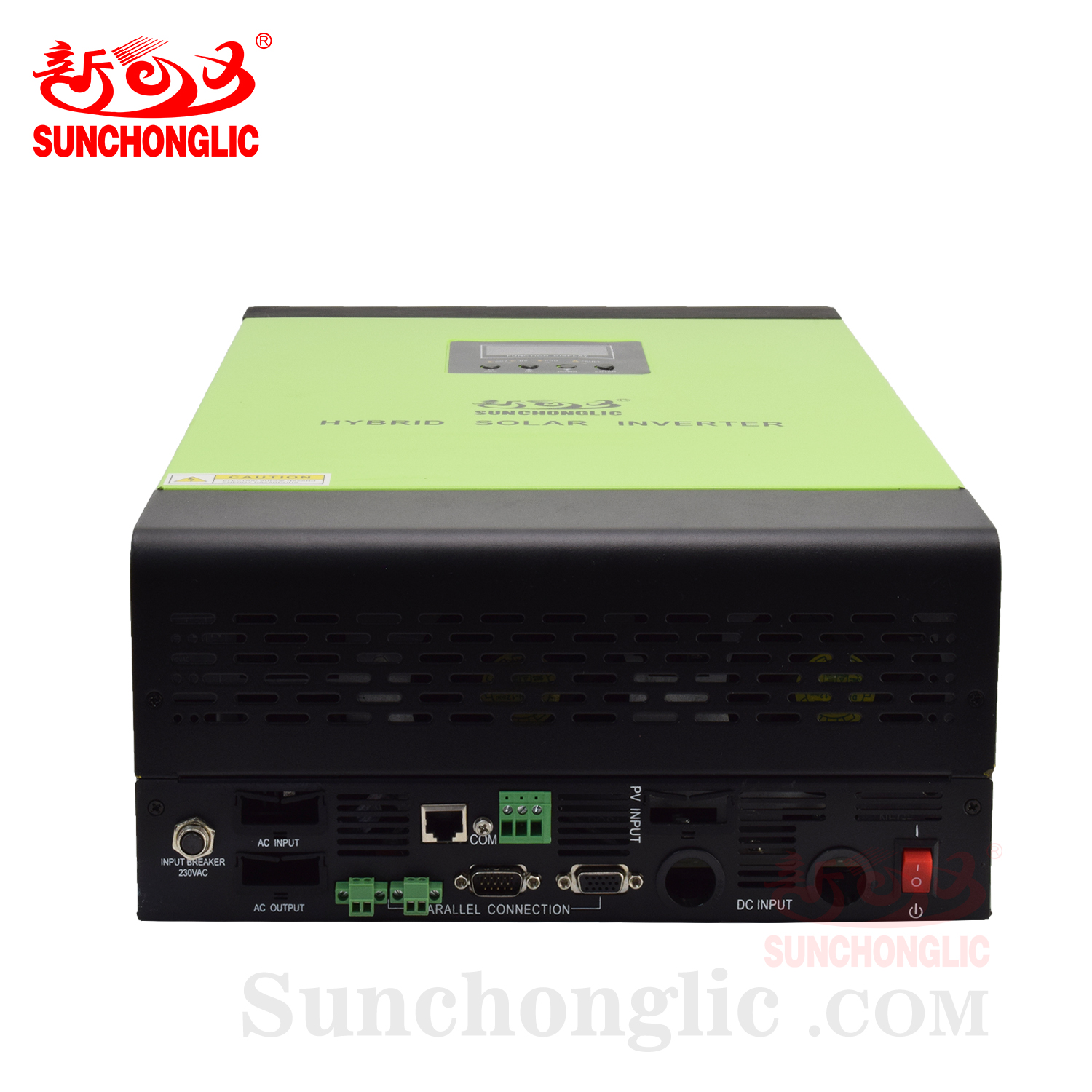

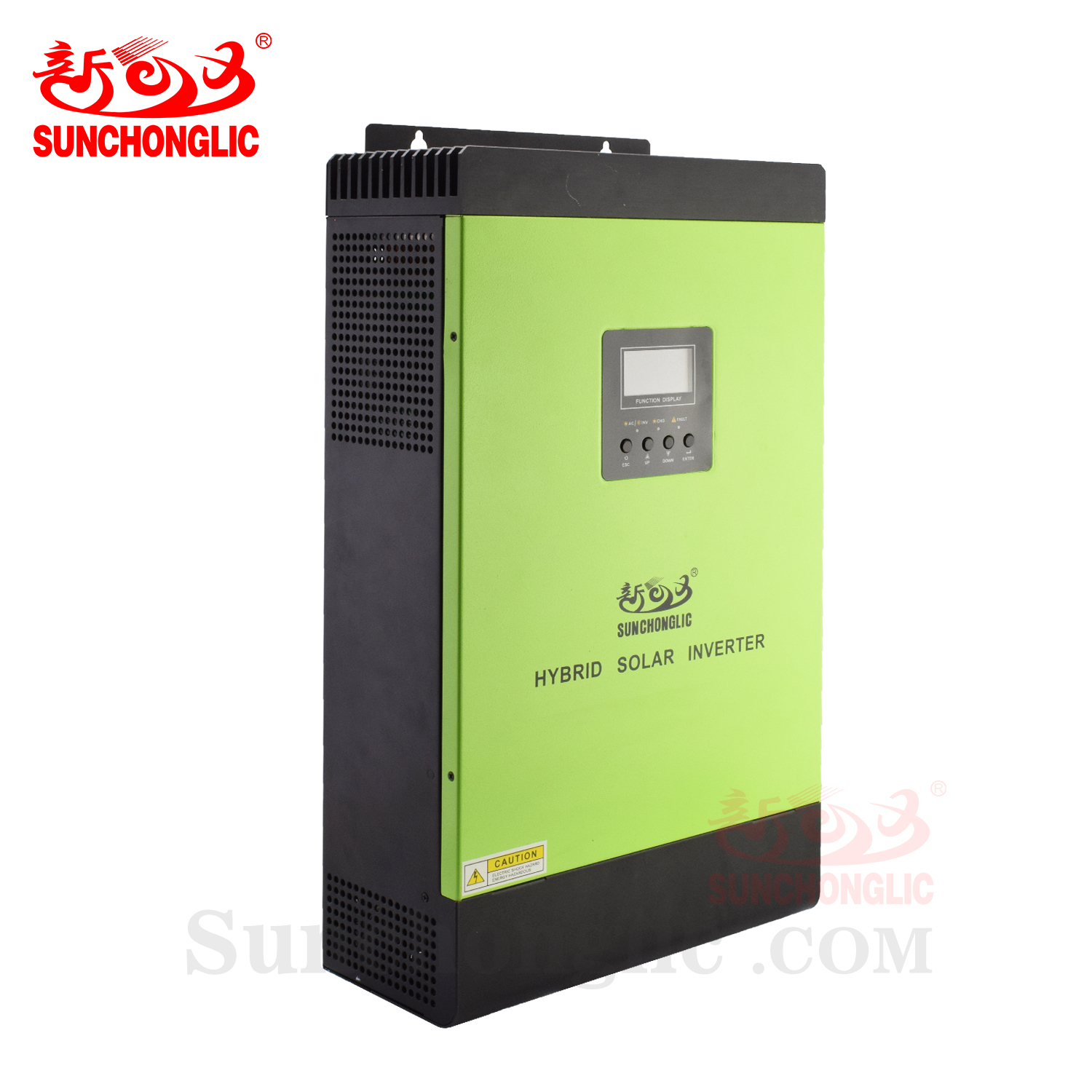

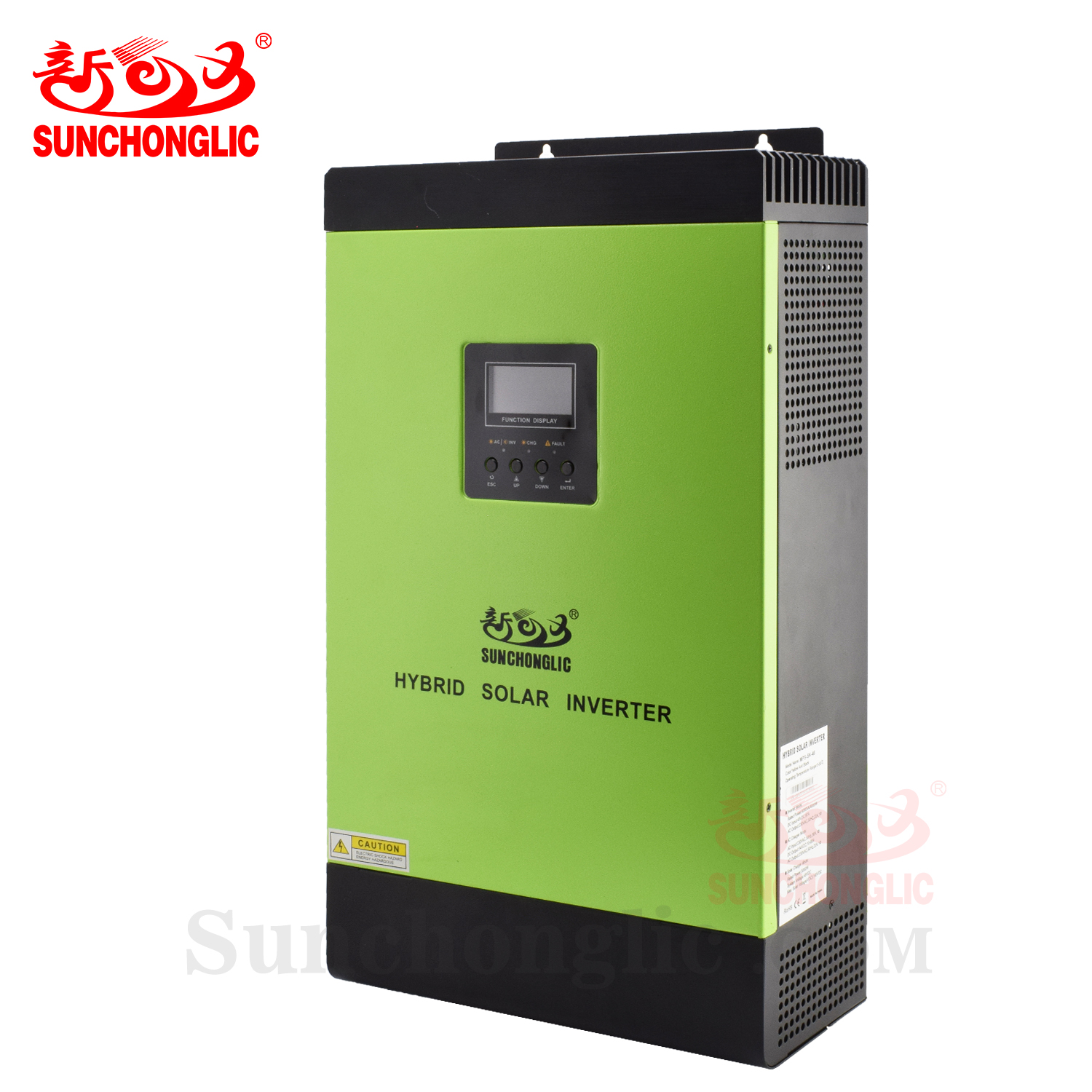

Modified Sine Wave Inverter
Perfect sine waveform output (Specially designed to start up inductive loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs, Computers, power tool,etc.)
Built-in 60A MPPT solar charge controller
Built-in AC charger 60A
Parallel operation with up to 6 units available for MPS 5K
Selectable AC input voltage:170V-280V,90V-280V @50Hz/60Hz Auto Sensing
Cold start functionality(Be able to give output with full load connected without AC mains present.)
AC and solar input priority can be manually configurated
Compatible to AC mains input and generator voltage input
Transformerless design provides reliable power conversion in compact size
Equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank
Besides, it's worry-free to start up motor-type loads such as refrigeratorrs,motors,pumps, compressors and laser printers as well as electronic loads like TVs, Computers, power tool and battery charger
| Product Specification | ||||
| MODEL | MPS-1K-24 | MPS-3K-24 | MPS-5K-48 | |
| Rated Power | 1000VA/800W | 3000VA/2400W | 5000VA/4000W | |
| INPUT | ||||
| Voltage | 230 VAC | |||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | |||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
| OUTPUT | ||||
| AC Voltage Regulation (Batt.Mode) | 230VAC ± 5% | |||
| Surge Power | 2000VA | 6000VA | 10000VA | |
| Efficiency(Peak) | 90%-93% | 93% | ||
| Tran sferTime | 10 ms (For Pers on al Computers) 20 ms (For Home Appliances) | |||
| Waveform | Pure sine wave | |||
| BATTERY & AC CHARGER | ||||
| Battery Voltage | 24 VDC | 24 VDC | 48 VDC | |
| Floating Charge Voltage | 27VDC | 27 VDC | 54 VDC | |
| Overcharge Protection | 31 VDC | 31 VDC | 60 VDC | |
| Maximum Charge Current | 10A/20A | 20A or 30A | 10A/20A/30A/40A/50A/60A | |
| SOLAR CHARGER | ||||
| Maximum PV Array Power | 600 W | 600W | 1500W | 3000 W |
| MPPT Range @ Operating Voltage | 30VDC~ 66VDC | 30VDC~ 66VDC | 30VDC-115VDC | 60VDC~ 115VDC |
| Maximum PV Array Open Circuit Voltage | 75 VDC | 75 VDC | 145 VDC | 145VDC |
| Maximum Charging Current | 25A | 25A | 60A | 60A/80A |
| Maximum Efficiency | 98% | |||
| Standby Power Consumption | 2W | |||
| PHYSICAL | ||||
| Dimension, DxWxH (mm) | 128x272x355 | 140x295x540 | ||
| Net Weight (kgs) | 7.4 | 8 | 10 | 11.05/13.5 |
| OPERATING ENVIRONMENT | ||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
| Operating Temperature | 0° C-55° C | |||
| Storage Temperature | -15° C-60° C | |||
| Product specifications are subject to change without further notice. | ||||
| MODEL | FMPS1K-24 | FMPS3K-24 | FMPS-5K | |
| In verter Power | 800W | 2400W | 4000W | |
| Pmax. generated from solar charger | 25Amp 600W | 25Amp 600W | 60Amp 1500W | 60A/80Amp 3000W/4000W |
| Best Panel Configuration | 500Wp (250Wpx2pcs) | 500Wp (250Wpx2pcs) | 1500Wp (250Wpx6pcs) | 3000Wp (250Wpx16pcs) |
