48V 5000W OFF GRID SOLAR SYSTEM

5000w off-grid home solar panel power system

48V 5000W OFF GRID SOLAR SYSTEM

Solar Power System

Features:

Advantages of Off-Grid Solar Systems:

1. You can choose different photovoltaic modules from different suppliers

2. You can combine different energy sources such as PV, wind energy and hydropower to the current system.

3.You can expand or change the photovoltaic modules at any time

PWM solar charge controller:

The PWM charge controller is a good low-cost solution for small systems only, when solar cell temperature is moderate to high (between 45°C and 75°C).

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

No. Item Photo Specs Quantity
1 Poly solar panel(Mono optional) Suoer photovoltaic panels price 5000w off-grid home solar panel power system batteries for solar system 5kw *36V 300W
*Rated power:300W
*Max power voltage(VMP):36V
*Max power current(IMP):8.3A
*Size:1950*990*40
54
2 PWM solar controller



Suoer photovoltaic panels price 5000w off-grid home solar panel power system batteries for solar system 5kw

*Model:MPPT-60A
*48V 60A
*LCD screen display
*RS 485 port
2
3 Deep cycle Gel battery Suoer photovoltaic panels price 5000w off-grid home solar panel power system batteries for solar system 5kw *12V 200AH
*Weight:60kg
*Free maintenance deep cycle
16(8 in series,8 in parallel)

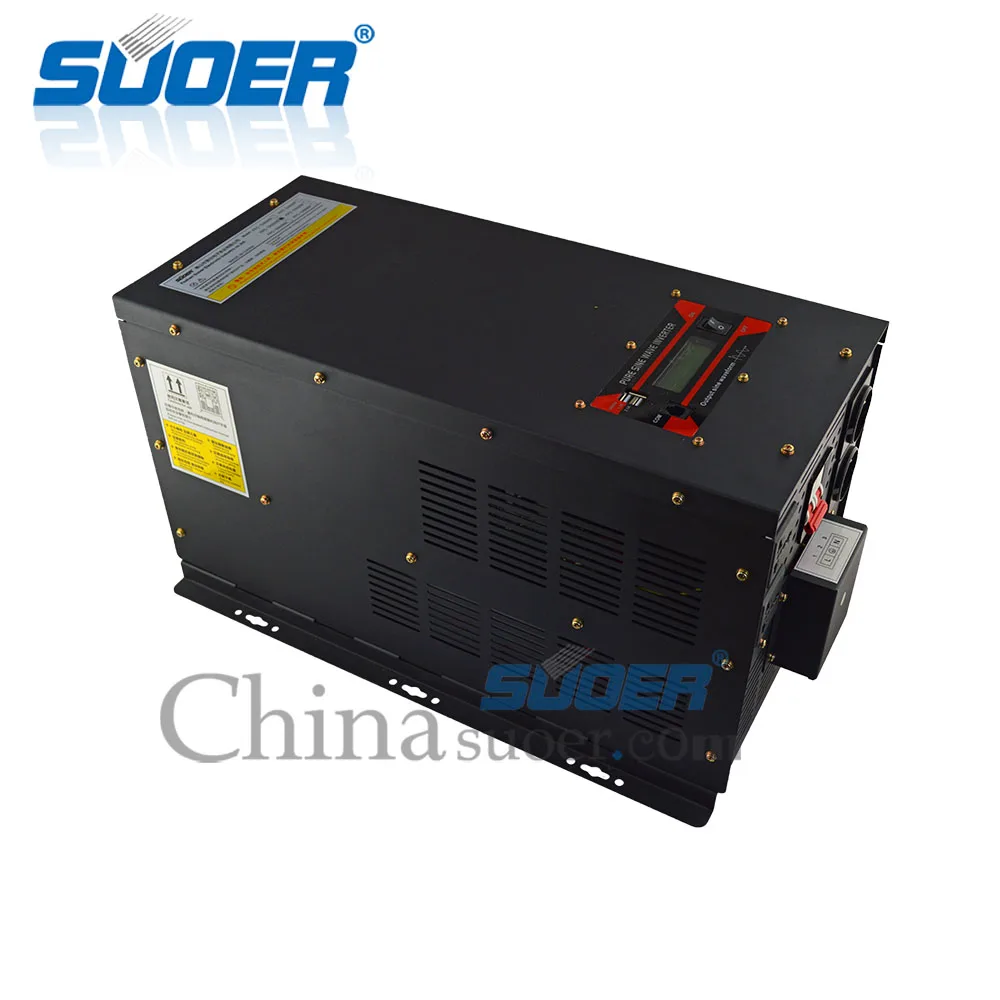

4 Pure sine wave inverter Suoer photovoltaic panels price 5000w off-grid home solar panel power system batteries for solar system 5kw *Model:FPC-5000F
*48V 5000W
*AC output:220V
*Rated power:4000W
Frequency:50Hz
1
5 Solar PV cable  Suoer photovoltaic panels price 5000w off-grid home solar panel power system batteries for solar system 5kw *4mm²
*-40℃-90℃
*High precision Oxygen-free copper material
150m

Electricity load Reference Table
No. Electric appliances  Power(W) Quantity(pcs) Work time(h) Illumination time(h) Total power(W.h)
1 Led Lamp 20 3 7-8 5-6 420
2 Desktop Fan 60 2 7-8 5-6 840
3  LCD  TV 90 2 7-8 5-6 1260
4 Refrigerator 70 1 7-8 5-6 490
5 Laptop 100 1 7-8 5-6 700
6 Air conditioner(2hP) 1500 1 7-8 5-6 10500
Total   1840       14210

Video Tutrcial

How a solar system works?

1.Solar modules collect sunlight energy to generate DC electricity through the photovoltaic effect.

2.Solar charge controller, or charge regulator is basically a voltage /or current regulator to keep batteries from overcharging. It regulates the voltage current coming from the solar panels going to the battery.

MPPT: An MPPT, or maximum power point tracker is an electronic DC to DC converter that optimizes the match between the solar array (PV panels), and the battery bank or utility grid. They can convert a higher voltage DC output from solar panels down to the lower voltage needed to charge batteries.

PWM: Pulse Width Modulation (PWM) is the most effective means to achieve constant voltage battery charging by switching the solar system controller's power devices. When in PWM regulation, the current from the solar array tapers according to the battery's condition and recharging needs.

3.Power inverter is an electronic device or circuitry that can convert direct current(DC) from DC source (Storage battery) to alternating current(AC). The input, output voltage and frequency, and overall power handing depends on the specific device or circuitry.

Product Photos
