HMP-3KVA-24V

Sunchonglic 24v 3kw 3000w 3000 watt off grid mppt inverter hybrid low frequency hybrid solar inverter

HMP-3KVA-24V

Hybrid Solar Inverter

Features:

Pure sine waveform output with built-in transformer and AVR stabilizer(Specially designed to start up inductive loads such as air conditioner,refrigerators, motors, water pumps, compressors and laser printers).

Built-in 60A/80A/160A MPPT solar controller and AC charger.

Output voltage(200V/210V/220V/230V/240V @50Hz/60Hz) can be manually regulated at site.

Support Lead acid battery/Gel battery/lithium iron phosphate battery/ternary lithium battery/customized battery.

RS232/RS485 Communications port is optional.

3 times start-up peak power of resisting voltaic impingement, excellent loading capability.

High conversion efficiency is up to 90%.

Built-in Lithium battery activation function.

PV array Open circuit input voltage 230V DC.

Support 3 working modes: Mains priority,Battery priority,PV priority.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Model Capacity 2kw 3kw 4kw 5kw 6kw 8kw 10kw 12kw
Peak capacity 6kw 9kw 12kw 15kw  18kw 24kw 30kw 36kw
Battery voltage 12v/24v/48v 12v/24v/48v 24v/48v 24v/48v 24v/48v 48v 48v 48v
Inbuilt MPPT Charging current 60A 60A 60A 60A 60A 60A 60A 60A
PV input port One route(60A)
PV input voltage range 15V-180V(12V system); 30V-180V(24V system); 60V-180V(48V system)
Max PV input capacity 60A: 720W (12V system)  1440W(24V system)  2880W(48V system)
Max charging current,can be adjustable OFF 30A/60A(can switch OFF PV charging)
MPPT efficiency ≈99%
Unattended mode Inverter is OFF mode:MPPT can charge battery if there is sunshine
Input DC input voltage range 10.5VDC-15VDC (single battery voltage 12V)
AC input voltage range 110VAC:(80-130)VAC; 220VAC: (160-260)VAC/(130-280)VAC,can ajdust at site
AC input frequency 45HZ-65HZ auto test
AC charging current can choose OFF(can switch off AC charging function)
Output Output wave Pure sine wave
Output efficiency ≈90%
Output voltage 200V/210V/220V/230V/240V can adjust at site
Output frequency 50Hz/60Hz can adjust at site
ECO mode and loss 5W
Working mode Inverter working mode AC priority, DC priority, ECO mode, unattended mode, generator mode
LCD display working mode Normal mode/"ON" mode
Battery parameter Battery types Lead-acid battery/GEL battery/ lithium iron phosphate battery/ ternary lithium battery/customized battery
Battery customized parameters Constant voltage charging, Floating charging, battery recover, AC recover, low voltage alarm
and low voltage protection
Battery charging types Lead-acid: three steps, constant current charging, constant voltage charging, floating charging
Lithium battery: constant current charging, constant voltage charging
Lithium battery string numbers can choose lithium iron phosphate battery:3.2V single one ternary lithium battery:3.7V single one
Protections Battery low voltage/battery over voltage/over load protection/ high temperature protection/
charging type protections
LCD display LCD display AC station, DC station, charging station and alarm
Front panel display Working station, input and output voltage, PV parameters and inverter parameters
Language Chinese/English can choose
Transfer time <5ms
Heat-dissipating type Intelligent temperature control
Communications RS232/RS485(can choose)
Working temperature (-10℃~40℃)
Altitude ≤3000m
Inverter size (L*W*Hmm) 495*320*220mm 560*390*200mm
Packing size (L*W*Hmm) 600*380*290mm 715*420*316mm
Net weight(kg) (About) 16.5kg 19.5kg 22kg 25kg 28kg 31.5kg 36kg 40kg
Gross weight (kg) (About) 19.5kg 22kg 25kg 28kg 31kg 36kg 41kg 45kg

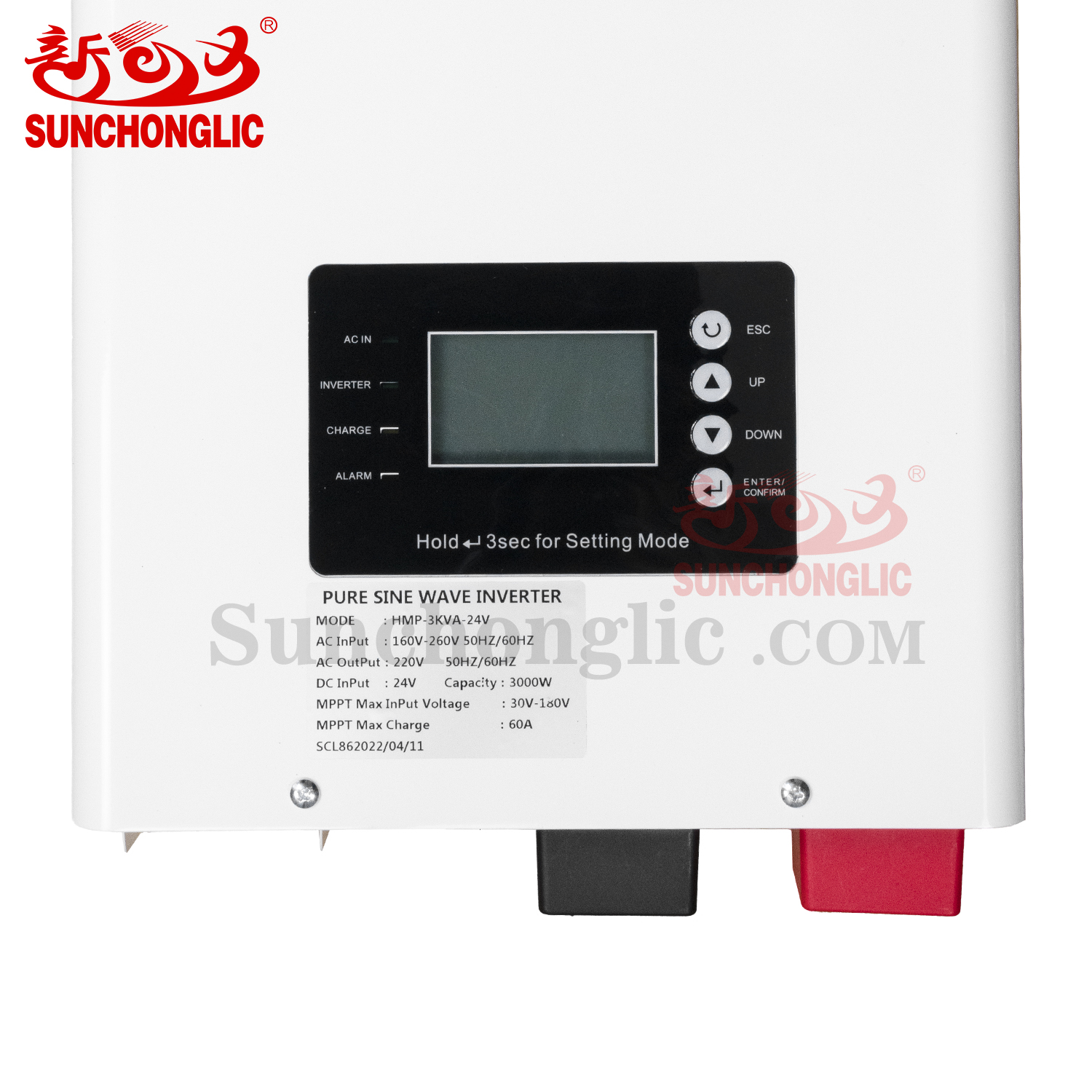

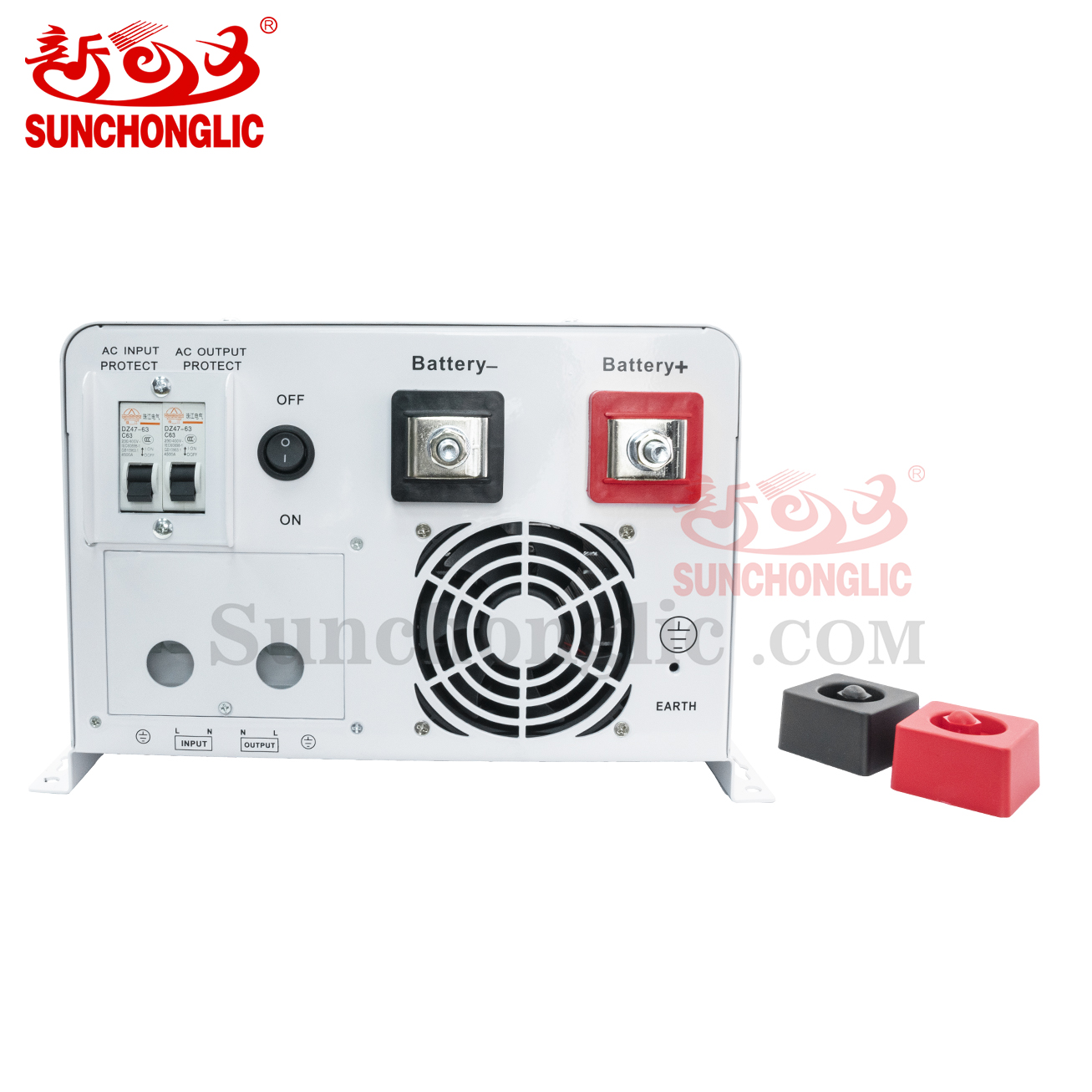

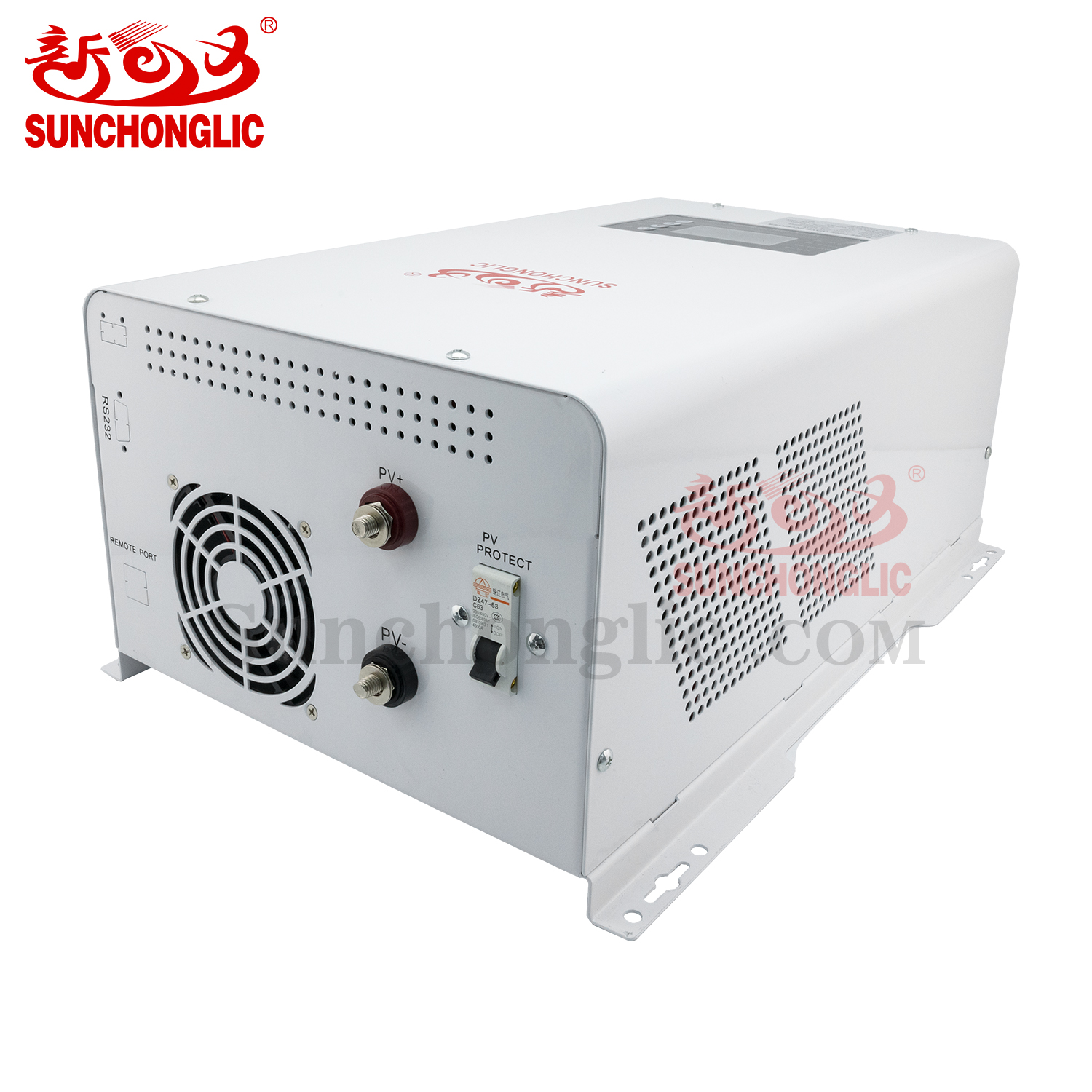

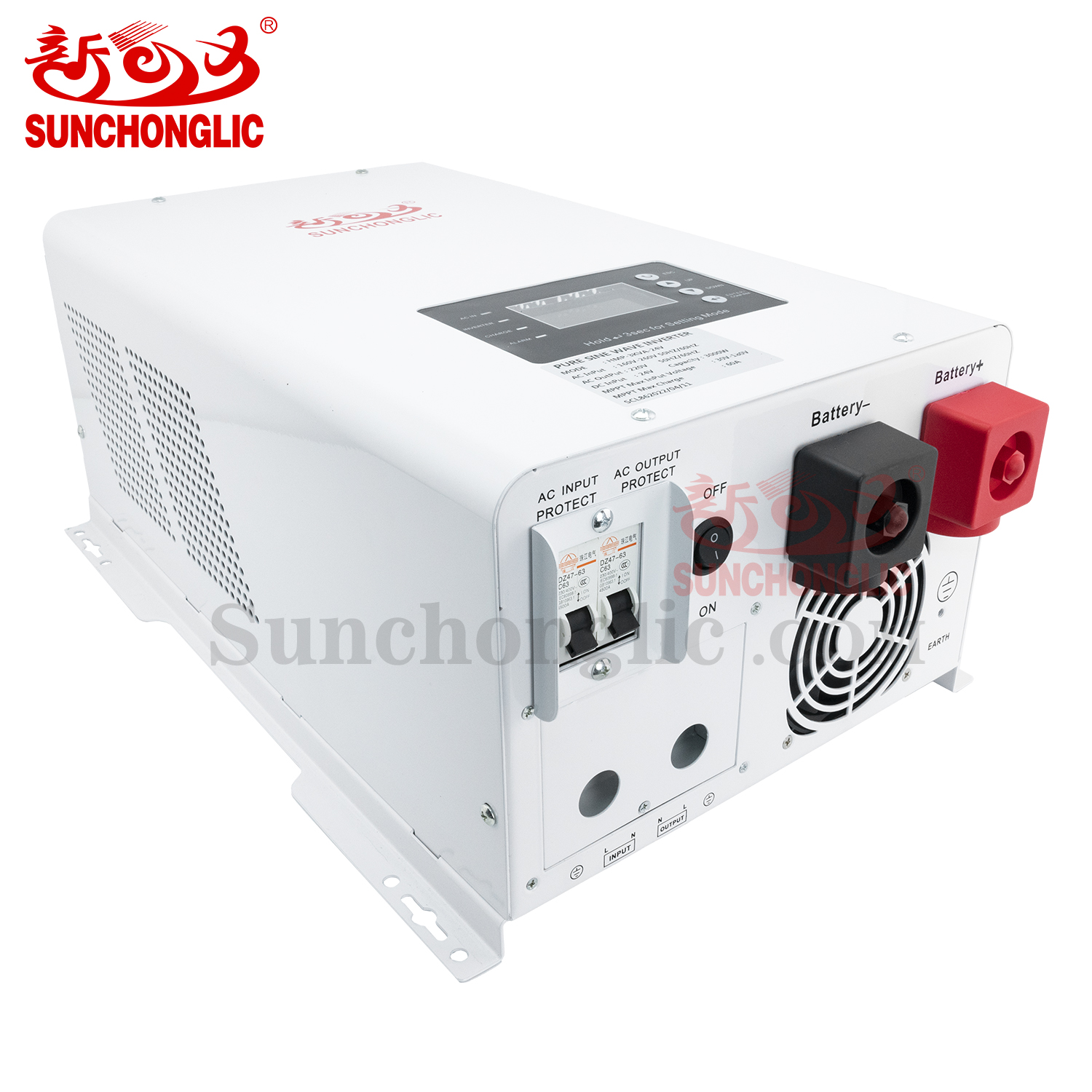

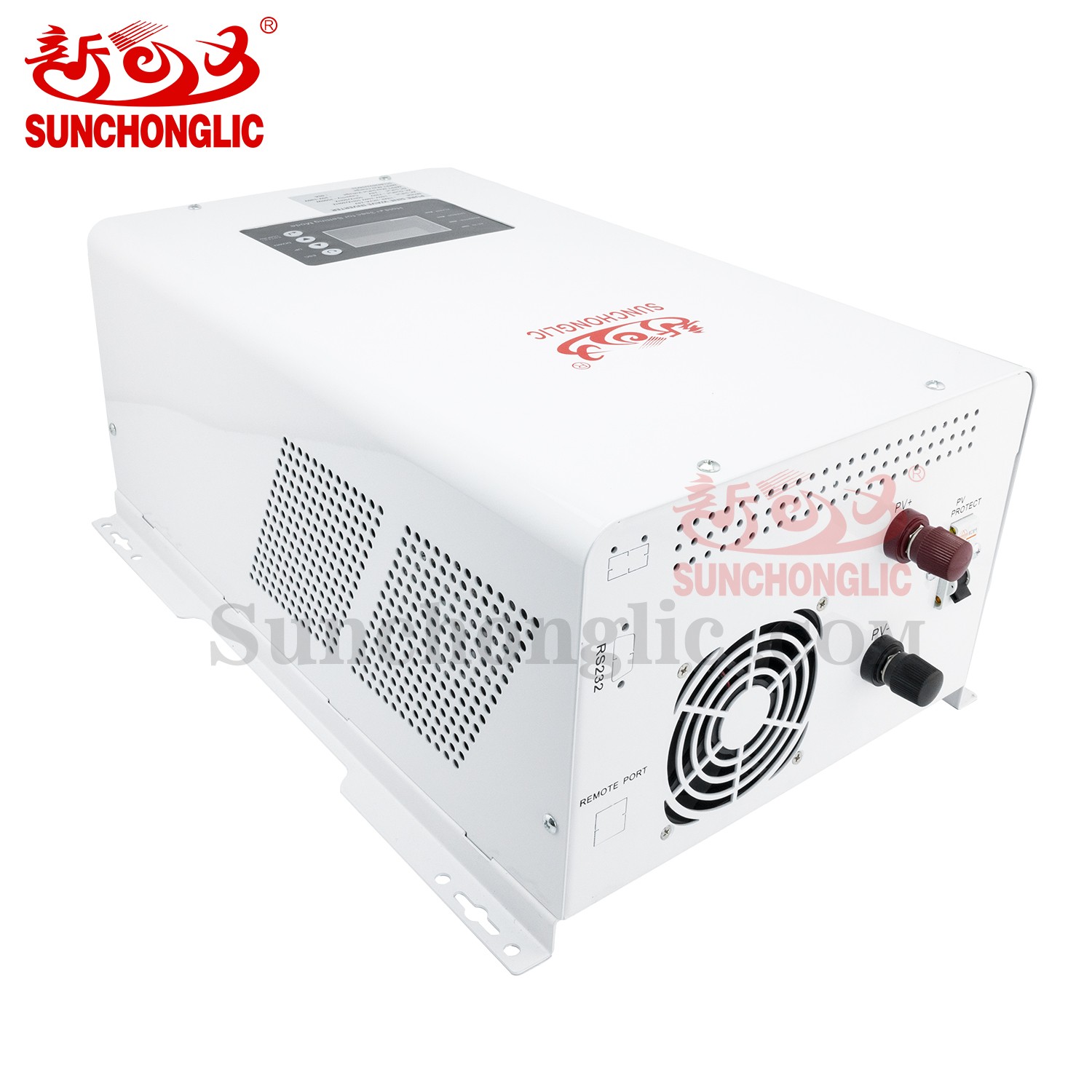

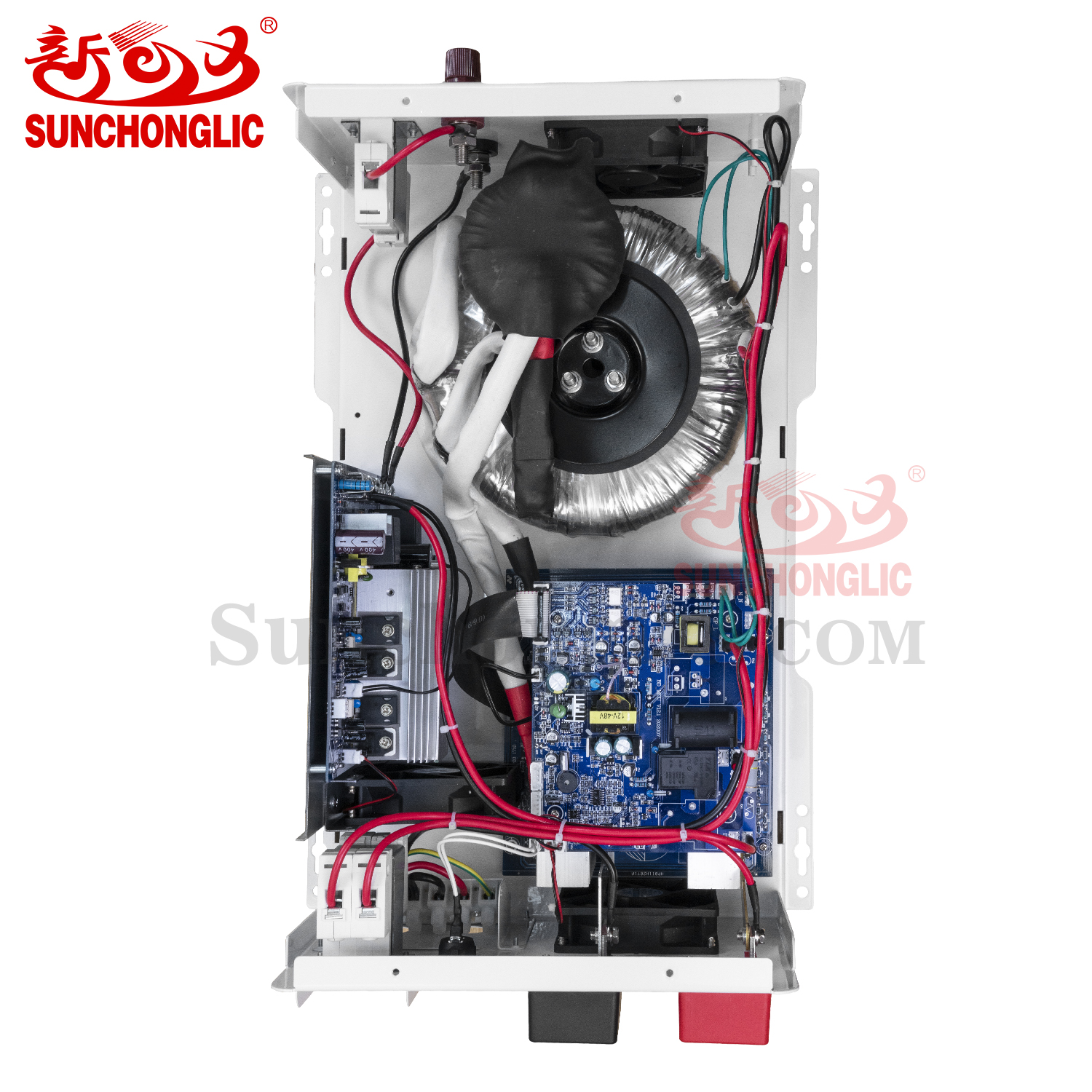

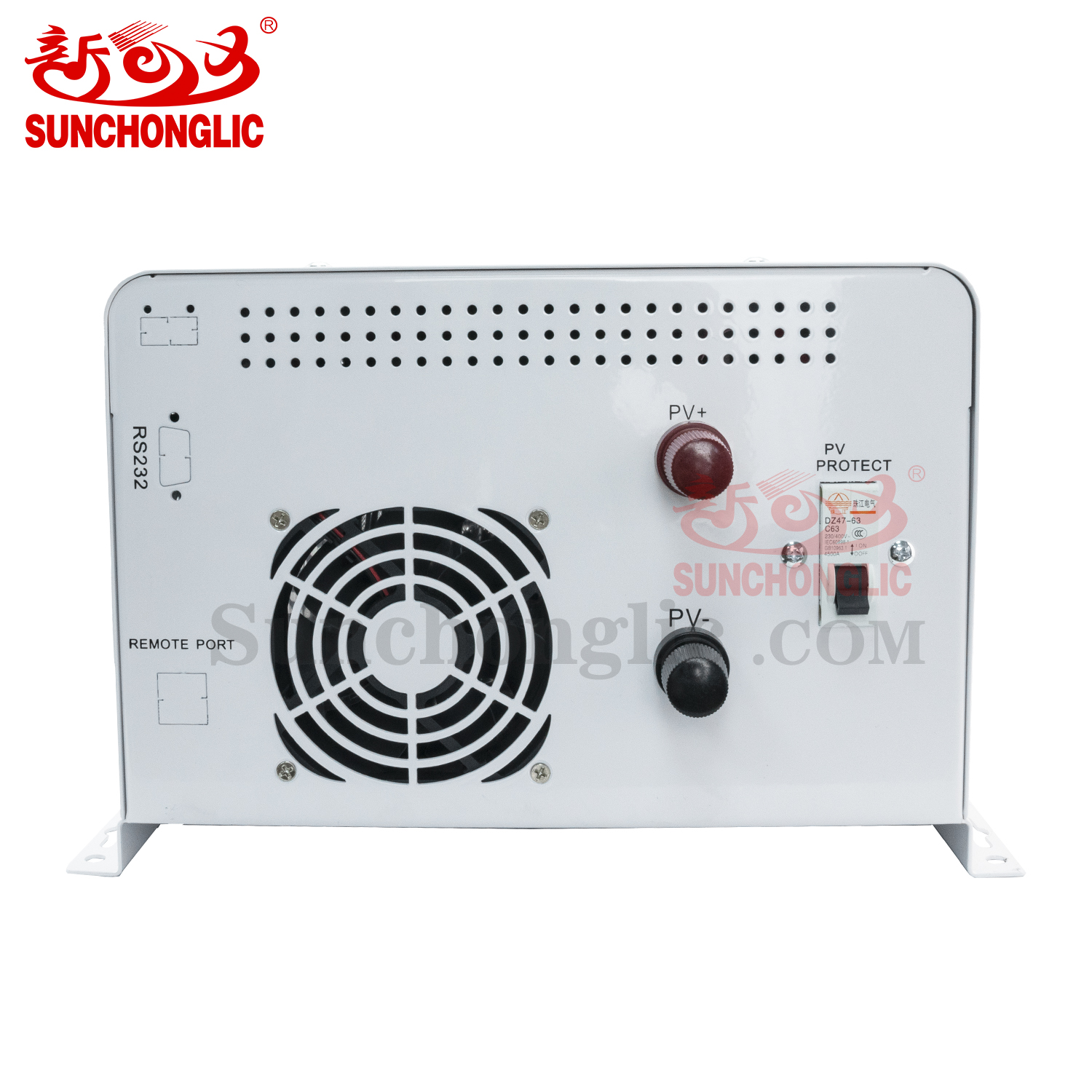

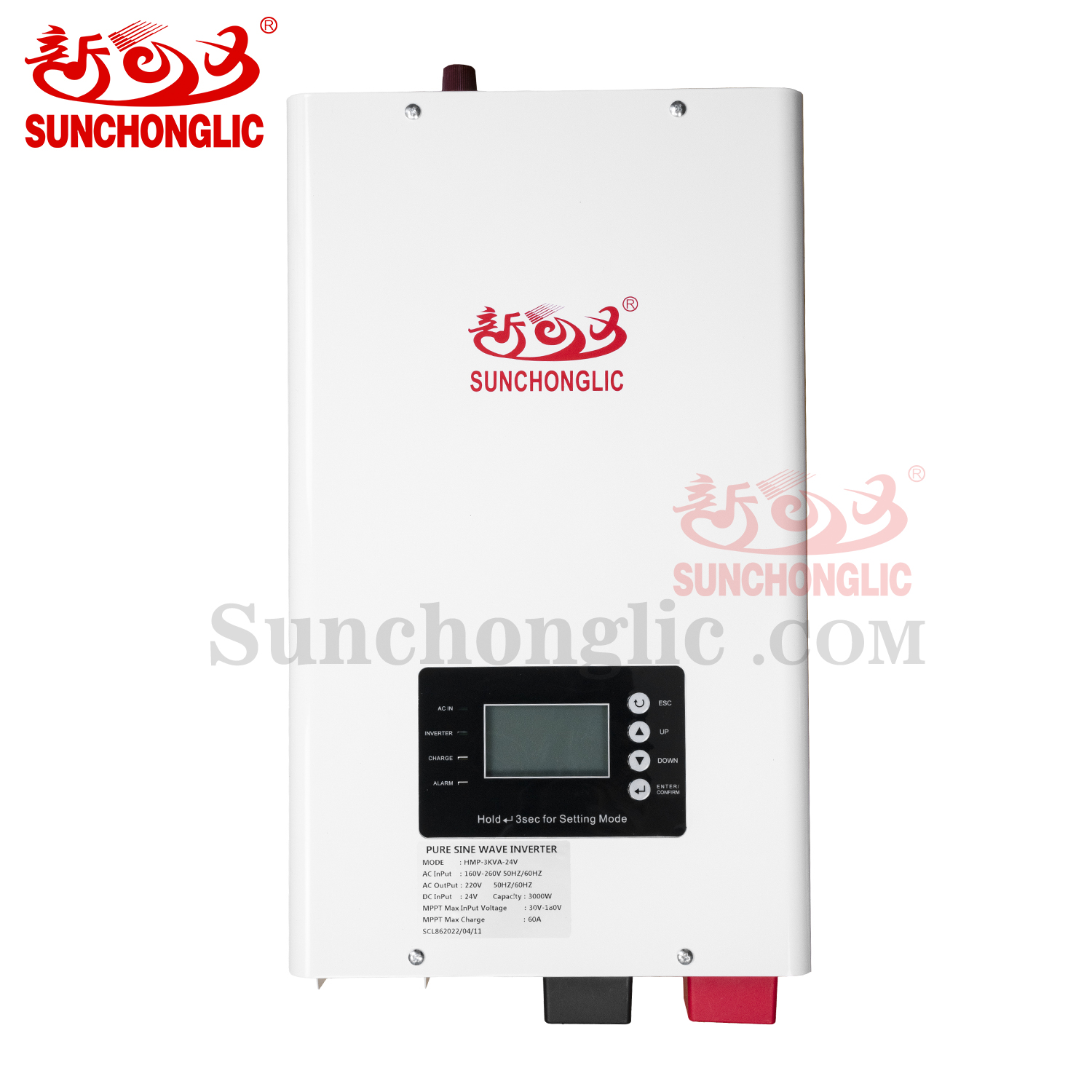

Product Photos
