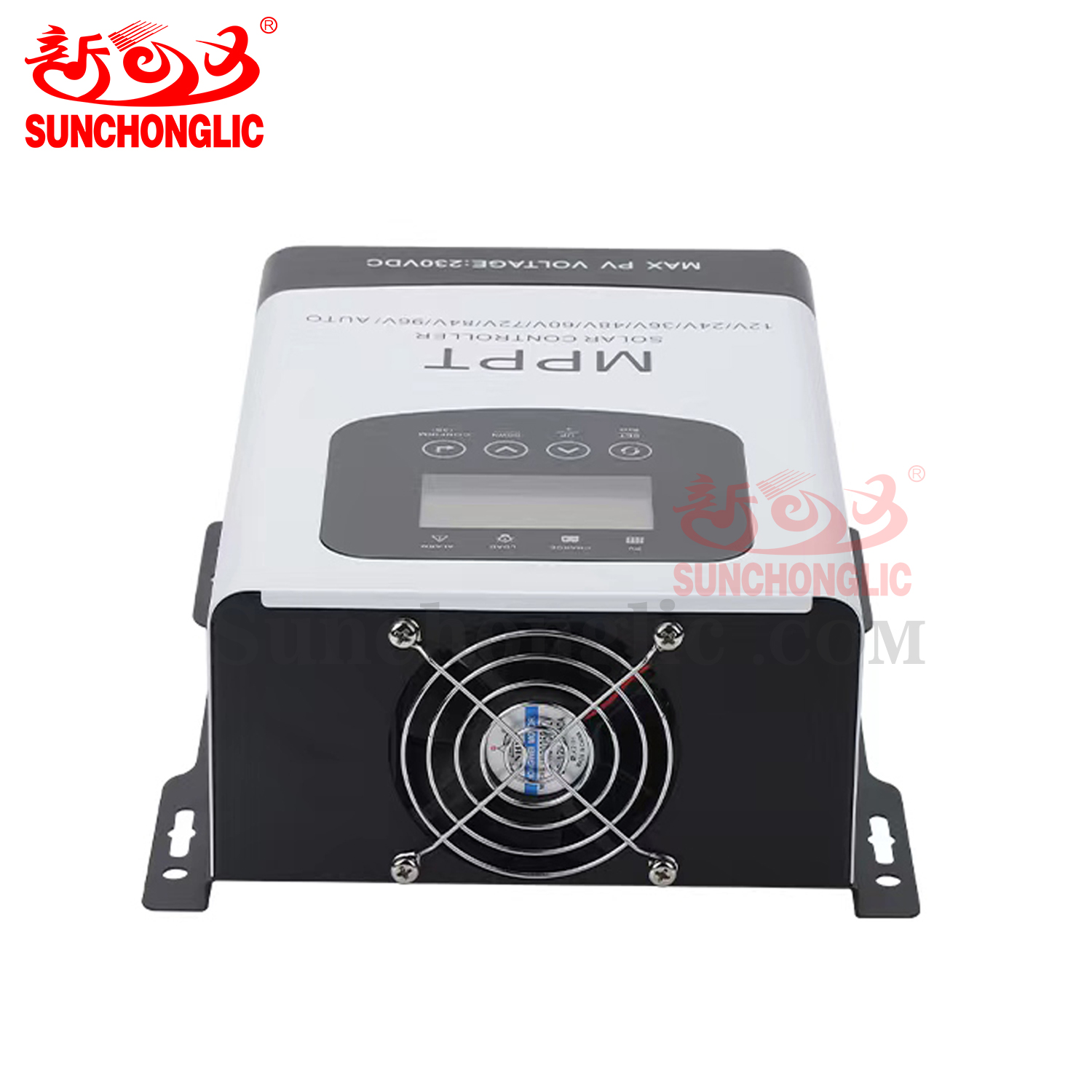

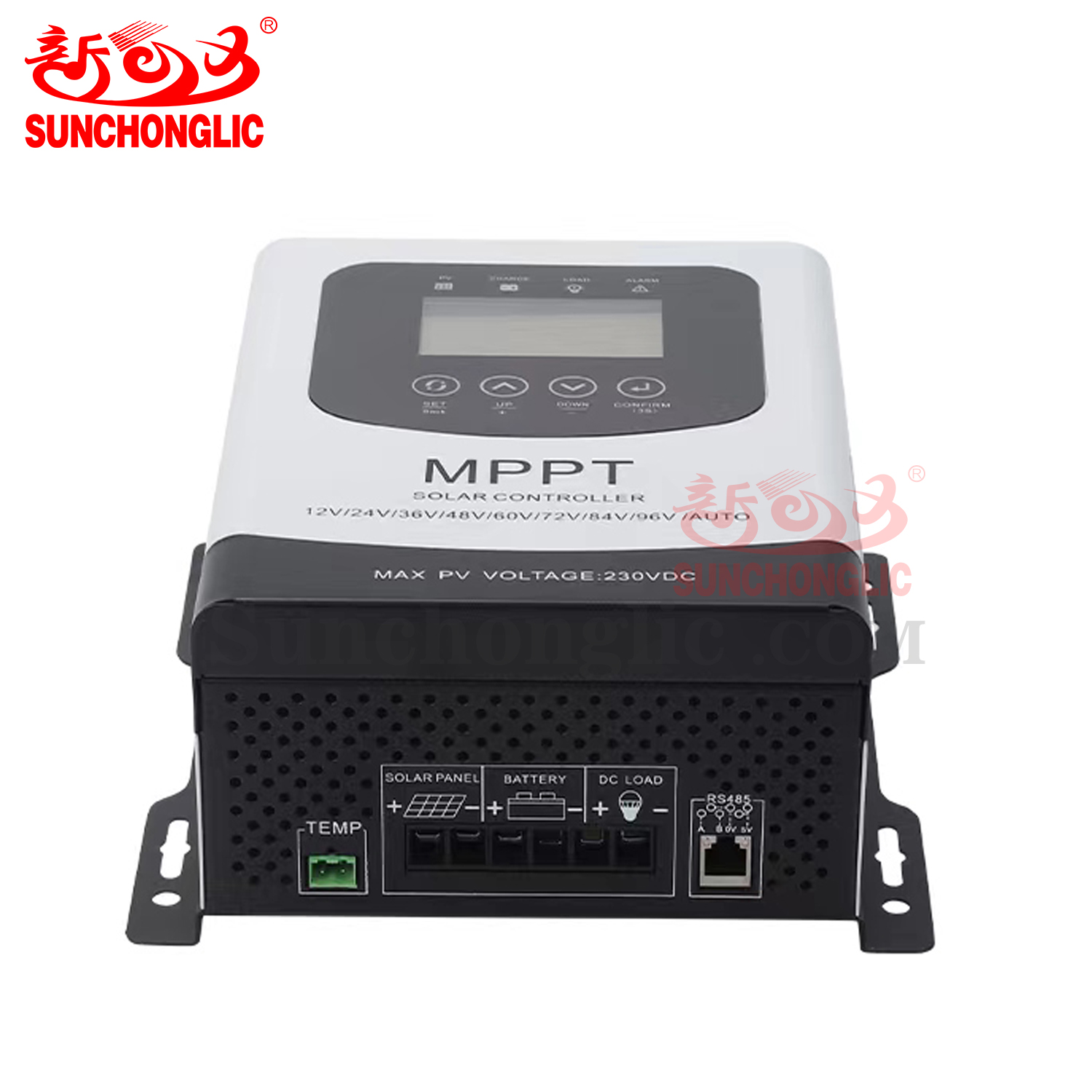

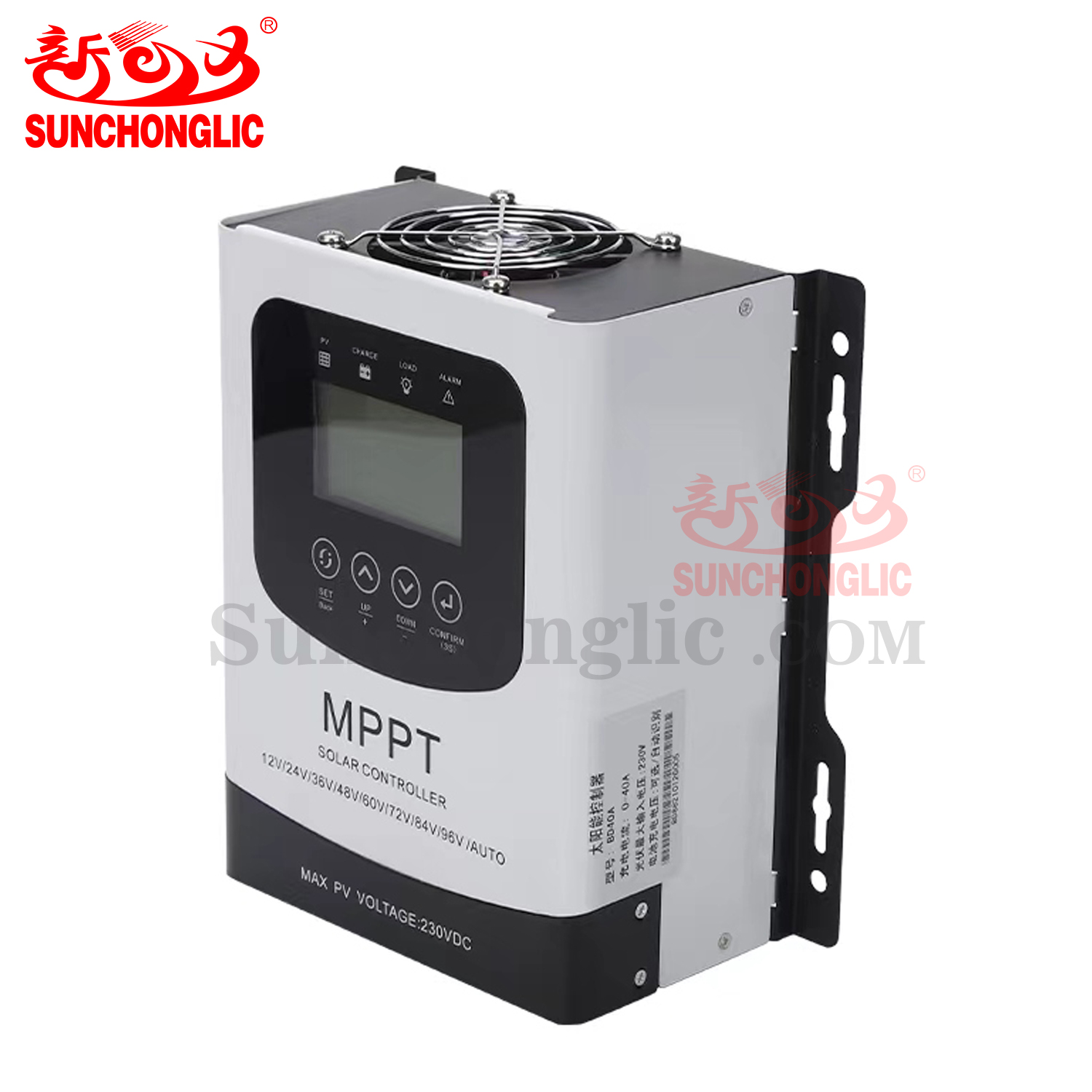

Solar Charge Controller
Designed for off-grid solar system battery charging and discharging.
Regulatory mechanism of temperature compensation.
Built-in Lithium battery activation function.
Built-in solar data communication monitoring interface(RS485).
Applicable for lead acid battery(AGM/GEL/SLA) , Lithium iron phosphate battery and Ternary polymer lithium battery as well as customized battery.
Built-in advanced Maximum Power Point Tracking algorithm.
Charging current can be manually regulated.
Multiple charging and discharging protections.
Designed for 12V/24V/36V/48V/60V/72V/84V/96V DC.
Max PV array open circuit voltage 230V DC.

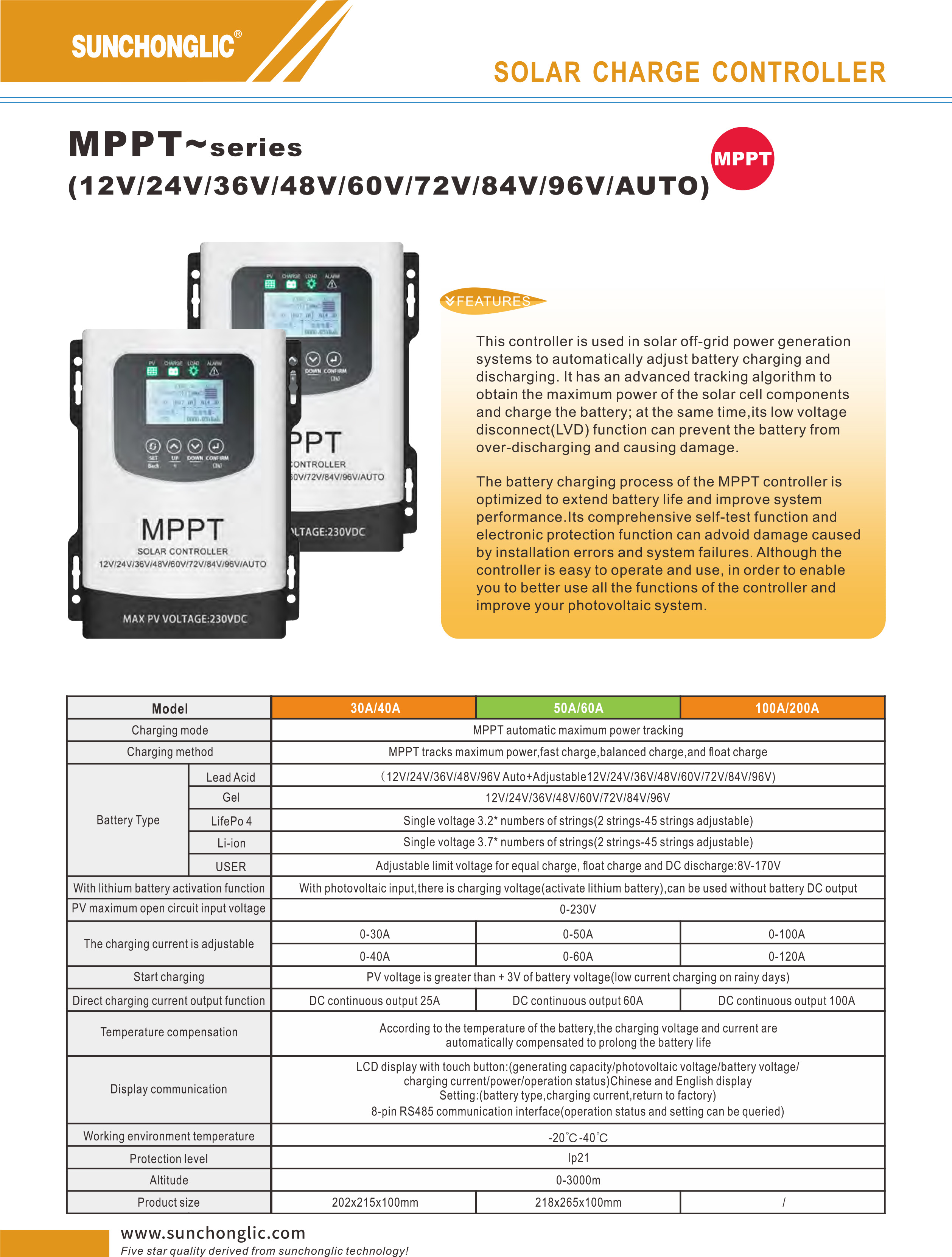

| Model | 30A/40A | 50A/60A | 100A/200A | |
| Charging Mode | MPPT automatic maximum power tracking | |||
| Charging Method | MPPT tracks maximum power,fast charge,balanced charge,and float charge | |||
| Battery type | Lead Acid |
(12V/24V/36V/48V/96V Auto+Adjustable 12V/24V/36V/48V/60V/72V/84V/96V) |
||
| Gel | 12V/24V/36V/48V/60V/72V/84V/96V | |||
| LifePo 4 |
Single voltage 3.2* numbers of strings (2 strings-45 strings adjustable) |
|||
| Li-ion |
Single voltage 3.7* numbers of strings (2 strings-45 strings adjustable) |
|||
| USER | Adjustable limit voltage for equal charge, float charge and DC discharge:8V-170V | |||
| With lithium battery activation function | With photovoltaic input,there is charging voltage(activate lithium battery),can be used without battery DC output | |||
| PV maximum open circuit input voltage | 0-230V | |||
| The charging current is adjustable |
0-30A 0-40A |
0-50A 0-60A |
0-100A 0-120A |
|
| Start charging | PV voltage is greater than + 3V of battery voltage(low current charging on rainy days) | |||
| Direct charging current output function | DC continuous output 25A | DC continuous output 60A | DC continuous output 100A | |
| Temperature compensation | According to the temperature of the battery,the charging voltage and current are automatically compensated to prolong the battery life | |||

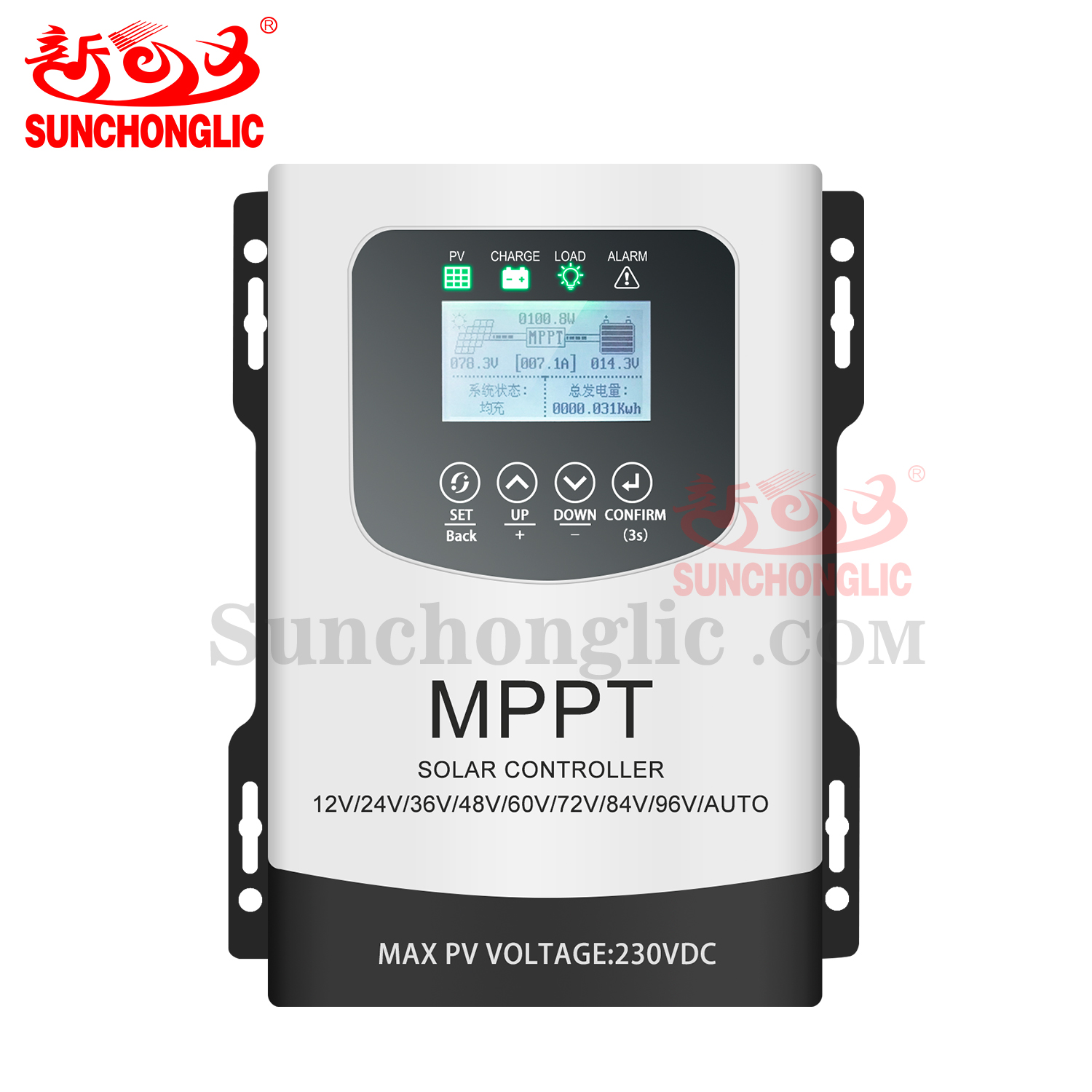

| Display communication |
LCD display with touch button:(generating capacity/photovoltaic voltage/battery voltage/charging current/power/operation status) Chinese and English display Setting:(battery type,charging current,return to factory) |
|||
| 8-pin RS485 communication interface(operation status and setting can be queried) | ||||
| Working environment temperature | -20℃-40℃ | |||
| Protection level | IP21 | |||
| Altitude | 0-3000m | |||

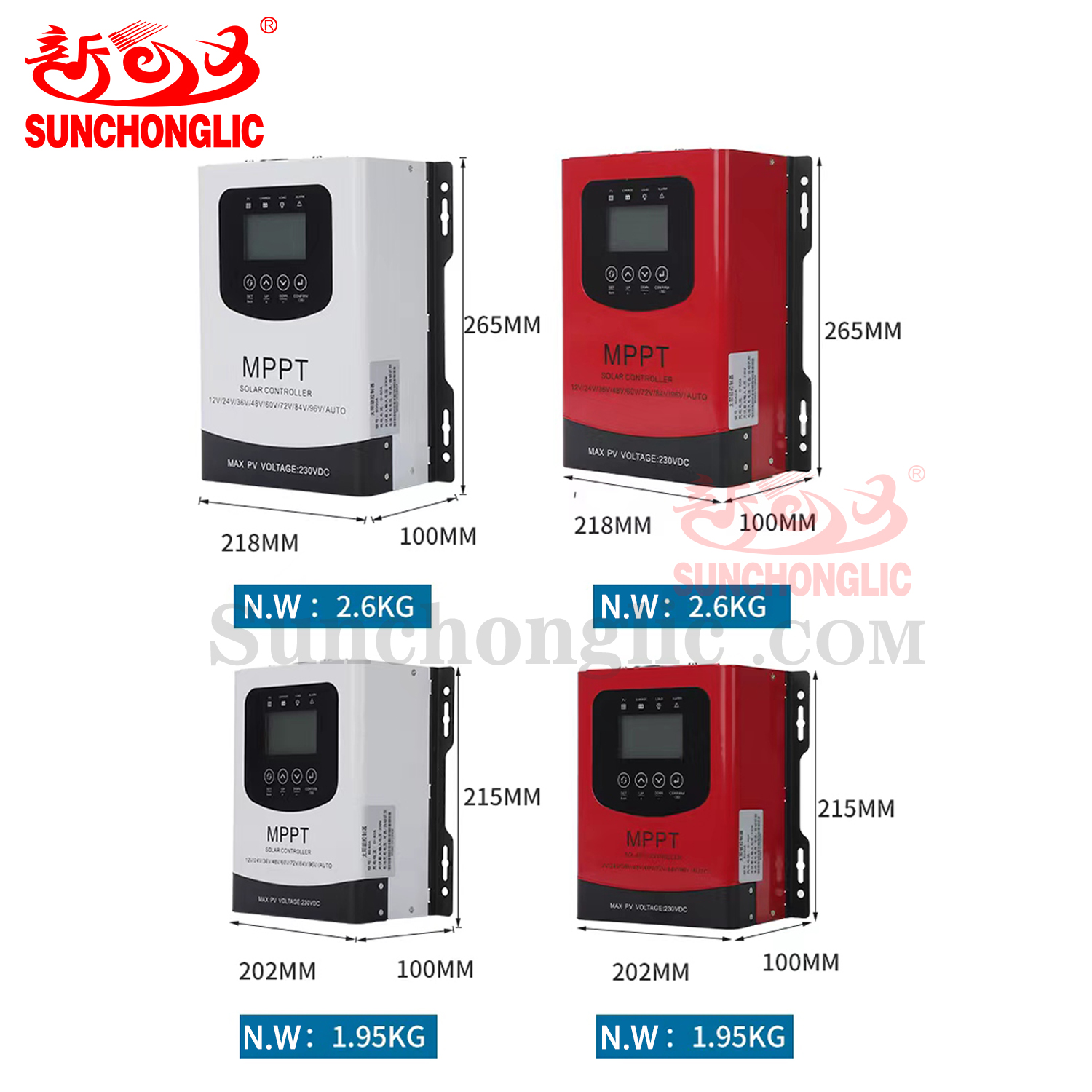

| Product size | 202x215x100mm | 218x265x100mm | / | |
Designed for off-grid solar system battery charging and discharging.
Regulatory mechanism of temperature compensation.
Built-in Lithium battery activation function.
Built-in solar data communication monitoring interface(RS485).
Applicable for lead acid battery(AGM/GEL/SLA) , Lithium iron phosphate battery and Ternary polymer lithium battery as well as customized battery.
Built-in advanced Maximum Power Point Tracking algorithm.
Charging current can be manually regulated.
Multiple charging and discharging protections.
Designed for 12V/24V/36V/48V/60V/72V/84V/96V DC.
Max PV array open circuit voltage 230V DC.
