FT-S1230

Sunchonglic 12V 24V 30A PWM solar charge controller

FT-S1230

Solar Charge Controller

Features:

Applicable for 3 types of batteries:B01 Lead acid batttery,B02 Lithium ion battery,B03 Lithium iron phosphate battery

Power-cut memory function.The power-cut memory function can automatically memory retention of users' last settings

Large-screen LCD display. Charging and discharging parameters can be fully customized

Adopt complete three phase PWM charge management (Constant current mode,Constant voltage mode,Floating charge mode)

Multiple protections.Overcurrent protection, Short circuit protection, Open ciruit protection and Battery reverse protection

Double MOS tube anti-reverse circuit protection, which prevents battery current from flowing back to the solar cell at night to cause power loss.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Product Specification
Model FT-S1210       FT-S1220 FT-S1230
System Voltage 12V/24V
Maximum input voltage <50V
Rated current 10A 20A 30A
External 12V battery recommended solar panel specifications 100-150W/18V 200-300W/18V 300-450W/18V
External 24V battery recommended solar panel specifications 100-150W/36V 200-300W/36V 300-450W/36V
External battery 12V 100-150Ah
24V 100-150Ah
Battery Type B01=Lead Acid Battery 12V
B02=Lithium-ion battery 3 series 3.7V=11.1V
B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V
Charging voltage

14.3V(B01)

12.6V(B02) 14.6V(B03)
Low-voltage cut off voltage 10.7V(B01) 9V(B02) 10V(B03)
Low power recovery voltage 12.6V(B01) 10.5V(B02) 12V(B03)
USB Output 5V/2A
Standby current <10mA
Working temperatue

 -35℃~+60℃

Size / Weight   125*86*34mm/200g

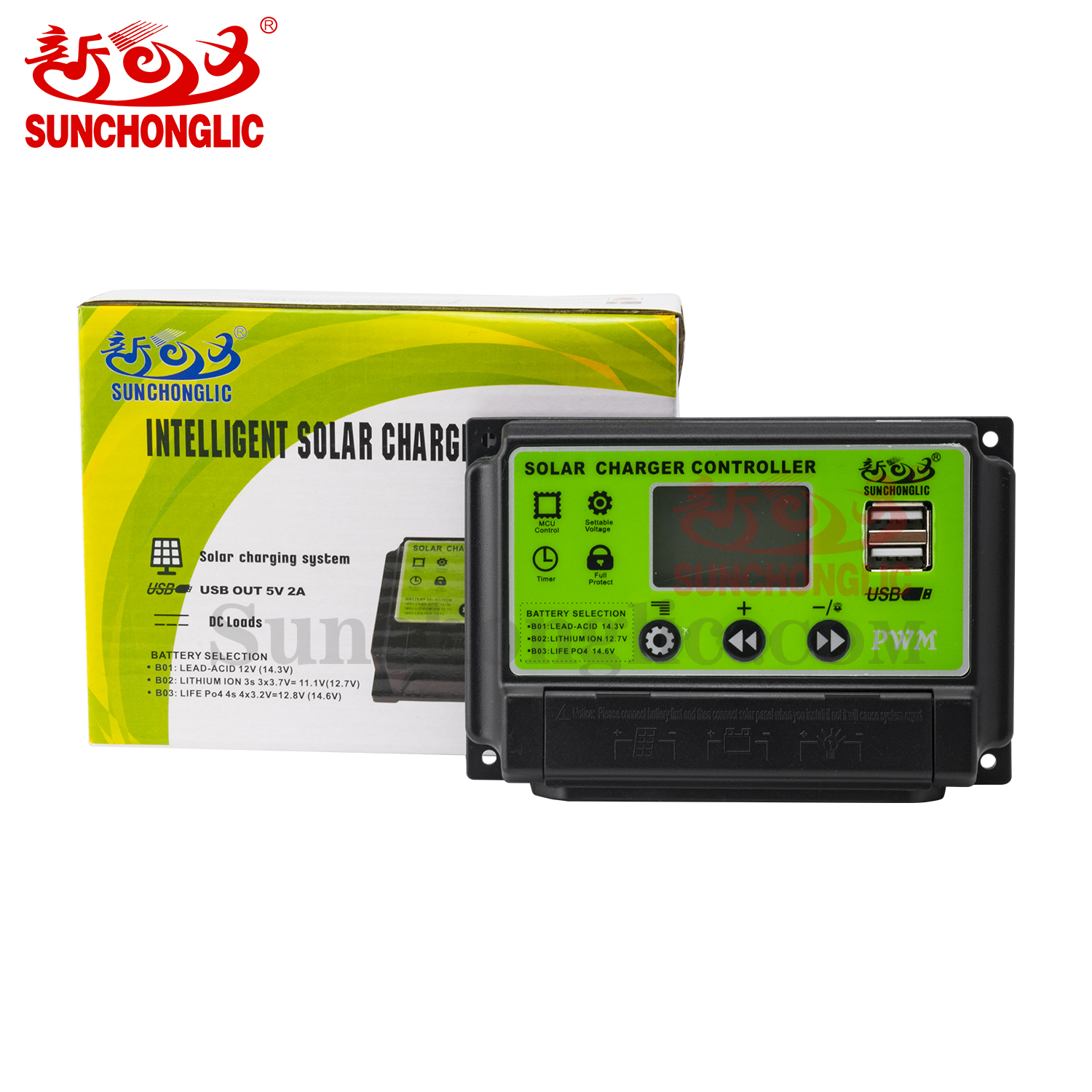

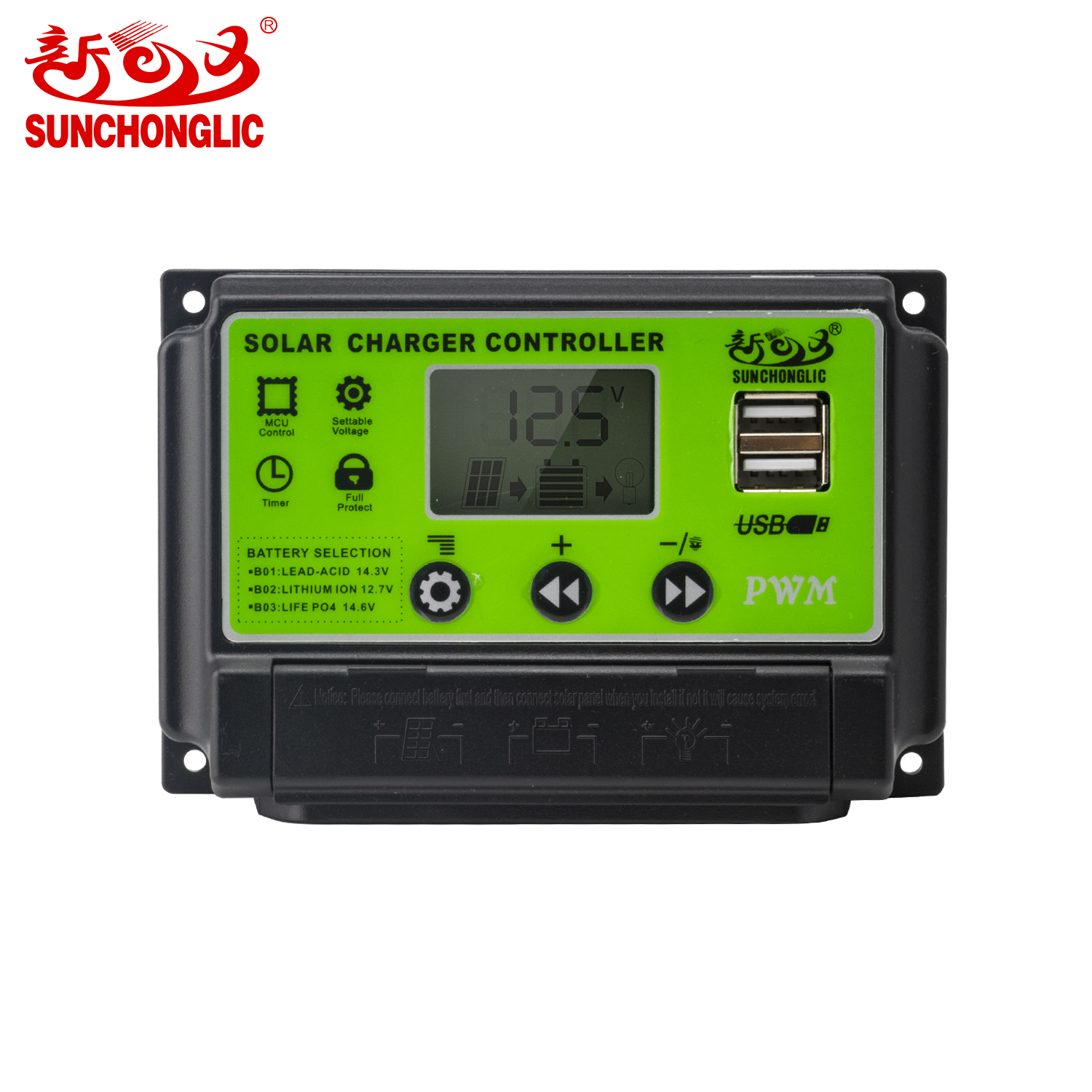

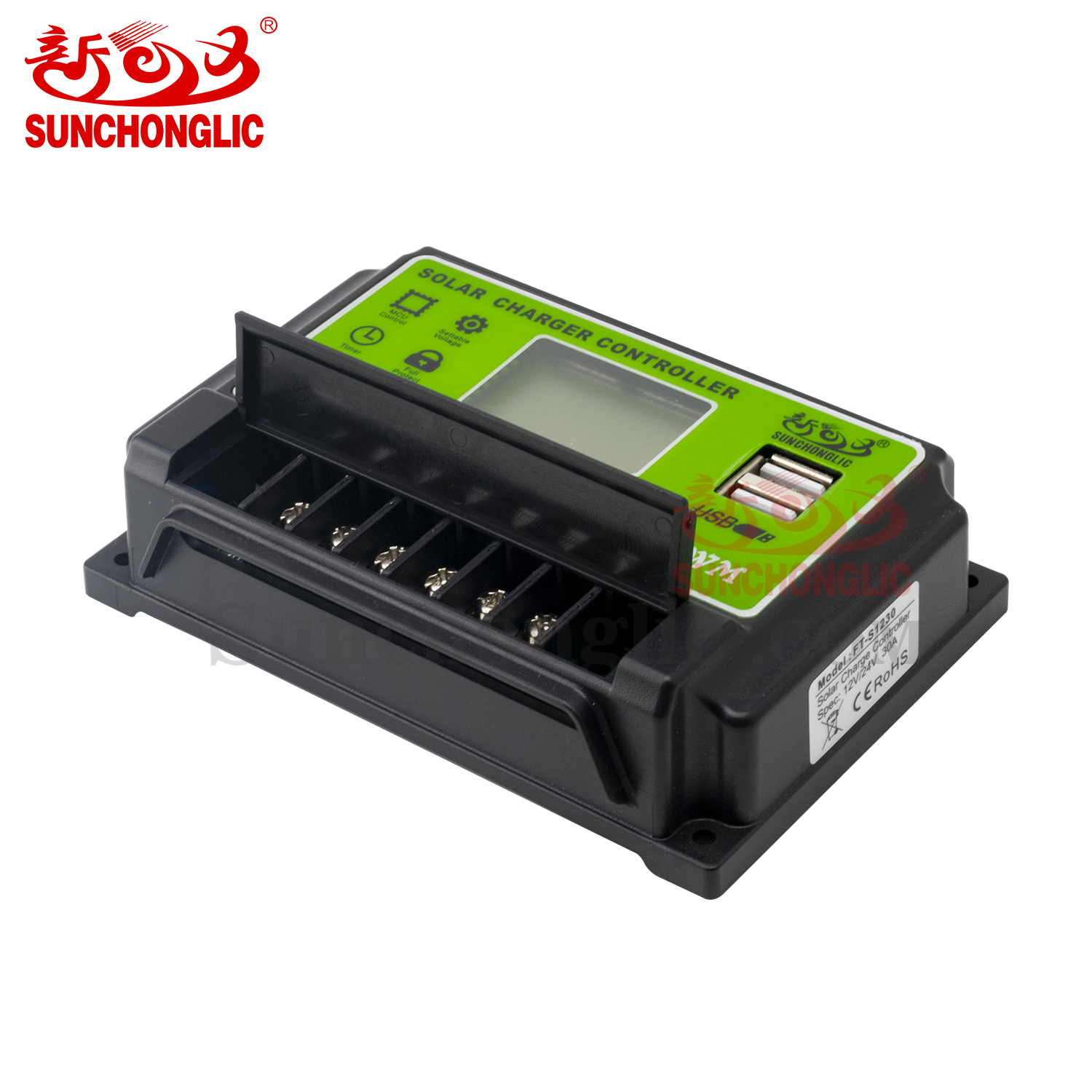

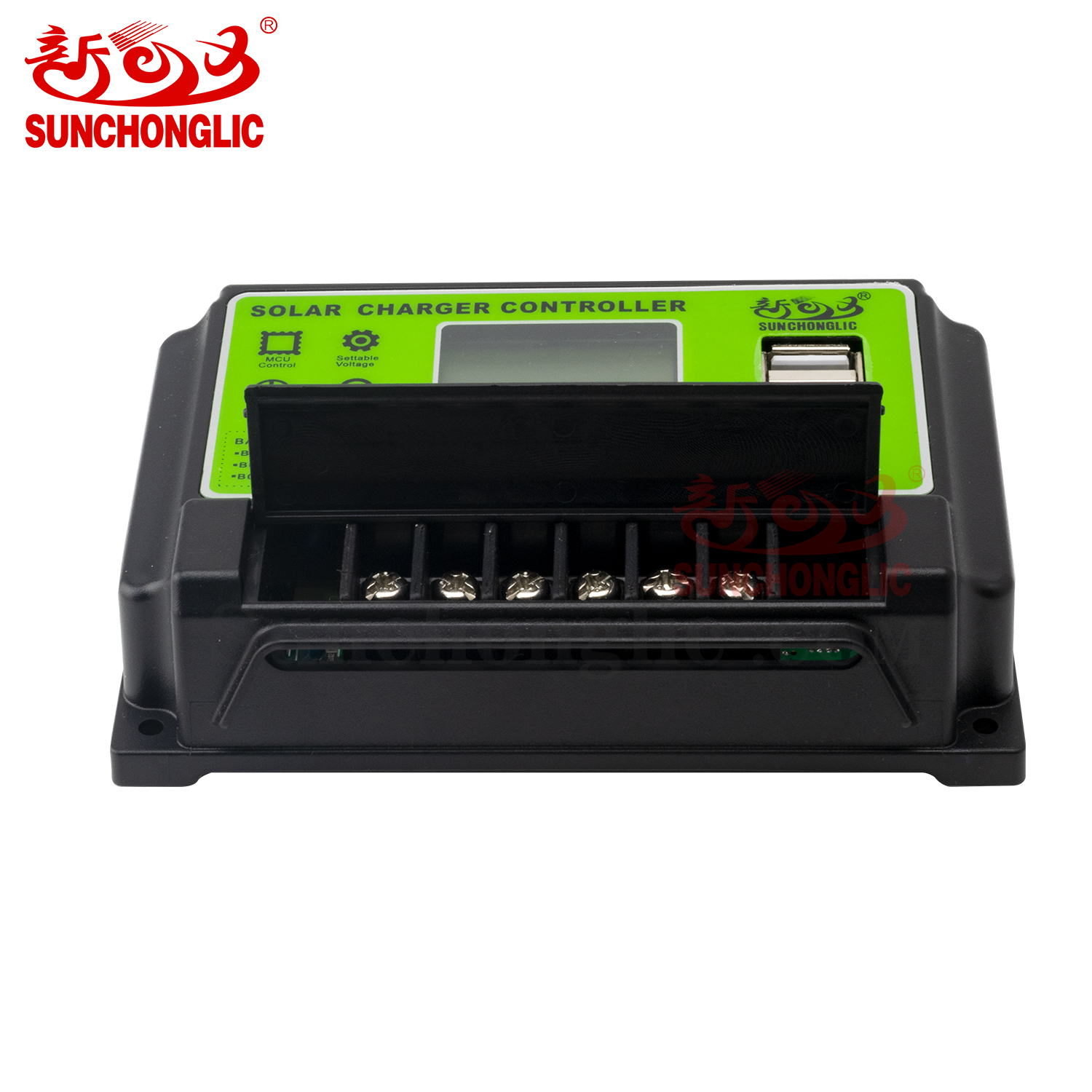

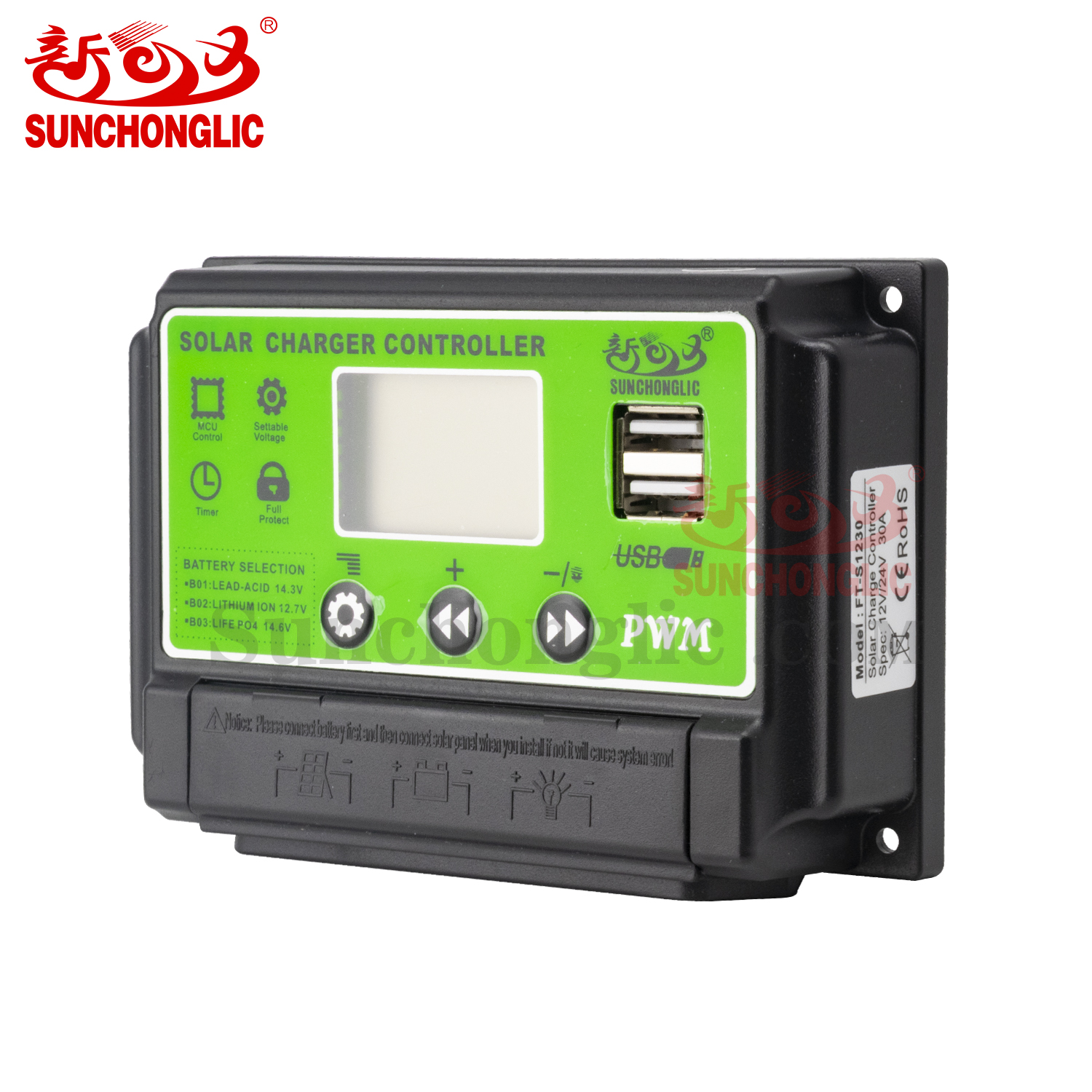

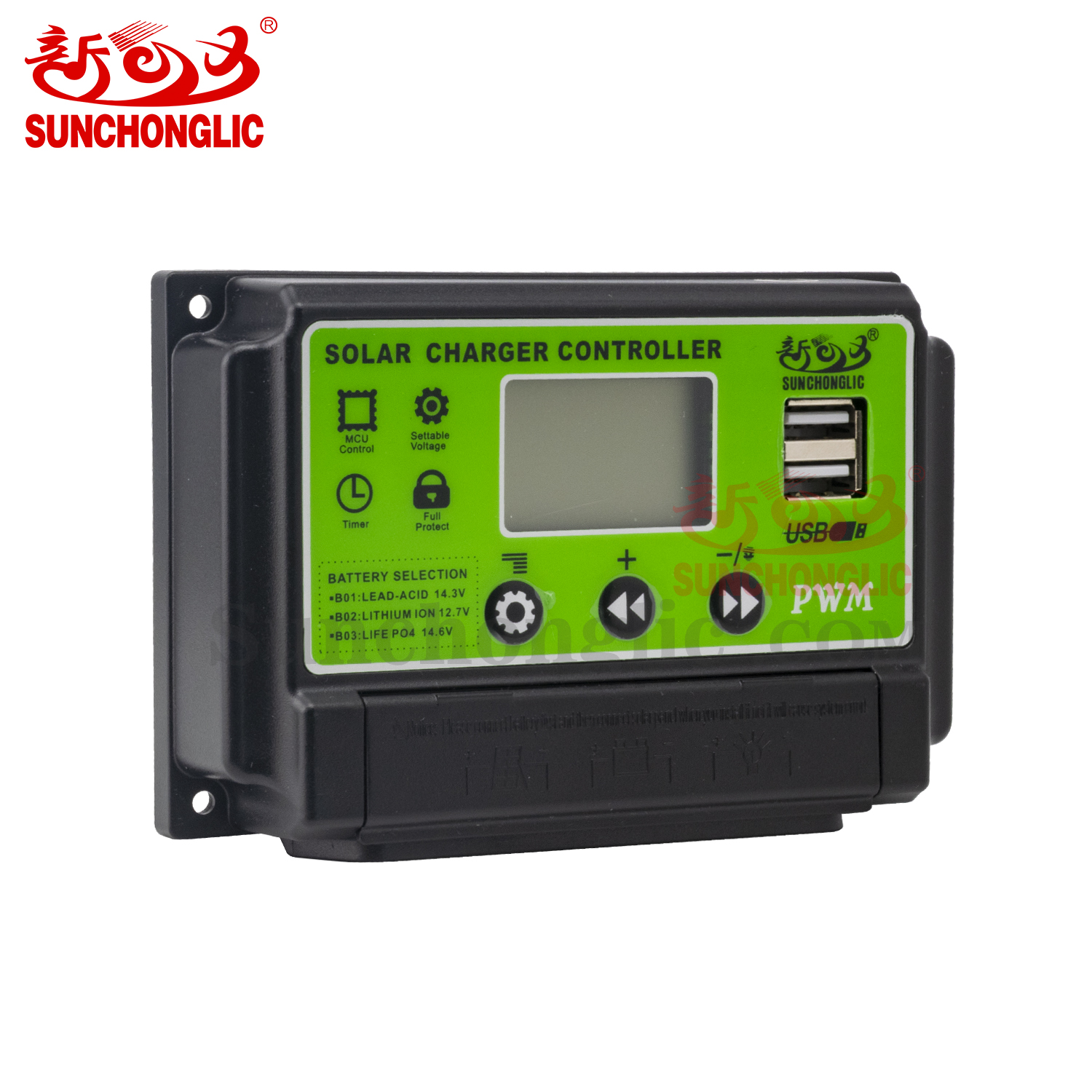

Product Photos
