FT-C1230

Sunchonglic PWM Solar Controller 12V 30A Solar Charger Controller Solar Regulator

FT-C1230

Solar Charge Controller

Features:

Clock timing function

Built-in two 5V 2A/1A USB interfaces

Extreme Low Power Consumption

Built-in IR self-learning infrared remote control to turn the DC loads on and off

LCD Display with backlight

Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V)

Light control mode,Time control mode

Reverse protection,short circuit protection

Designed for 12V/24V solar power system

Hanging style design makes it convenient to install

Available in 10A/20A/30A/40A

Simple options,automatic memory retention of users' settings

Five protection to ensure the safe, including charging over voltage / charging flow / over-current / load load short circuit / under-voltageprotection.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Product Specification
Model FT-C1210       FT-C1220 FT-C1230
to adapt to the battery 12V/24V,battery<16V:12V,Battery>18V:24V
Maximum charging voltage 12V:18-24V Standard specifications solar panels(24V battery*2)
Maximum charging current 10A 20A 30A
Maximum charging voltage Low:14.2V,Default:14.5V,High:15.2V
The largest output current 12A 24A 35A
Low voltage protection voltage 10.5V(24 battery*2)
Low pressure recovery voltage 12.5V(24 battery*2)
Load overload automatic recovery 30S
Double USB output 5V 2A/1A
Load relating to open time 0-24 hours can choose
Infrared remote control distance >5m
Pieces/CTN 40pcs 40pcs 40pcs
Weight/CTN 14.05kg 14.3kg 21kg
Dimensions/CTN 52*27*40cm 52*27*40cm 54*27*44cm

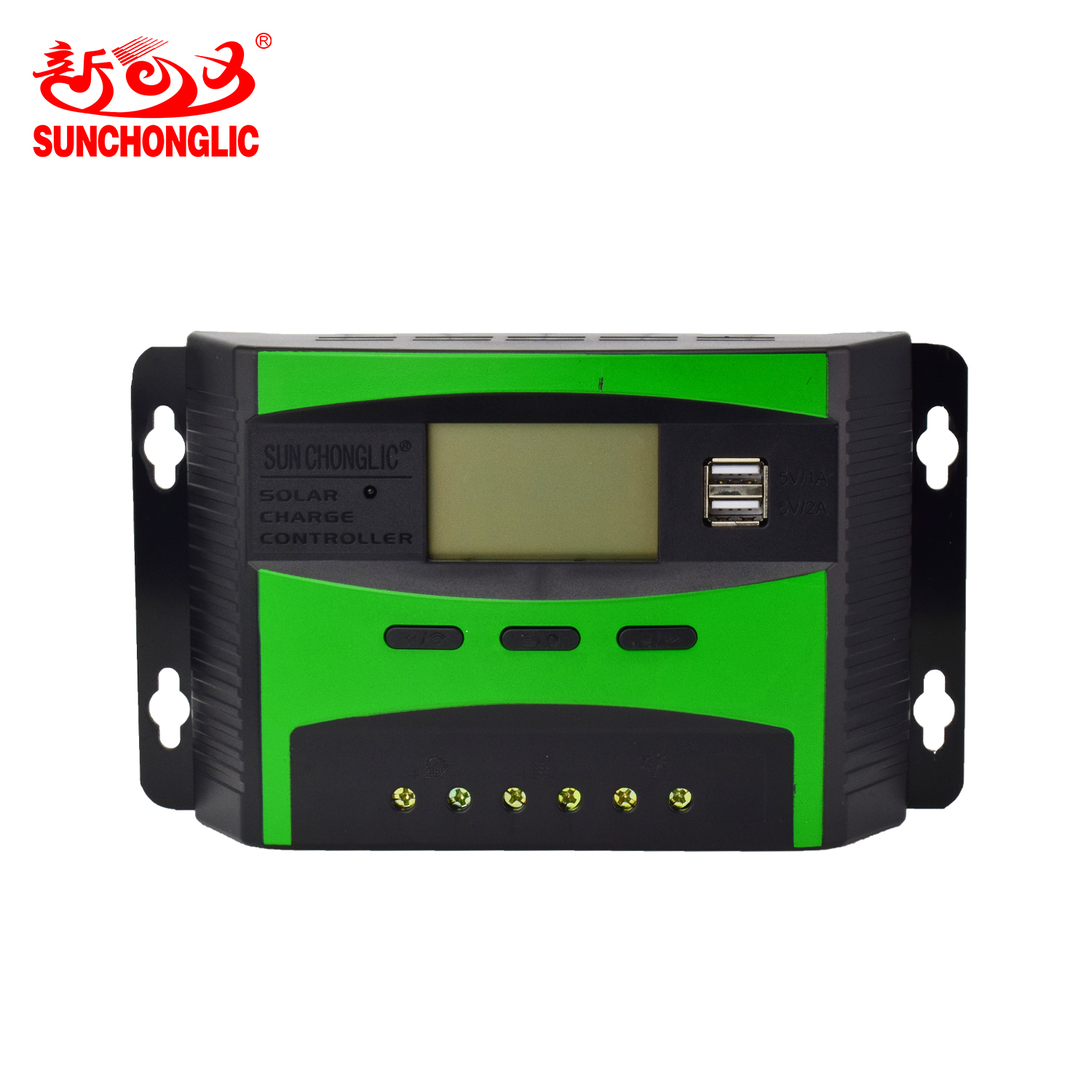

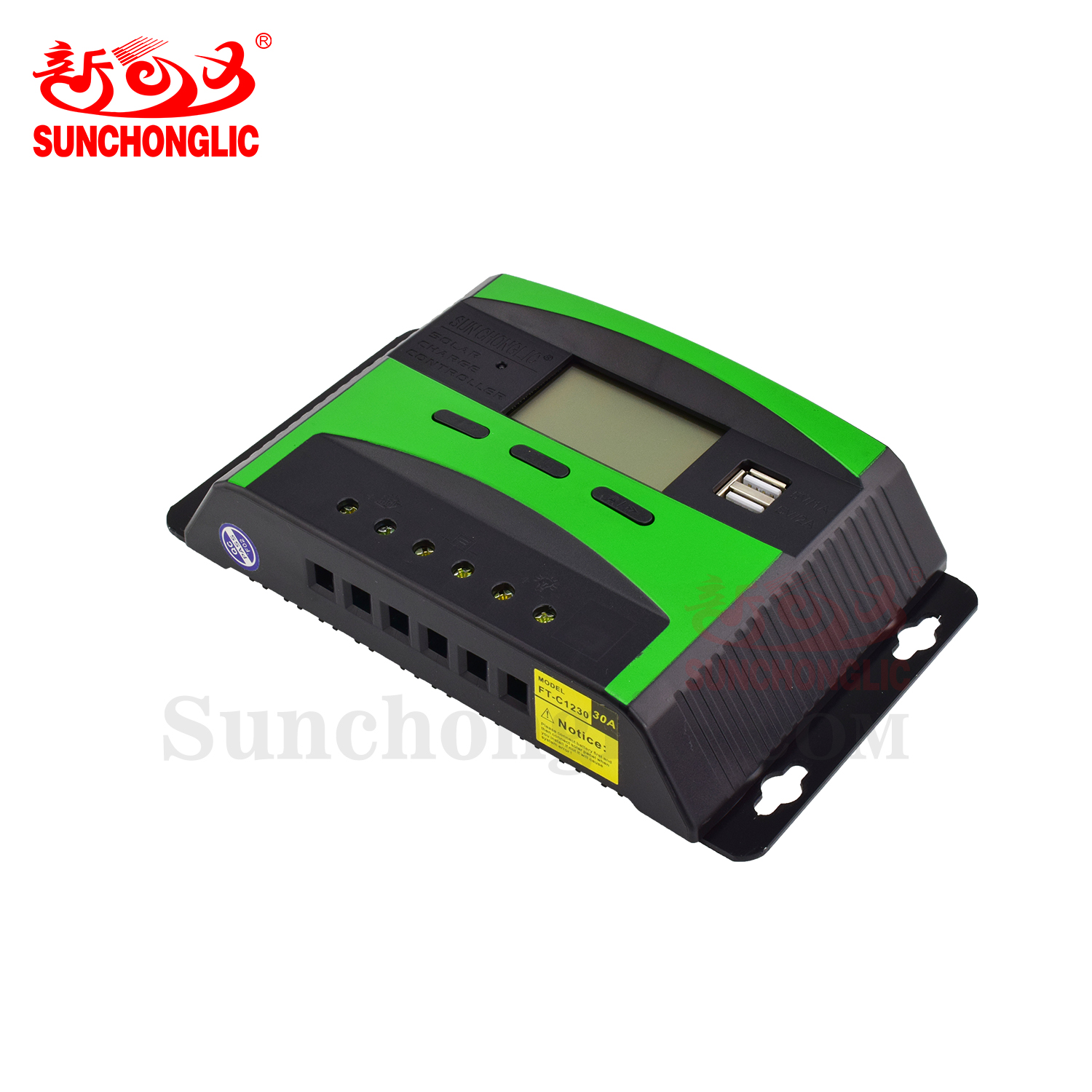

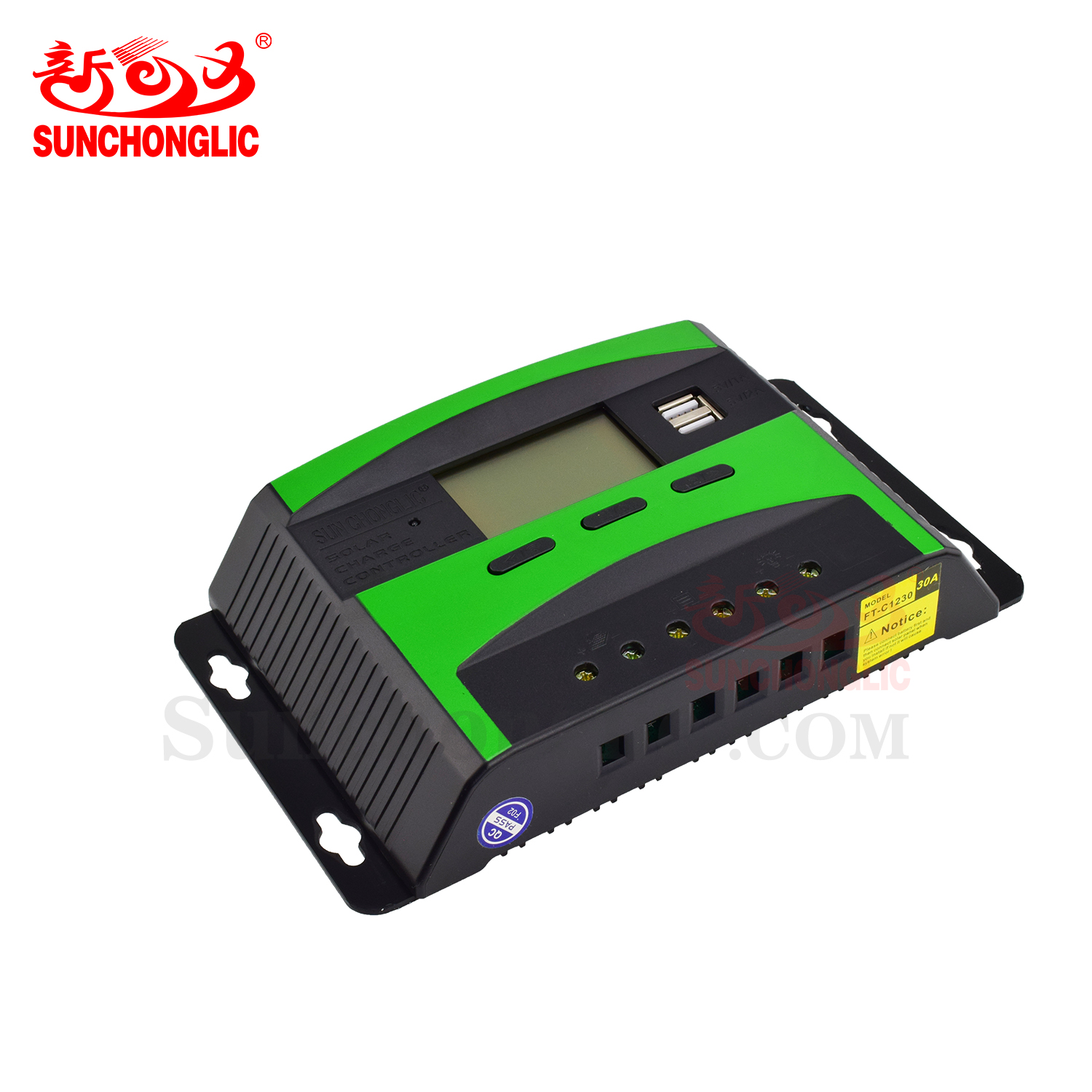

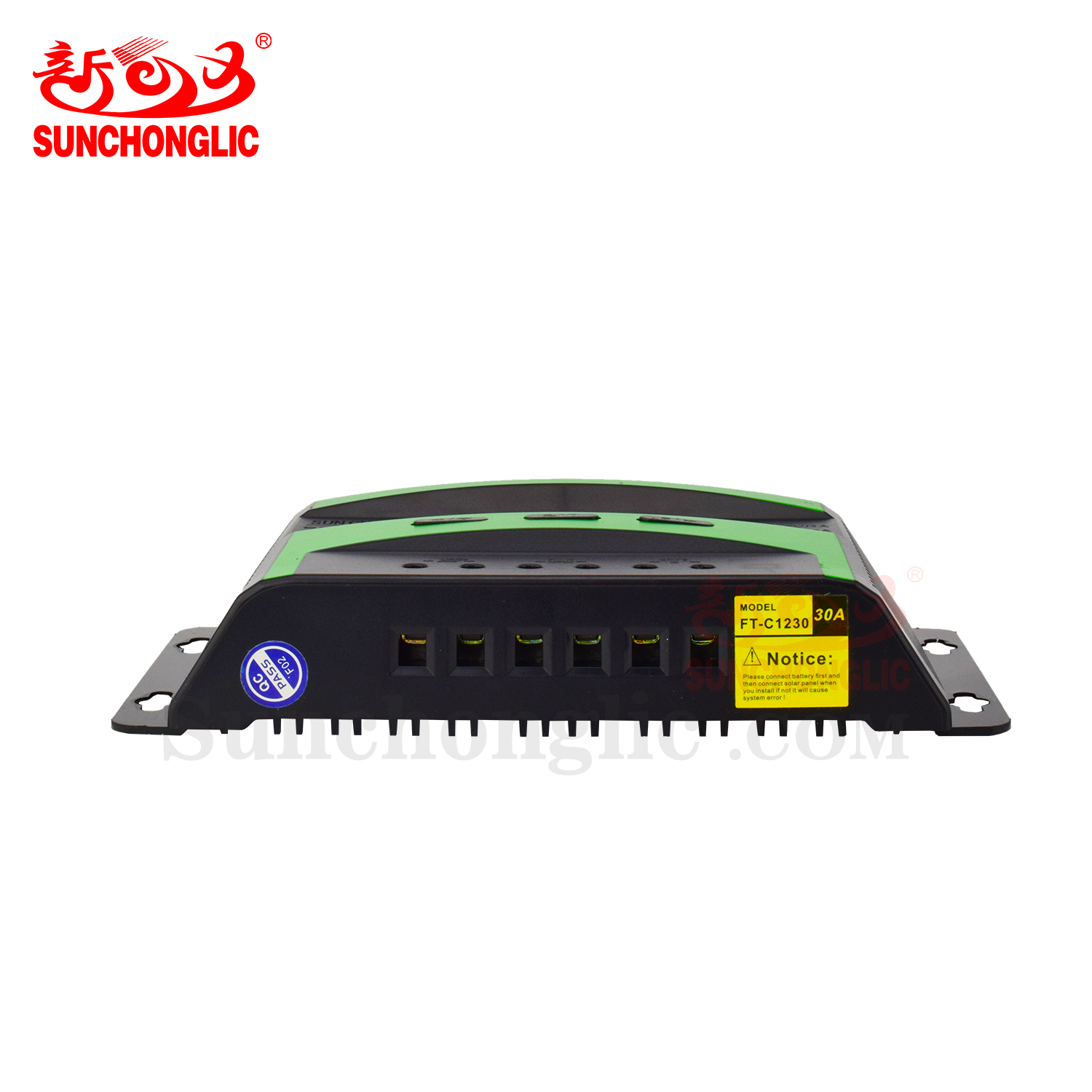

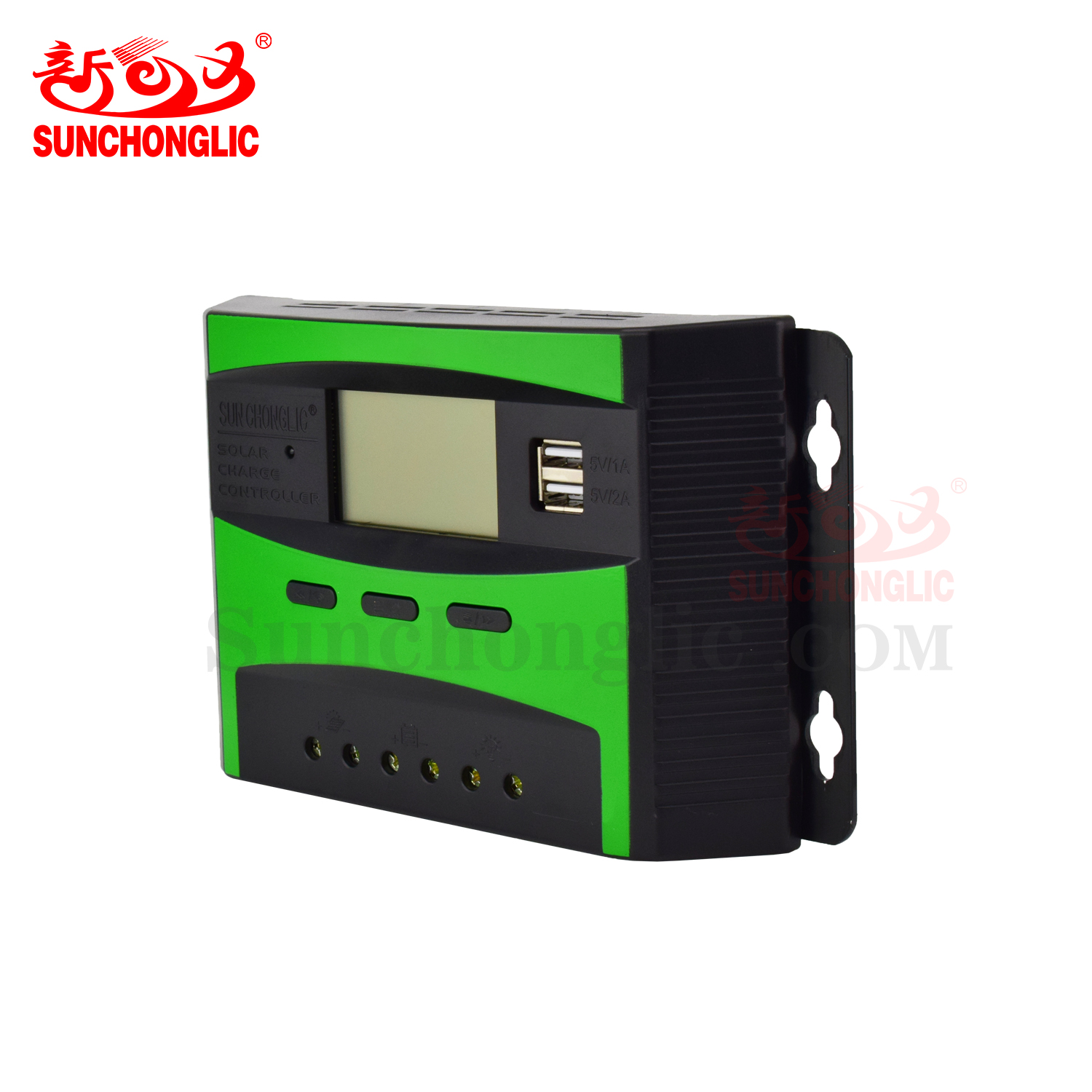

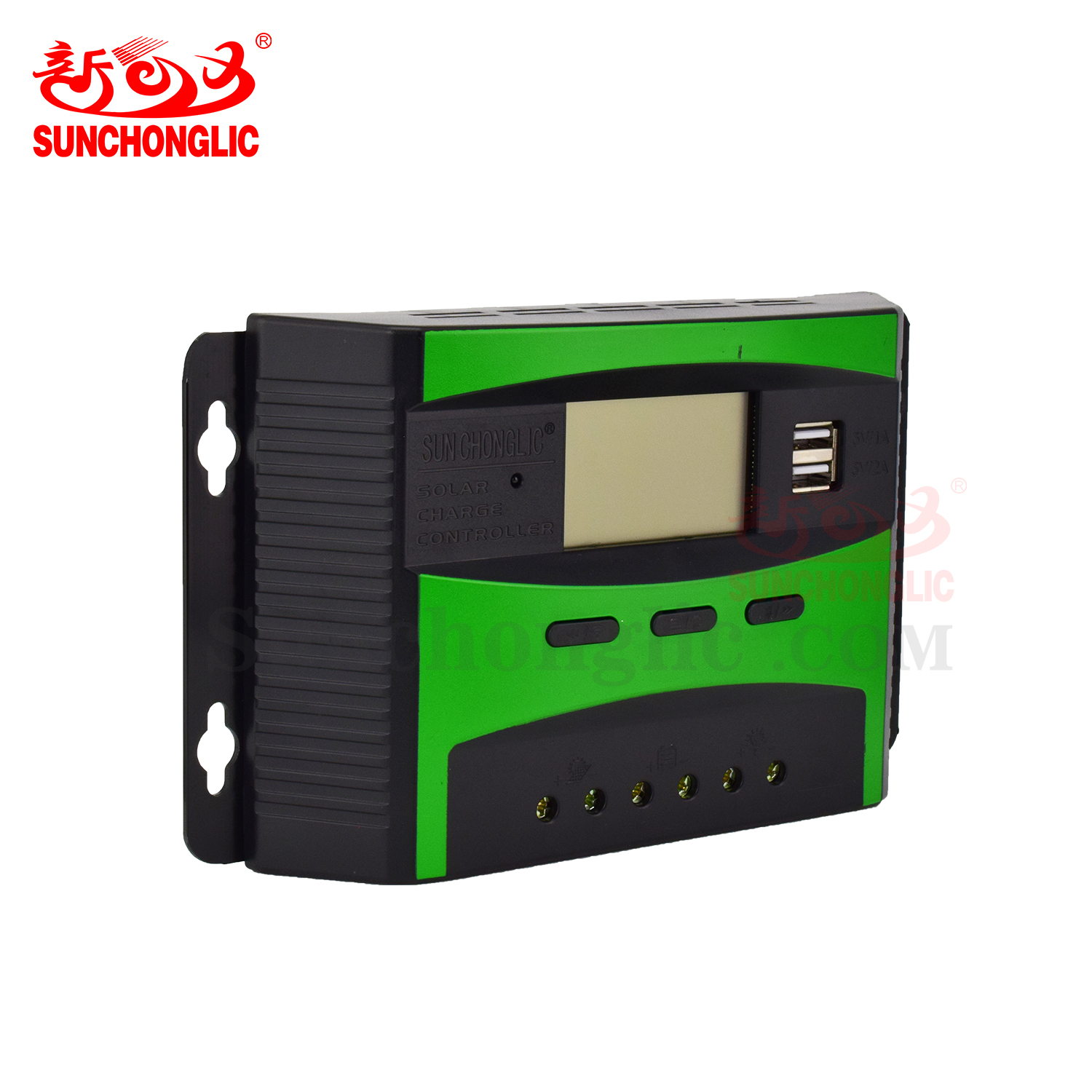

Product Photos
