FT-C1220

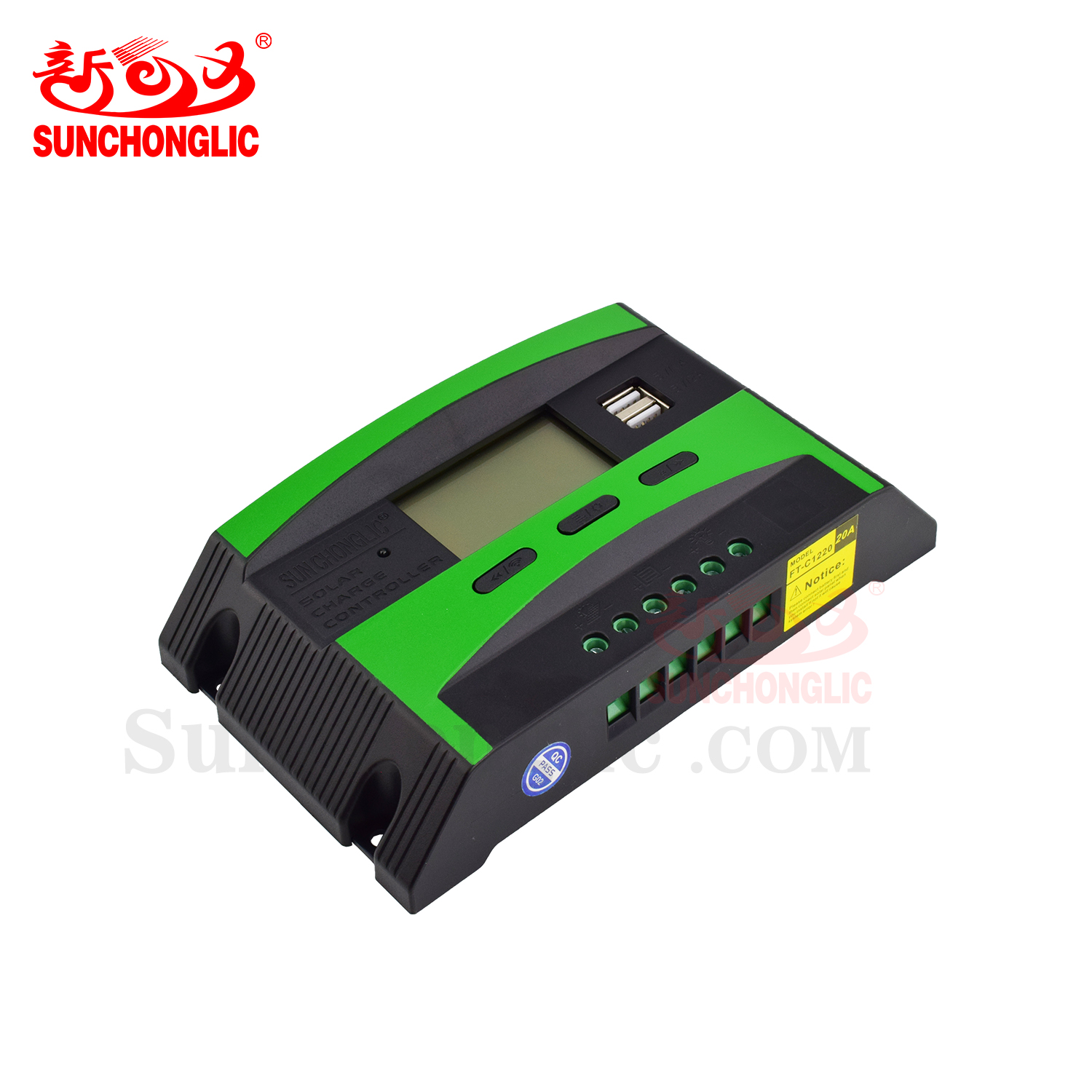

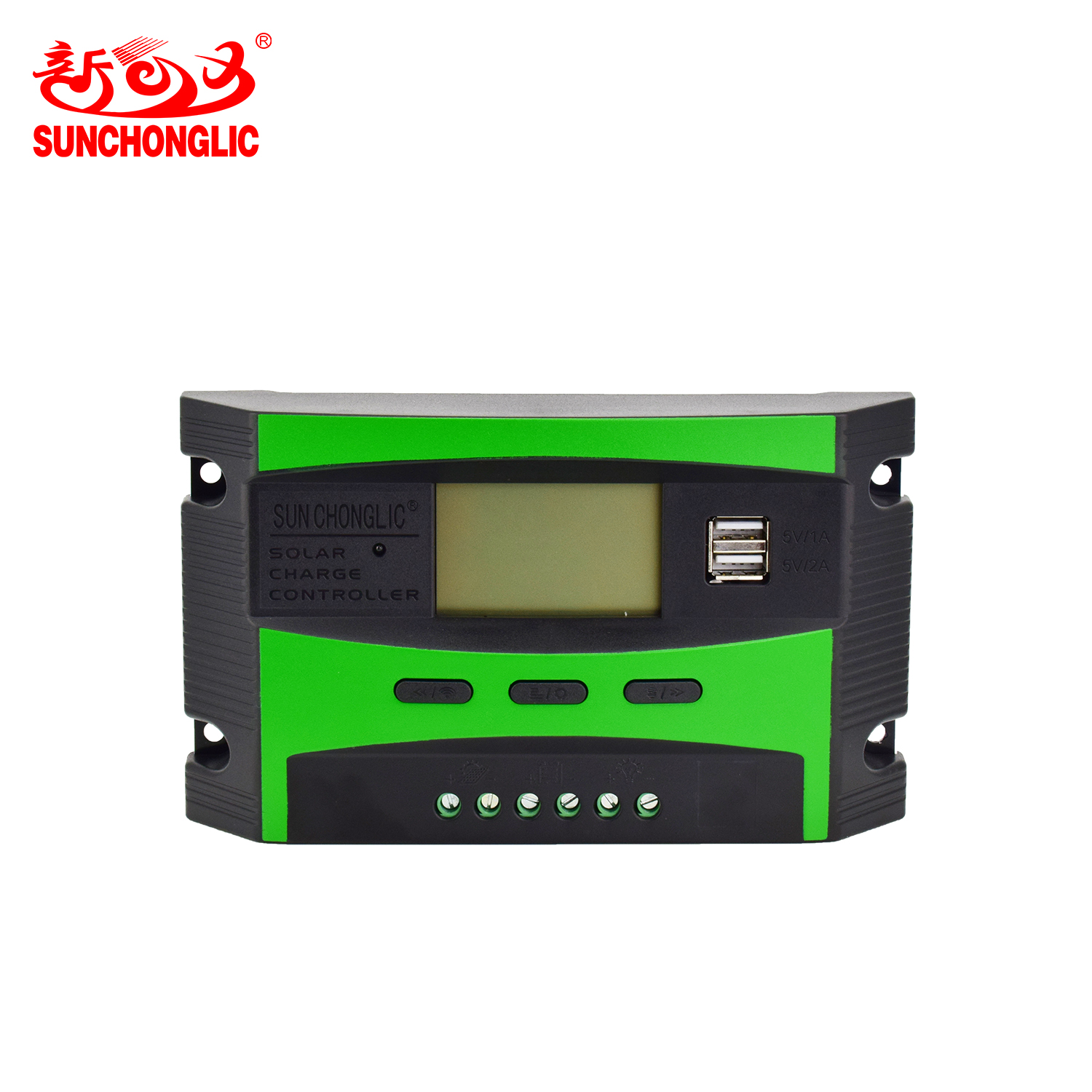

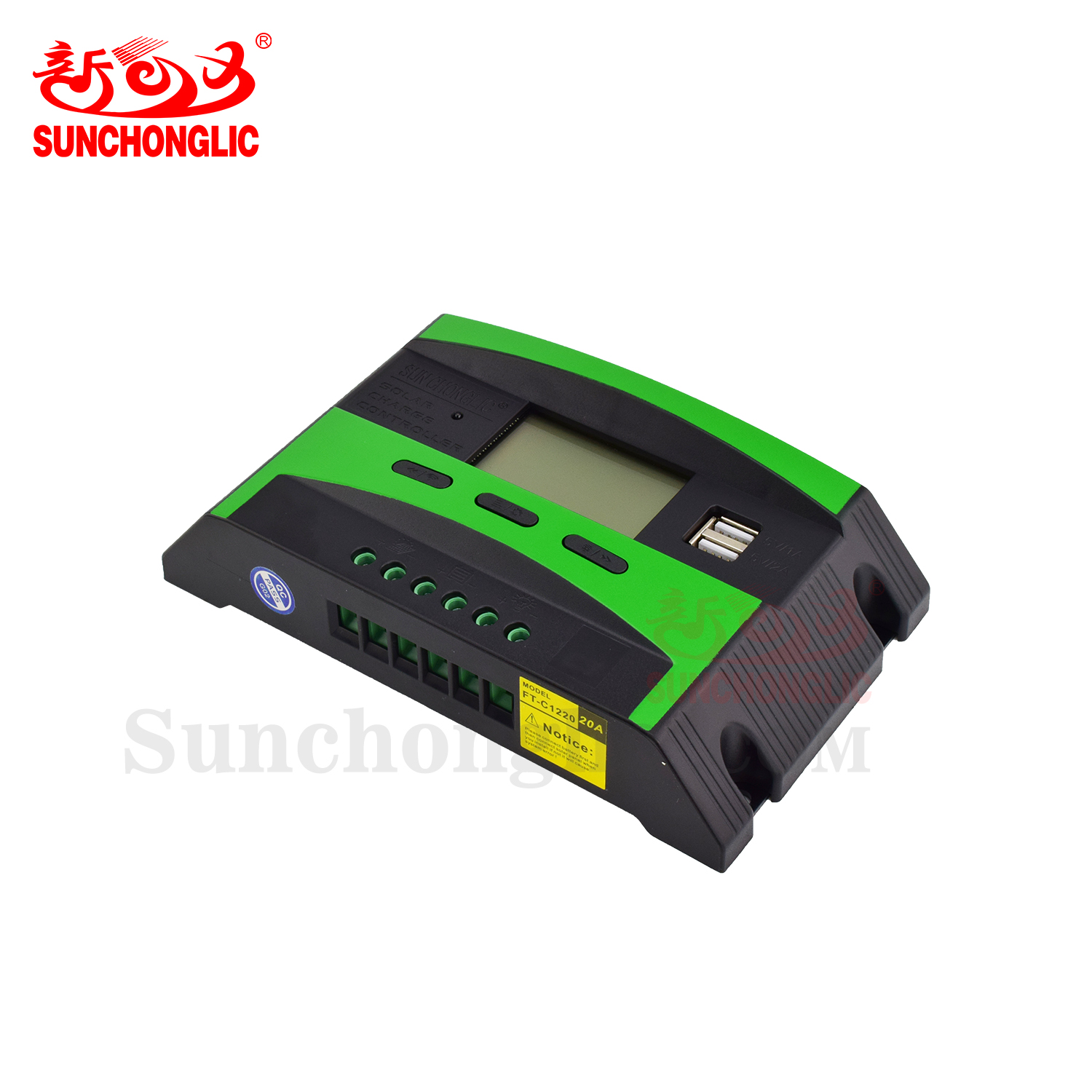

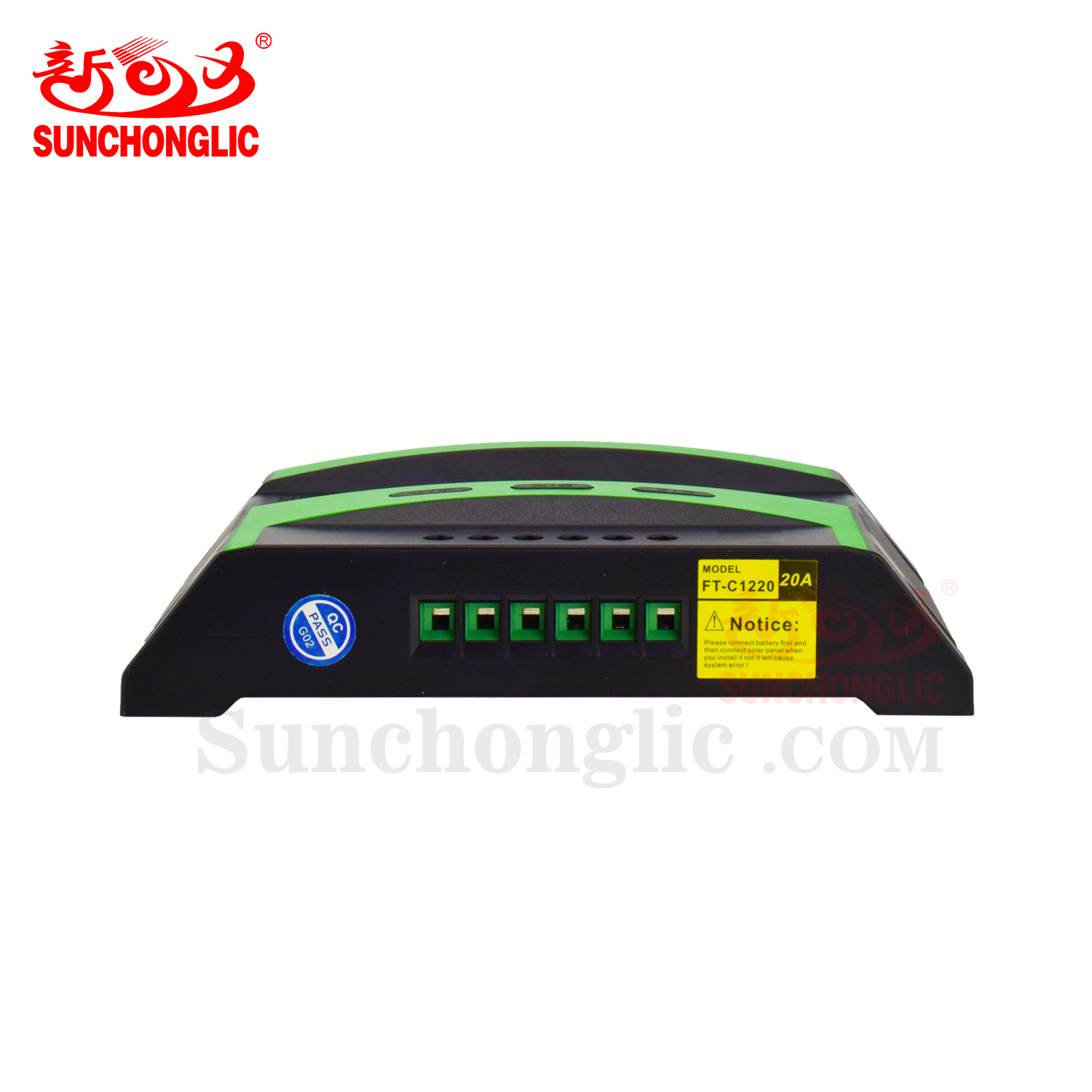

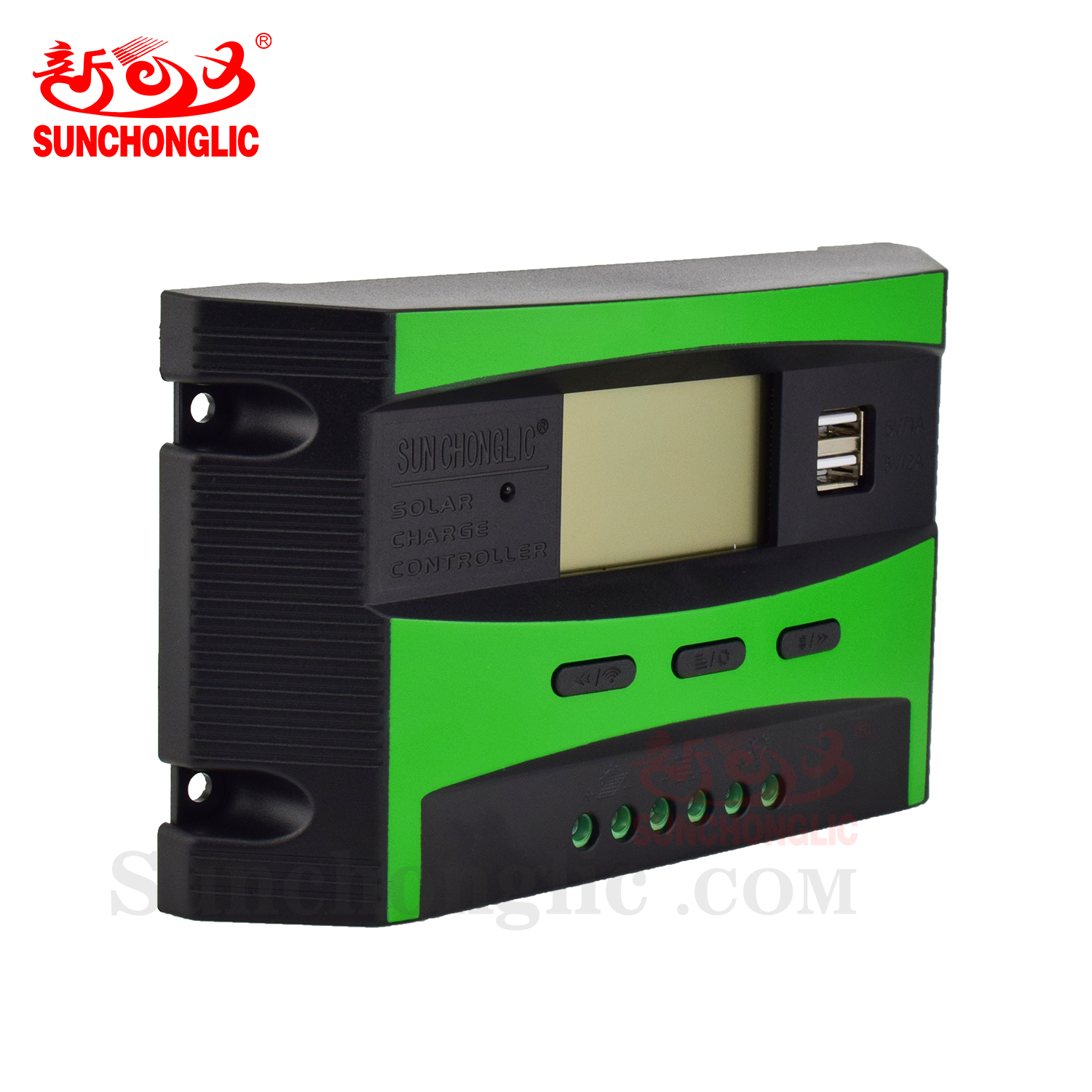

Sunchonglic 20A PWM Solar Charge Controller 12V 24V Solar Power Controller

FT-C1220

Solar Charge Controller

Features:

1. Clock timing function

2. Built-in two 5V 2.1A USB interfaces

3. Extreme Low Power Consumption

4. Built-in IR self-learning infrared remote control to turn the DC loads on and off

5. LCD Display with backlight

6. Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V)

7. Light control mode,Time control mode

8. Reverse protection,short circuit protection

9. Designed for 12V/24V solar power system

10.Hanging style design makes it convenient to install

11.Available in 10A/20A/30A/40A

12.Simple options,automatic memory retention of users' settings.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

pwm solar controller FT-C1210     FT-C1220 FT-C1230
to adapt to the battery 12V/24V,battery<16V:12V,Battery>18V:24V
Maximum charging voltage 12V:18-24V Standard specifications solar panels(24V battery*2)
Maximum charging current 10A 20A 30A
Maximum charging voltage Low:14.2V,Default:14.5V,High:15.2V
The largest output current 12A 24A 35A
Low voltage protection voltage 10.5V(24 battery*2)
Low pressure recovery voltage 12.5V(24 battery*2)
Load overload automatic recovery 30S
Double USB output 5V 2.1A
Load relating to open time 0-24 hours can choose
Infrared remote control distance >5m
Pieces/CTN 40pcs 40pcs 40pcs
Weight/CTN 14.05kg 14.3kg 21kg
Dimensions/CTN 52*27*40cm 52*27*40cm 54*27*44cm


There are several common working mode of solar controller:
1. Button Mode (Manual switching load)
2. Light Controlled Mode (Load switch is controlled by solar panels
photosensitive control and timing control)
3. Light control turn on delay off mode.
4. Circulation model (With Clock Fuction)
5.0-24 hours optical mode,switch,wireless remote control mode,etc load mode optional
All kinds of complete protection,stable and reliable(charging over voltage protection,charging flow protection,over-current protection,load load short circuit protection,under-voltageprotection)
The PWM solar controller of light and night away less than 10 ma power flow, ideal for small power solar products, such as solar street lamp light, streetlight, DC Load, illumination, solar power system and so on.
